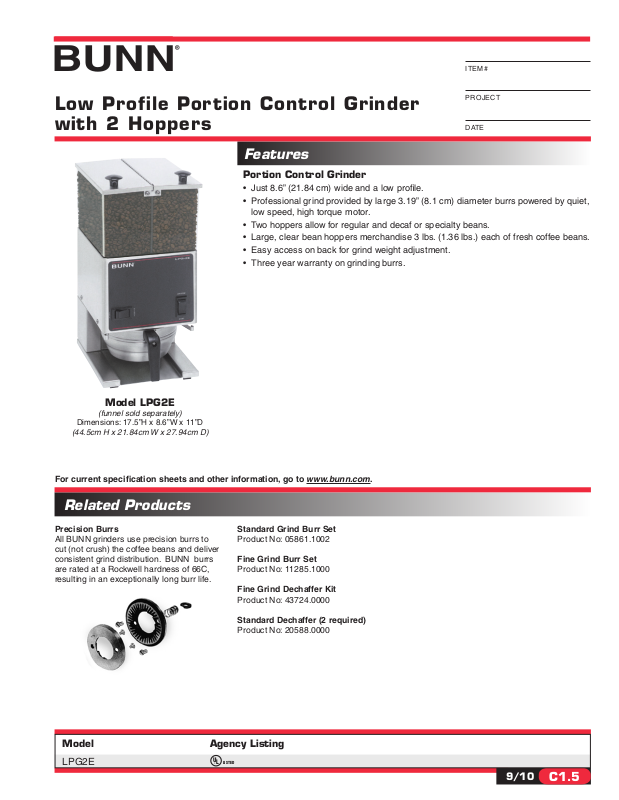

Bunn-O-Matic LPG2E General Manual

ITE M#
Low Profile Portion Control Grinder with 2 Hoppers
Features
• Just 8.6” (21.84 cm) wide and a low profile.
• Professional grind provided by large 3.19” (8.1 cm) diameter burrs powered by quiet, low speed, high torque motor.
• Two hoppers allow for regular and decaf or specialty beans.
• Large, clear bean hoppers merchandise 3 lbs. (1.36 lbs.) each of fresh coffee beans.
• Easy access on back for grind weight adjustment.
• Three year warranty on grinding burrs.
PROJECT
DATE
Model LPG2E
(funnel sold separately)
Dimensions: 17.5”H x 8.6”W x 11”D
(44.5cm H x 21.84cm W x 27.94cm D)
For current specification sheets and other information, go to www.bunn.com.
Related Products
Precision Burrs
All BUNN grinders use precision burrs to cut (not crush) the coffee beans and deliver consistent grind distribution. BUNN burrs are rated at a Rockwell hardness of 66C, resulting in an exceptionally long burr life.
Standard Grind Burr Set
Product No: 05861.1002
Fine Grind Burr Set
Product No: 11285.1000
Fine Grind Dechaffer Kit
Product No: 43724.0000
Standard Dechaffer (2 required)
Product No: 20588.0000
Model Agency Listing
U
L
LPG2E
LISTED
9/10
C1.5
Dimensions & Specifications
8.60
17.45
8.25
20.91
10.00
10.89
10.42
Model Product # Volts Amps Capacity Cu. Ft. Shipping Weight Cord Attached
LPG2E 26800.0000 120 3.5 3 lbs. for each hopper 2.6 ft3 28 lbs. Yes** LPG2E* 26800.0001 120 3.5 3 lbs. for each hopper 2.6 ft3 30 lbs. Yes**
*Model has 4” stainless steel legs. **Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Electrical: Model requires 2-wires plus ground service rated 120V, single phase, 60 Hz.
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
9/10 © Bunn-O-Matic Corporation
