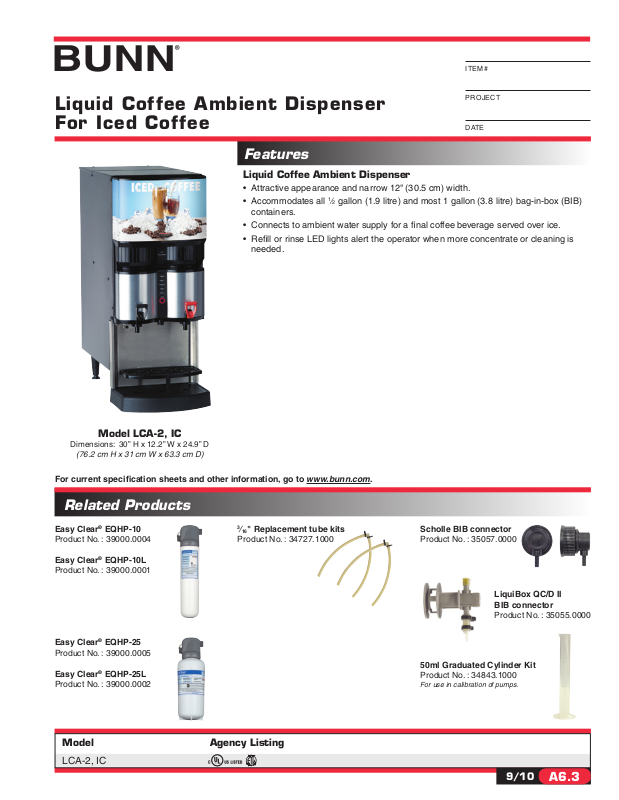

Bunn-O-Matic LCA-2 IC General Manual

ITE M#

Liquid Coffee Ambient Dispenser For Iced Coffee

Features

Liquid Coffee Ambient Dispenser

• Attractive appearance and narrow 12" (30.5 cm) width.

• Accommodates all containers.

• Connects to ambient water supply for a ﬁnal coffee beverage served over ice.

• Reﬁll or rinse LED lights alert the operator when more concentrate or cleaning is needed.

⁄2 gallon (1.9 litre) and most 1 gallon (3.8 litre) bag-in-box (BIB)

PROJECT

DATE

Model LCA-2, IC

Dimensions: 30” H x 12.2” W x 24.9” D

(76.2 cm H x 31 cm W x 63.3 cm D)

For current speciﬁcation sheets and other information, go to www.bunn.com.

Related Products

Easy Clear® EQHP-10

Product No. : 39000.0004

Easy Clear® EQHP-10L

Product No. : 39000.0001

Easy Clear® EQHP-25

Product No. : 39000.0005

Easy Clear

Product No. : 39000.0002

EQHP-25L

⁄16" Replacement tube kits

Product No. : 34727.1000

Scholle BIB connector

Product No. : 35057.0000

LiquiBox QC/D II BIB connector

Product No. : 35055.0000

50ml Graduated Cylinder Kit

Product No. : 34843.1000

For use in calibration of pumps.

Model Agency Listing

LCA-2, IC

9/10

A6.3

Dimensions & Speciﬁcations

Model Product Dispense Rate/Sec. Connector Volts Amps Watts Cubic Shipping Cord Number 1.8 oz. (53.2 ml) Type Measure Weight Attached Product Ratios

LCA-2, IC 37700.0000 25:1-45:1 Scholle 1910LX 120 2 240 9.8 ft3 83 lbs. Yes***

(.28m3) (37.6 kg)

***Power cord (NEMA 5-15P) 15 Amp-120V machine only.

Electrical: 120V model requires 2-wires plus ground service rated 120V, single phase, 60 hz.

Plumbing: 20-90 psi (138-621 kPa) from a 3⁄8" or larger supply line. Unit requires a 2.2 gpm line ﬂow capacity. A shut-off valve

should be installed in the line before the unit. Install a regulator in line when pressure is greater than 90 psi to reduce pressure to 50 psi. Supplied with 3⁄8" male ﬂare ﬁtting.

Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springﬁeld, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change speciﬁcations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in inches.
