LCA-2
LCA-2A
LCA-2 PC
LCC-2
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
34767.0000Q 06/11 ©2002 Bunn-O-Matic Corporation
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
POST OFFICE BOX 3227
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN
Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic,
Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design,
Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series,
Intellisteam, My Café, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart
Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, Titan,
A Partner You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not
bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a BUNN,
Pouring Profits, Signature Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, trifecta, Ultra, Velocity Brew are
either trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
34767 050511
TABLE OF CONTENTS
TITLE PAGE NO.
Housing & Panels .........................................................................................................................................4
Door Assembly (Early Models) .....................................................................................................................8
Door Assembly (Late Models) .....................................................................................................................12
Cabinet & Chiller .........................................................................................................................................14

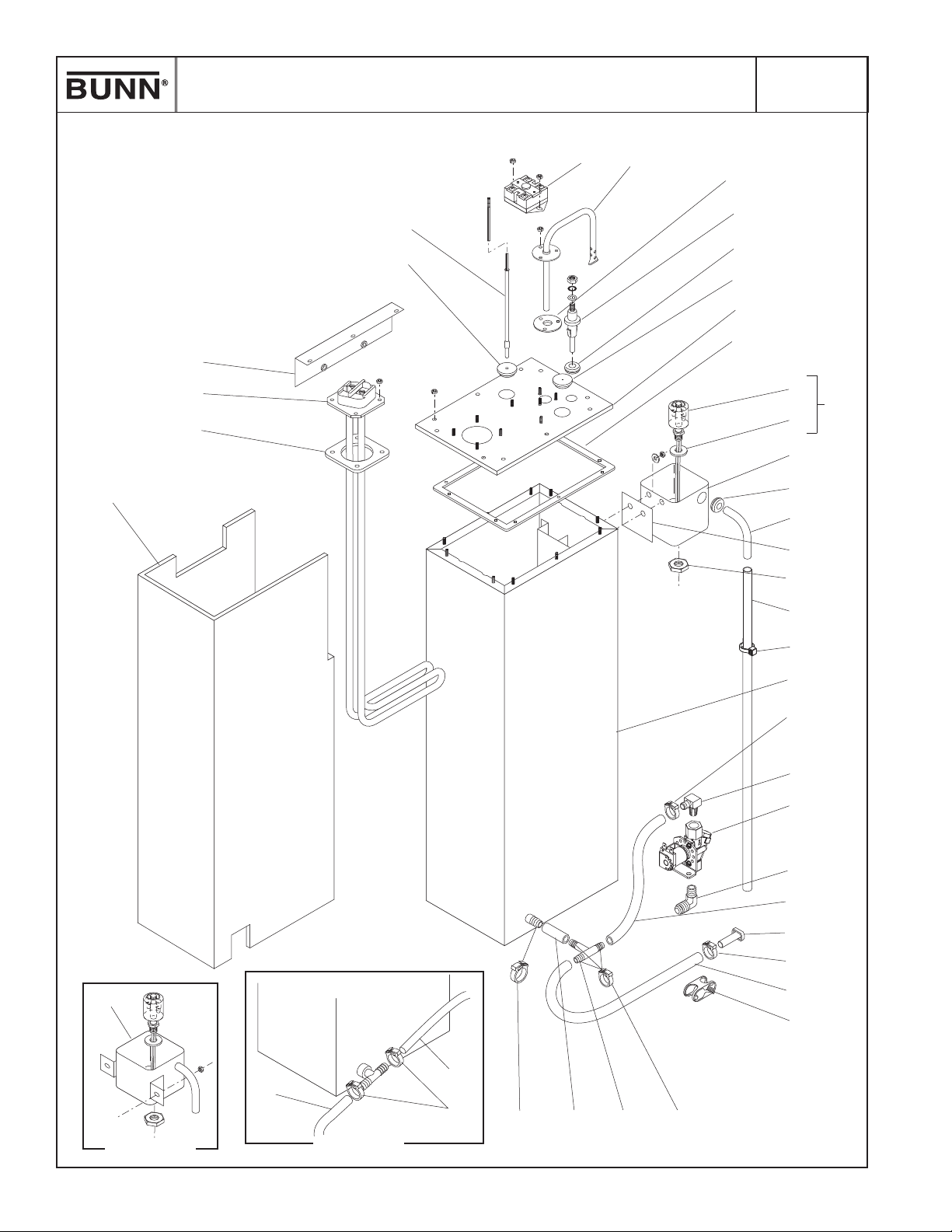

Tank Assembly ............................................................................................................................................18

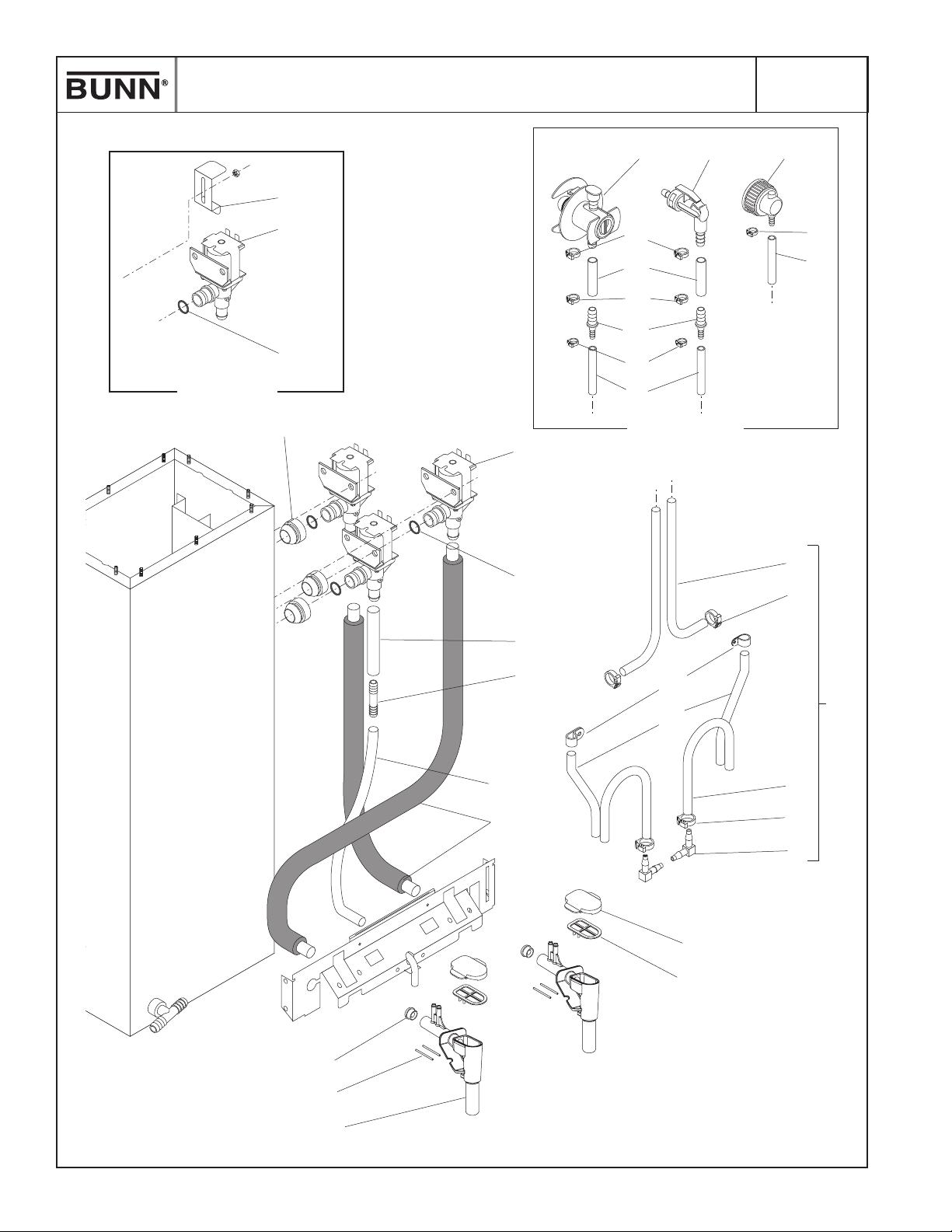

Dispense Valves & Lines .............................................................................................................................22
Pump Assembly ..........................................................................................................................................26

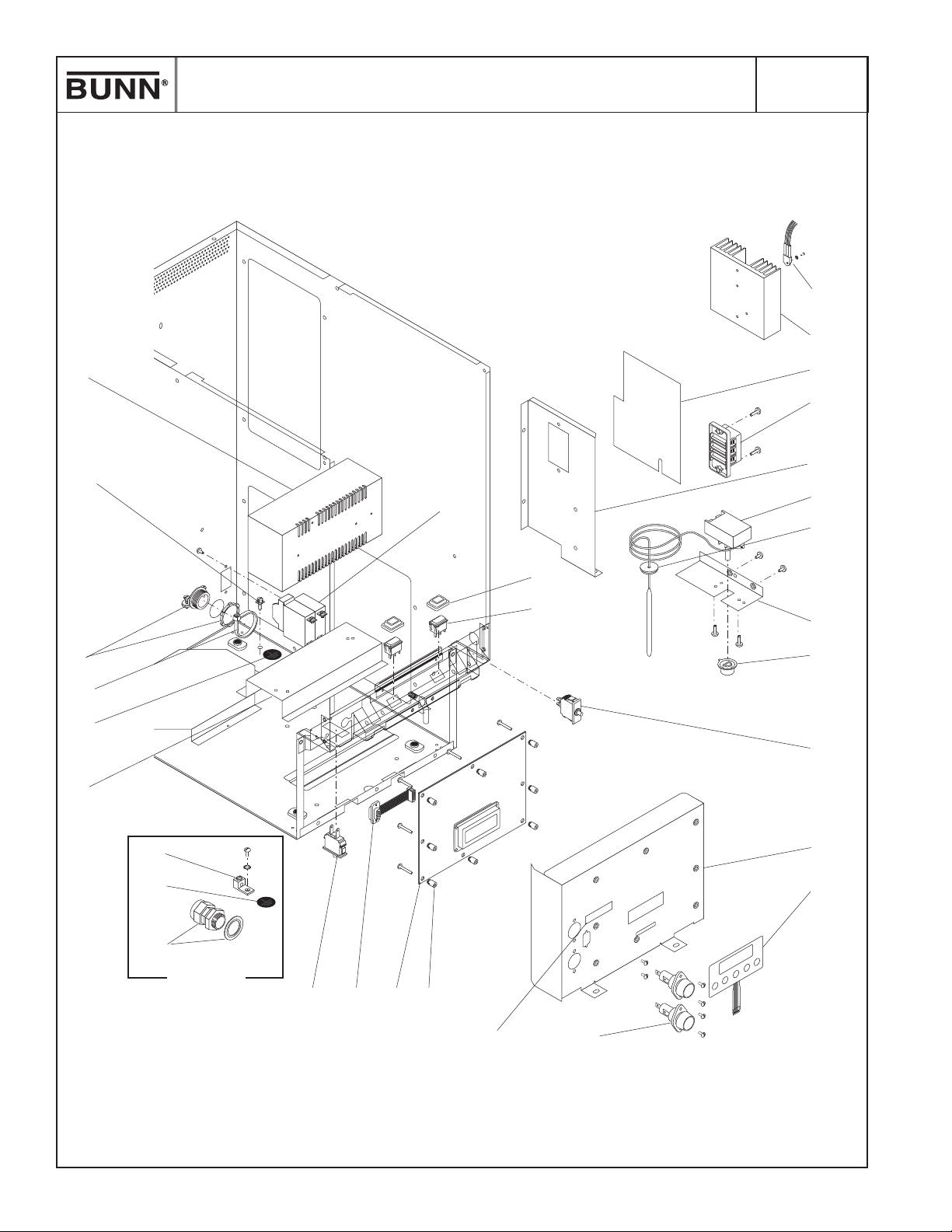

Electrical Controls .......................................................................................................................................28
Numerical Index ..........................................................................................................................................32
3
34767 070709
29
28
HOUSING & PANELS
LCC-2
LCA-2
27
26
11
8
7
6
31
3
2
30
1
29
25
24
22
29
23
21
20
GHT
I
- OFF - N
UN
R
E
D
E
IM
R
P
ION MO
CT
AL -
FUN
RM
O
N
INSE R
16
17
4
5
! WARNING HOT LIQUIDS
S
AUD
S CH
IDE
LIQU
NT
E
SSEM
AVERTI
!
18
19
7 8 9 10 12 13 14 15
P2585
4
34767 073007
HOUSING & PANELS
ITEM PART NO. QTY. DESCRIPTION
1 35825.0001* 1 Housing Assy BLK Single Piece (Not serviced. Order Decals separately)
42276.0000* 1 Housing Assy BLK Multi Piece (Not serviced. Order Decals separately)
01311.0003 29 Screw, Truss Head, Sltd. Blk #8-32 x .25" (Used to join panels & base)
2 00656.0001 1 Decal, Comply to Plumbing Code
3 00986.0002 1 Decal, Warning - Electrical
4 26528.0000 4 Leg 4.0" adj.
01526.0001 4 Washer, Flat
5 34335.0001* 1 Hinge, Lower Door
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
6 34385.0001 1 Hinge, Upper Door .25" Pin length (Early model doors w/Bushing)
34385.0003 1 Hinge, Upper Door .375" Pin length (Late model doors w/o Bushing)
01315.0005 1 Screw, Truss Head, Sltd. Blk #8-32 x .38"
7 11707.0040* 1 Hose, Silicone .25" ID x 35.0" (Order item 33)
8 12422.0000 2 Clamp .47/.54" ID
9 32656.0000 1 Elbow .25" x .38" Barb
10 02536.0000 1 Grommet
11 34169.0002 1 Brace
02331.0001 2 Screw, Truss Head, Sltd. Blk #10-32 x .38"
12 34152.0003 1 Bracket
01315.0005 3 Screw, Truss Head, Sltd. Blk #8-32 x .38"
01382.0000 2 Screw, Truss Head, Sltd. Blk #6-32 x .38"
13 35188.0000 1 Bracket
01315.0005 4 Screw, Truss Head, Sltd. Blk #8-32 x .38"
14 34783.0000 1 Decal, Dispense Platform
15 34366.0000 1 Bracket (Early Models)
16 39999.1000 1 Splash Panel w/Decal (Includes item 17)
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
17 11646.0002 1 Decal, Warning - Hot Liquids
18 34379.0002 1 Cover, Drip Tray (See item 32)
19 38433.0000 1 Drip Tray (See item 32)
20 34821.1000 1 Cup Tray
21 34472.0000 1 Lock, Door (Includes Keys)
28095.0000 1 Key Set
22 34186.1005 1 Panel w/Decals, Lower Access (Includes items 23, 24 & 29)
01311.0005 4 Screw, Truss Head, Sltd. Blk #8-32 x .38"
23 34960.0000 1 Decal, Terminal Block Wiring
34960.0001* 1 Decal, Terminal Block Wiring (Models w/Master ON/OFF Switch)
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
5
34767 060611
29
28
HOUSING & PANELS
(Continued)
LCC-2
LCA-2
27
26
11
8
7
6
31
3
2
30
1
29
25
24
22
29
23
21
20
GHT
I
- OFF - N
UN
R
E
D
E
IM
R
P
ION MO
CT
AL -
FUN
RM
O
N
INSE -
R
16
17
4
5
! WARNING HOT LIQUIDS
S
AUD
S CH
IDE
LIQU
NT
E
SSEM
AVERTI
!
18
19
7 8 9 10 12 13 14 15
P2585
6
34767 073007
HOUSING & PANELS
ITEM PART NO. QTY. DESCRIPTION
24 34641.0000 1 Schematic, Electrical (LCC-2, LCA-2)
34641.0001 1 Schematic, Electrical (LCC-2A, LCA-2A)
34641.0003 1 Schematic, Electrical (LCC-2, LCA-2)(Models w/Master ON/OFF Switch)
25 34190.0000 1 Brace
01311.0003 2 Screw, Truss Head, Sltd. Blk #8-32 x .25"
26 34194.1001 1 Panel w/Decal, Upper Access (Includes item 29)
01311.0005 4 Screw, Truss Head, Sltd. Blk #8-32 x .38"
27 34281.0001 1 Cover, Top/Front (Models LCC-2 only)
34165.0003 1 Cover, Top/Front (Models LCA-2 only)
02331.0001 2 Screw, Truss Head, Sltd. Blk #10-32 x .38"
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
28 34189.1001 1 Cover w/Decal, Top/Rear (Includes item 29)
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
29 37881.0000 3 Decal, No Serviceable Parts
30 28181.0003 1 Decal, Optional Field Wiring
31 38820.0000 1 Plate, Cover (Not used on models w/Master ON/OFF Switch)
01308.0003 2 Screw, Truss Head, Locking BLK #6-32 x .25"
32 34893.0001 - Drip Tray Kit (Includes items 18 & 19)
33 11707.1000 - Hose, Silicone .25" ID x 12.0" (Use as required)
11707.1001 - Hose, Silicone .25" ID x 36.0" (Use as required)
11707.1002 - Hose, Silicone .25" ID x 120.0" (Use as required)
Not Illustrated
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
7
34767 012111
DOOR ASSEMBLY (Early Models)
1 2 3 4 5 6 29 27 28
LCC-2
LCA-2
21
22
7
8
9
10
11
12
18 33 32
23
24
ER
OW
P
Y
READ
N
TIO
OR
P
SE
RIN
L
REFIL
!
STOP
HOT WATER
13
14 15 16 17 19 20
Models LCA-2 and LCC-2 only
31 30 26 25 26
8
P2586
P2586
34767 070709
DOOR ASSEMBLY (Early Models)
ITEM PART NO. QTY. DESCRIPTION
- 34284.0011 1 Door Assembly, Standard Controls (Includes items 6,7,10,13 & 14 - 26)
34284.1012 1 Door Assembly, Portion Control (Includes items 6,7,10,13,14,18, 21 - 26 & 30 - 33)
1 34531.1000 1 Plate w/Decal (Includes item 2)
01322.0001 6 Screw, Round Head Sltd. #8-32 x 1.25"
2 34809.0001 1 Decal, Maintenance
3 34667.0000 1 Keeper, Door Latch
02336.0000 2 Screw, Truss Head Sltd. #4-40 x .38"
4 34150.0000 1 Seal, Product Cabinet
5 34473.0000 1 Insulation, Door
6 - - - - - - - - 1 Frame, Door (Not Serviced)
7 34334.0000 1 Bracket
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
8 34362.0000 1 Bushing, Lower Hinge
9 - - - - - - - - 1 Lower Door Hinge (See HOUSINGS & PANELS)
10 29504.0004 1 Shoulder Screw #8-32
11 34527.0000 1 Panel
38044.0000 2 Screw, Pan Head #6 48-2
12 26444.0000 1 Bushing, Strain Relief
13 38735.1000 1 Circuit Board, LED
38044.0000 2 Screw, Pan Head #6 48-2
14 33039.0001 2 Switch, Membrane
15 34340.1000 1 Button Kit (Includes two buttons)
16 34341.1000 2 Stem, Handle
17 34742.0000 2 Spring
18 34387.0000 1 Cover, Switch
19 01219.0000 2 Pin, Faucet Handle
20 33434.1000 1 Handle, Black
33434.1002 1 Handle, Orange
21 34362.0001 1 Bushing, Upper Hinge (Early models only)
22 34283.0001 1 Door Front
38044.0000 13 Screw, Pan Head #6 48-2
Includes item 19
Models LCA-2 & LCC-2
with Standard Controls
Models LCA-2 & LCC-2
with Standard Controls
23 34708.0000 1 Decal, Upper Door Wrap
24 34712.0000 1 Decal, Flavor Gard
25 34711.0000 1 Decal, LED Display
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
9
34767 070709
DOOR ASSEMBLY (Early Models)
(Continued)
1 2 3 4 5 6 29 27 28
LCC-2
LCA-2
21
22
7
8
9
10
11
12
18 33 32
23
24
ER
OW
P
Y
READ
N
TIO
OR
P
SE
RIN
L
REFIL
!
STOP
HOT WATER
13
14 15 16 17 19 20
Models LCA-2 and LCC-2 only
31 30 26 25 26
10
P2586
34767 070709
DOOR ASSEMBLY (Early Models)
ITEM PART NO. QTY. DESCRIPTION
26 34709.0000 1 Decal, Left Faux Server
34710.0000 1 Decal, Right Faux Server
27 35087.0000 1 Bracket, Switch
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
28 36012.0000 1 Bracket, Latch
29 34340.0000* 1 Button
30 36554.0000 2 Membrane Switch
31 36673.0000 2 Bezel
32 36785.0000 2 Washer, Wavy
33 36786.0000 2 Snap Ring
Models LCA-2, PC
with Portion Controls
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
11
34767 070709
DOOR ASSEMBLY (Late Models)
3 1 2 4 5 6 25
LCC-2
LCA-2
20
7
8
9
10
11
12
17 29 28
21
22
POWER
READY
PORTION
RINSE
L
REFIL
STOP!
HOT WATER
13 14 15 16 18 19
Models LCA-2 and LCC-2 only
27 26 24 23 24
12
P4106.50
34767 070709
DOOR ASSEMBLY (Late Models)
ITEM PART NO. QTY. DESCRIPTION
- 41925.1011 1 Door Assembly, Standard Controls (Includes items 6,7,10 & 12 - 24)
41925.1012 1 Door Assembly, Portion Control (Includes items 6,7,10,12,14,17, 20 - 29)
1 40095.0000 1 Plate w/Decal (Includes item 2)
01322.0001 6 Screw, Round Head Sltd. #8-32 x 1.25"
2 34809.0001 1 Decal, Maintenance
3 34667.0001 1 Keeper, Door Latch
02336.0000 2 Screw, Truss Head Sltd. #4-40 x .38"
4 41512.0000 1 Seal, Product Cabinet
5 40092.0000 1 Insulation, Door
6 40087.0000* 1 Frame, Door (Not Serviced)
7 40091.0000 1 Bracket
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
8 34362.0000 1 Bushing, Lower Hinge
9 - - - - - - - - 1 Lower Door Hinge (See HOUSINGS & PANELS)
10 29504.0004 1 Shoulder Screw #8-32
11 40094.0000 1 Panel
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
12 38735.1000 1 Circuit Board, LED
38044.0000 2 Screw, Pan Head #6 48-2
13 33039.0001 2 Switch, Membrane
14 34340.1000 1 Button Kit (Includes two buttons)
15 34341.1000 2 Stem, Handle
16 34742.0000 2 Spring
17 34387.0000 1 Cover, Switch
18 01219.0000 2 Pin, Faucet Handle
19 33434.1000 1 Handle, Black
33434.1002 1 Handle, Orange
20 34283.0001 1 Door Front (Not serviced separately)
38044.0000 13 Screw, Pan Head #6 48-2
21 34708.0000 1 Decal, Upper Door Wrap
22 34712.0000 1 Decal, Flavor Gard
23 34711.0000 1 Decal, LED Display
24 34709.0000 1 Decal, Left Faux Server
34710.0000 1 Decal, Right Faux Server
Includes item 19
Models LCA-2 & LCC-2
with Standard Controls
Models LCA-2 & LCC-2
with Standard Controls
25 34340.0000* 1 Button
26 36554.0000 2 Membrane Switch
27 36673.0000 2 Bezel
28 36785.0000 2 Washer, Wavy
29 36786.0000 2 Snap Ring
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
13
Models LCA-2, PC
with Portion Controls
34767 120809
CABINET & CHILLER
LCC-2
LCA-2
26
25
24
4
3
6
8
2
17
22
23
21
7
2
1
5
10
9
11
16
20
19
18
17
15
14
13
12
14
P2587
34767 040803
CABINET & CHILLER
ITEM PART NO. QTY. DESCRIPTION
1 34185.0002* 1 Cabinet (Models LCC-2 only)
34185.0001* 1 Cabinet (Models LCA-2 only)
2 34339.0000 2 Insulation, Cabinet Side
3 34338.0000 1 Insulation, Cabinet Back
4 34771.0000 1 Insulation, Cabinet Top
5 34337.0000 1 Insulation, Cabinet Bottom
6 33358.0000 1 Fan Assy, Lower
01317.0000 4 Screw, Truss Head Sltd. #8-32 x .50"
00908.0000 4 Nut #8-32
7 34010.0000 1 Fan Guard
8 34770.0000* 2 Cover, Vent
01308.0002 4 Screw, Truss Head Sltd. Locking #6-32 x .25"
9 34666.0001 1 Catch, Door Latch (10 lb. pull)
02336.0000 2 Screw, Truss Head #4-40 x .38"
01509.0001 2 Lockwasher, Int.-tooth #4
10 34533.0000 1 Plate, Latch
11 34702.0000 2 Grommet
12 - - - - - - - - 1 Cover, Top/Front (See HOUSING & PANELS)
13 35261.0000 2 Insulation, Chiller
14 34278.0000* 1 Insulation, Chiller Top
15 34273.0000 1 Bracket
01311.0003 4 Screw, Truss Head Sltd. Blk #8-32 x .25"
16 02536.0000 2 Grommet
17 33669.0000 1 Clip, Cord
18 34803.1000 1 Sensor Assy
19 34265.1001 1 Thermoelectrics Assy
01326.0000 4 Screw, Truss Head Sltd. #10-32 x .25"
20 29327.0000 1 Probe, Temperature
21 34271.0000 1 Bracket
01311.0003 4 Screw, Truss Head Sltd. Blk #8-32 x .25"
22 34958.0001* 1 Panel, Merchandiser
23 34743.0000 1 Decal, Merchandiser Panel
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
15
34767 121307
CABINET & CHILLER
LCC-2
LCA-2
(Continued)
26
25
24
4
3
6
8
2
17
22
23
21
7
2
1
5
10
9
11
16
20
19
18
17
15
14
13
12
16
P2587
34767 040803
CABINET & CHILLER
ITEM PART NO. QTY. DESCRIPTION
24 33297.0002 1 Fan Assy, Upper
01384.0000 4 Screw, Truss Head Sltd. #8-32 x 1.5"
25 34276.0001* 1 Housing
01311.0003 4 Screw, Truss Head Sltd. Blk #8-32 x .25"
26 34275.0001* 1 Cover
02323.0002 4 Screw, Truss Head Sltd. Blk #6-32 x .25"
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
17
34767 120809
TANK ASSEMBLY
LCC-2
LCA-2
10 9
8
11
12
13
14
15
2
7
6
5
4
3
17
16
18
33
34
35
36
20
21
37
19
Early Models
27
Early Models
25
26
26 31 32 29
1
29
22
23
24
25
30
29
27
28
P2588
18
34767 060611
TANK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 34158.1002 1 Tank
2 - - - - - - - - 1 Insulation, Tank Wrap (Early Models. Not Available)
3 12377.0000 1 Gasket, Tank Lid
4 34160.0000 1 Lid, Tank
00906.0000 10 Nut #6-32
5 07073.0001 1 Grommet, Thermostat (Models with thermostat)
12570.0002 1 Grommet (Models without thermostat)
6 02536.0000 1 Grommet, Level Probe
7 20936.1000 1 Probe, Liquid Level
01501.0000 1 Washer
20203.0100 1 Lockwasher, Int.-tooth #8
00908.0000 1 Nut #8-32
8 05515.0000 1 Gasket, Overflow Tube
9 26622.0002* 1 Tube, Overflow
00908.0000 3 Nut #8-32
10 23717.0003 1 Limit Thermostat, Double
00971.0000 2 Nut, Keps #10-32
11 41179.1000 1 Probe, Temperature
12 12570.0000 1 Grommet, Temperature Probe
13 34895.0000 1 Bracket
01315.0005 2 Screw, Truss Head Sltd. Blk #8-32 x .38"
14 33926.1000 1 Tank Heater, 6000W 240V (Includes item 15)
12322.1000 1 Tank Heater, 4000W 240V (Includes item 15)
38818.1000 3 Tank Heater, 3000W 240V (Includes item 15)
00908.0000 4 Nut #8-32
15 12398.0002 1 Gasket, Tank Heater
16 03803.0002 1 Switch, Overflow (Includes items 17 & 18)
17 03807.0000 1 Retaining Ring
18 03633.0000 1 Gasket, Silicone
19 22728.0002 1 Overflow Cup
00970.0000 2 Nut, Keps #8-32
20 00946.0000 1 Nut, Brass .125"-27
Early Models
21 20976.0067* 1 Tube, Silicone .375" ID x 21.0" (Order item 38)
22 34684.0000 1 Elbow .375" Barb x .375" NPT
23 33418.0001 1 Valve, Water Inlet
01326.0000 2 Screw, Truss Head Sltd. #10-32 x .25"
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
19
34767 060611
TANK ASSEMBLY
(Continued)
LCC-2
LCA-2
10 9
8
11
12
13
14
15
2
7
6
5
4
3
17
16
18
33
34
35
36
20
21
37
19
Early Models
27
Early Models
25
26
26 31 32 29
1
29
22
23
24
25
30
29
27
28
P2588
20
34767 060611
TANK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
24 34768.0000 1 Elbow .38" NPT x .63" flare
25 20976.0005* 1 Tube, Silicone .375" ID x 7.5" (Order item 38)
26 12422.0005 1 Clamp .62/.71" ID (2 used on early models)
27 20976.0068* 1 Tube, Silicone .375" ID x 19.0" (Order item 38)
28 11630.0001 1 Clip, Shut-off
29 12422.0001 5 Clamp .59/.66" ID (3 less used on early models)
30 34392.0000 1 Plug, Hose
31 20976.0072* 1 Tube, Silicone .375" ID x 1.5" (Order item 38)
32 38948.0001 1 Fitting, Tee .375" Barb
33 41259.0002 1 Overflow Cup, Aluminum
01522.0000 2 Washer
00910.0000 2 Nut, Hex #10-32
Late models only
34 02536.0000 1 Grommet
Late models only
35 34612.0000 1 Tube
36 41266.0000 1 Film, Insulating
37 36329.0002 1 Tie, Cable
38 20976.1000 - Tube, Silicone .375" ID x 12.0" (Use as required)
20976.1001 - Tube, Silicone .375" ID x 30.0" (Use as required)
Not Illustrated
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
21
34767 060611
DISPENSE VALVES & LINES
LCC-2
LCA-2
21 27 19
1
Early Models
28
2
3
2
3
5
6
25
22
24
23
16
14
Connector Kits
18
17
16
14
14
16
13
8
9
10
22
7
4
12
11
14
16
15
P2589
34767 032007
DISPENSE VALVES & LINES
ITEM PART NO. QTY. DESCRIPTION
1 29576.0000 3 Bracket
00970.0000 3 Nut, Keps #8-32
2 34202.0000 3 Valve, Dispense (Includes item 3)(Refer to item 41)
3 24733.0011 3 O-ring
4 34962.1000 2 Warmer Tube Assy (Includes Warmer Tape w/Leads)
5 20976.0046* 1 Tube, Silicone .375" ID x 5.0" (Order item 36)
6 34644.0000 1 Connector, Barb .375"
7 28526.0002* 1 Tube, Silicone .313" ID x 16.0" (Order item 37)
8 34807.0000* 2 Flow Restrictor (Optional for 1.8 oz/sec. flow rate)
9 34689.0000* 4 Pin
10 34346.1000 2 Mixing Chamber Assy (Includes items 8, 9, 11 & 12)
01315.0000 4 Screw, Truss Head Sltd. #8-32 x .38"
11 34198.0000* 2 Lid
12 34384.0000* 2 Snap Cap
13 34727.1000 2 Hose Assy .187" ID (Incl. items 14 - 16)
34727.1001 2 Hose Assy .187" ID x 14.0" Feed End (Incl. items 14 - 16)
34728.1000 2 Hose Assy .125" ID (Incl. items 14 - 16)
14 34729.0000* 4 Hose .187" ID x 9.0"
34729.0001* 2 Hose .187" ID x 14.0"
34728.0000* 4 Hose .125" ID x 9.0"
15 34714.0000 2 Elbow (.187" ID Hose Assy)
34715.0000 2 Elbow (.125" ID Hose Assy)
16 12422.0003 4 Clamp .40/.45" ID (.187" ID Hose Assy)
12422.0007 4 Clamp .31/.34" ID (.125" ID Hose Assy)
17 34726.0001* 2 Tube, Norprene .125" I.D. x 6.0" (Order item 39)
18 05920.0000 2 Clip
19 35057.0000 2 Connector .187"
35057.0001 2 Connector .25"
20 35055.0000 2 Adapter Kit (Includes items 21 - 25)
21 33160.0000 2 Connector
Order item 13
Also order item 37
22 11707.0029* 2 Hose, Silicone .25" I.D. x 1.75" (Order item 40)
23 35053.0000 2 Coupling, Reducing
24 12422.0000 2 Clamp .47/.54" I.D.
25 12422.0006 2 Clamp .53/.59" I.D.
26 35056.0000 2 Adapter Kit (Includes items 22,23,24 & 27)
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
23
34767 060611
DISPENSE VALVES & LINES
LCC-2
LCA-2
(Continued)
21 27 19
1
Early Models
28
2
3
2
3
5
6
25
22
24
23
16
14
Connector Kits
18
17
16
14
14
16
13
8
9
10
24
7
4
12
11
14
16
15
P2589
34767 032007
DISPENSE VALVES & LINES
ITEM PART NO. QTY. DESCRIPTION
27 35054.0000 2 Connector
28 37970.0000 3 Grommet, Valve Mounting (Late models only)
Items 29 through 41 are Not Illustrated
29 34400.0200 - Adapter Kit (Incl. items 13,16, 19 & 38)(Uses .125" I.D. Hose & Clamps)
30 34400.0201 - Adapter Kit (Incl. items 13,16, 19 & 38)(Uses .188" I.D. Hose & Clamps)
31 34400.0202 - Adapter Kit (Incl. items 13,16, 20 & 38)(Uses .125" I.D. Hose & Clamps)
32 34400.0203 - Adapter Kit (Incl. items 13,16, 20 & 38)(Uses .188" I.D. Hose & Clamps)
33 34400.0204 - Adapter Kit (Incl.items 13,16, 26 & 38)(Uses .125" I.D. Hose & Clamps)
34 34400.0205 - Adapter Kit (Incl. items 13,16, 26 & 38)(Uses .188" I.D. Hose & Clamps)
35 34400.0208 - Adapter Kit, 14.0" Feed End (Incl. items 13,16, 19 & 38)(Uses .188" I.D. Hose &
Clamps)
36 33159.1000 - Tube, Silicone .375" ID x 12.0" (Use as required)
33159.1001 - Tube, Silicone .375" ID x 36.0" (Use as required)
37 28526.1000 - Tube, Silicone .313" ID x 12.0" (Use as required)
28526.1001 - Tube, Silicone .313" ID x 36.0" (Use as required)
28526.1002 - Tube, Silicone .313" ID x 60.0" (Use as required)
38 M2531.0001 - Lube Compound .30 oz.
39 34726.1000 - Tube, Norprene .125" I.D. x 10.0" (Use as required)
40 11707.1000 - Tube, Silicone .25" ID x 12.0" (Use as required)
11707.1001 - Tube, Silicone .25" ID x 36.0" (Use as required)
11707.1002 - Tube, Silicone .25" ID x 120.0" (Use as required)
41 34202.0050 - Repair Kit, Dispense Valve (Includes items for 1 Valve)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
25
34767 032007
PUMP ASSEMBLY
LCC-2
LCA-2
5 18 19
2
21
20
10 11 14
1
4
3
6
7
8
9 22 12 13 15 16 17
26
P2590
34767 012111
PUMP ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 34596.0000* 1 Bracket, Left
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
2 34594.0000* 1 Bracket, Right
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
3 34536.0001 2 Motor
4 32654.0000 2 Magnet Hub
01512.0000 2 Lockwasher, Ext.-tooth #10
01331.0004 2 Screw, Round Head Sltd. Locking #10-32 x .50"
5 33608.1000 2 RPM Sensor
02336.0000 4 Screw, Truss Head Sltd. #4-40 x .38"
6 32957.0000 8 Bushing, Rubber
7 34748.0000 1 Insulation
8 34193.0000 1 Bracket, Pump Mounting
01317.0000 4 Screw, Truss Head Sltd. #8-32 x .50"
9 34166.0002 2 Block
02328.0003 8 Screw, Pan Head Sltd. #6-32 x .312"
10 33825.0000 2 Bearing
11 32928.0000 2 Insert, Threaded #10-32
12 32927.0000 8 Shoulder Bolt #10-32
13 32706.1000 2 Rotor
14 32652.0000 2 Ring, Retaining
15 34998.0000 2 E-ring
16 34167.0000 2 Cover
17 34997.0000 2 Thumb Screw #10-32 x .625"
18 34765.0000 2 Nut, Flanged #10-32
19 32609.0000 2 Standoff
20 01311.0001 2 Screw, Truss Head Sltd. Locking #8-32 x .25"
21 40030.1000 2 Compression Band Assy.
22 36149.0000 2 Fastener, Snap in
23 34682.1000 - Pump Assy (Includes items 4-22)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
27
34767 012111
ELECTRICAL CONTROLS
LCC-2
LCA-2
7-8
6
4
2
1
29
27
3
34
30
9
5
10
11
14
15
13
12
16
26
27
28
CE Models
24 23 17 18
25 21-22
28
19
20
s
las
.
d c
ps
te
lis
am
ith
10
w
e
c
la
rated at
ep
R
use
f
G
P2591
34767 032007
ELECTRICAL CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 01590.0000 1 Cable Connector
2 01309.0000 1 Screw, Grounding #10-32 x .50"
3 34345.0000 1 Bracket
01311.0000 1 Screw, Truss Head Sltd. #8-32 x .25"
4 33363.0000 1 Power Supply
32283.0000 2 Screw, M4 x 6mm
5 34164.0000 1 Bracket
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
01311.0000 1 Screw, Truss Head Sltd. SST #8-32 x .25"
6 20541.0001 1 Heat Sink
01347.0000 2 Screw, Truss Head Serr. #6-32 x .38"
7 12565.0011 1 Triac, 40A
01520.0000 1 Lockwasher, Split #6
02328.0003 1 Screw, Pan Head Sltd. #6-32 x .312"
8 M2522.1000 - Heat Sink Compound
9 07038.0000 1 Terminal Block, 3-Pole
01106.0003 1 Terminal Block, 2-Pole (230V CE models)
01317.0000 2 Screw, Truss Head Sltd. #8-32 x .50"
10 07045.0004 1 Thermostat (Includes items 11, 12 & 13)(Early Models)
02301.0001 2 Screw, Pan Head Phillips #6-32 x .312"
11 07073.0001 1 Grommet, Thermostat (Early Models)
12 00720.0000 1 Knob (Early Models)
13 28224.0001 1 Bracket (Early Models)
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
14 34390.0000 2 Cap, Rocker Switch
15 27437.0001 2 Switch, Selector
16 34386.0000 1 Switch, Door Open
17 34197.1003 1 Circuit Board, Control
38123.0000 8 Screw, Truss Head #6-32 x 1.00"
18 29081.0003 8 Spacer
19 38492.0000 1 Bracket
34380.0000 1 Bracket (230V CE models only)
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
20 34205.1000 1 Membrane Switch
21 21741.0000 2 Fuse Holder (230V CE models only)
02328.0003 4 Screw, Pan Head Sltd. #6-32 x .312"
22 22012.0000 2 Fuse, 10A (230V CE models only)
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
29
34767 012111
ELECTRICAL CONTROLS
(Continued)
LCC-2
LCA-2
7-8
6
4
2
1
29
27
3
34
30
9
5
10
11
14
15
13
12
16
26
27
28
CE Models
24 23 17 18
25 21-22
30
19
20
s
las
.
d c
ps
te
lis
am
ith
10
w
e
c
la
rated at
ep
R
use
f
G
P2591
34767 032007
ELECTRICAL CONTROLS
ITEM PART NO. QTY. DESCRIPTION
23 34393.0000 1 Cable, Ribbon
02327.0002 2 Screw, Pan Head Sltd. Locking #4-40 x .312"
24 34386.0000 1 Switch, Dispense Volume Memory
25 27443.0001 1 Decal, Fuse Rating (230V CE models only)
26 27705.0000 1 Terminal Lug (230V CE models)
01375.0000 1 Screw, Pan Head Brass #10-32 x .50"
01512.0000 1 Lockwasher, Ext.-tooth #10
27 00824.0002 1 Decal, Ground 120V
00824.0001 1 Decal, Ground 230V CE Models
28 32833.0000 1 Strain Relief, Cord (230V CE models)
01531.0000 1 Washer, Reducing
29 36329.0002 1 Cable Tie, Power Cord Retainer
30 00637.0007 1 Shield. Terminal Block
31 38894.0001 1 Switch, Master ON/OFF (Late Models)
01308.0003 2 Screw, truss Head, Locking BLK #6-32 x .25"
01327.0000 4 Screw, Pan Head #10-32 x .38"
01512.0000 4 Lockwasher #10
Terminals
The following items are not illustrated
32 20630.0005 1 Power Cord (LCC-2 & LCA-2 Models only)
23799.0001 1 Power Cord (LCC-2C & LCA-2C Models only)
33 34534.0000 1 Harness, Main Wiring (Early models)
36798.0000 1 Harness, Main Wiring (Late models)
34534.0001 1 Harness, Main Wiring (230V CE Models))(Early models)
36798.0001 1 Harness, Main Wiring (230V CE Models))(Late models)
34 34535.0000 1 Harness, Switches/Power (Early models)
38570.0001 1 Harness, Switches/Power (Late models)
35 34519.0000 1 Harness, Portion Control Wiring (Early models)
36 34523.0000 1 Harness, Motors Wiring
37 34525.0000 1 Harness, T-block to Tank Heater & Limit
34525.0001 1 Harness, T-block to Tank Heater & Limit (Master ON/OFF Switch)
38 34526.0000 1 Harness, Probe Wiring (Early models)
39 34578.0000 1 Harness, Upper Fan Wiring
40 34961.0000 1 Harness, Tube Warmer Wiring (Early models)
41 21014.0196 1 Lead, Thermostat Blk 30.0" (Early models)
42 35081.0000 1 Wire, Double Limit Jumper (230V CE Models)
43 36049.0002 1 Jumper (Models with Portion Control)
44 37518.0001 1 Harness, Door Wiring (Late models)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
31
34767 060611
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00637.0007........................ 31
00656.0000.......................... 5
00720.0000........................ 29
00824.0001........................ 31
00824.0002........................ 31
00906.0000........................ 19
00908.0000................... 15,19
00910.0000........................ 21
00946.0000........................ 19
00970.0000................... 19,23
00971.0000........................ 19
00986.0002.......................... 5
01106.0003........................ 29
01219.0000..................... 9,13
01308.0002........................ 15
01308.0003..................... 7,31
01309.0000........................ 29
01311.0000........... 9,11,13,29
01311.0001........................ 27
01311.0003................ 7,15,17
01311.0003................... 27,29
01315.0000........................ 23
01315.0005.................. 5,7,19
01317.0000.............. 15,27,29
01322.0001..................... 9,13
01326.0000................... 15,19
01327.0000........................ 31
01331.0004........................ 27
01347.0000........................ 29
01375.0000........................ 31
01382.0000.......................... 5
01384.0000........................ 17
01501.0000........................ 19
01509.0001........................ 15
01512.0000................... 27,31
01520.0000........................ 29
01522.0000........................ 21
01526.0001.......................... 5
01531.0000........................ 31
01590.0000........................ 29
02301.0001........................ 29
02323.0002........................ 17
02327.0002........................ 31
02328.0003................... 27,29
02331.0001....................... 5,7
02336.0000........... 9,13,15,27
02536.0000........... 5,17,19,21
03633.0000........................ 19
03803.0002........................ 19
03807.0000........................ 19
05515.0000........................ 19
05920.0000........................ 23
07038.0000........................ 29
07045.0004........................ 29
07073.0001................... 19,29
11630.0001........................ 21
11646.0002.......................... 5
11707.0029........................ 23
11707.0040.......................... 5
11707.1000..................... 7,25
11707.1001..................... 7,25
11707.1002..................... 7,25
12322.1000........................ 19
12377.0000........................ 19
12398.0002........................ 19
12422.0000..................... 5,23
12422.0001........................ 21
12422.0003........................ 23
12422.0005........................ 21
12422.0006........................ 23
12422.0007........................ 23
12565.0011........................ 29
12570.0000........................ 19
12570.0002........................ 19
20203.0100........................ 19
20541.0001........................ 29
20630.0005........................ 31
20936.1000........................ 19
20976.0005........................ 21
20976.0046........................ 23
20976.0067........................ 19
20976.0068........................ 21
20976.1000........................ 21
20976.1001........................ 21
21014.0196........................ 31
21741.0000........................ 29
22012.0000........................ 29
22728.0002........................ 19
23717.0003........................ 19
23799.0001........................ 31
24733.0011........................ 23
26444.0000.......................... 9
26528.0000.......................... 5
26622.0002........................ 19
27443.0001........................ 31
27437.0001........................ 29
27705.0000........................ 31
28095.0000.......................... 5
28181.0003.......................... 7
28224.0001........................ 29
28526.0002........................ 23
28526.1000........................ 25
28526.1001........................ 25
28526.1002........................ 25
29081.0003........................ 29
29327.0000........................ 15
29504.0004..................... 9,13
29576.0000........................ 23
32283.0000........................ 29
32609.0000........................ 27
32652.0000........................ 27
32654.0000........................ 27
32656.0000.......................... 5
32706.1000........................ 27
32833.0000........................ 31
32927.0000........................ 27
32928.0000........................ 27
32957.0000........................ 27
33039.0001..................... 9,13
33159.1000........................ 25
33159.1001........................ 25
33160.0000........................ 23
33297.0002........................ 17
33358.0000........................ 15
33363.0000........................ 29
33418.0001........................ 19
33434.1000..................... 9,13
33434.1002..................... 9,13
33608.1000........................ 27
33669.0000........................ 15
33825.0000........................ 27
33926.1000........................ 19
34010.0000........................ 15
34150.0000.......................... 9
34152.0003.......................... 5
34158.1002........................ 19
34160.0000........................ 19
34164.0000........................ 29
34165.0003.......................... 7
34166.0002........................ 27
34167.0000........................ 27
34169.0002.......................... 5
34185.0001........................ 15
34185.0002........................ 15
34186.1005.......................... 5
34189.1001.......................... 7
34190.0000.......................... 7
34193.0000........................ 27
34194.1001.......................... 7
34197.1003........................ 29
34198.0000........................ 23
34202.0000........................ 23
34202.0050........................ 25
34205.1000........................ 29
34265.1001........................ 15
34271.0000........................ 15
34273.0000........................ 15
34275.0001........................ 17
34276.0001........................ 17
34278.0000........................ 15
34281.0001.......................... 7
34283.0001..................... 9,13
34284.0011.......................... 9
34284.1012.......................... 9
34334.0000.......................... 9
34335.0001.......................... 5
34337.0000........................ 15
34338.0000........................ 15
34339.0000........................ 15
34340.0000................... 11,13
34340.1000..................... 9,13
34341.1000..................... 9,13
34345.0000........................ 29
34346.1000........................ 23
34362.0000..................... 9,13
34362.0001.......................... 9
34366.0000.......................... 5
34379.0002.......................... 5
34380.0000........................ 29
34384.0000........................ 23
34385.0001.......................... 5
34385.0003.......................... 5
34386.0000................... 29,31
34387.0000..................... 9,13
34390.0000........................ 29
34392.0000........................ 21
34393.0000........................ 31
34400.0200........................ 25
34400.0201........................ 25
34400.0202........................ 25
34400.0203........................ 25
34400.0204........................ 25
34400.0205........................ 25
34400.0208........................ 25
34472.0000.......................... 5
34473.0000.......................... 9
34519.0000........................ 31
34523.0000........................ 31
34525.0000........................ 31
34525.0001........................ 31
34526.0000........................ 31
34527.0000.......................... 9
34531.1000.......................... 9
34533.0000........................ 15
34534.0000........................ 31
34534.0001........................ 31
34535.0000........................ 31
34536.0001........................ 27
34578.0000........................ 31
34594.0000........................ 27
34596.0000........................ 27
34612.0000........................ 21
34641.0001.......................... 7
34641.0004.......................... 7
34644.0000........................ 23
34666.0001........................ 15
32
34767 060611
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
34667.0000.......................... 9
34667.0001........................ 13
34682.1000........................ 27
34684.0000........................ 19
34689.0000........................ 23
34702.0000........................ 15
34708.0000..................... 9,13
34709.0000................... 11,13
34710.0000................... 11,13
34711.0000..................... 9,13
34712.0000..................... 9,13
34714.0000........................ 23
34715.0000........................ 23
34726.0001........................ 23
34726.1000........................ 25
34727.1000........................ 23
34727.1001........................ 23
34728.0000........................ 23
34728.1000........................ 23
34729.0000........................ 23
34729.0001........................ 23
34742.0000..................... 9,13
34743.0000........................ 15
34748.0000........................ 27
34765.0000........................ 27
34768.0000........................ 21
34770.0000........................ 15
34771.0000........................ 15
34783.0000.......................... 5
34803.1000........................ 15
34807.0000........................ 23
34809.0001..................... 9,13
34821.1000.......................... 5
34893.0001.......................... 7
34895.0000........................ 19
34958.0001........................ 15
34960.0000.......................... 5
34960.0001.......................... 5
34961.0000........................ 31
34962.1000........................ 23
34997.0000........................ 27
34998.0000........................ 27
35053.0000........................ 23
35054.0000........................ 25
35055.0000........................ 23
35056.0000........................ 23
35057.0000........................ 23
35057.0001........................ 23
35081.0000........................ 31
35087.0000........................ 11
35188.0000.......................... 5
35261.0000........................ 15
35825.0001.......................... 5
36012.0000........................ 11
36049.0002........................ 31
36149.0000........................ 27
36329.0002................... 21,31
36554.0000........................ 13
36673.0000........................ 13
36785.0000........................ 13
36786.0000........................ 13
36798.0000........................ 31
36798.0001........................ 31
37518.0001........................ 31
37881.0000.......................... 7
37970.0000........................ 25
38044.0000..................... 9,13
38123.0000........................ 29
38433.0000.......................... 5
38492.0000........................ 29
38570.0001........................ 31
38735.1000..................... 9,13
38818.1000........................ 19
38820.0000.......................... 7
38894.0001........................ 31
39999.0000.......................... 5
40030.1000........................ 27
40087.0000........................ 13
40091.0000........................ 13
40092.0000........................ 13
40094.0000........................ 13
40095.0000........................ 13
41179.1000........................ 19
41259.0002........................ 21
41266.0000........................ 21
41512.0000........................ 13
41925.1011........................ 13
41925.1012........................ 13
42276.0000.......................... 5
M2522.1000 ...................... 29
M2531.0001 ...................... 25
33
34767 060611
Loading...
