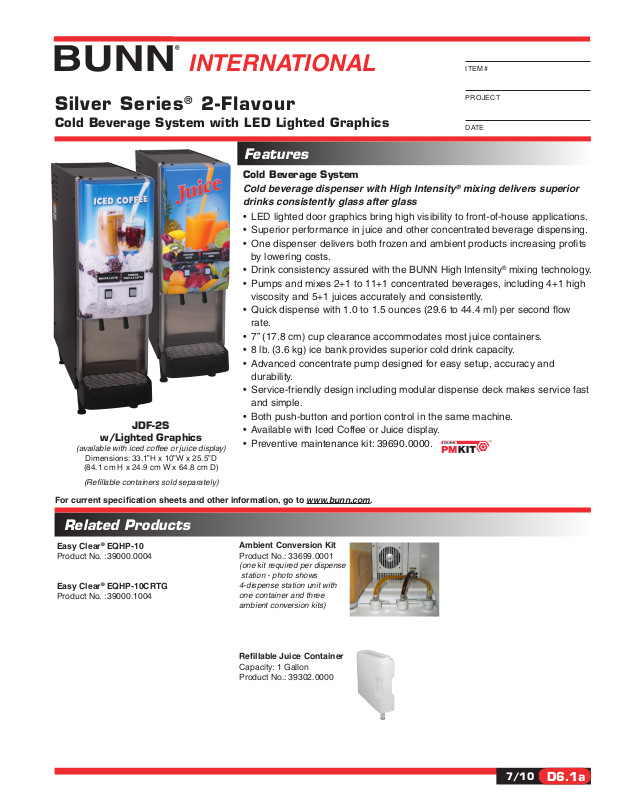

Bunn-O-Matic JDF-2SA General Manual
INTERNATIONAL
ITE M#
Silver Series® 2-Flavour
Cold Beverage System with LED Lighted Graphics
Features
Cold Beverage System
Cold beverage dispenser with High Intensity® mixing delivers superior
drinks consistently glass after glass
• LED lighted door graphics bring high visibility to front-of-house applications.
• Superior performance in juice and other concentrated beverage dispensing.
• One dispenser delivers both frozen and ambient products increasing profits
by lowering costs.
• Drink consistency assured with the BUNN High Intensity® mixing technology.
• Pumps and mixes 2+1 to 11+1 concentrated beverages, including 4+1 high
viscosity and 5+1 juices accurately and consistently.
• Quick dispense with 1.0 to 1.5 ounces (29.6 to 44.4 ml) per second flow
rate.
• 7” (17.8 cm) cup clearance accommodates most juice containers.
• 8 lb. (3.6 kg) ice bank provides superior cold drink capacity.
• Advanced concentrate pump designed for easy setup, accuracy and
durability.
• Service-friendly design including modular dispense deck makes service fast
and simple.
JDF-2S
w/Lighted Graphics
(available with iced coffee or juice display)
Dimensions: 33.1”H x 10”W x 25.5”D
(84.1 cm H x 24.9 cm W x 64.8 cm D)
(Refillable containers sold separately)
• Both push-button and portion control in the same machine.
• Available with Iced Coffee or Juice display.
• Preventive maintenance kit: 39690.0000.
PROJECT
DATE
For current specification sheets and other information, go to www.bunn.com.
Related Products
Easy Clear® EQHP-10
Product No. : 39000.0004
Easy Clear
Product No. : 39000.1004
®
EQHP-10CRTG
Ambient Conversion Kit
Product No.: 33699.0001
(one kit required per dispense
station - photo shows
4-dispense station unit with
one container and three
ambient conversion kits)
Refillable Juice Container
Capacity: 1 Gallon
Product No.: 39302.0000
7/10
D6.1a
Dimensions & Specifications
Shipping Cord
Model Product # Volts Amps Capacity Weight Attached Agency
JDF-2SA 37900.0010 230 4 4 (5 oz.) drinks/min 103 lbs. Yes
(juice display) 4 (148 mL) drinks/min 46.7 kg
JDF-2SA 37900.0011 230 4 4 (5 oz.) drinks/min 103 lbs. Yes
(iced coffee display) 4 (148 mL) drinks/min 46.7 kg
Capacity: 1 Gallon (3.8 L)
75˚F (24˚C) incoming water for 180 drinks without exceeding 40˚F (4.4˚C) finished drink temperature.
Electrical: Model requires 2-wire grounded service rated 220-240V, single phase, 50/60 Hz.
Plumbing: 20-100 psi (138 - 690 kPa). Machine supplied with 3⁄8" male fitting.
Refrigeration: R-134a refrigerant, 10 oz. (.28 kg), 10 lb. (4.5 kg) ice bank system
17.8
25.5
33.3
24.8
64.5
55.6
83.97
.375”
10.2
14.6
19.7
43.8
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • USA • +1-217-529-6601 • Fax +1-217-529-2827 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in centimeters.
7/10 © Bunn-O-Matic Corporation
