Bunn-O-Matic JDF-2 Part Manual

®
BUNN
DISCONTINUED VERSION
Parts listed in this catalog
JDF-2
may no longer be available.
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
35304.0000 01/05 ©2003 Bunn-O-Matic Corporation
www.bunnomatic.com
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis: parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon. If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
BUNN, and JDF-2 are either trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
35304 081303
TABLE OF CONTENTS
Main Frame & Covers ................................................................................................................................................................ 4
Upper Cabinet & Panels ............................................................................................................................................................. 6
Refrigeration Components ......................................................................................................................................................... 8
Fan Assembly ........................................................................................................................................................................... 10
Water Tank Assy ...................................................................................................................................................................... 12
Circulation Pump & Lines ........................................................................................................................................................ 16
Product Coil & Lines ................................................................................................................................................................18

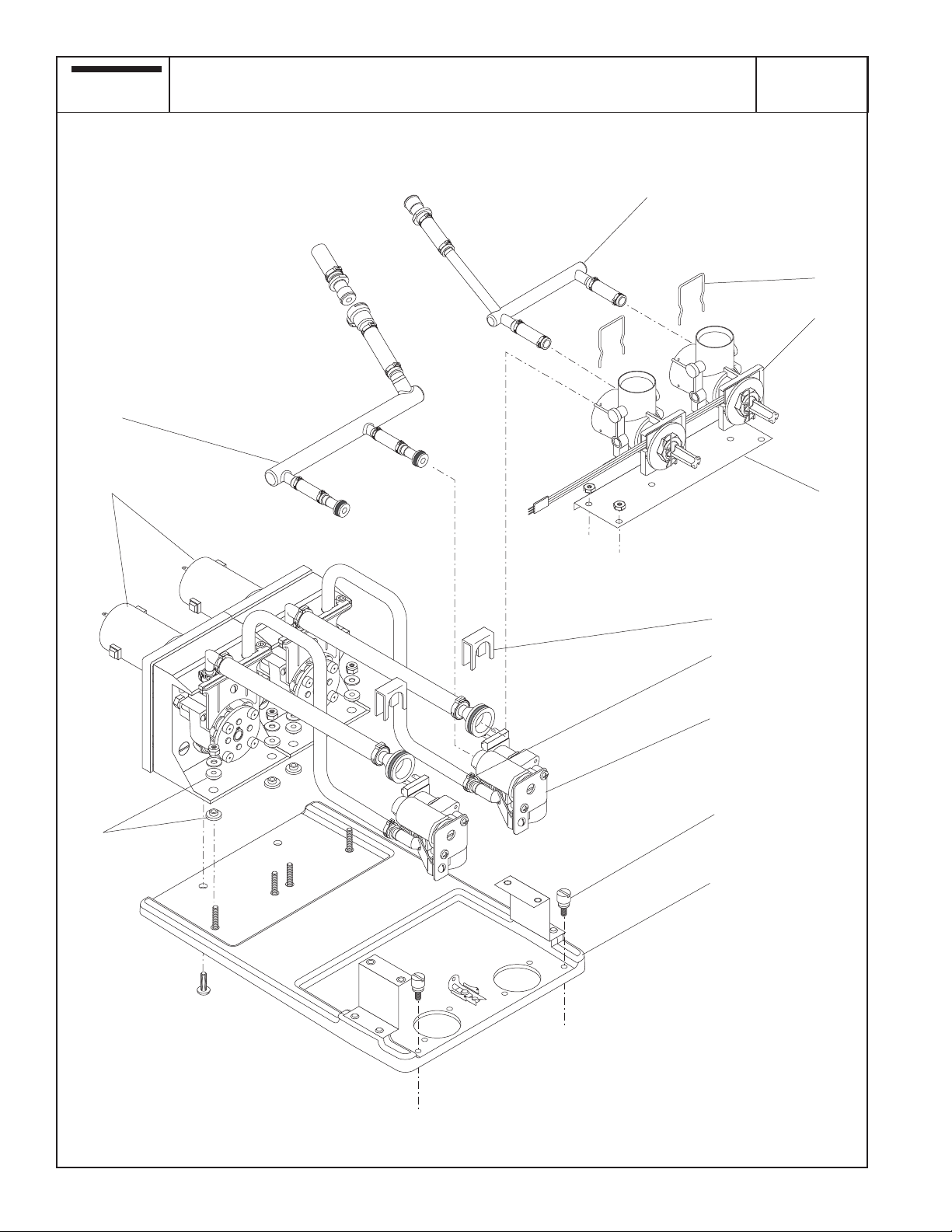

Dispense Platform Assy ...........................................................................................................................................................20

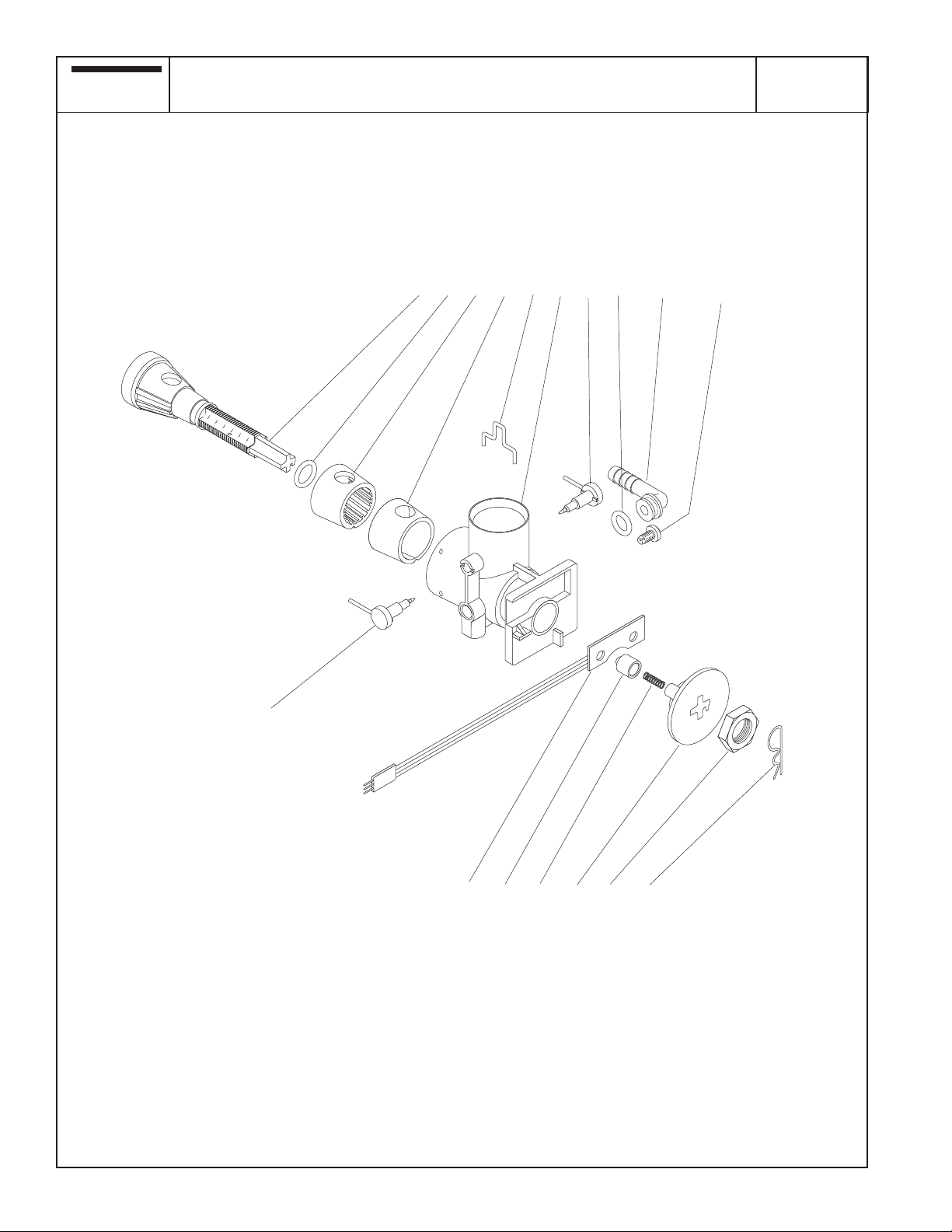

Dispense Valve Assy ................................................................................................................................................................ 22

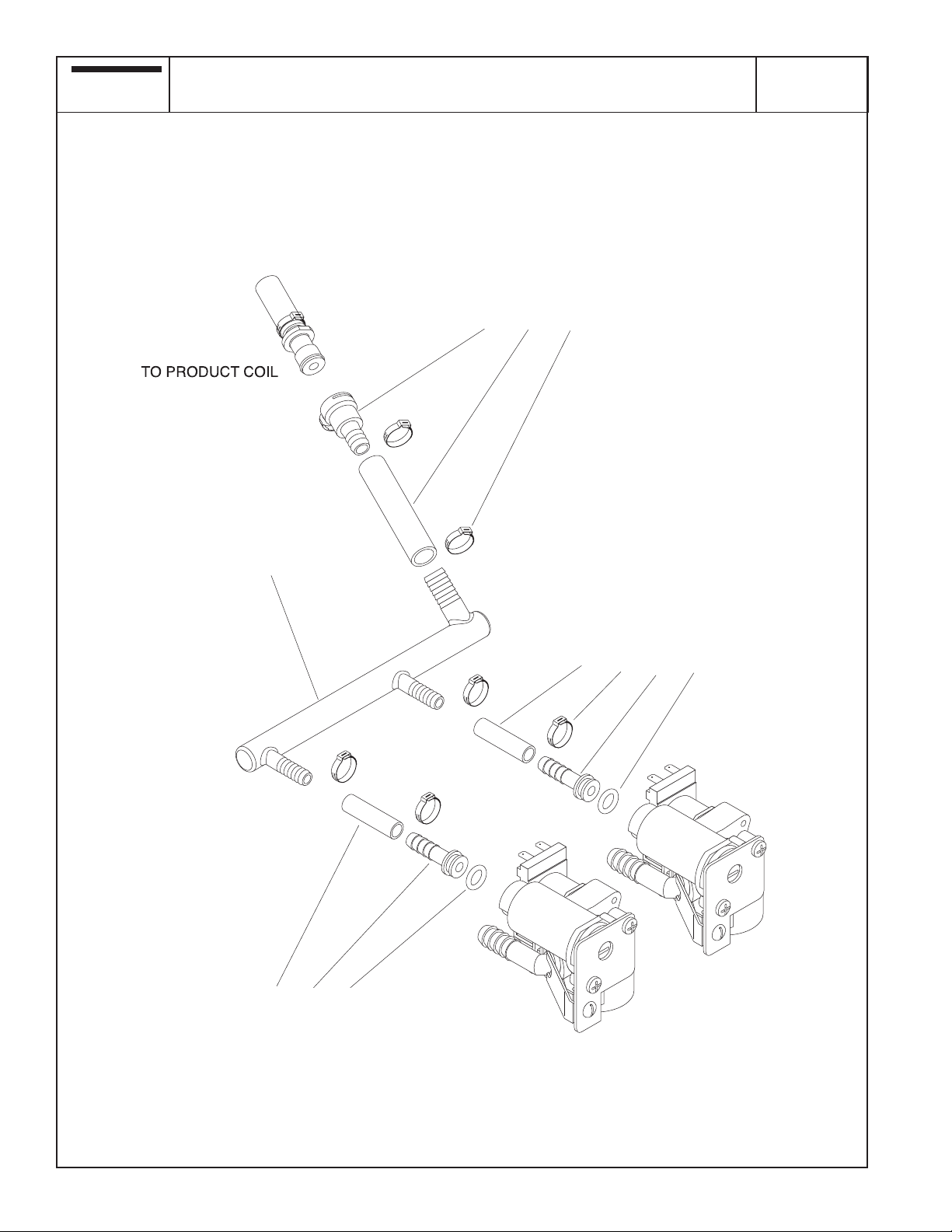

Plain Water Manifold (Early Models) ........................................................................................................................................ 24
Plain Water Manifold (Late Models) ......................................................................................................................................... 26

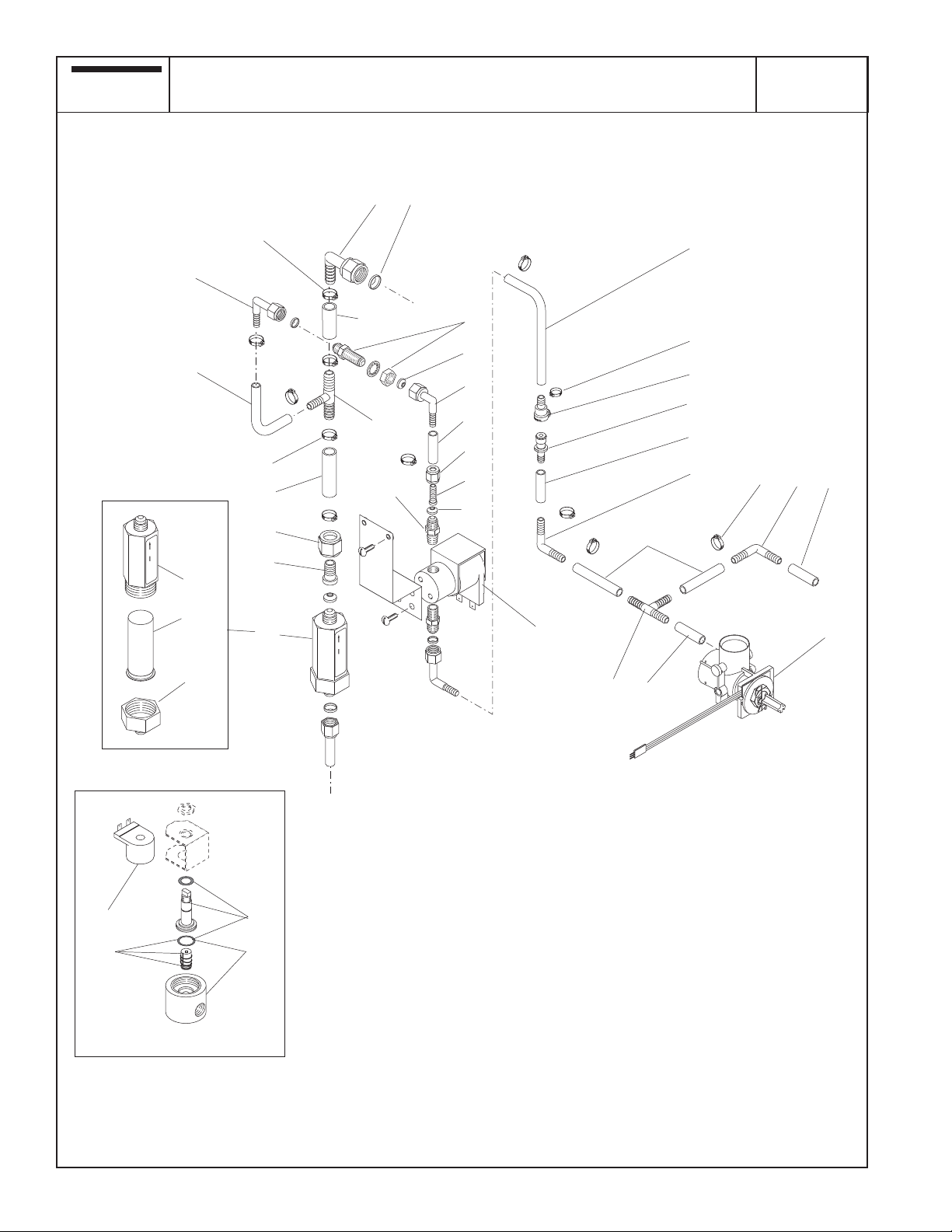

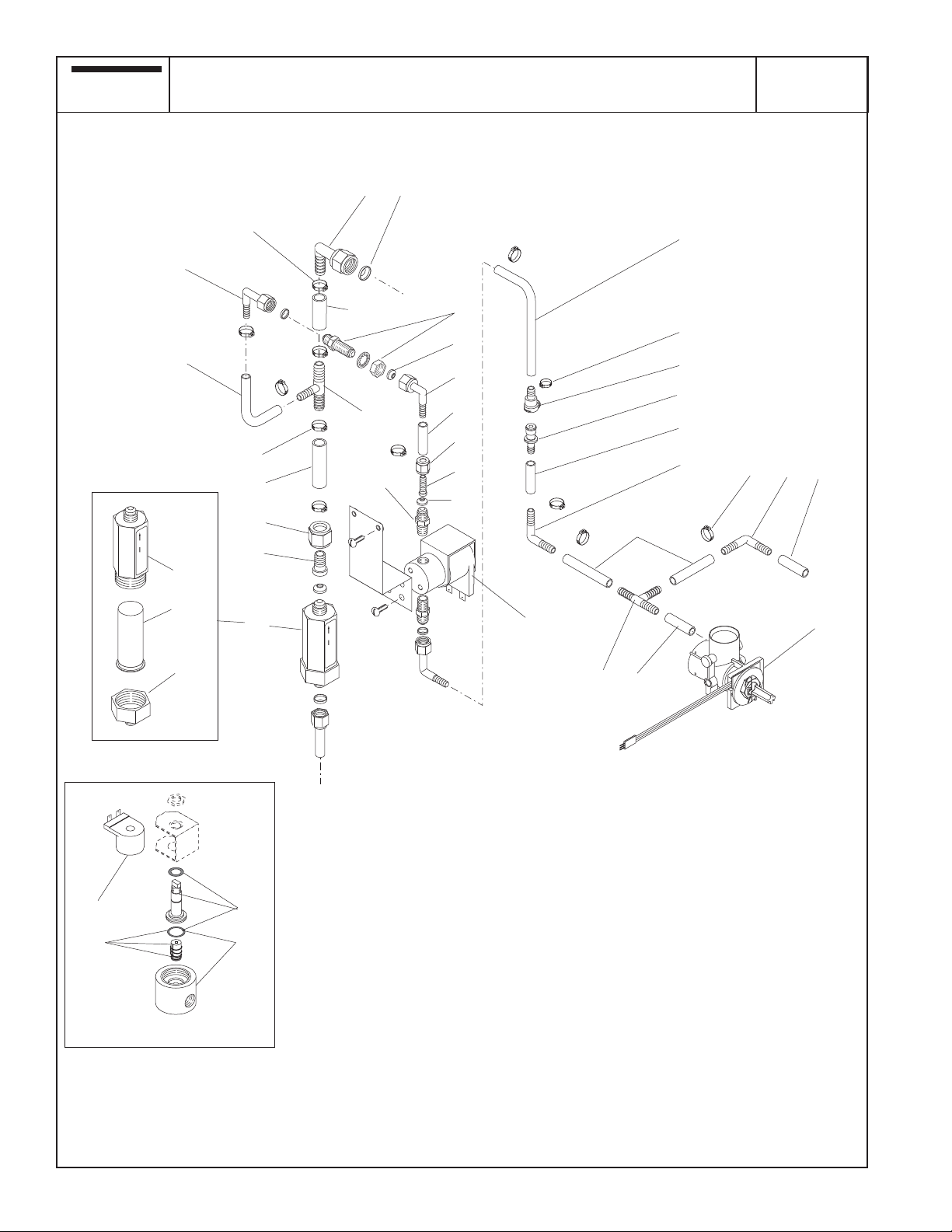

Rinse Water Manifold & Solenoid (Early Models) .................................................................................................................... 28

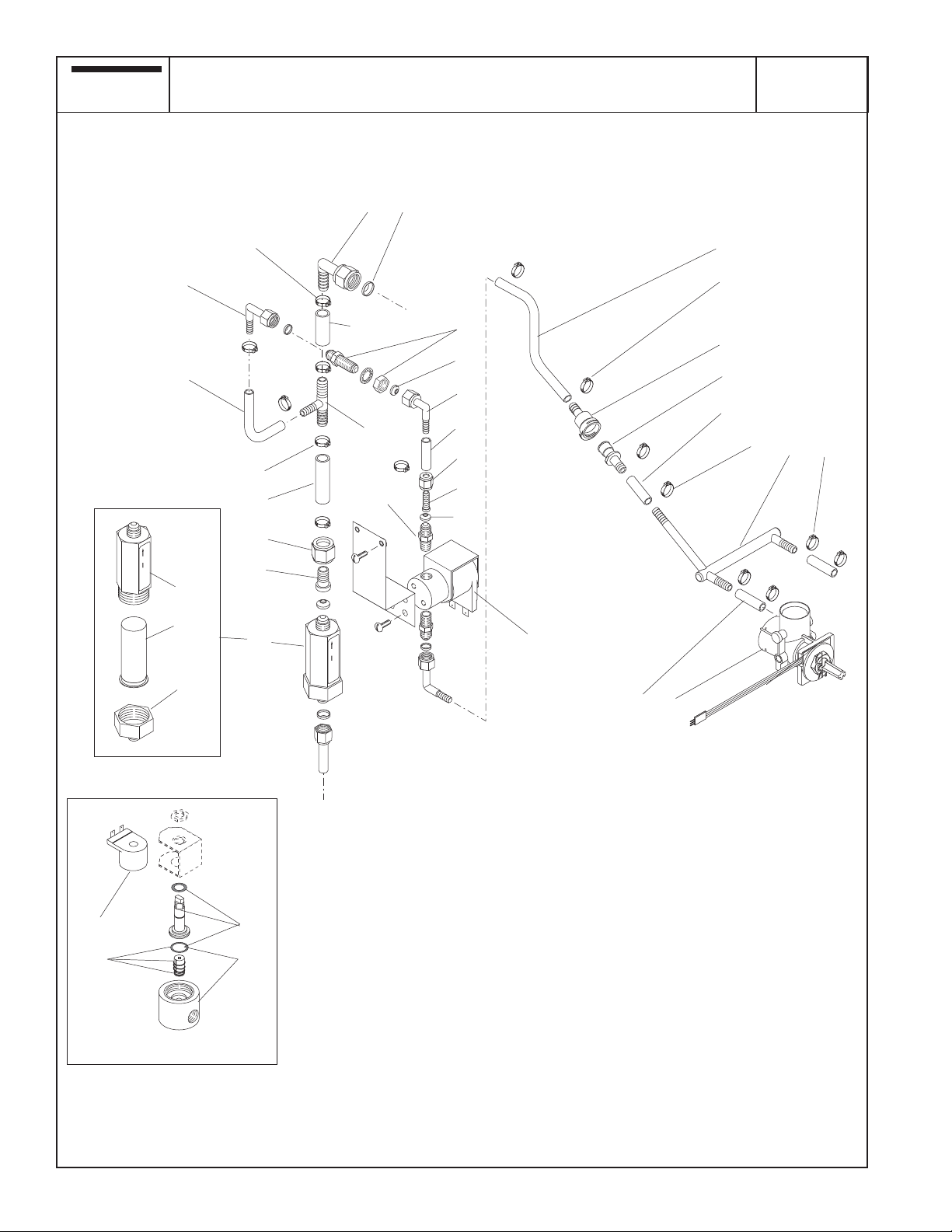

Rinse Water Manifold & Solenoid (Late Models) ..................................................................................................................... 32

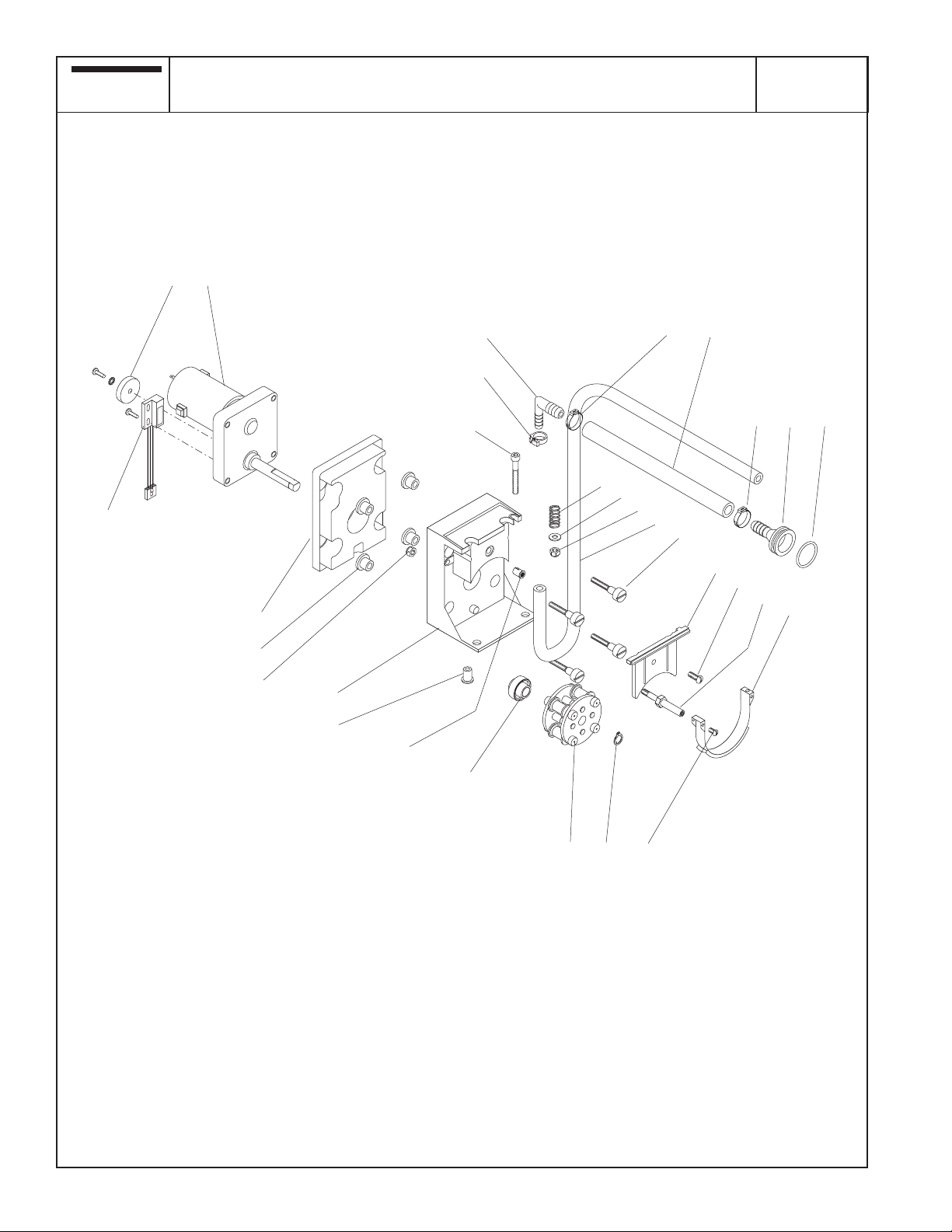

Pump Assy ............................................................................................................................................................................... 36
Bottle Adapter Assy .................................................................................................................................................................. 40

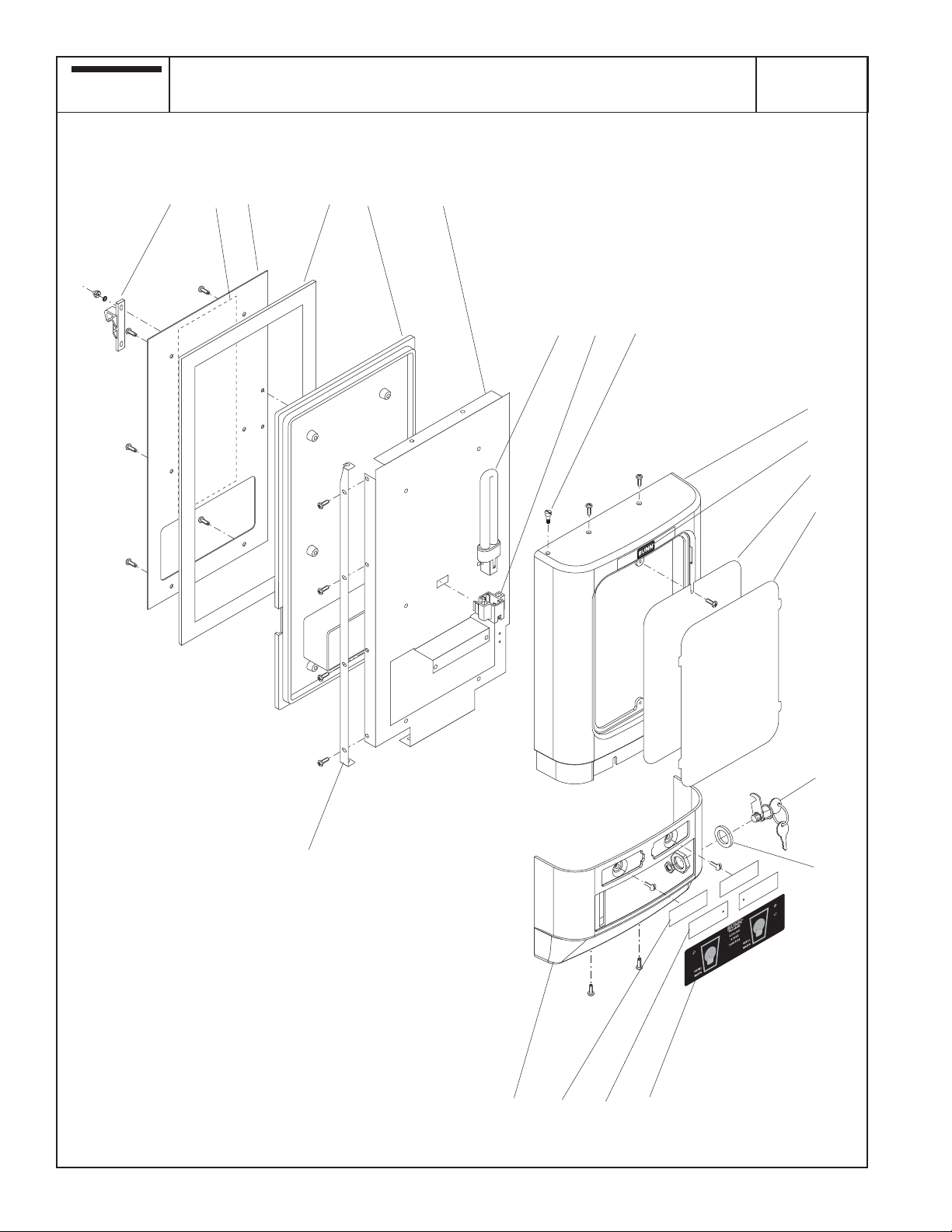

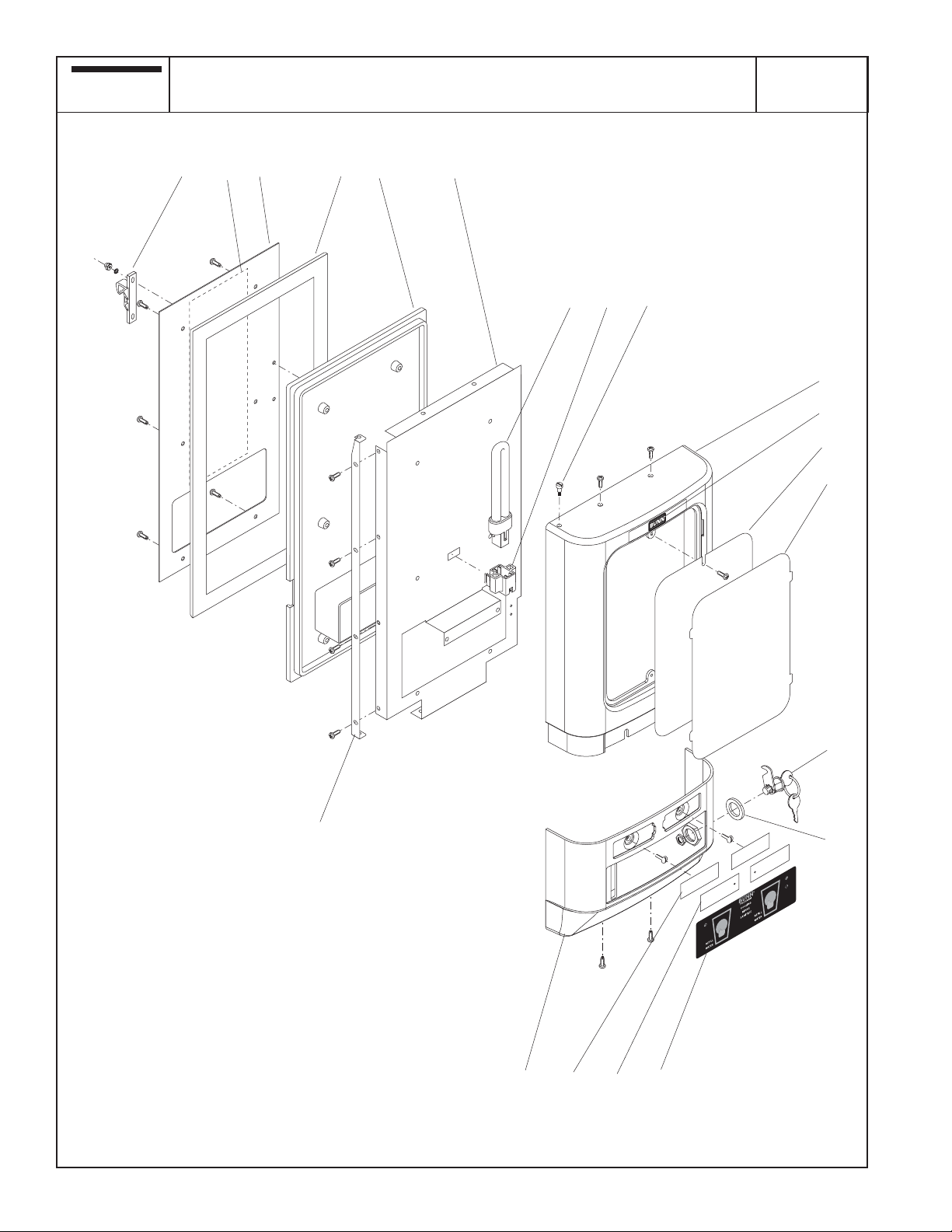

Door Assy ................................................................................................................................................................................ 42

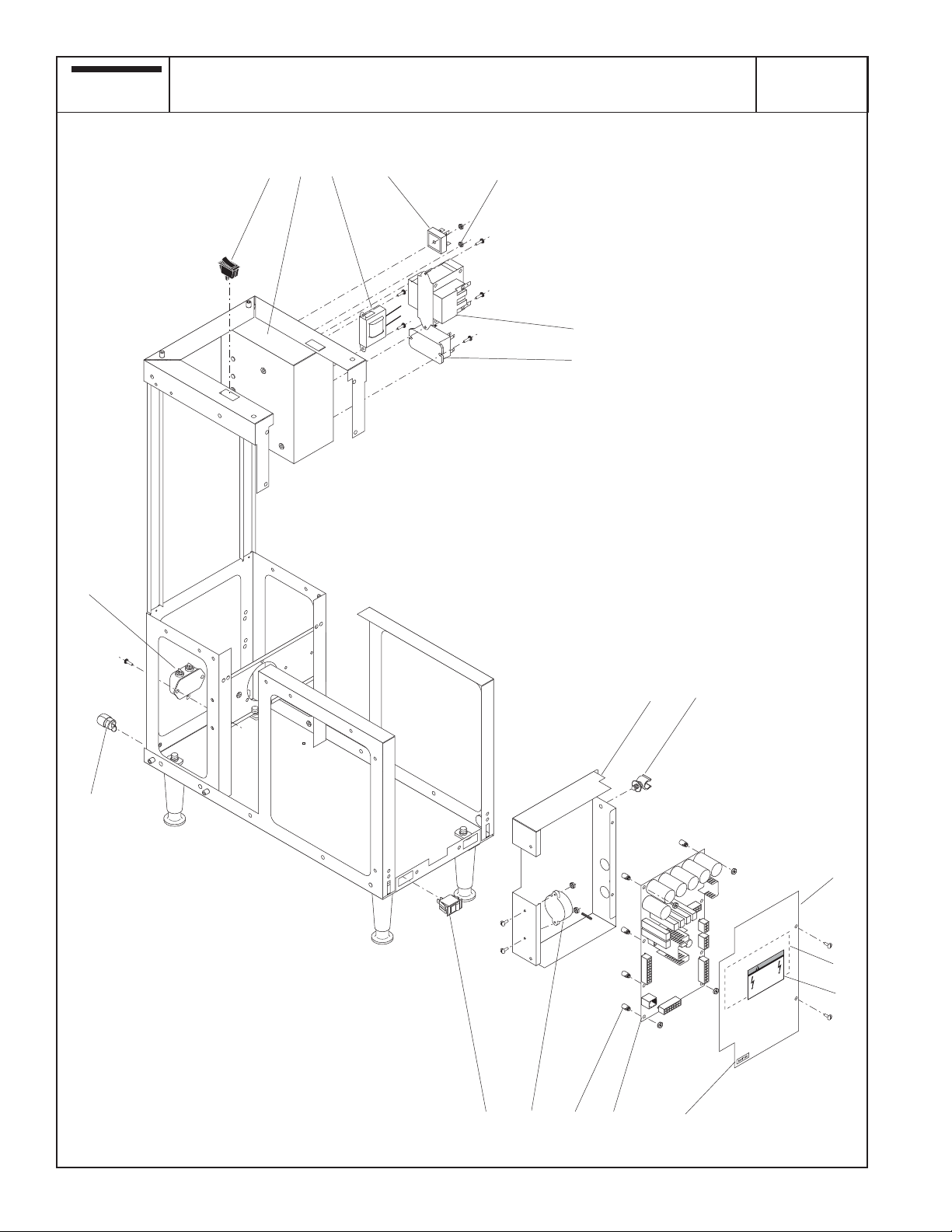

Electrical Components ............................................................................................................................................................. 46

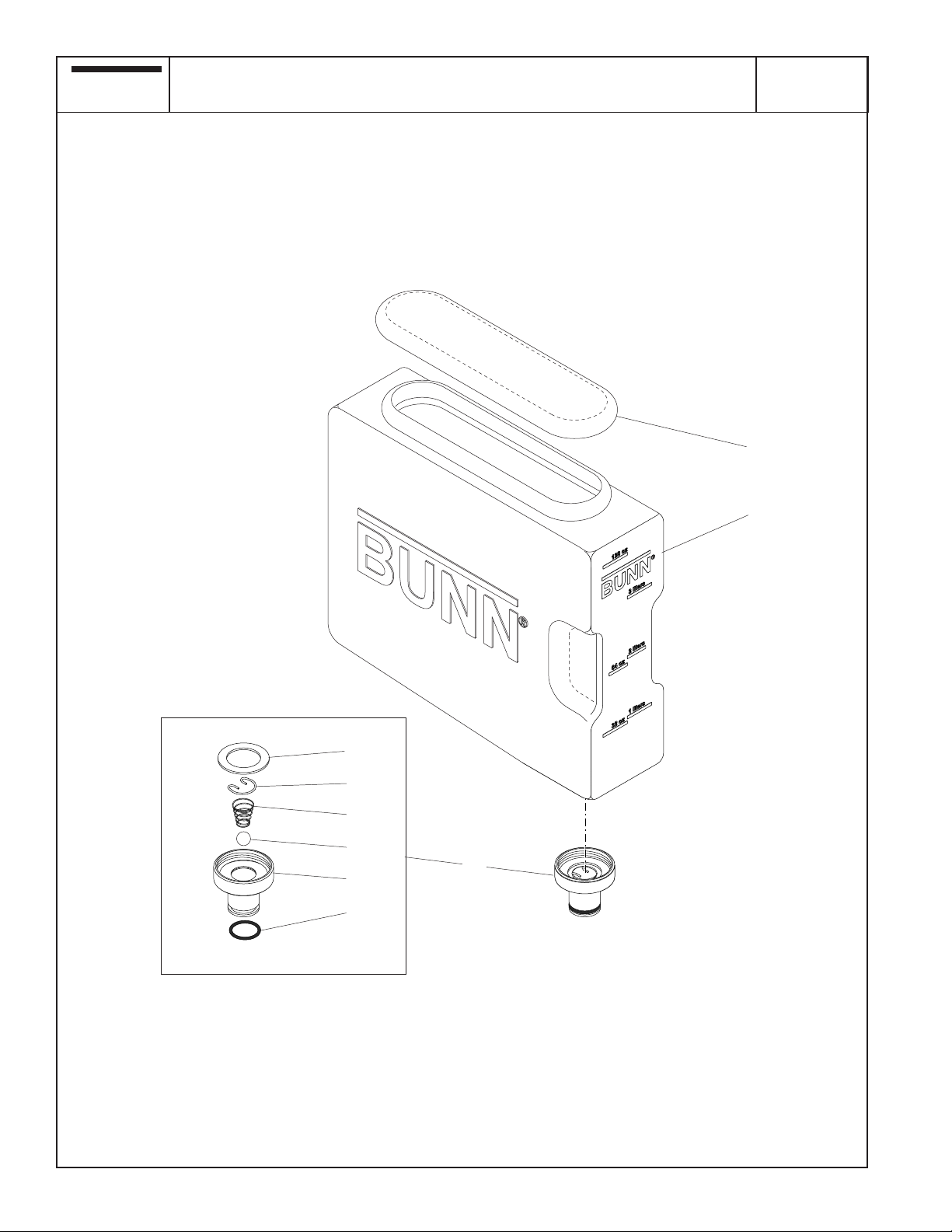

Refillable Container Assy ......................................................................................................................................................... 50
Numerical Index .......................................................................................................................................................................52
3
35304 013004
BUNN
18 17 15 14
16
13
®
MAIN FRAME & COVERS
8 7
5 4
JDF-2
6
11
10
12
20
19
24
23
9 3 1 2 21 22
4
P2701
35304 081303
MAIN FRAME & COVERS
ITEM PART NO. QTY. DESCRIPTION
1 34409.0000 1 Base Frame Assy
2 26528.0000 4 Leg
03996.0000 4 Pad, Non-skid
3 34410.0000 1 Frame, Refridgeration
- - - - - - - - 4 Screw #10-32 x
4 34797.0000 2 Bracket, Rear support
02332.0001 8 Screw, Crimptite #6 x .25"
5 34871.0000 1 Bracket, Upper Frame
6 34788.1000 1 Panel w/Decals, Right (Includes item 11)
02332.0001 3 Screw, Crimptite #6 x .25"
7 34786.1000 1 Panel w/Decals, Top (Includes item 8)
02332.0001 4 Screw, Crimptite #6 x .25"
8 33458.0000 1 Decal, Refridgeration ON - OFF
9 34787.1000 1 Panel w/Decals, 120V Left (Includes items 10, 11, 12 & 20)
34787.1001 1 Panel w/Decals, 230V Left (Includes items 10, 11, 12 & 20)
02332.0001 3 Screw, Crimptite #6 x .25"
10 33461.0001 1 Decal, Refridgerant Charge
11 27442.0000 2 Decal, Warning - Moving Parts
12 00986.0002 1 Decal, Warning - Electrical
13 34789.1000 1 Panel w/Decals, Rear (Includes items 14, 15 & 16)
02332.0001 4 Screw, Crimptite #6 x .25"
14 33645.0000 1 Decal, Main Water Connection
15 33646.0000 1 Decal, Rinse Water Connection
16 00656.0000 1 Decal, Comply To Plumbing Code
17 27354.0000 4 Bushing
18 00668.0000 4 Plug
19 35018.0000 1 Panel, Splash
01317.0003 2 Screw, Truss Head, Locking #8-32 x .38"
20 35277.0000 1 Electrical Schematic 120V
35277.0001 1 Electrical Schematic 230V
21 21436.0000 2 Catch, Magnetic
22 33538.0000 1 Bracket, Right
33539.0000 1 Bracket, Left
01311.0001 4 Screw, Truss Head, Locking #8-32 x .25"
23 33528.0000 1 Drip Tray
24 34994.0000 1 Grate, Drip Tray
5
35304 081303
BUNN
®
UPPER CABINET & PANELS
1 7 6 10
JDF-2
11
12
9
8
2
3
4
5
13
14
15
18
16
17
19
24
21
22
23
6
20
P2702
35304 081303
UPPER CABINET & PANELS
ITEM PART NO. QTY. DESCRIPTION
1- - - - - - - - 1 Cabinet (Not serviced)
24544.0000 16 Screw, Pan Head #8-18
2 34738.0000 1 Plate, Cabinet Mounting
- - - - - - - - 4 Screw
3 34784.0000 1 Plate, Bottom Closure
01359.0000 3 Screw, Flat Head #8-32 x .38"
4 34362.0000 1 Bushing, Lower Hinge
5 34790.0000 1 Wrap
- - - - - - - - 4 Screw
6 34785.0000 1 Bracket, Hinge
01327.0000 3 Screw, Pan Head #10 -32 x .38"
7 34666.0001 1 Catch, Door Latch
01382.0000 2 Screw, Truss Head #6 x .375"
8 27394.0000 2 Plug
9 00669.0002 4 Plug
10 34419.0000 1 Coil, Water
24544.0000 4 Screw, Pan Head #8-18
11 27246.0000 1 Sensor Assy, Temperature
12 33669.0000 1 Clip, Adhesive Back
13 33297.0000 1 Fan Assy.
00617.0000 1 Cable Tie
24544.0000 4 Screw, Pan Head #8-18
14 34421.0000 1 Cover, Fan
24544.0000 4 Screw, Pan Head #8-18
15 34422.1000 1 Shelf, Product (Includes items 16 & 17)
16 33459.0003 2 Decal, Dispense/Rinse
17 33459.0002 2 Decal, Flow Adjustment
18 32461.0000 2 Gasket, Drip
19 32455.0000 2 Knob
20 27394.0000 2 Plug
21 32467.1000 2 Nozzle Assy (Includes items 22 - 24)
22 32848.0000 2 O-ring
23 32858.0000 2 Sheild
24 32621.0000 2 Mixer, Spiral (Standard)
35108.0000 2 Mixer, Spiral (High Viscocity)
25 M2568.0000 - Grease, USDA H-1 (Use when assembling items 22,23 & 24)
7
35304 013004
BUNN
®
REFRIGERATION COMPONENTS
JDF-2
4
11
8
7
B
3
A
2
5
1
9
10
12
14
13
15
16
17
6
P2703
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
8
35304 081303
REFRIGERATION COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 35164.0000 1 Air Filter
2 29951.0000 1 Condenser
02335.0001 4 Screw, Crimptite #8 x .38"
3 35180.0001 1 Tube (Requires brazing to install) (Not serviced)
4 35386.0001 1 Tube (Requires brazing to install) (Not serviced)
5 00396.0002 1 Tee (Requires brazing to install) (Not serviced)
6 35385.0001 1 Tube (Requires brazing to install) (Not serviced)
7 35580.0001 1 Tube (Requires brazing to install) (Not serviced)
8 35175.1000 1 Filter Dryer Assy (Requires brazing to install)
9 35179.0001 1 Tube (Requires brazing to install) (Not serviced)
10 32776.0001 1 Accumulator
11 35581.0001 1 Tube (Requires brazing to install) (Not serviced)
12 33522.0000 1 Compressor 120V
33522.0001 1 Compressor 230V
21431.0003 4 Washer
00901.0000 4 Nut .25"-20
13 - - - - - - - - 4 Grommet
14 - - - - - - - - 4 Sleeve
15 33536.0000 1 Platform
01317.0003 4 Screw, Truss Head, Locking #8-32 x .38"
16 - - - - - - - - 1 Fan Assy (See FAN ASSEMBLY)
27243.0000 3 Screw #8-36 x .437"
17 34418.0000 1 Bracket
01317.0003 4 Screw, Truss Head, Locking #8-32 x .38"
18 28567.0000 1 Mounting Kit (Includes four each of items 13 & 14)
19 M2332.1000 - Insulation, Tube 25/50 - 1.6"ID x .50" wall x 6.0 Ft (Use as required)
20 M2316.1000 - Insulation, Tube 25/50 - 0.5"ID x .38" wall x 6.0 Ft (Use as required)
Order item 18
9
35304 100903
BUNN
®
FAN ASSEMBLY
4 3
JDF-2
2 1
10
P2704
35304 081303
FAN ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 32204.1001 1 Fan Assy 120V (Includes items 1-4)
32204.1002 1 Fan Assy 230V (Includes items 1-4)
1 33603.0000 1 Motor Assy 120V
33603.0001 1 Motor Assy 230V
2 33602.0000 1 Blade, Fan
3 27258.0000 1 Silencer
4 23700.0000 1 Nut .25"-20
11
35304 081303
BUNN
®
WATER TANK ASSY
JDF-2
16
14
15
8
6
5
3
2
7
4
9
B
A
14
13
14
11
12
10
17
18
20
19
21
23
22
1
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
12
21
24
25
26
27 28 29
P2705
35304 081303
WATER TANK ASSY
ITEM PART NO. QTY. DESCRIPTION
1 35165.0000 1 Tank Assy
- - - - - - - - 4 Screw
2 35272.1000 1 Lid Assy
24544.0000 6 Screw, Pan Head #8-18
3 35526.0000 2 Bracket
02332.0001 2 Screw, Crimptite #6 x .25"
01317.0003 2 Screw, Truss Head, Locking #8-32 x .38"
4 34403.1000 1 Panel Assy
00973.0000 4 Nut, Keps #6-32
5 33801.0000 1 Grommet
6 29327.0000 1 Probe, Temperature & Dry Plug
7 02536.0000 1 Grommet
8 20936.0001 1 Probe, Liquid Level
01522.0000 1 Washer
20203.0100 1 Lockwasher, Internal-tooth #8
00908.0000 1 Nut #8-32
9 34414.1000 1 Bracket
00973.0000 4 Nut, Keps #6-32
10 29837.1000 1 Pump Assy 120V
29837.1001 1 Pump Assy 230V
02361.0000 4 Screw, Pan Head #4-40 x .25"
11 - - - - - - - - 1 Tube, Silicone .38" ID x 1.75" (Order item 30)
12 21275.0005 1 Clamp .63" - .73"
13 34644.0001 1 Connector
14 21275.0004 3 Clamp .54" - .64"
15 - - - - - - - - 1 Tube, Silicone .625" OD x 6.0" (Order item 31)
16 33623.0000 1 Elbow .38" Barb
17 35106.0000 1 Manifold, Return Water
18 35132.0000 1 Product Coil
19 34416.0000 2 Spacer
00973.0000 4 Nut, Keps #6-32
20 00617.0000 2 Cable Tie, 3.9"
21 32734.0001 6 Cable Tie, 28.0"
22 33533.0000 4 Spacer
23 33519.0000 1 Evaporator Coil
(Continued)
13
35304 081303
BUNN
®
WATER TANK ASSY
(Continued)
JDF-2
16
14
15
8
6
5
3
2
7
4
9
14
13
14
11
12
10
17
18
20
19
21
23
22
1
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
14
21
24
25
26
27 28 29
P2705
35304 081303
WATER TANK ASSY
ITEM PART NO. QTY. DESCRIPTION
24 - - - - - - - - 1 Tube, Clear .25" x 8.0" (Not serviced)
25 32760.0000 1 Tee
26 21275.0006 1 Clamp .40" - .50"
27 35174.0000 1 Fitting
28 33149.0000 1 Gasket
29 00976.0000 1 Cap
30 33159.1002 1 Tube, Silicone .38" ID x 120.0" (Cut to required length)
31 34325.1002 1 Tube, Silicone .625" OD x 120.0" (Cut to required length)
15
35304 013004
BUNN
®
CIRCULATION PUMP & LINES
4 3 2 3 1
3
5
4
3
6
JDF-2
7
8
9
P2706
16
35304 081303
CIRCULATION PUMP & LINES
ITEM PART NO. QTY. DESCRIPTION
1- - - - - - - - 1 Coil, Upper Cabinet (See UPPER CABINET & PANELS)
2- - - - - - - - 2 Tube, Silicone .38" ID x 1.5" (Order item 10)
3 21275.0004 8 Clamp .54" - .64"
4 33623.0000 2 Elbow .38" Barb
5- - - - - - - - 1 Tube, Silicone .38" ID x 17.0" (Order item 10)
6- - - - - - - - 1 Tube, Silicone .38" ID x 10.0" (Order item 10)
7 35173.0000 1 Fitting .312" Fl x .375" Barb
8 33149.0000 1 Gasket
9- - - - - - - - 1 Manifold, Return Water (See WATER TANK ASSEMBLY)
10 32759.1002 - Tube, Silicone .38" ID x 120.0" (Cut to required length)
17
35304 081303
BUNN
®

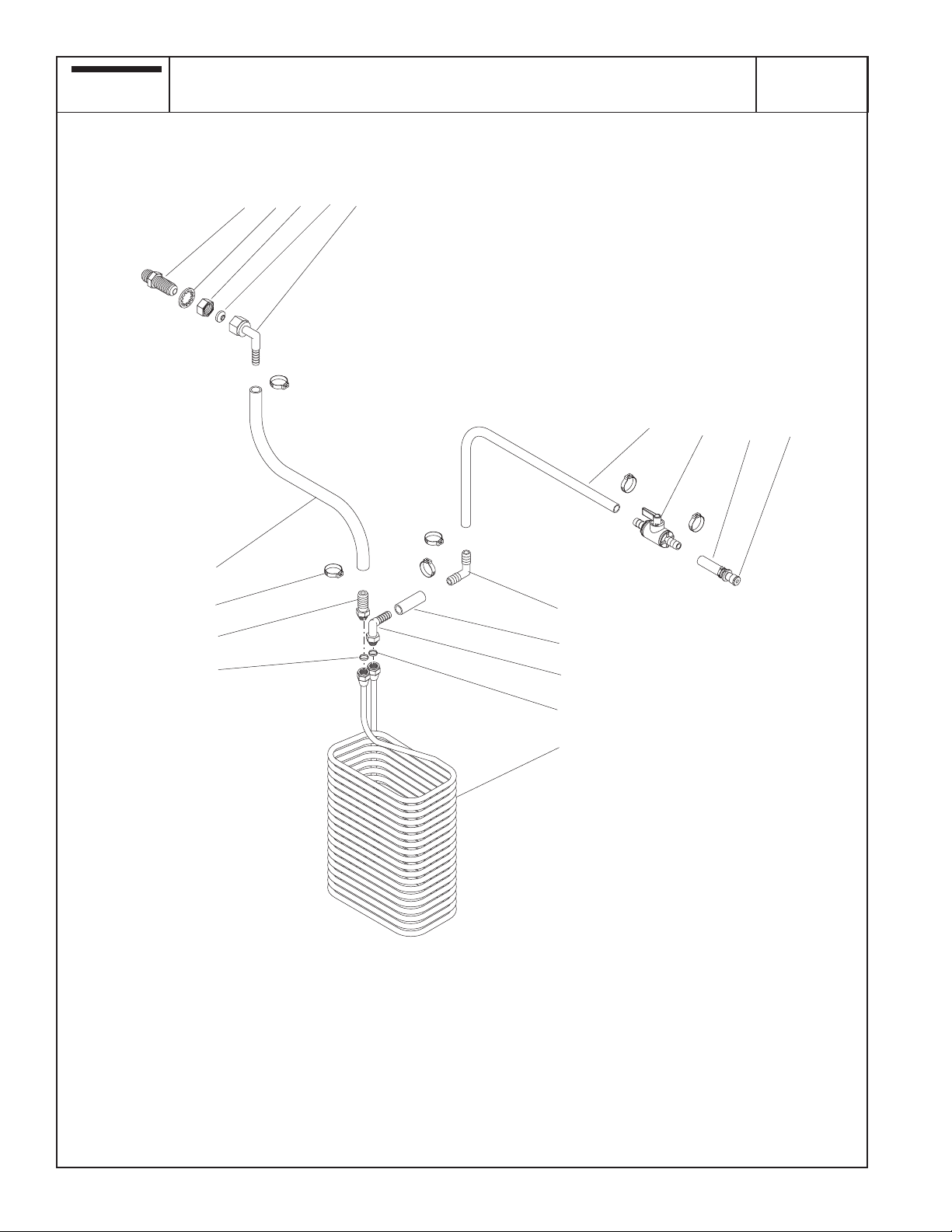

PRODUCT COIL & LINES
10 9 8 7 6
JDF-2
14 15-16 17 18
5
4
3
2
13
12
11
2
1
to Plain Manifold
18
P2707
35304 081303
PRODUCT COIL & LINES
ITEM PART NO. QTY. DESCRIPTION
1- - - - - - - - 1 Product Coil (See WATER TANK ASSEMBLY)
2 35305.0000 2 Gasket
3 35173.0000 1 Fitting .312" Fl x .375" Barb
4 21275.0004 8 Clamp .54" - .64"
5- - - - - - - - 1 Tube, Silicone .38" ID x 17.0" (Order item 19)
6 33151.0000 1 Fitting, Elbow .38" Barb
7 33149.0000 1 Gasket
8 12757.0000 1 Nut
9 01514.0000 1 Lockwasher
10 12756.0000 1 Fitting, Bulkhead
11 35172.0000 1 Fitting, Elbow .312" Fl x .375" Barb
12 - - - - - - - - 1 Tube, Silicone .38" ID x 1.5" (Order item 19)
13 33623.0000 1 Elbow .38" Barb
14 - - - - - - - - 1 Tube, Silicone .38" ID x 10.5" (Order item 19)
15 35171.0000 1 Valve, Shut Off
16 34540.0000 1 Decal, Caution - Close
17 - - - - - - - - 1 Tube, Silicone .38" ID x 1.5" (Order item 19)
18 34462.0000 1 Coupling, Quick Disconnect, Male
19 32759.1002 1 Tube, Silicone .38" ID x 120.0" (Cut to required length)
20 M2324.1000 - Insulation, Tube 25/50 - 0.5"ID x .38" wall x 6.0 Ft (Use as required)
19
35304 081303
BUNN
®
DISPENSE PLATFORM ASSEMBLY
JDF-2
TO INLET SOLENOID
TO PRODUCT COIL
7
2
8
11
9
10
6
4
5
12
3
1
20
P2708
35304 013004
DISPENSE PLATFORM ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1- - - - - - - - 1 Platform Assy (Includes items 2 - 16)
2- - - - - - - - 2 Pump Assy (See PUMP ASSY)
01338.0000 2 Screw, Truss Head #8-32 x .625"
01522.0000 4 Washer
00991.0000 4 Nut, Elastic Lock #8-32
3 32957.0001 8 Bushing, Rubber
4 21275.0006 4 Clamp .40" - .50"
5 32755.0000 2 Dispense Valve (See DISPENSE VALVE)
32860.0000 4 Screw, Pan Head #8-18 x .312"
6 32857.0000 2 Clip
7- - - - - - - - 1 Manifold, Plain Water (See PLAIN WATER MANIFOLD)
8- - - - - - - - 1 Manifold, Rinse Water (See RINSE WATER MANIFOLD)
9 32756.0000 2 Bottle Adapter (See BOTTLE ADAPTER)
32860.0000 4 Screw, Pan Head #8-18 x .312"
10 34905.0000 1 Plate
00973.0001 4 Nut, Keps #8-32
11 32458.0000 2 Clip, Retainer
12 28062.0000 2 Thumbscrew
The following items are not illustrated
13 35189.0000 1 Harness, Dispense Platform
14 35181.0000 1 Harness, Dispense Valve
15 - - - - - - - - 4 Cable Tie (Not serviced)
16 12422.0000 2 Clamp
21
35304 013004
BUNN
®
DISPENSE VALVE ASSEMBLY
2 3 4
1
8 9 10 11
JDF-2
5 6 7
21 20
12 13 14 15
16 17 18
19
22
P2277
35304 081303
DISPENSE VALVE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 32755.0000 1 Dispense Valve Assy (Includes items 1 - 22)
1 32252.0000 1 Valve, Solenoid (Includes items 2 - 7)
2 33554.0000 1 Solenoid Valve Coil
3 28481.0000 1 Guide Kit (Includes Guide, Washer and O-ring)
4 33585.0000 1 Solenoid Valve Base Kit (Includes O-ring and items 6 & 7)
5 01111.0002 1 Solenoid Valve Repair Kit (Includes Plunger, Spring and O-ring)
6 33580.0000 1 O-ring
7 33553.0000 1 O-ring
8 32855.0000 1 Bracket
32860.0000 2 Screw #8-18 x .312"
9 32622.0000 1 Body
10 32852.0000 1 O-ring (Also use item 22)
11 32603.0000 1 Sleeve
12 32602.0000 1 Piston
13 33725.0000 1 O-ring (Also use item 22)
14 32624.0000 1 Bonnet, Adjuster
15 32853.0000 1 Spring, Flow Control
16 32851.0000 1 O-ring (Also use item 22)
17 32623.0000 1 Adjuster, Position
18 32856.0000 1 Bracket
32860.0000 2 Screw #8-18 x .312"
19 33155.0000 1 Bracket, Fitting
01308.0000 1 Screw #6-32 x .25"
20 32849.0001 1 O-ring (Also use item 22)
21 32655.0000 1 Fitting, Elbow
22 M2568.0000 - Grease, USDA H-1 (Use when assembling items 10,13,16 & 20)
23
35304 081303
BUNN
®
PLAIN WATER MANIFOLD (Early Models)
11 10 9 10 8
TO PRODUCT COIL
5 7
JDF-2
6 3 1 2
3 4 1 2
24
P2709
35304 013004
PLAIN WATER MANIFOLD (Early Models)
ITEM PART NO. QTY. DESCRIPTION
1 32631.0000 2 Fitting, Straight
2 32849.0001 2 O-ring
3- - - - - - - - 3 Hose .25" ID x 1.25" (Order item 12)
4 21275.0006 8 Clamp .40 - .50"
5- - - - - - - - 1 Hose .25" ID x 2.25" (Order item 12)
6 32761.0000 1 Elbow .25" Barb
7 32760.0000 1 Tee .25" Barb
8 32753.0000 1 Elbow .25" Barb x .375" Barb
9- - - - - - - - 1 Hose .38" ID x 1.25" (Order item 13)
10 21275.0004 2 Clamp .54 - .64"
11 34463.0000 1 Coupling, Quick Disconnect, Female
12 32745.1002 1 Hose .25" ID x 120.0" (Cut to required length)
13 32759.1002 1 Hose .38" ID x 120.0" (Cut to required length)
25
35304 013004
BUNN
®
PLAIN WATER MANIFOLD (Late Models)
8 6 7
JDF-2
5
3 1 2
3 4 1 2
26
P2826
35304 013004
PLAIN WATER MANIFOLD (Late Models)
ITEM PART NO. QTY. DESCRIPTION
1 32631.0000 2 Fitting, Straight
2 32849.0001 2 O-ring
3- - - - - - - - 2 Hose .25" ID x 1.25" (Order item 12)
4 21275.0006 4 Clamp .40 - .50"
5 36204.0000 1 Manifold, Plain SST
6- - - - - - - - 2 Hose .38" ID x 1.25" (Order item 13)
7 21275.0004 2 Clamp .54 - .64"
8 34463.0000 1 Coupling, Quick Disconnect, Female
12 32745.1002 1 Hose .25" ID x 120.0" (Cut to required length)
13 32759.1002 1 Hose .38" ID x 120.0" (Cut to required length)
27
35304 013004
BUNN
®
RINSE WATER MANIFOLD & SOLENOID (Early Models)
24 23
JDF-2
FLOW
®
Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
(Replacement Screen #23721.0000)
10
22
32
33
34
25
25
28
29
30
31
FLOW
®
(Replacement Screen #23721.0000)
Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
26
27
17
21
11
10
20
19
18
11
12
6 2
9
3
8
7
2
4
3 4 2
5
1
13
14
16
15
28
P2710
35304 013004
RINSE WATER MANIFOLD & SOLENOID (Early Models)
ITEM PART NO. QTY. DESCRIPTION
1 32756.0000 2 Bottle adapter (See BOTTLE ADAPTER)
2- - - - - - - - 3 Hose .25" ID x .44" OD x 1.25" (Order item 35)
3 21275.0006 16 Clamp .40" - .50"
4 32761.0000 2 Elbow .25" Barb
5- - - - - - - - 2 Hose .25" ID x .44" OD x 2.25" (Order item 35)
6 32760.0000 1 Tee .25" Barb
7 34460.0000 1 Fitting, Quick Disconnect, Male
8 34461.0000 1 Fitting, Quick Disconnect, Female
9- - - - - - - - 1 Hose .25" ID x .44" OD x 15.75" (Order item 35)
10 33151.0001 3 Fitting, Elbow .25" Barb
11 33149.0001 4 Gasket
12 01085.0002 1 Solenoid Valve 120V (Includes items 13 - 16)
28005.0000 1 Solenoid Valve 230V (Includes items 13- 15)
01327.0000 2 Screw, Pan Head #10-32 x .38"
13 28480.0000 1 Coil, Solenoid 120V
28020.0000 1 Coil, Solenoid 230V
14 01111.0002 1 Solenoid Repair Kit (Includes Plunger, Spring and O-ring)
15 28479.0000 1 Solenoid Base Kit 120V (Includes O-ring)
28021.0000 1 Core Assy Kit 230V
16 28481.0000 1 Guide Kit
17 00402.0001 2 Connector
18 35326.0000 1 Nipple
19 35327.0000 1 Nut
20 - - - - - - - - 1 Hose .25" ID x .44" OD x 1.25" (Order item 35)
21 00459.0000 1 Fitting, Bulkhead
01532.0000 1 Lockwasher, Internal-toth .438"
00463.0000 1 Nut, Hex .375"-20
22 - - - - - - - - 1 Hose .25" ID x .44" OD x 4.0" (Order item 35)
23 33149.0000 1 Gasket
24 33151.0000 1 Fitting, Elbow .38" Barb
25 21275.0004 4 Clamp .54" - .64"
26 - - - - - - - - 1 Hose .38" ID x .595" OD x 1.5" (Order item 36)
(Continued)
29
35304 013004
BUNN
®
RINSE WATER MANIFOLD & SOLENOID (Early Models)
(Continued)
24 23
JDF-2
FLOW
®
Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
(Replacement Screen #23721.0000)
10
22
32
33
34
25
25
28
29
30
31
FLOW
®
(Replacement Screen #23721.0000)
Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
26
27
17
21
11
10
20
19
18
11
12
6 2
9
3
8
7
2
4
3 4 2
5
1
13
14
16
15
30
P2710
35304 013004
RINSE WATER MANIFOLD & SOLENOID (Early Models)
ITEM PART NO. QTY. DESCRIPTION
27 32749.0000 1 Tee .38" Barb x .38" Barb x .25" Barb
28 - - - - - - - - 1 Hose .38" ID x .595" OD x 2.25" (Order item 36)
29 33150.0000 1 Nut
30 33686.0000 1 Nipple
31 23720.1000 1 Strainer Assy (Includes items 32 - 34)
32 - - - - - - - - 1 Housing, Strainer (Order item 31)
33 23721.0000 1 Screen
34 23723.0000 1 End Cap
35 32745.1002 - Hose .25" ID x .44" OD x 120.0" (Cut to required length)
36 32759.1002 - Hose .38" ID x .595" OD x 120.0" (Cut to required length)
31
35304 013004
BUNN
®
RINSE WATER MANIFOLD & SOLENOID (Late Models)
22 21
JDF-2
FLOW
®
(Replacement Screen #23721.0000)
Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
8
20
30
31
32
23
23
26
27
28
29
FLOW
®
Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
(Replacement Screen #23721.0000)
24
25
15
19
9
8
18
17
16
9
10
7
3
6
5
2
3 4 3
1
2 1
11
12
14
13
32
P2827
35304 013004
RINSE WATER MANIFOLD & SOLENOID (Late Models)
ITEM PART NO. QTY. DESCRIPTION
1 32756.0000 2 Bottle adapter (See BOTTLE ADAPTER)
2- - - - - - - - 3 Hose .25" ID x .44" OD x 1.25" (Order item 33)
3 21275.0006 16 Clamp .40" - .50"
4 36203.0000 1 Manifold. Rinse SST
5 34460.0000 1 Fitting, Quick Disconnect, Male
6 34461.0000 1 Fitting, Quick Disconnect, Female
7- - - - - - - - 1 Hose .25" ID x .44" OD x 15.75" (Order item 33)
8 33151.0001 3 Fitting, Elbow .25" Barb
9 33149.0001 4 Gasket
10 01085.0002 1 Solenoid Valve 120V (Includes items 11 - 14)
28005.0000 1 Solenoid Valve 230V (Includes items 11- 13)
01327.0000 2 Screw, Pan Head #10-32 x .38"
11 28480.0000 1 Coil, Solenoid 120V
28020.0000 1 Coil, Solenoid 230V
12 01111.0002 1 Solenoid Repair Kit (Includes Plunger, Spring and O-ring)
13 28479.0000 1 Solenoid Base Kit 120V (Includes O-ring)
28021.0000 1 Core Assy Kit 230V
14 28481.0000 1 Guide Kit
15 00402.0001 2 Connector
16 35326.0000 1 Nipple
17 35327.0000 1 Nut
18 - - - - - - - - 1 Hose .25" ID x .44" OD x 1.25" (Order item 33)
19 00459.0000 1 Fitting, Bulkhead
01532.0000 1 Lockwasher, Internal-toth .438"
00463.0000 1 Nut, Hex .375"-20
20 - - - - - - - - 1 Hose .25" ID x .44" OD x 4.0" (Order item 33)
21 33149.0000 1 Gasket
22 33151.0000 1 Fitting, Elbow .38" Barb
23 21275.0004 4 Clamp .54" - .64"
24 - - - - - - - - 1 Hose .38" ID x .595" OD x 1.5" (Order item 34)
25 32749.0000 1 Tee .38" Barb x .38" Barb x .25" Barb
(Continued)
33
35304 013004
BUNN
®
RINSE WATER MANIFOLD & SOLENOID (Late Models)
(Continued)
22 21
JDF-2
FLOW
®
(Replacement Screen #23721.0000) Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
8
20
30
31
32
23
23
26
27
28
29
FLOW
®
(Replacement Screen #23721.0000) Strainer Assembly #23720.1000
90 psig max operating pressure
BUNN
24
25
15
19
9
8
18
17
16
9
10
7
3
6
5
2
3 4 3
1
2 1
11
12
14
13
34
P2827
35304 013004
RINSE WATER MANIFOLD & SOLENOID (Late Models)
ITEM PART NO. QTY. DESCRIPTION
26 - - - - - - - - 1 Hose .38" ID x .595" OD x 2.25" (Order item 34)
27 33150.0000 1 Nut
28 33686.0000 1 Nipple
29 23720.1000 1 Strainer Assy (Includes items 30 - 32)
30 - - - - - - - - 1 Housing, Strainer (Order item 29)
31 23721.0000 1 Screen
32 23723.0000 1 End Cap
33 32745.1002 - Hose .25" ID x .44" OD x 120.0" (Cut to required length)
34 32759.1002 - Hose .38" ID x .595" OD x 120.0" (Cut to required length)
35
35304 013004
BUNN
®
2 1
PUMP ASSEMBLY
JDF-2
16
26 27
17
18
19
20
26 28 29
21
22
25
24
13
14
15
3
4
5
6
7
8
9
10
36
11 12 23
P2711
35304 081303
PUMP ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 33803.0000 1 Pump Assy (Includes items 1 - 29)
1- - - - - - - - 1 Motor Assy (Refer to item 34)
2 32654.0000 1 Magnet Hub
01512.0000 1 Lockwasher, Internal-tooth #10
01331.0004 1 Screw, Locking #10-32 x .50"
3 33608.0000 1 Sensor, RPM
02336.0000 2 Screw #4-40 x .38"
4 33781.0000 1 Gasket
5 32957.0000 4 Bushing
6 00991.0003 1 Nut, Elastic Lock #10-32
7 33778.1000 1 Mount Assy, Pump (Includes items 8, 9 & 10)
8 29904.0000 1 Insert, Well Nut #8-32
9- - - - - - - - 1 Insert, Threaded #10-32
10 33825.0000 1 Bearing, Sleeve
11 32706.1000 1 Rotor
12 32652.0000 1 Retaining Ring
13 33295.0000 1 Screw, Socket Head #10-32 x 1.75"
14 23918.0001 1 Spring
15 01522.0000 1 Washer
16 00991.0003 1 Nut, Elastic Lock #10-32
17 - - - - - - - - 1 Tube, Neoprene .25" ID x .45" OD x 21.00" (Order item 32 & 33)
18 32927.0000 4 Bolt, Shoulder #10-32
19 33779.0000 1 Retainer
20 01331.0000 1 Screw #10-32 x .50"
21 32609.0000 1 Standoff, Pump Band
22 33780.0000 1 Compression Band
23 01311.0001 1 Screw, Locking #8-32 x .25"
24 32732.0000 1 Clamp (One less used on Late Models)
25 32656.0000 1 Fitting, Elbow (One less used on Late Models)
26 21275.0004 2 Clamp .54 - .64"
27 - - - - - - - - 1 Hose .38" ID x .595" OD x 7.25" (Order item 31)
(Continued)
37
35304 081303
BUNN
®
2 1
PUMP ASSEMBLY
(Continued)
JDF-2
16
26 27
17
18
19
20
26 28 29
21
22
25
24
13
14
15
3
4
5
6
7
8
9
10
38
11 12 23
P2711
35304 081303
PUMP ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
28 32454.0000 1 Fitting, Bottle Adapter
29 34087.0000 1 O-ring (Also use item 30)
30 M2568.0000 - Lubricant (Use when installing item 29)
31 32759.1002 - Hose .38" ID x .595" OD x 120.0" (Use as required)
32 28755.1000 - Tube, Neoprene .25" ID x .45" OD x 12.0" (Use as required)
28755.1001 - Tube, Neoprene .25" ID x .45" OD x 36.0" (Use as required)
28755.1002 - Tube, Neoprene .25" ID x .45" OD x 60.0" (Use as required)
33 M2548.1000 - Grease, Krytox .50 oz. (Apply to outside of tube only. Use as required)
34 33744.0000 - Motor Replacement Kit (Includes items 1,2,3 and mounting hardware)
39
35304 081303
BUNN
®
BOTTLE ADAPTER ASSEMBLY
1 2 3 4 5 6 7 15 14 16
JDF-2
7
8 9 10 11 12 13
P2281
40
35304 081303
BOTTLE ADAPTER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 32756.0000 1 Adapter Assy, Bottle (Includes items 1 - 16)
1 32456.0000 1 Spool
2 36301.0000 1 O-ring
3 32625.0000 1 Seal, Rotary
4 33515.0000 1 Boot, Teflon (Also order item 17)
5- - - - - - - - 1 Opener (Order item 6)
6 32453.1000 1 Body Assy. (Includes items 5 & 7)
7- - - - - - - - 2 Probe (Order item 6)
8 34032.1000 1 Switch, Membrane
9 32663.0000 1 Detent, Membrane Switch
10 33042.0000 1 Spring
11 32469.0000 1 Plate, Detent
12 00942.0002 1 Nut, Brass w/Tin Plate .50-20"
13 21358.0000 1 Clip, Retainer
14 32463.0000 1 Fitting, Elbow
15 32849.0001 1 O-ring
16 32846.0000 1 Plate
32860.0000 1 Screw
17 M2568.0000 - Grease, USDA H-1 (Use when installing item 4)
41
35304 013004
BUNN
®
12 11 10 9 8 6
DOOR ASSEMBLY
JDF-2
5 4 3
1
2
19
20
17
7
13 14 15 16
42
18
P2712
35304 081303
DOOR ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 36080.0000 1 Door Assy. Lited, Pushbutton (Includes items 2 - 26)
- 36080.0001 1 Door Assy. Lited, Portion Control (Includes items 2 - 26)
- 36080.0002 1 Door Assy. Unlited, Pushbutton (Includes items 2, 3, 6 - 26)
- 36080.0003 1 Door Assy. Unlited, Portion Control (Includes items 2, 3, 6 - 26)
1 35166.1000 1 Door, Upper, Lited (Includes items 2 - 12, 14, 15, 19 - 23, 25 & 26)
35166.1001 1 Door, Upper, Unlited (Includes items 2, 3, 6 - 12, 14, 15, 19 - 23, 25 & 26)
01317.0005 2 Screw, Blk, Truss Head, Locking #8-32 x .375"
2 23729.0000 1 Decal, BUNN
3 34741.0000 1 Shoulder Bolt
4 32807.0001 1 Lamp Holder (Lited Doors only)
5 32806.0000 1 Lamp (Lited Doors only)
6 34791.0000 1 Panel, Light
7 33532.0000 1 Bracket, Hinge
01317.0003 4 Screw, Truss Head, Locking #8-32 x .375"
8- - - - - - - - 1 Panel, Door Inner (Not serviced)
9 34792.0000 1 Seal, Door
10 35567.0000 1 Plate, Door Seal
01322.0001 6 Screw, Round Head, Locking #8-32 x 1.25"
11 35278.0000 1 Decal, Brixing and Cleaning
12 34667.0000 1 Keeper, Door Latch
01519.0000 2 Lockwasher
02319.0000 2 Nut, Acorn
13 35387.1000 1 Door, Lower, Pushbutton (Includes items 14 thru 18)
35387.1001 1 Door, Lower, Portion Control (Includes items 14 thru 18)
01317.0005 4 Screw, Blk, Truss Head, Locking #8-32 x .375"
14 32819.0000 2 Strip, Adhesive
15 33704.0001 2 Flavor Strip
16 34736.0000 1 Membrane Switch, Push Button
34737.0000 1 Membrane Switch, Portion Control
17 34470.0000 1 Lock Assy (Includes Keys and Nut)
28095.0000 1 Keys (Set of 2)
18 35608.0000 1 Shim
19 35022.0000 1 Lens, Fixed
24544.0000 2 Screw, Pan Head #8-18
20 35023.0000 1 Lens, Removable
(Continued)
43
35304 081303
BUNN
®
12 11 10 9 8 6
DOOR ASSEMBLY
JDF-2
(Continued)
5 4 3
1
2
19
20
17
7
13 14 15 16
44
18
P2712
35304 081303
DOOR ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
21 35269.0000 1 Harness, Touch Pad
22 07130.0000 2 Cable Tie
23 35270.0000 1 Harness, Door Lamp (Lited Doors only)
24 33208.0001 1 Harness, Light Socket (Lited Doors only)
25 00970.0000 1 Nut, Harness Grounding (Lited Doors only)
26 29976.0000 1 Cable Mount
45
35304 081303
BUNN
O
I
®
ELECTRICAL COMPONENTS
JDF-2
1 2 3 4 5
I
O
LINE
6
7
8
19
9 17
J5
J3
J1
J2
13
J6
J9J8J7
NING
WAR
AGE
HAZARDOUS
M O
VOLT
R
F
T
E
C
C
E
R
N
!
U
N
G
O
O
N
C
I
S
S
V
R
I
O
E
D
M
W
E
O
P
R
E R O
F E
J4
B
15
14
18 10 11 12 16
46
P2713
35304 081303
ELECTRICAL COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 04786.0004 1 Switch, Compressor ON/OFF
2 34407.0000 1 Enclosure
02308.0000 2 Screw, Pan Head #8-32 x .38"
3 28327.0000 1 Ballast, Door Lamp (Lited Doors only)
02308.0000 2 Screw, Pan Head #8-32 x .38"
4 22126.0000 1 Rectifier
00970.0000 1 Nut, Keps #8-32
5 00970.0000 1 Nut, Harness Grounding
6 32824.0001 1 Transformer 120V
32824.0002 1 Transformer 230V (Not serviced)
02308.0000 2 Screw, Pan Head #8-32 x .38"
7 25948.0000 1 Relay 120V
25948.0001 1 Relay 230V
02308.0000 2 Screw, Pan Head #8-32 x .38"
8 29446.0000 1 EMI Filter (230V models only)
9 34406.0000 1 Enclosure
02308.0000 2 Screw, Pan Head #8-32 x .38"
10 33147.0000 1 Audio Indicator
01382.0000 2 Screw, Truss Head #6-32 x .375"
00973.0000 2 Nut, Keps #6-32
11 29081.0000 8` Spacer
12 32673.1002 1 Circuit Board
00973.0000 4 Nut, Keps #6-32
13 34404.0000 1 Cover
01382.0000 2 Screw, Truss Head #6-32 x .375"
14 12559.0003 1 Decal, Warning - Hazardous Voltage
15 33647.0000 1 Decal, Dip Switch
16 33460.0000 1 Decal, Sanitize Switch
17 27410.0000 1 Clip, Tube Mounting
18 01063.0000 1 Switch, Rinse/Run
19 00707.0000 1 Bushing, Strain Relief
The following items are not illustrated
20 22749.0000 1 Pad, Cable Mounting
21 00617.0000 1 Cable Tie
22 35182.0000 1 Harness, Main 120V
35182.0001 1 Harness, Main 230V
(Continued)
47
35304 081303
BUNN
O
I
®
ELECTRICAL COMPONENTS
1 2 3 4 5
I
O
JDF-2
(Continued)
LINE
6
7
8
19
9 17
J5
J3
J1
J2
13
J6
J9J8J7
NING
WAR
AGE
HAZARDOUS
M
O
VOLT
R F T
E
C
C
E
R
N
!
U
N
G
O
O
N
C
I
S
S
V
R
I
O
E
D
M
W
E
O
P
R
E R O
F E
J4
B
15
14
18 10 11 12 16
48
P2713
35304 081303
ELECTRICAL COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
23 20630.0010 1 Power Cord
24 35177.0000 1 Harness, Water Bath
25 33115.0000 1 Harness, Cabinet Fan
26 35191.0000 1 Harness, Compressor
49
35304 081303
BUNN
®
REFILLABLE CONTAINER ASSEMBLY
JDF-2
2
1
4
5
6
7
50
3
P2501
35304 081303
8
9
REFILLABLE CONTAINER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 33931.0000 1 Container Assy (Includes items 1-9)
1 32167.1000 1 Container w/Lid (Includes item 2)
3 33953.1000 1 Fitting Assy (Includes items 4-9)
4 32165.0000 1 Gasket
5 32166.0000 1 Retaining Clip
6 32877.0000 1 Spring
7 00598.0002 1 Ball
8 32168.0000 1 Fitting
9 33725.0001 1 O-ring
51
35304 081303
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00396.0002 .........................9
00402.0001 ..................29,33
00459.0000 ..................29,33
00463.0000 ..................29,33
00598.0002 .......................51
00617.0000 ...............7,13,47
00656.0000 .........................5
00668.0000 .........................5
00669.0002 .........................7
00707.0000 .......................47
00901.0000 .........................9
00908.0000 .......................13
00942.0002 .......................41
00970.0000 ..................45,47
00973.0000 ..................13,47
00973.0001 .......................21
00976.0000 .......................15
00986.0002 .........................5
00991.0000 .......................21
00991.0003 .......................37
01063.0000 .......................47
01085.0002 ..................29,33
01111.0002 .............23,29,33
01308.0000 .......................23
01311.0001 ....................5,37
01317.0003 ............5,9,13,43
01317.0005 .......................43
01322.0001 .......................43
01327.0000 ...............7,29,33
01331.0000 .......................37
01331.0004 .......................37
01338.0000 .......................21
01359.0000 .........................7
01382.0000 ....................7,47
01512.0000 .......................37
01514.0000 .......................19
01519.0000 .......................43
01522.0000 .............13,21,37
01532.0000 ..................29,33
02308.0000 .......................47
02319.0000 .......................43
02332.0001 ....................5,13
02335.0001 .........................9
02336.0000 .......................37
02361.0000 .......................13
02536.0000 .......................13
03996.0000 .........................5
04786.0004 .......................47
07130.0000 .......................45
12422.0000 .......................21
12559.0003 .......................47
12756.0000 .......................19
12757.0000 .......................19
20203.0100 .......................13
20630.0010 .......................49
20936.0001 .......................13
21275.0004 ........13,17,19,25
21275.0004 ........27,29,33,37
21275.0005 .......................13
21275.0006 ........15,21,25,27
21275.0006 ..................29,31
21358.0000 .......................41
21431.0003 .........................9
21436.0000 .........................5
22126.0000 .......................47
22749.0000 .......................47
23700.0000 .......................11
23720.1000 ..................31,33
23721.0000 ..................31,33
23723.0000 ..................31,33
23729.0000 .......................43
23918.0001 .......................37
24544.0000 ...............7,13,43
25948.0000 .......................47
25948.0001 .......................47
26528.0000 .........................5
27243.0000 .........................9
27246.0000 .........................7
27258.0000 .......................11
27354.0000 .........................5
27394.0000 .........................7
27410.0000 .......................47
27442.0000 .........................5
28005.0000 ..................29,33
28020.0000 ..................29,33
28021.0000 ..................29,33
28062.0000 .......................21
28095.0000 .......................43
28327.0000 .......................47
28479.0000 ..................29,33
28480.0000 ..................29,33
28481.0000 .............23,29,33
28567.0000 .........................9
28755.1000 .......................39
28755.1001 .......................39
28755.1002 .......................39
29081.0000 .......................47
29327.0000 .......................13
29446.0000 .......................47
29837.1000 .......................13
29837.1001 .......................13
29904.0000 .......................37
29951.0000 .........................9
29976.0000 .......................45
32165.0000 .......................51
32166.0000 .......................51
32167.1000 .......................51
32168.0000 .......................51
32204.1001 .......................11
32204.1002 .......................11
32252.0000 .......................23
32453.1000 .......................41
32454.0000 .......................39
32455.0000 .........................7
32456.0000 .......................41
32458.0000 .......................21
32461.0000 .........................7
32463.0000 .......................41
32467.1000 .........................7
32469.0000 .......................41
32602.0000 .......................23
32603.0000 .......................23
32609.0000 .......................37
32621.0000 .........................7
32622.0000 .......................23
32623.0000 .......................23
32624.0000 .......................23
32625.0000 .......................41
32631.0000 ..................25,27
32652.0000 .......................37
32654.0000 .......................37
32655.0000 .......................23
32656.0000 .......................37
32663.0000 .......................41
32673.1002 .......................47
32706.1000 .......................37
32732.0000 .......................37
32734.0001 .......................13
32745.1002 ........25,27,31,33
32749.0000 ..................31,33
32753.0000 .......................25
32755.0000 ..................21,23
32756.0000 ........21,29,33,41
32759.1002 ........17,19,25,27
32759.1002 .............31,33,39
32760.0000 .............15,25,29
32761.0000 ..................25,29
32776.0001 .........................9
32806.0000 .......................43
32807.0001 .......................43
32819.0000 .......................43
32824.0001 .......................47
32824.0002 .......................47
32846.0000 .......................41
32848.0000 .........................7
32849.0001 ........23,25,27,41
32851.0000 .......................23
32852.0000 .......................23
32853.0000 .......................23
32855.0000 .......................23
32856.0000 .......................23
32857.0000 .......................21
32858.0000 .........................7
32860.0000 .............21,23,41
32877.0000 .......................51
32927.0000 .......................37
32957.0000 .......................37
32957.0001 .......................21
33042.0000 .......................41
33115.0000 .......................49
33147.0000 .......................47
33149.0000 ...15,17,19,29,33
33149.0001 ..................29,33
33150.0000 ..................31,33
33151.0000 .............19,29,33
33151.0001 .......................29
33155.0000 .......................23
33159.1002 .......................15
33208.0001 .......................45
33295.0000 .......................37
33297.0000 .........................7
33458.0000 .........................5
33459.0002 .........................7
33459.0003 .........................7
33460.0000 .......................47
33461.0001 .........................5
33515.0000 .......................41
33519.0000 .......................13
33522.0000 .........................9
33522.0001 .........................9
33528.0000 .........................5
33532.0000 .......................43
33533.0000 .......................13
33536.0000 .........................9
33538.0000 .........................5
33539.0000 .........................5
33553.0000 .......................23
33554.0000 .......................23
33580.0000 .......................23
33585.0000 .......................23
33602.0000 .......................11
33603.0000 .......................11
33603.0001 .......................11
33608.0000 .......................37
33623.0000 .............13,17,19
33645.0000 .........................5
33646.0000 .........................5
33647.0000 .......................47
33669.0000 .........................7
33686.0000 ..................31,33
33704.0001 .......................43
33725.0000 .......................23
52
35304 013004
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
33725.0001 .......................51
33744.0000 .......................39
33778.1000 .......................37
33779.0000 .......................37
33780.0000 .......................37
33781.0000 .......................37
33801.0000 .......................13
33803.0000 .......................37
33825.0000 .......................37
33931.0000 .......................51
33953.1000 .......................51
34032.1000 .......................41
34087.0000 .......................39
34325.1002 .......................15
34362.0000 .........................7
34403.1000 .......................13
34404.0000 .......................47
34406.0000 .......................47
34407.0000 .......................47
34409.0000 .........................5
34410.0000 .........................5
34414.1000 .......................13
34416.0000 .......................13
34418.0000 .........................9
34419.0000 .........................7
34421.0000 .........................7
34422.1000 .........................7
34460.0000 ..................29,33
34461.0000 ..................29,33
34462.0000 .......................19
34463.0000 ..................25,27
34470.0000 .......................43
34540.0000 .......................19
34644.0001 .......................13
34666.0001 .........................7
34667.0000 .......................43
34736.0000 .......................43
34737.0000 .......................43
34738.0000 .........................7
34741.0000 .......................43
34784.0000 .........................7
34785.0000 .........................7
34786.1000 .........................5
34787.1000 .........................5
34787.1001 .........................5
34788.1000 .........................5
34789.1000 .........................5
34790.0000 .........................7
34791.0000 .......................43
34792.0000 .......................43
34797.0000 .........................5
34871.0000 .........................5
34905.0000 .......................21
34994.0000 .........................5
35018.0000 ......................... 5
35022.0000 .......................43
35023.0000 .......................43
35106.0000 .......................13
35108.0000 ......................... 7
35132.0000 .......................13
35164.0000 ......................... 9
35165.0000 .......................13
35166.1000 .......................43
35166.1001 .......................43
35171.0000 .......................19
35172.0000 .......................19
35173.0000 ..................17,19
35174.0000 .......................15
35175.1000 ......................... 9
35177.0000 .......................49
35179.0001 ......................... 9
35180.0001 ......................... 9
35181.0000 .......................21
35182.0000 .......................47
35182.0001 .......................47
35189.0000 .......................21
35191.0000 .......................49
35269.0000 .......................45
35270.0000 .......................45
35272.1000 .......................13
35277.0000 ......................... 5
35277.0001 ......................... 5
35278.0000 .......................43
35305.0000 .......................19
35326.0000 ..................29,33
35327.0000 ..................29,33
35385.0001 ......................... 9
35386.0001 ......................... 9
35387.1000 .......................43
35387.1001 .......................43
35526.0000 .......................13
35567.0000 .......................43
35580.0001 ......................... 9
35581.0001 ......................... 9
35608.0000 .......................43
36080.0000 .......................43
36080.0001 .......................43
36080.0002 .......................43
36080.0003 .......................43
36203.0000 .......................33
36204.0000 .......................27
36301.0000 .......................41
M2316.1000 ........................ 9
M2324.1000 ...................... 19
M2332.1000 ........................ 9
M2548.1000 ...................... 39
M2568.0000 ......... 7,23,39,41
53
35304 013004
Loading...
