ITCB
ITCB-DV
Infusion Series
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
36747.0000K 01/11 ©2004 Bunn-O-Matic Corporation
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN
Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic,
Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design,
Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series,
Intellisteam, My Café, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart
Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, A
Partner You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter.,
BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a BUNN, Pouring
Profits, Signature Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, Titan, trifecta, Ultra, Velocity Brew are
either trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
36747 051910
TABLE OF CONTENTS
Hood, Trunk, Base and Panels.............................................................................................................................4
Tank and Components.........................................................................................................................................8
Dispense Valve and Sprayhead .........................................................................................................................10
Faucet and Lines ...............................................................................................................................................12
Fill, Dilution & Tank Drain - Later Models ..........................................................................................................14
Sweetener .........................................................................................................................................................16
Fill, Dilution & Tank Drain - Early Models & CE .................................................................................................18
Electrical and Operating Controls ......................................................................................................................22

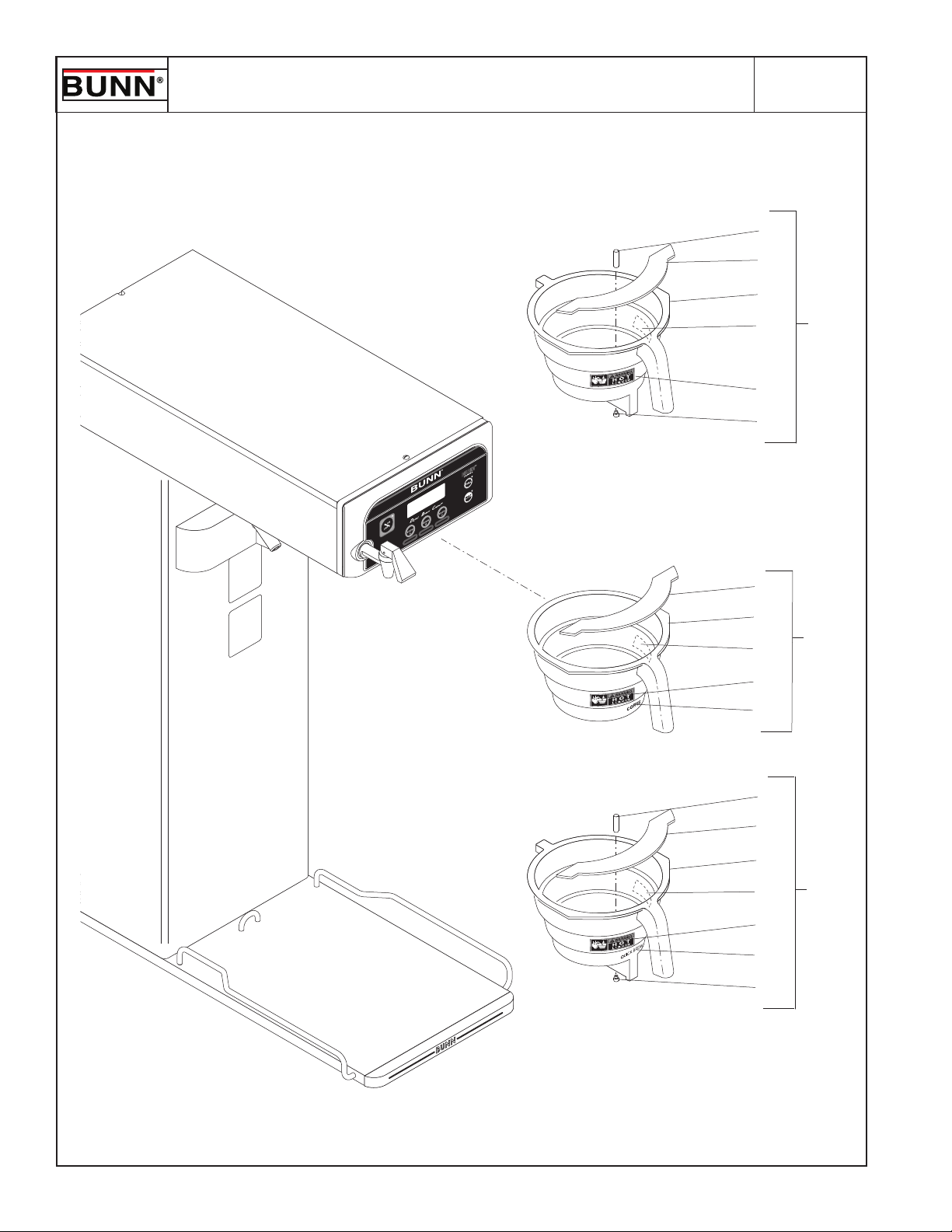

Funnels .............................................................................................................................................................26
Numerical Index ................................................................................................................................................28
ITCB-DV ................................................................................................................. Dual Voltage Machine
ITCB-C-DV ........................................................................................... Dual Voltage Machine for Canada
ITCBA ............................................................................................................................ 230 Volt Machine
ITCBB ............................................................................................................................ 200 Volt Machine
Fraction Decimal Fraction Decimal
1/16 0.063 9/16 0.563
1/8 0.125 5/8 0.625
3/16 0.188 11/16 0.688
1/4 0.250 3/4 0.750
5/16 0.313 13/16 0.813
3/8 0.375 7/8 0.875
7/16 0.438 15/16 0.938
1/2 0.500 1 1.000
3
36747 110107
Early models with 10 hole trunks:
The upper, middle, & lower holes
will line up with the 6 holes in the
current style trunks.
27
12
HOOD, TRUNK, BASE AND PANELS
ITCB
ITCB-DV
25
24
1
2
Bracket no
longer used
11
10
13
24
Obsolete
9
22
7
23
5
6
15 14 8 26
18 16 20
21 19 17
P2887.40
4
36747 100510
HOOD, TRUNK, BASE AND PANELS
ITEM PART NO. QTY. DESCRIPTION
1 36355.1006 1 Cover, Top (Includes items 24 & 25)
01308.0000 1 Screw, Truss Head #6-32 x .25˝
2 36354.0001* 1 Hood, Early Style w/Memory Board (Not Available, Order 36354.0004)
36354.0004 1 Hood, w/o Memory Board
02308.0000 8 Screw, Pan Head #8-32 x .38˝
5 38704.1002 1 Flip Tray w/Decal
6 38578.0000 1 Decal
7 36360.1001 1 Kit, Dilution Nozzle (Includes 2 Elbow fittings)
36360.1002 1 Kit, Dilution Nozzle (Includes Tee fitting) FOR FACTORY SWEETENER ONLY
02332.0005 2 Screw, Hex #6 x .38˝
8 36353.1000* 1 Trunk w/Decals 29.0˝ (10 mtg. hole) (Not Available, Order 36353.1007)
36353.1001 1 Trunk w/Decals 25.75˝ (Includes item 9 & 10) (8 mtg. hole) No Switch
36353.1007 1 Trunk w/Decals 29.0˝ (Includes items 9 & 10) (6 mtg. hole) No Switch
36353.1008 1 Trunk w/Decals 25.75˝ (Includes item 9 & 10) (6 mtg. hole) No Switch
36353.1009 1 Trunk w/Decals 29.0˝ (6 mtg. hole) w/Rocker Switch
36353.1010* 1 Trunk 29.0˝ (6 mtg. hole) w/Rocker Switch (Not Available, order 38580.1001)
36353.1016* 1 Trunk 29.0˝ (6 mtg. hole) w/Toggle Switch (Not Available, order 38580.1003)
36353.1017 1 Trunk w/Decals 25.75˝ (Includes item 9 & 10) (6 mtg. hole) w/Toggle Switch
38580.1000* 1 Trunk, Flip Tray w/Decals 28.8˝ No Switch (Not Available, order 38580.1003)
38580.1001 1 Trunk, Flip Tray w/Decals 28.8˝ (Includes items 9, 10, 23, & 26) w/Rocker Switch
38580.1003 1 Trunk, Flip Tray w/Decals 28.8˝ (Includes items 9, 10, 23, & 26) w/Toggle Switch
38595.1000 1 Trunk, Flip Tray w/Decals 25.75˝ (Includes items 9, 10, 23, & 26) No Switch
38595.1003 1 Trunk, Flip Tray w/Decals 25.75˝ (Includes items 9, 10, 23, & 26) w/Toggle Switch
02308.0000 6 Screw, Pan Head #8-32 x .38˝
9 00658.0000 1 Decal, Warning - Decanter/Funnel
10 29710.0009 1 Decal, Optional Field Wiring (Models ITCB-DV)
29710.0010 1 Decal, Optional Field Wiring (Models ITCB-C-DV)
11 36356.1000* 1 Panel w/Decals 29.0˝ (10 mtg.hole) (ITCB-DV) (Not Available, Order 36356.1008)
01311.0001 10 Screw, Truss Head #8-32 x .25˝
36356.1008 1 Panel w/Decals 29.0˝ (6 mtg.hole) (Includes items 12-15 & 24) (ITCB-DV)
01311.0001 6 Screw, Truss Head #8-32 x .25˝
36356.1001 1 Panel w/Decals 25.75˝ (8 mtg. hole) (Includes items 12-15 & 24) (ITCB-DV)
01311.0001 8 Screw, Truss Head #8-32 x .25˝
36356.1013 1 Panel w/Decals 25.75˝ (6 mtg. hole) (Includes items 12-15 & 24) (ITCB-DV)
01311.0001 6 Screw, Truss Head #8-32 x .25˝
36356.1006* 1 Panel 25.75˝ (8 mtg. hole) (ITCB-C-DV) (Not Available, Order 36356.1001)
01311.0001 8 Screw, Truss Head #8-32 x .25˝
36356.1014 1 Panel w/Decals 25.75˝ (6 mtg. hole) (Includes items 12-15 & 24) (ITCB-C-DV)
01311.0001 6 Screw, Truss Head #8-32 x .25˝
36356.1007* 1 Panel 25.75˝ (8 mtg. hole) (ITCBA & ITCBB) (Not Available, Order 36356.1001)
01311.0001 8 Screw, Truss Head #8-32 x .25˝
36356.1015* 1 Panel 25.75˝ (6 mtg. hole) (ITCBA & ITCBB) (Not Available, Order 36356.1014)
01311.0001 6 Screw, Truss Head #8-32 x .25˝
36356.1106 1 Panel w/Decals 29.0˝ SST (7 mtg. hole) (Includes items 14,15 & 24)
36356.1107 1 Panel w/Decals 29.0˝ BLK (7 mtg. hole) (Includes items 14,15 & 24)
36356.1108 1 Panel w/Decals 25.75˝ SST (7 mtg. hole) (Includes items 14,15 & 24)
01311.0001 7 Screw, Truss Head #8-32 x .25"
(continued)
* Indicates the part number listed is for reference only.
5
36747 100510
Early models with 10 hole trunks:
The upper, middle, & lower holes
will line up with the 6 holes in the
current style trunks.
27
12
HOOD, TRUNK, BASE AND PANELS
ITCB
ITCB-DV
25
24
1
2
Bracket no
longer used
11
10
13
24
Obsolete
9
22
7
23
5
6
15 14 8 26
18 16 20
21 19 17
P2887.40
6
36747 100510
HOOD, TRUNK, BASE AND PANELS
ITEM PART NO. QTY. DESCRIPTION
12 36460.0000 1 Schematic, ITCB-DV (120VAC, 120/240VAC) US & Canada
36460.0001* 1 Schematic, ITCBA, ITCBB (200VAC, 230VAC)
36460.0003 1 Schematic, ITCB-DV w/Optional Swtnr Kit (120VAC, 120/240VAC) US & Canada
36460.0004 1 Schematic, ITCB-DV w/Factory Sweetener (120VAC, 120/240VAC) US & Canada
13 34072.0000 1 Decal, Power Cord Warning
14 00986.0000 1 Decal, Warning - Electrical
15 00656.0000 1 Decal, Comply to Plumbing Code
16 36362.0000* 1 Base, Early Models w/Trim (Order New Style Base 36362.0001)
36362.0001 1 Base, Models w/First Style Inlet Valve
36362.0002 1 Base, Models w/Second Style Inlet Valve
17 25137.0001 4 Foot
24600.0000 - Foot Kit, Set of 4
18 36412.0000 1 Rail, Stop
00970.0000 2 Nut, Keps #8-32
19 36461.0000 1 Guide Rail, Left
00970.0000 2 Nut, Keps #8-32
20 36462.0000 1 Guide Rail, Right
00970.0000 2 Nut, Keps #8-32
21 36361.0000 1 Trim, Base Cover
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25˝
02332.0005 2 Screw, Hex #6 x .38"
22 01592.0001 1 Snap Bushing
23 39175.0000 1 Decal, Warning Overlay Graphic
24 37881.0000 2 Decal, No Serviceable Parts
25 25151.0000 1 Shield, Insulator (Adhesive Back)
26 29504.0005 6 Shoulder Screw, 8-32 x .29
00991.0000 6 Nut, Elastic Lock 8-32
27 34118.0001 1 Bracket, Tank Support
01317.0003 2 Screw, Truss Head #8-32 x .375˝
* Indicates the part number listed is for reference only.
7
36747 122908
TANK & COMPONENTS
3
17
6
ITCB
ITCB-DV
16
7
5
4
8
2
1
15
14
9
10
11
12
13
P2888
8
36747 032307
TANK & COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 33937.0004 1 Tank (Models ITCB-DV & ITCB-C-DV)
33937.0003 1 Tank (Models ITCBA, 230V & ITCBB, 200V)
00908.0000 4 Nut, Hex #8-32
2 29329.1000 1 Limit Thermostat
3 04221.0000 1 Gasket
4 28735.0000 1 Lid
00908.0000 8 Nut, Hex #8-32
5 38969.0001 1 Fitting, 90° Silicone
6 38114.0000 1 Grommet, Liquid Level Probe
7 33801.0001 1 Grommet, Temp. Sensor
8 29485.1000 1 Tank Heater 1800W, 120V (Includes item 9) (Models ITCB-DV & ITCB-C-DV)
05037.1000 1 Tank Heater 3500W, 230V (Includes item 9) (Models ITCBA, 230V)
20942.1000 1 Tank Heater 3500W, 200V (Includes item 9) (Models ITCBB, 200V)
9 00943.0000 2 Gasket
10 00942.0000 2 Nut, Hex .50"-20
11 02755.1001 1 Tank Heater 1680W, 120V (Includes item 12) (Models ITCB-DV)
02755.1000 1 Tank Heater 1425W, 120V (Includes item 12) (Models ITCB-C-DV)
12 00943.0000 2 Gasket
13 00942.0000 2 Nut, Hex .50"-20 (4 Used on DV Models)
14 29279.0000 1 Cap, Tube-Silicone
Models without Faucet only
15 12422.0009 1 Clamp, Hose-Snap Type .71"-.80" ID
16 28891.1002 1 Probe Kit, Temperature and Dry Plug
17 07412.1002 1 Probe, Liquid Level
01501.0000 1 Washer
20203.0100 1 Lockwasher, Internal-tooth #8
00908.0000 1 Nut, Hex #8-32
The following items are not illustrated
18 34074.1013 1 Kit, Tank Assembly ITCB-DV 1680/1800W
34074.1014 1 Kit, Tank Assembly ITCBC 1425/1800W
34074.1015 1 Kit, Tank Assembly ITCBA (CE) 3500W 240V
34074.1017 1 Kit, Tank Assembly ITCBB 3500W 200V
* Indicates the part number listed is for reference only.
9
36747 102909
DISPENSE VALVE & SPRAYHEAD
ITCB-DV
2
REPAIR KIT
4
ITCB
9
10
1
3
5
6
EARLY MODELS
9 18 9 17
14
15
13
16
10
6
7
8
P2889
36747 110909
DISPENSE VALVE & SPRAYHEAD
ITEM PART NO. QTY. DESCRIPTION
1 27370.0000 1 Valve, Dispense (Models ITCB-DV)
27370.0001 1 Valve, Dispense (Models ITCBB, 200V)
27370.0002 1 Valve, Dispense (Models ITCBA, 230V)
00970.0000 2 Nut, KEPS #8-32
2 32591.0006* 1 Tube .50" ID x 6.50" (Order item 12)
3 20976.0008* 1 Tube .375" ID x 1.60" (Order item 11)
4 12422.0001 2 Clamp, SNP-10
5 39149.0001 1 Fitting, Sprayhead
6 00943.0000 1 Gasket, Sprayhead Fitting
7 01075.0000 1 Nut, Hex .438"-20
8 01082.0000 1 Sprayhead, 6 Hole
01082.0003 1 Sprayhead, 7 Hole
9 12422.0009 1-2 Clamp, SNP-14 (at Tank)
10 12422.0005 1 Clamp, SNP-12 (at Valve)
11 41499.1002 1 Dispense Tube Kit, Solenoid to Sprayhead, (Includes clamps)
12 41499.1006 1 Dispense Tube Kit, Tank to Solenoid, (Includes clamps)
13 11517.0008 1 Repair Kit, Dispense Valve (Includes Plunger, Spring and Diaphragm)
14 38969.0001 1 Fitting, 90° Silicone
15 32591.1001 1 Tube .50" ID x 12.0"
16 26846.0000 1 Valve, Dispense (120V)
26846.0001 1 Valve, Dispense (200V)
26846.0002 1 Valve, Dispense (240V)
17 34956.0004 1 Fitting
18 32591.0023* 1 Tube .50" ID x 7.88" (Order # 15)
* Indicates the part number listed is for reference only.
11
36747 110909
FAUCET & LINES
12 14 14 16 12 13 12 11 10
ITCB
ITCB-DV
1
2
7
9
8
3
4
5
6
12
P2890
36747 030510
FAUCET & LINES
ITEM PART NO. QTY. DESCRIPTION
1 29075.0000 1 Faucet Assy (Includes items 2 thru 8)
2 02861.0003 1 Handle, Red w/Warning
3 02854.0000 1 Bonnet
4 02595.0000 1 Spring
5 02766.0000 1 Cup
6 02856.0005* 1 Body (Order item 1)
7 02858.0000 1 Pin, Spring
8 13054.0000 1 Stem
9 02594.0000 1 Faucet Stem w/Pin (Includes items 7 and 8)
10 01544.0000 1 Washer, .50˝ ID x .75˝ OD
11 29264.0000 1 Nut
12 12422.0009 2 Clamp, SNP-14
13 41193.0001* 1 Tube, Silicone .375˝ ID X 1.2˝ LG (Order item 15)
14 32591.0031* 1 Tube .50˝ ID x 14.0˝ (Order item 15)
15 41499.1005 1 Tube kit, Faucet (Includes items 12 - 14)
* Indicates the part number listed is for reference only.
13
36747 010609
8 & 9
FILL, DILUTION & DRAIN - LATER MODELS
ITCB
ITCB-DV
11
O-ring
Flow Washer
22
12
4
7
6
TO TANK
TO DILUTION NOZZLE
19
5
12
9
18
21
17
3
1
2
13
14
15 10 8 15
14
10
16
15
20
36747 030510
FILL, DILUTION & DRAIN - LATER MODELS
ITEM PART NO. QTY. DESCRIPTION
1 36421.0008 1 Bracket, Bulkhead
2 43041.0000 1 Kit, Replacement Solenoid 120VAC
32283.0000 2 Screw, SST Slotted Panhead M4 X 6mm
3 00669.0002 1 Plug, Hole-Nyl Blk .50hole Dia
4 20976.0074* 1 Tube, Silicone .375 ID X 16.O LG (29˝ Trunk)
20976.0063* 1 Tube, Silicone .375 ID X 12.O LG (25.75˝ Trunk)
5 11707.0032* 1 Tube, Silicone .25 ID X 19.O LG (29˝ Trunk)
11707.0010* 1 Tube, Silicone .25 ID X 16.O LG (25.75˝ Trunk)
6 37297.0006 1 Elbow, .25 FLR X .75 Hose THD
7 11630.0001 1 Clamp, Tubing Shut Off
8 41595.1000 1 Flow Assy, Tnplt .50 Gpm .375 Outlet -.375 Inlet
9 41595.1001 1 Flow Assy, Tnplt .50 Gpm .25 Outlet -.375 Inlet
10 21275.0003 2 Clamp, Otiker # 17.0
11 12422.0000 1 Clamp, Hose-Snap SNP-6
12 12422.0006 1 Clamp, Hose-Snap SNP-8
13 12422.0005 2 Clamp, Hose-Snap SNP-12
14 34325.0003* 2 Hose, Flex .375 ID X 3.0 Braid (Order item 23)
15 34325.0029* 1 Hose, Flex .375 ID X 8.75 Braid (Order item 23)
16 22749.0000* 1 Pad, Mtg 1" Sq-Slfadh Cable Tie (Order item 21)
(Order Item # 22)
(Order Item # 21)
17 36329.0002* 1 Tie, Cable-Nyl Blk 5.6lg .142w (Order item 21)
18 40783.0000 1 Elbow,1/8-27 Npt To 1/4" Barb (Also included w/dilution nozzle) (Non Sweetener)
40784.0000 1 Tee, 1/8-27 Npt Hex Hd 1/4"Barb (w/Sweetener)
19 41665.1000 1 Tube Kit, Dilution (Includes tubes, clamp, flow control, pad & tie)
20 20526.2500 1 Repair Kit, Flow Control (Includes O-ring & flow washer)
The following items are not illustrated
21 11707.1001 - Tube, Silicone .25" ID x 3 Feet (Use as required)
11707.1002 - Tube, Silicone .25" ID x 10 Feet (Use as required)
22 20976.1000 - Tube, Silicone .375" ID x 1 Foot (Use as required)
20976.1001 - Tube, Silicone .375" ID x 3 Feet (Use as required)
20976.1002 - Tube, Silicone .375" ID x 10 Feet (Use as required)
23 34325.1000 - Tube, Silicone .375" ID x 1 Foot (Use as required)
34325.1001 - Tube, Silicone .375" ID x 3 Feet (Use as required)
34325.1002 - Tube, Silicone .375" ID x 10 Feet (Use as required)
* Indicates the part number listed is for reference only.
15
36747 011111
MODELS w/ SWEETENER
8
9
7
10
ITCB
ITCB-DV
18 19
TO DILUTION
NOZZLE
17
13
14
20
15
21
18
5
1
11
42 3 16 12
16
6
36747 010609
MODELS w/ SWEETENER
ITEM PART NO. QTY. DESCRIPTION
1 00459.0000 1 Fitting, Bulkhead .250” Flare
2 01532.0000 1 Lockwasher, Internal Tooth .438”
3 00463.0000 1 Nut, Hex - Brass .438”-20
4 00310.0005 1 Tube Assy,
5 00464.0001 1 Elbow, Male-Tnpl.25 Barbx.
6 01085.0000 2 Solenoid Valve, 120V (Includes items 11 - 14)
01327.0000 4 Screw, Pan Head #10-32 x .375”
01502.0000 4 Lockwasher, Split #10
7 01079.0000 1 Solenoid Valve Base
8 01111.0000 1 Solenoid Valve Repair Kit (Includes Plunger, Seal and Spring)
9 01101.0000 1 Solenoid Valve Coil, 120V
10 01116.0000 1 Guide
11 07441.0000 2 Bracket
01315.0000 4 Screw, Truss Head #8-32 x .38”
12 00400.0001 1 Elbow .25” Flare x .125”MPT
13 36459.0001 1 Tube Assy.
14 00431.0001 1 Tee, Male Br-Tn Pl.25flrx
15 00435.0001 1 Elbow, Tin Pld .125npt F
16 38379.1000 1 Switch, Pressure-Low Sweet
17
11707.0032* 1 Tube, Silicone .250” I.D. x 19.0” LG (29˝ Trunk)
18 12422.0000 2 Clamp, Hose - SNP 6
19 40784.0000 1 Tee, 1/8-27 Npt Hex Hd 1/4"Barb (w/Sweetener)
40783.0000 1 Elbow,1/8-27 Npt To 1/4" Barb (Also included w/dilution nozzle) (Non Sweetener)
20 26371.0000 1 Decal, Water Inlet (Models w/Sweetener)
21 26371.0001 1 Decal, Sweetener Inlet (Models w/Sweetener)
The following items are not illustrated
22 11707.1001 - Tube, Silicone .250” I.D. x .50” O.D. x 36” LG
11707.1002 - Tube, Silicone .250” I.D. x .50” O.D. x 120” LG
23 40203.0000 1 Tube Assy, Product Empty (Includes 4-17)
11707.0010* 1 Tube, Silicone .250” I.D. x 16.0” LG (25.75˝ Trunk)
(Order Item # 22)
* Indicates the part number listed is for reference only.
17
36747 010609
FILL, DILUTION & TANK DRAIN - EARLY ITCB-DV & ALL ITCBA-CE
SOLENOID REPAIR PARTS
ITCB
ITCB-DV
5 6
SOL W/1.0" DIA COIL
25
24
4 3
To Tank
5 3
4 6
SOL W/1.48" DIA COIL
26 27 28
10
9
2
8
20
11
7
12
14
15
16
17
18
19
11
21
22
23
To Tank To Valve
ITCBA-CE
21
29
21
30
21
22
23
1
VALVE
CONVERSION
KIT 120V
31
18
P2891.50
36747 011209
FILL, DILUTION & TANK DRAIN - EARLY ITCB-DV & ALL ITCBA-CE
ITEM PART NO. QTY. DESCRIPTION
1 - - - - - - - - 1 Bracket (See ELECTRICAL & OPERATING CONTROLS)
2 01085.0000 1 Solenoid Valve, 120V (1.48˝ Dia Coil) (All DV Models)
01085.0002 1 Solenoid Valve, 120V (1.0˝ Dia Coil) (All DV Models)
21180.0000 1 Solenoid Valve, 200V (Models ITCBB)
01975.0000 1 Solenoid Valve, 230V (Models ITCBA)
01327.0000 2 Screw, Pan Head #10-32 x .375˝
01502.0000 2 Lockwasher, Split #10
3 01101.0000 1 Solenoid Valve Coil, 120V - 1.48˝ Dia (Models ITCB-DV & ITCB-C-DV)
28480.0000 1 Solenoid Valve Coil, 120V - 1.0˝ Dia (Models ITCB-DV & ITCB-C-DV)
21181.0000 1 Solenoid Valve Coil (Models ITCBB, 200V)
01100.0000 1 Solenoid Valve Coil (Models ITCBA, 230V)
4 01111.0000 1 Solenoid Valve Repair Kit - 1.48˝ Dia Coil (Includes Plunger, Seal and Spring)
01111.0002 1 Solenoid Valve Repair Kit - 1.0˝ Dia Coil (Includes Plunger, Spring and O-ring)
5 01079.0000 1 Solenoid Valve Base - 1.48˝ Dia Coil
28479.0000 1 Solenoid Valve Base Kit - 1.0˝ Dia Coil (Includes O-ring)
6 01116.0000 1 Sleeve Assy, Solenoid Valve - 1.48˝ Dia Coil
28481.0000 1 Solenoid Guide/O-Ring Kit - 1.0˝ Dia Coil (Includes Washer & O-ring)
Includes items
3 thru 6
7 07441.0000 1 Bracket
01315.0000 2 Screw, Truss Head #8-32 x .38˝
8 00464.0001 1 Elbow .25˝ Barb x .125˝ MPT
9 00402.0001 1 Connector .25˝ Flare x .125˝ MPT
10 36459.0000 1 Tube
11 22300.0500 1 Strainer/Flow Control (Includes items 14 - 19)
12 36464.0001 1 Tube
13 37064.0001 1 Water Manifold Assembly (Includes items 10 - 12)
14 01154.0000 1 Flow Control Outlet
15 01155.0000 1 Gasket
16 20526.1500 1 Flow Washer and Gasket (Includes item 15)
17 - - - - - - - - 1 Body (Order item 11)
18 23721.0000 1 Screen
19 22249.0000 1 End Cap
20 28750.0000 1 Valve, Water Inlet 120V (Models ITCB-DV & ITCB-C-DV)
28750.0003 1 Valve, Water Inlet 200V (Models ITCBB)
28750.0001 1 Valve, Water Inlet 230V (Models ITCBA)
39975.0000 1 Kit, Valve Repair (Includes Guide, Spring, Plunger, & Diaphragm)
01315.0000 2 Screw, Truss Head #8-32 x .38˝
13
21 12422.0001 2 Clamp, SNP-10 (2 Additional used for CE)
(Continued)
19
* Indicates the part number listed is for reference only.
36747 011209
FILL, DILUTION & TANK DRAIN - EARLY ITCB-DV & ALL ITCBA-CE
(Continued)
SOLENOID REPAIR PARTS
ITCB
ITCB-DV
5 6
SOL W/1.0" DIA COIL
25
24
4 3
To Tank
5 3
4 6
SOL W/1.48" DIA COIL
26 27 28
10
9
2
8
20
11
7
12
14
15
16
17
18
19
11
21
22
23
To Tank To Valve
ITCBA-CE
21
29
21
30
21
22
23
1
VALVE
CONVERSION
KIT 120V
31
20
P2891.50
36747 011209
FILL, DILUTION & TANK DRAIN - EARLY ITCB-DV & ALL ITCBA-CE
ITEM PART NO. QTY. DESCRIPTION
22 20976.0074* 1 Tube, Silicone .375˝ ID x 20.0˝ (ITCB-DV with 25.75˝ Trunk)
20976.0070* 1 Tube, Silicone .375˝ ID x 23.5˝ (ITCB-DV with 29.0˝ Trunk)
20976.0068* 1 Tube, Silicone .375˝ ID x 19.0˝ (ITCBA CE with 25.75˝ Trunk)
20976.0074* 1 Tube, Silicone .375˝ ID x 20.0˝ (ITCBA CE with 29.0˝ Trunk)
23 11630.0001 1 Clamp
24 36421.1003 1 Bracket
02308.0000 2 Screw, Pan Head #8-32 x .38˝
25 00459.0000 1 Fitting, Bulkhead .25˝ Flare
01532.0000 1 Lockwasher, Internal-Tooth .438˝
00463.0000 1 Nut, Hex - Brass .438˝-20
(Order item 33)
26 11707.0012* 1 Tube, Silicone .25˝ x 23.0˝ (Models with 25.75˝ Trunk)
11707.0027* 1 Tube, Silicone .25˝ x 26.0˝ (Models with 29.0˝ Trunk)
27 12422.0000 2 Clamp, SNP-6
28 40783.0000 1 Elbow,1/8-27 Npt To 1/4˝ Barb
29 20976.0025* 1 Tube, Silicone .375˝ ID x 3.0˝ (All ITCBA CE) (Order item 33)
30 40071.0001 1 Check Valve, SST .375˝ Barb
31 41579.1001 - Kit, Solenoid Conversion 120V (Includes Valve, Bracket, Hardware & Instructions)
The following items are not illustrated
32 11707.1000 - Tube, Silicone .25˝ ID x 12.0˝ (Use as required)
11707.1001 - Tube, Silicone .25˝ ID x 36.0˝ (Use as required)
11707.1002 - Tube, Silicone .25˝ ID x 120.0˝ (Use as required)
33 20976.1000 - Tube, Silicone .375˝ ID x 12.0˝ (Use as required)
20976.1001 - Tube, Silicone .375˝ ID x 36.0˝ (Use as required)
20976.1002 - Tube, Silicone .375˝ ID x 120.0˝ (Use as required)
(Order item 32)
* Indicates the part number listed is for reference only.
21
36747 011209
ELECTRICAL & OPERATING CONTROLS
9 7 8
ITCB
ITCB-DV
6
5
SECOND
STYLE
12
13
20
16
18
17
13 12
19 18
20
16
18
17
20
16
1415
33
32
10 3 2
2 13031
4
11
19
15
14
21
24
27
22
FIRST
STYLE
25 26 28 29
22
13 12
15
23
20
18
17
19
ITCBA, 230V & ITCBB, 200V
P2892.50
36747 110309
ELECTRICAL & OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 36367.0000 1 Membrane Switch
2 36359.1001 1 Bezel Kit (Includes Membrane Switch & Decal)
36359.1101 1 Bezel Kit (Includes Membrane Switch, Decal, Gasket, & Sensing Coil-Assembled)
02308.0000 4 Screw, Pan Head #8-32 x .38"
3 36364.0000 1 Gasket
4 36366.0000 1 Mount, Board (2 Used on Early Models)
5 36373.1010 1 Control Board (RoHS)
36373.1012 1 Control Board w/Sweetener (RoHS)
00973.0000 2 Nut, Keps #6-32
6 01533.0011 2 Spacer
7 38712.1000 1 Memory Circuit Board (RoHS)
00970.0000 2 Nut, Keps #8-32
8 01533.0002 2 Spacer
9 34307.1001 1 Transformer (Models ITCB-DV & ITCB-C-DV)
34307.1003 1 Transformer (Models ITCBB, 200V)
34307.1002 1 Transformer (Models ITCBA, 230V)
00970.0000 2 Nut, Keps #8-32
(Early models Only)
10 36587.0000 1 Plug, Bezel
11 36368.0000 1 Decal, Top
12 07038.0000 1 Terminal Block (Models ITCB-DV & ITCB-C-DV)
01106.0001 1 Terminal Block (Models ITCBB, 200V)
01106.0003 1 Terminal Block (Models ITCBA, 230V)
01317.0000 2 Screw, Truss Head #8-32 x .50"
13 01327.0000 1 Screw, Grounding #10-32 x .38" (Early models)
37804.0000 1 Screw, Grounding #8-32 x .50" (Late models)
14 23522.0001 1 Switch, Toggle (Dual Voltage Brewers only)
15 36420.1000 1 Bracket w/Decals (Incls items 13 & 16-20) (Models ITCB-DV & ITCB-C-DV)
37482.1001 1 Bracket w/Decals (Incls items 13 & 17-20) (Models ITCBA, 230V & ITCBB, 200V)
38344.1101 1 Bracket w/Decals (Incls items 13 & 16-20) (Models ITCB-DV Second Style)
02308.0000 2 Screw, Pan Head #8-32 x .38"
16 34056.0001 1 Decal, Voltage Selection (ICB-DV models only)
17 00985.0000 1 Decal, Individual Circuit Info
18 00870.0000* 1 Decal, Use Copper Wire Only
19 12394.0002* 1 Decal, Supply Connection
20 00824.0000 2 Decal, Ground
21 01685.0000 1 Connector, Cable
22 36398.0000 1 Hole Plug
23 29446.0003 1 EMI Filter (Models ITCBA, 230V)
01347.0000 4 Screw, Truss Head #6-32 x .38"
(Continued)
23
* Indicates the part number listed is for reference only.
36747 091208
ELECTRICAL & OPERATING CONTROLS
(Continued)
9 7 8
ITCB
ITCB-DV
6
5
SECOND
STYLE
12
13
20
16
18
17
13 12
19 18
20
16
18
17
20
16
1415
33
32
10 3 2
2 13031
4
11
19
15
14
21
24
27
22
FIRST
STYLE
25 26 28 29
24
13 12
15
23
20
18
17
19
ITCBA, 230V & ITCBB, 200V
P2892.50
36747 110309
ELECTRICAL & OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
24 27705.0000 1 Terminal Lug (Models ITCBA, 230V & ITCBB, 200V)
02308.0000 1 Screw, Pan Head #8-32 x .38˝
25 38894.0001 1 Switch, Rocker 125/250V 50A Double Pole
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25˝
26 38820.0000 1 Cover Plate (Models w/out Switch)
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25˝
27 00824.0001 1 Decal, Equipotentiality (CE Only)
28 40763.0001 1 Switch, Toggle DPST
23697.0000 1 Facenut
29 25102.0000 1 Bracket, Switch Indicator/Guard
30 32572.1000 1 Sensing Coil
31 35956.0000 1 Fastener
32 29081.0004 3 Spacer
33 42234.0000 8 Standoff
The following items are not illustrated
34 36674.0000 1 Wiring Harness, Liquid Level Probe
36674.0001 1 Wiring Harness, Liquid Level Probe with Sweetener Pressure Switch
35 20630.0005 1 Power Cord (Dual Voltage Models only)
36 36675.0000 1 Wiring Harness, Sensing Coil
37 36676.0000 1 Wiring Harness, Memory Board (Early Models)
38 36677.0000* 1 Wiring Harness, Main (DV Models only) NO LONGER AVAILABLE
36677.0002 1 Wiing Harness, Main (Models ITCBA, 230V & ITCBB, 200V)
36677.0010 1 Wiring Harness, Main (DV Models only) w/Rocker Switch NO LONGER AVAILABLE
39 06064.0000 1 Decal, Cord Warning
40 34707.0004 1 Wiring Harness, EMI Filter to Terminal block (Models ITCBA, 230V & ITCBB, 200V)
41 40081.0000* 1 Wiring Harness, Rocker Sw to Term Blk (13˝) NO LONGER AVAILABLE
40081.0001* 1 Wiring Harness, Rocker Sw to Term Blk (18˝) NO LONGER AVAILABLE
40081.0002 1 Wiring Harness, Toggle Switch to Term Blk (13˝)
40081.0003 1 Wiring Harness, Toggle Switch to Term Blk (6˝)
42 41587.0000 1 Wiring Harness, w/Factory installed Sweetener Solenoid to Dilution Solenoid-CBA
* Indicates the part number listed is for reference only.
25
36747 110309
FUNNELS
ITCB
ITCB-DV
17
18
19
20
21
22
2
3
4
5
6
16
1
26
8
9
10
11
12
13
14
7
P2893.60
36747 032307
FUNNELS
ITEM PART NO. QTY. DESCRIPTION
1 03021.0008 1 Funnel Assembly, Coffee-Black (Includes items 2 thru 6)
2 32965.0000 1 Splashguard
3 - - - - - - - - 1 Funnel, Coffee-Black (Not Available. Order item 1)
4 03408.0000 1 Decal, Caution - REMOVE FUNNEL
5 03409.0000 1 Decal, Caution - HOT LIQUID
6 20269.0000 1 Decal, COFFEE
7 03021.0005 1 Funnel Assembly, Brew Tea - Smoke (Includes items 8 thru 14)
8 03284.0000 1 Adapter W/Screen, Funnel (See item 15)
9 32965.0000 1 Splashguard
10 -------------- 1 Funnel, Brew Tea - Smoke (Not Available. Order item 7)
11 03408.0000 1 Decal, Caution - REMOVE FUNNEL
12 03409.0000 1 Decal, Caution - HOT LIQUID
13 03536.0000 1 Decal, QUICK BREW
14 03407.0002 1 Funnel Tip, .114" Dia (See item 15)
15 01037.0003 - Funnel Tip & Screen Kit (Includes items 8 & 14)
16 03021.0004 1 Funnel Assembly, Brew Tea - Smoke (Includes items 17 thru 22)
17 03284.0000 1 Adapter W/Screen, Funnel (See item 23)
18 32965.0000 1 Splashguard
19 -------------- 1 Funnel, Brew Tea - Smoke (Not Available. Order item 7)
20 03408.0000 1 Decal, Caution - REMOVE FUNNEL
21 03409.0000 1 Decal, Caution - HOT LIQUID
22 03407.0000 1 Funnel Tip, .082" Dia (See item 23)
23 01037.0002 - Funnel Tip & Screen Kit (Includes items 17 & 22)
* Indicates the part number listed is for reference only.
27
36747 011508
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00310.0005........................ 17
00400.0001........................ 17
00402.0001........................ 19
00431.0001........................ 17
00435.0001........................ 17
00459.0000................... 17,21
00463.0000................... 17,21
00464.0001................... 17,19
00656.0000.......................... 7
00658.0000.......................... 5
00669.0002........................ 15
00824.0000........................ 23
00824.0001........................ 25
00870.0000........................ 23
00908.0000.......................... 9
00942.0000.......................... 9
00943.0000..................... 9,11
00970.0000................ 7,11,23
00973.0000........................ 23
00985.0000........................ 23
00986.0000.......................... 7
00991.0000.......................... 7
01037.0002........................ 27
01037.0003........................ 27
01075.0000........................ 11
01079.0000................... 17,19
01082.0000........................ 11
01082.0003........................ 11
01085.0000................... 17,19
01085.0002........................ 19
01100.0000........................ 19
01101.0000................... 17,19
01106.0001........................ 23
01106.0003........................ 23
01111.0000................... 17,19
01111.0002........................ 19
01116.0000................... 17,19
01154.0000........................ 19
01155.0000........................ 19
01308.0000.......................... 5
01308.0002..................... 7,25
01311.0001.......................... 5
01315.0000................... 17,19
01317.0000........................ 23
01317.0003.......................... 7
01327.0000.............. 17,19,23
01347.0000........................ 23
01501.0000.......................... 9
01502.0000................... 17,19
01532.0000................... 17,21
01533.0002........................ 23
01533.0011........................ 23
01544.0000........................ 13
01592.0001.......................... 7
01685.0000........................ 23
01975.0000........................ 19
02308.0000..................... 5,21
02308.0000................... 23,25
02332.0005....................... 5,7
02594.0000........................ 13
02595.0000........................ 13
02755.1000.......................... 9
02755.1001.......................... 9
02766.0000........................ 13
02854.0000........................ 13
02856.0005........................ 13
02858.0000........................ 13
02861.0003........................ 13
03021.0004........................ 27
03021.0005........................ 27
03021.0008........................ 27
03284.0000........................ 27
03407.0000........................ 27
03407.0002........................ 27
03408.0000........................ 27
03409.0000........................ 27
03536.0000........................ 27
04221.0000.......................... 9
05037.1000.......................... 9
06064.0000........................ 25
07038.0000........................ 23
07412.1002.......................... 9
07441.0000................... 17,19
11517.0008........................ 11
11630.0001................... 15,21
11707.0010................... 15,17
11707.0012........................ 21
11707.0027........................ 21
11707.0032................... 15,17
11707.1000........................ 21
11707.1001.............. 15,17,21
11707.1002.............. 15,17,21
12394.0002........................ 23
12422.0000.............. 15,17,21
12422.0001................... 11,19
12422.0005................... 11,15
12422.0006........................ 15
12422.0009................ 9,11,13
13054.0000........................ 13
20203.0100.......................... 9
20269.0000........................ 27
20526.1500........................ 19
20526.2500........................ 15
20630.0005........................ 25
20942.1000.......................... 9
20976.0008........................ 11
20976.0025........................ 21
20976.0063........................ 15
20976.0068........................ 21
20976.0070........................ 21
20976.0074................... 15,21
20976.1000................... 15,21
20976.1001................... 15,21
20976.1002................... 15,21
21180.0000........................ 19
21181.0000........................ 19
21275.0003........................ 15
22249.0000........................ 19
22300.0500........................ 19
22749.0000........................ 15
23522.0001........................ 23
23697.0000........................ 25
23721.0000........................ 19
24600.0000.......................... 7
25102.0000........................ 25
25137.0001.......................... 7
25151.0000.......................... 7
26371.0000........................ 17
26371.0001........................ 17
26846.0000........................ 11
26846.0001........................ 11
26846.0002........................ 11
27370.0000........................ 11
27370.0001........................ 11
27370.0002........................ 11
27705.0000........................ 25
28479.0000........................ 19
28480.0000........................ 19
28481.0000........................ 19
28735.0000.......................... 9
28750.0000........................ 19
28750.0001........................ 19
28750.0003........................ 19
28891.1002.......................... 9
29075.0000........................ 13
29081.0004........................ 25
29264.0000........................ 13
29279.0000.......................... 9
29329.1000.......................... 9
29446.0003........................ 23
29485.1000.......................... 9
29504.0005.......................... 7
29710.0009.......................... 5
29710.0010.......................... 5
32283.0000........................ 15
32572.1000........................ 25
32591.0006........................ 11
32591.0023........................ 11
32591.0031........................ 13
32591.1001........................ 11
32965.0000........................ 27
33801.0001.......................... 9
33937.0003.......................... 9
33937.0004.......................... 9
34056.0001........................ 23
34072.0000.......................... 7
34074.1013.......................... 9
34074.1014.......................... 9
34074.1015.......................... 9
34074.1017.......................... 9
34118.0001.......................... 7
34307.1001........................ 23
34307.1002........................ 23
34307.1003........................ 23
34325.0003........................ 15
34325.0029........................ 15
34325.1000........................ 15
34325.1001........................ 15
34325.1002........................ 15
34707.0004........................ 25
34956.0004........................ 11
35956.0000........................ 25
36329.0002........................ 15
36353.1000.......................... 5
36353.1001.......................... 5
36353.1007.......................... 5
36353.1008.......................... 5
36353.1009.......................... 5
36353.1010.......................... 5
36353.1016.......................... 5
36353.1017.......................... 5
36354.0001.......................... 5
36354.0004.......................... 5
36355.1006.......................... 5
36356.1000.......................... 5
36356.1001.......................... 5
36356.1006.......................... 5
36356.1007.......................... 5
36356.1008.......................... 5
36356.1013.......................... 5
36356.1014.......................... 5
36356.1015.......................... 5
36356.1106.......................... 5
36356.1107.......................... 5
36356.1108.......................... 5
36359.1001........................ 23
36359.1101........................ 23
36360.1001.......................... 5
36360.1002.......................... 5
36361.0000.......................... 7
36362.0000.......................... 7
36362.0001.......................... 7
36362.0002.......................... 7
36364.0000........................ 23
36366.0000........................ 23
36367.0000........................ 23
36368.0000........................ 23
36373.1010........................ 23
36373.1012........................ 23
36398.0000........................ 23
36412.0000.......................... 7
36420.1000........................ 23
36421.0008........................ 15
36421.1003........................ 21
28
36747 011111
36459.0000........................ 19
36459.0001........................ 17
36460.0000.......................... 7
36460.0001.......................... 7
36460.0003.......................... 7
36460.0004.......................... 7
36461.0000.......................... 7
36462.0000.......................... 7
36464.0001........................ 19
36587.0000........................ 23
36674.0000........................ 25
36674.0001........................ 25
36675.0000........................ 25
36676.0000........................ 25
36677.0000........................ 25
36677.0002........................ 25
36677.0010........................ 25
37064.0001........................ 19
37297.0006........................ 15
37482.1001........................ 23
37804.0000........................ 23
37881.0000.......................... 7
38114.0000.......................... 9
38344.1101........................ 23
38379.1000........................ 17
38578.0000.......................... 5
38580.1000.......................... 5
38580.1001.......................... 5
38580.1003.......................... 5
38595.1000.......................... 5
38595.1003.......................... 5
38704.1002.......................... 5
38712.1000........................ 23
38820.0000........................ 25
38894.0001........................ 25
38969.0001........................ 11
38969.0001.......................... 9
39149.0001........................ 11
39175.0000.......................... 7
39975.0000........................ 19
40071.0001........................ 21
40081.0000........................ 25
40081.0001........................ 25
40081.0002........................ 25
40081.0003........................ 25
40203.0000........................ 17
40763.0001........................ 25
40783.0000.............. 15,17,21
40784.0000................... 15,17
41193.0001........................ 13
41499.1002........................ 11
41499.1005........................ 13
41499.1006........................ 11
41579.1001........................ 21
41587.0000........................ 25
41595.1000........................ 15
41595.1001........................ 15
41665.1000........................ 15
42234.0000........................ 25
43041.0000........................ 15
29
36747 011111
Loading...
