ICBA, ICBB,ICBC,
ICB-DV, ICB Twin
Infusion Series
with Smart Funnel
Supercedes Illustrated Parts Catalogs:
37078.0000; 38112.0002
®
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
39830.0000H 06/11 ©2006 Bunn-O-Matic Corporation
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specifi ed below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes fi rst.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Offi ce Box 3227, Springfi eld, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifi cations to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specifi ed above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN
Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line,
BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth,
DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet
Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, PowerLogic, Quality Beverage Equipment
Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard,
The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, Titan, A Partner You Can Count On, Air
Brew, Air Infusion, Beverage Bar Creator, Beverage Profi t Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a BUNN, Pouring Profi ts,
Signature Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, trifecta, Ultra, Velocity Brew are either
trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
39830 050511
TABLE OF CONTENTS
HOOD ASSEMBLIES .....................................................................................................................................4
TRUNKS ........................................................................................................................................................6
BASES ...........................................................................................................................................................8
TANK AND COMPONENTS ........................................................................................................................ 10
TANK FILL/DRAIN .......................................................................................................................................12
DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET ............................................................................. 14
ELECTRICAL AND OPERATING CONTROLS .............................................................................................. 18
FUNNELS .................................................................................................................................................. 24
NUMERICAL INDEX .................................................................................................................................. 26
To order coffee fi lters, water fi lters, or other accessories, refer to Specifi cation Sheets at www.bunn.com
ICB-DV ......................................................................................................................Dual Voltage Brewer
ICBA ................................................................................................................................ 230 Volt Brewer
ICBB ................................................................................................................................ 200 Volt Brewer
ICBC-DV .................................................................................................... Canadian Dual Voltage Brewer
Fraction Decimal Fraction Decimal
1/16 0.063 9/16 0.563
1/8 0.125 5/8 0.625
3/16 0.188 11/16 0.688
1/4 0.250 3/4 0.750
5/16 0.313 13/16 0.813
3/8 0.375 7/8 0.875
7/16 0.438 15/16 0.938
1/2 0.500 1 1.000
3
39830 061407
HOOD ASSEMBLIES
2
4
6
1
ICB Series
3
2
4
5
6
3
* Indicates the part number listed is for reference only.
P3820.50
4
39830 010610
HOOD ASSEMBLIES
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 36639.0005 - 1 Hood, SST - 19.9˝ Depth
36639.0006 - 1 Hood, BLK - 19.9˝ Depth
36639.0007 - 1 Hood, SST - 20.7˝ Depth (Models w/funnel lock only)
37920.0002 1 - Hood, SST - 21.8˝ Depth
37920.0003 1 - Hood, BLK - 21.8˝ Depth
37920.0006 1 - Hood, SST - 19.8˝ Depth
37920.0007 1 - Hood, BLK - 19.8˝ Depth
02308.0000 20 10 Screw, Pan Head #8-32 x .38˝
2 37870.1000 1 - Cover, Top (Includes 5-7) (For use with 21.8˝ Hood)
37870.1004 1 - Cover, Top (Includes 5-7) (For use with 19.8˝ Hood)
36355.1006 - 1 Cover, Top - 19.9˝ (Includes 5-6)
36355.1013 - 1 Cover, Top - 20.7˝ (Includes 5-6) (Models w/funnel lock only)
01308.0003 2 1 Screw, Truss Head BLK #6-32 x .25˝
3 37881.0000 - 1 Decal, No Serviceable Parts
4 25151.0000 1 1 Shield, Insulator
5 37299.0001 1 - Schematic, 120/240V
37299.0004* 1 - Schematic, 230V
6 37967.0000 1 - Bracket, Tank Support, Twin (Upper)
01308.0002 2 Screw, Truss Head #6-32 x .25˝
36608.0001 - 1 Bracket, Tank Support, Single
01317.0003 - 2 Screw, Truss Head #8-32 x .375˝
* Indicates the part number listed is for reference only.
5
39830 012910
TRUNKS
ICB Series
Tall Twin Shown
Trunk with fl ange facing
front for 21.8˝ hood shown
1
12
13
8
9
10
Early model trunks with fi rst type
Water Inlet Valve are obsolete-
order new style as listed
2
4
5
6
Tall Single Shown
1
16
New style trunk &
front panel for use
with 19˝ hood.
-TWINS ONLY-
15 14
2
3
4
5
6
7
9
11
8
16
* Indicates the part number listed is for reference only.
P3821.50
6
39830 041510
TRUNKS
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 36637.1004 - 1 Trunk, 20.8" SST (Includes 8,9,12,13) w/Rocker Sw.
36637.1005 - 1 Trunk, 20.8" BLK (Includes 8,9,12,13) w/Rocker Sw.
36637.1006 - 1 Trunk, 20.8” SST (Includes 8,9,12,13) w/Toggle Sw.
36637.1007 - 1 Trunk, 20.8” BLK (Includes 8,9,12,13) w/Toggle Sw.
39453.1000 - 1 Trunk, 29.0" SST (Includes 8,9,12,13) w/Rocker Sw.
39453.1001 - 1 Trunk, 29.0” SST (Includes 8,9,12,13) w/Toggle Sw.
37951.1004 1 - Trunk, 20.8" BLK (125/250V) (Includes 8-10,13) (For use with 21.8˝ Hood)
37951.1005 1 - Trunk, 20.8" SST (125/250V) (Includes 8-10,13) (For use with 21.8˝ Hood)
37951.1105 1 - Trunk, 20.8” SST (125/250V) (Includes 8-10,13) (For use with 19.8˝ Hood)
37951.1106 1 - Trunk, 20.8” BLK (125/208V) (Includes 8-10,13) (For use with 19.8˝ Hood)
39455.1000 1 - Trunk, 29.0" SST (125/250V) (Includes 8-10,13) (For use with 21.8˝ Hood)
39455.1002 1 - Trunk, 29.0” SST (125/250V) (Includes 8-10,13) (For use with 19.8˝ Hood)
02308.0000 10 8 Screw #8-32 x .38"
2 36643.1000 - 1 Panel, SST, 20.8" (ICB-DV) (Includes 3-7)
36643.1001 - 1 Panel, SST, 20.8" (ICBA, B, & CE) (Includes 5 & 7)
36643.1002 - 1 Panel, BLK, 20.8" (ICB-DV) (Includes 3-7)
39450.1000 - 1 Panel, SST 29.0" (ICB-DV) (Includes 3-7)
37865.1000 1 - Panel, SST 20.8" (Standard Twin) (For use with 21.8˝ Hood) (Includes 4-7)
37865.1001 1 - Panel, BLK 20.8" (Standard Twin) (For use with 21.8˝ Hood) (Includes 4-7)
37865.1002 1 - Panel, SST 20.8” (Standard Twin) (For use with 19.8˝ Hood) (Includes 4-7)
37865.1003 1 - Panel, BLK 20.8” (Standard Twin) (For use with 19.8˝ Hood) (Includes 4-7)
39541.1000 1 - Panel, SST 29.0" (Tall Twin) (For use with 21.8˝ Hood) (Includes 4-7)
39541.1002 1 - Panel, SST 29.0” (Tall Twin) (For use with 19.8˝ Hood) (Includes 4-7)
01311.0001 6 6 Screw, Truss Head, Locking #8-32 x .25" (SST)
01311.0004 6 6 Screw, Truss Head, Locking #8-32 x .25" (BLK)
3 29710.0011 - 1 Decal, Optional Field Wiring (ICB-DV Only)
29710.7011 - 1 Decal, Optional Field Wiring (ICBC-DV Only)
4 00658.0000 1 1 Decal, Warning-Decanter/Funnel
5 39175.0000 1 1 Decal, Warning Overlay Graphic
6 37881.0000 1 1 Decal, No User Serviceable Parts
7 37299.0000 - 1 Schematic, ICB-DV
8 00656.0000 1 1 Decal, Compliance To Plumbing Code
9 00986.0000 1 1 Decal, Warning-Electrical
10 38125.0000 1 - Decal, Warning-Plug (125/250V)
11 34072.0000 - 1 Decal, Power Cord Warning (ICB-DV Only)
12 39596.0001 1 - Lower Tank Support (Tall Twin)
37953.0002 1 - Lower Tank Support (Std. Twin)
02308.0000 4 4 Screw #8-32 x .38"
13 39599.0000 1 - Bracket, Tank Support (Tall Twin Only)
02308.0000 4 - Screw #8-32 x .38"
14 07038.0000 1 - Terminal Block 120V/240V
01317.0000 2 - Screw, Truss Head #8-32 x .50"
15 37804.0000 1 - Screw, Grounding #8-32 x .50"
Twins from
May 18, 2007
and later
16 36398.0000 1 1 Hole Plug, DB-9 (Early Models Only)
7
* Indicates the part number listed is for reference only.
39830 012910
BASES
ICB Series
Early style bases obsolete
4
5
4
1
Tall Twin
Tall Single
2
1
Standard Single
3
Standard Twin
* Indicates the part number listed is for reference only.
P3822.50
8
39830 061407
BASES
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 36635.0002 - 1 Base, Standard Single
39615.0000 - 1 Base, Tall Single
37866.0001 1 - Base, Standard Twin (For use with 21.8˝ Hood)
39594.0000 1 - Base, Tall Twin (For use with 21.8˝ Hood)
37866.0002 1 - Base, Standard Twin (For use with 19.8˝ Hood)
39594.0002 1 - Base, Tall Twin (For use with 19.8˝ Hood)
2 25137.0001 6 4 Foot (Add 2 for Tall Single, Add 4 for Tall Twin)
3 37274.0001 2 1 Server Stop
02308.0000 4 2 Screw, Pan Head #8-32 x .38"
01503.0000 4 2 Washer
4 36361.0000 2 1 Trim, Base Cover
01308.0002 4 2 Screw, Truss Head, Locking #6-32 x .25"
02332.0005 4 2 Screw, Hex #6 x .38"
5 37926.0000* 1 - Spacer
* Indicates the part number listed is for reference only.
9
39830 061407
TANK AND COMPONENTS
ICB Series
3
4
1
Early model tank with
rounded corners obsolete
3
5
6
11
7
8
9
3
4
14
10
12
11
12
2
4
1
2
13
1
13
* Indicates the part number listed is for reference only.
10
Late model tank with faucet outlet on side
P3823.50
39830 012910
TANK AND COMPONENTS
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 37782.0001* 1 - Tank, Twin (Rounded) Obsolete - Order New Style
37782.0003 1 - Tank, Twin (Squared)
37782.0004 1 - Tank, Twin Late Style Side Outlet
36604.0000 - 1 Tank, Single
00908.0000 - 4 Nut, #8-32
01522.0000 - 1 Flat Washer
01511.0000 - 1 Lockwasher, Ext. Tooth #8
2 29329.1000 2 1 Thermostat, Limit
3 37776.0000* 1 - Tank Lid, Twin (Early Style, not available)
37776.0002 1 - Tank Lid, Twin (New Style, left vent only)
36606.0001 - 1 Tank Lid, Single
00908.0000 12 8 Nut, #8-32
01511.0000 2 1 Lockwasher, Ext. Tooth #8
4 35937.0000 1 - Gasket, Twin Tank Lid (Rounded)
35937.0002 1 - Gasket, Twin Tank Lid (Squared)
36605.0000 - 1 Gasket, Single Tank Lid
5 07412.1002 1 1 Probe Kit, Liquid Level
01501.0000 1 1 Flat Washer
20203.0100 1 1 Lockwasher, Int. Tooth #8
00908.0000 1 1 Nut, #8-32
Ground circuit for liquid
level probe - Singles
Ground circuit for liquid
level probe - Twins
Included in kit
6 38114.0000 1 1 Grommet, Liquid Level Probe
7 39085.1001 1 1 Probe, Temperature Sensor 10.5"
8 33801.0001 1 1 Grommet, Temperature Sensor
9 38969.0001 2 1 Fitting, 90° Silicone (Newer Twins use one on left side only)
10 00486.0003 - 2 Plug (Non DV Single)
11 29485.1001 - 1 Tank Heater 2268W, 120V (Includes item 12) Single DV (Outer)
29485.1002 2 - Tank Heater 3000W, 240V (Includes item 12) Twin
29485.1003 2 - Tank Heater 3000W, 208V (Includes item 12) Twin
29669.1000 - 1 Tank Heater 3000W, 240V (Includes item 12) Single (CE)
20942.1000 - 1 Tank Heater 3500W, 200V (Includes item 12) Single (B)
12 00943.0000 4 4 Gasket, Tank Heater
13 00942.0000 4 4 Nut, Brass .5"-20
14 02755.1001 - 1 Tank Heater 1680W, 120V (Includes item 14) DV Only (Inner)
The following items are not illustrated
15 37755.1000 1 - Tank Kit 3000W 240V (Front Outlet)
37755.1001 1 - Tank Kit 3000W 208V (Front Outlet)
37755.1002 1 - Tank Kit 3000W 240V (Side Outlet)
37755.1003 1 - Tank Kit 3000W 208V (Side Outlet)
37298.1003 - 1 Tank Kit DualVolt
37298.1004 - 1 Tank Kit 3000W 230V
37298.1005 - 1 Tank Kit 3500W 200V
* Indicates the part number listed is for reference only.
11
39830 061711
TANK FILL/DRAIN
ICB Series
FIRST TYPE
18
15
Machine
back panel
11
10
8
7
6
5
9
To bottom of tank
To bottom of tank
16
17
Machine
back panel
4
3
1
2
11
14
12
13
13
19
SECOND TYPE
11
18
15
20
13
11
22
11
21
11
18
230V CE MODELS &
OPTIONAL ON SOME
DOMESTIC MODELS
P3824.50
* Indicates the part number listed is for reference only.
12
39830 032609
TANK FILL/DRAIN
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 35094.0001 1 1 Valve, Water Inlet 120V
35094.0002 1 1 Valve, Water Inlet 200V
35094.0004 1 1 Valve, Water Inlet 240V
32283.0000 2 1 Screw, Pan Head M4 x 6MM
2 24376.0001 1 1 Fitting .38" Barb x .38" MPT
3 34768.0001 1 1 Elbow .38" Fl x .38" NPT
4 37421.0001 1 1 Tube Assembly
5 12757.0000 1 1 Nut, Hex .625"-18
6 01514.0000 1 1 Lockwasher, Internal Tooth .625"
7 12756.0000 1 1 Fitting, Bulkhead .38" Fl x .625"-18
8 37761.0000 1 1 Elbow, 90° Swivel (Optional)
9 20976.0007* - 1 Tube, Silicone .375" ID x 11.0" (order item 23)
20976.0075* 1 - Tube, Silicone .375” ID x 12.5” (order item 23)
10 12422.0000 0 1 Clamp, Hose-Snap SNP # 6
Models with
fi rst type Valve
11 12422.0001 5 5 Clamp, Hose-Snap SNP # 10 (2 Additional on CE Models)
12 12422.0006 1 1 Clamp, Hose-Snap SNP # 8
13 11630.0001 1 1 Clamp
14 32098.0000 1 1 Plug
15 20976.0074* 1 1 Tube, Silicone .375" ID x 20.0" (order item 23)
16 20976.0009* - 1 Tube, Silicone .375” ID x 2.25” (order item 23)
20976.0062* 1 - Tube, Silicone .375” ID x 1.75” (order item 23)
17 38948.0001 1 1 Tee .375” Barb
18 36233.0000 1 1 Valve, Water Inlet 120V
36233.0001 1 1 Valve, Water Inlet 240V
32283.0000 2 2 Screw, Pan Head M4 x 6MM
43644.0000 - - Kit, Valve Rebuild
19 37297.0001 1 1 Elbow, .375˝ Flare x .75˝ FGHT
20 20976.0068* 1 1 Tube, Silicone .375” ID x 19.0” (order item 23)
21 20976.0025* 1 1 Tube, Silicone .375” ID x 3.0” (order item 23)
22 40071.0001 1 1 Check Valve
The following items are not illustrated
23 20976.1000 - - Tube, Silicone .375" ID x 12.0" (Use as required)
20976.1001 - - Tube, Silicone .375" ID x 36.0" (Use as required)
20976.1002 - - Tube, Silicone .375" ID x 120.0" (Use as required)
13
* Indicates the part number listed is for reference only.
39830 073010

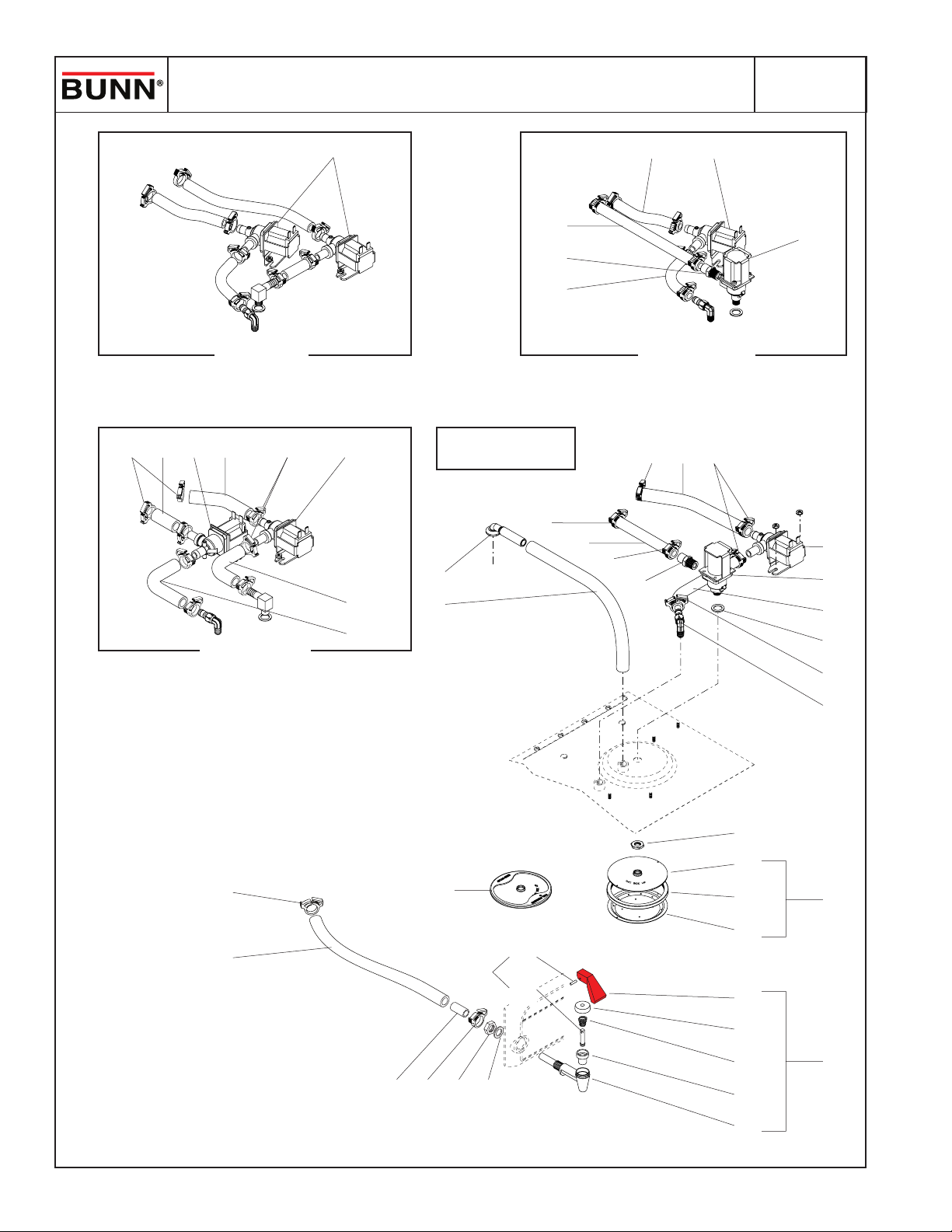

DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET
ICB Series
1
Early Twins
5 10 2 11 4 1
Early Singles
136
35
34
37
33
Current Twins
Current Singles
5
35
21
To tank lid
7
6
12
5
34
36 44
1
33
37
14
4
To left tank outlet
5
9
58
38
30
32 31
28
29
16
17
18
19
23
24
25
26
27
15
20
22
P3825.50
* Indicates the part number listed is for reference only.
14
39830 041510
DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 27370.0003 4 1 Valve, Dispense 120V
27370.0005 4 1 Valve, Dispense 230V
27370.0004 - 1 Valve, Dispense 200V
00970.0000 4 2 Nut, KEPS #8-32
2 27370.0000 - 1 Valve, Bypass 120V
27370.0002 - 1 Valve, Bypass 230V
27370.0001 - 1 Valve, Bypass 200V
00970.0000 - 2 Nut, KEPS #8-32
3 12422.0001 2 1 Clamp, Hose-Snap SNP # 10
4 12422.0005 8 4 Clamp, Hose-Snap SNP # 12
5 12422.0009 5 3 Clamp, Hose-Snap SNP # 14
6 20976.0006* 2 1 Tube .375˝ ID x 4.5˝ (Bypass to Elbow) (Order item 39)
7 20976.0010* - 1 Tube .375˝ ID x 3.4˝ (Bypass to Elbow) (Order item 39)
20976.0062* 2 - Tube .375˝ ID x 1.75˝ (Bypass to Elbow) (Order item 39)
8 41193.0001* 1 1 Tube, Silicone .375˝ ID X 1.2˝ LG
9 32591.0029* 1 - Tube .50˝ ID x 15.0˝ Faucet Early Style Twin Tanks
32591.0031* 1 - Tube .50˝ ID x 11.25˝ Faucet Third Style Twin Tanks
32591.0034* - 1 Tube .50˝ ID x 11.25˝ Faucet
Early Models
for valve repair kit
Singles Only
Refer to item 36
Order item
43
10 32591.0010* - 1 Tube .50˝ ID x 1.6˝ (Tank to Bypass)
32591.0002* 2 - Tube .50˝ ID x 6.0˝ (Tank to Bypass)
11 32591.0020* - 1 Tube .50˝ ID x 6.0˝ (Single)
32591.0016* 1 - Tube .50˝ ID x 9.0˝ (Left side)
32591.0017* 1 - Tube .50˝ ID x 9.75˝ (Right side)
12 32591.0007* - 1 Tube .50˝ ID x 8.75˝ (Vent)
32591.0029* 1 - Tube .50˝ ID x 9.75˝ (Vent) Early Style Tank
32591.0025* 1 - Tube .50˝ ID x 13.0˝ (Vent) Third Style Tank & 19.8˝ Hood
32591.0038* 1 - Tube .50˝ ID x 17.0˝ (Vent) Third Style Tank & 21.8˝ Hood
13 39149.0001 2 1 Fitting, Sprayhead
14 00943.0000 2 1 Gasket, Sprayhead Fitting
15 32648.0000 2 1 Elbow Assy, .125 MPT x.35 Barb
16 01075.0000 2 1 Nut, Hex .438˝-20
17 35070.0001 2 1 Back, Sprayhead
18 34868.0000 2 1 Seal
19 34867.0005 2 1 Sprayhead, 17 hole
20 35308.1005 2 1 Kit, Sprayhead (Includes items 17 - 19)
20
Order item
41
21 38969.0001 2 1 Fitting, 90° Silicone
22 29075.0000 1 1 Faucet Assy (Includes items 24 - 28)
23 02861.0003 1 1 Handle, Red w/Warning
24 02854.0000 1 1 Bonnet
Continued on next page
15
* Indicates the part number listed is for reference only.
39830 041510
DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET
ICB Series
1
Early Twins
5 10 2 11 4 1
Early Singles
136
35
34
37
33
Current Twins
Current Singles
5
35
21
To tank lid
7
6
12
5
34
36 44
1
33
37
14
4
To left tank outlet
5
9
58
38
30
32 31
28
29
16
17
18
19
23
24
25
26
27
15
20
22
P3825.50
* Indicates the part number listed is for reference only.
16
39830 041510
DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
25 02595.0000 1 1 Spring
26 02766.0000 1 1 Cup
27 02856.0005* 1 1 Body (Order item 23)
28 02858.0000 1 1 Pin, Spring
29 13054.0000 1 1 Stem
30 02594.0000 1 1 Faucet Stem w/Pin (Includes 29 & 30)
31 01544.0000 1 1 Washer, .50" ID x .75" OD
32 29264.0000 1 1 Nut
33 26846.0000 2 1 Valve Assembly, Sprayhead 120V
26846.0001 2 1 Valve Assembly, Sprayhead 200V
26846.0002 2 1 Valve Assembly, Sprayhead 240V
34 34956.0003 2 - Fitting, .25 NPTF .55OD/.281ID
34956.0004 - 1 Fitting, .25 NPTF .55OD/.255ID
35 32591.0009* - 1 Tube .50˝ ID x 8.75˝ (Brew)
32591.0035* 2 - Tube .50˝ ID x 7.25˝ (Brew)
36 32591.0020* - 1 Tube .50˝ ID x 4.4˝ (Tank to Bypass) Singles
32591.0014* 2 - Tube .50˝ ID x 3.6˝ (Tank to Bypass) Right
32591.0036* 2 - Tube .50˝ ID x 3.0˝ (Tank to Bypass) Left
Order item
41
37 20976.0004* 1 - Tube .375˝ ID x 8.5˝ (Bypass to Elbow) Left
20976.0042* 1 - Tube .375˝ ID x 4.0˝ (Bypass to Elbow) Right
20976.0045* - 1 Tube .375˝ ID x 6.5˝ (Bypass to Elbow) Singles
38 41160.1002 - - Sprayhead Assembly, Flex 21 Hole (Optional)
The following items are not illustrated
39 11517.0008 - - Repair Kit, Dispense Valve (Includes Plunger, Spring and Diaphragm)
40 20976.1000 - - Tube .375" ID x 1 Foot (Use as required)
20976.1001 - - Tube .375" ID x 3 Feet (Use as required)
20976.1002 - - Tube .375" ID x 10 Feet (Use as required)
20976.1004 - - Tube .375” ID x 250 Feet (Use as required)
41 32591.1001 - - Tube .50" ID x 1 Foot (Use as required)
32591.1002 - - Tube .50" ID x 3 Feet (Use as required)
32591.1003 - - Tube .50” ID x 10 Feet (Use as required)
32591.1004 - - Tube .50” ID x 250 Feet (Use as required)
42 41193.1000 - - Tube .375” ID x 10 Feet (Use as required)
41193.1001 - - Tube .375” ID x 3 Feet (Use as required)
41193.1002 - - Tube .375” ID x 1 Foot (Use as required)
41193.1004 - - Tube .375” ID x 250 Feet (Use as required)
43 41499.1007 - 1 Faucet Tube Kit, ICB (Includes Items 5, 8, 9)
41499.1008 1 - Faucet Tube Kit, ICB Twin (Includes Items 5, 8, 9)
Order item
40
* Indicates the part number listed is for reference only.
17
39830 041510

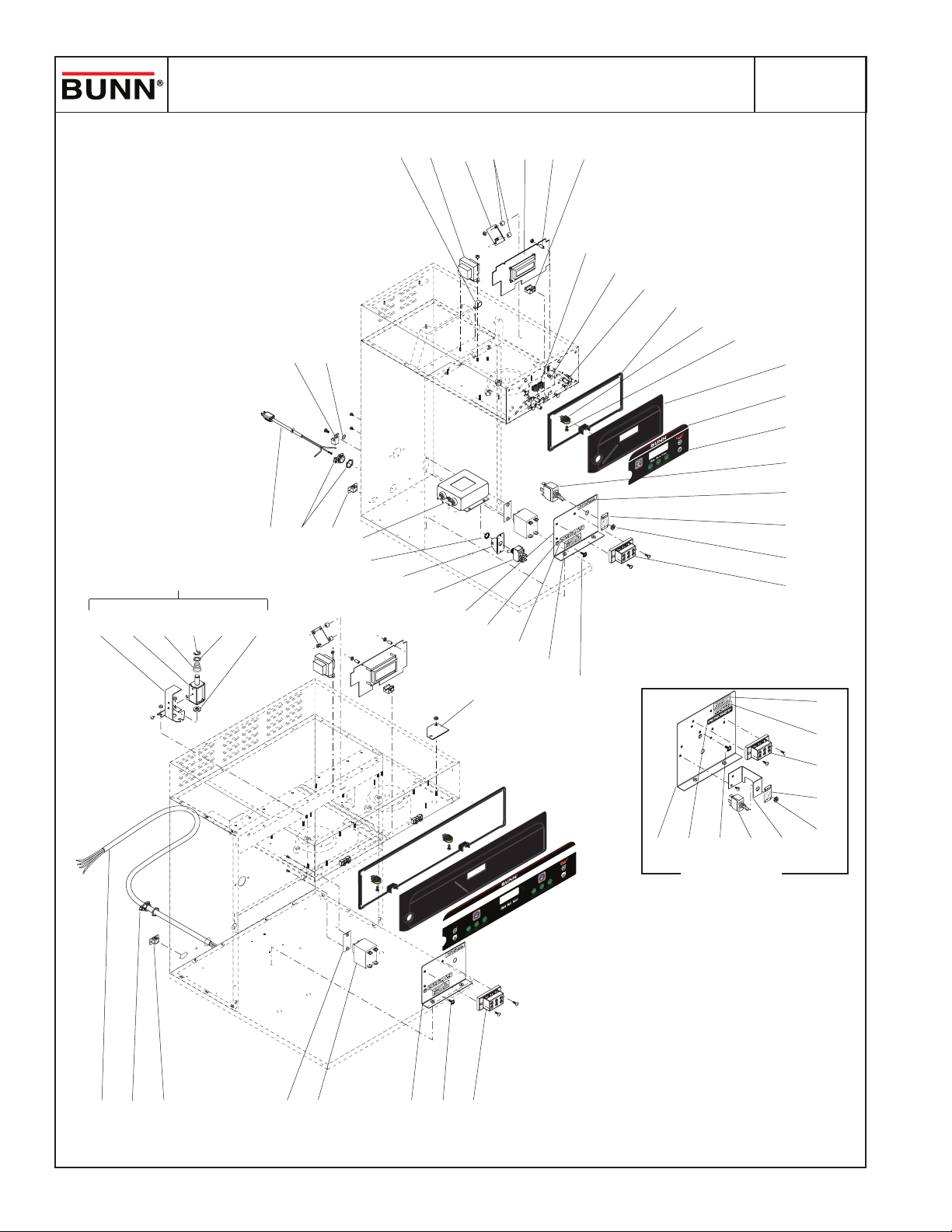

ELECTRICAL AND OPERATING CONTROLS
23 5
10 8 9 6 7
4
45
26 38
ICB Series
44
42
2
3
41
43
1
12
18
27 21 22
36
30 31 32 33 34 35
25
13
40
39
14
20
37
16
13
11
19
17
15
17
18
11
16
13
14 19 15 12 24
Models w/First
type inlet valve
27 21 22 29 28
14 15 11
* Indicates the part number listed is for reference only.
18
Refer to page 6 for terminal
block on later model Twins
P3826.30
39830 012910
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 36367.0000 - 1 Membrane Switch
37875.0000 1 - Membrane Switch
2 32572.1000 2 1 Sensing Coil
3 35956.0000 2 1 Fastener
4 36587.0000 2 1 Plug
5 36366.0000 2 1 Mount
6 36373.1010 - 1 Control Board (Single) (RoHS)
37789.1012 1 - Control Board (Twin)
36373.1014 - 1 Control Board (w/Funnel Lock) (RoHS)
00973.0000 2 Nut, Keps #6-32
7 01533.0011 2 2 Spacer
8 38712.1000 1 1 Memory Circuit Board (RoHS)
00970.0000 2 2 Nut, Keps #8-32
9 01533.0002 2 2 Spacer
10 34307.1001 1 1 Transformer 120V
34307.1002 1 1 Transformer 230V
34307.1003 1 1 Transformer 200V
00970.0000 2 2 Nut, Keps #8-32
Early Models Only
11 07038.0000 1 1 Terminal Block 120V/240V
01106.0003 1 1 Terminal Block 230V
01106.0001 - 1 Terminal Block 200V
01317.0000 2 2 Screw, Truss Head #8-32 x .50"
12 23522.0001 - 1 Switch, Toggle (ICB-DV models only)
13 23696.0000 - 1 Nut
14 36420.1001* - 1 Bracket (Single)
36420.1002* 1 - Bracket (Twin)
38344.1000 - 1 Bracket W/Decals (ICB-DV models)
38344.1001 1 1 Bracket W/Decals (ICB & Twin models)
02308.0000 2 2 Screw, Pan Head #8-32 x .38"
15 01309.0000 1 1 Screw, Grounding #10-31 x .50" (Brewers prior to July 5, 2005)
37804.0000 1 1 Screw, Grounding #8-32 x .50" (Brewers July 5, 2005 and after)
16 34056.0001 - 1 Decal, Voltage Selection (ICB-DV models only)
17 00985.0000 1 1 Decal, Individual Circuit Info
18 00870.0000* 1 1 Decal, Use Copper Wire Only
19 12394.0001* 1 - Decal, Supply Connection
12394.0002* - 1 Decal, Supply Connection
20 00824.0000 1 1 Decal, Ground
(First type Inlet)
Order new style
bracket & valve
21 01685.0000 - 1 Cord Connector
01590.0000 1 - Cord Connector
22 36398.0000 1 1 Hole Plug, DB-9 (Early Models Only)
Continued on next page
19
* Indicates the part number listed is for reference only.
39830 092010
ELECTRICAL AND OPERATING CONTROLS
23 5
10 8 9 6 7
4
45
26 38
ICB Series
44
42
2
3
41
43
1
12
18
27 21 22
36
30 31 32 33 34 35
25
13
40
39
14
20
37
16
13
11
19
17
15
17
18
11
16
13
14 19 15 12 24
Models w/First
type inlet valve
27 21 22 29 28
14 15 11
* Indicates the part number listed is for reference only.
20
Refer to page 6 for terminal
block on later model Twins
P3826.30
39830 012910
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
23 00603.0000 - 1 Clamp
24 37754.1000 - 1 Bracket W/Decal (ICB-DV models with fi rst type Inlet Valve)
01315.0000 - 2 Screw, Truss Head #8-32 x .38"
25 29446.0003 1 1 EMI Filter (200V & 230V CE models only)
01347.0000 4 4 Screw, Truss Head #6-32 x .38"
26 27705.0000 1 1 Terminal Lug (200V & 230V CE models only)
02308.0000 - 1 Screw, Pan Head #8-32 x .38"
27 20630.0005 - 1 Power Cord (ICB-DV models only)
06064.0000 - 1 Decal, Cord Warning (ICB-DV models only)
32657.0001 1 - Power Cord, 10/4 w/o Plug (Twin only)
33529.0004 - 1 Cord, Pwr 16A/230V Euro Plug
28 38894.0001 1 1 Switch, Rocker - Main On/Off (New Models w/o Power Cord)
01308.0003 2 2 Screw, Truss Head #6-32 x .25"
29 38820.0000 1 1 Plate, Switch Cover
01308.0002 2 2 Screw SST #6-32 x .25”
30 38280.0000 2 - Bracket, Solenoid
00970.0000 4 - Nut, Keps #8-32
31 35955.0000 2 1 Coil, Solenoid 120V
35955.0002 - 1 Coil, Solenoid 200V
33613.0000 4 2 Screw, Truss Head #8-32 x .25"
01519.0000 4 2 Lockwasher, Split #8
32 39982.0000 1 1 Spring
33 39981.0000 2 2 Retaining Ring
34 -------------- 1 1 Washer, Nylon .44” ID x .68” OD
35 35953.0000 2 2 Guide, Pin
36 35952.1003 2 - Solenoid Assembly 120V (Includes 31-36)
35952.1004 - 1 Solenoid Assembly 200V (Includes 31-36)
37 32649.0001 2 - Cover, Funnel Lock
00970.0000 4 - Nut, Keps #8-32
38 00824.0001 1 1 Decal, Equipotentiality (CE Only)
39 40763.0001 - 1 Switch, Toggle
40 25102.0000 - 1 Bracket, Switch
41 37827.1001 1 - Bezel, Control Panel (Includes 8, 9)
36359.1001 - 1 Bezel, Control Panel (Includes 8, 9)
37827.1101 1 - Bezel Kit (Includes Membrane, Decal, Gasket, & Sensing Coil-Assembled)
36359.1101 - 1 Bezel Kit (Includes Membrane, Decal, Gasket, & Sensing Coil-Assembled)
02308.0000 8 4 Screw, Pan Head #8-32 x .375˝
01502.0000 8 4 Lockwasher, Split #10
Models with Funnel Locks
Models without Funnel Locks
Continued on next page
* Indicates the part number listed is for reference only.
21
39830 011510
ELECTRICAL AND OPERATING CONTROLS
23 5
10 8 9 6 7
4
45
26 38
ICB Series
44
42
2
3
41
43
1
12
18
27 21 22
36
30 31 32 33 34 35
25
13
40
39
14
20
37
16
13
11
19
17
15
17
18
11
16
13
14 19 15 12 24
Models w/First
type inlet valve
27 21 22 29 28
14 15 11
* Indicates the part number listed is for reference only.
22
Refer to page 6 for terminal
block on later model Twins
P3826.30
39830 012910
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
42 36364.0000 - 1 Gasket
37874.0000 1 - Gasket
43 37877.0000 1 - Decal, Top
36368.0000 - 1 Decal, Top
44 32530.0001 3 3 Spacer
45 42234.0000 8 8 Standoff
The following items are not illustrated
46 36677.0001* - 1 Wiring Harness, Main DV (No Switch) NO LONGER AVAILABLE
36677.0003 - 1 Wiring Harness, 230V & 200V Main (ICB Single)
36677.0004* - 1 Wiring Harness, Main ICB (DV/w Rocker Switch) NO LONGER AVAILABLE
36677.0005 - 1 Wiring Harness, Main ICB Tall (DV/w Rocker Sw)
36677.0007 - 1 Wiring Harness, 230V & 200V Main (ICB Tall Single)
36677.0008 - 1 Wiring Harness, Main ICB Tall DV/w Toggle Switch)
36677.0009 - 1 Wiring Harness, Main ICB Tall DV/w Toggle Switch)
38040.0001 1 - Wiring Harness, Main (Tall Twins w/Rocker Switch) (21˝ Hood)
38040.0002 1 - Wiring Harness, Main (Standard Twins w/Rocker Switch) (19˝ Hood)
38040.0003 1 - Wiring Harness, Main (230V Twins) CE (21˝ Hood)
38040.0004 1 - Wiring Harness, Main (Tall Twins w/Rocker Switch) (19˝ Hood)
38040.0005 1 - Wiring Harness, Main (Standard Twins w/Rocker Switch) (21˝ Hood)
38040.0006 1 - Wiring Harness, Main (230V Twins) CE (19˝ Hood)
47 37494.0000 - 1 Wiring Harness, Liquid Level
37494.0001 1 - Wiring Harness, Liquid Level (21˝ Hood)
37494.0002 1 - Wiring Harness, Liquid Level (19˝ Hood)
48 36676.0001 1 1 Wiring Harness, Memory Board
49 36675.0000 1 1 Wiring Harness, Sensing Coil (Left & Single)
36675.0001 1 - Wiring Harness, Sensing Coil (Right Side Only)
50 34707.0006 1 1 Wiring Harness, EMI Filter (200V & 230V CE models only)
51 40081.0002 - 1 Wiring Harness, Toggle Switch to Term Blk (13˝)
52 43936.0000 1 - Kit, Replacement Heater Wiring Harness
* Indicates the part number listed is for reference only.
23
39830 041411
FUNNELS
1
ICB Series
7
2
3
5
6
8
9
4
* Indicates the part number listed is for reference only.
24
P3833.75
39830 061407
FUNNELS
ITEM PART NO. QTY. QTY. DESCRIPTION
TWIN SINGLE
1 32643.0000 2 1 Funnel Assy, SST (Includes Items 2 thru 9)
2 24462.0002 2 1 Funnel Body W/Decals (Includes items 3 & 4)
3 03408.0004 2 1 Decal, Caution-Remove Funnel
4 03409.0004 2 1 Decal, Caution-Hot Liquid
5 32595.0000 2 1 Handle, Funnel-Black
6 12499.0002 2 1 Screw, Round Head BLK .25" - 20 x 1.50"
7 33089.0000 2 1 Filter Basket w/Splash Guard
8 32139.0000 2 1 Insert, Funnel Tip - Male (Refer to item 10)
9 32140.0000 2 1 Insert, Funnel Tip - Female (Refer to item 10)
10 01031.0001 - - Funnel Tip Kit (Includes items 8 & 9)
* Indicates the part number listed is for reference only.
25
39830 061407
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00486.0003......................... 11
00603.0000......................... 19
00656.0000........................... 7
00658.0000........................... 7
00824.0000......................... 19
00824.0001......................... 21
00870.0000......................... 19
00908.0000......................... 11
00942.0000......................... 11
00943.0000.................... 11,15
00970.0000............... 15,19,21
00973.0000......................... 19
00985.0000......................... 19
00986.0000........................... 7
01031.0001......................... 23
01075.0000......................... 15
01106.0001......................... 19
01106.0003......................... 19
01308.0002..................... 5,7,9
01308.0003........................... 7
01311.0001........................... 7
01311.0004........................... 7
01308.0003......................... 21
01309.0000......................... 19
01315.0000......................... 21
01317.0000...................... 7,19
01317.0003........................... 5
01347.0000......................... 21
01501.0000......................... 11
01502.0000........................... 5
01503.0000........................... 9
01511.0000......................... 11
01514.0000......................... 13
01519.0000......................... 21
01522.0000......................... 11
01533.0002......................... 19
01533.0011......................... 19
01544.0000......................... 17
01590.0000......................... 19
01685.0000......................... 19
02308.0000................ 5,7,9,21
02332.0005........................... 9
02594.0000......................... 17
02595.0000......................... 17
02755.1001......................... 11
02766.0000......................... 17
02854.0000......................... 15
02856.0005......................... 17
02858.0000......................... 17
02861.0003......................... 15
03408.0004......................... 23
03409.0004......................... 23
06064.0000......................... 21
07038.0000...................... 7,19
07412.1002......................... 11
11517.0008......................... 17
11630.0001......................... 13
12394.0001......................... 19
12394.0002......................... 19
12422.0000......................... 13
12422.0001.................... 13,15
12422.0005......................... 15
12422.0006......................... 13
12422.0009......................... 15
12499.0002......................... 23
12756.0000......................... 13
12757.0000......................... 13
13054.0000......................... 17
20203.0100......................... 11
20630.0005......................... 21
20942.1000......................... 11
20976.0004......................... 13
20976.0006......................... 13
20976.0007......................... 13
20976.0009......................... 13
20976.0025......................... 13
20976.0042......................... 13
20976.0062......................... 13
20976.0064......................... 13
20976.0068......................... 13
20976.0074......................... 13
20976.0075......................... 13
20976.1000......................... 13
20976.1001......................... 13
20976.1002......................... 13
20976.0006......................... 15
20976.0009......................... 15
20976.0010......................... 15
20976.0038......................... 15
20976.0055......................... 15
20976.0062......................... 15
20976.1000......................... 17
20976.1001.................... 13,17
20976.1002.................... 13,17
23522.0001......................... 19
23696.0000......................... 19
24376.0001......................... 13
24462.0002......................... 23
25102.0000......................... 21
25137.0001........................... 9
25151.0000........................... 5
27370.0000......................... 15
27370.0001......................... 15
27370.0002......................... 15
27370.0003......................... 15
27370.0004......................... 15
27370.0005......................... 15
27705.0000......................... 21
29075.0000......................... 15
29264.0000......................... 17
29329.1000......................... 11
29446.0003......................... 21
29485.1001......................... 11
29485.1002......................... 11
29485.1003......................... 11
29669.1000......................... 11
29710.0011........................... 7
29710.7011........................... 7
32098.0000......................... 13
32139.0000......................... 23
32140.0000......................... 23
32283.0000......................... 13
32530.0001......................... 23
32572.1000......................... 19
32591.0002......................... 15
32591.0007......................... 15
32591.0010......................... 15
32591.0016......................... 15
32591.0025......................... 15
32591.0029......................... 15
32591.0038......................... 15
32591.1001......................... 17
32591.1002......................... 17
32595.0000......................... 23
32643.0000......................... 23
32648.0000......................... 15
32649.0001......................... 21
32657.0001......................... 21
33089.0000......................... 23
33529.0004......................... 21
33613.0000......................... 21
33801.0001......................... 11
34056.0001......................... 19
34072.0000........................... 7
34307.1001......................... 19
34307.1002......................... 19
34307.1003......................... 19
34707.0006......................... 23
34768.0001......................... 13
34867.0005......................... 15
34868.0000......................... 15
35070.0001......................... 15
35094.0001......................... 13
35094.0002......................... 13
35094.0004......................... 13
35308.1005......................... 15
35937.0000......................... 11
35937.0002......................... 11
35952.1003......................... 21
35952.1004......................... 21
35953.0000......................... 21
35955.0000......................... 21
35956.0000......................... 19
36233.0000......................... 13
36233.0001......................... 13
36355.1006........................... 5
36355.1013........................... 5
36359.1001......................... 21
36359.1101......................... 21
36361.0000........................... 9
36364.0000......................... 23
36366.0000......................... 19
36367.0000......................... 19
36368.0000......................... 23
36373.1010......................... 19
36398.0000...................... 7,19
36420.1001......................... 19
36420.1002......................... 19
36587.0000......................... 19
36604.0000......................... 11
36605.0000......................... 11
36606.0001......................... 11
36608.0001........................... 5
36635.0002........................... 9
36637.1004........................... 7
36637.1005........................... 7
36639.0005........................... 5
36639.0006........................... 5
36639.0007........................... 5
36643.1000........................... 7
36643.1001........................... 7
36643.1002........................... 7
36675.0000......................... 21
36675.0001......................... 21
36676.0001......................... 21
36677.0001......................... 21
36677.0003......................... 21
36677.0004......................... 21
36677.0005......................... 21
36677.0007......................... 21
37297.0001......................... 13
37298.1003......................... 11
37298.1004......................... 11
37298.1005......................... 11
37299.0000........................... 7
37299.0001........................... 5
37299.0002........................... 7
37421.0001......................... 13
37494.0000......................... 21
37494.0001......................... 21
37761.0000......................... 13
37754.1000......................... 21
37755.1000......................... 11
37755.1001......................... 11
37755.1002......................... 11
37755.1003......................... 11
26
39830 061711
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
37776.0000......................... 11
37776.0002......................... 11
37782.0001......................... 11
37782.0003......................... 11
37789.1012......................... 19
37804.0000...................... 7,19
37827.1001......................... 21
37827.1101......................... 21
37865.1000........................... 7
37865.1001........................... 7
37865.1002........................... 7
37865.1003........................... 7
37866.0001........................... 9
37870.1000........................... 5
37870.1004........................... 5
37874.0000......................... 21
37875.0000......................... 19
37877.0000......................... 23
37881.0000........................ 5.7
37920.0002........................... 5
37920.0003........................... 5
37920.0006........................... 5
37920.0007........................... 5
37926.0000........................... 9
37951.1004........................... 7
37951.1005........................... 7
37951.1105........................... 7
37951.1106........................... 7
37953.0002........................... 7
37967.0000........................... 5
38040.0000......................... 21
38040.0001......................... 21
38040.0003......................... 21
38114.0000......................... 11
38125.0000........................... 7
38125.0001........................... 7
38280.0000......................... 21
38344.1000......................... 19
38344.1001......................... 19
38712.1000......................... 19
38820.0000...................... 7,21
38894.0001......................... 21
38948.0001......................... 13
38969.0001......................... 11
38969.0001......................... 15
39085.1001......................... 11
39149.0001......................... 15
39175.0000........................... 7
39450.1000........................... 7
39453.1000........................... 7
39455.1000........................... 7
39455.1002........................... 7
39541.1000........................... 7
39541.1002........................... 7
39596.0001........................... 7
39594.0000........................... 9
39599.0000........................... 7
39615.0000........................... 9
39981.0000......................... 21
39982.0000......................... 21
40071.0001......................... 13
40081.0000......................... 21
40081.0001......................... 21
40763.0001......................... 21
41160.1002......................... 17
41499.1007......................... 17
41499.1008......................... 17
42234.0000......................... 23
43644.0000......................... 13
1927
39830 061711
Loading...
