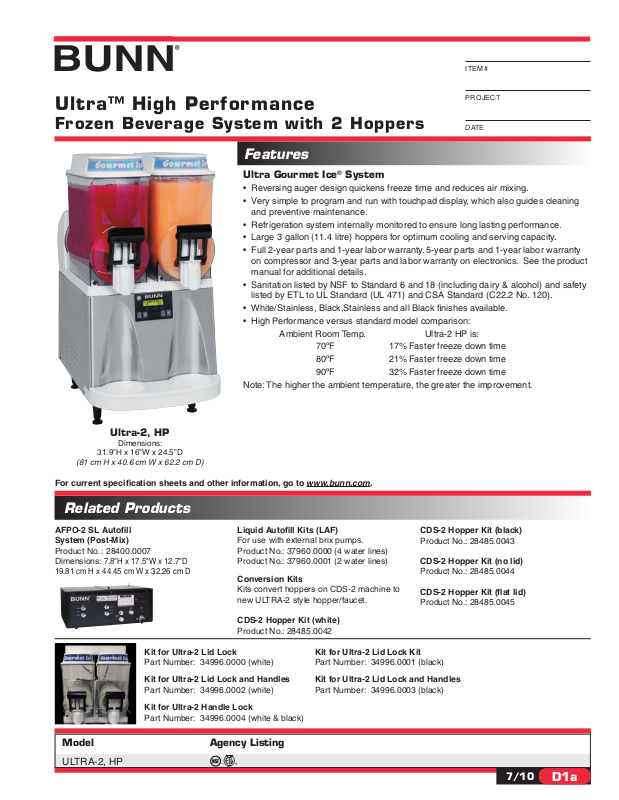

Bunn-O-Matic HP General Manual
ITE M#
Ultra™ High Performance
Frozen Beverage System with 2 Hoppers
Features
Ultra Gourmet Ice® System
• Reversing auger design quickens freeze time and reduces air mixing.
• Very simple to program and run with touchpad display, which also guides cleaning
and preventive maintenance.
• Refrigeration system internally monitored to ensure long lasting performance.
• Large 3 gallon (11.4 litre) hoppers for optimum cooling and serving capacity.
• Full 2-year parts and 1-year labor warranty. 5-year parts and 1-year labor warranty
on compressor and 3-year parts and labor warranty on electronics. See the product
manual for additional details.
• Sanitation listed by NSF to Standard 6 and 18 (including dairy & alcohol) and safety
listed by ETL to UL Standard (UL 471) and CSA Standard (C22.2 No. 120).
• White/Stainless, Black,Stainless and all Black finishes available.
• High Performance versus standard model comparison:
Ambient Room Temp. Ultra-2 HP is:
70ºF 17% Faster freeze down time
80ºF 21% Faster freeze down time
90ºF 32% Faster freeze down time
Note: The higher the ambient temperature, the greater the improvement.
PROJECT
DATE
Ultra-2, HP
Dimensions:
31.9”H x 16”W x 24.5”D
(81 cm H x 40.6 cm W x 62.2 cm D)
For current specification sheets and other information, go to www.bunn.com.
Related Products
AFPO-2 SL Autofill
System (Post-Mix)
Product No. : 28400.0007
Dimensions:
19.81 cm H x 44.45 cm W x 32.26 cm D
7.8"H x 17.5"W x 12.7"D
Kit for Ultra-2 Lid Lock Kit for Ultra-2 Lid Lock Kit
Part Number: 34996.0000 (white) Part Number: 34996.0001 (black)
Kit for Ultra-2 Lid Lock and Handles Kit for Ultra-2 Lid Lock and Handles
Part Number: 34996.0002 (white) Part Number: 34996.0003 (black)
Kit for Ultra-2 Handle Lock
Part Number: 34996.0004 (white & black)
Liquid Autofill Kits (LAF)
For use with external brix pumps.
Product No.: 37960.0000 (4 water lines)
Product No.: 37960.0001 (2 water lines)
Conversion Kits
Kits convert hoppers on CDS-2 machine to
new ULTRA-2 style hopper/faucet.
CDS-2 Hopper Kit (white)
Product No.: 28485.0042
CDS-2 Hopper Kit (black)
Product No.: 28485.0043
CDS-2 Hopper Kit (no lid)
Product No.: 28485.0044
CDS-2 Hopper Kit (flat lid)
Product No.: 28485.0045
Model Agency Listing
ULTRA-2, HP
7/10
D1a
Dimensions & Specifications
Model Product # Volts Amps Capacity Cubic Shipping Cord
Measure Weight Attached
ULTRA-2, HP (Stainless/White) 34000.0079 120 12 2 Hoppers@3.0 gal 14.9 ft3 137 lbs. Yes*
ULTRA-2, HP
ULTRA-2, HP
*Power cord (NEMA 5-15P) 15 Amp-120V machine only.
(Stainless/Black) 34000.0081 120 12 2 Hoppers@3.0 gal 14.9 ft
(All Black) 34000.0080 120 12 2 Hoppers@3.0 gal 14.9 ft
Electrical: Models require 2-wires plus ground service rated 120V, single phase, 50/60 Hz.
3
137 lbs. Yes*
3
137 lbs. Yes*
24.5
11.5
31.9
10.6
16.0
8.3 14.0
2.2
12.1
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
