IMIX-3

ILLUSTRATED PARTS CATALOG

Designs,฀materials,฀weights,฀speciﬁcations,฀and฀dimensions฀for฀equipment฀or฀replacement฀parts

are฀subject฀to฀change฀without฀notice.

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

BUNN-O-MATIC฀COMMERCIAL฀PRODUCT฀WARRANTY

Bunn-O-Matic฀Corp.฀(“BUNN”)฀warrants฀equipment฀manufactured฀by฀it฀as฀follows:

1)฀All฀equipment฀other฀than฀as฀speciﬁed฀below:฀2฀years฀parts฀and฀1฀year฀labor.

2)฀Electronic฀circuit฀and/or฀control฀boards:฀parts฀and฀labor฀for฀3฀years.

3)฀Compressors฀on฀refrigeration฀equipment:฀5฀years฀parts฀and฀1฀year฀labor.

4)฀Grinding฀burrs฀on฀coffee฀grinding฀equipment฀to฀grind฀coffee฀to฀meet฀original฀factory฀screen฀sieve฀analysis:฀

parts฀and฀labor฀for฀3฀years฀or฀30,000฀pounds฀of฀coffee,฀whichever฀comes฀ﬁrst.

These฀warranty฀periods฀run฀from฀the฀date฀of฀installation.฀BUNN฀warrants฀that฀the฀equipment฀manufactured฀by฀

it฀will฀be฀commercially฀free฀of฀defects฀in฀material฀and฀workmanship฀existing฀at฀the฀time฀of฀manufacture฀and฀

appearing฀within฀the฀applicable฀warranty฀period.฀This฀warranty฀does฀not฀apply฀to฀any฀equipment,฀component฀or฀

part฀that฀was฀not฀manufactured฀by฀BUNN฀or฀that,฀in฀BUNN’s฀judgment,฀has฀been฀affected฀by฀misuse,฀neglect,฀

alteration,฀improper฀installation฀or฀operation,฀improper฀maintenance฀or฀repair,฀damage฀or฀casualty.฀This฀warranty฀is฀

conditioned฀on฀the฀Buyer฀1)฀giving฀BUNN฀prompt฀notice฀of฀any฀claim฀to฀be฀made฀under฀this฀warranty฀by฀telephone฀

at฀(217)฀529-6601฀or฀by฀writing฀to฀Post฀Ofﬁce฀Box฀3227,฀Springﬁeld,฀Illinois฀62708-3227;฀2)฀if฀requested฀by฀

BUNN,฀shipping฀the฀defective฀equipment฀prepaid฀to฀an฀authorized฀BUNN฀service฀location;฀and฀3)฀receiving฀prior฀

authorization฀from฀BUNN฀that฀the฀defective฀equipment฀is฀under฀warranty.

THE฀FOREGOING฀WARRANTY฀IS฀EXCLUSIVE฀AND฀IS฀IN฀LIEU฀OF฀ANY฀OTHER฀WARRANTY,฀WRITTEN฀OR฀

ORAL,฀EXPRESS฀OR฀IMPLIED,฀INCLUDING,฀BUT฀NOT฀LIMITED฀TO,฀ANY฀IMPLIED฀WARRANTY฀OF฀EITHER฀

MERCHANTABILITY฀OR฀FITNESS฀FOR฀A฀PARTICULAR฀PURPOSE.฀The฀agents,฀dealers฀or฀employees฀of฀BUNN฀

are฀not฀authorized฀to฀make฀modiﬁcations฀to฀this฀warranty฀or฀to฀make฀additional฀warranties฀that฀are฀binding฀on฀

BUNN.฀Accordingly,฀statements฀by฀such฀individuals,฀whether฀oral฀or฀written,฀do฀not฀constitute฀warranties฀and฀

should฀not฀be฀relied฀upon.

If฀BUNN฀determines฀in฀its฀sole฀discretion฀that฀the฀equipment฀does฀not฀conform฀to฀the฀warranty,฀BUNN,฀at฀its฀

exclusive฀option฀while฀the฀equipment฀is฀under฀warranty,฀shall฀either฀1)฀provide฀at฀no฀charge฀replacement฀parts฀

and/or฀labor฀(during฀the฀applicable฀parts฀and฀labor฀warranty฀periods฀speciﬁed฀above)฀to฀repair฀the฀defective฀

components,฀provided฀that฀this฀repair฀is฀done฀by฀a฀BUNN฀Authorized฀Service฀Representative;฀or฀2)฀shall฀replace฀

the฀equipment฀or฀refund฀the฀purchase฀price฀for฀the฀equipment.

THE฀BUYER’S฀REMEDY฀AGAINST฀BUNN฀FOR฀THE฀BREACH฀OF฀ANY฀OBLIGATION฀ARISING฀OUT฀OF฀THE฀SALE฀OF฀

THIS฀EQUIPMENT,฀WHETHER฀DERIVED฀FROM฀WARRANTY฀OR฀OTHERWISE,฀SHALL฀BE฀LIMITED,฀AT฀BUNN’S฀

SOLE฀OPTION฀AS฀SPECIFIED฀HEREIN,฀TO฀REPAIR,฀REPLACEMENT฀OR฀REFUND.

In฀no฀event฀shall฀BUNN฀be฀liable฀for฀any฀other฀damage฀or฀loss,฀including,฀but฀not฀limited฀to,฀lost฀proﬁts,฀lost฀sales,฀

loss฀of฀use฀of฀equipment,฀claims฀of฀Buyer’s฀customers,฀cost฀of฀capital,฀cost฀of฀down฀time,฀cost฀of฀substitute฀

equipment,฀facilities฀or฀services,฀or฀any฀other฀special,฀incidental฀or฀consequential฀damages.

37509฀111504

TABLE฀OF฀CONTENTS

TITLE฀PAGE฀NO.

Auger฀Drive฀and฀Hopper฀Assembly฀...............................................................................................................................................12

Covers,฀Panels฀and฀Drip฀Tray฀..........................................................................................................................................................4

Dispense฀Valves฀and฀Lines฀............................................................................................................................................................20

Door,฀Lamp,฀Dispense฀Switches฀and฀Panels฀...................................................................................................................................8

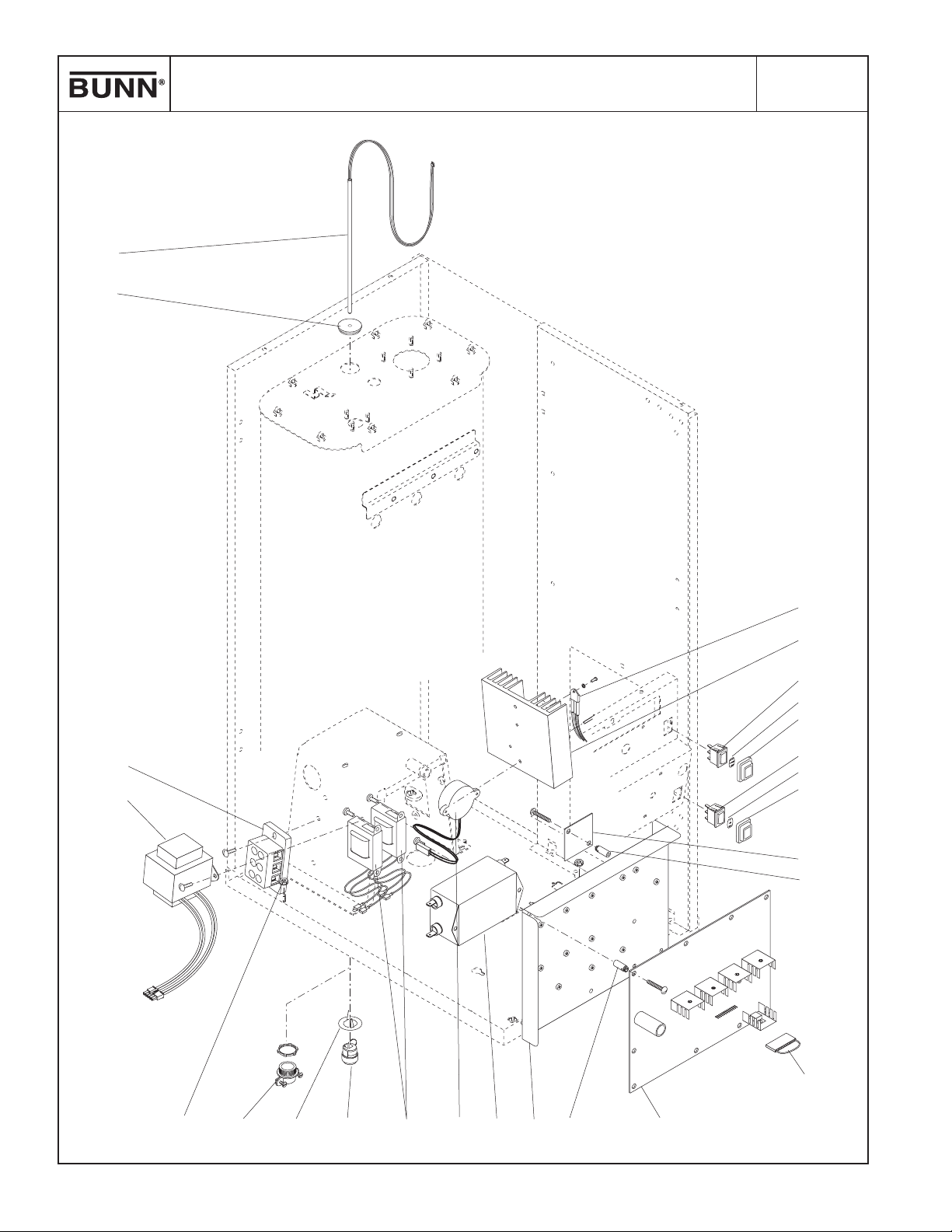

Electrical฀Controls฀.........................................................................................................................................................................22

Mixing/Whipper฀Chambers฀and฀Drive฀Motor฀.................................................................................................................................14

Numerical฀Index฀............................................................................................................................................................................24

Tank,฀Heater฀and฀Overﬂow฀Protection฀...........................................................................................................................................16

37509฀111504

COVERS,฀PANELS฀AND฀DRIP฀TRAY

1฀2

3฀฀฀฀4฀฀฀฀฀5฀฀฀฀฀6฀฀฀฀฀7

฀IMIX-3

8฀฀฀฀฀฀

32฀฀฀฀31฀฀฀฀฀30฀฀฀฀฀฀29฀฀฀฀28฀฀฀26฀฀฀27฀฀฀฀25฀฀฀23฀฀฀24฀฀฀22

P3244.25

37509฀110404

COVERS,฀PANELS฀AND฀DRIP฀TRAY

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀1฀36958.0001฀1฀Cover,฀Top฀Rear฀-฀BLK฀

฀฀36958.0002฀1฀Cover,฀Top฀Rear฀-฀SST฀

฀฀01311.0003฀2฀฀Screw,฀Truss฀Head฀BLK฀#8-32฀x฀.25"฀

฀฀01311.0000฀2฀฀Screw,฀Truss฀Head฀SST฀#8-32฀x฀.25"

฀2฀36959.0001฀1฀Cover,฀Top฀Front฀-฀BLK฀

฀฀36959.0002฀1฀Cover,฀Top฀Front฀-฀SST฀

฀฀01311.0003฀2฀฀Screw,฀Truss฀Head฀BLK฀#8-32฀x฀.25"฀

฀฀01311.0000฀2฀฀Screw,฀Truss฀Head฀SST฀#8-32฀x฀.25"฀

฀฀01382.0002฀2฀฀Screw,฀Truss฀Head฀BLK฀#6-32฀x฀.375"฀

฀฀01308.0000฀2฀฀Screw,฀Truss฀Head฀SST฀#6-32฀x฀.375"

฀3฀35926.0000฀4฀Bracket,฀Side฀Support฀

฀฀01311.0001฀8฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀4฀36967.0000฀1฀Panel,฀Inner฀Rear฀

฀฀01311.0001฀6฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀5฀36968.0000฀1฀Panel,฀Inner฀Access฀

฀฀01311.0000฀2฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"

฀6฀36986.0000฀1฀Strap,฀Top฀Support฀

฀฀01311.0001฀4฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀7฀36230.0001฀1฀Panel,฀Inner฀Right฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀8฀35912.0001฀2฀Panel,฀Side฀-฀BLK฀

฀฀35912.0002฀2฀Panel,฀Side฀-฀SST฀

฀฀01311.0003฀6฀฀Screw,฀Truss฀Head฀BLK฀#8-32฀x฀.25"฀

฀฀01311.0000฀6฀฀Screw,฀Truss฀Head฀SST฀#8-32฀x฀.25"

฀9฀34666.0000฀1฀Catch,฀Door฀Latch฀

฀฀02336.0000฀2฀฀Screw,฀Truss฀Head฀#4-40฀x฀.375"

฀10฀36965.0000฀1฀Panel,฀Whipper฀Motor฀

฀฀01311.0001฀6฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀11฀36978.0000฀1฀Tray,฀Powder฀Box

฀12฀37988.0000฀2฀Screw,฀Captive฀#10-32฀x฀.50"฀

฀฀34998.0000฀2฀฀E-Ring,฀Retaining฀.127"฀OD

฀13฀36644.0000฀1฀Bracket,฀Door฀Locking฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀14฀36743.0001฀1฀Cap,฀Splash฀Panel฀Right฀฀

฀฀01360.0002฀2฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀x฀.375"

฀15฀37498.1000฀1฀Panel฀W/Decal,฀Splash฀(Includes฀items฀14,฀16,฀17,฀18,฀&฀24)(Self฀Serve฀Models)฀

฀฀37498.1001฀1฀Panel฀W/Decal,฀Splash฀(Includes฀items฀14,฀16,฀17,฀18,฀&฀24)(Portion฀Control)

฀16฀28328.0011฀1฀Decal,฀Caution-Hot฀Liquid฀&฀Cup฀(Self฀Serve฀Models)฀

฀฀28328.0013฀1฀Decal,฀Caution-Hot฀Liquid฀&฀Cup฀(Portion฀Control)

฀17฀02536.0000฀2฀Grommet,฀Silicone฀.375"฀ID

฀18฀36983.0000฀1฀Guide,฀Cup

(Continued)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

COVERS,฀PANELS฀AND฀DRIP฀TRAY

1฀2

3฀฀฀฀4฀฀฀฀฀5฀฀฀฀฀6฀฀฀฀฀7

฀IMIX-3

8฀฀฀฀฀฀

32฀฀฀฀31฀฀฀฀฀30฀฀฀฀฀฀29฀฀฀฀28฀฀฀26฀฀฀27฀฀฀฀25฀฀฀23฀฀฀24฀฀฀22

P3244.25

37509฀110404

COVERS,฀PANELS฀AND฀DRIP฀TRAY

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀19฀37462.0000฀1฀Bracket,฀Drip฀Tray฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"

฀20฀36985.0000฀1฀Cover,฀Drip฀Tray

฀21฀36984.0000฀1฀Drip฀Tray

฀22฀36972.1000฀1฀Panel,฀Lower฀Access฀(Includes฀item฀23)฀

฀฀01311.0000฀3฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"

฀23฀37478.0000฀1฀Schematic

฀24฀36743.0000฀1฀Cap,฀Splash฀Panel฀Left฀฀

฀฀01360.0002฀2฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀x฀.375"

฀25฀36974.0001฀1฀Shelf,฀Powder฀Box฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀-฀Locking฀฀#8-32฀x฀.25"฀

฀฀02336.0000฀2฀฀Screw,฀Truss฀Head฀#4-40฀x฀.375"

฀26฀36398.0000฀1฀Plug,฀Hole฀DB-9

฀27฀02434.0008*฀4฀Gasket,฀U-Channel฀4.60"฀(Order฀item฀37)

฀28฀01526.0001฀4฀Washer,฀Flat฀.438"฀ID฀x฀1.88"฀OD

฀29฀03996.0000฀4฀Pad,฀Rubber฀1.25"฀Dia.฀(Also฀see฀item฀36)

฀30฀26528.0000฀4฀Leg,฀4.0"฀Adjustable฀(Also฀see฀item฀36)

฀31฀36963.0000฀1฀Panel,฀Bottom

฀32฀36229.0001฀1฀Panel,฀Inner฀Left฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀-฀Locking฀#8-32฀x฀.25"

฀฀33฀36961.1001฀1฀Panel฀Assembly,฀Rear฀-฀BLK฀(Includes฀items฀34฀and฀35)฀

฀฀36961.0002฀1฀Panel฀Assembly,฀Rear฀-฀SST฀

฀฀01311.0003฀11฀฀Screw,฀Truss฀Head฀BLK฀#8-32฀x฀.25"฀

฀฀01311.0000฀11฀฀Screw,฀Truss฀Head฀SST฀#8-32฀x฀.25"

฀34฀00831.0000฀1฀Decal,฀Warning-Electrical

฀35฀00656.0000฀1฀Decal,฀Comply฀to฀Plumbing฀Code

฀36฀13255.0003฀-฀Kit,฀Leg฀4.0"฀Adjustable฀(Includes฀4฀each฀of฀items฀29฀&฀30)

฀37฀02434.1000฀-฀Gasket,฀U-Channel฀-฀18"฀LG฀

฀฀02434.1001฀-฀Gasket,฀U-Channel฀-฀36"฀LG

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

DOOR,฀LAMP,฀DISPENSE฀SWITCHES฀AND฀PANELS

฀IMIX-3

1฀฀฀฀2฀฀฀฀฀฀3฀฀฀฀฀฀4฀฀฀฀฀5฀฀฀฀฀6

7฀฀฀฀฀฀฀8฀฀฀฀฀฀฀฀9

10฀

Portion฀Controls

P3245.45

37509฀020306

DOOR,฀LAMP,฀DISPENSE฀SWITCHES฀AND฀PANELS

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀1฀37466.0001฀1฀Panel,฀Lamp฀

฀฀01360.0002฀4฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"

฀2฀32806.0000฀2฀Lamp,฀Fluorescent฀-฀7฀Watts

฀3฀32807.0001฀2฀Lamp฀Holder,฀Fluorescent

฀4฀37456.0000฀1฀Lens,฀Fixed฀

฀฀02336.0000฀2฀฀Screw,฀Truss฀Head฀#4-40฀x฀.375"฀

฀5฀37457.0000฀1฀Display,฀Graphics

฀6฀37456.0001฀1฀Lens,฀Removable

฀7฀37254.0000฀1฀Decal,฀Cleaning฀

฀8฀36149.0000฀8฀Fastener,฀Snap-in฀.197"฀Hole

฀9฀36667.1001฀1฀Panel,฀Door฀-฀Upper฀(Includes฀item฀7)฀

฀฀01360.0002฀8฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"฀

฀฀01311.0001฀19฀฀Screw,฀Truss฀Head฀Locking฀#8-32฀x฀.25"

฀10฀36658.0000฀1฀Flange,฀Door

฀11฀36734.0001฀1฀Bracket,฀Inner฀Panel฀

฀฀01360.0002฀2฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"

฀12฀36244.0000฀1฀Plug,฀Door฀Hinge฀

฀฀01360.0002฀1฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"

฀13฀37096.0001฀1฀Door

฀14฀32863.0000฀1฀Keylock฀W/Keys,฀Door

฀15฀36231.0000฀1฀Switch,฀Membrane฀Program฀(Self฀Serve฀Models)฀

฀฀36231.0001฀1฀Switch,฀Membrane฀Program฀(Portion฀Control฀Models)

฀16฀36795.0000฀3฀Strip,฀Flavor฀Adhesive

฀17฀36796.0001฀3฀Strip,฀Flavor฀Door

฀18฀00669.0004฀1฀Plug,฀.75"฀x฀.625"฀hole

฀19฀36762.0000฀3฀Switch฀Housing,฀Single฀Button฀(Self฀Serve฀Models)

฀20฀36761.0000฀3฀Cover,฀Switch฀(Self฀Serve฀Models)

฀21฀36763.0000฀3฀Switch฀Pad,฀Single฀Button฀(Self฀Serve฀Models)

฀22฀35877.1000฀3฀Circuit฀Board฀Assy,฀Dispense฀Button฀(Self฀Serve฀Models)฀

฀฀01360.0002฀12฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"

฀23฀37013.0000฀1฀Cover,฀LCD฀Door฀Lens

฀24฀36147.1000฀1฀Circuit฀Board฀Assy,฀Display฀

฀฀01360.0002฀4฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"

฀25฀24457.0002฀1฀Screw,฀.25"฀Shoulder฀#8-32

(Continued)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

DOOR,฀LAMP,฀DISPENSE฀SWITCHES฀AND฀PANELS

(Continued)

1฀฀฀฀2฀฀฀฀฀฀3฀฀฀฀฀฀4฀฀฀฀฀5฀฀฀฀฀6

฀IMIX-3

7฀฀฀฀฀฀฀8฀฀฀฀฀฀฀฀9

10฀

Portion฀Controls

P3245.45

37509฀020306

DOOR,฀LAMP,฀DISPENSE฀SWITCHES฀AND฀PANELS

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀26฀36647.0000฀2฀Bracket,฀Hinge฀(Left฀Side฀Hinge)฀

฀฀36647.0001฀2฀Bracket,฀Hinge฀(Right฀Side฀Hinge)฀

฀฀01311.0001฀6฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"฀Locking

฀27฀34362.0000฀2฀Bushing,฀Hinge

฀28฀36661.0000฀1฀Flange,฀Door฀Hinge฀(Left฀Side฀Hinge)฀

฀฀36661.0001฀1฀Flange,฀Door฀Hinge฀(Right฀Side฀Hinge)

฀29฀36659.0001฀1฀Panel,฀Door฀-฀Lower฀

฀฀01311.0000฀4฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"

฀30฀01403.0000฀1฀E-Ring,฀External฀.188"฀Shaft

฀31฀34667.0000฀1฀Keeper,฀Door฀Latch฀

฀฀02336.0000฀2฀฀Screw,฀Truss฀Head฀#4-40฀x฀.375"

฀32฀36669.0000฀1฀Bracket,฀Keeper฀Mounting฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"฀Locking

฀33฀35877.1002฀3฀Circuit฀Board฀Assy,฀Dispense฀Button฀(Portion฀Control฀Models)฀

฀฀01360.0002฀12฀฀Screw,฀Pan฀Head฀Plascrew฀#6฀-฀32฀x฀.375"

฀34฀36763.0002฀3฀Switch฀Pad,฀Three฀Button฀(Portion฀Control฀Models)

฀35฀36761.0003฀3฀Switch฀Cover,฀Small฀(Portion฀Control฀Models)

฀36฀36761.0004฀3฀Switch฀Cover,฀Medium฀(Portion฀Control฀Models)

฀37฀36761.0002฀3฀Switch฀Cover,฀Large฀(Portion฀Control฀Models)

฀38฀37823.0000฀3฀Inlay,฀Switch฀Cover,฀Small฀(Portion฀Control฀Models)

฀39฀37823.0001฀3฀Inlay,฀Switch฀Cover,฀Medium฀(Portion฀Control฀Models)

฀40฀37823.0002฀3฀Inlay,฀Switch฀Cover,฀Large฀(Portion฀Control฀Models)

฀41฀36762.0002฀3฀Switch฀Housing,฀Three฀Button฀(Portion฀Control฀Models)

฀฀NOTE:฀฀The฀following฀items฀are฀not฀illustrated

฀42฀26444.0000฀2฀Bushing,฀Strain฀Relief฀

฀43฀36888.0000฀1฀Wiring฀Harness,฀Door฀Interconnect฀120V฀(Includes฀item฀33)(Left฀Side฀Hinge)฀

฀฀36888.0001฀1฀Wiring฀Harness,฀Door฀Interconnect฀120V฀(Includes฀item฀33)(Right฀Side฀Hinge)

฀฀44฀36887.0001฀1฀Wiring฀Harness,฀Backlight

฀45฀36889.0000฀3฀Wiring฀Harness,฀Dispense฀Button฀(Early฀Models)

฀46฀36767.0000฀1฀Decal,฀Flavors฀(Almond฀Amaretto,฀Cappuccino,฀French฀Vanilla,฀Hazelnut,฀Chocolate฀฀

฀฀฀฀Raspberry,฀Cappuccino฀Supreme,฀Hot฀Chocolate,฀Raspberry฀Mocha,฀Swiss฀Mocha,฀

฀฀฀฀Mocha,฀Raspberry฀Vanilla,฀Irish฀Creme,฀Coffee,฀Original,฀Chocolate฀French฀Vanilla,฀

฀฀฀฀Butter฀Pecan,฀White฀Chocolate,฀Cinnamon฀Vanilla฀Nut,฀Decaf,฀Regular,฀Apple฀Cider,฀

฀฀฀฀Fat฀Free฀French฀Vanilla,฀Cinnamon฀Vanilla,฀English฀Toffee)

฀47฀37823.1000฀-฀Inlay฀Kit฀(Includes฀items฀38฀-฀40)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

AUGER฀DRIVE฀AND฀HOPPER฀ASSEMBLY

฀IMIX-3

13฀฀฀12฀฀11฀฀10

Early฀Models

12฀฀11฀฀13฀฀฀9

19฀

21฀฀฀฀23฀฀฀฀฀24฀฀฀฀25฀฀฀฀26

P3246.50

37509฀020306

AUGER฀DRIVE฀AND฀HOPPER฀ASSEMBLY

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀-฀37010.1000฀1฀Hopper฀Assy฀(Includes฀one฀each฀of฀items฀1-13)

฀1฀36653.0001฀3฀Lid,฀Hopper

฀2฀32337.0000฀6฀Mixing฀Blade

฀3฀32386.0001฀3฀Disk,฀Agitator฀(30฀Tooth)

฀4฀28067.0000฀3฀Bushing,฀Auger฀Drive฀Shaft

฀5฀26940.0002฀3฀Shaft,฀Auger฀Drive

฀6฀37011.0001฀3฀Hopper

฀7฀21355.0004฀3฀Auger,฀Wire

฀8฀25903.0000฀3฀Elbow,฀Ejector

฀9฀25743.0000฀3฀Locknut

฀10฀36772.0000฀3฀Coupling,฀Hex฀(Early฀models฀only)

฀11฀36774.0000฀3฀Spring,฀Hopper฀Coupling

฀12฀36770.0000฀3฀Coupling,฀Auger฀Drive

฀฀01326.0002฀3฀฀Screw,฀Truss฀Head฀#10-32฀x฀.25"฀(Late฀models฀only)

฀13฀36771.0000฀3฀Shaft,฀Auger฀Drive฀Coupling฀(Early฀models)฀

฀฀37539.1000฀3฀Shaft,฀Auger฀Drive฀(Late฀models)

฀14฀36970.0000฀1฀Panel,฀Hopper฀Support฀

฀฀01311.0000฀2฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"฀Locking

฀15฀20960.0000฀3฀Screw,฀Shoulder฀#6-32฀x฀.375"฀

฀฀00991.0002฀3฀฀Nut,฀Elastic฀Lock฀#6-32

฀16฀-฀-฀-฀-฀-฀-฀-฀-฀-฀See฀COVERS,฀PANELS฀&฀DRIP฀TRAYS

฀17฀37037.0000฀3฀Gearmotor฀Assy,฀Auger฀฀(Each฀includes฀items฀18฀thru฀21)฀

฀฀01311.0000฀9฀฀Screw,฀Truss฀Head฀#8-32฀x฀.25"

฀18฀32654.0000฀1฀Magnet฀Hub,฀8฀Pole฀#10฀ID฀x฀1.0"฀OD฀

฀฀01512.0000฀1฀฀Lockwasher,฀Ext฀Tooth฀#10฀

฀฀00991.0003฀1฀฀Nut,฀Elastic฀Lock฀#10-32

฀19฀33608.1000฀1฀Sensor฀Assy,฀RPM฀

฀฀02336.0000฀2฀฀Screw,฀Truss฀Head฀#4-40฀x฀.38"

฀20฀26401.0000฀1฀Dust฀Seal,฀Hopper฀Motor

฀21฀36773.0000฀1฀Plate,฀Auger฀Drive

฀22฀37682.0000฀3฀Housing฀Assy,฀Sensor฀CB฀(Each฀includes฀items฀23฀thru฀26)฀

฀฀01315.0000฀3฀฀Screw,฀Truss฀Head฀#8-32฀x฀.38"

฀

฀23฀36114.0000*฀1฀CB฀Assy,฀Powder฀Sensor฀(Order฀item฀22)

฀24฀00970.0000฀1฀Nut,฀Keps฀#8-32

฀25฀36243.0000฀1฀Housing฀Sensor฀CB

฀26฀36764.0000฀1฀Spacer,฀Circuit฀Board

฀27฀35260.0000฀3฀Cable฀Mount,฀Adhesive฀(Not฀Illustrated)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

MIXING/WHIPPER฀CHAMBERS฀AND฀DRIVE฀MOTOR

฀IMIX-3

14฀฀฀฀฀฀฀฀13฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀12฀฀฀฀฀฀฀10฀฀฀฀฀11฀฀฀฀฀9฀฀฀฀฀฀฀8฀฀฀฀฀฀7

P3247.75

37509฀110404

MIXING/WHIPPER฀CHAMBERS฀AND฀DRIVE฀MOTOR

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀฀฀฀฀฀

฀1฀28295.0000฀1฀Fan฀&฀Bracket฀฀Assembly฀120V฀

฀฀28295.0001฀1฀Fan฀&฀Bracket฀฀Assembly฀230V฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀-฀Locking฀#8-32฀x฀.25"

฀2฀28297.0000฀1฀Hose,฀Vacuum

฀3฀25732.0000฀3฀Steam฀Collector

฀4฀25733.0003฀3฀Mixing฀Chamber

฀5฀25734.0000฀3฀Whipper฀Chamber฀(฀.75"฀Dispense฀Nozzle)฀

฀฀25734.0002฀3฀Whipper฀Chamber฀(฀2.0"฀Dispense฀Nozzle)

฀6฀25736.0000฀3฀Dispense฀Tip฀

฀฀25736.0001฀3฀Dispense฀Tip,฀Red

฀7฀24733.0010฀3฀O-Ring

฀8฀25902.0000฀3฀Frother

฀9฀26356.0000฀3฀Seal,฀Shaft฀

฀10฀28866.0000฀3฀Receptacle,฀Whipper฀Chamber฀

฀11฀28865.0000฀6฀Nut,฀Whipper฀Motor/Receptacle฀Mounting

฀12฀28867.0000฀3฀Slinger

฀13฀28428.1000฀3฀Motor,฀Whipper฀120V฀(Includes฀item฀14)฀

฀฀28428.1002฀3฀Motor,฀Whipper฀230V฀(Includes฀item฀14)

฀14฀32306.0000฀6฀Spacer

฀15฀32906.0001฀-฀Kit,฀Preventive฀Maintenance฀(Includes฀items฀3฀thru฀10฀and฀25903.0000฀Elbow)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

TANK,฀HEATER฀AND฀OVERFLOW฀PROTECTION

1฀2฀3฀4฀฀2

฀IMIX-3

23฀฀฀฀฀฀฀22฀16฀20฀19

P3248.50

37509฀020306

TANK,฀HEATER฀AND฀OVERFLOW฀PROTECTION

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀1฀37098.0001฀1฀Tank฀

฀฀00970.0000฀2฀฀Nut,฀Keps฀#8-32

฀2฀36226.0000฀2฀Bracket,฀Tank฀Mounting฀Upper฀

฀฀00970.0000฀4฀฀Nut,฀Keps฀#8-32

฀3฀02536.0000฀2฀Grommet,฀.375"฀I.D.

฀4฀20936.1000฀1฀Probe฀Kit฀(Includes฀items฀indented฀below)฀

฀฀20203.0100฀1฀฀Lockwasher,฀Internal฀Tooth฀#8฀

฀฀01501.0000฀1฀฀Washer,฀Flat฀.164"฀ID฀x฀.375"฀OD฀

฀฀00908.0000฀1฀฀Nut,฀#8-32

฀5฀36741.0000฀1฀Tank฀Heater,฀1700W฀120V฀

฀฀36741.0001฀1฀Tank฀Heater,฀1320W฀120V฀

฀฀36740.0000฀1฀Tank฀Heater,฀3500W฀230V฀

฀฀00908.0000฀4฀฀Nut,฀#8-32

฀6฀12398.0000฀1฀Gasket,฀Tank฀Heater

฀7฀36220.0000฀1฀Tube,฀Overﬂow฀

฀฀00908.0000฀3฀฀Nut,฀#8-32

฀8฀05515.0000฀1฀Gasket,฀Overﬂow฀Tube

฀9฀35940.0001฀1฀Lid,฀Tank฀

฀฀00908.0000฀4฀฀Nut,฀Hex฀#8-32

฀10฀29329.1000฀1฀Thermostat,฀Limit

฀11฀35937.0001฀1฀Gasket,฀Tank฀Lid

฀12฀03803.0002฀1฀Switch฀Assy,฀Liquid฀Level฀(Includes฀items฀13฀&฀14)฀

฀฀00946.0000฀1฀฀Nut,฀Hex฀.125"฀FPT

฀13฀03807.0000฀1฀Clip,฀Spring

฀14฀03633.0000฀1฀Gasket,฀Float฀Switch

฀15฀22728.0000฀1฀Overﬂow฀Cup฀

฀฀00970.0000฀2฀฀Nut,฀Keps฀#8-32

฀16฀12422.0001฀2฀Clamp,฀Hose฀.59"/.66"฀ID

฀17฀28526.0028*฀1฀Tube,฀Silicone฀.312"฀ID฀x฀9.5"฀(Order฀item฀31)

฀18฀21801.0002฀1฀Tube฀฀.375"฀O.D.฀x฀1.50"฀LG

฀19฀34392.0000฀1฀Plug,฀Hose฀.375"฀ID

฀20฀11630.0001฀1฀Clamp,฀Shut฀Off

฀21฀12422.0005฀4฀Clamp,฀Hose฀.62"/.71"฀ID

฀22฀20976.0056*฀1฀Tube,฀Silicone฀.375"฀ID฀x฀28.0"฀(Order฀item฀32)

฀23฀37297.0000฀1฀Elbow,฀.25"฀Flare฀x฀.75"฀FTHRD

(continued)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

TANK,฀HEATER฀AND฀OVERFLOW฀PROTECTION

(continued)

1฀2฀3฀4฀฀2

฀IMIX-3

23฀฀฀฀฀฀฀22฀16฀20฀19

P3248.50

37509฀020306

TANK,฀HEATER฀AND฀OVERFLOW฀PROTECTION

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀24฀06866.0002฀1฀Tee,฀.50"฀Barb

฀25฀20976.0017*฀1฀Tube,฀Silicone฀.375"฀ID฀x฀2.0"฀(Order฀item฀32)

฀26฀20976.0055*฀1฀Tube,฀Silicone฀.375"฀ID฀x฀9.0"฀(Order฀item฀32)

฀27฀36233.0000฀1฀Valve,฀Water฀Inlet฀120V฀

฀฀36233.0001฀1฀Valve,฀Water฀Inlet฀230V฀

฀฀32283.0000฀2฀฀Screw,฀Pan฀Head฀M4฀x฀6MM

฀28฀01592.0001฀1฀Bushing,฀Snap฀1.18"฀Dia.฀Hole

฀29฀37099.0000฀1฀Bracket,฀Tank฀Mounting฀Lower฀

฀฀00970.0000฀4฀฀Nut,฀Keps฀#8-32

฀30฀36222.0001*฀1฀Insulation,฀Tank

฀31฀28526.1000฀-฀Tube,฀Silicone฀.312"฀ID฀x฀.562"฀OD฀x฀12"฀฀฀฀

฀฀28526.1001฀-฀Tube,฀Silicone฀.312"฀ID฀x฀.562"฀OD฀x฀36"฀

฀฀28526.1002฀-฀Tube,฀Silicone฀.312"฀ID฀x฀.562"฀OD฀x฀60"฀

฀฀28526.1003฀-฀Tube,฀Silicone฀.312"฀ID฀x฀.562"฀OD฀x฀120"฀

฀32฀20976.1000฀-฀Tube,฀Silicone,฀.375"฀ID฀x฀.50"฀OD฀x฀12.0"฀

฀฀20976.1001฀-฀Tube,฀Silicone,฀.375"฀ID฀x฀.50"฀OD฀x฀36.0"฀

฀฀20976.1002฀-฀Tube,฀Silicone,฀.375"฀ID฀x฀.50"฀OD฀x฀120.0"

Not฀Illustrated

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

DISPENSE฀VALVES฀AND฀LINES

8฀฀฀฀฀฀฀฀฀฀฀฀1฀2฀3

฀IMIX-3

P3249.75

37509฀020306

DISPENSE฀VALVES฀AND฀LINES

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀1฀29576.0000฀3฀Bracket,฀Dispense฀Valve฀Mounting฀

฀฀01326.0000฀3฀฀Screw,฀Truss฀Head฀#10-32฀x฀.25"

฀2฀24733.0011฀3฀O-Ring

฀3฀26116.1002฀3฀Valve,฀Liquid฀Dispense฀120V฀(See฀item฀10)฀

฀฀26116.0003฀3฀Valve,฀Liquid฀Dispense฀230V฀(See฀item฀10)

฀4฀28526.0027*฀3฀Tube,฀Silicone฀.312"฀ID฀x฀16.5"฀(Order฀item฀9)

฀5฀21801.0002฀3฀Tube,฀.375"฀OD฀x฀1.50"

฀6฀12422.0001฀3฀Clamp,฀Hose฀.59"/.66"฀ID

฀7฀25803.0000฀3฀Water฀Inlet,฀Mixing฀Chamber

฀8฀37970.0000฀3฀Grommet

฀9฀28526.1001฀-฀Tube,฀Silicone฀.312"฀I.D.฀x฀.438"฀O.D.฀x฀36"฀

฀฀28526.1002฀-฀Tube,฀Silicone฀.312"฀I.D.฀x฀.438"฀O.D.฀x฀60"฀

฀฀28526.1003฀-฀Tube,฀Silicone฀.312"฀I.D.฀x฀.438"฀O.D.฀x฀120"

฀10฀28187.0000฀1฀Kit,฀Dispense฀Valve฀Diaphragm฀

Not

Illustrated

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

ELECTRICAL฀CONTROLS฀

฀IMIX-3

17฀21฀11฀12฀14฀13฀฀฀฀฀22฀฀฀฀฀฀10฀฀฀฀฀฀8฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀9

P3250.65

37509฀020306

ELECTRICAL฀CONTROLS฀

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀1฀20541.0001฀1฀Heat฀Sink฀

฀฀01347.0000฀2฀฀Screw,฀Truss฀Head฀#6-32฀x฀.375"

฀2฀12565.0016฀1฀Triac฀Assy,฀120V,฀40฀Amp฀(also฀order฀item฀30)฀

฀฀12565.0018฀1฀Triac฀Assy,฀230V,฀40฀Amp฀(also฀order฀item฀30)฀

฀฀01520.0000฀1฀฀Lockwasher,฀Split฀#6฀

฀฀02328.0003฀1฀฀Screw,฀Pan฀Head฀#6-32฀x฀.312"

฀3฀27437.0001฀2฀Switch,฀Rocker฀NORMAL/PROGRAM/RINSE฀and฀ON/OFF/NIGHT

฀4฀37192.0000฀1฀Decal,฀Switch฀-฀NORMAL/PROGRAM/RINSE

฀5฀34390.0000฀2฀Cap,฀Rocker฀Switch

฀6฀37193.0000฀1฀Decal,฀Switch฀-฀ON/OFF/NIGHT

฀7฀36449.1000฀1฀Control฀Board฀Assy,฀Memory฀

฀฀01382.0008฀2฀฀Screw,฀Truss฀Head฀#6-32฀x฀1.0"

฀8฀29081.0004฀12฀Spacer,฀.153"฀ID฀x฀.62"฀LG

฀9฀37104.1000฀1฀Control฀Board฀Assy,฀Main฀

฀฀01382.0008฀10฀฀Screw,฀Truss฀Head฀#6-32฀x฀1.0"

฀10฀36976.0000฀1฀Bracket,฀Component฀Mounting฀

฀฀01311.0001฀2฀฀Screw,฀Truss฀Head฀Locking฀#8-32฀x฀.25"

฀11฀00715.0000฀1฀Adapter฀Washer,฀Strain฀Relief฀120V

฀12฀00713.0000฀1฀Bushing,฀Strain฀Relief฀120V

฀13฀33147.0002฀1฀Audio฀Indicator฀Assy฀

฀฀01382.0000฀2฀฀Screw,฀Truss฀Head฀#6-32฀x฀.375"

฀14฀28327.0002฀2฀Ballast,฀120V-60HZ฀W/Terminals฀

฀฀28327.0001฀2฀Ballast,฀230V-60HZ฀W/Terminals฀

฀฀01382.0000฀4฀฀Screw,฀Truss฀Head฀#6-32฀x฀.375"

฀15฀07038.0000฀1฀Terminal฀Block฀

฀฀01317.0000฀2฀฀Screw,฀Truss฀Head฀#8-32฀x฀.50"

฀16฀34829.0001฀1฀Transformer฀Assy,฀120V฀to฀24V฀

฀฀34829.0002฀1฀Transformer฀Assy,฀230V฀to฀24V฀

฀฀01317.0000฀2฀฀Screw,฀Truss฀Head฀#8-32฀x฀.50"

฀17฀00970.0000฀2฀Nut,฀Ground฀Keps฀#8-32

฀18฀33801.0001฀1฀Grommet,฀Temp฀Sensor

฀19฀28891.0003*฀1฀Probe,฀Temperature฀(Order฀item฀31)

฀20฀37780.0001฀1฀Jumper,฀IMIX-3

฀21฀01685.0000฀1฀Connector,฀Cord฀230V

฀22฀36801.0001฀1฀EMI฀Filter฀230V

The฀following฀items฀are฀not฀illustrated

฀23฀20630.0005฀1฀Cord฀Assembly,฀Power฀120V฀only

฀24฀36849.0000฀1฀Wiring฀Harness,฀Power฀120V฀

฀฀36849.0001฀1฀Wiring฀Harness,฀Power฀230V

฀25฀36850.0000฀1฀Wiring฀Harness,฀Switch

(continued)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

ELECTRICAL฀CONTROLS฀

(continued)

฀IMIX-3

17฀21฀11฀12฀14฀13฀฀฀฀฀22฀฀฀฀฀฀10฀฀฀฀฀฀8฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀9

P3250.65

37509฀020306

ELECTRICAL฀CONTROLS฀

ITEM฀PART฀NO.฀QTY.฀DESCRIPTION

฀26฀36844.0000฀1฀Wiring฀Harness,฀I/O฀Head฀#1

฀27฀36844.0001฀1฀Wiring฀Harness,฀I/O฀Head฀#2

฀28฀36844.0002฀1฀Wiring฀Harness,฀I/O฀Head฀#3

฀29฀36676.0001฀1฀Wiring฀Harness,฀Memory฀Board

฀30฀M2522.1000฀-฀Heat฀Sink฀Compound

฀31฀29327.0001฀-฀Probe฀Replacement฀Kit฀(Includes฀Probe฀and฀2฀UR฀Connectors)

*฀Indicates฀the฀part฀number฀listed฀is฀for฀reference฀only.฀See฀DESCRIPTION฀for฀possible฀service฀replacement.

37509฀020306

NUMERICAL฀INDEX

PART฀NO.฀฀PAGE฀NO.฀PART฀NO.฀PAGE฀NO.฀PART฀NO.฀PAGE฀NO.฀PART฀NO.฀฀PAGE฀NO.฀

00656.0000...........................7

00669.0004...........................9

00713.0000.........................23

00715.0000.........................23

00831.0000...........................7

00908.0000.........................17

00946.0000.........................17

00970.0000..........13,17,19,23

00991.0002.........................13

00991.0003.........................13

01308.0000...........................5

01311.0000..............5,7,11,13

01311.0001......5,7,9,11,15,23

01311.0003........................5,7

01315.0000.........................13

01317.0000.........................23

01326.0000.........................21

01326.0002.........................13

01347.0000.........................23

01360.0002................5,7,9,11

01382.0000.........................23

01382.0002...........................5

01382.0008.........................23

01403.0000.........................11

01501.0000.........................17

01512.0000.........................13

01520.0000.........................23

01526.0001...........................7

01592.0001.........................19

01685.0000.........................23

02328.0003.........................23

02336.0000..............5,7,11,13

02434.0008...........................7

02434.1000...........................7

02434.1001...........................7

02536.0000......................5,17

03633.0000.........................17

03803.0002.........................17

03807.0000.........................17

03996.0000...........................7

05515.0000.........................17

06866.0002.........................19

07038.0000.........................23

11630.0001.........................17

12398.0000.........................17

12422.0001....................17,21

12422.0005.........................17

12565.0016.........................23

12565.0018.........................23

13255.0003...........................7

20203.0100.........................17

20541.0001.........................23

20630.0005.........................23

20936.1000.........................17

20960.0000.........................13

20976.0017.........................19

20976.0055.........................19

20976.0056.........................17

20976.1000.........................19

20976.1001.........................19

20976.1002.........................19

21355.0004.........................13

21801.0002....................17,21

22728.0000.........................17

24457.0002...........................9

24733.0010.........................15

24733.0011.........................21

25732.0000.........................15

25733.0003.........................15

25734.0000.........................15

25734.0002.........................15

25736.0000.........................15

25736.0001.........................15

25743.0000.........................13

25803.0000.........................21

25902.0000.........................15

25903.0000.........................13

26116.0003.........................21

26116.1002.........................21

26356.0000.........................15

26401.0000.........................13

26444.0000.........................11

26528.0000...........................7

26940.0002.........................13

27437.0001.........................23

28067.0000.........................13

28187.0000.........................21

28295.0000.........................15

28295.0001.........................15

28297.0000.........................15

28327.0001.........................23

28327.0002.........................23

28328.0011...........................5

28328.0013...........................5

28428.1000.........................15

28428.1002.........................15

28526.0027.........................21

28526.0028.........................17

28526.1000.........................19

28526.1001....................19,21

28526.1002....................19,21

28526.1003....................19,21

28865.0000.........................15

28866.0000.........................15

28867.0000.........................15

28891.0003.........................23

29081.0004.........................23

29327.0001.........................25

29329.1000.........................17

29576.0000.........................21

32283.0000.........................19

32306.0000.........................15

32337.0000.........................13

32386.0001.........................13

32654.0000.........................13

32806.0000...........................9

32807.0001...........................9

32863.0000...........................9

32906.0001.........................15

33147.0002.........................23

33608.1000.........................13

33801.0001.........................23

34362.0000.........................11

34392.0000.........................17

34666.0000...........................5

34667.0000.........................11

34829.0001.........................23

34829.0002.........................23

34998.0000...........................5

35260.0000.........................13

35877.1000...........................9

35912.0001...........................5

35912.0002...........................5

35926.0000...........................5

35937.0001.........................17

35940.0001.........................17

36114.0000.........................13

36147.1000...........................9

36149.0000...........................9

36220.0000.........................17

36222.0001.........................19

36226.0000.........................17

36229.0001...........................7

36230.0001...........................5

36231.0000...........................9

36231.0001...........................9

36233.0000.........................19

36233.0001.........................19

36243.0000.........................13

36244.0000...........................9

36398.0000...........................7

36449.1000.........................23

36644.0000...........................5

36647.0000.........................11

36647.0001.........................11

36653.0001.........................13

36658.0000...........................9

36659.0001.........................11

36661.0000.........................11

36661.0001.........................11

36667.1001...........................9

36669.0000.........................11

36676.0001.........................25

36734.0001...........................9

36740.0000.........................17

36741.0000.........................17

36741.0001.........................17

36743.0000...........................5

36743.0001...........................7

36761.0000...........................9

36761.0002.........................11

36761.0003.........................11

36761.0004.........................11

36762.0000...........................9

36762.0002.........................11

36763.0000...........................9

36763.0002.........................11

36764.0000.........................13

36767.0000.........................11

36770.0000.........................13

36771.0000.........................13

36772.0000.........................13

36773.0000.........................13

36774.0000.........................13

36795.0000...........................9

36796.0001...........................9

36801.0001.........................23

36844.0000.........................25

36844.0001.........................25

36844.0002.........................25

36849.0000.........................23

36849.0001.........................23

36850.0000.........................23

36887.0001.........................11

36888.0000.........................11

36888.0001.........................11

36889.0000.........................11

36958.0001...........................5

36958.0002...........................5

36959.0001...........................5

36959.0002...........................5

36961.0002...........................7

36961.1001...........................7

36963.0000...........................7

36965.0000...........................5

36967.0000...........................5

36968.0000...........................5

36970.0000.........................13

36972.1000...........................7

36974.0001...........................7

36976.0000.........................23

36978.0000...........................5

36983.0000...........................5

36984.0000...........................7

36985.0000...........................7

36986.0000...........................5

37010.1000.........................13

37011.0001.........................13

37013.0000...........................9

37037.0000.........................13

37096.0001...........................9

37098.0001.........................17

37099.0000.........................19

37104.1000.........................23

37509฀020306

NUMERICAL฀INDEX

PART฀NO.฀฀PAGE฀NO.฀PART฀NO.฀PAGE฀NO.฀PART฀NO.฀PAGE฀NO.฀PART฀NO.฀฀PAGE฀NO.฀

37192.0000.........................23

37254.0000...........................9

37297.0000.........................17

37456.0001...........................9

37462.0000...........................7

37466.0001...........................9

37478.0000...........................7

37498.1000...........................5

37498.1001...........................5

37539.1000.........................13

37682.0000.........................13

37780.0001.........................23

37823.0000.........................11

37823.0001.........................11

37823.0002.........................11

37823.1000.........................11

37970.0000.........................21

37988.0000...........................5

M2522.1000฀.......................25

37509฀020306

Bunn-O-Matic H5E, H5X Part Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
