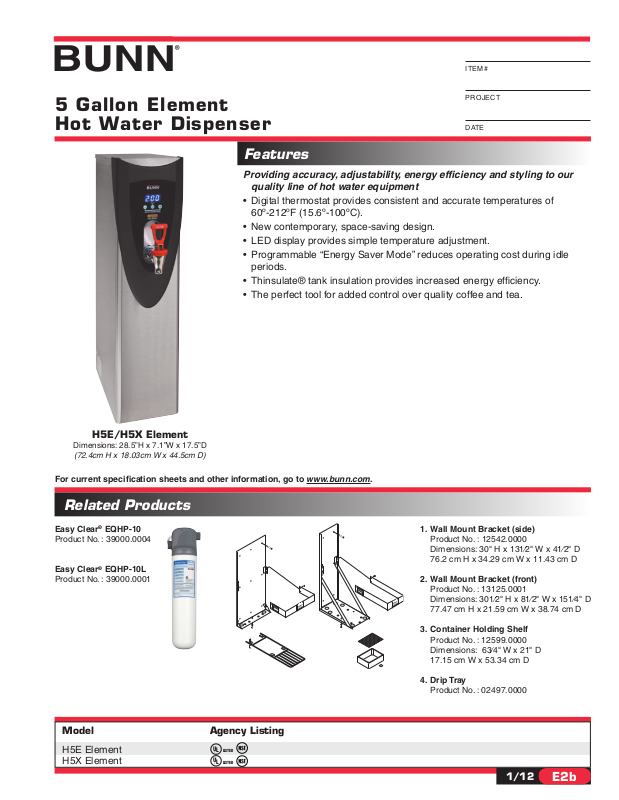

Bunn-O-Matic H5E Element, H5X Element General Manual

5 Gallon Element

ITEM#

PROJECT

Hot Water Dispenser

Features

Providing accuracy, adjustability, energy efficiency and styling to our

quality line of hot water equipment

•฀Digital฀thermostat฀provides฀consistent฀and฀accurate฀temperatures฀of฀

60º-212ºF฀(15.6º-100ºC).

•฀New฀contemporary,฀space-saving฀design.

•฀LED฀display฀provides฀simple฀temperature฀adjustment.

•฀Programmable฀“Energy฀Saver฀Mode”฀reduces฀operating฀cost฀during฀idle฀

periods.

•฀Thinsulate®฀tank฀insulation฀provides฀increased฀energy฀efciency.

•฀The฀perfect฀tool฀for฀added฀control฀over฀quality฀coffee฀and฀tea.

DAT E

H5E/H5X Element

Dimensions:฀28.5”H฀x฀7.1”W฀x฀17.5”D

(72.4cm H x 18.03cm W x 44.5cm D)

For current specification sheets and other information, go to www.bunn.com.

Related Products

Easy Clear

Product฀No.฀:฀39000.0004

Easy Clear

Product฀No.฀:฀39000.0001

®

EQHP-10฀

®

EQHP-10L฀

1. Wall Mount Bracket (side)฀

Product฀No.฀:฀12542.0000

฀Dimensions:฀30"฀H฀x฀131⁄2"฀W฀x฀41⁄2"฀D

฀76.2฀cm฀H฀x฀34.29฀cm฀W฀x฀11.43฀cm฀D

2. Wall Mount Bracket (front)฀

Product฀No.฀:฀13125.0001

฀Dimensions:฀301⁄2"฀H฀x฀81⁄2"฀W฀x฀151⁄4"฀D

฀77.47฀cm฀H฀x฀21.59฀cm฀W฀x฀38.74฀cm฀D

3. Container Holding Shelf฀

Product฀No.฀:฀12599.0000

฀Dimensions:฀฀63⁄4"฀W฀x฀21"฀D

฀17.15฀cm฀W฀x฀53.34฀cm฀D

4. Drip Tray฀

Product฀No.฀:฀02497.0000

Model Agency Listing

U

L

H5E฀Element

H5X฀Element

LISTED

U

L

LISTED

1/12

E2b

Dimensions & Specifications

Model Product # Volts Amps Tank Heater Total ˚F Gal./Hr. Gal./Hr. Cu. Shipping Cord
Watts Watts Settings
input 35˚ input 140˚

H5E-40-208฀43600.0000฀208฀19.5฀4000฀4050฀200฀฀฀4.1

H5X-40-208฀43600.0002฀208฀19.5฀4000฀4050฀212฀7.3฀14.7฀4.1

Electrical:฀฀All฀models฀require฀2-wires฀plus฀ground฀service,฀208V,฀single-phase,฀60Hz.฀

฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀Supplied฀strain฀relief฀on฀rear฀side฀of฀machine.

฀1

Plumbing:฀20-90฀psi฀(138-621฀kPa).฀Machine฀supplied฀with

⁄4"฀OD฀male฀are฀tting.

cold water hot water Ft. Weight Attached

Varies with application

3

฀ft

฀32฀lbs.฀No฀

3

฀ft

฀32฀lbs.฀No฀

Bunn-O-Matic®฀Corporation฀-฀1400฀Stevenson฀Drive฀Springeld,฀Illinois฀62703฀•฀800-637-8606฀•฀217-529-6601฀•฀Fax฀217-529-6644฀•฀www.bunn.com

BUNN®฀practices฀continuous฀product฀research฀and฀improvement.฀We฀reserve฀the฀right฀to฀change฀specications฀and฀product฀design฀without฀notice.฀Such฀

revisions฀do฀not฀entitle฀the฀buyer฀to฀corresponding฀changes,฀improvements,฀additions฀or฀replacements฀for฀previously฀purchased฀equipment.

All฀dimensions฀shown฀in฀inches.฀

1/12 © Bunn-O-Matic Corporation
