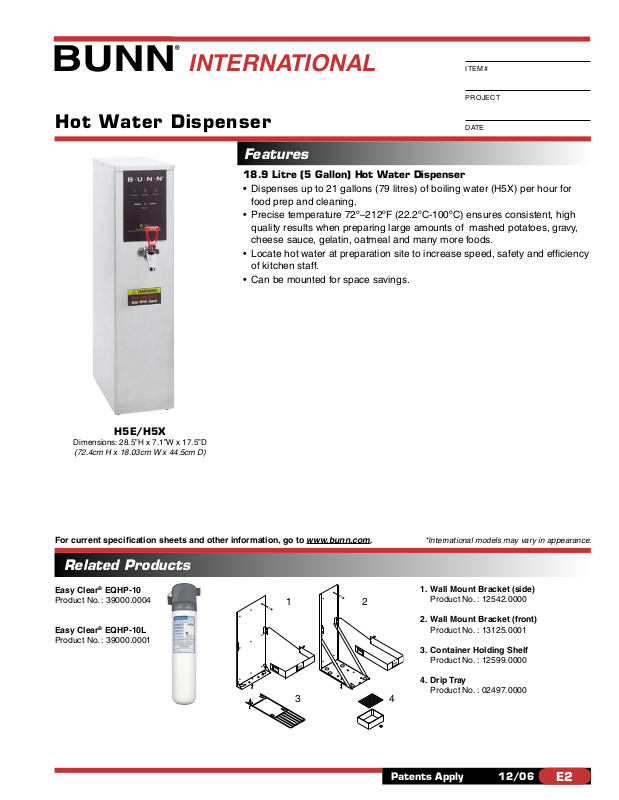

Bunn-O-Matic H5E, H5X General Manual

INTERNATIONAL

ITEM#

PROJECT

Hot฀Water฀Dispenser

Features

18.9฀Litre฀(5฀Gallon)฀Hot฀Water฀Dispenser

•฀Dispenses฀up฀to฀21฀gallons฀(79฀litres)฀of฀boiling฀water฀(H5X)฀per฀hour฀for฀

food฀prep฀and฀cleaning.฀

•฀Precise฀temperature฀72º–212ºF฀(22.2ºC-100ºC)฀ensures฀consistent,฀high฀

quality฀results฀when฀preparing฀large฀amounts฀of฀฀mashed฀potatoes,฀gravy,฀

cheese฀sauce,฀gelatin,฀oatmeal฀and฀many฀more฀foods.

•฀Locate฀hot฀water฀at฀preparation฀site฀to฀increase฀speed,฀safety฀and฀efficiency฀

of฀kitchen฀staff.

•฀Can฀be฀mounted฀for฀space฀savings.

฀

DATE

Dimensions:฀28.5”H฀x฀7.1”W฀x฀17.5”D

(72.4cm฀H฀x฀18.03cm฀W฀x฀44.5cm฀D)

For฀current฀specification฀sheets฀and฀other฀information,฀go฀to฀www.bunn.com.

Related฀Products

Easy฀Clear®฀EQHP-10

H5E/H5X

Product฀No.฀:฀39000.0004

Easy฀Clear®฀EQHP-10L฀

Product฀No.฀:฀39000.0001

1

3

2

*International฀models฀may฀vary฀in฀appearance.

1.฀Wall฀Mount฀Bracket฀(side)฀

Product฀No.฀:฀12542.0000

฀

2.฀Wall฀Mount฀Bracket฀(front)฀

Product฀No.฀:฀13125.0001

฀

3.฀Container฀Holding฀Shelf฀

Product฀No.฀:฀12599.0000

฀

4.฀Drip฀Tray฀

Product฀No.฀:฀02497.0000

4

Patents฀Apply

12/06

E2

Dimensions฀&฀Specifications

Model฀Product฀#฀Volts฀Amps฀ Tank฀Heater฀Total฀Temp฀Gal./Hr.฀Gal./Hr.฀Shipping฀Cord฀Agency฀

฀฀฀฀Watts฀Watts฀Settings฀cold฀water฀hot฀water฀฀Weight฀Attached฀

฀฀฀฀฀฀฀input฀35˚F฀input฀140˚F

฀฀฀฀฀฀฀(1.6˚C)฀(60˚C)

H5MA฀12500.0056฀230฀16฀3670฀3700฀200˚F฀9.1฀gal฀25฀gal.฀32฀lbs.฀No

฀฀฀฀฀฀93.3˚C฀(39.4฀L)฀(94.6฀L)฀(14.5฀kg)฀฀฀

H5EA฀12500.0062฀230฀16฀3670฀3700฀204˚F฀8.9฀gal.฀23.5฀gal.฀32฀lbs.฀No

฀฀฀฀฀฀95.5˚C฀(33.7฀L)฀(89฀L)฀(14.5฀kg)฀

H5EA฀12500.0063฀230฀16฀3670฀3700฀85˚/105˚F฀฀฀32฀lbs.฀฀No

฀฀฀฀฀฀29.4˚C/40.6˚C฀฀฀(14.5฀kg)฀

H5XA฀12500.0064฀230฀16฀3670฀3700฀212˚F฀8.5฀20.9฀gal.฀32฀lbs.฀฀No

฀฀฀฀฀฀100˚C฀(32.2฀L)฀(79.1฀L)฀(14.5฀kg)

H5EA฀12500.0067฀230฀17.4฀3675฀4000฀90˚F฀฀฀32฀lbs.฀฀No

฀฀฀฀฀฀32.2˚C฀฀฀(14.5฀kg)฀

Electrical:฀ All฀models฀require฀2-wires฀plus฀ground฀service฀rated฀220-240V,฀single-phase,฀50/60฀Hz.

฀Note:฀Supplied฀strain฀relief฀on฀rear฀side฀of฀machine.

Plumbing:฀ 20-90฀psi฀(138-621฀kPa).฀Machine฀supplied฀with฀1⁄4"฀OD฀male฀flare฀fitting.

varies฀with฀application

varies฀with฀application
