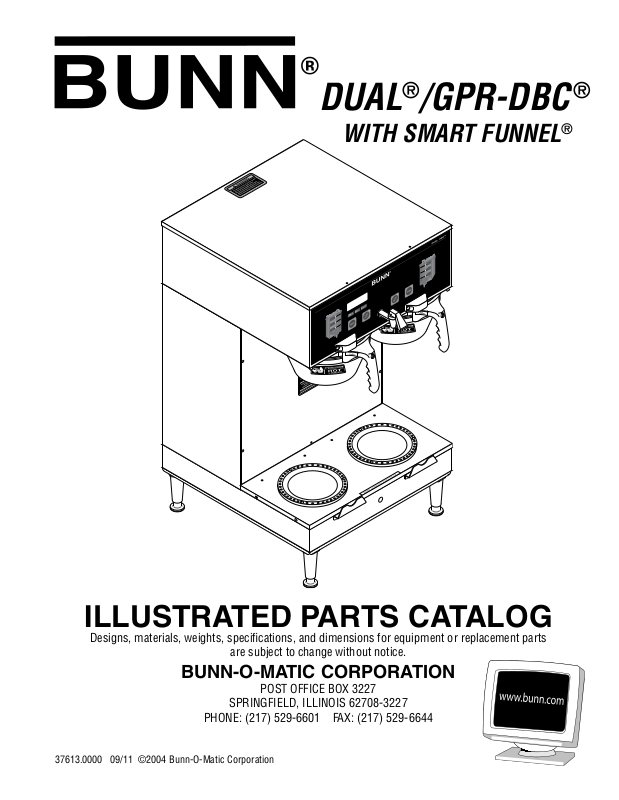

Bunn-O-Matic DUAL, GPR-DBC Part Manual

DUAL®/GPR-DBC

®

WITH SMART FUNNEL

M

S

A

R

T

U

F

N

N

E

L

M

S

A

R

T

U

F

N

N

E

L

®

T

O

H

RFAC ES A R E

AND S U

S

N: WAR ME R
O
I

T

CAU

ILLUSTRATED PARTS CATALOG

Designs, materials, weights, specifications, and dimensions for equipment or replacement parts

are subject to change without notice.

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: [phone] FAX: [phone]

37613.0000 09/11 ©2004 Bunn-O-Matic Corporation

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1) All equipment other than as specified below: 2 years parts and 1 year labor.

2) Electronic circuit and/or control boards: parts and labor for 3 years.

3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.

4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at [phone] or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN

are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.

If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.

392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN
Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic,
Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design,
Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series,
Intellisteam, My Cafe, My Café, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with
the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel,
Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh,
Titan, trifecta, Velocity Brew, A Partner You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit
Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Noth­ing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, Ultra are
either trademarks or registered trademarks of Bunn-O-Matic Corporation.

2

37613 091311

TABLE OF CONTENTS

Base - Trunk - Hood - Covers & Panels ...................................................................................................................................... 4

Dispense Valve and Sprayhead ................................................................................................................................................. 18

Electrical Controls .................................................................................................................................................................... 22

Faucet ....................................................................................................................................................................................... 20

Funnel....................................................................................................................................................................................... 28

Inlet Valve & Lines .................................................................................................................................................................... 14

Numerical Index ....................................................................................................................................................................... 30

Strainer, Solenoid & Lines ....................................................................................................................................................... 12

Tank and Mounting Brackets .................................................................................................................................................... 10

Tank Heater & Overflow Protection Devices ............................................................................................................................... 8

Warmer Assemblies ................................................................................................................................................................. 26

Water By-Pass .......................................................................................................................................................................... 16

3

37613 042210

BASE - TRUNK - HOOD - COVERS & PANELS

DUAL/GPR

DBC

24

29

2

1

3

25

4

5

6

7

8

9

11

10

23

20

21

22

15

17

16

18

19

12

OT

H

ES ARE
AC
F

R

SU

S AND
R

ARME

W

ON:
AUTI
C

13

2

28

26

HOT W ATER

CAU T IO N

!

26

1.5 Gallon GPR

16

27

Early Models

14

P3074.25

4

37613 042210

BASE - TRUNK - HOOD - COVERS & PANELS

ITEM PART NO. QTY. DESCRIPTION

1 25376.0000 1 Cover Assy, Top SST (Includes item 2 & 3)

25376.0002 1 Cover Assy, Top BLK (Includes item 2 & 3)

02336.0000 4 Screw, Truss Head SST #4 - 40 x .38”

02336.0002 4 Screw, Truss Head BLK #4 - 40 x .38”

00916.0000 4 Clip, J-Type #4-40

2 37881.0000 2 Decal, Warning - “No Serviceable Parts”

3 25151.0000 2 Shield, Insulator

4 35388.1003 1 Hood W/Decals SST (Includes items 5 & 6)

02308.0000 16 Screw, Pn-Hd #8 - 32 x .375"

5 29974.0004 1 Switch, Membrane

6 20201.5600 1 Decal, Caution Hot Water

7 05749.0004 1 Plug, Hole .50" Dia. (Brewers with lower Faucet)

8 37132.1000 1 Trunk W/Decals SST (Brewers with Product #35900.0000)

37132.1001 1 Trunk W/Decals SST (Brewers with Product #35900.0010)

9 00986.0000 1 Decal, Warning - Electrical

10 00656.0001 1 Decal, Comply to Plumbing Code

11 37135.1000 1 Panel W/Decals, Trunk SST (Brewers with Product #35900.0000)

20884.1000 1 Panel W/Decals, Trunk SST (Brewers with Product #35900.0010)

01382.0003 5 Screw, Truss Head SST #6 - 32 x .375"

12 29876.0004 1 Schematic

13 00658.0000 1 Decal, Caution - Decanter/Funnel

14 05749.0004 1 Plug, Hole .50" Dia (Brewers with upper Faucet)

15 20924.0000 1 Base Housing

20924.0000 1 Base Housing (Brewers with Product #35900.0010)

02308.0000 8 Screw, Pan Head #8 - 32 x .375"

16 20916.0002 1 Cover, Bottom (Early Models without Main Power Switch)

20916.0008 1 Cover, Bottom (Brewers with Product #35900.0000)

20916.0009 1 Cover, Bottom (Brewers with Product #35900.0010)

20916.0012 1 Cover, Bottom (Brewers with internal mounted Heat Sinks)

02308.0000 15 Screw, Pan Head #8 - 32 x .375"

17 37766.0000 1 Panel, Access Cover

02308.0000 2 Screw, Pan Head #8 - 32 x .375"

Includes items 9 & 10

Models with Main
Power Switch

Includes items
2, 12 & 13

18 26528.0000 4 Leg, 4.0” Plastic (See Item 30)

00506.0000 4 Leg, 8.0” SST

19 03996.0000 4 Pad, Anti Skid

20 24455.0000 1 Warmer Panel Assy W/Decals (Includes Items 21, 22 & 23)

01382.0003 4 Screw, Truss Head SST #6 - 32 x .375"

21 12364.0000 1 Decal, Caution-Warmers Are Hot

22 21106.0000 1 Angle, Support (Early Brewers)

01311.0000 4 Screw, Truss Head SST 6-32 x .375"

(continued)

5

37613 052711

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

BASE - TRUNK - HOOD - COVERS & PANELS

DUAL/GPR

DBC

24

29

2

1

3

25

4

5

6

7

8

9

11

10

23

20

21

22

15

17

16

18

19

12

OT

H

ES ARE
AC
F

R

SU

S AND
R

ARME

W

ON:
AUTI
C

13

2

28

26

HOT W ATER

CAU T IO N

!

26

1 Gallon GPR

16

27

Early Models

14

P3074.25

6

37613 042210

BASE - TRUNK - HOOD - COVERS & PANELS

ITEM PART NO. QTY. DESCRIPTION

23 02324.0000 4 Nut, Acorn 8-32

24 26949.0000 2 Bracket, Tank Supporting

25 32649.0000 2 Plate (Brewers without Funnel Locks)

00970.0000 4 Nut, Keps #8-32

26 21104.0003 2 Server Stop, Bolt-On (1.75 Gallon GPR)

21104.0006 2 Server Stop, Bolt-On (1.5 Gallon GPR)

01347.0000 4 Screw, Truss Head SST #6-32 x .38"

27 03011.0000 2 Plug, Vent BLK 1.0" Dis. (Early models)

28 39803.0000 1 Decal, Main Switch (Models with Main Power Switch only)

29 35291.0000 2 Cover, Rear

01382.0003 4 Screw, Truss Head #6-32 x .38”

30 13255.0003 - Leg Kit, Plastic (Includes 4 each of items 18 & 19) (Not Illustrated)

7

37613 052711

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

TANK HEATER & OVERFLOW PROTECTION DEVICES

3 4 5 6 1 7 8 9 18 10

2

DUAL/GPR

DBC

20 21

7

8

2

14

13

12

11

15

16

17

20 21

Internal Heat Sink Mounting

16

19

22

8

2

P2337-1.50

37613 042210

TANK HEATER & OVERFLOW PROTECTION DEVICES

ITEM PART NO. QTY. DESCRIPTION

1 23717.0003 2 Thermostat, Limit

00908.0000 4 Nut, Hex #8 - 32

2 02536.0000 3 Grommet .375" I.D.

3 20936.1000 1 Probe Kit (Includes items 4, 5 & 6)

4 01501.0000 1 Washer .164" I.D. x .375" O.D.

5 20203.0100 1 Lockwasher, Internal Tooth #8

6 00908.0000 1 Nut, Hex #8 - 32

7 20922.1000 2 Tank Heater, 3300W @ 240V (Includes item 8)

00908.0000 8 Nut, Hex #8 - 32

8 12398.0002 2 Gasket, Tank Heater

9 26622.0001 1 Tube Assy, Vent

10 27473.0000 1 Bracket, Overflow Cup Mounting

11 03803.0000 1 Switch Assy, Liquid Level (Includes items 12, 13 & 14)

04797.0000 1 Washer, Celcon .520” I.D. x 1.0” O.D.

00946.0000 1 Nut, Hex .125” FPT

12 03633.0000 2 Gasket, Float Switch (Only 1 used in this application)

13 - - - - - - - - 3 Washer, Adjusting (DO NOT USE IN THIS APPLICATION)

14 03807.0000 1 Clip, Spring

15 22728.0000 1 Overflow Cup Assy (Copper) (Also replaces aluminum cup)

00971.0000 2 Nut, Keps #10 - 32

16 12422.0001 2 Clamp, Hose .59"/.66" I.D.

17 03236.0024* 1 Tube, Silicone .313" I.D. x 25.0" (Order item 25)

18 02434.0010* 1 U-Channel 2.0" (Order item 24)

19 21801.0002 1 Tube .375" O.D.

20 20541.0001 2 Heat Sink

01388.0000 4 Screw, Truss Head #6-32 x .75"

21 12565.0011 2 Triac Assy, 40 amp, 120V

02328.0003 2 Screw, Pan Head #6-32 x .312"

01520.0000 2 Lockwasher #6

22 43386.0000 4 Spacer, .14” I.D. x .375” O.D. x .312” (Brewers with internal Heat Sinks)

23 M2522.1000 - Heat Sink Compound

Also order item 23

24 02434.1000 - U-Channel 18.0" (Use as required)

25 03236.1000 - Tube, Silicone .313" I.D. x 12.0"

03236.1001 - Tube, Silicone .313" I.D. x 36.0"

03236.1002 - Tube, Silicone .313" I.D. x 120.0"

03236.1003 - Tube, Silicone .313" I.D. x 60.0"

26 03851.0000 2 Wire Nut

9

Not illustrated

37613 090910

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

TANK AND MOUNTING BRACKETS

DBC

1

2

3

DUAL/GPR

4

5

5

Early Models

10

P3075.35

37613 120710

TANK AND MOUNTING BRACKETS

ITEM PART NO. QTY. DESCRIPTION

1 26826.0000* 1 Bracket, Tank Support (Top) (Early models. Not available order Late Model Bracket)

37526.0000 1 Bracket, Tank Support (Top) (Late models)

02308.0000 2 Screw, Pan Head #8 - 32 x .375"

00908.0000 4 Nut, Hex #8 - 32

2 20881.0000 1 Lid, Tank

00908.0000 14 Nut, Hex #8 - 32

3 20883.0000 1 Gasket, Tank

4 20878.1008 1 Tank

5 37129.0000 1 Bracket, Tank Mounting (Bottom) (Early models)

38392.0000 1 Bracket, Tank Mounting (Bottom) (Late models)

02308.0000 4 Screw, Pan Head #8 - 32 x .375"

11

37613 120710

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

STRAINER, SOLENOID & LINES

8 13 20

DUAL/GPR

DBC

4

1 2 14 3 5 6

16

17

12 11 10 9 7

7

9

10

11

12

15

13

Brewers with bottom

connection

19

18

12

P3076.45

37613 042210

STRAINER, SOLENOID & LINES

ITEM PART NO. QTY. DESCRIPTION

1 20937.0004 1 Tube, Tank Fill

2 36089.0001 1 Tube, Assembly, Solenoid to Tank

3 35094.0001 1 Solenoid Valve 120V

4 36088.0000 1 Solenoid Valve Assy, 120V (Includes items 3, 5 & 6)

01315.0000 2 Screw, Truss Head #8 - 32 x .375"

5 36085.0000 1 Connector, .375" Male Flare x .375" NPT

6 34768.0001 1 Elbow, .38" Male Flare x .37"

7 37762.0000 1 Tube Assy, Fill Tube .38” O.D. Rear Inlet

37762.0001 1 Tube Assy, Fill Tube .38” O.D. Bottom Inlet

8 02536.0000 1 Grommet, .375" I.D.

9 12757.0000 1 Nut, Hex .625-18

10 01514.0000 1 Lockwasher, Internal Tooth .625" I.D.

11 12756.0000 1 Bulkhead Fitting .38" Flare

12 37761.0000 1 90° Swivel Elbow

13 00976.0000 1 Cap Nut, .375" Flare-45

14 37127.0001 1 Bracket, Solenoid Mounting

02308.0000 2 Screw, Pan Head #8-32 x .375”

01522.0000 2 Washer, Flat .203” ID x .50” OD

15 29421.0000 1 Clamp, Hose-Worm Drive .625”/.75”

16 32591.1002 1 Tube, Silicone .50" I.D. x 36" LG

17 11630.0001 1 Clamp, Tubing Shut Off .75" O.D.

18 35086.0000 1 Plug, .50" I.D. Hose

19 12422.0009 1 Clamp, Hose .71”/.80” I.D.

20 32359.0000 2 Gasket, .375” Flare Copper

13

37613 042210

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

INLET VALVE AND LINE

2

1

DUAL/GPR

DBC

3 4 5 6

11

12

14

13

10

7

8

9

14

37613 020911

INLET VALVE AND LINE

ITEM PART NO. QTY. DESCRIPTION

1 02536.0000 1 Grommet .375” I.D.

2 20937.0004 1 Tube, Tank Fill

3 32359.0000 1 Gasket, .375” Flare Copper

4 12418.0001 1 Fitting, Swivel .375” Barb

5 12422.0001 2 Clamp, Hose .59”/.66” I.D

6 20976.0000* 1 Tube, Silicone .375” I.D. x .625” O.D. x 30.0” (Order item 15)

7 36233.0000 1 Valve, Water Inlet 120V

32283.0000 2 Screw, Pan Head M4 x 6MM

8 41640.0000 1 Gasket, .75” Hose Fitting

9 37297.0001 1 Elbow, .375” FLR x .75” FTHR

37297.0004 1 Elbow, .375” Compression x .75” FTHR

10 29421.0000 1 Clamp, Hose-Worm Drive .625”/.75”

11 32591.1002 1 Tube, Silicone .50” I.D. x 36” LG

12 11630.0001 1 Clamp, Tubing Shut Off .75” O.D.

13 35086.0000 1 Plug, .50” I.D. Hose

14 12422.0009 1 Clamp, Hose .71”/.80”

15 20976.1000 - Tube .375” ID x .625” OD x 12.0” (Use as required)

20976.1001 - Tube .375” ID x .625” OD x 36.0” (Use as required)

20976.1002 - Tube .375” ID x .625” OD x 120.0” (Use as required)

15

37613 042210

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

WATER BY-PASS

2 1 3

DUAL/GPR

DBC

3 4

9

4

3

5

6

7

8

7 6

16

P3284.75

37613 042210

WATER BY-PASS

ITEM PART NO. QTY. DESCRIPTION

1 32591.0007* 1 Tube, Silicone .50" I.D. x 8.75" (Order item 11)

2 12422.0009 2 Clamp, Hose .71”/.80” I.D.

3 12422.0005 4 Clamp, Hose .61”/.71” I.D.

4 27370.0000 2 Valve Assy, By-Pass

00970.0000 4 Nut, Keps #8 - 32

5 20976.0006* 1 Tube, Silicone .375” I.D. x 4.50” (Order item 10)

6 12422.0001 2 Clamp, Hose .59”/.66” I.D.

7 32648.0000 2 Elbow, Compression

8 20976.0059* 1 Tube, Silicone .375" I.D. x .62" O.D. x 11.75" (Order item 10)

9 32591.0009* 1 Tube, Silicone .50” I.D. x 5.25” (Order item 11) (Late model Tank)

10 20976.1000 1 Tube, Silicone .375" I.D. x 12.0"

20976.1001 1 Tube, Silicone .375" I.D. x 36.0"

20976.1002 1 Tube, Silicone .375" I.D. x 120.0"

11 32591.1000 1 Tube, Silicone .50" I.D. x 36" LG

Not illustrated

17

37613 020911

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

DISPENSE VALVE & SPRAYHEAD

2

3

4

5

6

7

8

DUAL/GPR

DBC

17

1

10

11

12

14

15

16

9

13

6 Hole Sprayhead

18

P3077.60

37613120710

DISPENSE VALVE & SPRAYHEAD

ITEM PART NO. QTY. DESCRIPTION

1 26846.0000 2 Valve Assy, Sprayhead (Includes items 2 thru 8)

2 23254.0000 4 Screw, #8 - 32

3 22305.0000 1 Coil Assy, Dispensing Valve

4 23256.0000 1 Spacer Plate

5 - - - - - - - - 1 Spring (Not available order item 18)

6 - - - - - - - - 1 Plunger (Not available order item 18)

7 23255.0000 1 Diaphragm

8 - - - - - - - - 1 Body (Not available order item 1)

9 35052.0000* 2 Tube, Silicone .75" I.D. x 6.25" LG (Order item 17) (Cut as required)

10 12422.0008 4 Clamp, Hose Snap-Type.93"/1.1" I.D.

11 34956.0000 2 Fitting, .250" NPTF Hose .750" NPS

12 01075.0000 2 Nut, Hex .438" - 20

13 01082.0002 2 Sprayhead, 6 Hole

14 34868.0000 2 Seal, Sprayhead

15 35070.0001 2 Sprayhead Back

16 34867.0004 2 Sprayhead

17 35052.1000 1 Tube, Silicone .75" I.D. x 1.0" O.D. x 12.0"

18 11517.0008 - Repair Kit, Bypass & Dispense Valve
(Includes one each of spring, plunger and diaphragm)

19 35308.1000 - Sprayhead Assy (Includes one each of items 14, 15 & 16)

20 20976.1000 1 Tube, Silicone .375" I.D. x 12.0"

20976.1001 1 Tube, Silicone .375" I.D. x 36.0"

20976.1002 1 Tube, Silicone .375" I.D. x 120.0"

Refer to Item 19

Not illustrated

19

37613 120710

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

FAUCET

DUAL/GPR

DBC

11

10

11

11

14

12

1

2

8

9

7

1

3

4

5

6

11

13

Only one Faucet location option (Upper
or Lower) is applicable to each Brewer

20

P3078.80

37613 022105

FAUCET

ITEM PART NO. QTY. DESCRIPTION

1 29075.0000 1 Faucet Assy (Includes items 2 thru 9)

2 02861.0000 1 Handle, Faucet

3 02854.0000 1 Bonnet, Faucet

4 02595.0000 1 Spring, Faucet

5 02766.0000 1 Seat Cup, Faucet

6 02856.0002 1 Body, Faucet

7 13054.0000 1 Stem, Faucet

8 02858.0000 1 Pin, Spring .125" Dia. x .50"

9 02594.0000 1 Faucet Stem W/Pin (Includes items 7 & 8)

10 20976.0059* 1 Tube, Silicone .38" I.D. x .62" O.D. x 11.75" (Order item 15) (Optional Upper Faucet)

11 12422.0001 2 Clamp, Hose .59" x .66" I.D.

12 29264.0000 1 Nut, Faucet Retaining

13 01544.0000 1 Washer, .50" I.D. x .75" O.D.

14 20976.0066* 1 Tube, Silicone .38" I.D. x .62" O.D. x 48.0" (Order Item 15) (Lower Faucet Only)

15 20976.1000 1 Tube, Silicone .38" I.D. x .62" O.D. x 12.0"

20976.1001 1 Tube, Silicone .38" I.D. x .62" O.D. x 36.0"

20976.1002 1 Tube, Silicone .38" I.D. x .62" O.D. x 120.0"

16 28706.0002 - Faucet Kit (Includes items 2,4,5, 7 & 8)

17 M2517.0000 - Sealant, Pipe 6 ml

Not Illustrated

21

37613 022105

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

21

20

22

ELECTRICAL CONTROLS

1 3

5

6

7

DUAL/GPR

DBC

4

8

9

10

11

12

13

Early Models

14

15

1

2

3

24

16 17 18

17

18

Models with Main

ARE HO T

ACES

ERS AN D SU R F

WARM

ON:
I

CAUT

Power Switch

23

19

22

P3079.40

37613 042210

ELECTRICAL CONTROLS

ITEM PART NO. QTY. DESCRIPTION

1 29969.1014 1 Circuit Board, Main control (Brewers with Product #35900.0000)

29969.1038 1 Circuit Board, Main control (Brewers with Product #35900.0001)

29969.1000 1 Circuit Board, Main control (Brewers with Product #35900.0010)

00973.0000 2 Nut, Keps #6-32

2 01533.0010 2 Spacer (Early models)

3 29970.0000 1 Mount, Circuit Board (Early models)

40726.0000 1 Mount, Circuit Board (Late models)

00973.0000 2 Nut, Keps #6-32

4 29499.1000 2 Solenoid Assy 120V (Includes items 5 thru 12)

00970.0000 4 Nut, Keps #8-32

5 29494.0000 2 Pin, Funnel Stop

6 28897.0000 2 Spring, Compression

7 29504.0001 2 Shoulder Screw

8 26247.0001 2 Pin, Spring

9 29504.0000 2 Shoulder Screw

00991.0000 2 Nut, Elastic Lock #8-32

10 29493.0000 2 Lever

11 29503.0000 2 Coil, Solenoid 120/208V & 120/240V

33613.0000 4 Screw, Truss Head #8-32 x .25”

01519.0000 4 Lockwasher, Split #8

12 29492.0000 2 Bracket, Solenoid

13 29495.0000 2 Guide, Pin

14 - - - - - - - - 2 Sensing Coil WO/Leads (Early models) (Not available order item 29)

32572.1001 1 Sensing Coil W/Violet Leads (Includes plug below)

32572.1002 1 Sensing Coil W/Yellow Leads (Includes plug below)

20621.0000 2 Plug, hole .203" Dia. (Not illustrated)

15 32573.0000 2 Cover, Sensing Coil

01382.0007 4 Screw, Truss Head #6-32 x .38"

16 01309.0000 1 Ground Screw W/Terminal Washer #10-32 x .50"

01512.0000 1 Lockwasher #10

17 23004.0000 1 Bracket, Terminal Block Mounting

39248.0000 1 Bracket, Terminal Block Mounting (Models with Main Power Switch)

02308.0000 2 Screw, Pan Head #8-32 x .38"

18 07038.0000 1 Terminal Block, 3 Pole (BLK/RED/WHI)

01106.0001 1 Terminal Block, 2 Pole (BLK/RED)

01317.0000 2 Screw, Truss Head #8-32 x .50"

19 01590.0000 1 Connector, Cable

01531.0000 1 Washer, Reducing

20 12570.0000 1 Grommet, Temperature Sensor

21 29327.0000 1 Probe Kit, Temperature/Dry Plug

(continued)

23

37613 091911

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

21

20

22

ELECTRICAL CONTROLS

1 3

5

6

7

DUAL/GPR

DBC

4

8

9

10

11

12

13

Early Models

14

15

1

2

3

24

16 17 18

17

18

Models with Main

ARE HO T

ACES

ERS AN D SU R F

WARM

ON:
I

CAUT

Power Switch

23

19

24

P3079.40

37613 042210

ELECTRICAL CONTROLS

ITEM PART NO. QTY. DESCRIPTION

22 32018.0000 1 Bumper (Early models)

23 38894.0001 1 Switch, Main Power (Not used on all models)

01308.0002 2 Screw, Truss Head #6-32 x .25" (Switch Mounting)

01327.0000 4 Screw, Pan Head #10-32 x .375"

01512.0000 4 Lockwasher, External Tooth #10

24 00824.0002 1 Decal, Ground

Note: The following parts are not illustrated

25 33634.0000 1 Wiring Harness, Main

26 37859.0005 1 Wiring Harness, Main Power Switch

27 00603.0000 2 Clamp, Cable .438" I.D.

02308.0000 2 Screw, Pan Head #8-32 x .38"

28 04831.0000 1 Clamp, Routing-Vinyl Dipped

29 38338.0000 - Kit, Funnel Sensors (Includes left and right Funnel Sensor Coils W/Leads)

25

37613 020911

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

WARMER ASSEMBLIES

DUAL/GPR

DBC

2

3

1

4

5

26

P312.80

37613 011105

WARMER ASSEMBLIES

ITEM PART NO. QTY. DESCRIPTION

1 03652.0000 2 Warmer Assy, BLK 100W 120V (Includes items 2 thru 5)

01303.0000 6 Screw, Pan Head #4 - 40 x .50"

2 03656.0000 1 Warmer Dish, BLK - 45 Hole

3 13042.0001 1 Spacer, .174" I.D. x .188"

4 01227.0000 1 Warmer Element, 100W 120V

5 05212.0000 1 Plate, Warmer Retainer

00970.0000 2 Nut, Keps 8 - 32

27

37613 091504

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

FUNNEL

DUAL/GPR

DBC

7

2

3

5

6

E

RC

T!

OU

N

S

EL OR

E

R

N

E

O

PAN

W

P

Y

M

AN

F

CO

Y

N

A

F

8

M

S

A

R

T

U

F

N

N

E

L

4

1

M

S

A

R

T

U

F

N

N

E

L

ES AR E HO T

FAC

S AND S UR

MER

WAR

N:

IO

CAUT

P3103.50

28

37613 091504

FUNNEL

ITEM PART NO. QTY. DESCRIPTION

1 32643.0000 2 Funnel Assy, SST (Each includes Items 2 thru 8)

2 24462.0002 1 Funnel W/Decals (Includes items 3 & 4)

3 03408.0004 1 Decal, Warning-Remove Funnel

4 03409.0004 1 Decal, Warning-Hot Liquid

5 32595.0000 1 Handle, Funnel-Black

6 12499.0002 1 Screw, Round Head .25" - 20 x 1.50" BLK

7 33089.0000 1 Filter Basket w/Splash Guard

8 01031.0001 1 Funnel Tip Kit

29

37613 091504

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

NUMERICAL INDEX

PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.

00506.0000.......................... 5

00603.0000........................ 25

00656.0000.......................... 5

00658.0000.......................... 5

00824.0002........................ 25

00908.0000..................... 9,11

00916.0000.......................... 5

00946.0000.......................... 9

00970.0000................... 17,23

00970.0000..................... 7,27

00971.0000.......................... 9

00973.0000........................ 23

00976.0000........................ 13

00986.0000.......................... 5

00991.0000........................ 23

01031.0001........................ 29

01075.0000........................ 19

01082.0002........................ 19

01106.0001........................ 23

01227.0000........................ 27

01303.0000........................ 27

01308.0002........................ 25

01309.0000........................ 23

01311.0000.......................... 5

01315.0000........................ 13

01317.0000........................ 23

01321.0000.......................... 9

01327.0000........................ 25

01347.0000.......................... 7

01382.0003....................... 5,7

01382.0007........................ 23

01388.0000.......................... 9

01501.0000.......................... 9

01512.0000................... 23,25

01514.0000........................ 13

01519.0000........................ 23

01520.0000.......................... 9

01522.0000........................ 13

01531.0000........................ 23

01533.0005.......................... 9

01533.0010........................ 23

01544.0000........................ 21

01590.0000........................ 23

02308.0000...... 5,11,13,23,25

02324.0000.......................... 7

02328.0003.......................... 9

02336.0000.......................... 5

02336.0002.......................... 5

02434.0010.......................... 9

02434.1000.......................... 9

02536.0000................ 9,13,15

02594.0000........................ 21

02595.0000........................ 21

02766.0000........................ 21

02854.0000........................ 21

02856.0002........................ 21

02858.0000........................ 21

02861.0000........................ 21

03011.0000.......................... 7

03236.0024.......................... 9

03236.1000.......................... 9

03236.1001.......................... 9

03236.1002.......................... 9

03236.1003.......................... 9

03408.0004........................ 29

03409.0004........................ 29

03633.0000.......................... 9

03652.0000........................ 27

03656.0000........................ 27

03803.0000.......................... 9

03807.0000.......................... 9

03851.0000.......................... 9

03996.0000.......................... 5

04797.0000.......................... 9

04831.0000........................ 25

05212.0000........................ 27

05749.0004.......................... 5

07038.0000........................ 23

11517.0008........................ 19

11630.0001................... 13,15

12364.0000.......................... 5

12398.0002.......................... 9

12418.0001........................ 15

12422.0001........... 9,15,17,21

12422.0005........................ 17

12422.0008........................ 19

12422.0009.............. 13,15,17

12499.0002........................ 29

12565.0011.......................... 9

12570.0000........................ 23

12756.0000........................ 13

12757.0000........................ 13

13042.0001........................ 27

13054.0000........................ 21

13255.0003.......................... 7

20201.5600.......................... 5

20203.0100.......................... 9

20541.0001.......................... 9

20621.0000........................ 23

20878.1008........................ 11

20881.0000........................ 11

20883.0000........................ 11

20884.1000.......................... 5

20916.0002.......................... 5

20916.0008.......................... 5

20916.0009.......................... 5

20916.0012.......................... 5

20922.1000.......................... 9

20924.0003.......................... 5

20936.1000.......................... 9

20937.0004................... 13,15

20976.0000........................ 15

20976.0006........................ 17

20976.0059................... 17,21

20976.0066........................ 21

20976.1000......... 15,17,19,21

20976.1001......... 15,17,19,21

20976.1002......... 15,17,19,21

21104.0003.......................... 7

21104.0006.......................... 7

21106.0000.......................... 5

21801.0002.......................... 9

22305.0000........................ 19

22728.0000.......................... 9

23004.0000........................ 23

23254.0000........................ 19

23255.0000........................ 19

23256.0000........................ 19

23717.0003.......................... 9

24455.0000.......................... 5

24462.0002........................ 29

25151.0000.......................... 5

25376.0000.......................... 5

25376.0002.......................... 5

26247.0001........................ 23

26528.0000.......................... 5

26622.0001.......................... 9

26826.0000........................ 11

26846.0000........................ 19

26949.0000.......................... 5

27370.0000........................ 17

27473.0000.......................... 9

28706.0002........................ 21

28897.0000........................ 23

29075.0000........................ 21

29264.0000........................ 21

29327.0000........................ 23

29421.0000................... 13,15

29492.0000........................ 23

29493.0000........................ 23

29494.0000........................ 23

29495.0000........................ 23

29499.1000........................ 23

29503.0000........................ 23

29504.0000........................ 23

29504.0001........................ 23

29876.0004.......................... 5

29969.1000........................ 23

29969.1014........................ 23

29969.1038........................ 23

29970.0000........................ 23

29974.0004.......................... 5

32018.0000........................ 25

32283.0000........................ 15

32359.0000................... 13,15

32572.1001........................ 23

32572.1002........................ 23

32573.0000........................ 23

32591.0007........................ 17

32591.0009........................ 17

32591.1000........................ 17

32591.1002................... 13,15

32595.0000........................ 29

32643.0000........................ 29

32648.0000........................ 17

32649.0000.......................... 7

33089.0000........................ 29

33613.0000........................ 23

33634.0000........................ 25

34768.0001........................ 13

34867.0004........................ 19

34868.0000........................ 19

34956.0000........................ 19

35052.0000........................ 19

35052.1000........................ 19

35070.0001........................ 19

35086.0000................... 13,15

35094.0001........................ 13

35291.0000.......................... 7

35308.1000........................ 19

35388.1003.......................... 5

36085.0000........................ 13

36088.0000........................ 13

36089.0001........................ 13

36233.0000........................ 15

37127.0001........................ 13

37129.0000........................ 11

37132.1000.......................... 5

37132.1001.......................... 5

37135.1000.......................... 5

37297.0001........................ 15

37526.0000........................ 11

37761.0000........................ 13

37762.0000........................ 13

37762.0001........................ 13

37766.0000.......................... 5

37859.0005........................ 25

37881.0000.......................... 5

38338.0000........................ 25

38392.0000........................ 11

38894.0001........................ 25

39248.0000........................ 23

39803.0000.......................... 7

40726.0000........................ 23

41640.0000........................ 15

43386.0000.......................... 9

M2517.0000 ...................... 21

M2522.1000 ........................ 9

30

37613 091911
