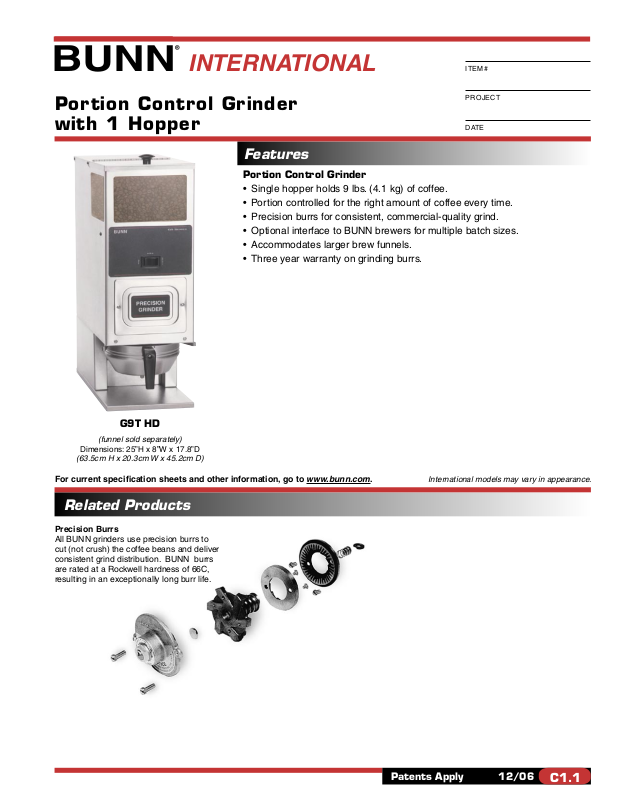

Bunn-O-Matic G9T HD General Manual

INTERNATIONAL

ITE M#

Portion Control Grinder
with 1 Hopper

Features

Portion Control Grinder

• Single hopper holds 9 lbs. (4.1 kg) of coffee.

• Portion controlled for the right amount of coffee every time.

• Precision burrs for consistent, commercial-quality grind.

• Optional interface to BUNN brewers for multiple batch sizes.

• Accommodates larger brew funnels.

• Three year warranty on grinding burrs.

PROJECT

DATE

G9T HD

(funnel sold separately)

Dimensions: 25”H x 8”W x 17.8”D

(63.5cm H x 20.3cm W x 45.2cm D)

For current specification sheets and other information, go to www.bunn.com.

Related Products

Precision Burrs

All BUNN grinders use precision burrs to
cut (not crush) the coffee beans and deliver
consistent grind distribution. BUNN burrs
are rated at a Rockwell hardness of 66C,
resulting in an exceptionally long burr life.

International models may vary in appearance.

Patents Apply

12/06

C1.1

Dimensions & Specifications

Model Product # Volts Amps Capacity Shipping Cord Agency
Weight Attached

G9TA HD 05800.0023 230 4.5 9 lbs. 65 lbs. Yes
(4 kg) (29.5 kg)

Note: Model accepts large funnels for Single, Dual and other large BUNN® Brewers.

Funnel sold separately.

Electrical: 2-wires plus ground service rated 220-240V, single phase, circuit required, 3⁄

HP motor.

4

Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • USA • [phone] • Fax [phone] • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in centimeters. Bunn-O-Matic Corporation owns all copyrights relating to materials in this publication. Please contact BUNN to request permission to reproduce any portion of this publication.
