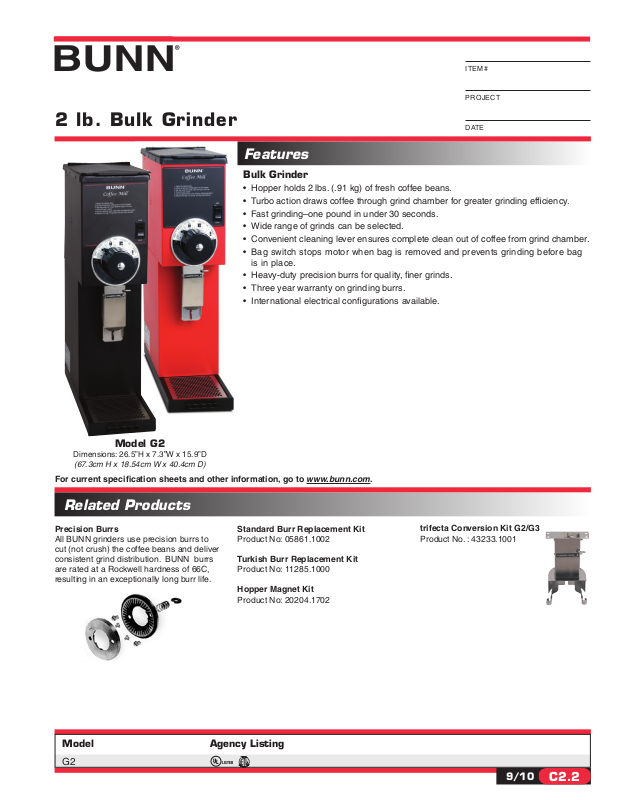

Bunn-O-Matic G2 General Manual
ITE M#
PROJECT
2 lb. Bulk Grinder
DATE
Features
Bulk Grinder
• Hopper holds 2 lbs. (.91 kg) of fresh coffee beans.
• Turbo action draws coffee through grind chamber for greater grinding efficiency.
• Fast grinding–one pound in under 30 seconds.
• Wide range of grinds can be selected.
• Convenient cleaning lever ensures complete clean out of coffee from grind chamber.
• Bag switch stops motor when bag is removed and prevents grinding before bag
is in place.
• Heavy-duty precision burrs for quality, finer grinds.
• Three year warranty on grinding burrs.
• International electrical configurations available.
Dimensions: 26.5”H x 7.3”W x 15.9”D
(67.3cm H x 18.54cm W x 40.4cm D)
For current specification sheets and other information, go to www.bunn.com.
Related Products
Model G2
Precision Burrs
All BUNN grinders use precision burrs to
cut (not crush) the coffee beans and deliver
consistent grind distribution. BUNN burrs
are rated at a Rockwell hardness of 66C,
resulting in an exceptionally long burr life.
Standard Burr Replacement Kit
Product No: 05861.1002
Turkish Burr Replacement Kit
Product No: 11285.1000
Hopper Magnet Kit
Product No: 20204.1702
trifecta Conversion Kit G2/G3
Product No. : 43233.1001
Model Agency Listing
U
L
G2
LISTED
9/10
C2.2
Dimensions & Specifications
Model Product # Volts Amps Capacity Cu. Ft. Shipping Weight Cord Attached
G2 HD Black 22102.0000 120 9 2 lbs. 5 59 lbs. Yes*
G2 HD Red 22102.0001 120 9 2 lbs. 5 59 lbs. Yes*
*Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Electrical: Motors are rated: 120 volts, 60 Hz, 9 amps. Requires 2-wires plus ground service. 3⁄
HP motor.
4
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
9/10 © Bunn-O-Matic Corporation
