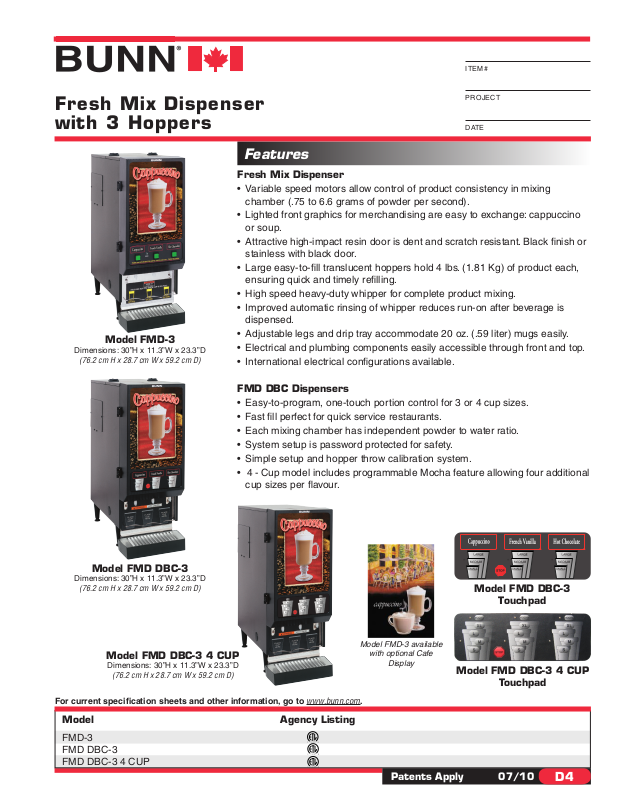

Bunn-O-Matic FMDM DBC-3 General Manual

ITEM#

Fresh Mix Dispenser
with 3 Hoppers

Features

Fresh Mix Dispenser

•฀Variable฀speed฀motors฀allow฀control฀of฀product฀consistency฀in฀mixing฀

chamber฀(.75฀to฀6.6฀grams฀of฀powder฀per฀second).

•฀Lighted฀front฀graphics฀for฀merchandising฀are฀easy฀to฀exchange:฀cappuccino฀

or฀soup.

•฀Attractive฀high-impact฀resin฀door฀is฀dent฀and฀scratch฀resistant.฀Black฀nish฀or฀

stainless฀with฀black฀door.

•฀Large฀easy-to-ll฀translucent฀hoppers฀hold฀4฀lbs.฀(1.81฀Kg)฀of฀product฀each,฀

ensuring฀quick฀and฀timely฀relling.

•฀High฀speed฀heavy-duty฀whipper฀for฀complete฀product฀mixing.

•฀Improved฀automatic฀rinsing฀of฀whipper฀reduces฀run-on฀after฀beverage฀is฀

dispensed.

Dimensions:฀30”H฀x฀11.3”W฀x฀23.3”D

Model FMD-3

(76.2 cm H x 28.7 cm W x 59.2 cm D)

•฀Adjustable฀legs฀and฀drip฀tray฀accommodate฀20฀oz.฀(.59฀liter)฀mugs฀easily.

•฀Electrical฀and฀plumbing฀components฀easily฀accessible฀through฀front฀and฀top.

•฀International฀electrical฀congurations฀available.

FMD DBC Dispensers

•฀Easy-to-program,฀one-touch฀portion฀control฀for฀3฀or฀4฀cup฀sizes.

•฀Fast฀ll฀perfect฀for฀quick฀service฀restaurants.

•฀Each฀mixing฀chamber฀has฀independent฀powder฀to฀water฀ratio.

•฀System฀setup฀is฀password฀protected฀for฀safety.

•฀Simple฀setup฀and฀hopper฀throw฀calibration฀system.

•฀฀4฀-฀Cup฀model฀includes฀programmable฀Mocha฀feature฀allowing฀four฀additional฀

cup฀sizes฀per฀avour.

PROJECT

DAT E

Model FMD DBC-3

Dimensions:฀30”H฀x฀11.3”W฀x฀23.3”D

(76.2 cm H x 28.7 cm W x 59.2 cm D)

Model FMD DBC-3 4 CUP

Dimensions:฀30”H฀x฀11.3”W฀x฀23.3”D

(76.2 cm H x 28.7 cm W x 59.2 cm D)

For current specification sheets and other information, go to www.bunn.com.

Model Agency Listing

FMD-3฀฀฀฀฀฀฀฀

FMD฀DBC-3฀

FMD฀DBC-3฀4฀CUP

Model FMD-3 available

with optional Cafe

Display

Patents Apply

Model FMD DBC-3

Touchpad

Model FMD DBC-3 4 CUP

Touchpad

07/10

D4

Dimensions & Specifications

WATER SUPPLY
.250 - 20 THD X
45º FLARE

POWER CORD
(15 AMP 120V
MACHINES ONLY

OVERFLOW

TUBE

CANADA

Model Product # Volts Amps Tank Heater Total Capacity Cubic Weight Cord
Watts Watts gal/liters** ft3/m3 lbs/kg Attached

FMD-3฀BLK฀28200.6000฀120฀11.7฀1320฀1400฀฀4.2฀/฀15.9฀per฀hr.฀8.3/.23฀฀฀฀84฀/฀38.1฀Yes*

FMD-3฀BLK฀28200.6002฀ 120/240฀ 15.4฀3500฀3600฀฀8.5฀/฀32.2฀per฀hr.฀8.3/.23฀฀฀฀84฀/฀38.1฀฀฀Yes

†

FMD-3฀SS฀28200.6001฀120฀11.7฀1320฀1400฀฀4.2฀/฀15.9฀per฀hr.฀8.3/.23฀฀฀฀78฀/฀35.3฀Yes*

FMD-3฀SS฀28200.6003฀120/240฀15.4฀3500฀3600฀ ฀8.5฀/฀32.2฀per฀hr.฀8.3/.23฀฀฀฀78฀/฀35.3฀Yes

†

FMD฀DBC-3฀฀29250.6000฀120฀11.7฀1320฀1400฀฀4.2฀/฀15.9฀per฀hr.฀8.3/.23฀฀฀฀84฀/฀38.1฀Yes*

FMD฀DBC-3฀4฀CUP฀฀29250.6016฀120฀11.7฀1320฀1400฀4.2฀/฀15.9฀per฀hr฀8.3/.23฀฀฀฀84฀/฀38.1฀Yes*

฀

*Power฀cord฀(NEMA฀5-15P)฀15฀Amp-120V฀machine฀only.฀฀†฀Power฀cord฀(NEMA฀L14-20P)฀120/240฀V฀machine฀only.

**Based฀on฀incoming฀water฀temperature฀of฀50ºF.฀฀฀

Note:฀SS=stainless฀steel฀cabinet฀with฀black฀door,฀BLK=black฀decor.

Electrical:฀120V฀model฀requires฀2-wires฀plus฀ground฀service฀rated฀120V,฀single฀phase,฀60฀hz.฀120/240V฀model฀requires฀

฀3-wires฀plus฀ground฀service฀rated฀120/208฀or฀120/240V,฀single฀phase,฀60Hz.

Plumbing:฀20-90฀psi฀(138-621฀kPa)฀from฀a฀

฀before฀the฀unit.฀Install฀a฀regulator฀in฀line฀when฀pressure฀is฀greater฀than฀90฀psi฀to฀reduce฀it฀to฀50฀psi.฀Supplied฀

฀with฀

1

4

⁄

"฀(6.4฀mm)฀male฀are฀tting.

3

8

⁄

"฀(10฀mm)฀or฀larger฀supply฀line.฀฀A฀shut-off฀valve฀should฀be฀installed฀in฀the฀line฀

Bunn-O-Matic฀Corporation฀of฀Canada฀-฀280฀Industrial฀Pkwy.฀S.฀Aurora,฀Ontario฀฀L4G฀3T9฀•฀905-841-2866฀•฀Fax฀905-841-2775฀•฀www.bunn.com

BUNN®฀practices฀continuous฀product฀research฀and฀improvement.฀We฀reserve฀the฀right฀to฀change฀specications฀and฀product฀design฀without฀notice.฀Such฀

revisions฀do฀not฀entitle฀the฀buyer฀to฀corresponding฀changes,฀improvements,฀additions฀or฀replacements฀for฀previously฀purchased฀equipment.

All฀dimensions฀shown฀in฀inches.฀ Bunn Corporation owns all copyrights relating to materials in this publication. Please contact Bunn Corporation to request permission to reproduce any portion of this publication.
