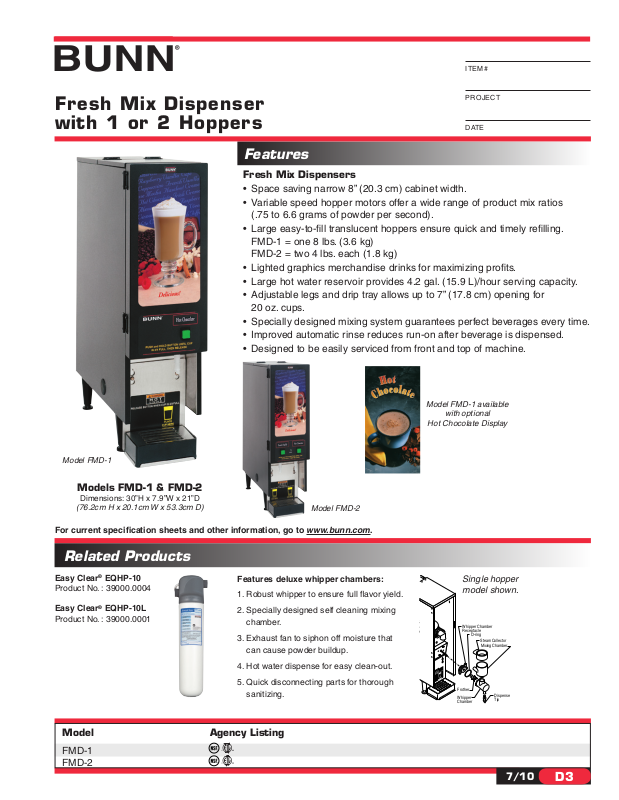

Fresh Mix Dispenser
with 1 or 2 Hoppers

Features

Fresh Mix Dispensers

• Space saving narrow 8” (20.3 cm) cabinet width.

• Variable speed hopper motors offer a wide range of product mix ratios
(.75 to 6.6 grams of powder per second).

• Large easy-to-fill translucent hoppers ensure quick and timely refilling.
FMD-1 = one 8 lbs. (3.6 kg)
FMD-2 = two 4 lbs. each (1.8 kg)

• Lighted graphics merchandise drinks for maximizing profits.

• Large hot water reservoir provides 4.2 gal. (15.9 L)/hour serving capacity.

• Adjustable legs and drip tray allows up to 7” (17.8 cm) opening for
20 oz. cups.

• Specially designed mixing system guarantees perfect beverages every time.

• Improved automatic rinse reduces run-on after beverage is dispensed.

• Designed to be easily serviced from front and top of machine.

PROJECT

DATE

Model FMD-1

Models FMD-1 & FMD-2

Dimensions: 30”H x 7.9”W x 21”D

(76.2cm H x 20.1cm W x 53.3cm D)

Model FMD-2

For current specification sheets and other information, go to www.bunn.com.

Related Products

Easy Clear® EQHP-10

Product No. : 39000.0004

Easy Clear

®

EQHP-10L

Product No. : 39000.0001

Features deluxe whipper chambers:

1. Robust whipper to ensure full flavor yield.

2. Specially designed self cleaning mixing
chamber.

3. Exhaust fan to siphon off moisture that
can cause powder buildup.

4. Hot water dispense for easy clean-out.

5. Quick disconnecting parts for thorough
sanitizing.

Model FMD-1 available

with optional

Hot Chocolate Display

Single hopper
model shown.

Model Agency Listing

FMD-1
FMD-2

7/10

D3

Dimensions & Specifications

Model Product # Volts Amps Tank Heater Total Brewing Cu. Shipping Cord
Watts Watts Capacity Ft. Weight Attached

FMD-1 BLK SET00.0196 120 15 1700 1800 4.2 gal./hr.** 8.3 ft3 75 lbs. Yes*
FMD-1 BLK SET00.0203† 120 15 1700 1800 4.2 gal./hr.** 8.3 ft3 75 lbs. Yes*
FMD-2 BLK SET00.0200 120 15 1700 1800 4.2 gal./hr.** 8.3 ft3 81 lbs. Yes*
FMD-2 BLK SET00.0207*** 120 15 1700 1800 4.2 gal./hr.** 8.3 ft3 81 lbs. Yes*

†

Model has “Hot Chocolate” display. *Power cord (NEMA 5-15P) 15 Amp-120V machine only. **Based on incoming water temperature of 50ºF.

*** Mug display.

Electrical: Model requires 2-wires plus ground service rated 120V, single phase, 60 hz.

Plumbing: 20-90 psi (138-621 kPa) from a 3⁄8" or larger supply line. A shut-off valve should be installed in the line
before the unit. Install a regulator in line when pressure is greater than 90 psi to reduce it to 50 psi. Supplied
with 1⁄4" male flare fitting.

Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax [phone] • www.bunn.com

BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

All dimensions shown in inches.

7/10 © Bunn-O-Matic Corporation
