Bunn-O-Matic Dual GPR DBC General Manual
ITE M#
PROJECT

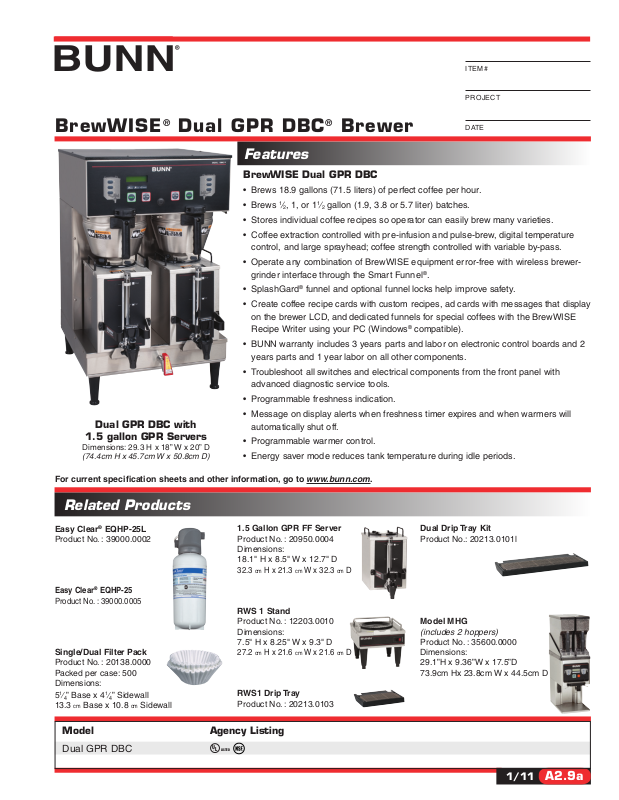

BrewWISE® Dual GPR DBC® Brewer
Features
BrewWISE Dual GPR DBC
• Brews 18.9 gallons (71.5 liters) of perfect coffee per hour.
1
⁄2, 1, or 11⁄2 gallon (1.9, 3.8 or 5.7 liter) batches.
®
funnel and optional funnel locks help improve safety.
Dual GPR DBC with
1.5 gallon GPR Servers
Dimensions: 29.3 H x 18” W x 20” D
(74.4cm H x 45.7cm W x 50.8cm D)
• Brews
• Stores individual coffee recipes so operator can easily brew many varieties.
• Coffee extraction controlled with pre-infusion and pulse-brew, digital temperature
control, and large sprayhead; coffee strength controlled with variable by-pass.
• Operate any combination of BrewWISE equipment error-free with wireless brewergrinder interface through the Smart Funnel
• SplashGard
• Create coffee recipe cards with custom recipes, ad cards with messages that display
on the brewer LCD, and dedicated funnels for special coffees with the BrewWISE
Recipe Writer using your PC (Windows
• BUNN warranty includes 3 years parts and labor on electronic control boards and 2
years parts and 1 year labor on all other components.
• Troubleshoot all switches and electrical components from the front panel with
advanced diagnostic service tools.
• Programmable freshness indication.
• Message on display alerts when freshness timer expires and when warmers will
automatically shut off.
• Programmable warmer control.
• Energy saver mode reduces tank temperature during idle periods.
®
.
®
compatible).
DATE
For current specification sheets and other information, go to www.bunn.com.
Related Products
Easy Clear® EQHP-25L
Product No. : 39000.0002
Easy Clear® EQHP-25
Product No. : 39000.0005
Single/Dual Filter Pack
Product No. : 20138.0000
Packed per case: 500
Dimensions:
1
” Base x 41⁄4” Sidewall
⁄
5
4
13.3
cm
Base x 10.8
cm
Sidewall
Model Agency Listing
Dual GPR DBC
1.5 Gallon GPR FF Server
Product No. : 20950.0004
Dimensions:
18.1" H x 8.5" W x 12.7" D
32.3 cm H x 21.3 cm W x 32.3 cm D
RWS 1 Stand
Product No. : 12203.0010
Dimensions:
7.5" H x 8.25" W x 9.3" D
27.2 cm H x 21.6 cm W x 21.6 cm D
RWS1 Drip Tray
Product No. : 20213.0103
U
L
LISTED
Dual Drip Tray Kit
Product No.: 20213.0101l
Model MHG
(includes 2 hoppers)
Product No. : 35600.0000
Dimensions:
29.1”H x 9.36”W x 17.5”D
73.9cm Hx 23.8cm W x 44.5cm D
1/11
A2.9a
Dimensions & Specifications
Model Product # Volts Amps Total Brewing Cu. Shipping Cord
Watts Cap-gal/hr Ft. Weight Attached
DUAL GPR DBC 35900.0010 120/208-240 26-29 5400-6800 14.8-18.9 gal/hr 13.3 90 lbs. No
1.5 GPR FF Server 20950.0004 n/a n/a n/a 11⁄2 gal. 2.4 18 lbs. No
RWS1 Warmer 12203.0010 120 1 100 1 SH Server 1.2 13 lbs. Yes
Brewing capacity: based upon incoming water temp of 60ºF (140ºF rise).
Electrical: Brewer is 3-wires plus ground service rated 120/208V or 120/240V, single phase, 60Hz.
Plumbing: 20-90 psi (138-621 kPa). Machine supplied with 3⁄8" male fitting.
1.50 GPR-FF SERVERS
SHOWN
BUNN-O-MATIC BUNN-O-MATIC
4" ADJUSTABLE LEGS
15.81.1
18.0
WATER SUPPLY CONNECTION
18.00
29.3
16.0
2.5
1.0
POWER SUPPLY
CONNECTION
8.96
20.0
16.7
18.75
25.4
LOWER FAUCET
STANDARD
Bunn-O-Matic® Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches.
1/11 © Bunn-O-Matic Corporation
