CDS-3
S/N CDS0019500 - UP
DISCONTINUED VERSION
Parts listed in this catalog
may no longer be available.
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
29422.0000K 01/08 © 1999 Bunn-O-Matic Corporation
www.bunnomatic.com
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
2
29422 040502
TABLE OF CONTENTS

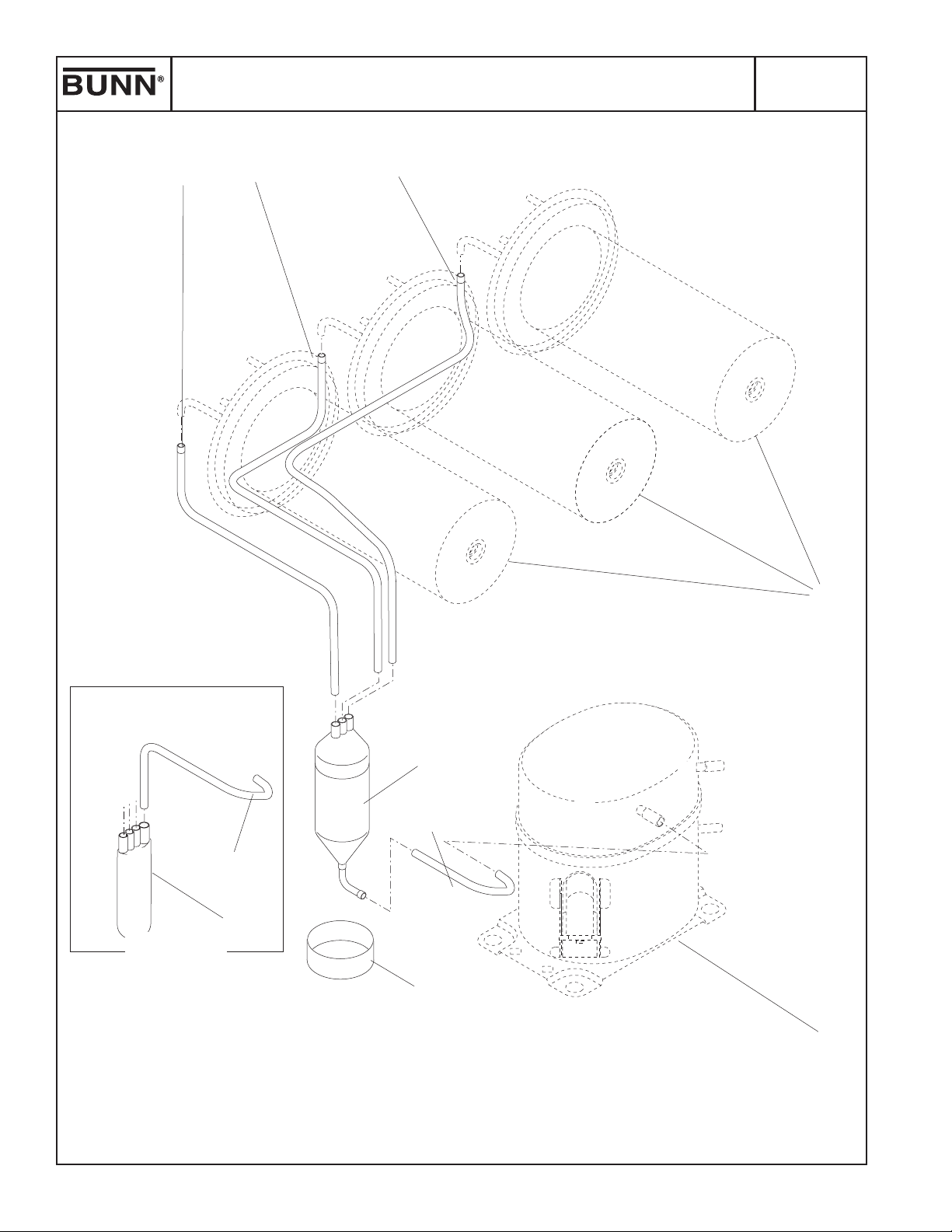

Accumulator, Evaporator/Cooling Drum Piping ........................................................................................................................30

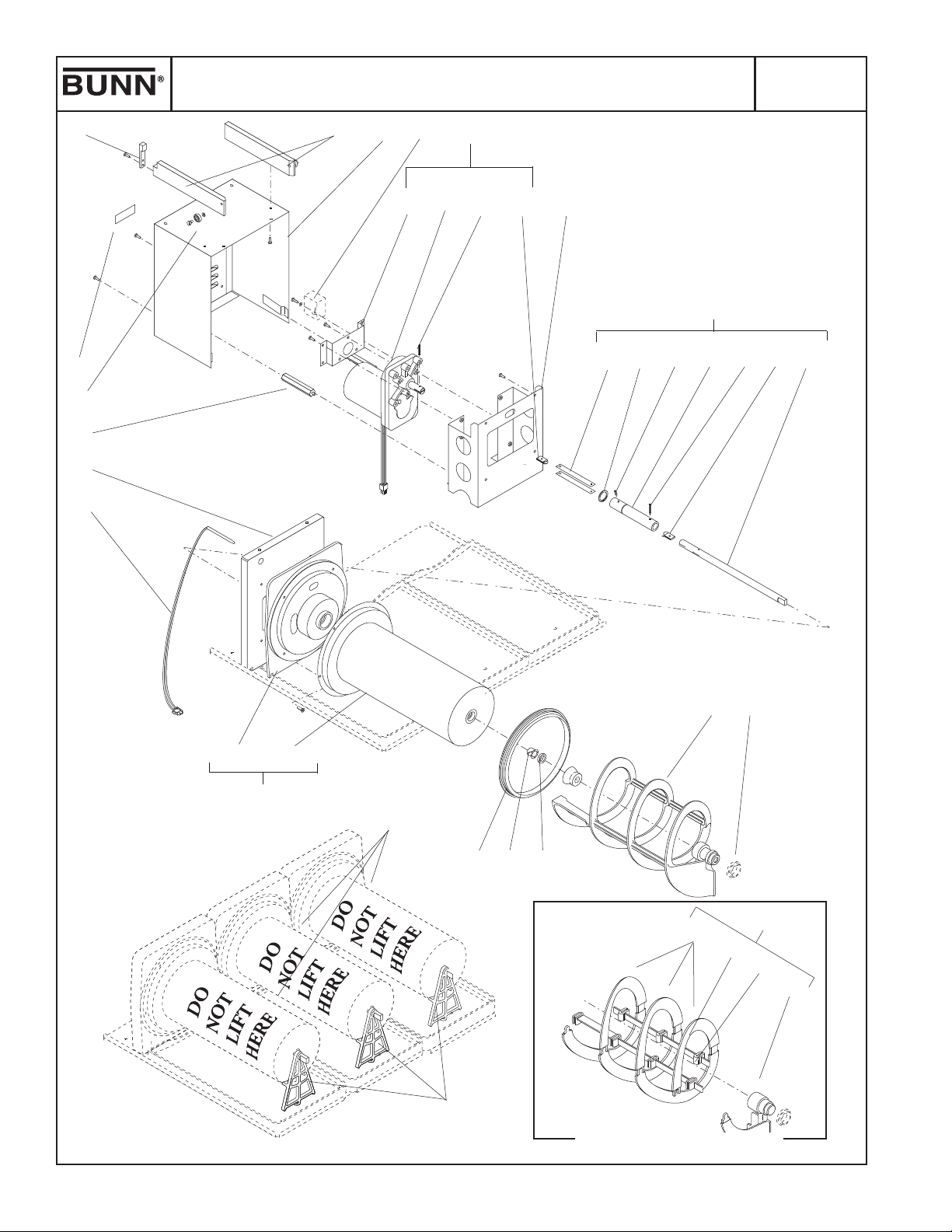

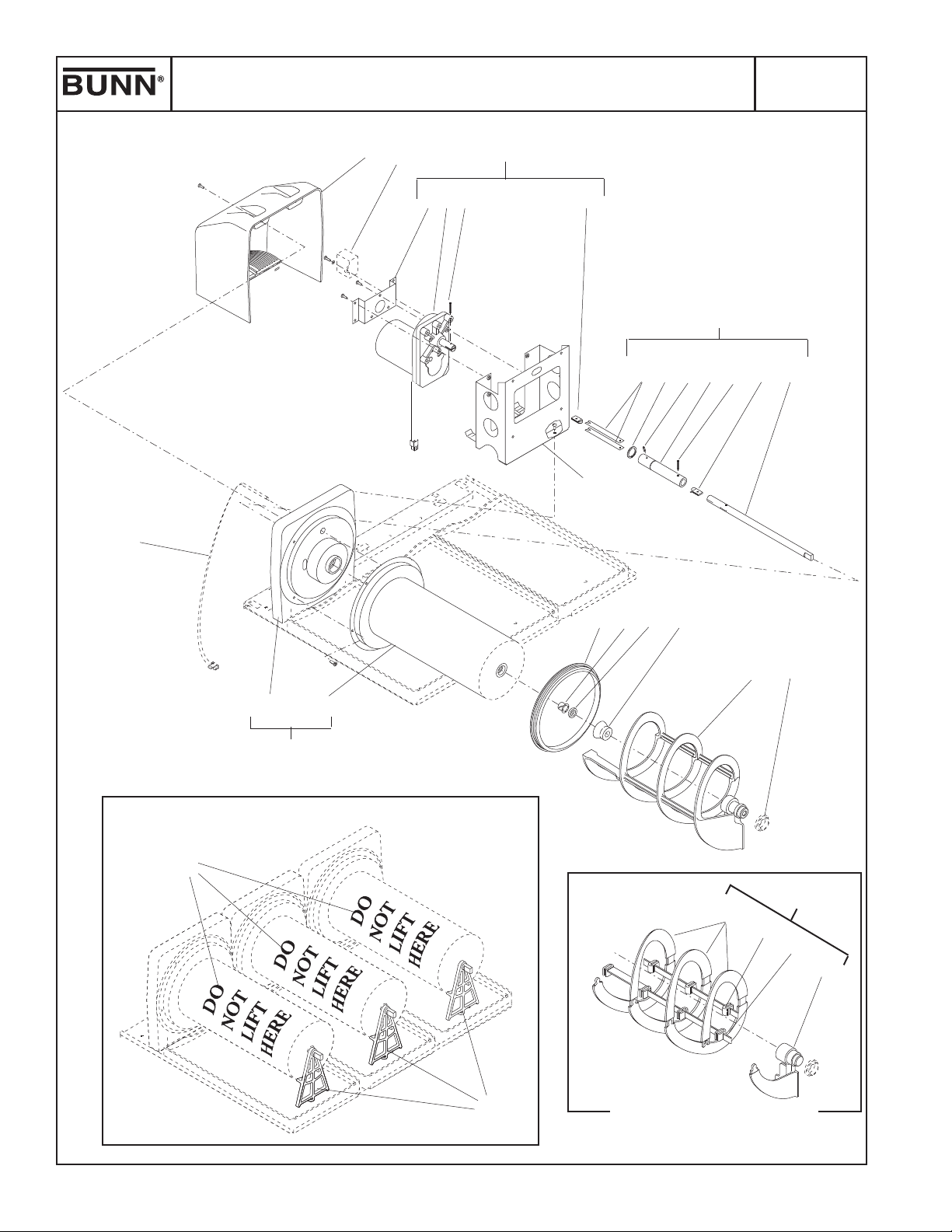

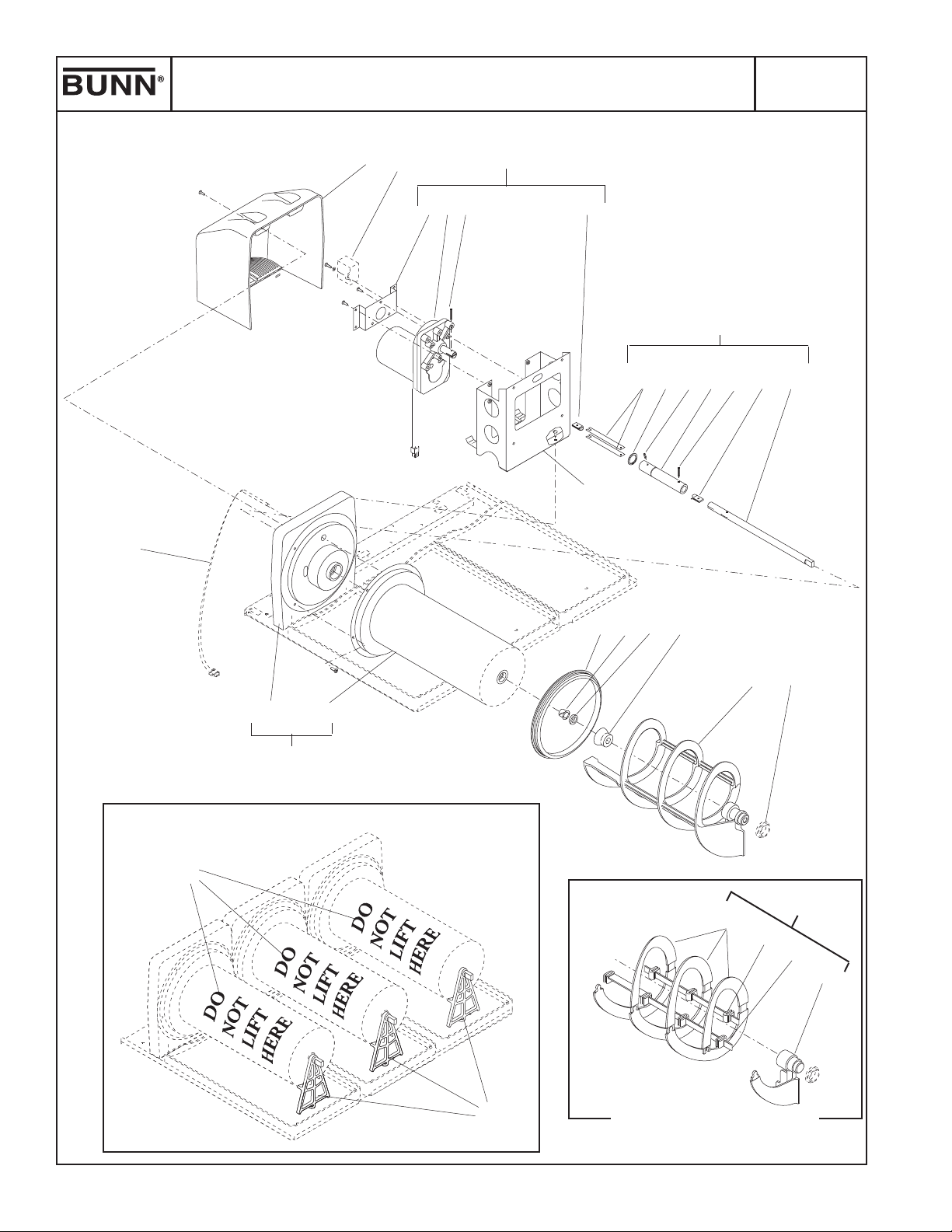

Auger Drive and Evaporator/Cooling Drum (w/o PAF) .............................................................................................................. 14
Auger Drive and Cooling Drum (w/PAF) ................................................................................................................................... 18

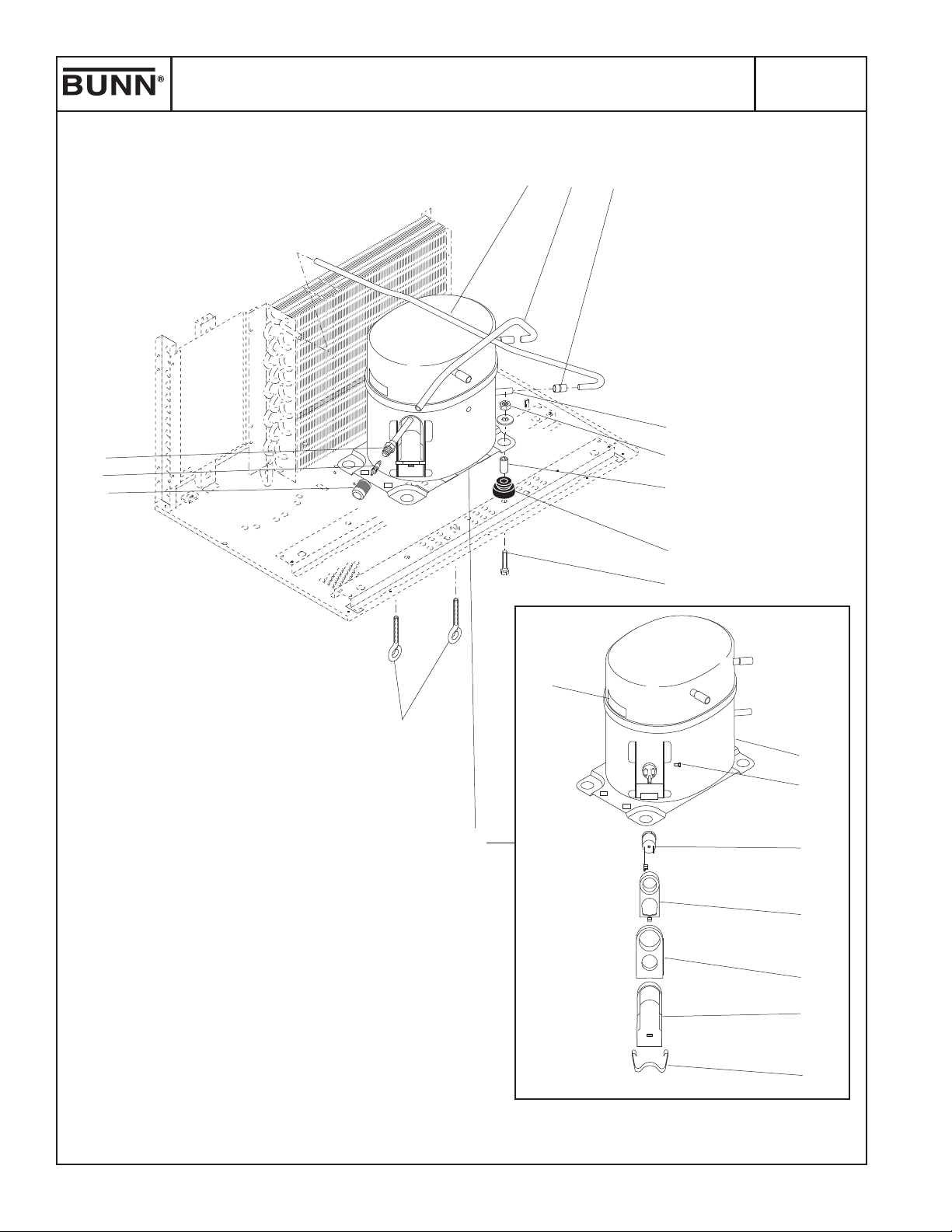

Compressor and Mounting ....................................................................................................................................................... 24

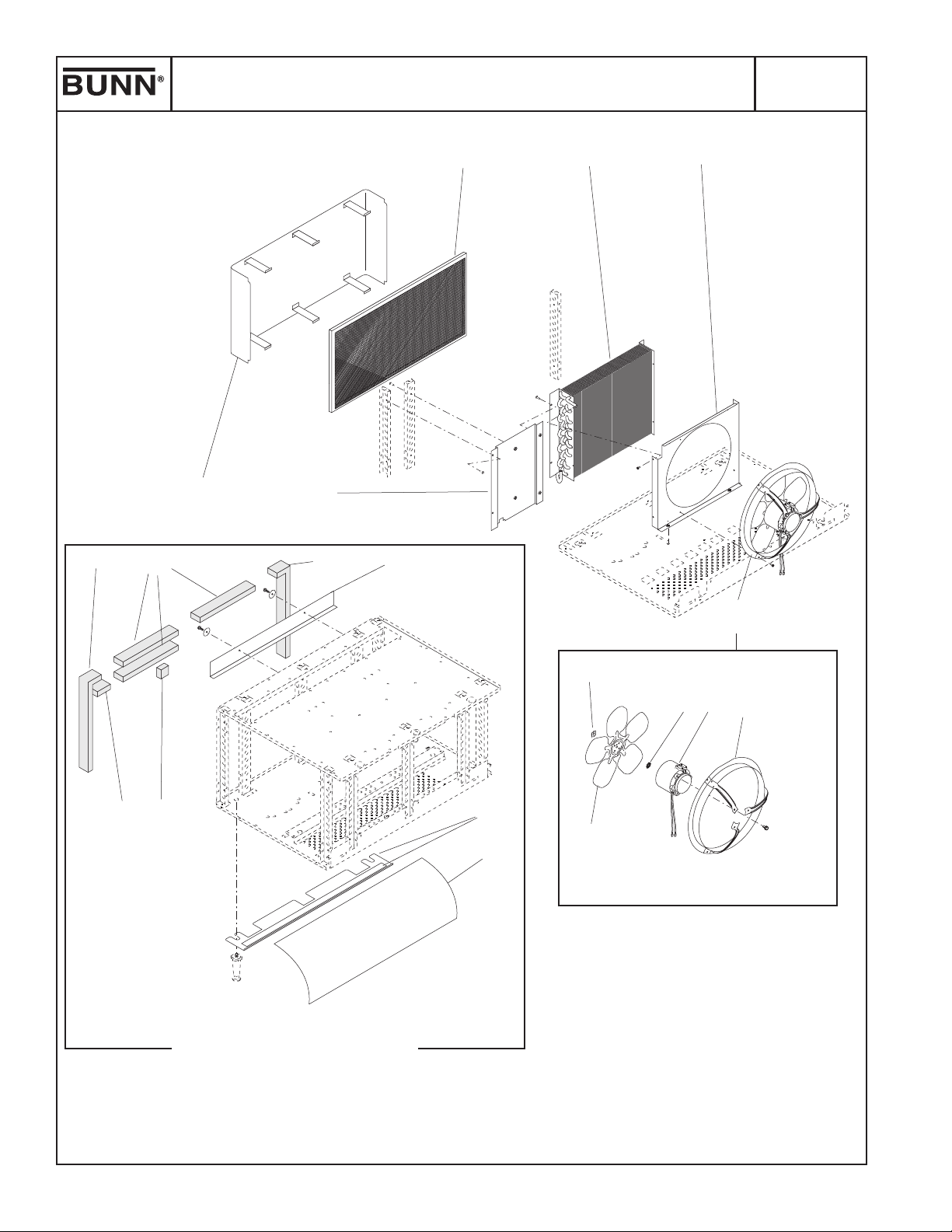

Condenser, Fan and Air Flow Control Mounting ........................................................................................................................ 22

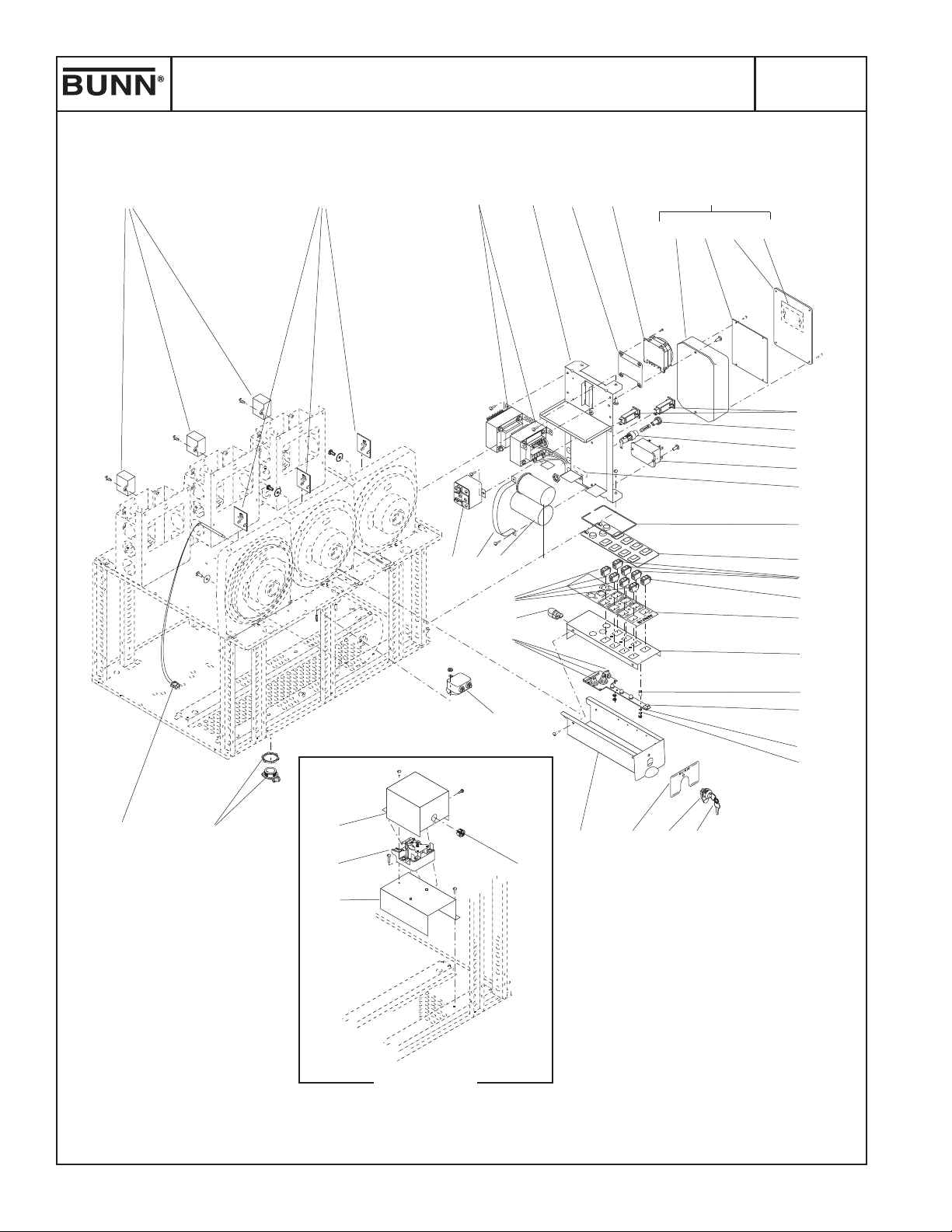

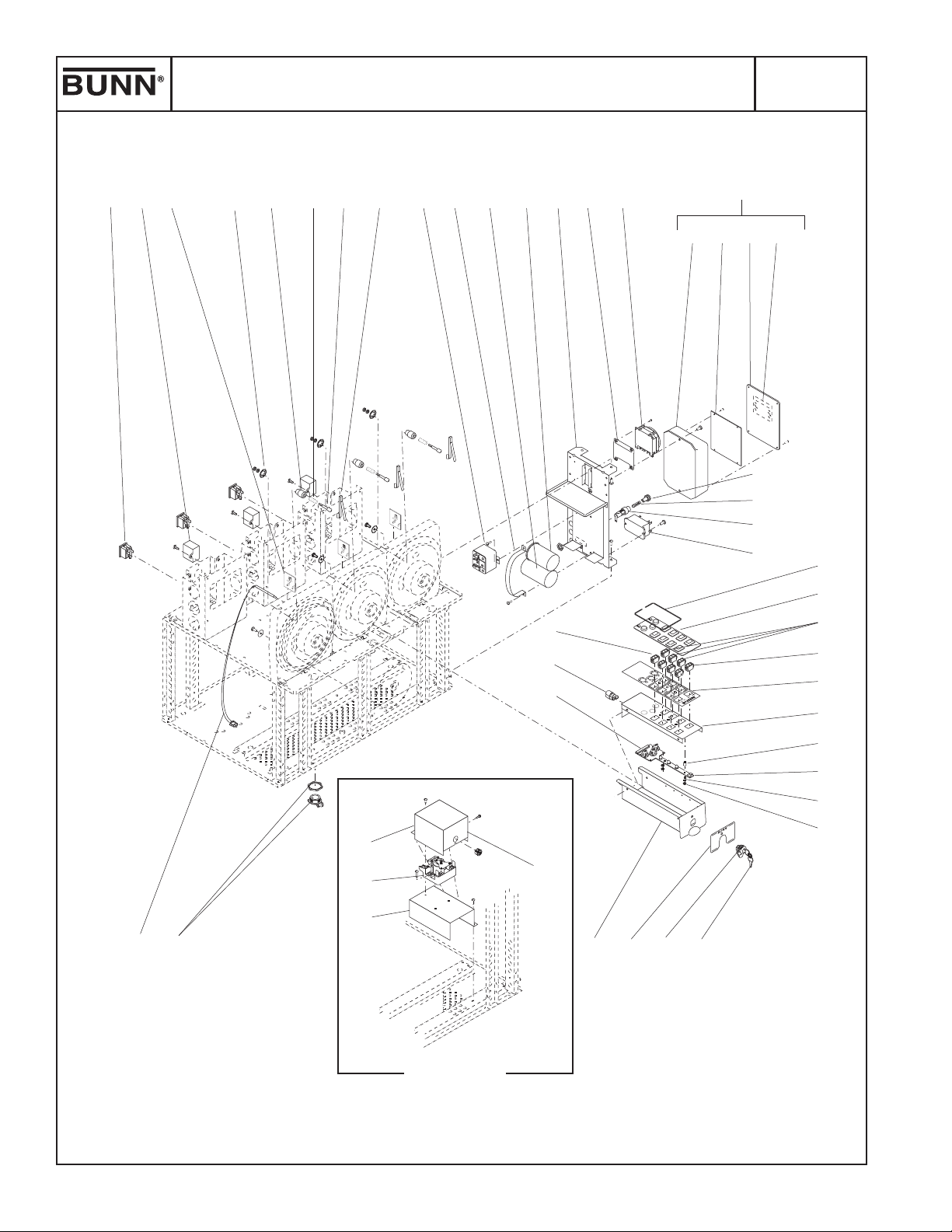

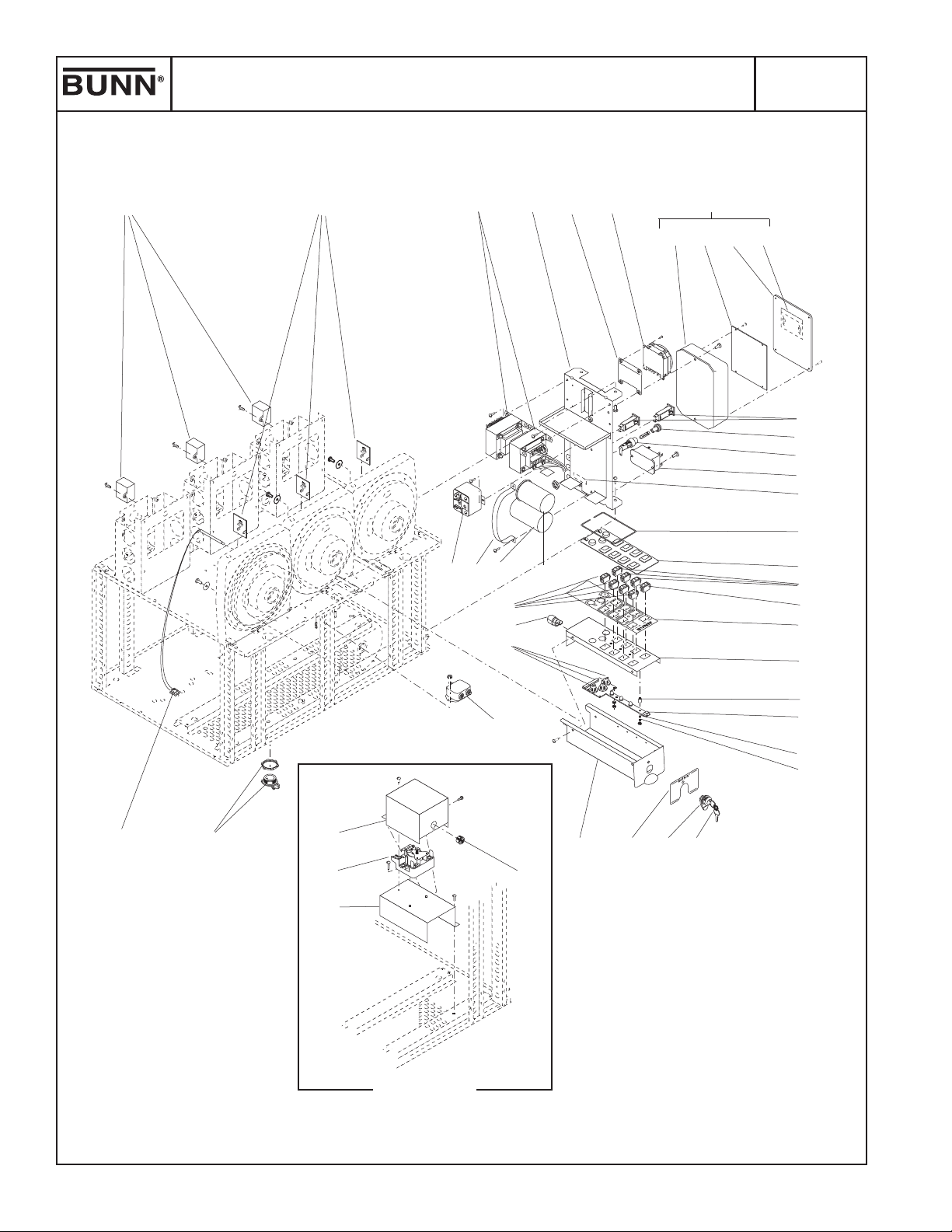

Electrical and Operating Controls (w/o PAF) ............................................................................................................................. 32
Electrical and Operating Controls (w/PAF) ............................................................................................................................... 36

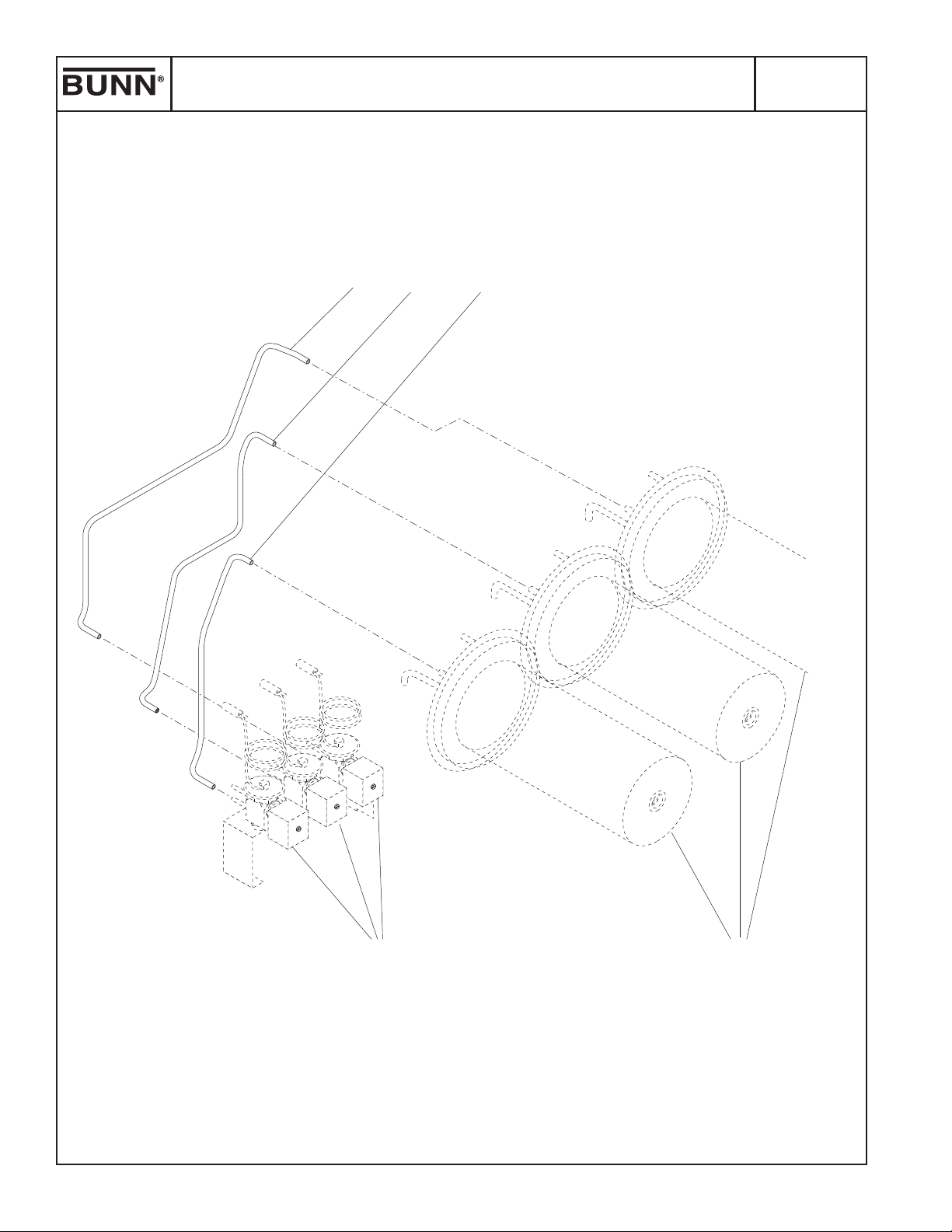

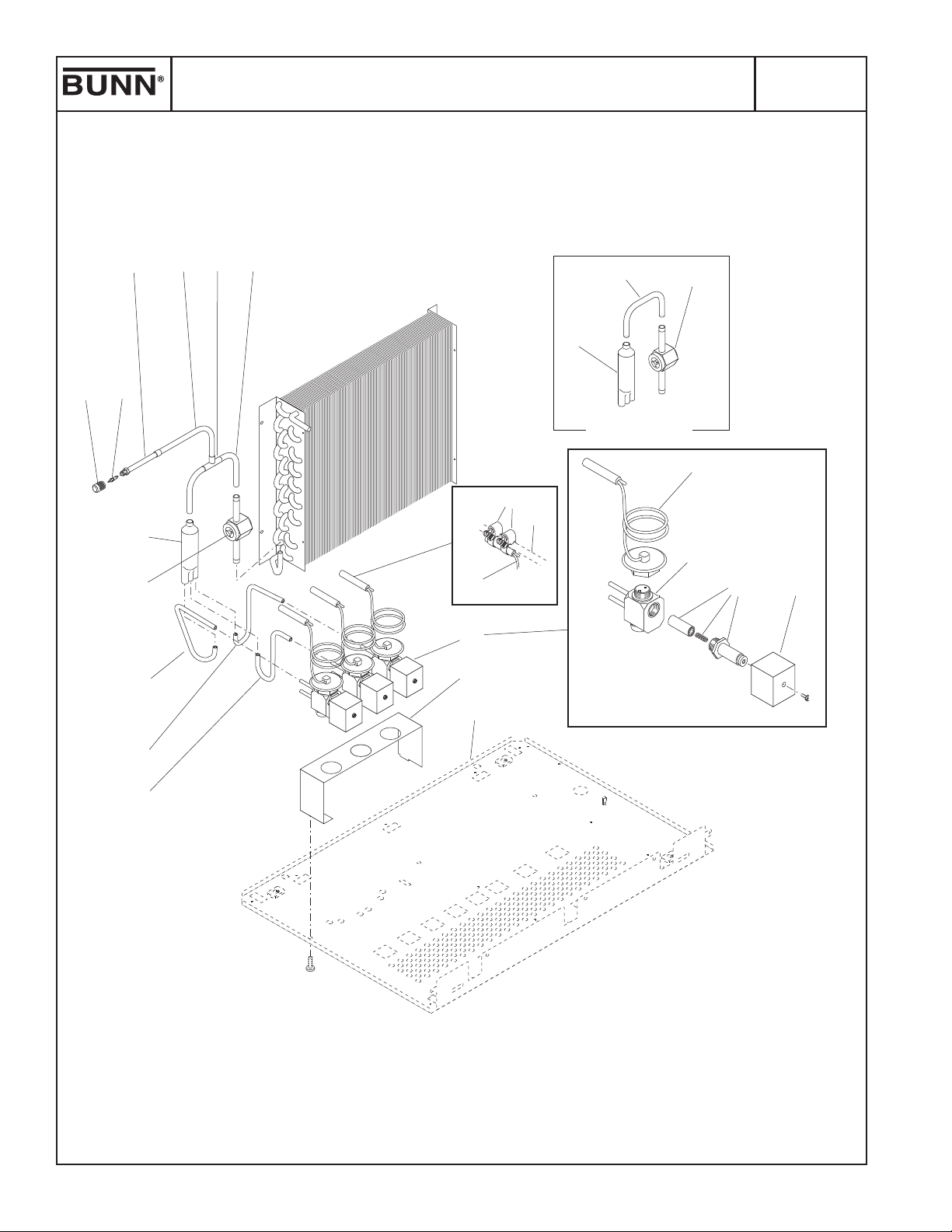

Expansion Valve/Solenoid and Evaporator/Cooling Drum Piping ..............................................................................................28
Frame, Panels, Drip Trays and Legs .......................................................................................................................................... 4
Hopper and Top Cover (w/o PAF)(Early Models) ........................................................................................................................8
Hopper and Top Cover (w/o PAF)(Late Models) ....................................................................................................................... 10
PAF Hopper and Faucet ............................................................................................................................................................ 12
Numerical Index .......................................................................................................................................................................40
Sight Gauge, Filter/Dryer , Expansion Valve/Solenoid and Piping ............................................................................................. 26
Instructional Video .....................................................................................................................................................................7
3
29422 060402
23 24 25
FRAME, PANELS, DRIP TRAYS AND LEGS
1 2
3 4 5 6 7 8 9
3
CDS-3
22 7 21 20 19
28
18 17 16 14 29
27
26
10 11
16
14
12
13
15
P1765.32
4
29422 103002
FRAME, PANELS, DRIP TRAYS AND LEGS
ITEM PART NO. QTY. DESCRIPTION
1 27136.0002 2 Trim, Hopper/Drip Tray - WHI
27136.0003 2 Trim, Hopper/Drip Tray - BLK
02329.0000 4 Screw, Truss Head - Locking #8-32 x .312”
2 27394.0000 6 Plug, Plastic - WHI
27394.0001 6 Plug, Nylon - BLK
3 28078.0000 3 Drip Tray, Hopper - WHI (Includes item 4)
28078.0001 3 Drip Tray, Hopper - BLK (Includes item4)
01317.0003 12 Screw, Truss Head - Locking #8-32 x .375”
4 27664.0000 1 Decal, Lubrication
5 27058.0000 1 Corner, Right Rear - SST
27058.0002 1 Corner, Right Rear - BLK
02332.0001 1 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 1 Screw, Washer Head #6-32 x .25” (Late models)
6 28644.0000 1 Panel W/Decals, Right Side - SST (Includes items 7, 8 & 9)
28644.0003 1 Panel W/Decals, Right Side - BLK (Includes items 7, 8 & 9)
02332.0001 2 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 2 Screw, Washer Head #6-32 x .25” (Late models)
7 27442.0000 2 Decal, Warning - Moving Parts
8 00986.0002 1 Decal, Warning - Electrical
9 28574.0000 1 Schematic, Electrical (CDS-3)
28574.0002 1 Schematic, Electrical (CDS-3 PAF)
10 -------------- 1 Panel W/Decal, Front - SST (OBSOLETE PART)
-------------- 1 Panel W/Decal, Front - BLK (OBSOLETE PART)
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
02332.0001 2 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 2 Screw, Washer Head #6-32 x .25” (Late models)
11 26958.0000 3 Grate, Drip Tray - SST
26958.0001 3 Grate, Drip Tray - BLK
12 28505.0000 1 Cover, Lower Drip Tray - WHT
28505.0001 1 Cover, Lower Drip Tray - BLK
13 29220.1000 1 Drip Tray, Lower - WHT (Includes item 14)
29220.1001 1 Drip Tray, Lower - BLK (Includes item 14)
14 21437.1000 2 Strike Assy, Self Adhesive
15 -------------- 1 Support, Drip Tray (OBSOLETE PART)
16 21436.0000 2 Catch, Magnetic
17 03996.0000 4 Pad, Rubber .125” Dia (See item 30)
18 26528.0000 4 Leg, Black Plastic - 4” Adjustable .375” Thd (See item 30)
19 29369.0000 1 Panel W/Decals, Left Side - SST (Includes items 7, 20 & 21)
29369.0001 1 Panel W/Decals, Left Side - BLK (Includes items 7, 20 & 21)
02332.0001 2 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 2 Screw, Washer Head #6-32 x .25” (Late models)
(Continued)
5
29422 061207
23 24 25
FRAME, PANELS, DRIP TRAYS AND LEGS
(Continued)
1 2
3 4 5 6 7 8 9
3
CDS-3
22 7 21 20 19
28
18 17 16 14 29
27
26
10 11
16
14
12
13
15
P1765.32
6
29422 103002
FRAME, PANELS, DRIP TRAYS AND LEGS
ITEM PART NO. QTY. DESCRIPTION
20 29428.0000 1 Schematic, Refrigerant
21 29424.0000 1 Decal, Refrigerant Charge
22 27058.0001 1 Corner, Left Rear - SST
27058.0003 1 Corner, Left Rear - BLK
02332.0001 1 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 1 Screw, Washer Head #6-32 x .25” (Late models)
23 28098.0000 2 Fastener, Snap-in
24 -------------- 1 Frame, Base (CDS-3) (OBSOLETE PART)
-------------- 1 Frame, Base (CDSA-3) (OBSOLETE PART)
25 00927.0000 4 Clip, Spring
26 -------------- 3 Tube, Drain .375” I.D. x .50” O.D. x 10.88” (Order item 31)
27 29702.1000 3 Plunger Assy, Hopper Lock
28 27410.0000 3 Clip, Tube
29 28720.0000 1 Decal, Caution - Instructional Video
30 13255.0003 - Leg Kit (Includes 4 Legs and 4 Pads)
31 12421.1001 - Tube, Clear Vinyl (12” Long)
12421.1002 - Tube, Clear Vinyl (60” Long)
12421.1003 - Tube, Clear Vinyl (120” Long)
32 28125.0000 - Instructional Video
Not Illustrated
7
29422 061207
TOP COVER AND HOPPER (EARLY MODELS)
CDS-3
w/o PAF
2
4
3
1
5
25
6
7
8
9
10
23
26
DISPENSER WITH AUTOFILL
HOPPERS
11
13
14
12
15
16
17
18
19
20
21
22
24
P1140.45
8
29422 060402
TOP COVER AND HOPPER (EARLY MODELS)
ITEM PART NO. QTY. DESCRIPTION
1 28082.0000 3 Cover Assy. Hopper - WHI (Includes items 2 thru 10)
28082.0007 3 Cover Assy. Hopper - BLK (Includes items 2 thru 10)
2 26714.1000 1 Cover, Hopper - WHI
26714.1001 1 Cover, Hopper - BLK
28062.0000 2 Screw, Knurled Thumb #8-32
3 27235.0000 1 Bracket, Lamp Mounting
4 27446.0000 2 Lamp, T-5 Wedge Base
5 27256.0000 2 Fastener, Push-on
6 27938.0000 1 Decal, Lamp Replacement
7 27445.1000 1 Lamp Holder/Socket Assy (Includes two of item 26)
27448.0000 2 Screw, Pan Head #2-56 x .50”
27447.0000 2 Nut, Elastic Lock #2-56
8 27135.0001 2 Display Insert, Hopper Cover
9 26717.0000 1 Liner Assy, Hopper Cover
10 32267.1000 1 Cord Assy, Lamp (Includes two of item 26)
11 28079.1000 3 Hopper Assy. (Includes item 19) (Hoppers W/Out Autofill holes)
28079.1001 3 Hopper Assy. (Includes item 19) (Hoppers with 1 Autofill hole)
28079.1002 3 Hopper Assy. (Includes item 19) (Hoppers with 2 Autofill holes)
12 28080.1000 3 Handle Assy, Faucet WHI (Includes items 13 thru 16)
28080.1001 3 Handle Assy, Faucet BLK (Includes items 13 thru 16)
13 27137.0000 1 Knob, Black
14 26972.0000 1 Ring, Faucet Handle
15 26786.0001 1 Handle, Faucet - Right - WHI
26786.0003 1 Handle, Faucet - Right - BLK
16 26786.0000 1 Handle, Faucet - Left - WHI
26786.0002 1 Handle, Faucet - Left - BLK
17 26788.0000 1 Dowel, Faucet
18 26793.0000 3 Cap, Faucet - WHI
26793.0001 3 Cap, Faucet - BLK
19 26784.0000 1 Bushing, Auger Shaft - Front
20 28107.0000 3 Spring, Faucet
21 28216.1000 3 Spool Assembly, Faucet - WHI (Includes item 24)
28216.1001 3 Spool Assembly, Faucet - BLK (Includes item 24)
22 28083.0000 - O-Ring Kit, Faucet Spool (Includes 6 O-rings. See item 25)
23 27643.0000 3 Connector Assy, Lamp Cord (Includes Nut, Washer, Leads & Plug)
01532.0001 3 Lockwasher, Internal Tooth .375”
24 28391.0000 3 Plug, Faucet Spool
25 28776.0000 1 Plug, .375” NPT ( Dispensers W/Autofill Hoppers)
26 24566.0000 1 Nut, .375” NPS (Dispensers W/Autofill Hoppers)
27 M2550.0000 - Lubricant (Not Illustrated)
28 03851.0000 4 Wire Nut (Not Illustrated)
9
29422 061207
TOP COVER AND HOPPER (LATE MODELS)
CDS-3
w/o PAF
5
2
1
3
4
6
7
14
8
9
11
12
13
10
MODELS w/AFPO
10
P2509
29422 060402
TOP COVER AND HOPPER (LATE MODELS)
ITEM PART NO. QTY. DESCRIPTION
- 32196.1000 3 Cover, Hopper - WHI (Includes items 1 thru 7)
32196.1001 3 Cover, Hopper - BLK (Includes items 1 thru 7)
1 -------------- 3 Cover, Hopper - WHI (OBSOLETE PART)
-------------- 3 Cover, Hopper - BLK (OBSOLETE PART)
01315.0000 6 Screw, Truss Head #8-32 x .38”
2 32105.0000 6 Insert, Hopper Lid Vent - WHI
32105.0001 6 Insert, Hopper Lid Vent - BLK
3 27446.0000 6 Lamp, T-5 Wedge Base
4 27445.1000 3 Lamp Holder/Socket Assy (Includes two of item 15)
32096.0000 6 Screw, Pan Head #2-56 x .50”
5 32266.0000 6 Insert, Hopper Display
6 32195.0000 3 Liner Assy, Hopper Cover
7 32267.1000 3 Cord Assy, Lamp (Includes two of item 15)
8 32190.1000 3 Hopper Assy. (Includes item 9)
32190.1002 3 Hopper Assy. (For Models with AFPO)(Includes item 9)
9 32189.0000 3 Bushing, Auger Nose
10 32191.0000 3 Faucet - WHI
11 32265.0001 3 Handle, Faucet - BLK
12 32193.0000 3 Spring, Faucet
13 32268.0000 3 Seal
14 27643.0000 3 Connector Assy (Includes Nut, Washer, Leads & Plug)
01532.0001 3 Lockwasher, Internal-tooth .375”
15 03851.0000 6 Wire Nut (Not Illustrated)
11
29422 061207
10
HOPPER AND FAUCET
CDS-3
w/PAF
1
3
4
2
5
6
8
7
9
11
12
13
14
12
P1944.70
29422 100702
HOPPER AND FAUCET
ITEM PART NO. QTY. DESCRIPTION
1 26713.1000 3 Hopper Assy. (Includes item 9 & 10)
2 28080.1000 3 Handle Assy, Faucet - SST (Includes items 3 thru 6)
28080.1001 3 Handle Assy, Faucet - BLK (Includes items 3 thru 6)
3 27137.0000 1 Knob, Black
4 26972.0000 1 Ring, Faucet Handle
5 26786.0001 1 Handle, Faucet - Right
6 26786.0000 1 Handle, Faucet - Left
7 26788.0000 1 Dowel, Faucet
8 26793.0000 3 Cap, Faucet - SST
26793.0001 3 Cap, Faucet - BLK
9 26784.0000 1 Bushing, Auger Shaft - Front
10 33176.0000 3 Tether/Probe Assy (3.50” Probe)
33179.0000 3 Tether/Probe Assy (1.88” Probe)
01393.0000 3 Screw, Truss Head #6 x .25”
11 28107.0000 3 Spring, Faucet
12 28216.1000 3 Spool Assembly, Faucet - SST (Includes item 14)
28216.1001 3 Spool Assembly, Faucet - BLK (Includes item 14)
13 28083.0000 - O-Ring Kit, Faucet Spool (Includes 6 O-rings. See item 15)
14 28391.0000 3 Plug, Faucet Spool
15 M2550.0000 - Lubricant, Petro-Gel 4 oz (Not Illustrated)
13
29422 061207
AUGER DRIVE AND EVAPORATOR/COOLING DRUM
1 5 3
2 6 7 8
10 11 12 13 14 8 15
4
CDS-3
w/o PAF
9
29
31
27 28
26
25 24 23 18
21
22 16
22
19
20
17
14
30
EARLY MODEL DISPENSERS
P1486.40
29422 012100
AUGER DRIVE AND EVAPORATOR/COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
1 27231.0000 3 Cover, Auger Motor - WHI
27231.0001 3 Cover, Auger Motor - BLK
01317.0003 6 Screw, Truss Head - Locking #8-32 x .375”
2 27232.0000 1 Bracket, Auger Motor Mounting
01317.0003 3 Screw, Truss Head - Locking #8-32 x .375”
3 28093.1000 3 Motor Assy, Auger (120V) (Includes items 2, 6, 7, & one of item 8)
28093.1001 3 Motor Assy, Auger (230V) (Includes items 2, 6, 7, & one of item 8)
01326.0002 9 Screw, Pan Head #10-32 x .375”
4 -------------- 3 Bracket, Auger Motor/Cooling Drum Mounting (OBSOLETE PART)
01311.0001 12 Screw, Truss Head - Locking #8-32 x .250”
5 -------------- 3 Capacitor, Motor (See ELECTRICAL AND OPERATING CONTROLS)
01317.0001 3 Screw, Truss Head - Locking #8-32 x .50”
01501.0000 3 Washer, #8
6 28093.1000 1 Motor Assembly, Auger (120V) (Includes Leads and Terminal)
28093.1001 1 Motor Assembly, Auger (230V) (Includes Leads and Terminal)
7 34836.0000 1 Pin, Split .125” O.D. x .938”
8 27440.0000 2 Bearing, Torsion Spring
9 28081.0000 3 Shaft Assy, Auger Drive (Includes one of item 8, & items 10 thru 15)
10 27223.0000 2 Spring, Torsion
11 27228.0000 1 Snap Ring
12 11556.0001 1 Pin, Split .125” O.D. x .437”
13 27224.0000 1 Retainer, Torsion Spring
14 34836.0001 1 Pin, Split .125” O.D. x .75”
15 32449.0000 1 Shaft, Auger
16 -------------- 3 Bushing, Auger - Front (See TOP COVER AND HOPPER)
17 -------------- 1 Auger Nose (OBSOLETE PART)
18 26780.0000 3 Seal, Auger Shaft (See item 32, 34, 35 & 36)
19 -------------- 1 Latch, Auger - Short (OBSOLETE PART)
20 -------------- 1 Latch, Auger - Long (OBSOLETE PART)
21 -------------- 3 Auger Section (OBSOLETE PART)
22 -------------- 3 Auger Assy. (Early Model Dispensers) (Order One Piece Auger)
32106.1000 3 Auger, One piece (Late Model Dispensers)
23 37593.0000 3 Seal, Evaporator/Cooling Drum (See item 32)
24 26781.0000 3 Bushing, Auger Shaft (See item 32)
25 26792.0000 3 Seal, Evaporator/Cooling Drum - Hopper (See items 32 & 34)
(Continued)
15
29422 061207
AUGER DRIVE AND EVAPORATOR/COOLING DRUM
(Continued)
1 5 3
2 6 7 8
10 11 12 13 14 8 15
4
CDS-3
w/o PAF
9
29
31
27 28
26
25 24 23 18
21
22 16
22
19
20
17
16
30
EARLY MODEL DISPENSERS
P1486.40
29422 012100
AUGER DRIVE AND EVAPORATOR/COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
26 -------------- 3 Drum Assembly, Evaporator/ Cooling - WHI (OBSOLETE PART)
-------------- 3 Drum Assembly, Evaperator/Cooling - BLK (OBSOLETE PART)
01377.0000 12 Screw, Flat Head #8-32 x .75”
27 32091.0002 1 Mount Assembly, Evaporator/Cooling Drum - WHI
32091.0003 1 Mount Assembly, Evaperator/Cooling Drum - BLK
28 -------------- 1 Drum, Evaporator/ Cooling (Not Available. Order item 26)
29 -------------- - Temperature Sensor Assy (See ELECTRICAL AND OPERATING CONTROLS)
30 28027.0000 3 Support, Evaporator/Cooling Drum (For Shipping and Cooling Drum Adjustment)
31 28236.0000 3 Label, DO NOT LIFT HERE (For Shipping Only)
Items 32 through 34 are not illustrated:
32 M2550.0000 - Lubricant, Lubri-Film
33 M2548.1000 - Lubricant, Krytox .50 Oz
34 28106.0001 - Kit, Preventive Maintenance (Includes items 18, 23, 24, 25, six faucet O-rings)
17
29422 061207
AUGER DRIVE AND COOLING DRUM
37 10 1 7 3
4 5 6 9 8
CDS-3
w/PAF
13
2
11
33
12
34
14 15 16 17 18 9 19
22 20
31 32
30
36
29 28 27
35
18
26
25
24
EARLY MODEL DISPENSERS
22
23
P1945.40
29422 083000
AUGER DRIVE AND COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
1 -------------- 3 Cover, Auger Motor - SST (OBSOLETE PART)
-------------- 3 Cover, Auger Motor - BLK (OBSOLETE PART)
02331.0000 6 Screw, Truss Head - Locking #10-32 x .375”
2 29844.0000 3 Decal
3 28093.1000 3 Motor Assy, Auger (Includes items 4, 5, 6 & 9)
01326.0002 9 Screw, Pan Head #10-32 x .375”
4 27232.0000 1 Bracket, Auger Motor Mounting
01317.0003 3 Screw, Truss Head - Locking #8-32 x .375”
5 -------------- 1 Motor Assembly, Auger (Order item 3)
6 34836.0000 1 Pin, Split .125” O.D. x .938”
7 -------------- 3 Capacitor, Motor (See ELECTRICAL AND OPERATING CONTROLS)
01317.0001 3 Screw, Truss Head - Locking #8-32 x .50”
01501.0000 3 Washer, #8
8 -------------- 1 Support, Cooling Drum - SST (OBSOLETE PART)
-------------- 1 Support, Cooling Drum - BLK (OBSOLETE PART)
9 27440.0000 2 Bearing, Torsion Spring
10 - - - - - - - - 3 Rail, Left (Early models. Not available order item 38)
29591.0002 3 Rail, Left (Late models)
29591.0001 3 Rail, Right
01330.0000 6 Screw, Hex-washer - Locking #10-32 x .375”
11 29724.0000 6 Roller
24457.0001 6 Screw, Shoulder
01522.0000 6 Washer
12 -------------- 3 Support, Auger Motor/Cooling Drum Mounting (OBSOLETE PART)
01311.0001 12 Screw, Truss Head - Locking #8-32 x .25”
13 28081.0000 3 Shaft Assy, Auger Drive (Includes items 9, 14 thru 19)
14 27223.0000 3 Spring, Torsion
15 -------------- 1 Snap Ring (OBSOLETE PART)
16 11556.0001 1 Pin, Split .125” O.D. x .437”
17 27224.0000 1 Retainer, Torsion Spring
18 34836.0001 1 Pin, Split .125” O.D. x .75”
19 32449.0000 1 Shaft, Auger
20 -------------- 3 Bushing, Auger - Front (See HOPPER AND FAUCET)
21 26780.0000 3 Seal, Auger Shaft (See item 39 & 41)
22 -------------- 3 Auger Assy. (Early Model Dispensers) (Order One Piece Auger)
32106.1000 3 Auger, One piece (Late Model Dispensers)
23 -------------- 1 Auger Nose (OBSOLETE PART)
24 -------------- 1 Latch, Auger - Long (OBSOLETE PART)
(Continued)
19
29422 061207
AUGER DRIVE AND COOLING DRUM
(Continued)
37 10 1 7 3
4 5 6 9 8
CDS-3
w/PAF
13
2
11
33
12
34
14 15 16 17 18 9 19
22 20
31 32
30
36
29 28 27
35
20
26
25
24
EARLY MODEL DISPENSERS
22
23
P1945.40
29422 083000
AUGER DRIVE AND COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
25 -------------- 1 Latch, Auger - Short (OBSOLETE PART)
26 -------------- 3 Auger Section (OBSOLETE PART)
27 26782.0001 3 Seal, Cooling Drum (See item 41)
28 26781.0000 3 Bushing, Auger Shaft (See item 41)
29 26792.0000 3 Seal, Cooling Drum/Hopper (See items 39 & 41)
30 -------------- 3 Drum Assembly, Cooling - SST (OBSOLETE PART)
-------------- 3 Drum Assembly, Cooling - BLK (OBSOLETE PART)
01377.0000 12 Screw, Flat Head #8-32 x .75”
31 32091.0002 1 Mount Assembly, Cooling Drum - SST
32091.0003 1 Mount Assembly, Cooling Drum - BLK
32 -------------- 1 Drum, Cooling (Not Available. Order item 30)
33 29725.0000 6 Standoff
34 -------------- - Temperature Sensor Assy (See ELECTRICAL AND OPERATING CONTROLS)
35 28027.0000 3 Support, Cooling Drum (For Shipping and Cooling Drum Adjustment)
36 -------------- 3 Label, DO NOT LIFT HERE (For Shipping Only)
37 32632.0000 3 Latch, Retaining
01317.0000 6 Screw, Truss Head #8-32 x .50”
Items 38 through 43 are not illustrated:
38 32175.0000 - Kit, Latch/Rail (Includes items 10, 11 & 37) (Kit contains parts for one rail only)
39 M2550.0000 - Lubricant, Lubri-Film 4 oz.
40 M2548.1000 - Lubricant, Krytox .50 oz
41 28106.0000 - Kit, Preventive Maintenance (Includes items 21, 27, 28, 29, four faucet O-
rings and two faucet spool plugs)
21
29422 061207
CONDENSER, FAN AND AIR FLOW CONTROL MOUNTING
1 2 3
10 11
CDS-3
13 14 13 12
15 16
17
18
4
5
7 8 9
6
AIR FLOW CONTROL COMPONENTS
22
P1487.30
29422 012100
CONDENSER, FAN AND AIR FLOW CONTROL MOUNTING
ITEM PART NO. QTY. DESCRIPTION
1 28444.0000 1 Filter, Air
2 29083.0000 1 Condenser Assy
02308.0000 4 Screw, Pan Head Serrated #8-32 x .375”
3 -------------- 1 Shroud, Condenser (OBSOLETE PART)
02332.0001 4 Screw, Hex Head Crimptite #6 x .25”
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
4 29084.0000 1 Fan Assy, Condenser (CDS-3)(Includes items 5 thru 9)
29084.0001 1 Fan Assy, Condenser (230V)(CDSA-3)(Includes items 5 thru 9)
02332.0002 3 Screw, Hex Head - Thread Cutting #6 x .375”
5 27257.0000 1 Speed Nut, .25”-20
6 29159.0000 1 Blade, Condenser Fan
7 27258.0000 1 Silencer, Fan
8 29160.0000 1 Motor, Condenser Fan (CDS-3)(Includes Leads and Terminals)
29160.0001 1 Motor, Condenser Fan (230V)(CDSA-3)(Includes Leads and Terminals)
9 27219.0000 1 Shroud/Mount, Condenser Fan
27243.0000 3 Screw, Hex Head Thread Forming #8-32 x .437”
10 28540.0000 1 Cover, Rear - SST (Optional)
28540.0001 1 Cover, Rear - BLK (Optional)
11 -------------- 1 Bracket, Condenser Mounting/Air Baffle (OBSOLETE PART)
02308.0000 4 Screw, Pan Head - Serrated #8-32 x .375”
12 29168.0000 1 Baffle, Top Rear
02332.0002 2 Screw, Hex Crimptite #6 x .375”
02360.0000 2 Washer .188” I.D. x .750” O.D.
13 -------------- 2 Strip, Foam 13.6” LG
14 -------------- 3 Strip, Foam 6.3” LG
15 -------------- 1 Strip, Foam 2.3” LG
16 -------------- 1 Strip, Foam .875” LG
17 29283.0000 1 Bracket Assy, Deflector Mounting (Includes Tape)
18 29097.0000 1 Deflector, Vinyl
19 29195.1000 - Strip, Foam 18” LG
29195.1001 - Strip, Foam 48” LG
29195.1002 - Strip, Foam 120” LG
Order Item 19
23
29422 061207
C s
R
C s
R
R
4
4
0
A
R
4
4
0
A
COMPRESSOR AND MOUNTING
13 18 14
CDS-3
2
17
16
15
3
4
5
6
19
21
7
20
1
8
24
9
10
11
12
P1766.50
29422 012100
COMPRESSOR AND MOUNTING
ITEM PART NO. QTY. DESCRIPTION
1 32310.1000 1 Compressor Assy (CDS-3)(Includes items 7 thru 12, 19, 20 & Accumulator
Kit #32208.0000)
28493.1001 1 Compressor Assy (CDSA-3)(Includes items 7 thru 12, 19 & 20)
2 00987.0000 4 Nut, Elastic Lock .312”-18
3 -------------- 4 Washer, .349” I.D. x 1.0v O.D. (OBSOLETE PART)
4 -------------- 4 Sleeve, Compressor Mounting
5 -------------- 4 Grommet, Compressor Mounting
6 -------------- 4 Screw, Hex Head .312”-18 x 1.50” (OBSOLETE PART)
7 -------------- 1 Compressor (Not Available. Order item 1)
8 28771.0000 1 Thermal Overload Protector (CDS-3)
28771.0001 1 Thermal Overload Protector (230V)(CDSA-3)
9 28772.0000 1 Retainer, Overload Protector
10 28773.0000 1 Gasket, Cover
11 28774.0000 1 Cover, Compressor Terminal
Order item 22
12 28568.0000 1 Retainer, Compressor Terminal Cover
13 -------------- 1 Tube, Compressor to Condenser (OBSOLETE PART)
14 29292.0000 1 Coupling, Reducing .375” Dia to .312” Dia (Requires brazing to install)
15 27641.0000 1 Cap, Access Valve (Procure Locally)
16 27642.0000 1 Valve Core, .25”
17 28645.0000 1 Valve Assy, Access (Includes items 15 & 16) (Requires brazing to Install)
18 -------------- 1 Tube, Compressor to Access Valve (OBSOLETE PART)
19 28651.0000 1 Decal - R404A
20 28539.0000 1 Screw, Hex Head - Self Tapping #10-32 x .312”
21 -------------- 2 Eyebolt (Shipping Only)
28096.0000 1 Tag, Eyebolt Shipping Notice (Not Illustrated)
22 28567.0000 1 Kit, Compressor Mounting (Includes 4 each of item 4 & 5)
23 29196.0000 1 Wiring Harness, Compressor to Main Harness and Contactor
24 -------------- 3 Lead, Electrical 16AWG BLK 7.0” LG (OBSOLETE PART)
25 -------------- 1 Lead, Electrical 16AWG BLK 5.0” LG (OBSOLETE PART)
Not Illustrated
25
29422 061207
SIGHT GAUGE, FILTER/DRYER, EXPANSION VALVE/SOLENOID
AND PIPING
CDS-3
20 19 18 17
22 21
7
9
6
2
8 9
7
Early Models
12
10
11
13
14 15
2
3
16
5
4
P1767.65
26
29422 040502
SIGHT GAUGE, FILTER/DRYER, EXPANSION VALVE/SOLENOID AND PIPING
ITEM PART NO. QTY. DESCRIPTION
1 -------------- 1 Condenser (See Condenser, Fan and Air Flow Control Mounting)
2 28777.0000 3 Expansion Valve/Solenoid Assy (CDS-3)
28777.0001 3 Expansion Valve/Solenoid Assy (CDSA-3)
3 -------------- 1 Bracket, Expansion Valve/ Solenoid Mounting (OBSOLETE PART)
01317.0003 1 Screw, Truss Head - Locking #8-32 x .375”
4 -------------- 1 Tube, .312” O.D. Filter/Dryer to Center Expansion Valve (OBSOLETE PART)
5 -------------- 1 Tube, .312” O.D. Filter/Dryer to Right Expansion Valve (OBSOLETE PART)
6 -------------- 1 Tube, .312” O.D. Filter/Dryer to Left Expansion Valve (OBSOLETE PART)
7 28517.0000 1 Filter/Dryer Assy (Requires brazing to install)
8 -------------- 1 Tube, .312” O.D. Filter/Dryer to Sight Glass (OBSOLETE PART)
9 29291.0000 1 Sight Glass (Requires brazing to install)
10 29421.0000 6 Clamp, Hose .625” Dia to .750” Dia
11 -------------- 3 Tube, Evaporator/Cooling Drum to Accumulator ( See Accumulator and Evaporator
Piping)
12 29478.0000 1 Thermostatic Element
13 -------------- 1 Body (Not Available. Order item 2)
14 29480.0000 1 Tube & Plunger Assy (Includes Tube, Plunger and Spring)
(Each includes items 12 thru 15)
(Requires brazing to install)
15 29479.0000 1 Coil, Solenoid
01330.0000 1 Screw, Hex Washer - Serrated #10-32 x .375”
16 -------------- - Base, Chassis (See Frame Drip Trays and Panels)
17 -------------- 2 Tube, .312” O.D. (OBSOLETE PART)
18 28573.0000 1 Tee (Requires brazing to install)
19 -------------- 1 Tube, .312” Valve to Filter/Dryer (OBSOLETE PART)
20 28645.0000 1 Valve Assy (Includes items 21 and 22)(Requires brazing to install)
21 27642.0000 1 Valve Core, .25”
22 27641.0000 1 Cap, Access Valve (Procure Locally)
23 M2546.0000 - Tape, Cork-Pipe Insulation - 30 ft. roll (Use as required)(Not Illustrated)
27
29422 061207
EXPANSION VALVE/SOLENOID AND EVAPORATOR/COOLING
DRUM PIPING
1 2 3
CDS-3
5 4
28
P1768.100
29422 012100
EXPANSION VALVE/SOLENOID AND EVAPORATOR/COOLING DRUM PIPING
ITEM PART NO. QTY. DESCRIPTION
1 -------------- 1 Tube, Right Expansion Valve to Right Cooling Drum (OBSOLETE PART)
2 -------------- 1 Tube, Center Expansion Valve to Center Cooling Drum (OBSOLETE PART)
3 -------------- 1 Tube, Left Expansion Valve to Left Cooling Drum (OBSOLETE PART)
4 -------------- - Evaporator/Cooling Drum (See AUGER DRIVE AND EVAPORATOR/COOLING DRUM)
5 -------------- - Expansion Valve/ Solenoid (See SIGHT GAUGE, FILTER/DRYER, EXPANSION
VALVE/SOLENOI/AND PIPING)
6 M2546.0000 - Tape, Cork-Pipe Insulation - 30 ft. roll (Use as required)(Not Illustrated)
29
29422 061207
C s
R
ACCUMULATOR, EVAPORATOR/COOLING DRUM AND PIPING
1 2 3
CDS-3
Early Models
4
7
6
6
7
8
5
30
P1769
29422 052302
ACCUMULATOR, EVAPORATOR/COOLING DRUM AND PIPING
ITEM PART NO. QTY. DESCRIPTION
1 -------------- 1 Tube, Accum to Left Evap/Cooling Drum (OBSOLETE PART)
2 -------------- 1 Tube, Accum to Center Evap/Cooling Drum (OBSOLETE PART)
3 -------------- 1 Tube, Accum to Right Evap/ Cooling Drum (OBSOLETE PART)
4 -------------- - Evaporator/Cooling Drum (See AUGER DRIVE AND EVAPORATOR/COOLING DRUM)
5 -------------- - Compressor (See COMPRESSOR MOUNTING AND PIPING)
6 -------------- 1 Tube, Compressor to Accum (Requires brazing to install)(Early Models - not available)
33765.0001 1 Tube, Compressor to Accum (Requires brazing to install)(Late Models)
7 -------------- 1 Accumulator (Requires brazing to install)(Early Models - not available)
33749.0000 1 Accumulator (14 oz)(Requires brazing to install)(Early Models)
-------------- 1 Accumulator (17 oz)(Late Models)
8 27411.0000 1 Cup, Condensate
9 M2546.0000 - Tape, Cork-Pipe Insulation - 30 ft. roll (Use as required)(Not Illustrated)
31
29422 061207
ELECTRICAL AND OPERATING CONTROLS
1 2 3 4 31 32 6
7 8 9 10
CDS-3
w/o PAF
5
12
11
14
13
26 25
40
14
41
35 36 37 38
16
19
28
39
42
34
33
15
16
17
18
20
21
29
30
22 23 24 27
Early Models
32
P1786.35
29422 021201
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 27178.0000 3 Capacitor, Auger Motor 370 VAC (CDS-3)
27178.0001 3 Capacitor, Auger Motor 500VAC (CDSA-3)
2 27939.1000 3 Circuit Board, Torque Sensor
01317.0003 3 Screw, Truss Head - Locking #8-32 x .375”
02360.0000 3 Washer, .188” I.D. x .75” O.D.
3 27644.1000 2 Transformer, 12V 80VA (CDS-3)(Includes Leads, Terminal, Plug and Fuse)
-------------- 2 Transformer, 115/230V (CDSA-3) (OBSOLETE PART)
01315.0000 4 Screw, Truss Head #8-32 x .375”
00970.0000 4 Nut, Keps #8-32
4 -------------- 1 Bracket, Electronic Control Mounting (OBSOLETE PART)
01317.0003 4 Screw, Truss Head - Locking #8-32 x .375”
5 27181.0000 2 Circuit Breaker, 5 amp
6 27412.1001 1 Electronic Control (CDS-3)(Includes items 7 thru 10)
-------------- 1 Electronic Control (CDSA-3) (OBSOLETE PART)
-------------- 1 Electronic Control (CDSB-3) (OBSOLETE PART)
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
7 -------------- 1 Housing, Circuit Board
8 -------------- 1 Circuit Board
-------------- 4 Screw
9 -------------- 1 Cover, Circuit Board Housing (Includes item 10)
-------------- 4 Screw
10 12559.0003 1 Decal - Warning High Voltage
11 03231.0000 1 Holder Assy, Fuse (Includes Cap and Mounting Nut)
12 27441.0000 1 Fuse, 5 amp
13 27443.0000 1 Decal, Fuse
14 -------------- 1 Relay, 120V (CDS-3 & CDSB-3)
-------------- 1 Relay, 230V (CDSA-3)
01338.0000 2 Screw, Truss Head #8-32 x .625”
25948.0000 1 Relay, 120V (CDS-3 & CDSB-3)
25948.0001 1 Relay, 230V (CDSA-3)
01317.0003 2 Screw, Truss Head #8-32 x .375”
15 27437.0000 3 Switch, ICE/OFF/NO ICE
16 20317.0000 5 Switch, ON/OFF - Day/Night - Left, Center & Right Auger
17 28090.0001 1 Decal, Control Panel
18 28088.0001 1 Panel, Control (Includes item 17)
01317.0003 4 Screw, Truss Head Locking #8-32 x .375”
Not Available.
Order item 6
Early models. Not available
order item 48
Late models
19 01666.0001 1 Bushing, Strain Relief - 90° .75” Dia
20 01533.0005 5 Spacer, Nylon .375”
21 28089.1001 1 L.E.D./ Temperature Adjustment Board (Includes and item 28)
27433.0000 6 Nut, Hex Keps #4-40
22 -------------- 1 Drawer W/Decal - SST (OBSOLETE PART)
-------------- 1 Drawer W/Decal - BLK (OBSOLETE PART)
23 -------------- 1 Decal, Drawer - Front SST (OBSOLETE PART)
-------------- 1 Decal, Drawer - Front BLK (OBSOLETE PART)
(Continued)
33
29422 061207
ELECTRICAL AND OPERATING CONTROLS
(Continued)
1 2 3 4 31 32 6
7 8 9 10
CDS-3
w/o PAF
5
12
11
14
13
26 25
40
14
41
35 36 37 38
16
19
28
39
42
34
33
15
16
17
18
20
21
29
30
22 23 24 27
Early Models
34
P1786.35
29422 021201
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
24 11628.0001 1 Lock Assy, Drawer (Includes item 27)
25 01685.0000 1 Connector, Cord .50MPT (Includes Nut)
26 27246.0000 3 Temperature Sensor Assy (Includes Connector)
27 28095.0000 2 Key, Drawer Lock Assy. (Set of Two)
28 27396.0000 3 Knob, Temperature Control
29 27088.0000 1 Washer, Nylon #6
30 01521.0000 1 Washer, SST #6
31 29282.0000 1 Bracket, Timer Mounting
21717.0000 2 Screw, Pan Head #6-32 x .375”
02336.0000 2 Screw, Truss Head #4-40 x .375”
32 28503.0000 1 Timer, 120V (CDS-3)
28503.0001 1 Timer, 230V (CDSA-3)
21717.0000 2 Screw, Pan Head #6-32 x .375”
02336.0000 2 Screw, Truss Head #4-40 x .375”
33 28185.1001 1 Kit, Switch Cover (Includes item 34)
34 29207.0000 1 Bail, Switch Cover
Optional
35 28569.0000 1 Relay, Compressor Start (CDS-3)
28569.0001 1 Relay, Compressor Start (230V)(CDSA-3)
01382.0003 1 Screw, Truss Head #6-32 x .375”
36 -------------- 1 Strap, Capacitor Retaining (OBSOLETE PART)
01382.0003 2 Screw, Truss Head #6-32 x .375”
37 28570.0000 1 Capacitor, Compressor Start (CDS-3)
28570.0001 1 Capacitor, Compressor Start (230V) (CDSA-3)
38 28571.0000 1 Capacitor, Compressor Run (CDS-3)
28571.0001 1 Capacitor, Compressor Run (230V) (CDSA-3)
39 29446.0001 1 EMI Filter (CDSA-3 only)
40 -------------- 1 Cover, Relay (OBSOLETE PART)
02332.0001 2 Screw, Hex Crimptite #6 x .25”
41 29454.0000 1 Bracket, Relay Mounting
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
42 00614.0000 1 Bushing
43 01638.0002 1 Cord, Power 120V (CDS-3)
27728.0006 1 Cord, Power 230V (CDSA-3)
44 29197.0000 1 Wiring Harness, Main
45 21014.0123 1 Lead Electrical, Ground - 14AWG GRN 11” LG
00971.0000 2 Nut, Keps #10-32
Early models only
46 00617.0000 10 Tie, BLK Nylon 3.90” LG (As Required)
47 12919.0000 3 Cap, Terminal
48 21005.0762 1 Lead, Electrical - Jumper 18AWG WHT/RED 4” LG
(Used on dispensers with timer only)
49 33106.0000 - Kit, Relay 120V (CDS-3)
33106.0001 - Kit, Relay 230V (CDSA-3)
35
Replaces Early Model Relay
Not Illustrated
29422 021201
ELECTRICAL AND OPERATING CONTROLS
38 1 2 33 34 35 36 37 39 40 41 42 3 28 29 4
5 6 7 8
CDS-3
w/PAF
10
9
24 23
43
12
44
14
17
32
45
20 21 22 25
11
12
31
30
13
14
15
16
18
19
26
27
Early Models
36
P1946.30
29422 083000
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 27178.0000 3 Capacitor, Auger Motor 370 VAC (CDS-3)
27178.0001 3 Capacitor, Auger Motor 500 VAC (CDSA-3)
2 27939.1000 3 Circuit Board, Torque Sensor
01317.0003 3 Screw, Truss Head - Locking #8-32 x .375”
02360.0000 3 Washer, .188” I.D. x .75” O.D.
3 -------------- 1 Bracket, Electronic Control Mounting (OBSOLETE PART)
01317.0003 4 Screw, Truss Head - Locking #8-32 x .375”
4 27412.1001 1 Electronic Control (CDS-3) (Includes items 5 thru 8)
-------------- 1 Electronic Control (CDSB-3) (OBSOLETE PART)
01317.0000 4 Screw, Truss Head #8-32 x .375”
5 -------------- 1 Housing, Circuit Board
6 -------------- 1 Circuit Board
-------------- 4 Screw
7 -------------- 1 Cover, Circuit Board Housing (Includes item 8)
-------------- 4 Screw
8 12559.0003 1 Decal - Warning High Voltage
9 03231.0000 1 Holder Assy, Fuse (Includes Cap and Mounting Nut)
10 27441.0000 1 Fuse, 5 amp
11 27443.0000 1 Decal, Fuse
12 -------------- 1 Relay, (Early models. Not available order item 55)
01338.0000 2 Screw, Truss Head - Locking #8-32 x .625”
25948.0000 1 Relay, 120V (CDS-3) (Late models)
25948.0001 1 Relay, 230V (CDSA-3) (Late models)
02335.0001 2 Screw, Crimptite #8-32 x .625”
13 27437.0000 3 Switch, ON/OFF Ice
14 20317.0000 5 Switch, ON/OFF - Day/Night - Left & Right Auger
15 28090.0001 1 Decal, Control Panel
16 28088.0001 1 Panel, Control (Includes item 15)
01317.0003 4 Screw, Truss Head Locking #8-32 x .375”
17 01666.0001 1 Bushing, Strain Relief - 90° .75” Dia
Not Available.
Order item 4
18 01533.0005 5 Spacer, Nylon .375”
19 28089.1001 1 Kit, L.E.D./ Adjustment Board (Includes item 32)
27433.0000 6 Nut, Hex Keps #4-40
20 -------------- 1 Drawer W/Decal SST (OBSOLETE PART)
21 27438.0000 1 Decal, Drawer - Front SST
22 11628.0001 1 Lock Assy, Drawer (Includes item 25)
23 01685.0000 1 Connector, Cord .50MPT (Includes Nut)
24 27246.0000 3 Temperature Sensor Assy (Includes Connector)
25 28095.0000 2 Key, Drawer Lock Assy. (Set of Two)
26 27088.0000 1 Washer, Nylon #6
27 01521.0000 1 Washer, SST #6
(Continued)
37
29422 061207
ELECTRICAL AND OPERATING CONTROLS
(Continued)
38 1 2 33 34 35 36 37 39 40 41 42 3 28 29 4
5 6 7 8
CDS-3
w/PAF
10
9
24 23
43
12
44
14
17
32
45
20 21 22 25
11
12
31
30
13
14
15
16
18
19
26
27
Early Models
38
P1946.30
29422 083000
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
28 29282.0000 1 Bracket, Timer Mounting
21717.0000 2 Screw, Pan Head #6 x .375”
29 28503.0000 1 Timer, 120V (CDS-3)
28503.0001 1 Timer, 230V (CDSA-3)
21717.0000 4 Screw, Pan Head #6-32 x .375”
30 28185.1001 1 Cover, Switch (Includes item 31)
31 29207.0000 1 Bail, Switch Cover
32 27396.0000 3 Knob, Temperature Adjustment
33 29742.0000 3 Push Nut
34 29726.0000 3 Housing
35 27788.0000 3 Spring
36 27748.0000 3 Pin
00906.0000 6 Nut #6-32
37 29728.1000 3 Probe, Level (3.50”)
29728.1001 3 Probe, Level (1.88”)
38 03628.0000 3 Receptacle
39 28569.0000 1 Relay, Compressor Start (CDS-3)
28569.0001 1 Relay, Compressor Start (CDSA-3)
01382.0003 1 Screw, Truss Head #6-32 x .375”
40 -------------- 1 Strap, Capacitor Retaining (OBSOLETE PART)
01382.0003 2 Screw, Truss Head #6-32 x .375”
41 28570.0000 1 Capacitor, Compressor Start (CDS-3)
28570.0001 1 Capacitor, Compressor Start (CDSA-3)
42 28571.0000 1 Capacitor, Compressor Run (CDS-3)
28571.0001 1 Capacitor, Compressor Run (CDSA-3)
43 -------------- 1 Cover, Relay (OBSOLETE PART)
02332.0001 2 Screw, Hex Crimptite #6-32 x .25”
44 29454.0000 1 Bracket, Relay Mounting
01317.0003 2 Screw Truss Head Locking #8-32 x .375”
45 00614.0000 1 Bushing
46 01638.0002 1 Cord, Power 120V (CDS-3)
27728.0006 1 Cord, Power 230V (CDSA-3)
47 29197.0000 1 Wiring Harness, Main
48 21014.0123 1 Lead Electrical, Ground - 14AWG GRN 11” LG
00971.0000 2 Nut, Keps #10-32
49 00617.0000 10 Tie, BLK Nylon 3.90” LG (As Required)
50 12919.0000 6 Cap, Terminal
51 -------------- 1 Lead, Electrical, Jumper 18AWG WHT/RED 4” LG
(Used on dispensers with day/night timer)
Early models only
Not Illustrated
52 29759.0001 1 Wiring Harness, Power CDS-3 PAF
29759.0003 1 Wiring Harness, Power CDSA-3 PAF
53 29763.0000 3 Resister, Probe Detector
54 32501.0000 2 Voltage Divider 120V (CDS-3)
32501.0001 2 Voltage Divider 230V (CDSA-3)
55 33106.0000 - Kit, Relay 120V (CDS-3)
33106.0001 - Kit, Relay 230V (CDSA-3)
39
Replaces Early Model Relay
29422 061207
NUMERICAL INDEX
PART NO. ................PAGE NO.
00614.0000.................... 35,39
00617.0000.................... 35,39
00906.0000......................... 39
00927.0000........................... 7
00970.0000......................... 33
00971.0000.................... 35,39
00986.0002........................... 5
00987.0000......................... 25
01311.0001.................... 15,19
01315.0000.................... 11,33
01317.0000.................... 21,37
01317.0001......................... 19
01317.0003....... 5,15,19,23,27
01317.0003.......... 33,35,37,39
01326.0002.................... 15,19
01330.0000......................... 19
01330.0000......................... 27
01338.0000.................... 33,37
01377.0000.................... 17,21
01382.0003.................... 35,39
01393.0000......................... 13
01501.0000.................... 15,19
01521.0000.................... 35,37
01522.0000......................... 19
01532.0001...................... 9,11
01533.0005.................... 33,37
01638.0002.................... 35,39
01666.0001.................... 33,37
01685.0000.................... 35,37
02308.0000......................... 23
02329.0000........................... 5
02331.0000......................... 19
02332.0001......... 5,7,23,35,39
02332.0002......................... 23
02335.0001......................... 37
02336.0000......................... 35
02360.0000............... 23,33,37
03231.0000.................... 33,37
03628.0000......................... 39
03851.0000...................... 9,11
03996.0000........................... 5
11556.0001.................... 15,19
11628.0001.................... 35,37
12421.1001........................... 7
12421.1002........................... 7
12421.1003........................... 7
12559.0003.................... 33,37
12919.0000.................... 35,39
13255.0003........................... 7
20317.0000.................... 33,37
21005.0762......................... 35
21014.0123.................... 35,39
21436.0000........................... 5
21437.1000........................... 5
21717.0000.................... 35,39
PART NO. ................PAGE NO.
24457.0001......................... 19
24566.0000........................... 9
25948.0000.................... 33,37
25948.0001.................... 33,37
26528.0000........................... 5
26713.1000......................... 13
26714.1000........................... 9
26714.1001........................... 9
26717.0000........................... 9
26780.0000.................... 15,19
26781.0000.................... 15,21
26782.0001......................... 21
26784.0000...................... 9,13
26786.0000...................... 9,13
26786.0001...................... 9,13
26786.0002........................... 9
26786.0003........................... 9
26788.0000...................... 9,13
26792.0000.................... 15,21
26793.0000...................... 9,13
26793.0001...................... 9,13
26958.0000........................... 5
26958.0001........................... 5
26972.0000...................... 9,13
27058.0000........................... 5
27058.0001........................... 7
27058.0002........................... 5
27058.0003........................... 7
27088.0000.................... 35,37
27135.0001........................... 9
27136.0002........................... 5
27136.0003........................... 5
27137.0000...................... 9,13
27178.0000.................... 33,37
27178.0001.................... 33,37
27181.0000......................... 33
27219.0000......................... 23
27223.0000.................... 15,19
27224.0000.................... 15,19
27228.0000......................... 15
27231.0000......................... 15
27231.0001......................... 15
27232.0000.................... 15,19
27235.0000........................... 9
27243.0000......................... 23
27246.0000.................... 35,37
27256.0000........................... 9
27257.0000......................... 23
27258.0000......................... 23
27394.0000........................... 5
27394.0001........................... 5
27396.0000.................... 35,39
27410.0000........................... 7
27411.0000......................... 31
27412.1001.................... 33,37
PART NO. ................PAGE NO.
27433.0000.................... 33,37
27437.0000.................... 33,37
27438.0000......................... 37
27440.0000.................... 15,19
27441.0000.................... 33,37
27442.0000........................... 5
27443.0000.................... 33,37
27445.1000...................... 9,11
27446.0000...................... 9,11
27447.0000 .......................... 9
27448.0000........................... 9
27641.0000.................... 25,27
27642.0000.................... 25,27
27643.0000...................... 9,11
27644.1000......................... 33
27664.0000........................... 5
27728.0006.................... 35,39
27748.0000......................... 39
27788.0000......................... 39
27938.0000........................... 9
27939.1000.................... 33,37
28027.0000.................... 17,21
28062.0000........................... 9
28078.0000........................... 5
28078.0001........................... 5
28079.1000........................... 9
28079.1001........................... 9
28079.1002........................... 9
28080.1000...................... 9,13
28080.1001...................... 9,13
28081.0000.................... 15,19
28082.0000........................... 9
28082.0007........................... 9
28083.0000...................... 9,13
28088.0001.................... 33,37
28089.1001.................... 33,37
28090.0001.................... 33,37
28093.1000.................... 15,19
28093.1001......................... 15
28095.0000.................... 35,37
28096.0000......................... 25
28098.0000........................... 7
28106.0000......................... 21
28106.0001......................... 17
28107.0000...................... 9,13
28125.0000........................... 7
28185.1001.................... 35,39
28216.1000...................... 9,13
28216.1001...................... 9,13
28236.0000......................... 17
28391.0000...................... 9,13
28444.0000......................... 23
28493.1001......................... 25
28503.0000.................... 35,39
28503.0001.................... 35,39
PART NO. ................PAGE NO.
28505.0000........................... 5
28505.0001........................... 5
28517.0000......................... 27
28539.0000......................... 25
28540.0000......................... 23
28540.0001......................... 23
28567.0000......................... 25
28568.0000......................... 25
28569.0000.................... 35,39
28569.0001.................... 35,39
28570.0000.................... 35,39
28570.0001.................... 35,39
28571.0000.................... 35,39
28571.0001.................... 35,39
28573.0000......................... 27
28574.0000........................... 5
28574.0002........................... 5
28644.0000........................... 5
28644.0003........................... 5
28645.0000.................... 25,27
28651.0000......................... 25
28720.0000........................... 7
28771.0000......................... 25
28771.0001......................... 25
28772.0000......................... 25
28773.0000......................... 25
28774.0000......................... 25
28776.0000........................... 9
28777.0000......................... 27
28777.0001......................... 27
29083.0000......................... 23
29084.0000......................... 23
29084.0001......................... 23
29097.0000......................... 23
29159.0000......................... 23
29160.0000......................... 23
29160.0001......................... 23
29168.0000......................... 23
29195.1000......................... 23
29195.1001......................... 23
29195.1002......................... 23
29196.0000......................... 25
29197.0000.................... 35,39
29207.0000.................... 35,39
29220.1000........................... 5
29220.1001........................... 5
29282.0000.................... 35,39
29283.0000......................... 23
29291.0000......................... 27
29292.0000......................... 25
29369.0000........................... 5
29369.0001........................... 5
29421.0000......................... 27
29424.0000........................... 7
29428.0000........................... 7
40
29422 061207
NUMERICAL INDEX
PART NO. ................PAGE NO.
29446.0001......................... 35
29454.0000.................... 35,39
29478.0000......................... 27
29479.0000......................... 27
29480.0000......................... 27
29591.0001......................... 19
29591.0002......................... 19
29702.1000........................... 7
29724.0000......................... 19
29725.0000......................... 21
29726.0000......................... 39
29728.1000......................... 39
29728.1001......................... 39
29742.0000......................... 39
29759.0001......................... 39
29759.0003......................... 39
29763.0000......................... 39
29844.0000......................... 19
32091.0002.................... 17,21
32091.0003.................... 17,21
32096.0000 ........................ 11
32105.0000......................... 11
32105.0001......................... 11
32106.1000.................... 15,19
32175.0000......................... 21
32189.0000......................... 11
32190.1000......................... 11
32190.1002......................... 11
32191.0000......................... 11
32193.0000......................... 11
32195.0000......................... 11
32196.1000......................... 11
32196.1001......................... 11
32265.0001......................... 11
32266.0000......................... 11
32267.1000...................... 9,11
32268.0000......................... 11
32310.1000......................... 25
32449.0000.................... 15,19
32501.0000......................... 39
32501.0001......................... 39
32580.0000........................ 5,7
32632.0000......................... 21
33106.0000.................... 35,39
33106.0001.................... 35,39
33176.0000......................... 13
33179.0000......................... 13
33749.0000......................... 31
33765.0001......................... 31
34836.0000.................... 15,19
34836.0001.................... 15,19
37593.0000......................... 15
M2546.0000 .............27,29,31
M2548.1000 ..................17,21
M2550.0000 ..........9,13,17,21
PART NO. ................PAGE NO.
PART NO. ................PAGE NO. PART NO. ................PAGE NO.
41
29422 061207
Loading...
