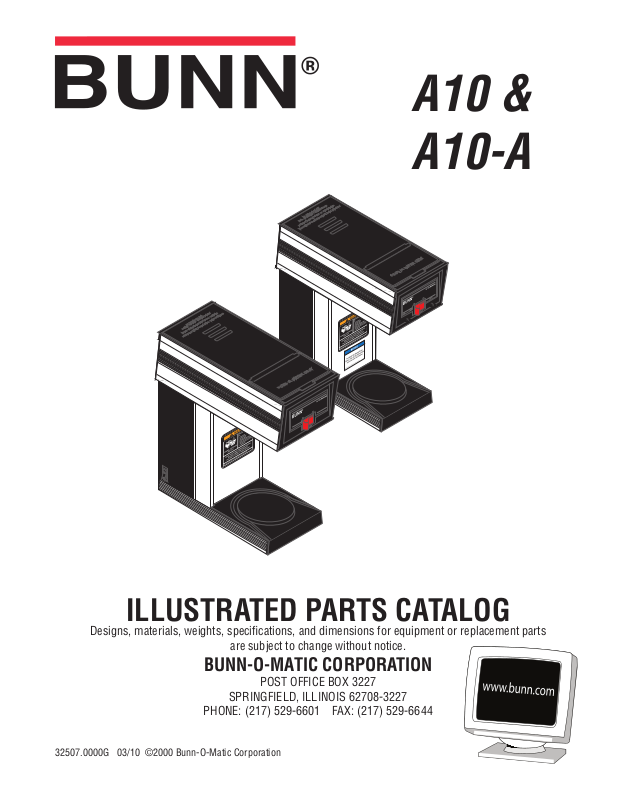

A10 &
A10-A
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
32507.0000G 03/10 ©2000 Bunn-O-Matic Corporation
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress,
BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink,
Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr.
Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High
Intensity, iMIX, Infusion Series, Intellisteam, My Café, PowerLogic, Quality Beverage Equipment Worldwide,
Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE,
Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, 392, A Partner
You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not
bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a
BUNN, Pouring Profits, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Signature
Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, Titan, Ultra are either trademarks or registered
trademarks of Bunn-O-Matic Corporation.
2
32507 030110
TABLE OF CONTENTS
TITLE PAGE NO.
Electrical & Operating Controls .......................................................................................................11
Housing & Covers .............................................................................................................................5
Numerical Index ..............................................................................................................................14
Strainer/Flow Control & Tubing .........................................................................................................9
Tank & Basin .....................................................................................................................................7
Warmer Assembly & Funnel............................................................................................................13
3
32507 021500
BUNN
14
®
HOUSING AND COVERS
A10 &
A10A
1
2
3
21
15
16
17
4
5
6
7
8
9
10
20
11
12
18
19
13
P2045.65
4
32507 080607
HOUSING AND COVERS
ITEM PART NO. QTY DESCRIPTION
1 04124.0001 1 Lid, Flip - Black
2 04123.0001 1 Cover, Top - Black
01364.0000 3 Screw, PNH-Plasscrew - #6 x .38”
3 04097.0001 1 Basin, Pour-In-Black (Pourover only)
04097.0002 1 Basin, Pour-In - Black (Automatic only)
01364.0000 2 Screw, PNH - Plasscrew - #6 x .38”
4 04062.0000 1 Panel, Hood, Right (Silver)
01351.0000 4 Screw, Hex Wshr Zinc #8 x.75” - AB
5 21327.0000 1 Front End Cap, Blk (Pourover)
21327.0001 1 Front End Cap, Blk (Automatic)
01342.0000 2 Screw, Hex Wshr Zinc. #8 x.75”
6 21139.0000 1 Decal, Cont. Panel (Black) (Pourover)
21139.0002 1 Decal, Cont. Panel (Blk - 1/2 Batch)(Automatic)
7 04063.0000 1 Panel, Hood Left (Silver)
01351.0000 4 Screw, Hex Wshr Zinc #8 x .75”-AB
8 04064.0000 1 Panel, Trunk, Right (Silver)
9 21903.0000 1 Panel - Sprayhead/Trunk (Includes Item 10)
10 00658.0000 1 Decal, Warning - Decanter/Funnel
11 04065.0000 1 Panel, Trunk, Left (Silver)
12 04021.0002 1 Base Frame, Warmer - Black
01350.0000 4 Screw, Hex Wshr HDSLTD - PL #8 x .50”
13 04060.0000 1 Panel, Base (Silver)
01351.0000 4 Screw, Hex Wshr Zinc #8 x.75”-AB
14 04016.0001 1 Cover, Hood Rear - Black
01383.0000 4 Screw, PH PNH Zinc 6-32 x .50”
15 21901.0000 1 Housing, Trunk - Blk (Pourover 120 V)(Includes Item 17)
21901.0001 1 Housing, Trunk - Blk (Pourover 240 V)(Includes Item 17)
21902.0000 1 Housing, Trunk - Blk (Automatic 120 V)(Includes Item 16 & 17)
21902.0001 1 Housing, Trunk - Blk (Automatic 240 V)(Includes Item 16 & 17)
01315.0000 2 Screw, TRH SLTD SST #8-32 x .38”
00938.0000 2 Fastener, U-Type SST #8-32
01342.0000 2 Screw, Hex Wshr Zinc #8 x .75”
16 00656.0000 1 Decal, Comply to Plumbing Code (Automatic Only)
17 00831.0000 1 Decal, Warning - Electrical
18 04002.1000 1 Foot (Set of 4)
01383.0000 4 Screw, PH PNH Zinc #6-32 x .50”
19 03990.0000 4 Plug, Foot-Rubber
20 33218.0000 1 Decal, Notice - Digital Timer Adjustment (Automatic Only)
21 37881.0002 1 Decal, No Service Parts
5
32507 080607
BUNN
11
®
TANK AND BASIN
A10 &
A10A
2
3
14
4
6
5
10
12
7
15
16
8
9
13
P2047.90
6
32507 012809
TANK AND BASIN
ITEM PART NO. QTY DESCRIPTION
1 04140.0000 1 Tank Assembly 120 V (Includes Items 2-15)
2 01212.0000 1 Fitting, SLTD - Tank Inlet
3 01540.0000 1 Washer, SST - .75˝ ID x 1.0˝ OD
4 01201.0000 1 Gasket, Tank Inlet
5 00942.0000 2 Nut, Hex - Brass .5˝-20
6 - - - - - - - - 1 Thermostat (Refer to Electrical Section)
7 05518.0000 1 Syphon Hub
8 00943.0000 2 Gasket, Tank Heater
9 04144.1000 1 Tank Heater, 1000W 120 V (Includes Item #8)
04174.1000 1 Tank Heater, 1000W 240 V (Includes Item #8)
10 04142.0001 1 Tank Lid Weldment W/Spray Tube
01380.0000 4 Screw, TRH SLTD SST #6-32 x .5˝
01382.0000 2 Screw, Trh Sltd Sst #6-32 x .375˝
00973.0000 6 Nut, Keps #6-32 Zinc Pl.
01352.0000 2 Screw, Hex Wshr Zinc #8-32 x 1.375˝
11 04844.0000 1 Gasket, Tank Lid
12 35430.0000 1 Tank, SST
13 04100.0000 1 Blanket Warmer, 40W 120 V (Models with large Vacation Switch)
33605.0000 1 Blanket Warmer, 40W 120 V (Models with small Vacation Switch)
01929.0000 1 Blanket Warmer, 34W 240 V
14 - - - - - - - - 1 Basin, Pour-in - See HOUSING AND COVERS
15 01075.0000 1 Nut, Hex
16 01082.0004 1 Sprayhead, 5-Hole, SST
The Following Items Are Not Illustrated
17 28235.0001 1 Wiring Harnes, TCO - Thermostat
18 04167.0000 1 Thermal Cut-Off W/Lead 120 V
04167.0001 1 Thermal Cut-Off W/Lead 240 V
7
32507 030410
BUNN
1
3
®
STRAINER/FLOW CONTROL & TUBING
A10 &
A10A
A-10 AUTOMATIC ONLY
11
12
13
14
2
4
15
5
16
6
7
17
8
10
9
P2049.90
8
32507 040407
STRAINER/FLOW CONTROL & TUBING
ITEM PART NO. QTY. DESCRIPTION
1 01148.0001 1 Flow Control/Strainer (.222 gpm)(Includes Items 2 & 4)
2 20526.1222 1 Flow Washer (.222 gpm)
3 00310.0000 1 Tube Assy, Flow Control/Strainer to Solenoid
4 01155.0000 1 Gasket
5 00402.0001 1 Connector, Male (Flow Control/Strainer to Solenoid)
6 01085.0002 1 Valve, Solenoid 120 V (Includes Items 7-10)
01975.0000 1 Valve, Solenoid 240 V
01327.0000 2 Screw, PNH SLTD SST #10-32
01502.0000 2 Lock Washer #10
7 28480.0000 1 Solenoid Coil, 120 V
01100.0000 1 Solenoid Coil, 240 V
8 28481.0000 1 Guide Kit, 120 V (Includes Washer & O-ring)
9 28479.0000 1 Base Kit, 120 V (Includes O-ring)
01079.0000 1 Base 240 V
10 01111.0002 1 Solenoid Valve Repair Kit - 120 V
11 00942.0000 1 Nut, Hex - Brass
12 01544.0000 1 Washer, .50” ID x .75” OD
13 00943.0000 1 Gasket
14 21214.0000 1 Tube Assy, Fill Basin
15 11707.1001 1 Tube, Silicone .250” ID X 36.0” LG (Cut to 16”)
16 12422.0000 1 Clamp, Hose - Snap-Type
17 00464.0001 1 Elbow, Male (Solenoid to Fill Basin Tube)
9
32507 040407
BUNN
®
ELECTRICAL AND OPERATING CONTROLS
A10 &
A10A
1
3
10
11
12
2
4
5
Small
Switch
6
7
8
9
9
Early Models
10
P2046.90
32507 020901
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 04052.0000 1 Bracket, Switch Retainer
01342.0000 2 Screw, Hex Wshr Zinc #8 x .75”
2 04069.0003 1 Thermostat Assy (Includes Items 3 and 4)
01342.0000 2 Screw, Hex Wshr Zinc #8 x .75”
07073.1000 1 Grommet Kit
3 00720.0000 1 Knob, Thermostat - Black
4 28223.0000 1 Bracket, Thermostat
02328.0003 2 Screw, PNH SLT SST #6-32 x .312”
5 21274.0000 1 Switch Assy, Start (Automatic Only)
21212.0000 1 Nut, Knurled .250-40
6 04067.0001 1 Switch, On/Off - Lighted Red (120 V)
04039.0000 1 Switch, On/Off - Lighted Red (240 V)
7 21273.0000 1 Switch Assy, Half Batch (Automatic Only)
21212.0000 1 Nut, Knurled .250-40
8 21453.0000 1 Shield, Timer Board (Automatic Only)
9 02620.1042 1 Timer, 5 min 120 V (Automatic Only)
02620.1043 1 Timer, 5 min 240 V (Automatic Only)
32400.0002 1 Timer, Digital 120 V (Automatic Only)
32400.0003 1 Timer, Digital 240 V (Automatic Only)
01342.0001 3 Screw, Hex Wshr #6-32 x .62”
01533.0003 3 Spacer, NYL - .140” ID x .250” OD
10 01711.1002 1 Cord Assy, Power 120 V (Models with large Vacation Switch)
01711.1003 1 Cord Assy, Power 120V (Models with small Vacation Switch)
01716.0000 1 Cord, Power 250 V 10 Amp
00707.0000 1 Bushing, Strain Relief (used with 120 V cord only)
11 04786.0002 1 Switch, Vacation On/Off - Black 120 & 240 V (.64” x 1.23”)
20317.0005 1 Switch, Vacation On/Off - Black 120V (.59” x .825”)
12 05749.0003 1 Plug, Black .375” dia. (Used with late model Digital Timer)
The Following Items Are Not Illustrated
13 21225.0000 1 Wiring Harness - Timer to Solenoid 120 V (Automatic Only)
21225.0001 1 Wiring Harness - Timer to Solenoid 240 V (Automatic Only)
14 21000.0020 1 Lead, Elec-On/Off Switch (120 V & 240 V)(Models with large Vacation Switch)
21000.0709 1 Lead, Elec-On/Off Switch (120V) (Models with small Vacation Switch)
15 28235.0001 1 Wiring Harness - TCO - Thermostat
16 21003.0139 1 Lead - Elec On/Off Switch (240 V Models only)
Early Models
Late Models
17 21000.0334 1 Lead - Elec On/Off Switch (240 V Models only)
18 01908.0000 1 Power Connector (Used on 240 V Models only)
01362.0000 2 Screw, OVH SLTD SST #4-40 x .50”
01509.0000 2 Lock Washer, EXT T-#4
00937.0000 2 Nut, Hex - SST #4-40
11
32507 030410
BUNN
®
WARMER ASSEMBLY AND FUNNEL
A10 &
A10A
1
2
3
5
8
8
4
9
10
6
7
12
P2048.80
32507 081808
WARMER ASSEMBLY AND FUNNEL
ITEM PART NO. QTY. DESCRIPTION
1 04041.0003 1 Funnel, Hot Water - Black
2 38766.0001 1 Funnel, Brew - Black
3 - - - - - - - - 1 Base Frame, Warmer See HOUSING AND COVERS
4 04095.0002 1 Warmer Assy, W/Leads 120 V (Includes Items 5-8)
04095.0003 1 Warmer Assy, W/Leads 240 V (Includes Items 5-8)
01367.0000 1 Screw, Hex UNSLTD - PL - .25” x .38”
01519.0000 1 Lock Washer - #8
00908.0000 1 Nut, Hex - SST #8-32
5 04151.0002 1 Warmer Dish, Black Porcelain
6 04163.1000 1 Warmer Element Assy 120 V
04163.1001 1 Warmer Element Assy 240 V
7 01001.0000 2 Nut, Wshr - Depressed #8-32
8 01676.0000 1 Wiring Harness, Warmer 120 V
01676.0001 1 Wiring Harness, Warmer 240 V
9 04870.0000 1 Pitcher, Water 48 oz.
10 41188.1000 1 Warmer Assy, PTC W/Leads 120 V (New Style w/2 Mounting Screws)
13
32507 081808
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO.
PART NO. PAGE NO.PART NO. PAGE NO.
00310.0000......................... 9
00402.0001......................... 9
00464.0001......................... 9
00656.0000......................... 5
00658.0000......................... 5
00707.0000....................... 11
00720.0000....................... 11
00831.0000......................... 5
00908.0000....................... 13
00937.0000....................... 11
00938.0000......................... 5
00942.0000...................... 7,9
00943.0000...................... 7,9
00973.0000......................... 7
01001.0000....................... 13
01075.0000......................... 7
01079.0000......................... 9
01082.0004......................... 7
01085.0002......................... 9
01100.0000......................... 9
01111.0002......................... 9
01148.0001......................... 9
01155.0000......................... 9
01201.0000......................... 7
01212.0000......................... 7
01315.0000......................... 5
01327.0000......................... 9
01342.0000.................... 5,11
01342.0001....................... 11
01350.0000......................... 5
01351.0000......................... 5
01352.0000......................... 7
01362.0000....................... 11
01363.0000......................... 7
01364.0000......................... 5
01367.0000....................... 13
01380.0000......................... 7
01382.0000......................... 7
01383.0000......................... 5
01502.0000......................... 9
01509.0000....................... 11
01519.0000....................... 13
01533.0003....................... 11
01540.0000......................... 7
01544.0000......................... 9
01676.0000....................... 13
01676.0001....................... 13
01711.1002....................... 11
01711.1003....................... 11
01716.0000....................... 11
01908.0000....................... 11
01929.0000......................... 7
01975.0000......................... 9
02328.0003....................... 11
02620.1042....................... 11
02620.1043....................... 11
03990.0000......................... 5
04002.1000......................... 5
04016.0001......................... 5
04021.0002......................... 5
04039.0000....................... 11
04041.0003....................... 13
04052.0000....................... 11
04060.0000......................... 5
04062.0000......................... 5
04063.0000......................... 5
04064.0000......................... 5
04065.0000......................... 5
04067.0001....................... 11
04069.0003....................... 11
04095.0002....................... 13
04095.0003....................... 13
04097.0001......................... 5
04097.0002......................... 5
04100.0000......................... 7
04123.0001......................... 5
04124.0001......................... 5
04140.0000......................... 7
04142.0001......................... 7
04144.1000......................... 7
04151.0002....................... 13
04163.1000....................... 13
04163.1001....................... 13
04167.0000......................... 7
04167.0001......................... 7
04174.1000......................... 7
04786.0002....................... 11
04844.0000......................... 7
04870.0000....................... 13
05518.0000......................... 7
05749.0003....................... 11
07073.1000....................... 11
11707.1001......................... 9
12422.0000......................... 9
20317.0005....................... 11
20526.1222......................... 9
21000.0020....................... 11
21000.0334....................... 11
21000.0709....................... 11
21003.0139....................... 11
21139.0000......................... 5
21139.0002......................... 5
21212.0000....................... 11
21214.0000......................... 9
21225.0000....................... 11
21225.0001....................... 11
21273.0000....................... 11
21274.0000....................... 11
21327.0000......................... 5
21327.0001......................... 5
21453.0000....................... 11
21901.0000......................... 5
21901.0001......................... 5
21902.0000......................... 5
21902.0001......................... 5
21903.0000......................... 5
28223.0000....................... 11
28235.0001.................... 7,11
28479.0000......................... 9
28480.0000......................... 9
28481.0000......................... 9
32400.0002....................... 11
32400.0003....................... 11
33218.0000......................... 5
33605.0000......................... 7
35430.0000......................... 7
37881.0002......................... 5
38766.0001....................... 13
41188.1000....................... 13
14
32507 030410
Loading...
