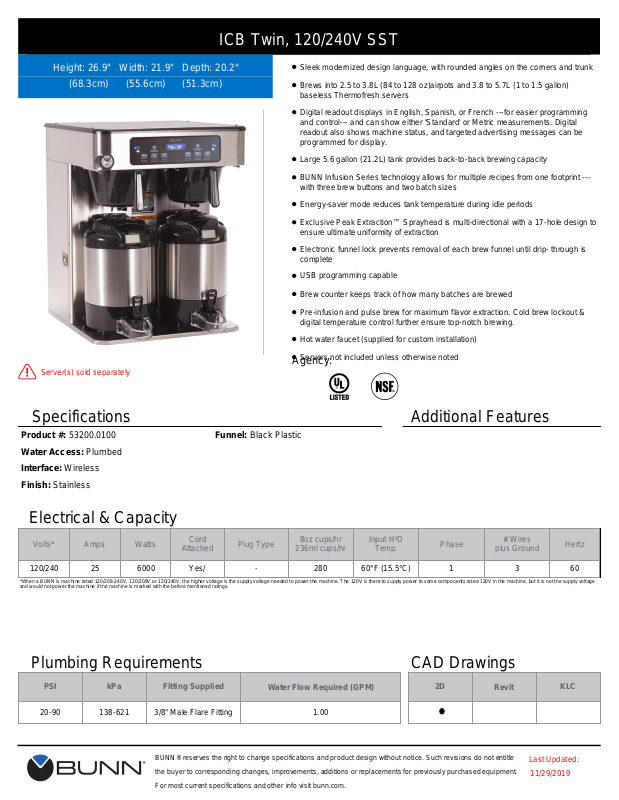

Bunn-O-Matic 532000100 Specifications

ICB Twin, 120/240V SST

Height: 26.9" Width: 21.9" Depth: 20.2"

(68.3cm) (55.6cm) (51.3cm)

Server(s) sold separately

Sleek modernized design language, with rounded angles on the corners and trunk
Brews into 2.5 to 3.8L (84 to 128 oz)airpots and 3.8 to 5.7L (1 to 1.5 gallon)

baseless Thermofresh servers
Digital readout displays in English, Spanish, or French ---for easier programming

and control--- and can show either 'Standard' or Metric measurements. Digital
readout also shows machine status, and targeted advertising messages can be
programmed for display.

Large 5.6 gallon (21.2L) tank provides back-to-back brewing capacity
BUNN Infusion Series technology allows for multiple recipes from one footprint ---

with three brew buttons and two batch sizes
Energy-saver mode reduces tank temperature during idle periods

Exclusive Peak Extraction™ Sprayhead is multi-directional with a 17-hole design to
ensure ultimate uniformity of extraction

Electronic funnel lock prevents removal of each brew funnel until drip- through is
complete

USB programming capable
Brew counter keeps track of how many batches are brewed
Pre-infusion and pulse brew for maximum flavor extraction. Cold brew lockout &

digital temperature control further ensure top-notch brewing.
Hot water faucet (supplied for custom installation)
Servers not included unless otherwise noted

Agency:

Specifications Additional Features

53200.0100Product #: Black PlasticFunnel:
PlumbedWater Access:

Interface:
Finish:

Wireless

Stainless

Electrical & Capacity

Volts* Amps Watts

120/240

*When a BUNN is machine rated 120/208-240V, 120/208V or 120/240V, the higher voltage is the supply voltage needed to power the machine. The 120V is there to supply power to some components rated 120V in the machine, but it is not the supply voltage
and would not power the machine if the machine is marked with the before mentioned ratings.

25 6000

Cord

Attached

Yes/

Plug Type

- 280

8oz cups/hr

236ml cups/hr

Input H²O

Temp.

60°F (15.5°C)

Phase

1 3 60

# Wires

plus Ground

Hertz

Plumbing Requirements CAD Drawings

PSI kPa

20-90 138-621

Fitting Supplied

3/8" Male Flare Fitting

Water Flow Required (GPM)

1.00

2D

Revit

KLC

•

BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.

Last Updated:

11/29/2019

Unit Shipping

Height Width

Depth

Height Width

Depth

Weight

Volume

English 26.9 in. 20.2 21.9 in. 30.0 in. 23.9 28.4 in. 78.460 lbs 11.761 ft³

Metric 68.3 cm 51.3 55.6 cm 76.2 cm 60.6 72.1 cm 35.589 kgs 0.333 m³

BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.

Last Updated:

11/29/2019
