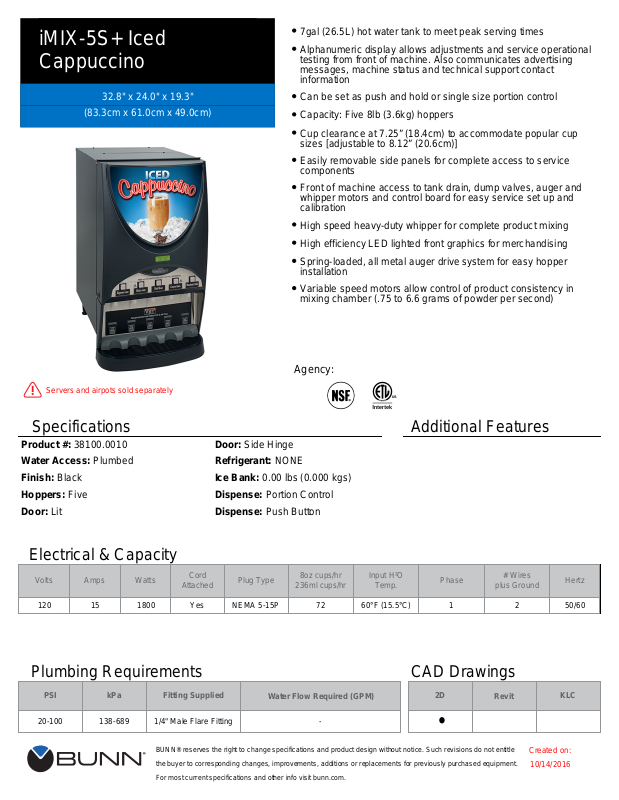

Bunn-O-Matic 381000010 Specifications
iMIX-5S+ Iced
Cappuccino
32.8" x 24.0" x 19.3"
(83.3cm x 61.0cm x 49.0cm)
7gal (26.5L) hot water tank to meet peak serving times
Alphanumeric display allows adjustments and service operational
testing from front of machine. Also communicates advertising
messages, machine status and technical support contact
information
Can be set as push and hold or single size portion control
Capacity: Five 8lb (3.6kg) hoppers
Cup clearance at 7.25” (18.4cm) to accommodate popular cup
sizes [adjustable to 8.12” (20.6cm)]
Easily removable side panels for complete access to service
components
Front of machine access to tank drain, dump valves, auger and
whipper motors and control board for easy service set up and
calibration
High speed heavy-duty whipper for complete product mixing
High efficiency LED lighted front graphics for merchandising
Spring-loaded, all metal auger drive system for easy hopper
installation
Variable speed motors allow control of product consistency in
mixing chamber (.75 to 6.6 grams of powder per second)
Agency:
Servers and airpots sold separately
Specifications Additional Features
38100.0010Product #: Side HingeDoor:
PlumbedWater Access: NONE
Finish:
Black
FiveHoppers: Portion Control
LitDoor: Push Button
Refrigerant:
Ice Bank:
0.00 lbs (0.000 kgs)
Dispense:
Dispense:
Electrical & Capacity
Volts Amps Watts
120 15 1800 Yes NEMA 5-15P 72
Cord
Attached
Plug Type
8oz cups/hr
236ml cups/hr
Input H²O
Temp.
60°F (15.5°C)
Phase
1 2
# Wires
plus Ground
Hertz
50/60
Plumbing Requirements CAD Drawings
PSI kPa
20-100 138-689
Fitting Supplied
1/4" Male Flare Fitting
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.
Water Flow Required (GPM)
-
2D
Revit
•
KLC
Created on:
10/14/2016
Unit Shipping
Width Height
Depth
Width Height
Depth
Weight
Volume
English 19.3 in. 32.8 in. 24.0 in. - - - 130.570 lbs -
Metric 49.0 cm 83.3 cm 61.0 cm - - - 59.227 kgs -
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.
Created on:
10/14/2016
