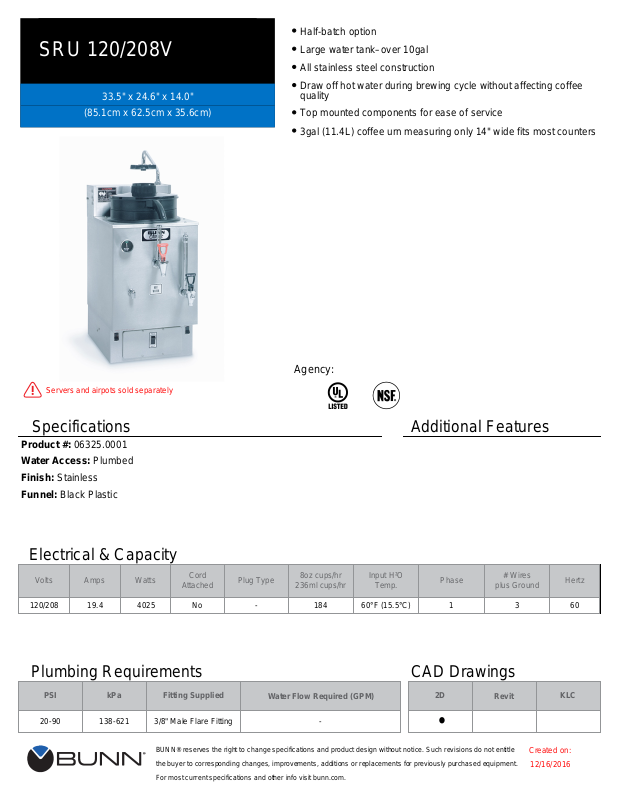

Page 1
Half-batch option
SRU 120/208V
33.5" x 24.6" x 14.0"
(85.1cm x 62.5cm x 35.6cm)
Large water tank–over 10gal
All stainless steel construction
Draw off hot water during brewing cycle without affecting coffee
quality
Top mounted components for ease of service
3gal (11.4L) coffee urn measuring only 14" wide fits most counters
Agency:
Servers and airpots sold separately
Specifications Additional Features
06325.0001Product #:
PlumbedWater Access:
Finish:
Stainless
Black PlasticFunnel:
Electrical & Capacity
Volts Amps Watts
120/208
19.4 4025 No - 184
Cord
Attached
Plug Type
8oz cups/hr
236ml cups/hr
Input H²O
Temp.
60°F (15.5°C)
Phase
1 3 60
# Wires
plus Ground
Hertz
Plumbing Requirements CAD Drawings
PSI kPa
20-90 138-621
Fitting Supplied
3/8" Male Flare Fitting
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.
Water Flow Required (GPM)
-
2D
Revit
•
KLC
Created on:
12/16/2016
Page 2
Unit Shipping
Width Height
Depth
Width Height
Depth
Weight
Volume
English 14.0 in. 33.5 in. 24.6 in. - - - 70.200 lbs 8.552 ft³
Metric 35.6 cm 85.1 cm 62.5 cm - - - 31.843 kgs 0.242 m³
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.
Created on:
12/16/2016
Page 3
Related Products & Accessories:
SRU 120/208V(06325.0001)
KIT LEG EXTENSION-4.0
LG
06333.0000 Product #:
WATER FILTER,
EQHP-10
39000.0004 Product #:
DRIP TRAY ASSY, SST-
PERF CVR
06465.0000 Product #:
WATER FILTER,
EQHP-25
39000.0005 Product #:
FILTERS,U3 18x7 252CS
252/1 36/CL
20109.0000 Product #:
WATER FILTER,
EQHP-10L
39000.0001 Product #:
WATER FILTER,
EQHP-25L
39000.0002 Product #:
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.
Created on:
12/16/2016
Page 4
Serving & Holding Options:
SRU 120/208V(06325.0001)
RWS1, 120V
12203.0010Product #:
RWS1, 120V-SATIN NKL
LEGS
12203.0014Product #:
1.5GPR-FF, TOP HNDL
20950.0004Product #:
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
For most current specifications and other info visit bunn.com.
Created on:
12/16/2016
