TB3Q-LP
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
37238.0001A 10/04 ©2004 Bunn-O-Matic Corporation
www.bunnomatic.com
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis: parts
and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will
be commercially free of defects in material and workmanship existing at the time of manufacture and appearing
within the applicable warranty period. This warranty does not apply to any equipment, component or part that was
not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper
installation or operation, improper maintenance or repair, damage or casualty. This warranty is conditioned on the
Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601
or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the
defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from
BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are
not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN.
Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not
be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/
or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
BUNN and TB3Q-LP are either trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
37238.0001 101504
TABLE OF CONTENTS
Electrical and Operating Controls ................................................................................................................................................ 12
Funnel Assembly ......................................................................................................................................................................... 14
Numerical Index .......................................................................................................................................................................... 18
Server Assembly ......................................................................................................................................................................... 16
Strainer/Flow Control, Solenoids and Lines .................................................................................................................................. 8
Tank Assembly .............................................................................................................................................................................. 6
Top Cover, Hood, Trunk, Base and Panels .................................................................................................................................... 4
3
37238.0001 101504
BUNN
9
®
TOP COVER, HOOD, TRUNK, BASE AND PANELS
10 23
TB3Q-LP
1
2
3
4
5
11
12
13
15
16
17
8
22
6
7
18 20
21
14
19
P3165
4
37238.0001 101504
TOP COVER, HOOD, TRUNK, BASE AND PANELS
ITEM PART NO. QTY. DESCRIPTION
1 36355.0000 1 Cover, Top (Also order items 10 & 23)
01308.0000 1 Screw, Truss Head #6-32 x .25"
2 36584.0001 1 Hood
02308.0000 8 Screw, Pan Head #8-32 x .38"
3 36586.0000 1 Gasket
4 36580.0001 1 Bezel
02308.0000 4 Screw, Pan Head #8-32 x .38"
5 36590.0000 1 Decal, Control Panel
6 36360.0000 1 Nozzle, Dilution
02332.0002 2 Screw, Hex #6 x .38"
7 36594.0001 1 Trunk (Also order item 8)
02308.0000 6 Screw, Pan Head #8-32 x .38"
8 03537.0000 1 Decal, Use Quick Brew Funnel
9 36997.0000 1 Panel, Back (Also order items 11 & 12)
01311.0000 6 Screw, Truss Head #8-32 x .25"
10 37234.0001 1 Electrical Schematic
11 00831.0000 1 Decal, Warning - Electrical
12 00656.0000 1 Decal, Comply to Plumbing Code
13 36923.0000 1 Base
14 37573.0000 1 Decal, Decorative
15 36877.0000 1 Panel, Bottom
02332.0002 8 Screw, Hex #6 x .38"
16 26528.0001 4 Leg, 4.0" Adjustable
17 03993.0000 4 Pad, Non-Skid
18 36412.0000 1 Rail, Stop
00970.0000 2 Nut, Keps #8-32
19 36461.0000 1 Guide Rail, Left
00970.0000 2 Nut, Keps #8-32
20 36462.0000 1 Guide Rail, Right
00970.0000 2 Nut, Keps #8-32
21 37538.0000 1 Stop, Dispenser Front
01308.0000 2 Screw, Truss Head #6-32 x .25"
22 01592.0001 1 Snap Bushing
23 32540.0000 1 Decal, Batch Set, Digital Timer
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
5
37238.0001 101504
BUNN
®
2
TANK ASSEMBLY
4 5 6 7 8
TB3Q-LP
9
10
11
13
1
3
15
12
14
P3041
6
37238.0001 101504
TANK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 05696.0000 1 Tank Assy, 1680W 120V (Includes Items 2 thru 9, 12, 13, 14 & 16)
00908.0000 4 Nut, Hex #8-32
1 03045.0000 1 Tank W/Blanket Warmer 120V (Includes Items 2, 3)
2 03068.0001 1 Tank
3 03468.0000 1 Blanket Warmer, 120V
4 04844.0000 1 Gasket, Tank Lid
5 29329.0001 1 Thermostat, Limit 30 amp
6 00942.0000 2 Nut, Hex .50"-20
7 36576.0000 1 Sprayhead Tube Kit (Includes 3 Mounting Nuts below, Items 8 & 13)
00908.0000 3 Nut, Hex #8-32
8 05515.0000 1 Gasket, Sprayhead Tube
9 03125.0000 1 Lid Assembly, Tank
02337.0002 6 Screw, Hex Head Thread Forming #10 x .50"
10 01075.0000 1 Nut, Hex .438"-20
11 01082.0000 1 Sprayhead, 6 Hole
12 00943.0000 2 Gasket, Tank Heater
13 05518.0000 1 Syphon Hub
14 03070.1000 1 Tank Heater, 1680W 120V (Includes Item 12)
15 36582.0000 2 Bracket, Tank Mounting
01315.0000 4 Screw, TRH #8-32 x .375"
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
7
37238.0001 101504
BUNN
®
35
34
33
32
STRAINER/FLOW CONTROL, SOLENOIDS AND LINES
36
37
TB3Q-LP
1
2
7
8
31
30
27 18
39 38 17 16
20
29
28
13
15 14 13 19
9
10
11
12
5
2
3
6
4
26
25
24
20
8
23
22
21
P3166
37238.0001 101504
STRAINER/FLOW CONTROL, SOLENOIDS AND LINES
ITEM PART NO. QTY. DESCRIPTION
1 36597.0002 1 Tube Assy, Flow Control to Solenoid
2 01085.0002 1 Solenoid Valve (Includes Items 3-6)
01327.0000 2 Screw PNH #10-32 x .375"
01502.0000 2 Lockwasher #10
3 28479.0000 1 Base Kit (Includes O-Ring)
4 01111.0002 1 Valve Repair Kit (Includes Plunger, Spring & O-Ring)
5 28480.0000 1 Valve Coil (120V)
6 28481.0000 1 Guide Kit (Includes Washer & O-Ring)
7 00400.0001 2 Elbow .25" Flare x .125" MPT
8 21179.0000 1 Tube Assy, Needle Valve to Dilution (See Item 40)
9 07441.0000 1 Bracket, Solenoid Valve Mounting
00970.0000 2 Nut, Keps #8-32
10 13003.0000 1 Tube Assy, Air Vent
11 21695.0001 1 Elbow .375" Compression x.125" MPT
12 00464.0001 1 Elbow .25" Barb x .125" MPT
13 12422.0000 2 Clamp
14 11707.0019* 1 Tube, Silicone .250" ID x 12.0" Lg (Order item 41)
15 01592.0001 1 Bushing, Snap 1.0" Dia
16 00463.0000 1 Nut, Hex .375" -20
17 01532.0000 1 Lockwasher, Internal Tooth - .438"
18 00459.0000 1 Fitting, Bulkhead
19 37093.0000 1 Tube Assy, Strainer/Flow Control to Bulkhead
20 22300.0750 1 Strainer/Flow Control .750 GPM (Includes Items 21-26)
21 22249.0000 1 Fitting, Flow Control Inlet
22 23721.0000 1 Screen
23 - - - - - - - - 1 Body (Not Serviced, Order Item 20)
24 20526.1750 1 Flow Washer/ Gasket Kit .750 GPM (Includes Item 25)
25 01155.0000 1 Gasket
26 01154.0000 1 Fitting, Flow Control Outlet
27 00935.0000 1 Cap, Brass .25" Flare (For shipping purposes only)
28 00469.0001 1 Connector .25" FPT x .25" Barb (See Item 40)
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
9
37238.0001 101504
BUNN
35
34
33
32
®
STRAINER/FLOW CONTROL, SOLENOIDS AND LINES
(Continued)
36
37
TB3Q-LP
1
2
7
8
31
30
27 18
39 38 17 16
20
29
28
13
15 14 13 19
9
10
11
12
5
2
3
6
4
10
20
26
25
24
23
22
21
P3166
37238.0001 101504
STRAINER/FLOW CONTROL, SOLENOIDS AND LINES
ITEM PART NO. QTY. DESCRIPTION
29 00402.0001 1 Connector, .25" Flare x .25" MPT (See Item 40)
30 28526.0021* 1 Tube, Silicone .312" ID x 4.0" Lg (Order item 42)
31 01201.0000 2 Gasket, Tank inlet
32 01540.0000 1 Washer
33 00484.0001 1 Needle Valve (See Item 40)
34 03535.0000 1 Tube Assy, Needle Valve to Tank (See Item 40)
35 00460.0000 1 Fitting, Tank Inlet (Includes Items 36 & 37)
36 00400.0001 1 Elbow, Male - TNPL .25" FLR x .12 MPT
37 00948.0000 1 Fitting, Inlet - .750" -16 x .12 FPT
38 36421.0001 1 Bracket, Bulkhead
02308.0000 2 Screw, Pan Head #8-32 x .38"
39 00619.0007 1 Plug (Units without Sweetner)
40 03532.0000 - Tube Assy, Manifold to Solenoid (Includes Items 8, 28, 29, 33 & 34)
41 11707.1000 - Tube, Silicone .250" I.D. x .50" O.D. x 12" LG (Cut to Required Length)
11707.1001 - Tube, Silicone .250" I.D. x .50" O.D. x 36" LG (Cut to Required Length)
42 28526.1000 - Tube, Silicone .312" I.D. x 12" LG (Cut to Required Length)
28526.1001 - Tube, Silicone .312" I.D. x 36" LG (Cut to Required Length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
11
37238.0001 101504
BUNN
11
12
®

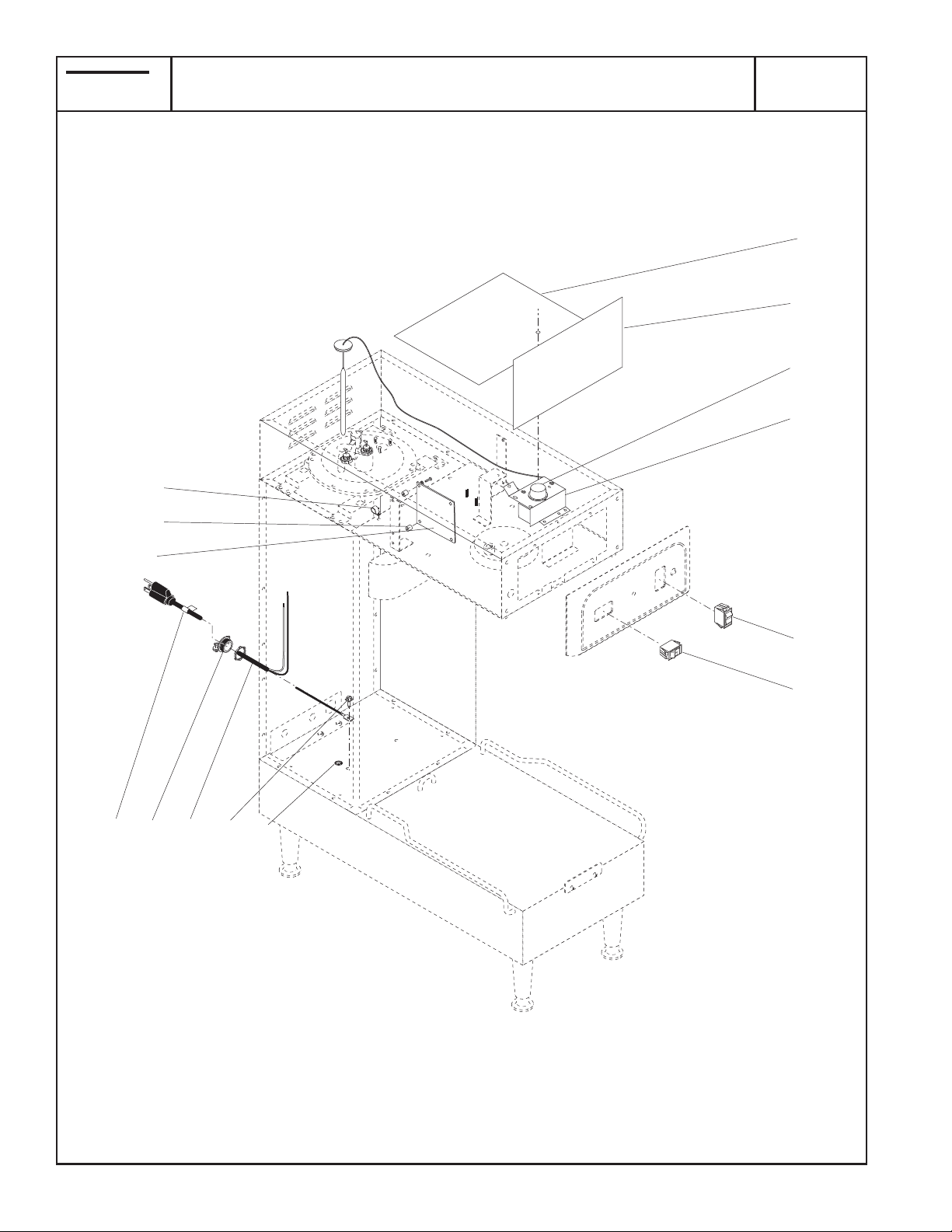

ELECTRICAL AND OPERATING CONTROLS
TB3Q-LP
1
2
3
4
7
13 9 10 8 14
5
6
12
P3167
37238.0001 101504
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 37453.0000 1 Shield, 8.0" x 10.0"
2 00637.0000 1 Shield, 5.0" x 9.0"
3 00720.0000 1 Knob, Thermostat
4 03024.0005 1 Thermostat Assy, 206F Max (Includes Item 3)
01347.0000 2 Screw, Truss Head #6-32 x .38"
01510.0000 2 Lockwasher, External Tooth #6
20762.0000 2 Screw, Binding Head #8-32 x .25" (Terminal)
5 37079.0000 1 Switch, Start
6 37080.0000 1 Switch, On/Off
7 32400.0002 1 Digital Timer - 120V
01388.0000 2 Screw, Truss Head #6-32 x .75"
8 01309.0000 1 Screw, PNH w/ Term WSHR #10-32 x .50"
9 01685.0000 1 Connector, Power Cord w/Nut
10 01637.0002 1 Power Cord
Mounting
11 00603.0000 1 Clamp, Nylon
12 01533.0000 2 Spacer
13 06064.0000 1 Label, Cord Warning
14 00824.0000* 1 Decal, Ground
Items listed below are not illustrated.
15 01668.0000 2 Wire Nut, Orange, Warmer Blanket Wires to Main Harness
16 10301.0000 1 Wiring Harness, Main - 120V
17 21000.0725 1 Lead, Elec - 18 AWG BLK 12.0" Warmer Blanket to Main Harness
18 21001.0723 1 Lead, Elec - 18 AWG WHI 12.0" Warmer Blanket to Main Harness
19 00617.0000 1 Cable Tie, Nylon
20 21016.9005 1 Lead, Elec - 16 AWG BLK 18.0" Control Thermostat to Tank Heater
21 21016.9004 1 Lead, Elec - 16 AWG BLU/BLK 16.0" Control Thermostat to Limit Thermostat
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
13
37238.0001 101504
BUNN
®
FUNNEL ASSEMBLY
TB3Q-LP
2
3
4
15
12
8
1
5
6
7
®
,497,818 PAT. PEND.
SPLASHGARD
US PAT. NO. 6,055,900, 6
Optional Pouch Pack Funnel
14
11
10
14
6
13
P3168
37238.0001 101504
FUNNEL ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 03021.0005 1 Funnel Assembly, Smoke - Quick Brew (Includes items 2 thru 8)
2 03284.0000 1 Adaptor W/Screen, Funnel (See item 9)
3 -------------- 1 Funnel, Brew Tea - Smoke (Not Available. Order item 1)
4 03408.0000 1 Decal, Caution - Remove Funnel
5 03409.0000 1 Decal, Caution - Hot Liquid
6 03536.0000 1 Decal, Quick Brew
7 03407.0002 1 Funnel Tip, .114" Dia (See Item 9)
8 32965.0000 1 Splashgard
9 01037.0003 - Funnel Tip & Screen Kit (Includes items 2 & 7)
10 35282.0001 1 Funnel Assembly, Smoke - Pouch Pack (Includes items 2, 6, 7 & 11 thru 15)
11 34439.0001* 1 Funnel, Pouch Pack - Smoke (Not Available. Order item 10)
12 34438.0000 1 Splashgard, Pouch Pack
13 03408.0002 1 Decal, Warning - Remove Funnel
14 03409.0002 1 Decal, Warning - Hot Liquid
15 29916.0000 1 Insert, Wire Form - Pouch Pack
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
15
37238.0001 101504
BUNN
®
SERVER ASSEMBLY
TB3Q-LP
1
2
4 3
6
7
8
5
9
10
11
P3169
16
37238.0001 101504
SERVER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 34093.0001 1 Lid, Server
2 36059.0000* 1 Reservoir (Not serviced)
3 01221.0000 1 Wing Nut
4 03093.0002 1 C-ring
5 03260.0002 1 Faucet Assy (Includes items 6 - 11)
6 29163.0003 1 Handle
7 29165.0001 1 Bonnet
8 00601.0000 1 Spring
9 29164.0000 1 Stem, Faucet
10 00600.0000 1 Seat Cup
11 35758.0001* 1 Body (Order item 5)
The following items are not illustrated.
12 33843.0000 1 Decal, Cleaning and Sanitizing
13 03043.0005 1 Decal, Iced Tea
14 00651.0000 1 Decal, BUNN
15 00674.0000 1 Brush, Cleaning
16 29166.0002 - Faucet Repair Kit (Includes items 6, 8, 9 & 10)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
17
37238.0001 101504
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00400.0001 .................... 9,11
00402.0001 ....................... 11
00459.0000 ......................... 9
00460.0000 ....................... 11
00463.0000 ......................... 9
00464.0001 ......................... 9
00469.0001 ......................... 9
00484.0001 ....................... 11
00600.0000 ....................... 17
00601.0000 ....................... 17
00603.0000 ....................... 13
00617.0000 ....................... 13
00619.0007 ....................... 11
00637.0000 ....................... 13
00651.0000 ....................... 17
00656.0000 ......................... 5
00674.0000 ....................... 17
00720.0000 ....................... 13
00824.0000 ....................... 13
00831.0000 ......................... 5
00908.0000 ......................... 7
00935.0000 ......................... 9
00942.0000 ......................... 7
00943.0000 ......................... 7
00948.0000 ....................... 11
00970.0000 ...................... 5,9
01037.0003 ....................... 15
01075.0000 ......................... 7
01082.0000 ......................... 7
01085.0002 ......................... 9
01111.0002 ......................... 9
01154.0000 ......................... 9
01155.0000 ......................... 9
01201.0000 ....................... 11
01221.0000 ....................... 17
01308.0000 ......................... 5
01309.0000 ....................... 13
01311.0000 ......................... 5
01315.0000 ......................... 7
01327.0000 ......................... 9
01347.0000 ....................... 13
01388.0000 ....................... 13
01502.0000 ......................... 9
01510.0000 ....................... 13
01532.0000 ......................... 9
01533.0000 ....................... 13
01540.0000 ....................... 11
01592.0001 ...................... 5,9
01637.0000 ....................... 13
01668.0000 ....................... 13
01685.0000 ....................... 13
02308.0000 .................... 5,11
02332.0002 ......................... 5
02337.0002 ......................... 7
03021.0005 ....................... 15
03024.0005 ....................... 13
03043.0005 ....................... 17
03045.0000 ......................... 7
03068.0001 ......................... 7
03070.1000 ......................... 7
03093.0002 ....................... 17
03125.0000 ......................... 7
03260.0002 ....................... 17
03284.0000 ....................... 15
03407.0002 ....................... 15
03408.0000 ....................... 15
03408.0002 ....................... 15
03409.0000 ....................... 15
03409.0002 ....................... 15
03468.0000 ......................... 7
03532.0000 ....................... 11
03535.0000 ....................... 11
03536.0000 ....................... 15
03537.0000 ......................... 5
03993.0000 ......................... 5
04844.0000 ......................... 7
05515.0000 ......................... 7
05518.0000 ......................... 7
05696.0000 ......................... 7
06064.0000 ....................... 13
07441.0000 ......................... 9
10301.0000 ....................... 13
11707.0019 ......................... 9
11707.1000 ....................... 11
11707.1001 ....................... 11
12422.0000 ......................... 9
13003.0000 ......................... 9
20526.1750 ......................... 9
20762.0000 ....................... 13
21000.0725 ....................... 13
21001.0723 ....................... 13
21016.9004 ....................... 13
21016.9005 ....................... 13
21179.0000 ......................... 9
21695.0001 ......................... 9
22249.0000 ......................... 9
22300.0750 ......................... 9
23721.0000 ......................... 9
28526.0021 ....................... 11
28526.1000 ....................... 11
28526.1001 ....................... 11
26528.0001 ......................... 5
28479.0000 ......................... 9
28480.0000 ......................... 9
28481.0000 ......................... 9
29163.0003 ....................... 17
29164.0000 ....................... 17
29165.0001 ....................... 17
29166.0002 ....................... 17
29329.0001 ......................... 7
29916.0000 ....................... 15
32400.0002 ....................... 13
32540.0000 ......................... 5
32965.0000 ....................... 15
33843.0000 ....................... 17
34093.0001 ....................... 17
34438.0000 ....................... 15
34439.0001 ....................... 15
35282.0001 ....................... 15
35758.0001 ....................... 17
36059.0000 ....................... 17
36355.0000 ......................... 5
36360.0000 ......................... 5
36412.0000 ......................... 5
36421.0001 ....................... 11
36461.0000 ......................... 5
36462.0000 ......................... 5
36538.0000 ......................... 5
36576.0000 ......................... 7
36580.0001 ......................... 5
36582.0000 ......................... 7
36584.0001 ......................... 5
36586.0000 ......................... 5
36590.0000 ......................... 5
36594.0001 ......................... 5
36597.0002 ......................... 9
36877.0000 ......................... 5
36923.0000 ......................... 5
36997.0000 ......................... 5
37079.0000 ....................... 13
37080.0000 ....................... 13
37093.0000 ......................... 9
37234.0001 ......................... 5
37453.0000 ....................... 13
37573.0000 ......................... 5
18
37238.0001 101504
Loading...
