TABLE OF CONTENTS
Electrical and Operating Controls .............................................................................................................................................24
Faucet and Tubing .................................................................................................................................................................... 22
Funnels and Filter Basket ......................................................................................................................................................... 28
Fill Basin .................................................................................................................................................................................. 12
Hood and Top Covers - Automatics W/Warmer ......................................................................................................................... 8
Hood and Top Covers - Automatics ......................................................................................................................................... 10
Hood and Top Covers - Pour Overs ........................................................................................................................................... 6
Numerical Index .......................................................................................................................................................................32
Strainer - Flow Control - Solenoid and Lines - Faucet Models ................................................................................................. 20
Strainer - Flow Control - Solenoid and Lines - Non - Faucet Models ........................................................................................ 18
Tank and Components - CWA - CWTA .....................................................................................................................................14
Tank and Components - CWTFA .............................................................................................................................................. 16
Trunks, Extensions and Panel .................................................................................................................................................... 4
Warmer Assemblies .................................................................................................................................................................30
Model Designation :
CWA .............................................................................................................................................................. Pour - Over Models
CWTA .............................................................................................................................................................. Automatic Models
CWTFA ............................................................................................................................................Automatic W/ Faucet Models
APS .......................................................................................................................................................... Air Pot Server Models
TC ........................................................................................................................................................... Thermal Carafe Models
TS ........................................................................................................................................................... Thermal Server Models
3
10716.1 091603
Page 4
BUNN
®
TRUNKS, EXTENSIONS AND PANELS
16 12 3 1 4 2 13
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
5
15
1
3
2
4
EARLY CWA - TS Models
6
18
7
8
9
10
11
14
P1459.75
4
10716.1 031003
Page 5

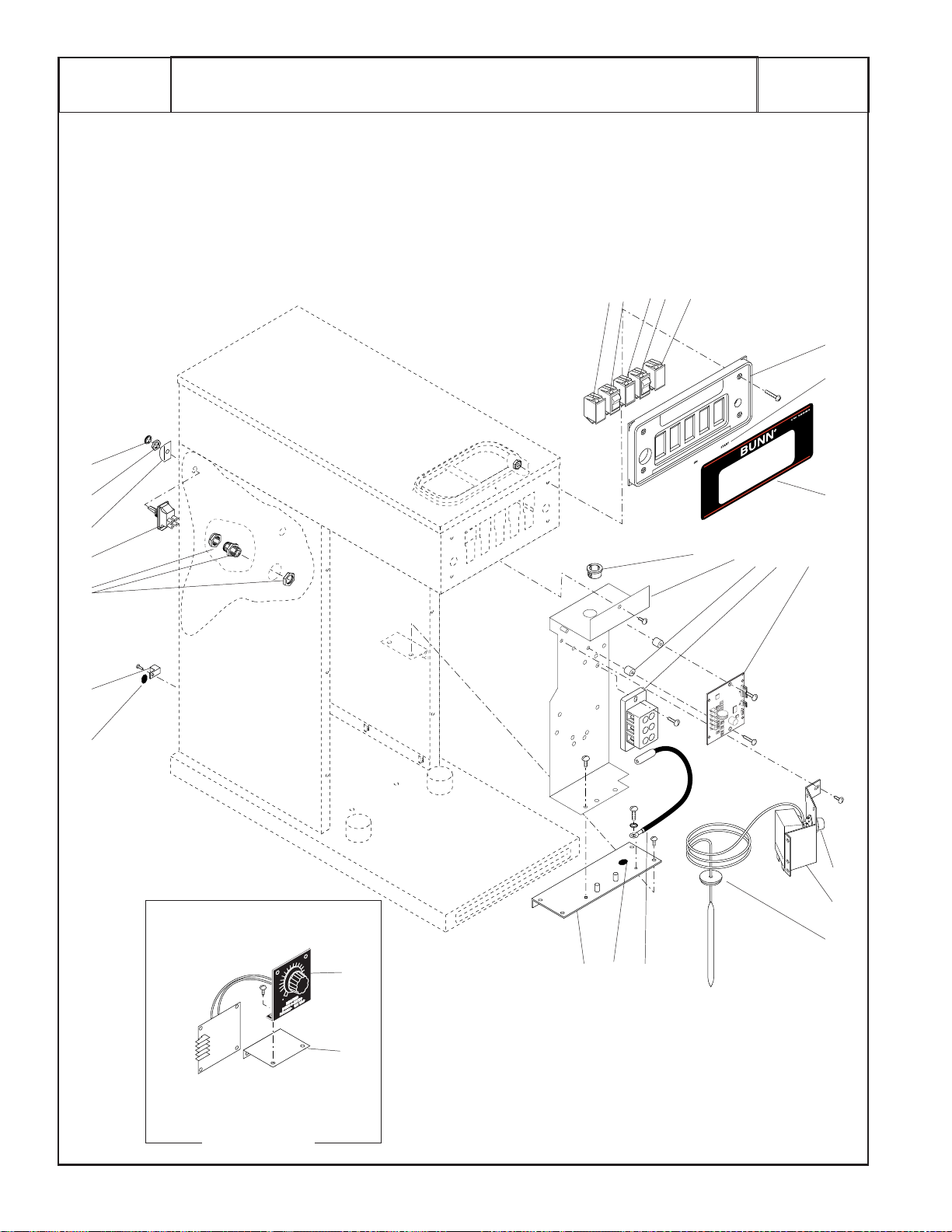

TRUNKS, EXTENSIONS AND PANELS
ITEM PART NO. QTY. DESCRIPTION
1 25352.0001 1 Trunk W/Decals, SST (11.69" High) (Includes items 2, 3, 4 & 12)
25352.0007 1 Trunk W/Decals. SST (12.39" High) (Includes items 2, 3 & 4)("TC" W/Faucet Models)
27928.1000 1 Trunk W/Decals, SST (18.15" High) (Includes items 2, 3, 4 & 12)
34061.1002 1 Trunk W/Decals, SST (22.16" High) (Includes items 2, 3, 4 & 12)
34061.1004 1 Trunk W/Decals, SST (22.16" High) (Includes items 2, 3 & 4)("TS" Models W/Faucet)
34081.1000 1 Trunk W/Decals, SST (18.15" High) (Includes items 2, 3, 4 & 12)("APS" Models)
02308.0000 7 Screw, Pan Head #8 - 32 x .375" (Models with 18.15" trunk only)
2 26225.0000 1 Decal, Strainer/Flow Control (Automatics W/Faucet)
3 00656.0000 1 Decal, Apply to Plumbing Code
4 00831.0000 1 Decal, Warning-Electrical
5 23318.0001 1 Panel W/Decals, Trunk (Includes items 6)("APS" Models)
23319.0001 1 Panel W/Decals, Trunk (Includes items 6)("TS" Models)
25144.0002 1 Panel W/Decals, Trunk (Includes item 6)(Models W/Warmer)
25144.0019 1 Panel W/Decals, Trunk (Includes item 6)("TC" Models)
01382.0000 6 Screw, Truss Head # 6 - 32 x .375" (2 Additional used in "TS" Models)
00988.0000 6 Clip, J-Type 6-32
6 00658.0000 1 Decal, Caution-Decanter/Funnel
7 00754.0001 2 Foot / Locator
8 22740.0000 1 Drip Shield (Early Models only)
9 23321.0002 1 Housing W/Decal, Base ("APS" Models)
23321.0003 1 Housing W/Decal, Base ("TS" Models)
10 22306.0000 1 Decal, Red Decorative Stripe
11 22999.0000 1 Cover, Base
02332.0002 8 Screw, Hex-Crimptite #6 - .25"
12 00670.0000 2 Plug, Hole .437" Dia.(One less used on automatics W/Out Faucet) (Not used on
automatics W/Faucet)
13 27929.0000 2 Bracket, Mounting
02308.0000 4 Screw, Pan Head 8 - 32 x .375"
Includes item 10
Models with 18.15" & 22.16" trunk only
Also order Item
18 for late models
14 25137.0001 4 Foot, Rubber (See item 17)
15 22748.0001 1 Housing, Trunk Extension SST (Early "TS" Models)
02308.0000 13 Screw, Pan Head 8 - 32 x .375"
16 28233.0000 1 Cover, Utility (Optional)
17 24600.0000 - Kit, Rubber Foot (Includes Four Feet)
18 32540.0000 1 Decal, Batch Set (Digital Timers) (Late Models)
5
10716.1 091603
Page 6
BUNN
®
HOOD AND TOP COVERS - POUR OVERS
1
5 4 3 2
8
6
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
7
9
P1458
6
10716.1 021500
Page 7
HOOD AND TOP COVERS - POUR OVERS
ITEM PART NO. QTY. DESCRIPTION
1 12981.0001 1 Lid/Chain Kit (Includes items 2, 3, 4 & 5)
2 13110.0000 1 Lid, Pour-In
3 20615.0000 2 Rivet, Drive .187" Dia.
4 12978.0000 1 Chain Assy, Lid
5 20616.0000 1 Washer, Nylon .194" I.D.
6 25324.1000 1 Cover W/Decal, Top (Includes items 7 & 8)
01303.0000 1 Screw, Pan Head #4-40 x .50"
00916.0000 1 Clip, J-Type #4-40 x .50"
7 00833.0000 1 Decal, Pour In Water Only
8 02999.0000 1 Plug, Hole 1.19" Dia (Early models)
9 13350.0006 1 Housing, Hood
02308.0000 6 Screw, Pan Head #88-32 x .375"
7
10716.1 0231003
Page 8
BUNN
®
HOOD AND TOP COVERS - AUTOMATICS W/WARMER
3
1
2
7
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
6
E HOT
S AR
E
C
RFA
U
S
D
S AN
R
E
M
R
A
W
N
O
I
T
U
A
! C
4
5
P2763
8
10716.1 091603
Page 9
HOOD AND TOP COVERS - AUTOMATICS W/WARMER
ITEM PART NO. QTY. DESCRIPTION
1 02722.0000 1 Lid, Pour-In
2 25353.0001 1 Cover W/Decal, Top (Includes item 5 & 6)
01303.0000 1 Screw, Pan Head #4-40 x .50"
00916.0000 1 Clip, J-Type #4-40 x .50"
3 02999.0000 1 Plug, Hole 1.19" Dia (Early models)
4 13350.0006 1 Housing, Hood
02308.0000 6 Screw, Pan Head #88-32 x .375"
5 02765.0000 1 Decal, Caution-Hot Surface
6 01592.0000 1 Bushing, Snap
7 02732.0000 1 Panel, Rear Top Warmer
01315.0000 2 Screw, Truss Head 8-32 x .375"
9
10716.1 091603
Page 10
BUNN
®
CWA-APS,TS
HOOD AND TOP COVERS - AUTOMATICS
2
CWTA-APS,TS
CWTFA-APS,TS,TC
1
3
4
10
P1460
10716.1 021500
Page 11
HOOD AND TOP COVERS - AUTOMATICS
ITEM PART NO. QTY. DESCRIPTION
1 02722.0000 1 Lid, Pour-In
01319.0000 1 Screw, Thumb #8-32 x .75"
00912.0000 1 Clip, J-Type #8-32
2 02999.0000 1 Plug, Hole 1.19" Dia (Early models)
3 25310.0001 1 Cover Assy, Top
01303.0000 1 Screw, Pan Head #4-40 x .50"
00916.0000 1 Clip, J-Type #4-40 x .50"
4 13350.0006 1 Housing, Hood
02308.0000 6 Screw, Pan Head #8-32 x .375"
11
10716.1 031003
Page 12
BUNN
®
FILL BASIN
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
7
8
1
3
4
5
6
Early Models
2
12
P-128
10716.1 031003
Page 13
FILL BASIN
ITEM PART NO. QTY. DESCRIPTION
1 04270.0002 1 Fill Basin
2 01212.0000 1 Fitting, Tank Inlet (Early models)
3 27514.0000 1 Plate, Splash Guard
4 12928.0000 1 Grommet, Fill Basin
5 01426.0000 1 Weld Pin, .250" Dia. (Not used in Automatic Brewers)
6 01201.0000 1 Gasket, Tank Inlet
7 32063.0000 1 Fitting
8- - - - - - - - 1 Tube, Silicone .313" I.D. x 4.0" (Order item 9)
9 28526.1000 1 Tube, Silicone .313" I.D. x12.0" (Cut to required length)
13
10716.1 052703
Page 14
BUNN
4
®
TANK AND COMPONENTS CWA - CWTA
“CWA” MODELS
15 16
15
5
7 6
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
10
16 11 17
12
13
18
2
1
3
8
9
19
14
14
P1461
10716.1 021500
Page 15
TANK AND COMPONENTS CWA - CWTA
ITEM PART NO. QTY. DESCRIPTION
- -------------- 1 Tank Assy, 1850W 220V (CWA Models) (Includes items 1 thru 6, 8 thru 16)(Not
available. Order components)
-------------- 1 Tank Assy, 1850W 220V (CWTA Models) (Includes items 1 thru 16)(Not available.
Order components)
01315.0000 2 Screw, Truss Head #8-32 x .38"
00912.0000 2 Fastener, J-Type #8-32
1 04133.0000 1 Tank W/Blanket Warmer, 220V (Includes items 2 & 3)
2 04118.0000 1 Tank
3 01927.0000 1 Blanket Warmer, 50W 220V
4 04221.0000 1 Gasket, Tank Lid
5 25158.0002 1 Tank Lid Weldment
00908.0000 8 Nut, Hex 8-32
6 00942.0000 2 Nut, Hex .50"-20
7 29329.1000 1 Thermostat, Limit (Not used on CWA Models)
8 00943.0000 2 Gasket, Tank Heater
9 01925.1000 1 Tank Heater, 1850W 220V (Includes item 8)
10 23769.0000 1 Lead, Electrical (Thermostat to Heater)
11 23768.0000 1 Lead, Electrical (Thermostat to Limit)(Not used on CWA Models)
12 11431.0002 1 Sprayhead Tube Kit (Includes 3 mounting nuts below & items 13 & 14)
00908.0000 3 Nut, Hex 8-32
13 05515.0000 1 Gasket, Sprayhead Tube
14 05518.0000 1 Hub, Syphon
15 22918.0000 1 Thermal Cut-Off W/Double Terminal (CWA Models)
22918.0001 1 Thermal Cut-Off W/Double Terminal (CWTA Models)
16 04776.0000 1 Thermal Cut-OFF W/Lead Assy (CWA Models)
20211.0100 1 Thermal Cut-OFF W/Lead Assy (CWTA Models)
17 ------------- - Thermostat Leads (See Electrical and Operating Controls)
18 01075.0000 1 Nut, Hex .438" - 20
19 01082.0000 1 Sprayhead, 6-Hole
01082.0005 1 Sprayhead, 5-Hole
15
10716.1 091603
Page 16
BUNN
4
®
TANK AND COMPONENTS - CWTFA
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
14 15 22
04221.0000
04227.0001
6
02308.0000(2)
07073.0000
7
21
11
00400.0001 (2)
00942.0000 (2)
10
00908.0000 (3)
16
12687.0000(2)
11431.0002 KIT
04680.0000
17
18
12903.0002
00908.0000 (8)
2
1
00943.0000 (2)
5
12
12688.0000 (2)
8
05518.0000
19
20
3
12949.0001 (120V W/120V WARMER
&100V W/O WARMER)
12949.0002 (240V W/120V WARMER)
12949.0003 (240V W/240V WARMER
&200V W/O WARMER)
13
9
TANK HEATER WIRING
HARNESS - NOT ILLUST.
04236.0000
(1320W/120V)
20939.0000
(1600W/100V)
16
12689.0000
13
P1462
10716.1 021500
Page 17
TANK AND COMPONENTS CWTFA
ITEM PART NO. QTY. DESCRIPTION
- -------------- 1 Tank Assy, 3500W 240V (Includes items 1 thru 18)(Not available. Order components)
-------------- 1 Tank Assy, 1850W 220V (Includes items 1 thru 18)(Not available. Order components)
01315.0000 2 Screw, Truss Head #8-32 x .375"
00912.0000 2 Fastener, J-Type #8-32
1 04133.0000 1 Tank W/Blanket Warmer, 220V (Includes items 2 & 3)
2 04118.0000 1 Tank
3 01927.0000 1 Blanket Warmer, 50W 220V
4 04221.0000 1 Gasket, Tank Lid
5 25158.0003 1 Tank Lid Weldment
00908.0000 8 Nut, Hex 8-32
6 00400.0001 2 Elbow, Male .250" Flare x .125" MPT
7 12687.0000 2 Nut, Hex .562"-24
8 12688.0000 2 Gasket, Water Coil
9 12689.1000 1 Coil Assy, Hot Water (Includes item 8)
10 29329.1000 1 Thermostat, Limit
11 00942.0000 2 Nut, Hex .50"-20
12 00943.0000 2 Gasket, Tank Heater
13 01925.1000 1 Tank Heater, 1850W 220V
04637.1000 1 Tank Heater, 3500W 240V
14 20211.0100 1 Thermal Fuse (Thermostat to Heater)
15 23768.0000 1 Lead, Electrical (Thermostat to Limit)
16 11431.0002 1 Sprayhead Tube Kit (Includes 3 mounting nuts below & items 17 & 18)
00908.0000 3 Nut, Hex 8-32
17 05515.0000 1 Gasket, Sprayhead Tube
18 05518.0000 1 Hub, Syphon
19 01075.0000 1 Nut, Hex .438" - 20
20 01082.0000 1 Sprayhead, 6-Hole
01082.0005 1 Sprayhead, 5-Hole
21 22918.0001 1 Thermal Fuse (Heater to Heater Switch)
Includes item 12
22 -------------- - Thermostat Leads (See Electrical and Operating Controls)
17
10716.1 091603
Page 18
BUNN
3
®
4
STRAINER - FLOW CONTROL - SOLENOID AND LINES
NON - FAUCET MODELS
1
9
8
2
5
7
6
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
10
11
12
20
19
13
14
15
16
17
18
18
Solenoid Valve Repair Parts
P1463
10716.1 021500
Page 19
STRAINER - FLOW CONTROL - SOLENOID AND LINES NON - FAUCET MODELS
ITEM PART NO. QTY. DESCRIPTION
1 24356.0222 1 Strainer/Flow Control Assy W/Tube (Includes items 2 and 9)
2 22300.0222 1 Strainer/Flow Control Assy (Includes items 3 thru 8)
3 22249.0000 1 End Cap, Water Strainer
4 23721.0000 1 Screen
5- - - - - - - - 1 Body (Not available order item 2)
6 20526.1222 1 Flow Washer/Gasket Set, .222 GPM (Includes item 7)
7 01155.0000 1 Flow Control Gasket
8 01154.0000 1 Flow Control Outlet
9 24354.0000 1 Tube Assy, Flow Control to Bulkhead
10 00459.0000 1 Bulkhead Fitting, .250" Flare
11 01532.0000 1 Lockwasher, Internal Tooth .438" I.D.
12 00463.0000 1 Nut, Hex .438"-20
13 12645.0002 1 Tube Assy, Bulkhead to Solenoid
14 00402.0001 2 Connector, .250" Flare x .125" MPT
15 07441.0000 1 Bracket, Solenoid Mounting
02308.0000 2 Screw, Pan Head 8-32 x 375"
16 28005.0000 1 Solenoid Valve Assy, 240V
01327.0000 2 Screw, Pan Head 10-32 x 375"
01502.0000 2 Lockwasher, Split #10
17 28020.0000 1 Solenoid Valve Coil, 240V
18 28021.0000 1 Solenoid Valve Repair Kit
19 12914.0002 1 Tube Assy, Solenoid/Fill (Includes item 20)
20 12928.0000 1 Grommet, Pour-In Basin
19
10716.1 021500
Page 20
BUNN
7
®
STRAINER - FLOW CONTROL - SOLENOID AND LINES
FAUCET MODELS
13 14 15
2
3
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
8
1
9
11
10
12
24
23
4
5
6
20
16
17
19
18
20
21
22
SOLENOID VALVE REPAIR PARTS
P1464
10716.1 021500
Page 21
STRAINER - FLOW CONTROL - SOLENOID AND LINES
FAUCET MODELS
ITEM PART NO. QTY. DESCRIPTION
1 24394.0222 1 Strainer/Flow Control Assy (.222 GPM) (Includes items 2 thru 6)
2 26216.0000 1 Tube Assy, Flow Control to Tee
3 20577.0001 1 Tee, .250" Flare
4 22300.0222 1 Strainer/Flow Control Assy (.222 GPM) ( Includes items 7 thru 12)
5 21814.0016 1 Tube Assy, Tee to Bulkhead
6 26217.0000 1 Tube Assy, Flow Control to Bulkhead
7 22249.0000 1 Fitting, Flow Control Inlet
8 23721.0000 1 Screen
9 -------------- 1 Body (Not Available order item 4)
10 20526.1222 1 Flow Washer/Gasket Set, (.222 GPM) (Includes item 11)
11 01155.0000 1 Gasket, Flow Control
12 01154.0000 1 Fitting, Flow Control Outlet
13 00459.0000 2 Bulkhead Fitting, .250" Flare
14 01532.0000 2 Lockwasher, Internal Tooth .438" I.D.
15 00463.0000 2 Nut, Hex .438"-20
16 20690.0000 1 Tube Assy, Bulkhead to Coil
17 12645.0002 1 Tube Assy, Bulkhead to Solenoid
18 00402.0001 2 Connector, .250" Flare x .125" MPT
19 28007.0000 1 Bracket, Solenoid Mounting
02329.0000 2 Screw, Round Head - Locking #8-32 x .312"
20 28005.0000 1 Solenoid Valve, 240V
01327.0000 2 Screw, Pan Head 10-32 x. 375"
01502.0000 2 Lockwasher, Split #10
21 28020.0000 1 Solenoid Valve Coil
22 28021.0000 1 Solenoid Valve Repair Kit
23 12914.0002 1 Tube Assy, Solenoid/Fill (Includes item 24)
24 12928.0000 1 Grommet, Pour-In Basin
Repair Parts
21
10716.1 021500
Page 22
BUNN
®
FAUCET AND TUBING
1
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
Early Models
11
14
12
1
13
2
3
10
4
5
9
8
7
6
22
P-134
10716.1 021500
Page 23
FAUCET AND TUBING
ITEM PART NO. QTY. DESCRIPTION
1 20691.0001 1 Tube Assy, Coil to Faucet (Early Models)
20691.0000 1 Tube Assy, Coil to Faucet (Late Models)
2 13059.0000 1 Faucet Jam Nut
3 01532.0000 1 Lockwasher, Internal Tooth .438" I.D.
4 12915.0000 1 Faucet, Hot Water (Includes items 5 thru 14)
5 13061.0000 1 Faucet Handle/Stem Assy (Includes items 6 thru 11)
6 13053.0000 1 Faucet Handle Kit (Includes item 7)
7 02858.0000 1 Pin, Spring .125" Dia. x .50"
8 13060.0000 1 Faucet Bonnet Nut
9 13055.0000 1 Faucet Spring
10 13054.0000 1 Faucet Stem
11 13056.0000 1 Faucet Seat Cup
12 13057.0000 1 Faucet Safety Clip
13 13058.0000 1 Faucet Aerator Kit
14 - - - - - - - - 1 Body, Faucet (Not available order item 4)
23
10716.1 021500
Page 24
BUNN
25
®
ELECTRICAL AND OPERATING CONTROLS
3 1 7 2 3
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
4
6
24
23
22
21
20
18
11
5
8 9 10 12 11
15
14
16
19 18 17
Early Models
13
24
P1465.61
10716.1 063000
Page 25
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 27727.0000 1 Switch, On/Off 240V
2 27904.0000 1 Switch, Momentary Start
3 12921.0000 2 Switch Blank (Two additional used on Pour Over Models)
4 23227.1006 1 Control Panel/Decal - Pour Overs (Includes item 5)
23227.1005 1 Control Panel/Decal - Automatics (Includes item 5 & 6)
23227.1007 1 Control Panel/Decal - Automatics W/Faucet (Includes item 5 & 6)
02301.0000 4 Screw, Phillip Pan Head 6-32 x .625"
00973.0000 4 Nut, Keps 6-32
5 22289.0000 1 Decal, Control Panel "CW" (Pour Overs & Automatics W/Out Faucet)
22289.0002 1 Decal, Control Panel "CW" (Automatics W/Faucet)
6 28010.0004 1 Label, Switch On/Ready/Start (Automatics only)
28010.0005 1 Label, Ready Light (Pour Overs Only)
28010.0003 1 Label, Switch (Automatics W/Warmer)
7 27691.0001 1 Light Assy, 240V
8 00606.0000 1 Bushing, Snap .875" Dia
9 12698.0002 1 Bracket, Component Mounting
01347.0000 1 Screw, Truss Head #6-32 x .375" (Early models)
02308.0000 1 Screw, Pan Head #8-32 x .375" (Late models)
01327.0000 1 Screw, Pan Head #10-32 x. 375"
Automatics only
10 01533.0003 2 Spacer, .140"I.D. x .250" O.D. x .312" LG
11 - - - - - - - - 1 Timer, 5 Min.- 240V (Early Models, Order Item 30)
32400.0003 1 Timer, Digital - 240V (Late Models)
21717.0000 2 Screw, Pan Head #6-32 x .375"
02367.0000 2 Screw, Truss Head #6-32 x .626"
01510.0000 2 Lockwasher, External Tooth #6
12919.0008 1 Cap, Terminal (Not illustrated)
12 07038.0000 1 Terminal Block, 3 Pole Red/Wht/Blk
01317.0000 2 Screw, Truss Head 8-32 x .50"
13 28009.0000 1 Bracket, Timer Mounting (Early Models, not used with Digital Timer)
02308.0000 2 Screw, Pan Head - Serrated #8-32 x .375"
14 04314.0001 1 Thermostat Kit (Includes items 15 & 16)
02308.0000 1 Screw, Pan Head #8-32 x .375" (Mounting)
20762.0000 2 Screw, Binding Head #8-32 x .25" (Terminal)
15 00720.0000 1 Knob, Thermostat
16 07073.0000 1 Grommet, Thermostat
17 21016.0131 1 Lead, Ground - GRN/YEL 7" LG
01375.0000 1 Screw, Pan Head Brass 10-32 x .50"
01512.0000 1 Lockwasher, Internal Tooth #10
18 00824.0000 2 Decal, Ground
19 22733.0000 1 Bracket, Support
02308.0000 4 Screw, Pan Head 8-32 x .375"
(Continued)
25
10716.1 091603
Page 26
BUNN
25
®
ELECTRICAL AND OPERATING CONTROLS
(Continued)
3 1 7 2 3
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
4
6
24
23
22
21
20
18
11
5
8 9 10 12 11
15
14
16
19 18 17
Early Models
13
26
P1465.61
10716.1 063000
Page 27
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
20 27705.0000 1 Terminal Lug
02308.0000 1 Screw, Pan Head #8-32 x .375"
21 05746.0000 1 Bushing, Strain Relief
22 28004.0000 1 Switch, Heater ON/OFF (Includes 24)
23 25102.0001 1 Bracket, Switch Indicator/Guard
24 23696.0000 1 Facenut, Hex.
25 23697.0000 1 Facenut, Plastic
26 28051.0000 1 Wiring Harness, Main 240V
27946.0000 1 Wiring Harness, Main 240V W/Warmer)
27 12985.0003 1 Wiring Harness, Ready Light
28 25347.0000 1 Wiring Harness, Thermostat
29 12919.0000 12 Cap, Terminal (Use as required)
30 13352.0008 1 Cap, Terminal, Ready Light (Use as required)
31 32400.0001 - Timer Kit, Digital (Replaces early model timer with Digital Timer)
Not Illustrated
27
10716.1 091603
Page 28
BUNN
®
FUNNELS AND FILTER BASKET
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
8
1
7
6
2
3
2
6
7
4
6
3
9
4
5
Gourmet 'C' Funnel
28
7
P2804
10716.1 063000
Page 29
FUNNELS AND FILTER BASKET
ITEM PART NO. QTY. DESCRIPTION
1 20583.0003 1 Funnel, Plastic (Black)(Includes items 6 & 7)
20216.0000 1 Funnel, SST W/Black Handle (Includes items 2 thru 5)
34559.0000 1 Funnel, Gourmet 'C' SST (7.125" Flange O.D.)(Includes items 2,3,4,6,7 & 9)
2 33088.0000 1 Filter Basket
34546.0000 1 Filter Basket, Gourmet 'C'
3 28553.0000 1 Funnel W/Decals, SST (Includes items 6 & 7)
34558.0000 1 Funnel, Gourmet 'C' SST
4 20244.1000 1 Handle Kit, Black (Includes mounting screw below)
01331.0002 1 Screw, Round Head #10-32 x 1.50"
5 01031.0000 1 Funnel Tip Kit
6 03408.0002 1 Decal, Warning - Remove Funnel Slowly
7 03409.0002 1 Decal, Warning - Hot Liquid
8 32964.0000 1 Splashguard
9 28694.0000 1 Decal, Warning - Hot Liquid/Remove Funnel
29
10716.1 102703
Page 30
BUNN
®
WARMER ASSEMBLIES
3
CWA-APS,TS
CWTA-APS,TS
CWTFA-APS,TS,TC
4
7
9
5
1
8
6
3
4
5
2
4
UPPER AND
SIDE WARMERS
4
LOWER
WARMERS
30
P2765
10716.1 091603
Page 31
WARMER ASSEMBLIES
ITEM PART NO. QTY. DESCRIPTION
1 11440.0009 1 Warmer Assembly 100W 220V, Top Warmers (Includes items 3, 4 & 5)
01303.0000 3 Screw, Pan Head - SST #4-40 x .50”
01303.0001 3 Screw, Pan Head - Brass #4-40 x .50”
00916.0000 3 Fastener, J-Type #4-40
2 11440.0008 1 Warmer Assembly 100W 220V, Base Warmers (Includes items 3, 4 & 5)
01303.0000 3 Screw, Pan Head - SST #4-40 x .50”
01303.0001 3 Screw, Pan Head - Brass #4-40 x .50”
00916.0000 3 Fastener, J-Type #4-40
3 03656.0000 1 Warmer Dish, Blk 45 Hole
4 11438.0000 1 Warmer Element 100W 220V Base Warmers (“A” Models)
5 05212.0000 1 Plate, Element Retaining
00970.0000 2 Nut, Keps #8-32
6 -------------- 2 Tube, Silicone .250” Dia x 1.88” LG. (Order Item 12)
7 -------------- 1 Bushing, Snap 1.188” Dia. (See Hood And Top Covers)
8 12364.0000 1 Decal, Warmers Are Hot
9 28382.0000 1 Clamp, Routing
00908.0000 1 Nut, Hex #8-32 (Early Models)
02332.0003 1 Screw, Hex-Crimptite #6-32 x . 375” (Late Models)
10 21016.0131 1 Lead, Electrical, Lower Warmers GRN/YEL 07” LG
21016.0027 2 Lead, Electrical, GRN/YEL 26” LG Top Warmer
11 12985.0003 1 Wiring Harness, One Lower, Two Upper Warmers, 230V
12 04828.1001 - Tube, Silicone .250” Dia. x 24” LG (Use as required)
Not Illustrated
31
10716.1 091603
Page 32
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00400.0001 ....................... 17
00402.0001 .................. 19,21
00459.0000 .................. 19,21
00463.0000 .................. 19,21
00606.0000 ....................... 25
00656.0000 ......................... 5
00658.0000 ......................... 5
00670.0000 ......................... 5
00720.0000 ....................... 25
00754.0001 ......................... 5
00824.0000 ....................... 25
00831.0000 ......................... 5
00833.0000 ......................... 7
00908.0000 ............. 15,17,31
00912.0000 ............. 11,15,17
00916.0000 ............ 7,11,9,31
00942.0000 .................. 15,17
00943.0000 .................. 15,17
00970.0000 ....................... 31
00973.0000 ....................... 25
00988.0000 ......................... 5
01031.0000 ....................... 29
01075.0000 .................. 15,17
01082.0000 .................. 15,17
01082.0005 .................. 15,17
01154.0000 .................. 19,21
01155.0000 .................. 19,21
01201.0000 ....................... 13
01212.0000 ....................... 13
01303.0000 ............ 7,9,11,31
01303.0001 ....................... 31
01315.0000 ............... 9,15,17
01317.0000 ....................... 25
01319.0000 ....................... 11
01327.0000 ............. 19,21,25
01331.0002 ....................... 29
01347.0000 ....................... 25
01375.0000 ....................... 25
01382.0000 ......................... 5
01426.0000 ....................... 13
01502.0000 .................. 19,21
01510.0000 ....................... 25
01512.0000 ....................... 25
01532.0000 ............. 19,21,23
01533.0003 ....................... 25
01592.0000 ......................... 9
01925.1000 .................. 15,17
01927.0000 .................. 15,17
02301.0000 ....................... 25
02308.0000 .... 5,7,9,11,19,25
02329.0000 ....................... 21
02332.0002 ......................... 5
02332.0003 ....................... 31
02367.0000 ....................... 25
02732.0000 ......................... 9
02722.0000 ....................... 11
02765.0000 ......................... 9
02858.0000 ....................... 23
02999.0000 ................. 7,9,11
03408.0002 ....................... 29
03409.0002 ...................... 29
03656.0000 ....................... 31
04118.0000 .................. 15,17
04133.0000 .................. 15,17
04221.0000 .................. 15,17
04270.0002 ....................... 13
04314.0001 ....................... 25
04637.1000 ....................... 17
04776.0000 ....................... 15
04828.1001 ....................... 31
05212.0000 ....................... 31
05515.0000 .................. 15,17
05518.0000 .................. 15,17
05746.0000 ....................... 27
07038.0000 ....................... 25
07073.0000 ....................... 25
07441.0000 ....................... 19
11431.0002 .................. 15,17
11438.0000 ....................... 31
11440.0008 ....................... 31
12364.0000 ....................... 31
12645.0002 .................. 19,21
12687.0000 ....................... 17
12688.0000 ....................... 17
12689.1000 ....................... 17
12698.0002 ....................... 25
12914.0002 .................. 19,21
12915.0000 ....................... 23
12919.0000 ....................... 27
12919.0008 ....................... 25
12921.0000 ....................... 25
12928.0000 ............. 13,19,21
12978.0000 ......................... 7
12981.0001 ......................... 7
12985.0003 .................. 27,31
13053.0000 ....................... 23
13054.0000 ....................... 23
13055.0000 ....................... 23
13056.0000 ....................... 23
13057.0000 ....................... 23
13058.0000 ....................... 23
13059.0000 ....................... 23
13060.0000 ....................... 23
13061.0000 ....................... 23
13110.0000 ......................... 7
13350.0006 ................. 7,9,11
13352.0008 ....................... 27
20211.0100 .................. 15,17
20216.0000 ....................... 29
20244.1000 ....................... 29
20526.1222 .................. 19,21
20577.0001 ....................... 21
20583.0003 ....................... 29
20615.0000 ......................... 7
20616.0000 ......................... 7
20690.0000 ....................... 21
20691.0000 ....................... 23
20691.0001 ....................... 23
20762.0000 ....................... 25
21016.0027 ....................... 31
21016.0131 .................. 25,31
21717.0000 ....................... 25
21814.0016 ....................... 21
22249.0000 .................. 19,21
22289.0000 ....................... 25
22289.0002 ....................... 25
22300.0222 .................. 19,21
22306.0000 ......................... 5
22733.0000 ....................... 25
22740.0000 ......................... 5
22748.0001 ......................... 5
22918.0000 ....................... 15
22918.0001 .................. 15,17
22999.0000 ......................... 5
23227.1005 ....................... 25
23227.1006 ....................... 25
23227.1007 ....................... 25
23318.0001 ......................... 5
23319.0001 ......................... 5
23321.0002 ......................... 5
23321.0003 ......................... 5
23696.0000 ....................... 27
23697.0000 ....................... 27
23721.0000 .................. 19,21
23768.0000 .................. 15,17
23769.0000 ....................... 15
24354.0000 ....................... 19
24356.0222 ....................... 19
24394.0222 ....................... 21
24600.0000 ......................... 5
25102.0001 ....................... 27
25137.0001 ......................... 5
25144.0002 ......................... 5
25144.0019 ......................... 5
25158.0002 ....................... 15
25158.0003 ....................... 17
25310.0001 ....................... 11
25324.1000 ......................... 7
25347.0000 ....................... 27
25352.0001 ......................... 5
25352.0007 ......................... 5
25353.0001 ......................... 9
26216.0000 ....................... 21
26217.0000 ....................... 21
26225.0000 ......................... 5
27514.0000 ....................... 13
27691.0001 ....................... 25
27705.0000 ....................... 25
27727.0000 ....................... 25
27904.0000 ....................... 25
27928.1000 ......................... 5
27929.0000 ......................... 5
27946.0000 ....................... 27
28004.0000 ....................... 27
28005.0000 .................. 19,21
28007.0000 ....................... 21
28009.0000 ....................... 25
28010.0003 ....................... 25
28010.0004 ....................... 25
28010.0005 ....................... 25
28020.0000 .................. 19,21
28021.0000 .................. 19,21
28051.0000 ....................... 27
28233.0000 ......................... 5
28382.0000 ....................... 31
28526.1000 ....................... 13
28553.0000 ....................... 29
28694.0000 ....................... 29
29329.1000 .................. 15,17
32063.0000 ....................... 13
32400.0001 ....................... 27
32400.0003 ....................... 25
32540.0000 ......................... 5
32964.0000 ....................... 29
33088.0000 ....................... 29
34061.1002 ......................... 5
34061.1004 ......................... 5
34081.1000 ......................... 5
34546.0000 ....................... 29
34558.0000 ....................... 29
34559.0000 ....................... 29
32
10716.1 102703
Loading...
