Features
Gourmet Ice® System

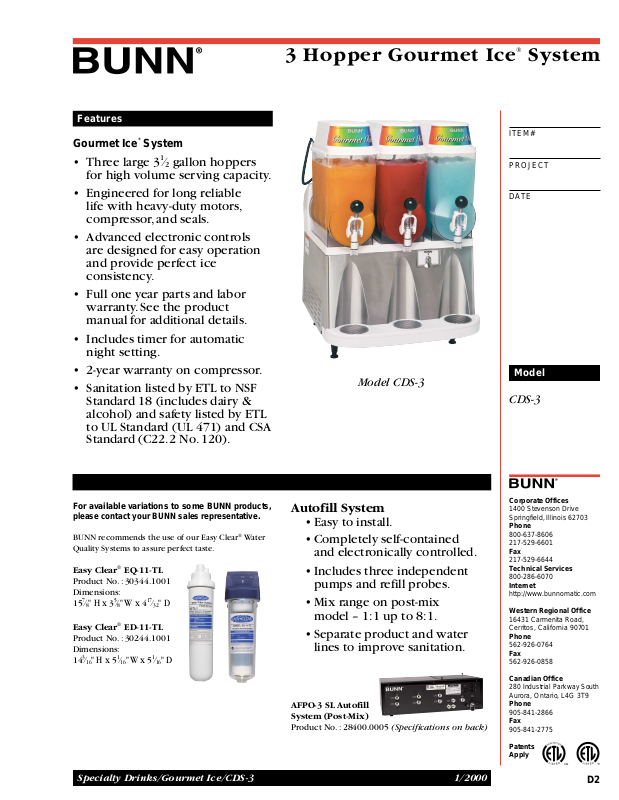

3 Hopper Gourmet Ice® System
ITEM#
• Three large 31⁄2 gallon hoppers
for high volume serving capacity.
• Engineered for long reliable
life with heavy-duty motors,
compressor, and seals.
• Advanced electronic controls
are designed for easy operation
and provide perfect ice
consistency.
• Full one year parts and labor
warranty. See the product
manual for additional details.
• Includes timer for automatic
night setting.
• 2-year warranty on compressor.
• Sanitation listed by ETL to NSF
Standard 18 (includes dairy &
alcohol) and safety listed by ETL
to UL Standard (UL 471) and CSA
Standard (C22.2 No. 120).
PROJECT
DATE
Model
Model CDS-3
CDS-3
For available variations to some BUNN
please contact your BUNN sales representative.
BUNN recommends the use of our Easy Clear® Wat er
Quality Systems to assure perfect taste.
Easy Clear® EQ-11-TL
Product No. : 30344.1001
Dimensions:
7
15
Easy Clear® ED-11-TL
Product No. : 30244.1001
Dimensions:
3
14
⁄8" H x
⁄16" H x
5
3
⁄8" W x
1
5
⁄16" W x
4
17
⁄32" D
1
5
⁄16" D
products,
Specialty Drinks/Gourmet Ice/CDS-3
Autofill System
• Easy to install.
• Completely self-contained
and electronically controlled.
• Includes three independent
pumps and refill probes.
• Mix range on post-mix
model – 1:1 up to 8:1.
• Separate product and water
lines to improve sanitation.
AFPO-3 SL Autofill
System (Post-Mix)
Product No. : 28400.0005 (Specifications on back)
1/2000
Corporate Offices
1400 Stevenson Drive
Springfield, Illinois 62703
Phone
800-637-8606
217-529-6601
Fax
217-529-6644
Technical Services
800-286-6070
Internet
http://www.bunnomatic.com
Western Regional Office
16431 Carmenita Road,
Cerritos, California 90701
Phone
562-926-0764
Fax
562-926-0858
Canadian Office
280 Industrial Parkway South
Aurora, Ontario, L4G 3T9
Phone
905-841-2866
Fax
905-841-2775
Patents
Apply
D2
The Mark of Quality in Beverage Equipment Worldwide
Dimensions & Specifications
Model Product # Volts Amps Capacity Cu. Shipping Cord
Ft. Weight Attached
CDS-3
(White/Stainless) 29300.0002 120 20 3 hoppers @ 3
(Black/Stainless)* 29300.0015 120 20 3 hoppers @ 3
CDS-3
(White/Stainless)
CDS-3
(White/Stainless)** 29300.0003 120 20 3 hoppers @ 3
CDS-3
(All Black)* 29300.0016 120 20 3 hoppers @ 3
CDS-3
AFPO-3 SL
(post-mix) 28400.0005 120 15 108 oz./minute (max.) 2.6 44 lbs. (20.0 kg) Yes
†
29300.0000 120 20 3 hoppers @ 31⁄2 gal. each 31.5 209 lbs. (102.3 kg) Yes
Autofill Hopper Only 28079.1001 n/a n/a 3
* Models are non-stock items. ** Model has Autofill–Ready hoppers. † Model has a black drip tray.
CDS-3 (All Models)
Electrical: Models require 2-wires plus ground service rated 120V,
single phase, 60 Hz.
AFPO-3 SL
Electrical: Model requires 2-wires plus ground service rated 120V,
single phase, 60 Hz.
1
⁄2 gal. each 31.5 209 lbs. (102.3 kg) Yes
1
⁄2 gal. each 31.5 209 lbs. (102.3 kg) Yes
1
⁄2 gal. each 31.5 209 lbs. (102.3 kg) Yes
1
⁄2 gal. each 31.5 209 lbs. (102.3 kg) Yes
1
⁄2 gallons 2.6 8 lbs. (3.6 kg) n/a
Plumbing: 20-90 psi (138-621 kPa). Machine supplied
with 1⁄4" male flare fitting.
AFPO-3 SL
All dimensions shown in inches.
