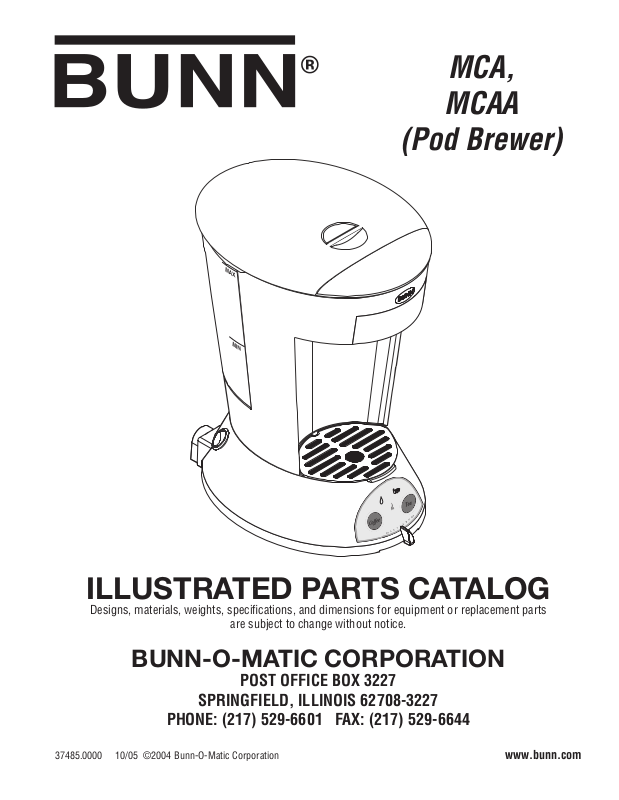

Bunn MCAA Parts List

MCA,

MCAA

(Pod Brewer)

ILLUSTRATED PARTS CATALOG

Designs, materials, weights, specifications, and dimensions for equipment or replacement parts

are subject to change without notice.

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: [phone] FAX: [phone]

37485.0000 10/05 ©2004 Bunn-O-Matic Corporation www.bunn.com

BUNN-O-MATIC PRODUCT WARRANTY

Bunn-O-Matic Corporation (“Bunn” or “we”) warrants to the original user (the “buyer” or “you”) of this Pod
Brewer that the Pod Brewer is free from defects in material and workmanship existing at the time of manufacture
and appearing within two years of the date of original purchase of the Pod Brewer.

If such a defect appears during the warranty period, you must notify us promptly by either (1) calling us
toll-free at 800-870-0894, (2) contacting us through our web site (www.bunn.com) or (3) writing us at Bunn­O-Matic Corp., Attn. Warranty Administrator, P.O. Box 3227, Springfield, IL 62708-3227.

If we determine, in our sole discretion, that the unit is not in the warranted condition during the warranty
period, we will (at our exclusive option) either (1) arrange for the unit to be repaired, at no cost to you for parts
or labor, by a Bunn Authorized Service Representative, (2) replace the unit at no charge to you or (3) refund the
purchase price you paid for the unit.

Coverage under this warranty is conditioned on you (1) providing us with prompt notice of any condition
for which you seek warranty coverage, (2) providing us, if we request, with proof of the price and date of your
purchase, (3) returning the unit at your expense, if we request, to a Bunn Authorized Service Representative for
inspection or repair, (4) obtaining our prior authorization for any repair of the unit, and (5) having any repair
work performed only by a Bunn Authorized Service Representative.

This warranty does not cover claims resulting from misuse, neglect, alteration, improper installation or
operation, improper maintenance or repair, damage or casualty.

THIS WARRANTY SHALL BE EXCLUSIVE AND SHALL BE IN LIEU OF ANY OTHER EXPRESS WARRANTY,
WRITTEN OR ORAL, INCLUDING BUT NOT LIMITED TO ANY EXPRESS WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
IS EXPRESSLY LIMITED TO THE TWO-YEAR PERIOD OF DURATION OF THE EXPRESS WARRANTY SET FORTH
ABOVE. No one, including the employees of Bunn or its agents or dealers, is authorized to modify this express
warranty or to make additional oral or written express warranties on our behalf. Accordingly, you should not rely
on any such statements as creating oral or written express warranties that are binding on us.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you.

YOUR EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY OR OF ANY IMPLIED WARRANTY OR OF
ANY OTHER OBLIGATION ARISING BY OPERATION OF LAW OR OTHERWISE SHALL BE LIMITED AS SPECIFIED
HEREIN TO REPAIR, REPLACEMENT OR REFUND, AT OUR SOLE OPTION. IN ANY EVENT, WE WILL NOT BE
RESPONSIBLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.

This warranty gives you specified legal rights, and you may have other rights which vary from state to
state.

2

37485 112304

TABLE OF CONTENTS

RESERVOIR, CHECK VALVES, TUBES, PUMPS & SOLENOID .......................................................................................................... 8

ELECTRICAL & OPERATING CONTROLS ......................................................................................................................................... 12

SPRAYHEAD ASSEMBLY ................................................................................................................................................................14

POD HOLDER ................................................................................................................................................................................. 16

HOUSINGS & COVERS .................................................................................................................................................................... 4

NUMERICAL INDEX ....................................................................................................................................................................... 18

TANK & COMPONENTS ....................................................................................................................................................................

6

3

37485 112304

14

HOUSINGS & COVERS

MCA

2

1

3

18

16

4

17

5

7

6

12

11

13

15

8

9

10

P3051.65

4

37485 091305

HOUSINGS & COVERS

ITEM PART NO. QTY. DESCRIPTION

1 37495.1000 1 Lid Assy, Pour-In (Includes Items 2, 3, 16 & 18)

2 37491.0000* 1 Lid, Pour-In

3 36272.0000* 1 Lid, Inner

4 36262.0000* 1 Trunk, Inner

01360.0001 8 Screw, PHH PHN Plascrew #6 x .60”

5 36265.0000* 1 Shell, Outer

6 36322.0000* 1 Panel, Backsplash

7 36261.0000* 1 Spacer, Base

8 36726.0001* 1 Base, Outer

9 36724.0001* 1 Base, Inner

10 34466.0000 5 Foot, Rubber .5” OD x .25”

11 37520.0001 1 Drip Tray & Grate Assy (Includes Items 12 & 13)

12 36269.0002 1 Grate, Drip Tray

13 36727.0000 1 Drip Tray

14 36990.0000* 1 Decal, Do Not Return (Removable)

15 37282.0000 1 Decal, Brew Interrupt

16 37281.0000 1 Decal, Water Only

17 37267.0000 2 Decal, Warning (One located on the bottom of the brewer.)

18 00656.0000 1 Decal, Comply to Plumbing Code (120V models only)

19 37092.0001 1 Decal, Removable 5-Step (Optional) (Not Illustrated)

20 37519.0001 1 Kit, Lid and Decals (Includes Items 1, 15, 16 & 19)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

5

37485 091305

TANK & COMPONENTS

MCA

1

2

4

6

5

3

Complete Assembly

7

P3055.75

6

37485 112304

TANK & COMPONENTS

ITEM PART NO. QTY. DESCRIPTION

1 36289.0000 1 Tank Assembly, 120V, 1450 W W/Leads (Includes Items 2 Through 6)

36289.0002 1 Tank Assembly, 230V, 1450 W W/Leads (Includes Items 2 Through 6)

2 36395.0000* 1 Tank Weldment, Main 120V 1450 W

37725.0002* 1 Tank Weldment, Main 230V 1450 W

3 36396.0000* 1 TCO Assembly, 120V, BLK

36396.0001* 1 TCO Assembly, 230V, BLK

4 38184.0000* 1 O-Ring, #010 Shore A70 Silicone

5 36895.0000* 1 Sensor, Temperature W/Terminals

6 37061.0000* 2 Tie, 304 SST .17” W x 14.3” LG

7 37083.0000 3 Nut, 8-32 Serrated Flange

d

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

7

37485 091305

RESERVOIR, CHECK VALVES, TUBES, PUMPS & SOLENOID

BUNN

90 psig max operating pressure

Strainer/Flow Control # 22300.0500

(Repl. Flow Washer #20526.0500)

(Repl. Screen #23721.0000)

.500 gpm FLOW

6

7

8

MCA

3

4

1

230V

Models

5

2

36

37

38

39

40

41

42

120V

Models

Strainer Assy

13

9

10

7

12

11

43

14

15

19

5

16

7

7

17

18

21

22

23

32

20

34

32

34

7

35

31

28

Early Models

19

29

30

26

24 25

44

21

8

26

27

P3053.65

37485 091305

RESERVOIR, CHECK VALVES, TUBES, PUMPS & SOLENOID

ITEM PART NO. QTY. DESCRIPTION

1 37419.1000 1 Reservoir Assy, Float/Valve (Includes Items 2 Through 5)

2 36264.0001 1 Reservoir, 46 Oz

3 36321.0000 1 Guide, Reservoir Float

4 36316.0000 1 Float Assy, Water Level Detect

5 36378.0001 2 Valve, Check DW 10

6 36629.0000 1 Tube, Silicone .188” ID x 5.0” LG

7 36329.0002 12 Tie, cable-Nylo

8

9 - - - - - - - - 1 Valve, Check DW 11 (See “Sprayhead Assembly”)

10 - - - - - - - - 1 Valve, Check DW 10 (See “Sprayhead Assembly”)

11 - - - - - - - - 1 Pump, Air 1.6-1.9 LPM (See “Electrical & Operating Controls”)

12 - - - - - - - - 1 Tank Assy, 1450 W With Leads (See “Tank & Components”)

13 36630.0000 1 Tube, Silicone .125” ID x 6.0” LG

14 36303.0000 1 Seal, Reservoir Outlet

15 36284.0000 1 Screen, Molded BLK

16 36283.0000 1 Coupling, Reservoir

17 36629.0002 1 Tube, Silicone .188” ID x 1.5” LG

18 37802.0000 1 Valve, Check Bi-directional

19 36629.0001 2 Tube, Silicone .188” ID x 2.5” LG (One less used on Late Models)

20 - - - - - - - - 1 Pump Assy, With Motor (See “Electrical & Operating Controls”)

21 36631.0003 2 Tube, Silicone .188” ID x 4.375” LG

- - - - - - - - 1 Fitting, Barbed .062-27 (See “Sprayhead Assembly”)

n BLK 5.6” LG x .142” W

22 36631.0001 1 Tube, Silicone .188

23 - - - - - - - - 1 Meter, Flow (See “Electrical & Operating Controls”)

24 37290.0000 1 Fitting, “Y” Barbed 3/16” ID

25

26 37313.0000 1 Solenoid, Valve Assy 120V (Early Models)

37313.0001 1 Solenoid, Valve Assy 120V (Late Models)

37313.0002 1 Solenoid, Valve Assy 230V

27 36924.0000* 1 Bracket, Solenoid Valve

37459.0000 2 Screw, PNH, PHH #10-32 x .50”

01360.0001 2 Screw, PNH PHH Plascrew #6 x .60

28 36925.0000* 1 Bracket Weldment, Bulkhead Fitting (Early Models)

37459.0000 2 Screw, PNH, PHH #10-32 x .50”

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

36631.0002 1 Tube, Silicone .188” ID x 1.0” LG

” ID x 3.0” LG

(Continued)

9

37485 091305

BUNN

90 psig max operating pressure

Strainer/Flow Control # 22300.0500

(Repl. Flow Washer #20526.0500)

(Repl. Screen #23721.0000)

.500 gpm FLOW

RESERVOIR, CHECK VALVES, TUBES, PUMPS & SOLENOID

(Continued)

6

7

8

MCA

3

4

1

230V

Models

5

2

36

37

38

39

40

41

42

120V

Models

Strainer Assy

13

9

10

7

12

11

43

14

15

19

5

16

7

7

17

18

21

22

23

32

20

34

32

34

7

35

31

28

Early Models

19

29

30

26

10

44

24 25

26

21

27

P3053.65

37485 091305

RESERVOIR, CHECK VALVES, TUBES, PUMPS & SOLENOID

ITEM PART NO. QTY. DESCRIPTION

29 37094.0000 1 Fitting, Quick Disconnect .25” (Early Models)

30 37925.0000 1 Fitting, Tube to Hose Stem .25” (Early Models)

31 37452.0000 1 Fitting, .25” Plug (Optional Plug when used as a Pour-Over) (Early Models)

32 22300.0222 1 Strainer/Flow Control Assy 120V (Includes Items 36 Through 42)

38414.0000 1 Strainer/Flow Control Assy 230V (Includes Items 36 Through 42)

33 37469.0000 3 Clip, Locking John Guest .25” (Early Models)

34 37470.0000 2 Fitting, Brass Female .25” - .25” (Early Models)

35 37489.0000 1 Tube, .25” OD Hard Plastic 2’ (Early Models)

36 22249.0000 1 Fitting, Flow Control Inlet 120V

38413.0000 1 Cap, Flow Control Inlet, .75” 230V

37 23721.0000 1 Screen

38 ------------- 1 Body (Not Available. Order Item 32)

39 22307.0222 1 Decal, (.222 GPM)

40 20526.1222 1 Flow Washer/Gasket Set (.222 GPM) (Includes item 41)

41 01155.0000 1 Gasket, Flow Control

42 01154.0000 1 Fitting, Flow Control Outlet

43 36329.0002 1 Cable Tie

44 00310.0000 1 Tube (Late Models)

45 00935.0001 1 Cap 120V (Late Models)(Not Illustrated)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

11

37485 091305

ELECTRICAL & OPERATING CONTROLS

2

MCA

1

15

3

4

5

6

16 7

2

8

9

10

17

12

12

11

13

14

P3050.60

37485 091305

ELECTRICAL & OPERATING CONTROLS

ITEM PART NO. QTY. DESCRIPTION

1 - - - - - - - - 1 Button, Pod Release (See “Pod Holder”)

2 36903.0000 2 LED Assy

3 38316.0000* 1 Pump, Air 1.6-1.9 LPM

4 36382.0000 1 Meter, Flow

5 37084.0000 1 Pump Assy, 120V w/Motor Leads & Thermal Cut Off (Includes item 6)

37084.0001 1 Pump Assy, 230V w/Motor Leads & Thermal Cut Off (Includes item 6)

6 38386.0000 1 Cable Tie, Water Pump

7 36285.0000 1 Switch, Oval Rocker, BLK

8 36901.0000 2 Pin, Actuator

9 36891.0000 1 Decal, Control Panel

10 36270.0000* 2 Button, Brew Start

11 37522.0001 1 CB Assy, 120V w/Volume Lever (Includes Items 12 & 13)

37522.0003 1 CB Assy, 230V w/Volume Lever (Includes Items 12 & 13)

12 36171.0001* 1 Circuit Board Assy, 120V (Not Available. Order Item 11)

38302.0003* 1 Circuit Board Assy, 230V (Not Available. Order Item 11)

13 37035.0000* 1 Lever, Volume Control W/Overmold (Not Available. Order Item 11)

14 36381.0000 1 Cord Assy, 120V 2-Wire W/Ground

36381.0001 1 Cord Assy, 230V 2-Wire W/Ground (United Kingdom)

36381.0002 1 Cord Assy, 230V 2-Wire W/Ground (Europe & Korea)

06064.0000 1 Label, Cord Warning (120V models only)

15 36718.0000 1 Push Nut, 2mm

16 37949.0000 1 Cap, Rocker Switch

17 38307.0000* 1 Circuit Board, EMI Filter, 230V

18 36546.0000 1 Wiring Harness, Main (Not Illustrated)

19 36547.0000 1 Wiring Harness (Not Illustrated)

20 21016.0307 1 Lead, Electric 16 AWG 14.0” LG (Not Illustrated)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

13

37485 091305

SPRAYHEAD ASSEMBLY

9

MCA

11

12

13

14

7

8

10

15

4

3

5

6

2

18

16

17

14

P3054

37485 091305

SPRAYHEAD ASSEMBLY

ITEM PART NO. QTY. DESCRIPTION

1 37418.0000 1 Sprayhead Assy (Includes Items 3 through 18)

2 - - - - - - - - 1 Button, Pod Release (See “Pod Holder”)

3 - - - - - - - - 1 Linkage, Button To Pin (See “Pod Holder”)

4 - - - - - - - - 1 Pin, Lock Holder (See “Pod Holder”)

5 - - - - - - - - 1 Spring, Latch-Pod Holder (See “Pod Holder”)

6 36278.0000* 1 Sprayhead Assy, Top W/Fittings

36532.0000* 1 Insert, Stud .25-20 UNC (Not Illustrated)

7 36279.0000* 1 Ramp, Sprayhead

8 01360.0001 4 Screw, PHH PHN Plascrew #6 x .60

9 36536.0000 1 Switch, Snap Action 24V

10 37543.0000* 1 Fitting, Barbed .062-27

11 36324.0000* 1 Plunger, L-Shaped Activator

12 36544.0000* 1 Spring, Compression .12

13 36323.0000 1 Plunger, Switch Actuator

14 36378.0001 1 Valve, Check DW 10

15 36379.0000 1 Valve, Check DW 11

16 37521.0000 1 Sprayhead/Seal Assembly (Includes Items 17 & 18)

17 36384.0000* 1 Sprayhead

8 36078.0000 1 Seal, Sprayhead

1

” OD x .38”

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

15

37485 101705

POD HOLDER

4

O

Z

.

5

6

7

8

9

1

0

1

1

1

2

O

Z

.

MCA

3

4

1

2

5

7

6

8

9

P3052.70

16

37485 112304

POD HOLDER

ITEM PART NO. QTY. DESCRIPTION

1 36904.0000 1 Button Assy, Pod Release W/Terminals

2 36280.0000* 1 Pin, Latch-Pod Holder

3 36281.0000* 1 Linkage, Button To Pin

4 36288.0000* 1 Spring, Latch-Pod Holder

5 - - - - - - - - 1 Sprayhead Assy (See “Sprayhead Assembly”)

6 36717.1000 1

7

36716.0001 1 Screen, Molded Snap-In, BLU (Optional)

8 36715.0000 1 Pod Holder

9 37280.0000 2 Decal, Hot Liquids

10 37458.1001 1 Kit, Accessory (Includes Items 6, 9, 11, 13, 14 & 15)

11 37306.0000 1 Descaler, Urnex (Available at Web Site - www.bunn.com) (Not Illustrated)

12 37307.0000 - Descaler, JavaClean2 (Available

13 - - - - - - - - 1 Drip Tray

14 - - - - - - - - 1 Grate, Drip Tray (Not Illustrated) (See “Housings & Covers”)

15 - - - - - - - - 1 Strainer/ Flow Control Assy .222 GPM (Not Illustrated)

(See “Reservoir, Check Valves, Tubes, Pumps & Solenoid”)

36716.0000 1 Screen, Molded Snap-In, BLK

Pod Holder Assembly (Includes one of Item 7 and one each of 8 & 9)

at Web Site - www.bunn.com) (Not Illustrated)

(Not Illustrated) (See “Housings & Covers”)

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

17

37485 091305

NUMERICAL INDEX

PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.

00310.0000......................... 11

00656.0000........................... 5

00935.0001......................... 11

01154.0000......................... 11

01155.0000......................... 11

01360.0001................. 5, 9, 15

06064.0000......................... 13

20526.1222......................... 11

21016.0307......................... 13

22249.0000......................... 11

22300.0222......................... 11

22307.0222......................... 11

23721.0000......................... 11

34466.0000........................... 5

36078.0000......................... 15

36171.0001......................... 13

36261.0000........................... 5

36262.0000........................... 5

36264.0001........................... 9

36265.0000........................... 5

36269.0002........................... 5

36270.0000......................... 13

36272.0000........................... 5

36278.0000......................... 15

36279.0000......................... 15

36280.0000......................... 17

36281.0000......................... 17

36283.0000........................... 9

36284.0000........................... 9

36285.0000......................... 13

36288.0000......................... 17

36289.0000........................... 7

36289.0002........................... 7

36303.0000........................... 9

36316.0000........................... 9

36321.0000........................... 9

36322.0000........................... 5

36323.0000......................... 15

36324.0000......................... 15

36329.0002...................... 9,11

36378.0001..................... 9, 15

36379.0000......................... 15

36381.0000......................... 13

36381.0001......................... 13

36381.0002......................... 13

36382.0000......................... 13

36384.0000......................... 15

36395.0000........................... 7

36396.0000........................... 7

36396.0001........................... 7

36532.0000......................... 15

36536.0000......................... 15

36544.0000......................... 15

36546.0000......................... 13

36547.0000......................... 13

36629.0000........................... 9

36629.0001........................... 9

36629.0002........................... 9

36630.0000........................... 9

36631.0001........................... 9

36631.0002........................... 9

36631.0003........................... 9

36715.0000......................... 17

36716.0000......................... 17

36716.0001......................... 17

36717.1000......................... 17

36718.0000......................... 13

36724.0001........................... 5

36726.0001........................... 5

36727.0000........................... 5

36891.0000......................... 13

36895.0000........................... 7

36901.0000......................... 13

36903.0000......................... 13

36904.0000......................... 17

36924.0000........................... 9

36925.0000........................... 9

36990.0000........................... 5

37035.0000......................... 13

37061.0000........................... 7

37083.0000........................... 7

37084.0000......................... 13

37084.0001......................... 13

37092.0001........................... 5

37094.0000......................... 11

37267.0000........................... 5

37280.0000......................... 17

37281.0000........................... 5

37282.0000........................... 5

37290.0000........................... 9

37306.0000......................... 17

37307.0000......................... 17

37313.0000........................... 9

37313.0001........................... 9

37313.0002........................... 9

37418.0000......................... 15

37419.1000........................... 9

37452.0000......................... 11

37458.1001......................... 17

37459.0000........................... 9

37469.0000......................... 11

37470.0000......................... 11

37489.0000......................... 11

37491.0000........................... 5

37495.1000........................... 5

37519.0001........................... 5

37520.0001........................... 5

37521.0000......................... 15

37522.0001......................... 13

37522.0003......................... 13

37543.0000......................... 15

37725.0002........................... 7

37802.0000........................... 9

37925.0000......................... 11

37949.0000......................... 13

38184.0000........................... 7

38302.0003......................... 13

38307.0000......................... 13

38316.0000......................... 13

38386.0000......................... 13

38413.0000......................... 11

38414.0000......................... 11

18

37485 091305
