INSTALLATION & OPERATING MANUAL

BUNN-O-MATIC CORPORATION

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.

POST OFFICE BOX 3227

Page 2

INTRODUCTION

This equipment will brew a 1⁄2 gallon batch of coffee into an awaiting decanter . The brewer may hav e

a hot water faucet for allied beverage use. It is only for indoor use on a sturdy counter or shelf.

CONTENTS

Introduction & Warranty ........................................................................ 2

User Notices .........................................................................................3

Electrical Requirements ........................................................................ 4

Plumbing Requirements & Initial Set-Up ............................................... 6

Operating Controls & Coffee Brewing ................................................... 7

Cleaning & Tank Drain .......................................................................... 8

Adjustments & Optional Settings ..........................................................9

Troubleshooting ................................................................................... 22

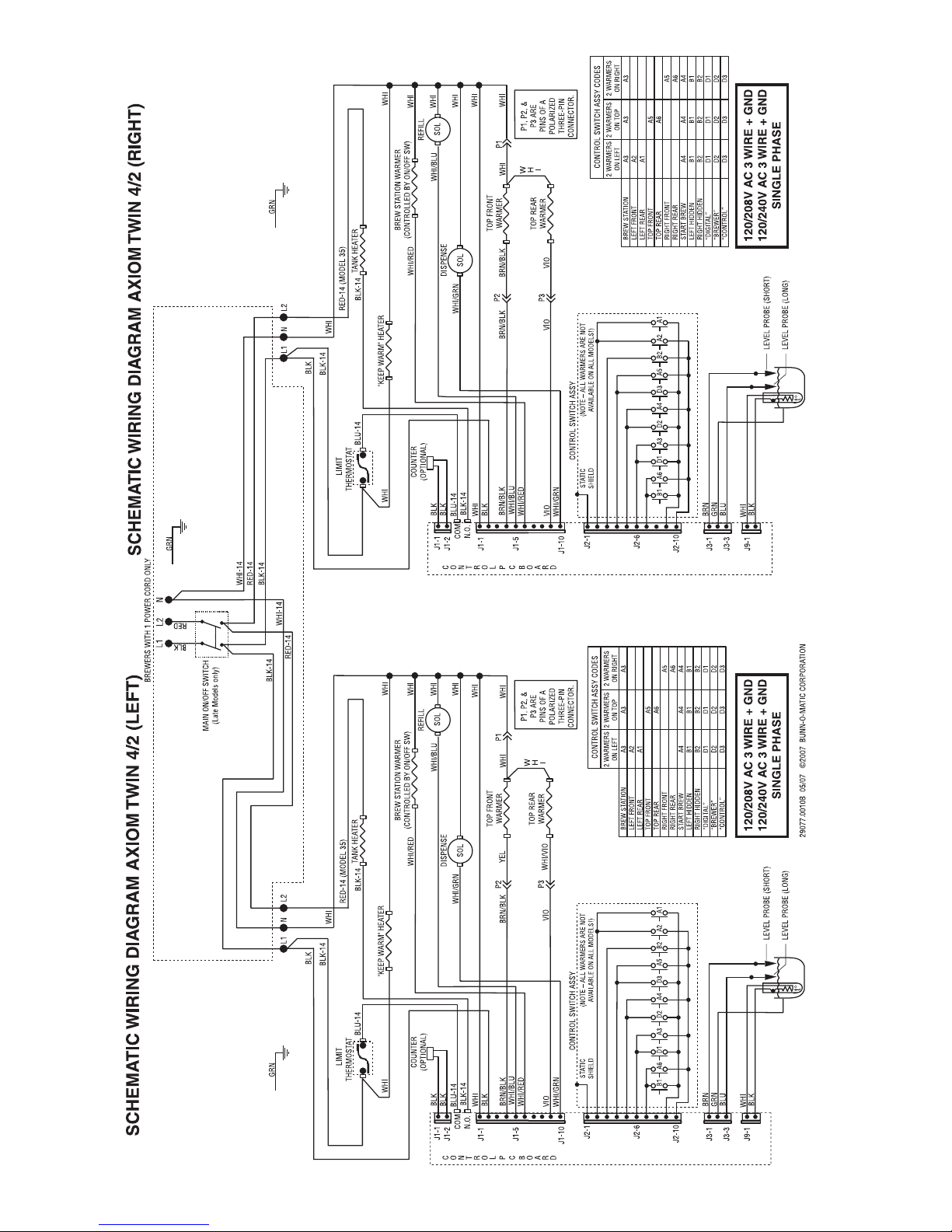

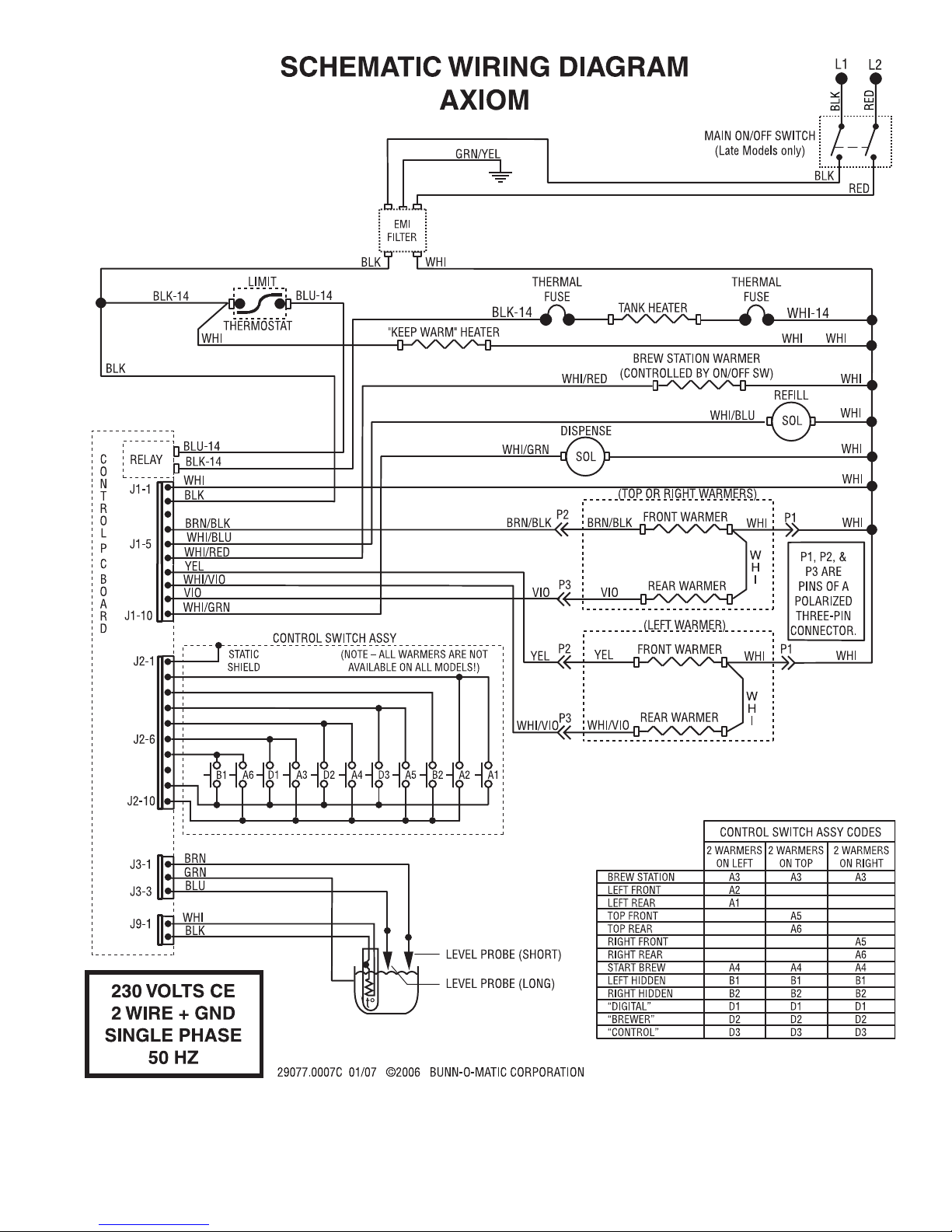

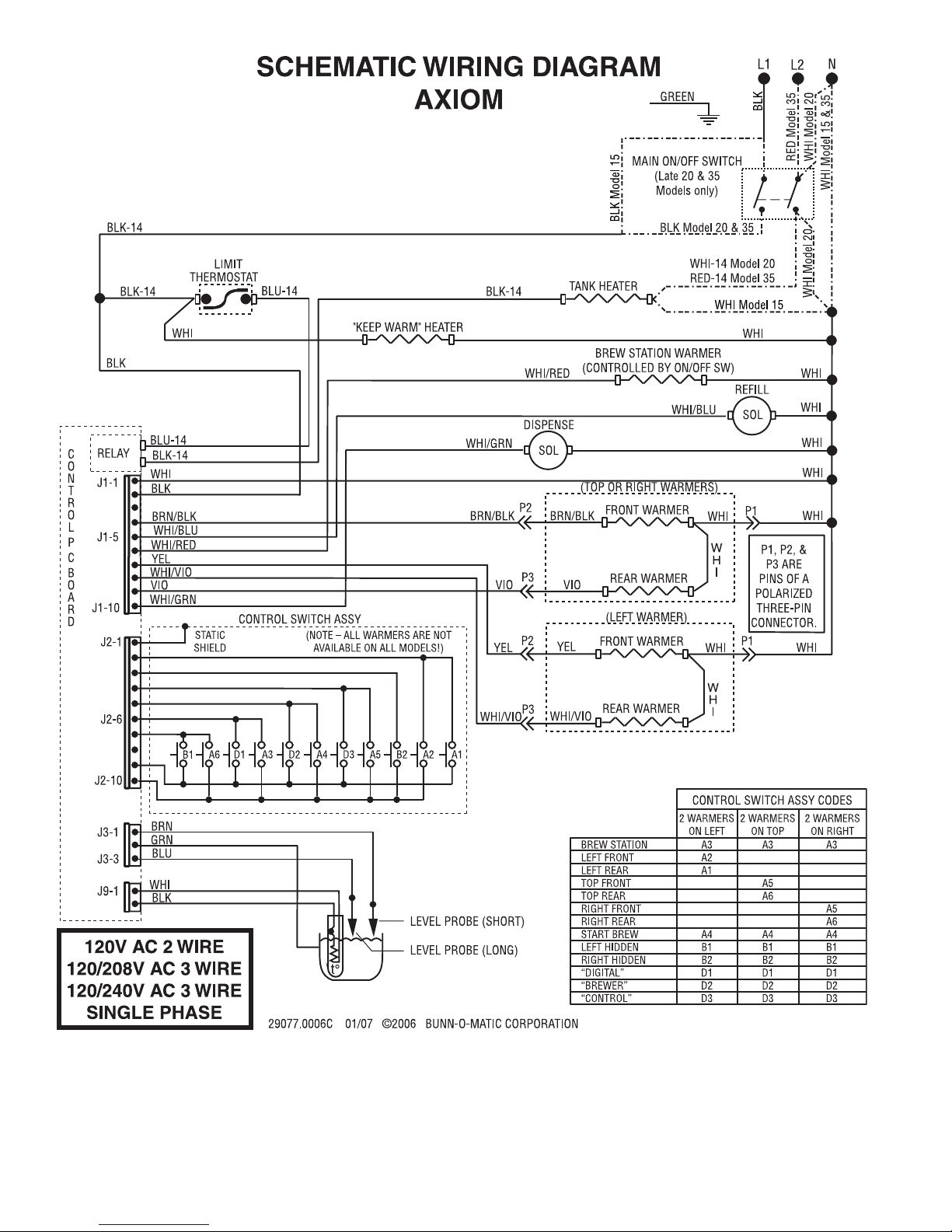

Schematics ......................................................................................... 26

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1) All equipment other than as speciﬁ ed below: 2 years parts and 1 year labor.

2) Electronic circuit and/or control boards: parts and labor for 3 years.

3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.

4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis: parts and labor for 3 years or 30,000 pounds of coffee, whichever comes ﬁ rst.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Ofﬁ ce Box 3227, Springﬁ eld, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not

authorized to make modiﬁ cations to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.

If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods speciﬁ ed above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT , WHETHER DERIVED FR OM W ARRANTY OR OTHER WISE, SHALL BE LIMITED, A T BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost proﬁ ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

Page 2

39130 053107

Page 3

USER NOTICES

Carefully read and follow all notices in this manual and on the equipment. All labels on the equipment should be kept in good condition. Replace any unreadable or damaged labels.

#12364.0000

#00656.0000

#37881.0002

#00658.0000

! WARNING

DO NOT OVERLOAD CIRCUIT. ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. DO NOT DEFORM PLUG OR CORD. FOLLOW NATIONAL AND LOCAL ELECTRICAL CODES. KEEP COMBUSTIBLES AWAY.

FAILURE TO COMPLY RISKS EQUIPMENT

DAMAGE, FIRE OR SHOCK HAZARD.

READ THE ENTIRE

OPERATING MANUAL BEFORE

USING THIS PRODUCT

/PTIONAL&IELD7IRING

6!7

0(7IRE'.$(:

#29710.0004 #29710.0007

/PTIONAL&IELD7IRING

6!7

0(7IRE'.$(:

#00986.0000

#03408.0002

To reduce the risk of electric shock, do not remove or open cover. No user-serviceable parts inside. Authorized service personnel only. Disconnect power before servicing.

#02765.0000

#03409.0002

B.U.N.N., BREWWISE, BUNN, BUNN FAMILY GOURMET, BUNN GOURMET ICE, BUNN-O-MATIC, BUNN OMATIC LOGO, BUNN, BUNNSERVE, DBC, DR. BREW LOGO, DR. BREW, DUAL, EASY CLEAR, EASY POUR, FLAVORGARD, GOURMET ICE, GOURMET JUICE, HIGH INTENSITY, INFUSION SERIES, LEGENDARY FOR QUALITY, MY CAFE, POWERLOGIC, SAFETY-FRESH, SINGLE, SMART FUNNEL, SMART HOPPER, SOFT HEAT, SPLASHGARD, SYSTEM III, THE MARK OF QUALITY IN BEVERAGE EQUIPMENT WORLDWIDE and THERMOFRESH are registered trademarks of Bunn-O-Matic Corporation in the United States and/or other countries.

#37881.0000

AXIOM, BREWLOGIC, BREWWIZARD, BUNN ESPRESS, BUNNLINK, BUNNLINK LOGO, COFFEE SPOT, EASYGARD, GLOBAL SOLUTIONS FOR QUALITY BEVERAGES, IMIX, NOTHING BREWS LIKE A BUNN, QUALITY BEVERAGE EQUIPMENT WORLDWIDE, SIGNATURE SERIES, SILVER SERIES, SMART WAVE, BUNNSOURCE, DIGITAL BREWER CONTROL, POURING PROFITS, SMART HEAT, THE HORIZONTAL RED LINE, ULTRA, COFFEE AT ITS BEST and TEA AT ITS BEST are trademarks of Bunn-O-Matic Corporation in the United States and/or other countries.

Unauthorized use or duplication of these marks is strictly prohibited by law.

The absence of a name or logo in this list does not constitute a waiver of any and all intellectual property rights that Bunn-O-Matic Corporation has established in any of its product, feature, or service names or logos.

Page 3

39130 053107

Page 4

ELECTRICAL REQUIREMENTS

WARNING -

The brewer must be disconnected from the power source until speciﬁ ed in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.

ELECTRICAL HOOK-UP (All Models) CAUTION – Improper electrical installation will damage electronic components.

1. An electrician must provide electrical service.

2. Determine the available on-site electrical service.

3. Select the desired unit voltage based on the available on-site electrical service.

4. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.

5. Remove the front access panel beneath the sprayhead to gain access to the terminal block.

6. Feed the supply leads through the rear of the brewer.

7. Using the above diagrams, connect the desired electrical service to the ﬁ eld wiring terminal block.

8. If wiring the machine for operation on 120/208 or 120/240 volts with a Power Supply Cord, the Power Supply Cord must be UL Listed Flexible Cord Type SO, SJO, SJTO, HSJO or SJOW, No. 12 AWG, 4 Conductor, Rated 90° C. Attachment Plug Cap must be UL Listed, NEMA 14-20P or L14-20P Conﬁ guration, Rated 125/250V, 20 AMPS. The Power Supply Cord must be at least 3 feet long and maximum 6 feet long (measured from Strain Relief to end of the Attachment Plug Cap).

9. Before proceeding, verify the voltage at the ﬁ eld wiring terminal block.

10. Set voltage switch to the appropriate position and replace the access panel. (DV Models Only)

11. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing has been hooked up, the brewer is ready for Initial Set-Up.

Note: This electrical service require 3

current carrying conductors (Neutral, L1 and L2) and a separate conductor for earth ground

Twins

All Twins are 120/208 & 120/240V AC

Single phase unless otherwise noted.

Note: Power cord must be

connected to center terminal block on all Twins unless otherwise noted.

Page 4

39130 053107

Page 5

ELECTRICAL REQUIREMENTS

Single & Dual Volt

Requirements for brewers with an attached cord set are as follows: Note: This electrical service re-

quires 2 current carrying conductors (Neutral, and L1) and a separate conductor for earth ground.

WHITE

NEUTRAL L1 BLACK

GREEN GREEN

WHITE

NEUTRAL L1 BLACK

120V. A.C.

120V AC

Single phase models

Requirements for brewers without an attached cord set are as follows: Note: This electrical service

require 3 current carrying

Dual Voltage Switch in 120/208-240V position

conductors (Neutral, L1 and L2) and a separate conductor for earth ground

Dual V oltage Switch

in 120V position

120V

120/208-240V

For Supply Connections, Use No. 12 AWG Wires SuitableFor At Least 90oC (194oF)

FOR USE ONLY ON AN

INDIVIDUAL BRANCH

CIRCUIT RATED 20 AMPS

120V

120/208-240V

For Supply Connections, Use No. 12 AWG Wires SuitableFor At Least 90oC (194oF)

FOR USE ONLY ON AN

INDIVIDUAL BRANCH

CIRCUIT RATED 20 AMPS

L2 RED L2 RED

WHITE

NEUTRAL L1 BLACK

GREEN GREEN

WHITE

NEUTRAL L1 BLACK

120V.

208 or 240V. A.C.

120/208 & 120/240V AC

Single phase models

Page 5

39130 053107

Page 6

PLUMBING REQUIREMENTS

These brewers must be connected to a cold water system with operating pressure between 20 and 90 psi (138 and 620 kPa) from a 1⁄2" or larger supply line. A shut-off valve should be installed in the line before the brewer. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345 kPa). The water inlet ﬁ tting is 1⁄4" ﬂ are.

NOTE - Bunn-O-Matic recommends 1⁄4" copper tubing for installations of less than 25 feet and 3⁄8" for more than 25 f eet from the 1⁄2" water supply line. A tight coil of copper tubing in the water line will facilitate moving the bre wer to clean the counter top . Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water ﬂ ow .

This equipment must be installed to comply with the Basic Plumbing Code of the Building Ofﬁ cials and Code Administrators International, Inc. (BOCA) and the Food Ser vice Sanitation Manual of the Food and Drug Administration (FDA). For models installed outside the U.S.A., comply with the applicable Plumbing /Sanitation Code.

1. Flush the water line and securely attach it to the inlet ﬁ tting at the rear of the brewer.

2. Turn on the water supply.

INITIAL SET-UP

1. Insert an empty funnel into the funnel rails.

2. Place an empty server under the funnel.

3. Connect the brewer to the power source.

4. Turn on the main ON/OFF switch located on the

left side of brewer (If equipped).

5. Press and release the "ENABLE BREW ON/OFF"

switch. (Indicator m ust be lit!). Water will ﬂ ow into the tank and stop when the tank is ﬁ lled to its capacity . Displa y will show "PLEASE W AIT...T ANK FILLING" until tank is ﬁ lled with water.

6. Wait approximately twenty minutes for the water

in the tank to heat to the proper temperature. Display will show "READY TO BREW...W ATER TEMP: 200°" when tank is at operating temper ature. Some water will drip from the funnel during this time; this is due to e xpansion and should not occur thereafter.

7. Place a small container beneath the faucet and

open the faucet handle. Release it when you hear the tank reﬁ lling.

8. Water volumes and ﬂ ow settings have been preset

at the factory. Refer to adjustments for the Set Brew Volumes section of this manual should the volume need to be increased or decreased.

9. The brewer is now ready for use in accordance

with the instructions for Coffee Brewing.

10. Repeat steps 5-9 for remaining side on Twins.

Page 6

If setting up new brewer in high mineral locations, refer to programming (Enable Brew Logic). Pertains to units with software version 1.06 & up.

Brew water temperature is factory set at 200o F (93.3o C) Areas of high altitude will require lowering this temperature to prevent boiling. This chart should be used as a guide when readjusting the brew water temperature.

Altitude

(Feet)

-1000 213.8 101.0 200 93.3

-500 212.9 100.5 200 93.3 0 212.0 100.0 200 93.3

500 211.1 99.5 200 93.3 1000 210.2 99.0 200 93.3 1500 209.3 98.5 200 93.3 2000 208.4 98.0 200 93.3 2500 207.4 97.4 200 93.3 3000 206.5 96.9 199 92.8 3500 205.6 96.4 198 92.2 4000 204.7 95.9 197 91.7 4500 203.8 95.4 196 91.1 5000 202.9 94.9 195 90.6 5500 201.9 94.4 195 90.6 6000 201.0 93.9 194 90.0 6500 200.1 93.4 193 89.4 7000 199.2 92.9 192 88.9 7500 198.3 92.4 191 88.3 8000 197.4 91.9 190 87.8 8500 196.5 91.4 189 87.2 9000 195.5 90.8 188 86.7 9500 194.6 90.3 187 86.1

10000 193.7 89.8 186 85.6

Boiling point

of water

o F o C

Recommended

water temperature

o F o C

39130 053107

Page 7

P3633

OPERATING CONTROLS

(A) ENABLE BREW ON/OFF SWITCH

Pressing the "ENABLE BREW ON/OFF" switch (indicator on) supplies power to the brew station w armer, enab les the brew circuit, and energizes the tank reﬁ ll circuit. Pressing the switch again (indicator off) stops tank reﬁ lling and brewing and de-energizes the brew station warmer . Stopping a brew cycle after it has been started will not stop the ﬂ ow of water into the server until the funnel is empty.

NOTE – Hot water will be availab le at the f aucet in a limited

amount when the "ENABLE BREW ON/OFF" switch is in the "OFF" position because the tank will not reﬁ ll.

(B) BREW SWITCH

Momentarily pressing and releasing the switch starts a brew cycle when the "ENABLE BREW

ON/OFF" indicator is on.

Pressing any additional warmer switch so that the indicator is on, supplies power to the associated warmer. NOTE: APS & TC models have no warmers.

COFFEE BREWING

1. Begin each brew cycle with a clean empty brew funnel.

2. Insert a BUNN ﬁ lter into the funnel.

3. Pour (or grind) fresh coffee into the ﬁ lter and level the bed of grounds by gently shaking.

4. Slide the funnel into the funnel rails until it stops.

5. Place an empty server under the funnel.

6. V erify that the "ENABLE BREW ON/OFF" indicator is on.

7. Momentarily press and release the "BREW" switch. The display will read "NO W BREWING", and show the time remaining in the brew cycle.

8. Following the brew , the displa y reads "DRIPPING" which shows the time remaining until the coffee no longer drips from the funnel tip.

9. After the coffee ﬁ nishes dripping from the funnel tip, carefully remove the brew funnel and discard the grounds and ﬁ lter.

NOTE: Some models are equipped with a backup pour in feature, in case the plumbed water supply is disrupted. In this e v ent, disregard steps 7-8, and pour in 64 ounces of fresh water.

Page 7

39130 053107

Page 8

CLEANING

1. The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment.

2. Check and clean the spra yhead. The sprayhead holes must alw ays remain open. Insert the short end of the sprayhead cleaning tool into each of the ﬁ ve water outlets of the plastic sprayhead to remove any mineral deposits (Refer to Fig 1)

3. Insert the long end of spra yhead cleaning tool into the spra yhead ﬁ tting, and rotate sev eral times to remove any mineral deposits from the ﬁ tting (Refer to Fig 2).

NOTE: In hard water areas, this may need to be done daily. It will help prevent liming problems in the brewer and takes less than a minute.

NOTE: In the event that the "Brew Logic" circuit activates (compensating for high lime build up), it will temporarily disable the "Recovery Booster" and "Pulse Brewing" systems until the unit has been de-limed. Refer to the Troubleshooting section for more details.

FIGURE 1 FIGURE 2

1. Loosen screws that secure the front access panel. Remove the panel.

2. Unfasten the hose clamp at the end of the drain hose. Remove the plug.

3. Place the end of the drain hose in a container that has a minimum capacity of 200 oz (5.9 L).

4. Release the white clamp to drain water from the tank.

5. When tank is empty, close the white clamp, replace the plug, and tighten the clamp at the end

of the drain hose. (Repeat steps 2-5 for remaining side on Twins)

6. Replace the front panel and tighten screws.

TANK DRAIN

Page 8

39130 060206

Page 9

ADJUSTMENTS & OPTIONAL SETTINGS

BUNN

™

READ Y TO BREW

WA TER TEMP: 200°

REAR

FRONT

WARMER

WARMERS

P3633-2

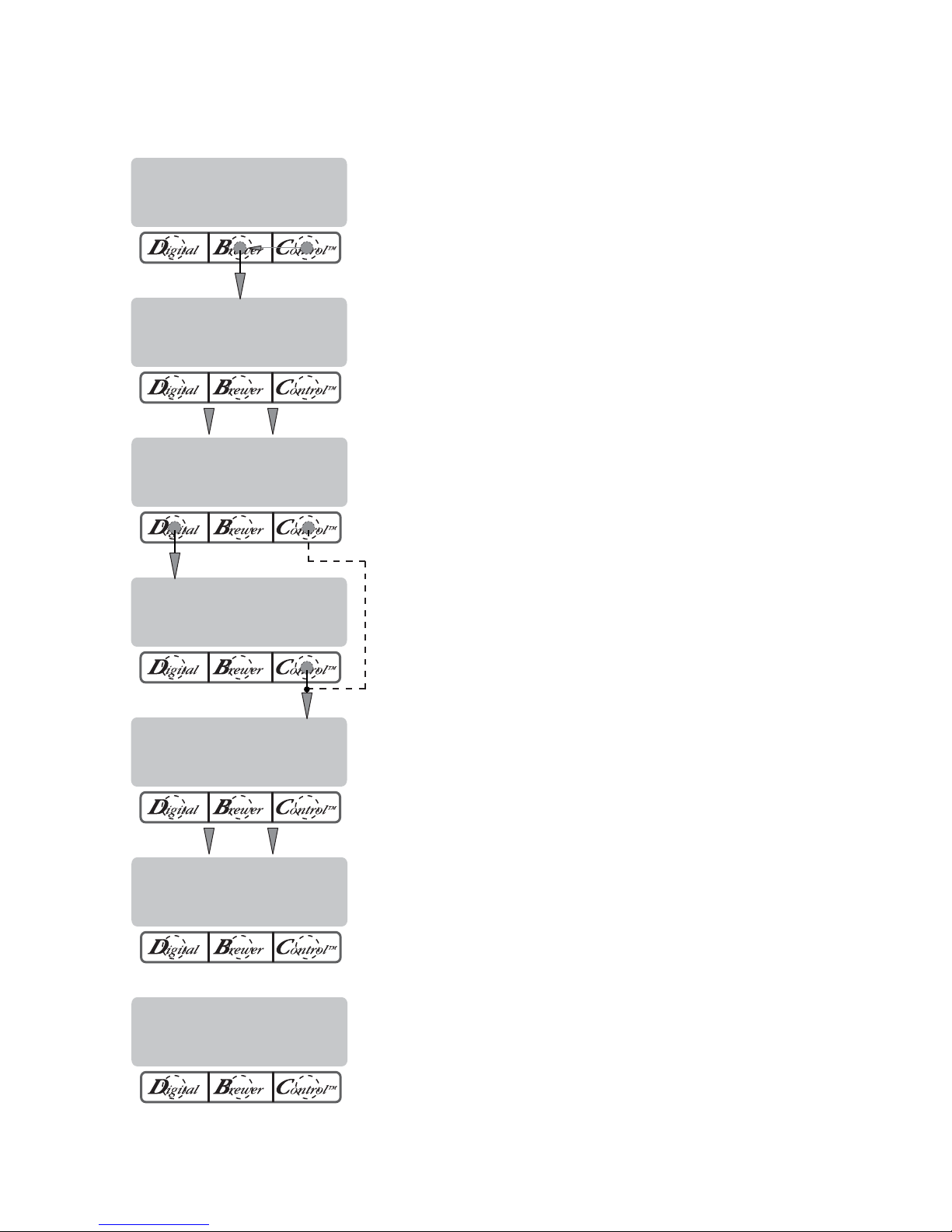

Using the menu-driven display on the front of the brewer, the operator has the ability to alter or modify various brewing parameters such as brew lockout, brew volume, brew strength, etc. This allows for the precise brewing of various ﬂ avors of coffee. Programming of the brewer is achie v ed by entering a certain function. Then, b y the use of hidden programming switches, the operator can customize the brewing process to their speciﬁ cations.

PROGRAMMING SWITCHES

1. FUNCTION SCREEN

This is the display which shows the various functions.

2. (Right of the display) This is used to access the program mode and is also used to step forward through the menu.

3. (Left of the display) This is used to step backwards through the function list.

4. "Digital" (lower left under the display) This is used to select options that appear on the display during programming (NO/-)

"Brewer" (center under the display) This is used to select options that appear on the display during programming (DONE)

"Control" (lower right under the display) This is used to select options that appear on the display during programming (YES/+)

Page 9

39130 053006

Page 10

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

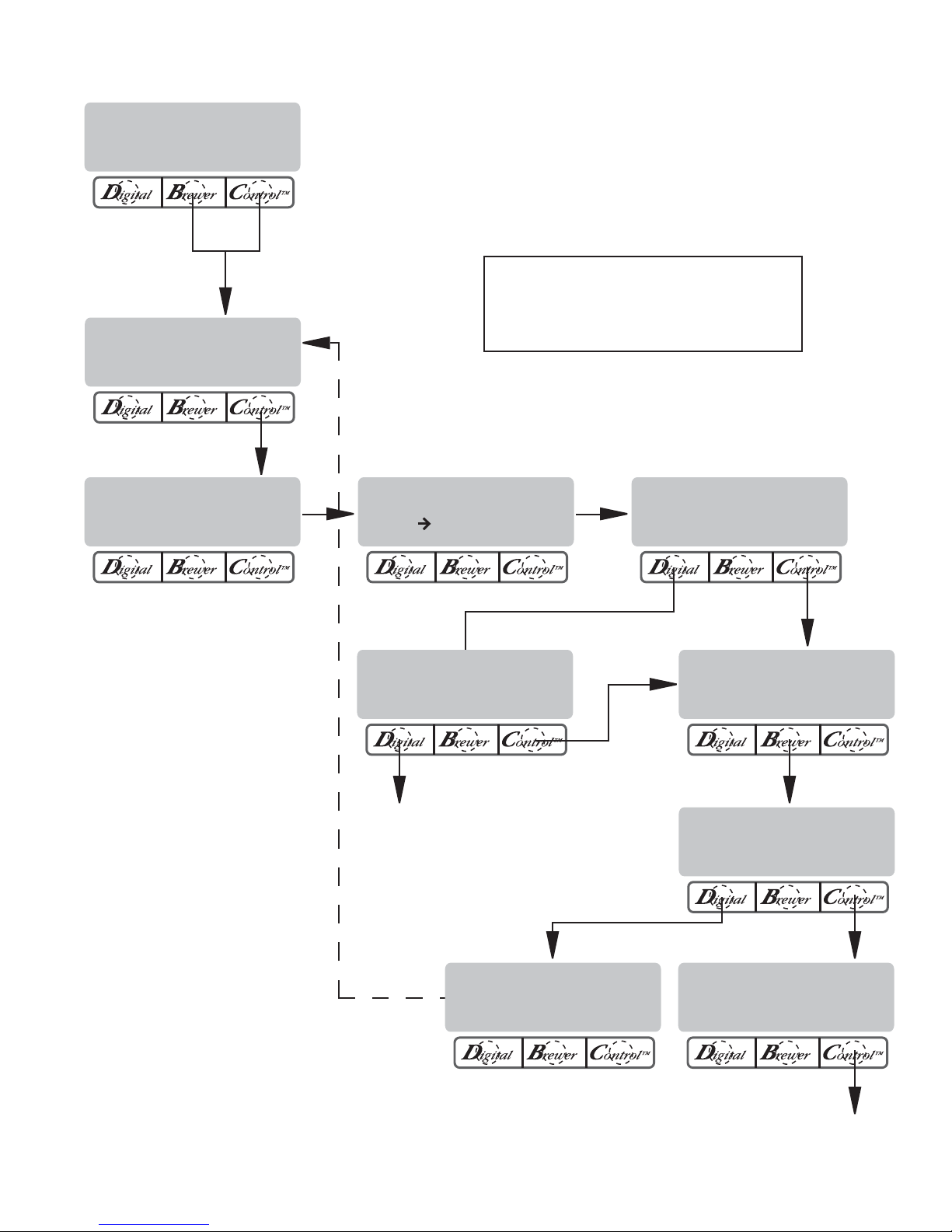

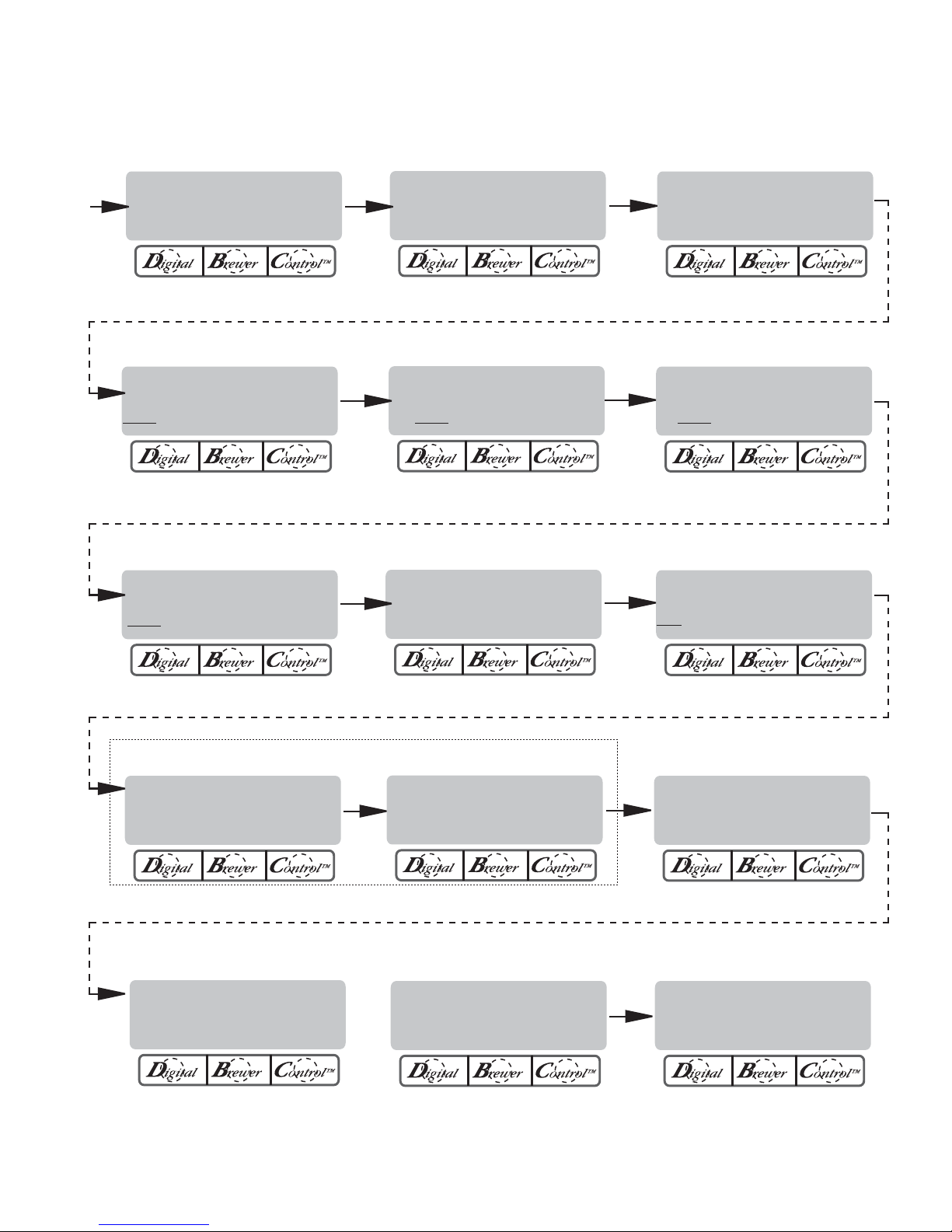

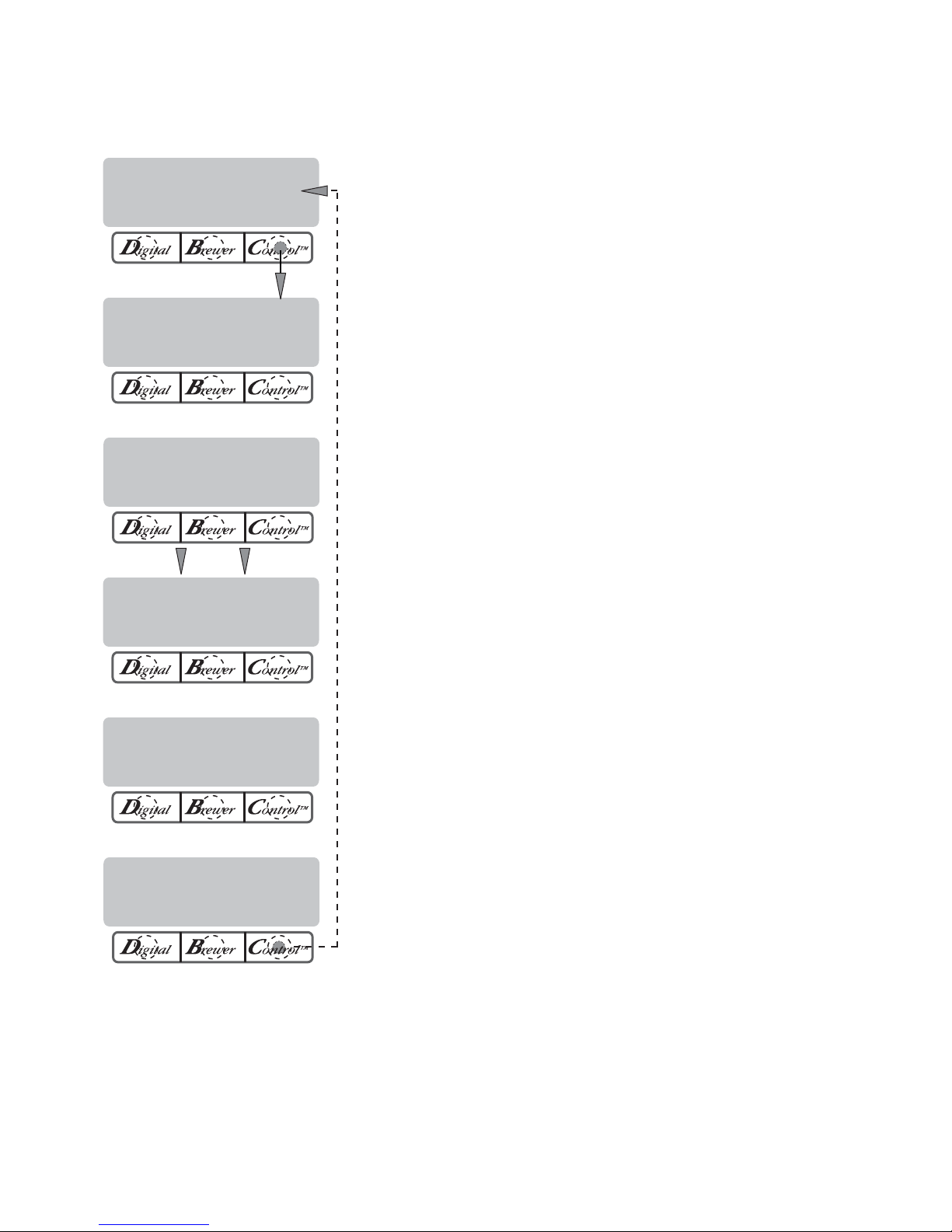

PROGRAMMING FUNCTIONS - FLOW CHART

BREW WIZARD

BREW LOCKOUT ?

NO DONE YES

ENABLE ADS ?

NO DONE YES

ENTER PASSWORD

0 0 0

BREW OZ: 64.0

(-) DONE (+)

ENTER SERVICE #? NO YES

LEVEL 2

SET PASSWORD

0 0 0

BREW METER 1

- +

EXITING

BREW WIZARD

SET LANGUAGE ?

NO YES

UNITS METRIC DONE ENG

SET TEMP: 200°

(-) DONE (+)

(CONT.)

Page 10

SET READY: 195° (-) DONE (+)

39130 053107

Page 11

LEVEL 2 (CONT.)

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

ENTER ASSET # ?

NO YES

ENABLE CLEAN NO DONE YES

ENABL W ARMER OFF NO DONE YES

SET PULSE BREW ?

NO YES

Enabl EnergySavr NO DONE YES

0 REFILL 155 (-) DONE (+)

DRIP TIME 0:30

(-) DONE (+)

EnableFreshTimer

NO DONE YES

(Ver. 1.07 & above)

ENABLE BrewLOGIC

NO DONE YES

(These two screens will change if "BrewLogic" is enabled)

SPRAY OZ/M: 25.0

(-) DONE (+)

SERVICE TOOLS ?

NO YES

CALIBRATE FLOW ?

NO YES

FACTORY DEFAULTS NO YES

Page 11

BREW COUNTERS ?

NO YES

Return To Main Screen

AXIOM

VERSION xx.xx

Displays Model &

Software Ver sion

39130 053107

Page 12

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

PROGRAMMING THE BREWER

The programming of the brewer is divided into two lev els. Brewing adjustments are in "Brew Wizard". Service functions are accessed in Level 2. The following function screens are in order of appear ance. Each screen will have instructions on how to access, and the procedures to program the various functions of the brewer.

IMPORTANT PROGRAMMING NOTES

- READ CAREFULLY -

T o e xit the prog ramming mode at an y time, press and release "ENABLE BREW ON/OFF" s witch located on the front switch panel. The display will return to the MAIN SCREEN. If none of the ﬁ ve programming switches are pressed within one minute during the setup of the brewer, the programming of the function screen that is being set will be exited and the display will return to the MAIN SCREEN. Always remember to place an empty server and funnel under the sprayhead when operating the brewer during the set-up of PULSE BREW, CALIBRATE FLOW and testing the brew valve in SERVICE TOOLS/TEST OUTPUTS.

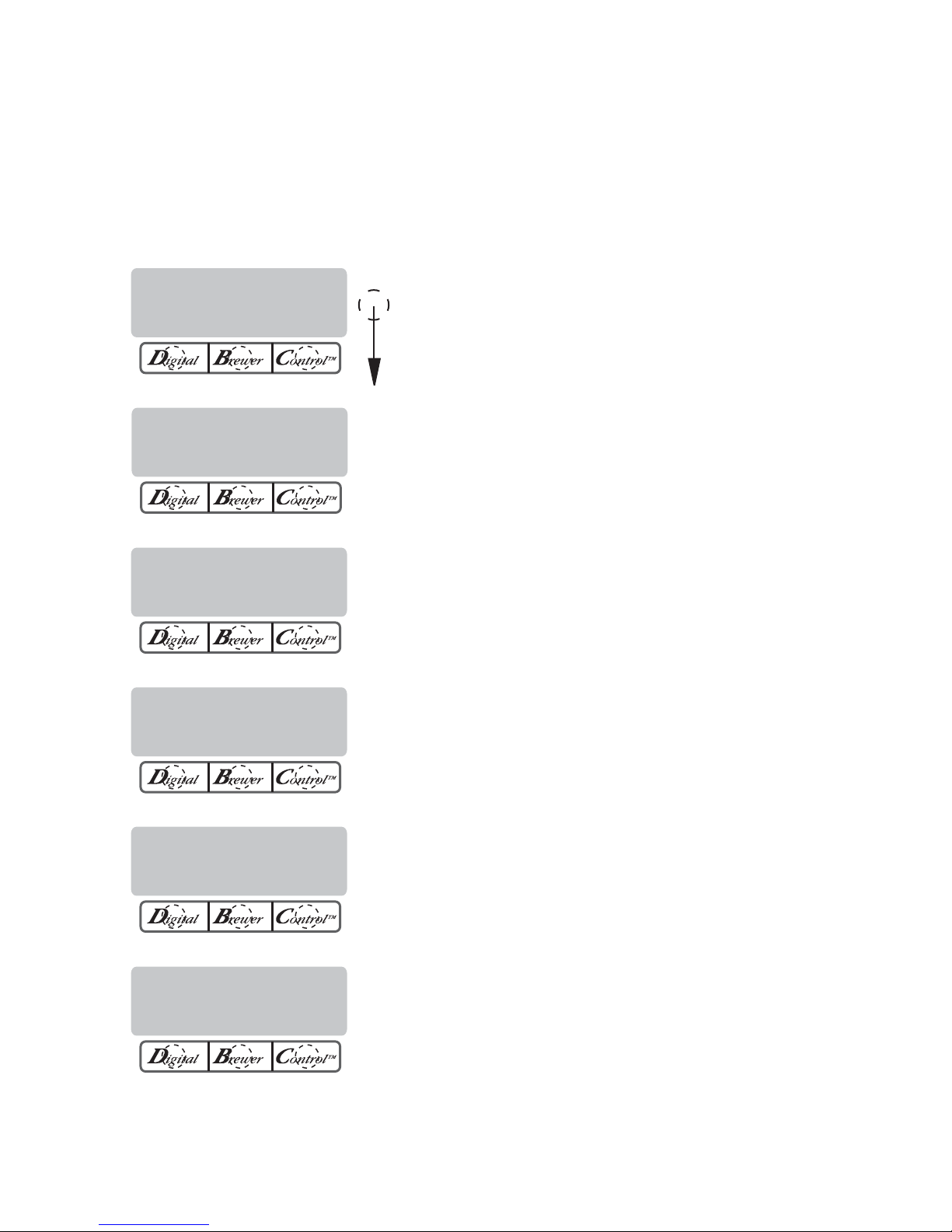

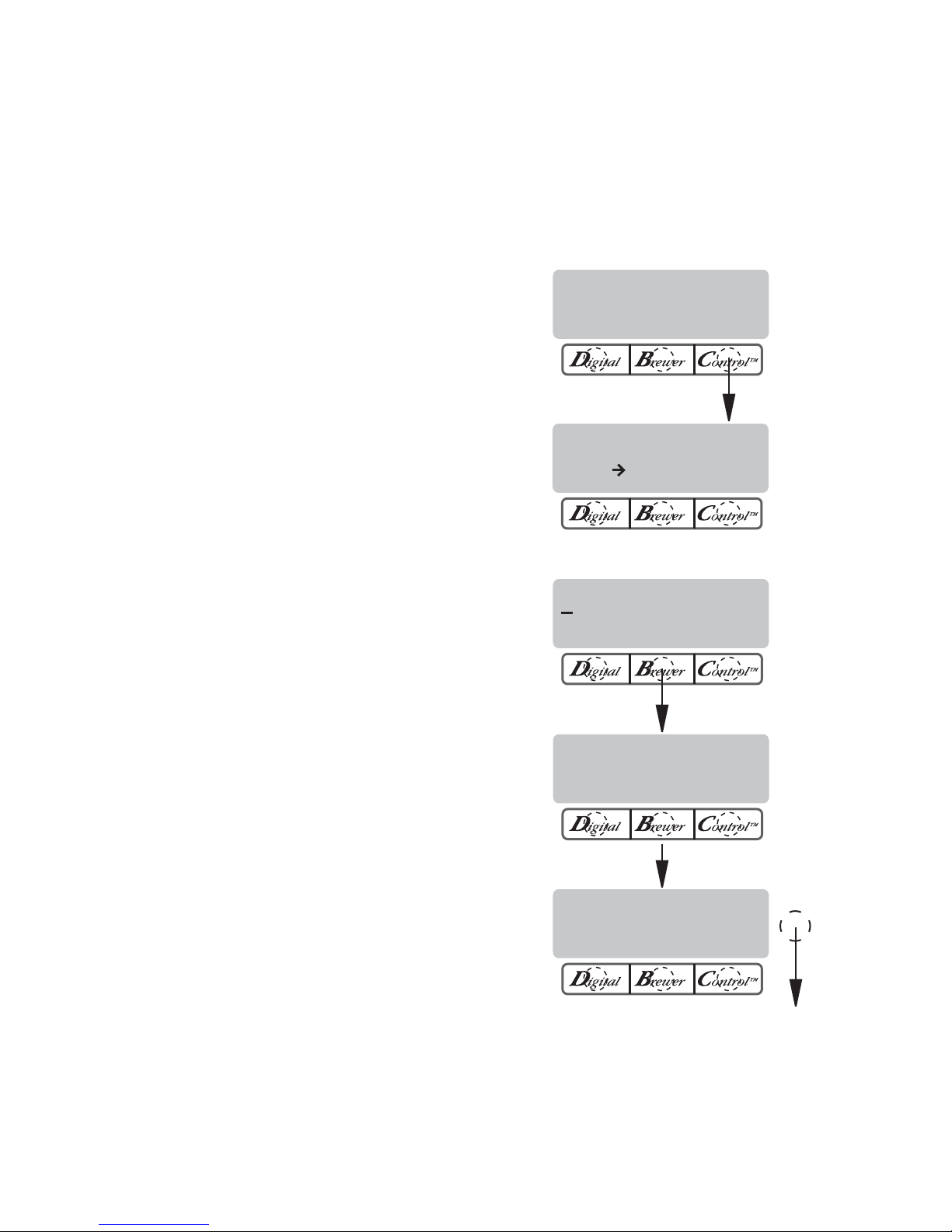

PROGRAM FUNCTIONS - BREW WIZARD

MAIN SCREEN

READ Y TO BREW

WA TER TEMP: 200°

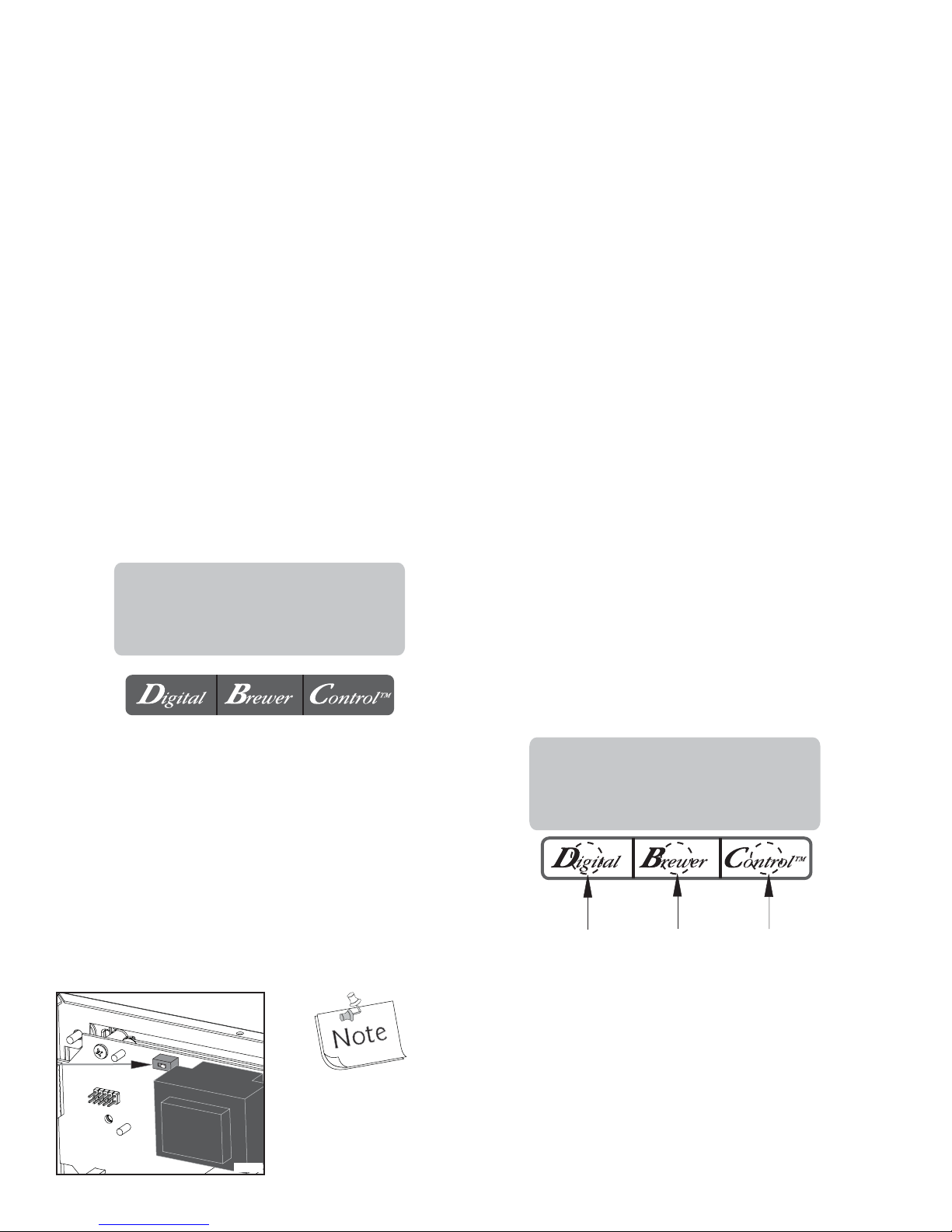

PROGRAMMING LOCKOUT SWITCH

(Mounted on main control board)

This switch can be set to prevent access to the programming settings of the brewer. Once all the correct brew settings are programmed, the operator can set the switch to the "ON" position to prohibit anyone from changing the settings. With the switch in the "ON" position, the programming menus can still be accessed to view the current settings. However, no changes will be saved.

BREW LOCKOUT

This function allows the operator to prevent or allow brewing if the water temper ature is less than the set READY temperature. T o access this function screen press and hold the right hidden switch. Release when the display reads: "BREW WIZARD" it will then read:

BREW LOCKOUT?

NO DONE YES

Press here

for NO

Press here

for DONE

Press here

for YES

Disconnect brewer from power source before removing any panel!

P3634

The YES or NO should be ﬂ ashing. Select YES to prevent brewing if the water temperature is below the set READY temperature. Select NO to permit brewing at any water temperature. When ﬁ nished, press and release DONE. This will step to the next function screen. To retur n to the MAIN SCREEN at any time, press and release "ENABLE BREW ON/OFF".

Page 12

39130 053107

Page 13

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

PROGRAMMING FUNCTIONS - BREW WIZARD (cont.)

The functions in the "BREW WIZARD" allow the operator to adjust brew settings and other features.

BREW OZ:

This function allows the operator to adjust the brew volume. Procedure:

1. Press and hold the right hidden switch until the display reads "BREW WIZARD" and release.

2. The display will then read: "BREW OZ: xx.x"

3. Press (-) "Digital" to decrease the amount, or (+) "Control" to increase. Range: (10 to 192 oz., in .5 oz. increments) or (.30 to 6.60 Liters, in .01 increments)

4. When ﬁ nished, press "DONE". This will take you to the next screen. Press and release the right

hidden switch to continue to the ne xt screen, or press and release the "ENABLE BREW ON/OFF" switch to return to the main screen.

BREW OZ: 64.0

(-) DONE (+)

BREW METER:

This function allows the operator to adjust the brew strength/extraction time. Setting #1 will produce a non-pulsed brew cycle and the highest (#14) will give you the longest time (utilizing pulse brew).

Procedure:

1. Press and hold the right hidden switch until the display reads "BREW WIZARD" and release.

2. The display will then read: "BREW OZ: xx.x"

3. Press and release the right hidden switch until the display reads "BREW METER"

4. Press (-) to decrease the amount, or (+) to increase. (Range: 1 - 14)

5. When ﬁ nished, press and release the right hidden switch. This will take you to the next screen,

or press and release the "ENABLE BREW ON/OFF" switch to return to the main screen.

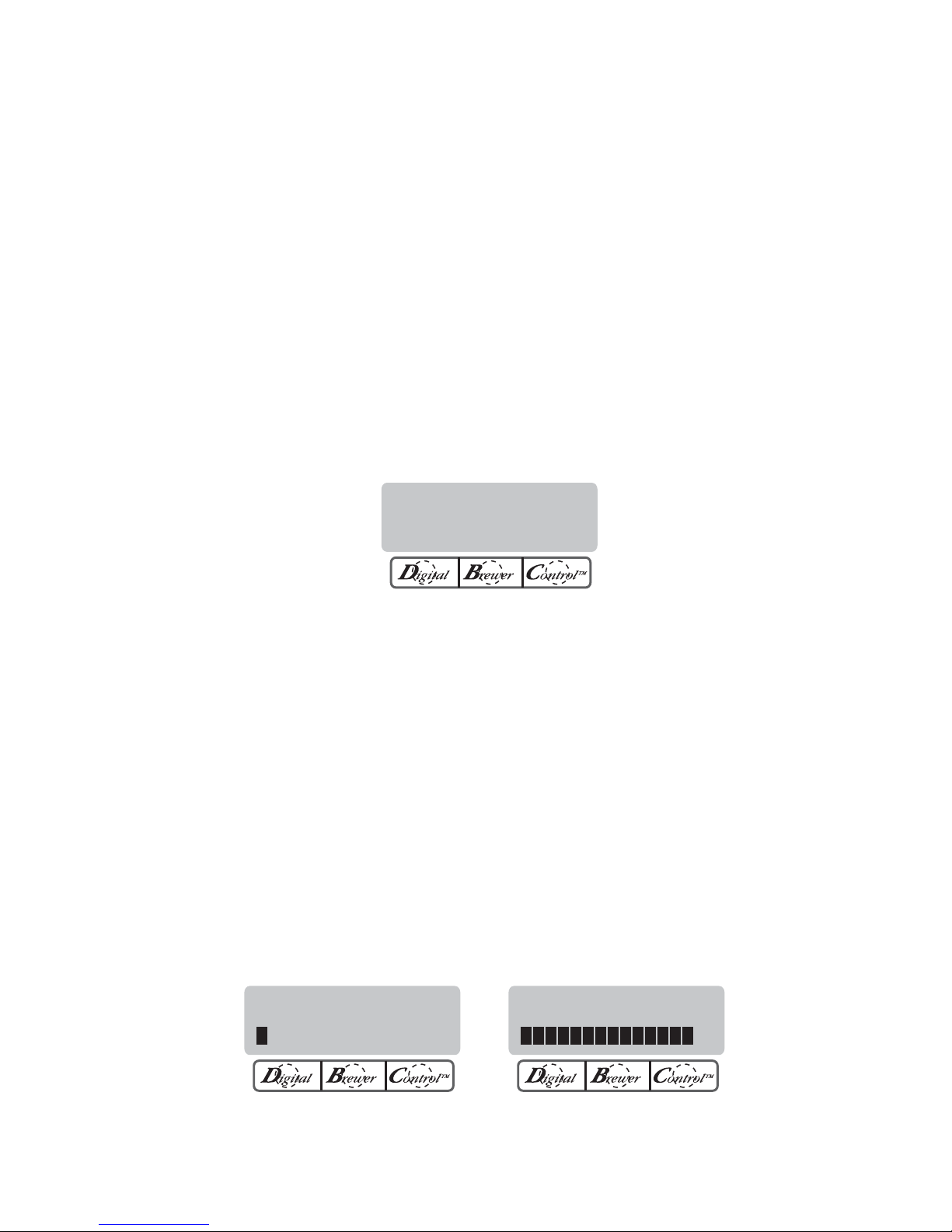

Weakest (Shortest)

Strongest (Longest)

BREW METER 1 BREW METER 14

- +

NOTE: This will overwrite settings in "PULSE BREW"

- +

Page 13

39130 060206

Page 14

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

ENABLE ADS

This function allows the operator to choose whether or not to display an advertising message. An ad can be saved to the brewer by writing the ad using the programming commands. This message will be displayed when the brewer is idle.

Procedure to Enable/Disable Ads:

1. Press and hold the right hidden switch until the display reads "BREW WIZARD" then release. Press and release the right hidden switch until the display reads "ENABLE ADS ?". The "YES" or "NO" will be ﬂ ashing to indicate the current selection.

2. Press and release the "NO" switch to disable this function, or:

3. Press and release the "YES" switch to enab le this function.

4. When ﬁ nished, press and release "DONE" to save the ne w setting and advance to the ne xt function screen.

5. If "NO" was selected, the display should now read "ENTER SERVICE #?". T o e xit programming and return to the MAIN SCREEN, press and release the "ENABLE BREW ON/OFF" switch.

6. If "YES" was selected, the display should now read "NEW AD?". This screen allows you to write a new ad.

7. The display should now read "2 LINES 16 CHARS AVAILABLE", and then "SCROL THRU ALPHA, NEXT -> NEXT LETTER", and then "WRITE TOP LINE?". The ad can be up to 32 characters long, 16 per line. The ad will be written in two steps, ﬁ rst the top line, then the bottom line.

9. To write the top line of a new ad, press and release "YES". To skip the top line and only write a bottom line, press and release "NO" and proceed to step 13. To exit programming and return to the MAIN SCREEN, press and release the "ENABLE BREW ON/OFF" switch.

10. The display will now read "A" with a ﬂ ashing cursor below it. Press and hold the "SCROLL" switch to scroll through the alphabet and avail-

able characters. When the desired character is shown on the display, press and release "NEXT" to move to the next character in the top line.

11. Repeat step 10 until the top line is complete.

12. Press and release "DONE". The display should now read "WRITE BTM LINE?".

13. To write the bottom line of the new ad, press and release "YES".

14. To skip the bottom line, press and release "NO".

a. If neither a top nor bottom line was writ-

ten, the display should now read "ENTER SERVICE #?".

b. If only a top line was written, the ad will

be displayed f ollowed by "SA VE?" Proceed to step 18.

15. The display will now read A with a ﬂ ashing cursor below it. Press and hold the "SCROLL" switch to scroll through the alphabet and available characters. When the desired character is shown on the display, press and release "NEXT" to move to the next character in the bottom line.

16. Repeat step 15 until the bottom line is complete.

17. Press and release "DONE". The display will now show the written ad, and then "SAVE?"

18. To cancel saving the ad, press and release "NO". The displa y should now read "AD VERTISEMENT NOT SA VED!" and then will return to the "NEW AD" screen. To exit programming and return to the MAIN SCREEN, press and release the "ENABLE BREW ON/OFF" switch.

19. To correct or edit the ad, press and release "EDIT". The display should now read "WRITE TOP LINE?" Repeat steps 10 though 17.

20. To save the ad as it is shown, press and release "YES". The display should now read "ADVERTISEMENT SETUP COMPLETE", and then "ENTER SERVICE #?". To exit programming and return to the MAIN SCREEN, press and release the "ENABLE BREW ON/ OFF" switch.

Page 14

39130 053106

Page 15

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

ENABLE ADS ?

NO DONE YES

NEW AD ?

NO YES

NOTE: The available characters are:

A through Z 0 through 9 ! " # $ % & ' ( ) * + , - . / : ; < = > ? @

2 LINES 16 CHARS

AVAILABLE

SCROL THRU ALPHA

NEXT NEXT LETTER

WRITE BTM LINE ?

NO YES

ENTER SERVICE #?

WRITE TOP LINE ?

NO YES

SCROLL DONE NEXT

SAVE ?

NO EDIT YES

NOT SAVED !

Page 15

SETUP COMPLETE

ENTER SERVICE #?

39130 012907

Page 16

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

SERVICE NUMBER

This function allows the operator to enter in the telephone number to call if service is needed. The service number will be displayed anytime there is a fault message displayed.

Procedure to enter the service number:

1. Press and hold the right hidden switch until the display reads "BREW WIZARD" then release. Press and release the right hidden switch until the display reads: "ENTER SERVICE #?"

2. Press and release "YES" switch. The display will now read "SCROL THRU #'S NEXT - > NEXT NUMBER", followed by "SCROLL DONE NEXT".

3. Press the "SCROLL" switch to increment the number . When the desired n umber is shown, press and release the "NEXT" switch to mov e to the next digit in the phone number.

4. Repeat Step 3 until the entire number is entered.

5. Press and release the "DONE" switch. The display will now read "EXITING BREW WIZARD" and then "ENTER PASSWORD".

ENTER SERVICE #?

NO YES

SCROL THRU #'s

NEXT NEXT NUMBER

SCROLL DONE NEXT

PROGRAMMING FUNCTIONS - LEVEL 2

ENTER PASSWORD

This function allows the operator to enter a 3 digit number to access LEVEL 2. If no number has been pre programmed (0 0 0), then access is allowed by pressing and releasing the right hidden switch.

Procedure to enter the "PASSWORD":

1. Press and release the "Digital" switch to increment the ﬁ rst digit.

2. Press and release the "Brewer" switch to increment the second digit.

3. Press and release the "Control" switch to increment the third digit.

4. Press and release the right hidden switch. If the correct password was entered, the displa y will now read "SET P ASSWORD". If the wrong password was entered, the unit will revert back to the main screen.

EXITING

BREW WIZARD

ENTER PASSWORD 0 0 0

Page 16

39130 060206

Page 17

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) NOTE: Access to the remaining functions in LEVEL 2 is intended f or tr ained service personnel only.

More in depth information can be found in the Axiom Service Manual 39132.0000

SET PASSWORD

0 0 0

SET LANGUAGE

NO YES

UNITS

METRIC DONE ENG

SET TEMP: 200°

(-) DONE (+)

Any 3 digit number may be prog rammed to pre v ent unauthorized access of LEVEL 2. BE CAREFUL TO USE A CODE Y OU

WILL REMEMBER!

Choose between English or Spanish. After selecting "YES", press either ( + ) or ( - ) to select, then choose "YES" again when asked, "ARE YOU SURE?"

Choose between English or Metric units. Display will read: "CHANGING UNITS WILL CA USE" "ALL SETUP INFO T O BE LOST" "ARE Y OU SURE?" "NO YES". NOTE: If the brewer is set for Metric Units, displays will be different. (ex: Brew oz will become Brew Liters, ° F will be ° C).

Adjusts brew tank temperature. RANGE: (185 to 205° F) or (85 to 96° C)

SET READY: 195°

(-) DONE (+)

ENTER ASSET # ?

NO YES

This function sets the minimum temperature allowab le to start a brew cycle. Range: (2° to 20° F) or (2° to 10° C) below the set temperature. The water must be at the "READY" temperature or higher for the display to indicate "READY TO BREW".

This function allows the you to enter in an optional asset number. This can be useful for tracking the usage or service of an individual machine within a group.

Page 17

39130 060206

Page 18

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

"EASY PULSE BREW" times: Min: Base brew time + 40 seconds Max: Base brew time + 3:00 minutes

SET PULSE BREW ?

NO YES

DRIP TIME 0:30

(-) DONE (+)

ENABLE CLEAN

NO DONE YES

Enabl EnergySavr

NO DONE YES

This function allows the sprayhead to “pulse” on and off during a brew cycle. These times can be set two different ways. The ﬁ rst is by setting the total brew time in the "EASY PULSE BREW" screen. The other option allows the actual times to be entered in the "MANUAL PULSE BREW" screen.

NOTE: This will overwrite settings in "BREW METER".

Adjusts the DRIP TIME (time from end of sprayhead ﬂ ow to when liquid stops dripping from the funnel). When the brew cycle is complete, the display will show "DRIPPING" and will countdown the time until the funnel empties. RANGE: "OFF" or 0:05 to 4:00 minutes

Set the time before a cleaning alert will be displayed. RANGE: 1 to 30 days

Enables the mode function and sets the idle time. Then choose to have the tank heater(s) turn off, or reduce the tank temp to (140° F) or (60° C) once the set idle time has expired. Range: 0.5 to 24.0 hrs

EnableFreshTimer

NO DONE YES

ENABL W ARMER OFF NO DONE YES

0 REFILL 155

(-) DONE (+)

Enables the "FRESHNESS ALERT!" message and sets the expiration time. The e xpir ation time is the amount of time the product is allowed to sit in the server before an alert message is displayed. Range: 0.5 to 4.0 hrs

Sets the amount of time to automatically de energize all warmers after the most recent brew cycle. Range: 0.5 to 4.0 hrs

Adjusts the sensitivity of the reﬁ ll circuit. Water in different geographical locations can hav e different conductivities. Make sure the water in the tank is touching the reﬁ ll probe. NOTE: Always make sure that the # on the r ight is larger than the # on the left when water is contacting the tank reﬁ ll probe.

Page 18

39130 060206

Page 19

ADJUSTMENTS & OPTIONAL SETTINGS (CONT.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ENABLE BrewLOGIC

NO DONE YES

Go to

SPRAY OZ/M:

PLACE BREWER IN

FINAL LOCATION

CALIBRATE NOW?

NO YES

ACCURACY RISK!!!

OK CAL.

The BrewLogic system allows the brewer to be calibrated to high mineral locations and compensate as deposits build up internally. Press YES, then press DONE. Follow the prompts.

Pertains only to software version 1.07 & above!

Select a sturdy, level location.

Brewer must not be bumped during calibration!

Select YES for calibration. Selecting NO warns of accuracy risk

Select CAL. to star t calibration procedure. Selecting OK will skip to level probe calibration screen.

Go to CAL

LP1-LP2

TOO HOT-WILL

COOL T ANK NOW

PRESS BREW WHEN

CONTAINER READY

COOLING T ANK

PLEASE W AIT

Automatically checks to see if tank temperature is between 130°-170°F (54°-76°C)

Verify brew funnel and decanter/airpot/thermal server (depending on which model you have) are in place. Then press the "BREW START" button.

Message will be displayed while dispense is being perf ormed. Tank heaters are turned off and the unit will dispense for ~1 minute to cool tank temperature.

(CONT.)

Page 19

39130 053107

Page 20

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

CONTAINER READY?

QUIT YES

Go to CAL

LP1-LP2

CALIBRATE SPRAY

PRESS BREW START

WaitingTilCycle 4

CYCLE x COMPLETE

ENTER OZ XX.X

(-) DONE (+)

When the dispensing ﬁ nishes, empty the decanter/server and place back under brew funnel. Select YES for calibration. Selecting QUIT will skip to level probe calibration screen.

Press the "BREW START" b utton. Will perf orm the sprayhead ﬂ ow-rate calibration as well as the level probe calibration.

Brewer must not be bumped during calibration!

Machine will dispense volume between upper probe and lower probe 4 times. (The total dispense will be about half of a decanter)

Brewer must not be bumped during calibration!

Enter volume dispensed into container. Use the (+) to increase the numeric value or (-) to decrease.

SPRAY OZ/M: XX.X

LP1-LP2 OZ XX.X

CALIBRATE LP1-LP2

NO YES

Go to BREW

COUNTERS

Go to CAL

LP1-LP2

Displays sprayhead ﬂ ow-rate and volume of water between the upper and lower level probes.

Allows you to perfor m calibration again if you want to verify results.

Page 20

39130 053107

Page 21

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

SPRAY OZ/M: 25.0

(-) DONE (+)

CALIBRATE FLOW ?

NO YES

BREW COUNTERS ?

NO YES

SERVICE TOOLS ?

NO YES

View or enter the actual ﬂ ow rate coming out of the sprayhead. This is used to tell the internal controller how fast the water is ﬂ owing. Use the "CALIBRATE FLOW" screen to obtain the most current ﬂ ow rate. Range: (3.0 to 75.0 oz) or (100 to 2200ml)

This function provides a 60 second test mode to capture water from the sprayhead. This measurement will then giv e you the numbers to enter into the "SPRAY OZ/M: xx" screen above. NOTE: Should be perfor med after deliming and/or changing sprayhead. (Will not display when "BrewLogic" is enabled)

T racks the total number of bre w cycles completed. There is one reset-able counter, and one life counter that is not reset-able

Allows the testing of individual components and the ability to check the membrane s witches for proper function. (Diagnostic tool for troubleshooting purposes only)

FACTORY DEFAULTS

NO YES

sage, calibrations, etc. Factory-set default v alues will replace ALL previous settings. NOTE: Items not affected; Service #, Password, Language, Units, Asset #, Counters and Serial Number.

INITIAL FACTORY DEFAULT VALUES

Brew Lockout NO BREW 64 OZ (2.0L) BREW METER 1 ENABLE ADS NO PASSWORD 0 Language English Units English SET TEMP 200° F (93° C) SET READY 195° F (90° C) ENTER ASSET # - 0 PULSE BREW - DISABLED DRIP TIME - 0:30 ENABLE CLEAN - NO

Reset ALL of the previously entered brew settings, ad mes-

ENABLE ENERGY SAVER - NO ENABLE FRESH TIMER - NO ENABLE WARMER OFF - NO REFILL - 155 SPRAY 25.0 oz/M (739ml/M)

BrewLogic OFF

Page 21

Software Version 1.07 & above

39130 053107

Page 22

TROUBLESHOOTING

PROBABLE CAUSE REMEDYPROBLEM

Temperature Too Low

Heating Time Too Long

Fill Time Too Long

1. Water temperature in the tank does not meet the ready temperature.

1. Tank Heater failure.

2. Control Board/Thermistor failure

1. Water shut off to brewer

2. Supply line too small or obstructed

3. Inlet Solenoid failure

4. Control Board Failure

A) Wait for the brewer to heat to the proper temperature.

B) Disable the BREW LOCKOUT function. See page 12 for procedure.

Service required Service required

Check water supply shut-off Replace or repair as needed

Service Required Service Required

Temp Sensor Out Of Range, Check For Bad Connections

Temp Sensor Out Of Range, Check Wire For Shorts

Equipment will not operate

Water ﬂ ows into tank continuously with power remov ed from brewer.

5. ON/OFF switch is OFF

1. Temperature Sensor Probe wire(s) broken or not making connection

1. Temperature Sensor Probe wire(s) shorted to housing or to each other.

1. No power

2. Incorrect voltage

1. Reﬁ ll valve

Turn switch ON

Service required

Verify power cord is plugged into outlet.

Service required Service required

Page 22

39130 060206

Page 23

TROUBLESHOOTING (cont.)

PROBABLE CAUSE REMEDYPROBLEM

Brew cycle will not start

Spitting or unusual steaming from sprayhead or air vent.

1. No water

2. Water temperature in the tank does not meet the ready temperature.

3. "ENABLE BREW ON/OFF" switch not on.

4. Brew switch

5. Brew valve

6. Control Board

1. Lime buildup

2. Temperature probe

Check plumbing and shut-off valves

A) Wait for the brewer to heat to the proper temperature

B) Disable the BREW LOCKOUT function. See page 12 for procedure

Turn on

Service required Service required Service required Refer to page # 8 Service required

3. Control Board

Inconsistent beverage level Refer to page # 8

1. Lime buildup

2. Brew valve

Dripping from sprayhead. Water overﬂ ows ﬁ lter.

1. Brew valve

1. Type of paper ﬁ lter

Service required

Service required BUNN paper ﬁ lters should be

used for proper extraction Replace sprayhead The brew cycle should be start-

ed only with an empty decanter

Beverage overﬂ ows decanter

2. No sprayhead

1. Beverage left in decanter from previous brew

under the funnel.

2. Brew volume adjustment

Adjust the brew volume, calibrate sprayhead as required to achieve the desired volume for each brew cycle.

Page 23

39130 053106

Page 24

TROUBLESHOOTING (cont.)

PROBABLE CAUSE REMEDYPROBLEM

Weak beverage. BUNN paper ﬁ lters should be

1. Type of paper ﬁ lter used for proper extraction

2. Coffee

For coff ee , a sufﬁ cient quantity of fresh drip or regular grind should be used for proper extraction.

3. Sprayhead

A BUNN sprayhead should be used to properly wet the bed of ground coffee in the funnel

4. Funnel Loading

The BUNN paper ﬁ lter should be centered in the funnel and the bed of grounds leveled by gently shaking.

5. W ater temperature

Place empty funnel on top of an empty server (not in the funnel rails). NOTE: Do not remove sprayhead! WARNING: HOT WATER Press brew. Check water temperature immediately below the sprayhead with a thermometer . Recommended reading should be at least 195°F (90°C).

6. Incorrect recipe

Page 24

Consider adjusting brew volume, and/or BREW METER.

39130 053106

Page 25

TROUBLESHOOTING (cont.)

PROBABLE CAUSE REMEDYPROBLEM

Brewer is making unusual noises.

"CHECK SPRAYHEAD FOR LIME" - "CHECK FITTINGS FOR LIME"

1. Solenoids vibrating

2. Plumbing lines

3. W ater supply

4. Tank heaters

1. Lime buildup in sprayhead

2. Lime buildup in brew valve

3. Lime buildup in brew tank

Service required Plumbing lines should not be

resting on the countertop. The brewer must be connected

to a cold water line. W ater pressure to the brewer must not be higher than 90 psi (620 kPa). Install a regulator if necessary to lower the working pressure to approximately 50 psi (345 kPa).

Service required

Refer to page # 8 Refer to page # 8 Service required

"WARNING INACCURATE FLOW" - "TOO MUCH LIME PLEASE REPAIR"

"WARNING VERY LOW FLOW"

- "PLEASE REPAIR"

1. Lime buildup in sprayhead

2. Lime buildup in brew valve

3. Lime buildup in brew tank

1. Lime buildup in sprayhead

2. Lime buildup in brew valve

3. Lime buildup in brew tank

Refer to page # 8 Refer to page # 8 Service required
