INSTALLATION INSTRUCTIONS
PL-807
The easiest lights to mount onto a vehicle.

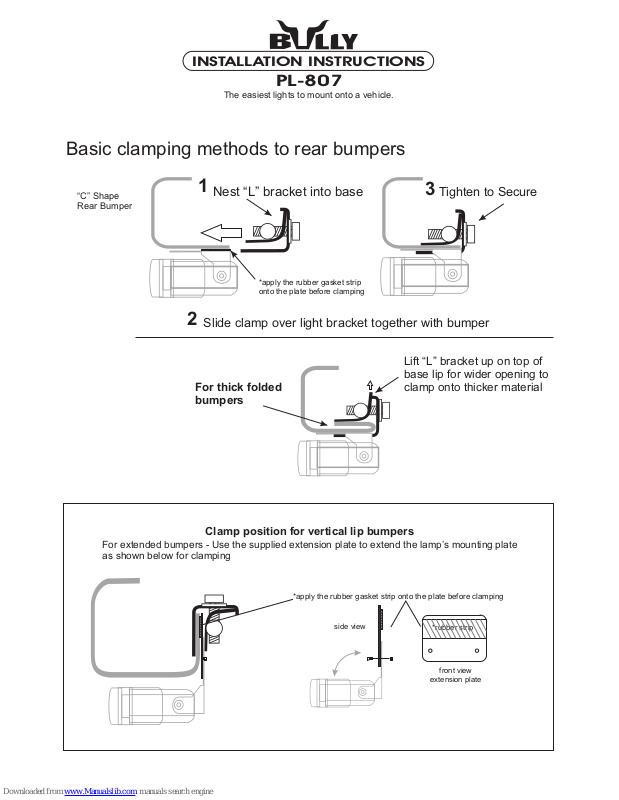

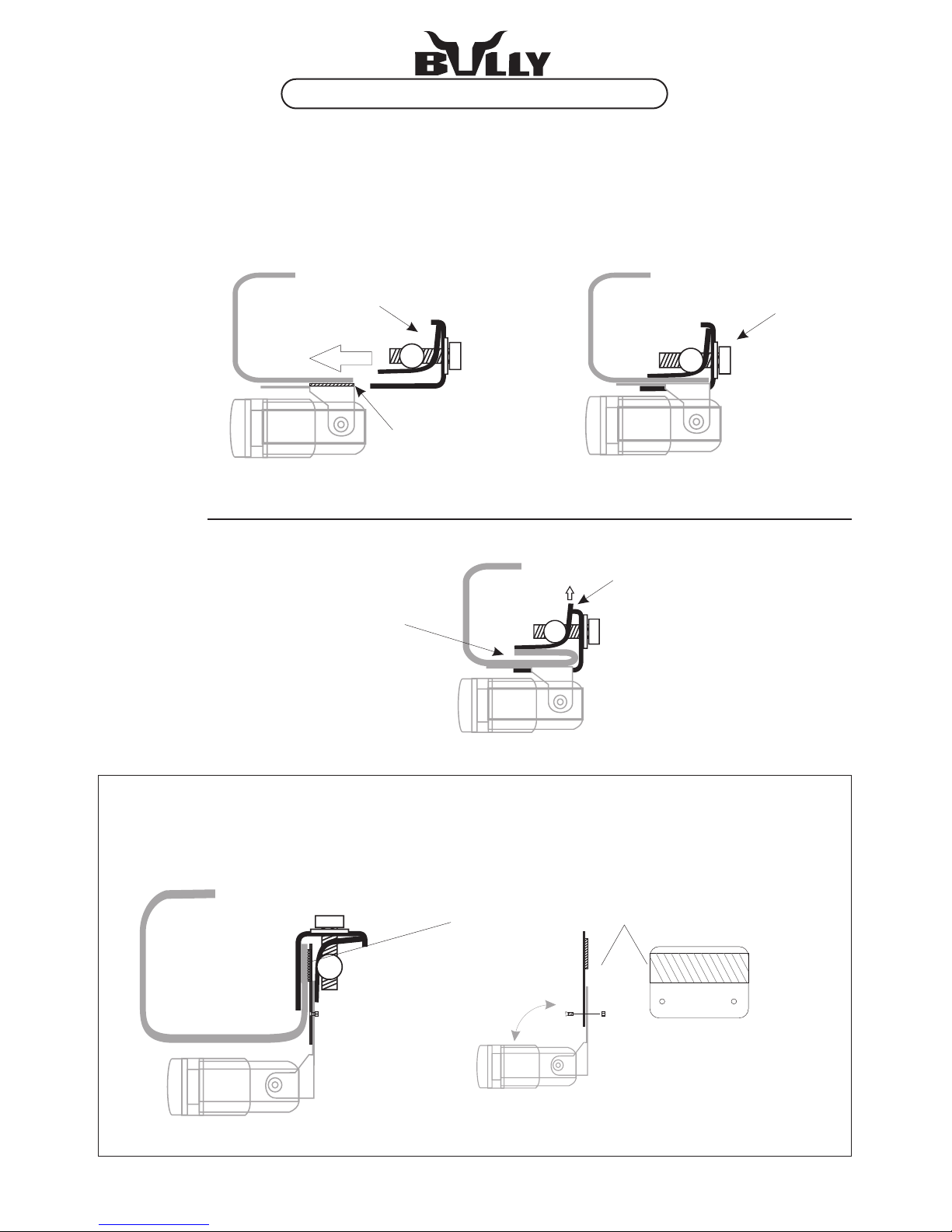

Basic clamping methods to rear bumpers
“C” Shape
Rear Bumper
1
Nest “L” bracket into base
*apply the rubber gasket strip
onto the plate before clamping
2
Slide clamp over light bracket together with bumper
3
Tighten to Secure
Lift “L” bracket up on top of
base lip for wider opening to
For thick folded
bumpers
clamp onto thicker material
Clamp position for vertical lip bumpers
or extended bumpers - Use the supplied extension plat to extend the F
s
a
hown below for clamping
s
e
*apply the rubber gasket strip onto the plate before clamping
side view
lamp’
s mounting plate
*rubber strip
front view
extension plate
Page 2

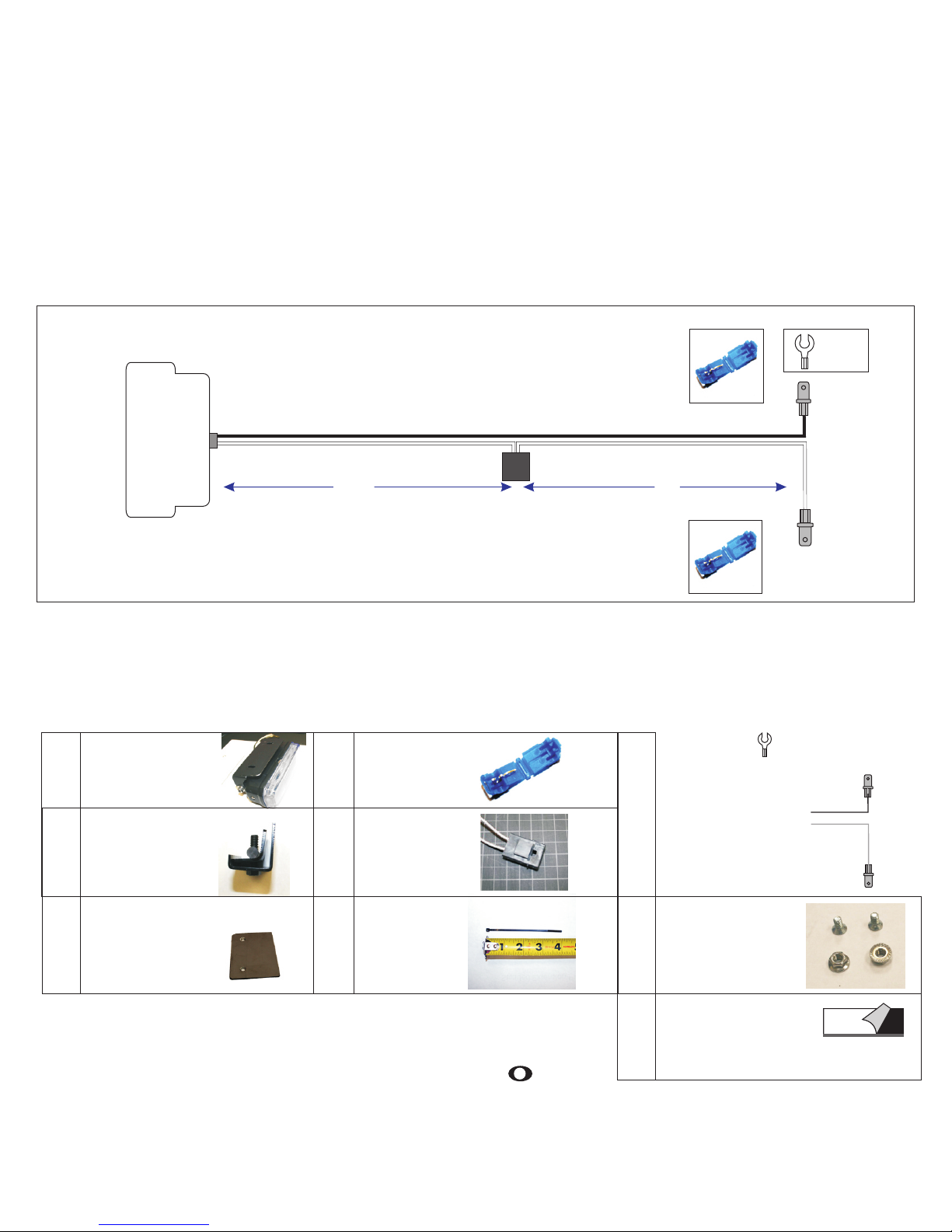

Wiring the PL-807 Backup light
to activate with your vehicle reverse lights:
After you have securely clamped your PL-807 backup lights onto your rear bumper. Locate your vehicle’s
reverse light wires from the underside of your vehicle. Check behind your tail lights, find the (positive and
negative ground) wires. Use the (supplied) easy “T-Taps” to tap directly onto each of these wires. Snap the
“T” taps securely around your existing wires. Now simply plug the white wire to your positive and black to
your negative. Use the zip ties to secure your wires & fuse box up under your vehicle to keep from damage.
With your emergency brakes on, start your vehicle and put it in reverse to check your lights.
Wire Harness
T- Tap
**Optional Frame Grounding
Spade
Black Ground
12"
Fuse Box
PL-807 Light
**You have a choice on grounding your negative wire directly to your vehicle’s frame with the supplied “Spade”
connector. Locate a small bolt grounded to your frame and connect the ground wire using this connector.
12"
T- Tap
Parts List
PL-807 Light
1
Clamp Unit
1
T- Tap
2
1
Flat Fuse Box
Wire harness with
terminal connectors
** optional spade ground connector
White Positive
1
Extension Plate
Zip Tie
23
1
TM
PIL
(800)-237-7560
WWW.Pilotautomotive.com
For Technical Assistance
T
Nuts & Bolts
3.5" X 1" X 1/16"
Black rubber gasket strip
(adhesive one side only)
