Bulls Lacuba Evo 8, Lacuba Evo Cross, Lacuba Evo 25, Lacuba Evo Lite 11, Lacuba Evo Lite 5 Translation Of The Original Operating Instructions

...

TRANSLATION OF THE ORIGINAL

OPERATING INSTRUCTIONS

19-17-1009, 19-17-1010, 19-17-1011, 19-17-1012, 19-17-1013, 19-17-1014, 19-17-1015, 19-17-1016, 19-17-1017, 19-17-1018, 19-17-1019, 19-17-4133, 19-17-4134, 19-17-4135, 19-17-4136, 19-17-4137,

19-17-4138, 19-17-4138

034-03212 • 1.0 • 3 December 2018

Lacuba Evo 8, Lacuba Evo 25, Lacuba Evo 25S,

Lacuba Evo Cross, Lacuba Evo Lite 11, Lacuba Evo Lite 5

E-BIKES

EN_034-03212_1.0_BULLS Brose Center MY19_COVER.book Page 2 Monday, December 3, 2018 9:36 AM

Distribution or reproduction of these operating instructions and utilisation or communication of their content is prohibited unless expressly approved. Any infringement will render the offender liable for compensation. All rights reserved in the event that a patent, utility model or industrial design is registered.

EN_034-03212_1.0_BULLS Brose Center MY19_COVER.book Page 3 Monday, December 3, 2018 9:36 AM

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 1 Monday, December 3, 2018 9:37 AM

Data sheet

Surname, first name of the purchaser:

Date of purchase:

Model:

Frame number:

Type number:

Unladen weight (kg):

Tyre size:

Recommended tyre pressure (bar)*: front: rear:

Wheel circumference (mm):

Company stamp and signature:

*After a tyre change, refer to the tyre markings for the permitted tyre pressures and make sure that they are observed. The recommended tyre pressure must not be exceeded.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 2 Monday, December 3, 2018 9:37 AM

Table of contents

1 About these instructions 8

1.1 Manufacturer 8

1.2 Laws, standards and directives 9

1.3 Other valid documents 9

1.4 Subject to change 10

1.5 Language 10

1.6 For your safety 11

1.6.1 Instruction, training and customer service 11

1.6.2 Basic safety notes 12

1.6.3 Warnings 12

1.6.4 Safety markings 13

1.7 For your information 13

1.7.1 Instructions for actions 13

1.7.2 Information on the type plate 13

1.7.3 Language conventions 15

1.8 Type plate 17

1.9 Identifying 18

1.9.1 Operating instructions 18

1.9.2 Bicycle 18

2 Safety 19

2.1 Requirements for the rider 19

2.2 Hazards for vulnerable groups 19

2.3 Personal protective equipment 19

2.4 Proper use 20

2.4.1 City and trekking bicycle 20

2.5 Improper use 21

2.5.1 City and trekking bicycle 21

2.6 Duty to take care 22

2.6.1 Rider 22

2.6.2 Operator 22

3 Description 24

3.1 Overview 24

3.2 Handlebars 25

3.3 Wheel and fork 26

3.3.1 Valve 26

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 3 Monday, December 3, 2018 9:37 AM

Table of contents

3.4 Brake system 28

3.4.1 Rim brake 28

3.4.2 Disc brake 30

3.4.3 Back-pedal brake 31

3.4.4 Suspension 32

3.4.5 Suspension fork structure 33

3.4.5.1 Air suspension fork structure 34

3.5 Electric drive system 35

3.6 Drive system 35

3.6.1 Rechargeable battery 37

3.6.1.1 Charge status indicator 38

3.6.1.2 Range 39

3.6.2 Driving light 39

3.6.3 USB port 39

3.6.4 Display 40

3.6.4.1 Indicators 41

3.6.5 Operating element 45

4 Technical data 46

5 Transportation, storage and assembly 49

5.1 Transportation 49

5.1.1 Transporting the battery 51

5.1.2 Using the transport securing system 51

5.2 Storing 52

5.2.1 Break in operation 53

5.2.1.1 Preparing a break in operation 53

5.2.1.2 Taking out of operation 53

5.3 Brake system 54

5.4 Assembly 55

5.4.1 Required tools 55

5.4.2 Unpacking 56

5.4.3 Scope of delivery 56

5.4.4 Commissioning 57

5.4.4.1 Checking the battery 59

5.4.5 Mounting the wheel in the Suntour fork 60

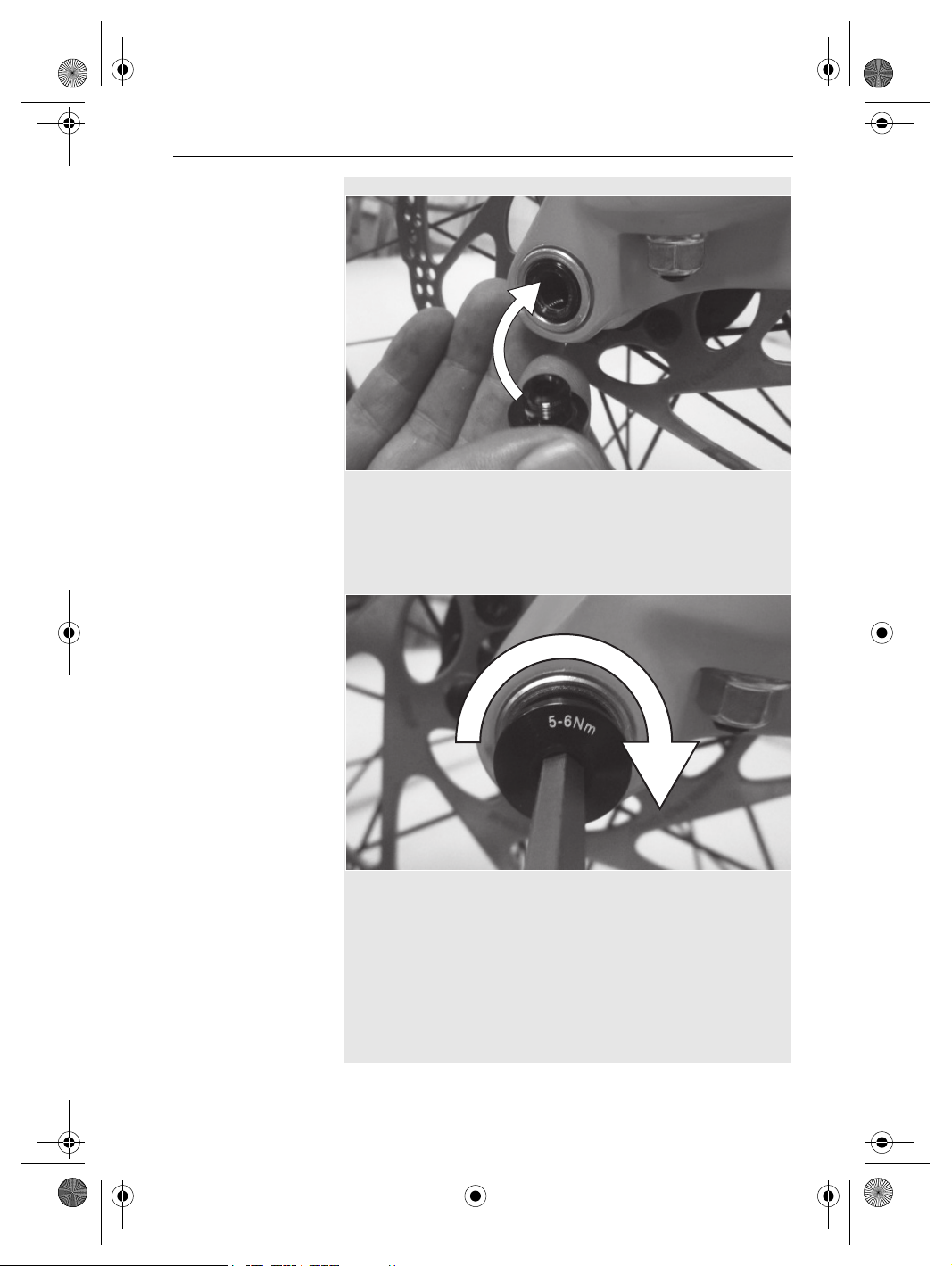

5.4.5.1 Mounting the wheel with screw-on axle (15 mm) 60

5.4.5.2 Mounting the wheel with screw-on axle (20 mm) 62

5.4.5.3 Mounting the wheel with a quick release axle 63

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 4 Monday, December 3, 2018 9:37 AM

Table of contents

5.4.6 Mounting the wheel with a quick release 67

5.4.6.1 Checking the stem and handlebars 70

5.4.7 Sale of the bicycle 71

6 Before the first ride 72

6.1 Adjusting the saddle 72

6.1.1 Adjusting the saddle tilt 72

6.1.2 Determining the seat height 73

6.1.3 Adjusting the seat height with quick release 74

6.1.4 Setting the height-adjustable seat post 76

6.1.4.1 Lowering the saddle 76

6.1.4.2 Raising the saddle 76

6.1.5 Adjusting the seat position 77

6.2 Adjusting the handlebars 78

6.2.1 Adjusting the height of the handlebars 79

6.2.2 Turning the handlebars to the side 80

6.2.2.1 Checking the clamping force of the quick releases 81

6.2.2.2 Adjusting the quick release clamping force 81

6.3 Adjusting the brake lever 81

6.3.1 Adjusting the pressure point on a Magura brake lever 81

6.3.2 Adjusting the grip distance 82

6.3.2.1 Adjusting the grip distance on a Magura brake lever 83

6.4 Adjusting the suspension 84

6.4.1 Adjusting the negative deflection 85

6.4.1.1 Adjusting the steel suspension fork negative deflection 85

6.4.1.2 Adjusting the air suspension fork negative deflection 86

6.5 Retracting brake linings 87

7 Operation 88

7.1 Before each ride 90

7.2 Check list before each ride 91

7.3 Using the kickstand 92

7.4 Using the pannier rack 93

7.5 Rechargeable battery 95

7.5.1 Removing the battery 97

7.5.2 Inserting the battery 97

7.5.3 Charging the battery 98

7.5.4 Waking the battery 99

7.6 Electric drive system 100

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 5 Monday, December 3, 2018 9:37 AM

Table of contents

7.6.1 Switching on the drive system 100

7.6.2 Activating the standby mode 100

7.6.3 Switching off the drive system 101

7.7 Control panel with display 102

7.7.1 Removing and attaching the display 102

7.7.2 Using the driving light 103

7.7.3 Using the push assist system 104

7.7.4 Selecting the level of assistance 105

7.7.5 Switching journey information 105

7.7.6 Using the USB port 105

7.7.7 Changing the system information 106

7.8 Gear shift 107

7.8.1 Selecting gears 107

7.8.2 Using the derailleur gears 108

7.8.3 Using a hub gear 109

7.9 Brake 111

7.9.1 Using the brake lever 115

7.9.2 Using the back-pedal brake 115

7.10 Suspension and damping 116

7.10.1 Adjusting the compression of the Suntour fork 116

7.10.2 Adjusting the compression of the Fox fork 117

7.10.3 Adjusting the compression of the Fox fork 118

8 Maintenance 120

8.1 Cleaning and servicing 122

8.1.1 After each ride 122

8.1.1.1 Cleaning the suspension fork 122

8.1.1.2 Cleaning the rear frame damper 122

8.1.1.3 Cleaning the pedals 122

8.1.2 Basic cleaning 123

8.1.2.1 Cleaning the frame 124

8.1.2.2 Cleaning the stem 124

8.1.2.3 Cleaning the rear frame damper 124

8.1.2.4 Cleaning the wheel 124

8.1.2.5 Cleaning the drive elements 125

8.1.2.6 Cleaning the chain 125

8.1.2.7 Cleaning battery 126

8.1.2.8 Cleaning the display 126

8.1.2.9 Cleaning the drive unit 127

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 6 Monday, December 3, 2018 9:37 AM

Table of contents

8.1.2.10 Cleaning the brake 127

8.1.3 Servicing 128

8.1.3.1 Servicing the frame 128

8.1.3.2 Servicing the stem 128

8.1.3.3 Servicing the fork 128

8.1.3.4 Servicing the drive elements 128

8.1.3.5 Servicing the pedal 128

8.1.3.6 Servicing the chain 129

8.1.3.7 Servicing the drive elements 129

8.2 Maintenance 130

8.2.1 Wheel 130

8.2.2 Brake system 131

8.2.3 Electrical cables and brake cables 131

8.2.4 Gear shift 131

8.2.5 Stem 132

8.2.6 Checking the chain and belt tension 132

8.2.7 USB port 133

8.2.8 Suspension fork 133

8.3 Service 134

8.4 Adjusting and repairing 136

8.4.1 Use original parts and lubricants only 136

8.4.2 Wheel quick release 137

8.4.2.1 Clamping the clamping lever 138

8.4.2.2 Clamping version I 138

8.4.2.3 Clamping version II 139

8.4.2.4 Clamping version III 140

8.4.2.5 Clamping version IV 141

8.4.2.6 Clamping version V 142

8.4.3 Adjusting the tyre pressure 144

8.4.3.1 Dunlop valve 144

8.4.3.2 Presta valve 145

8.4.3.3 Schrader valve 146

8.4.4 Adjusting the gear shift 147

8.4.5 Cable-operated gear shift, single-cable 147

8.4.6 Cable-operated gear shift, dual-cable 148

8.4.7 Cable-operated twist grip, dual-cable 149

8.4.8 Offsetting the brake lining wear 150

8.4.9 Hydraulically operated rim brake 150

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 7 Monday, December 3, 2018 9:37 AM

Table of contents

8.4.10 Hydraulically operated disc brake 151

8.4.11 Replacing the lighting 151

8.4.12 Setting the headlight 151

8.4.13 Repair by the specialist dealer 151

8.4.14 Replacing the lighting 152

8.4.15 Setting the headlight 152

8.4.16 Repair by the specialist dealer 152

8.4.17 First aid for system messages 153

8.4.17.1 First aid 153

8.4.18 First aid in case of complete failure 154

8.5 Accessories 155

8.5.1 Child seat 155

8.5.2 Bicycle trailer 157

8.5.3 Pannier rack 158

9 Recycling and disposal 159

10 Appendix 161

10.1 System messages 161

10.2 EC declaration of conformity 163

10.3 Parts list 164

10.4 Table of figures 168

10.5 Index 171

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 8 Monday, December 3, 2018 9:37 AM

About these instructions

1 About these instructions

Read these operating instructions before commissioning the bicycle to ensure you use all the functions correctly and safely. The operating instructions are not a substitute for personal instruction by the supplying specialist dealer. The operating instructions are a component part of the bicycle. Therefore, if it is re-sold at a later time, they must be handed over to the subsequent owner.

These operating instructions are mainly intended for the rider and operator of the bicycle, who tend to be non-professionals

Text passages which are expressly intended for specialist staff (e.g. bicycle mechanics) are clearly marked with a tool symbol.

Staff at all specialist dealers have specialist training and qualifications, and are therefore capable of identifying risks and preventing hazards which may arise during maintenance, servicing and repairs on the bicycle. Information for specialist staff does not require non-professionals to take any action.

1.1 Manufacturer

The manufacturer of the bicycle is:

ZEG Zweirad-Einkaufs-Genossenschaft eG Longericher Straße 2 50739 Köln, Germany

Tel.: +49 221 17959 0 Fax: +49 221 17959 31 E-mail: info@zeg.de Internet: www.zeg.de

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 9 Monday, December 3, 2018 9:37 AM

About these instructions

1.2 Laws, standards and directives

These operating instructions comply with the essential requirements from:

• Machinery Directive 2006/42/EC,

• Electromagnetic Compatibility Directive 2014/30/EU,

• EN ISO 12100:2010 Safety of machinery – General principles of design – Risk assessment and reduction,

• EN 15194:2015, Cycles – Electrically power assisted cycles – EPAC bicycles,

• EN ISO 4210, Cycles – Safety requirements for bicycles,

• EN 11243:2016, Cycles – Luggage carriers for bicycles – Requirements and test methods,

• EN 82079-1:2012, Preparation of instructions for use – Structuring, content and presentation – Part 1: General principles and detailed requirements and

• EN ISO 17100:2016-05, Translation Services – Requirements for translation service.

1.3 Other valid documents

These operating instructions are only complete in conjunction with the other valid documents.

The following document applies for this product:

• Charger operating instructions.

No other information is also applicable.

The constantly updated lists of approved accessories and parts are available to specialist dealers.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 10 Monday, December 3, 2018 9:37 AM

About these instructions

1.4 Subject to change

The information contained in these operating instructions are the approved technical specifications at the time of printing. Any significant changes are included in a new issue of the operating instructions.

You will find any modifications to these operating instructions at: www.bulls.de/service/downloads

1.5 Language

The original operating instructions are written in German. A translation is not valid without the original operating instructions.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 11 Monday, December 3, 2018 9:37 AM

About these instructions

1.6 For your safety

The safety concept of the bicycle comprises four elements:

• rider and/or operator instruction, and bicycle maintenance and repair by the specialist dealer,

• the chapter on general safety,

• the warnings in these instructions and

• the safety marking on the type plates.

1.6.1 Instruction, training and customer service

The supplying specialist dealer will provide customer service. Contact details can be found on the back page of these operating instructions and in the data sheet. If you are unable to contact your specialist dealer, you will find other specialist dealers at www.zeg.de.

The specialist dealer authorised to perform repairs and maintenance work receives regular training.

034-03212_1.0_03.12.2018

The rider or the operator of the bicycle will be instructed in person on the bicycle functions when the supplying specialist dealer hands over the bicycle, if not before. This instruction particularly covers the bicycle's electrical functions and correct use of the charger.

Each rider to whom this bicycle is provided must receive instruction on the bicycle's functions. The operating instructions must be submitted to each rider in printed form and must be acknowledged and adhered to.

SIGNAL WORD

DANGER

WARNING

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 12 Monday, December 3, 2018 9:37 AM

About these instructions

1.6.2 Basic safety notes

These operating instructions have a chapter with general safety notes [ distinguish this chapter as it has a grey background.

 Chapter 2, page 19]. You can

1.6.3 Warnings

Hazardous situations and actions are marked with warnings. The warnings in these operating instructions are shown as follows:

Type and source of the danger

Description of the danger and the consequences.



Measures

The following pictograms and signal words are used in the operating instructions for warnings and information notices:

Will lead to serious or even fatal injuries if ignored. High-risk hazard.

May lead to serious or even fatal injuries if ignored. Medium-risk hazard.

May lead to minor or moderate injuries. Low-risk hazard.

May lead to material damage if ignored.

Table 1: Meanings of the signal words

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 13 Monday, December 3, 2018 9:37 AM

About these instructions

1.6.4 Safety markings

The following safety markings are used on the bicycle's type plates:

General warning

Adhere to the instructions for use

Table 2: Safety markings on the product

1.7 For your information

1.7.1 Instructions for actions

Instructions for actions are structured in accordance with the following pattern:

 Requirements (optional)



Instruction for action

 Result of the action (optional)

1.7.2 Information on the type plate

Alongside the warnings, the type plates of the products also contain other important information on the bicycle:

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 14 Monday, December 3, 2018 9:37 AM

About these instructions

only suitable for the road, no off-road riding or jumps

suitable for roads, off-road riding and jumps of up to 15 cm

suitable for rough off-road riding and jumps of up to 61 cm

suitable for rough off-road riding and jumps of up to 122 cm

suitable for the most difficult terrain

Table 3: Area of use

City and trekking bicycle

Child's bicycle / bicycle for young adults

BMX bicycle

Mountain bike

Racing bicycle

Carrier bicycle

Folding bicycle

Table 4: Bicycle type

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 15 Monday, December 3, 2018 9:37 AM

About these instructions

Read the instructions

Separate collection of electrical and electronic devices

Separate collection of ordinary and rechargeable batteries

Must not be thrown into fire (burning prohibited)

Must not be thrown into water (immersed)

Device of protection class II

Only suitable for use indoors

Fuse (device fuse)

EU conformity

Recyclable material

Table 5: Information on the type plate

1.7.3 Language conventions

The bicycle described in these operating instructions may be equipped with alternative components. The equipment of the bicycle is defined by the respective type number. If applicable, the notes alternative equipment and alternative version make reference to the use of alternative components.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 16 Monday, December 3, 2018 9:37 AM

About these instructions

Alternative equipment describes additional components which are not necessarily an integral part of every bicycle in these instructions.

Alternative version explains the various variants of components if they differ in use.

The following terms are used for better legibility:

Term Meaning

Operating instructions

Original operating instructions or translation of the original

operating instructions Bicycle Electric motor driven cycle Motor Drive motor

The following conventions are used in these operating instructions:

Convention Use

Italics Entry in the index SPACED Indicators on the display

screen

[

 Example, page

Cross references

numbering]

• Bulleted lists

034-03212_1.0_03.12.2018

ZEG Zweirad-Einkaufs-

Genossenschaft eG

Longericher Str. 2

50739 Köln, Germany

Typ:

19-16-0001

EN 15194

0,25 kW / 25 km/h

zGG 180 kg EPAC 25 kg

BJ 2018 / MJ 2019

nach

EPAC

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 17 Monday, December 3, 2018 9:37 AM

About these instructions

1.8 Type plate

The type plate is situated on the frame. The type plate features the following information:

Figure 1: Type plate, example

1 CE marking 2 Manufacturer 3 Type number 4 Nominal continuous power 5 Permitted total weight

034-03212_1.0_03.12.2018

6 Year of manufacture 7 Bicycle type 8 Safety instructions 9 Disposal instruction 10 Area of use 11 Model year 12 Weight of the ready-to-ride bicycle 13 Shut-off speed

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 18 Monday, December 3, 2018 9:37 AM

About these instructions

1.9 Identifying

1.9.1 Operating instructions

The identification number of these operating instructions is made up of the document number, the version number and the release date. It can be found on the cover page and in the footer.

Identification number 034-03212_1.0_03.12.2018

Table 6: Identification number of the operating instructions

1.9.2 Bicycle

These BULLS operating instructions refer to the model year 2019. The production period is from August 2018

to July 2019. They are issued in August 2018.

The operating instructions are a component part of the following bicycles:

Type number

19-17-1009 Lacuba Evo 8 City and trekking bicycle

19-17-1010 Lacuba Evo 8 City and trekking bicycle

19-17-1011 Lacuba Evo 8 City and trekking bicycle

19-17-1012 Lacuba Evo 25 City and trekking bicycle

19-17-1013 Lacuba Evo 25 City and trekking bicycle

19-17-1014 Lacuba Evo 25 City and trekking bicycle

19-17-1015 Lacuba Evo 25S City and trekking bicycle

19-17-1016 Lacuba Evo 25S City and trekking bicycle

19-17-1017 Lacuba Evo 25S City and trekking bicycle

19-17-1018 Lacuba Evo Cross City and trekking bicycle

19-17-1019 Lacuba Evo Cross City and trekking bicycle

19-17-4133 Lacuba Evo Lite 11 City and trekking bicycle

19-17-4134 Lacuba Evo Lite 11 City and trekking bicycle

19-17-4135 Lacuba Evo Lite 11 City and trekking bicycle

19-17-4136 Lacuba Evo Lite 11 City and trekking bicycle

19-17-4137 Lacuba Evo Lite 5 City and trekking bicycle

19-17-4138 Lacuba Evo Lite 5 City and trekking bicycle

19-17-4138 Lacuba Evo Lite 11 City and trekking bicycle

Table 7: Bicycle definition by type number, model and bicycle type

Model Bicycle type

034-03212_1.0_03.12.2018

! ! !

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 19 Monday, December 3, 2018 9:37 AM

2 Safety

2.1 Requirements for the rider

If there are no legal requirements for riders of electrically power-assisted cycles, we recommend that the rider should be a minimum 14 years of age and have experience with muscle-powered bicycles.

The rider's physical and mental abilities must be adequate to use a muscle-powered bicycle.

Safety

2.2 Hazards for vulnerable groups

2.3 Personal protective equipment

The battery and charger must be kept out of the reach of children.

If the bicycle is used by minors, comprehensive instruction should be provided by or in the presence of the legal guardians. Supervised use should also be scheduled until it is certain that the bicycle is being used as per these operating instructions. Legal guardians hold sole responsibility for determining whether minors are capable of using the bicycle.

We recommend that you wear a suitable safety helmet. We also recommend that you wear typical, long, close-fitting cycling clothing and sturdy footwear.

034-03212_1.0_03.12.2018

! !

! ! !

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 20 Monday, December 3, 2018 9:37 AM

Safety

2.4 Proper use

The bicycle is designed to support a maximum speed of 25 km/h. The bicycle may only be used in a perfect, fully functional condition.

National requirements may apply to the bicycle which differ from the standard equipment. For riding on public roads, some special regulations apply in relation to the driving light, reflectors and other components.

The general laws and the regulations for the prevention of accidents and environmental protection in the respective country of use must be adhered to. All check lists and instructions for actions in these operating instructions must be met. Approved accessories can be installed by specialist staff.

Each bicycle is assigned a bicycle type, which determines its proper use and area of use.

2.4.1 City and trekking bicycle

City and trekking bicycles are designed for daily, comfortable use. They are suitable for riding on public roads.

Area of use

Suitable for tarmacked and paved roads.

Suitable for tarmacked roads, cycle paths and firm gravel paths and roads, and longer sections with moderate slopes and jumps up to 15 cm.

034-03212_1.0_03.12.2018

! ! !

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 21 Monday, December 3, 2018 9:37 AM

2.5 Improper use

Failure to adhere to the proper use poses a risk of personal injury and material damage. The bicycle is not suitable for the following uses:

• when the electrical drive system has been manipulated

• when the permitted gross load weight is exceeded

• riding with a damaged or incomplete bicycle

• riding over steps

• riding through deep water

• lending the bicycle to untrained riders

• carrying other people

• riding with excessive or unsecured luggage

• riding with no hands

• riding on ice and snow

• improper servicing

• improper repair

• tough areas of use, such as professional competitions

• stunt riding or acrobatics.

Safety

2.5.1 City and trekking bicycle

City and trekking bicycles are not sports bicycles. If used for sports, the rider can expect reduced riding stability and diminished comfort.

Non-permitted areas of use:

Never drive off-road or perform jumps.

Never drive off-road or perform jumps over 15 cm.

034-03212_1.0_03.12.2018

! !

! ! !

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 22 Monday, December 3, 2018 9:37 AM

Safety

2.6 Duty to take care

The safety of the bicycle can only be assured if all the necessary measures are taken.

2.6.1 Rider

The rider:

• receives instruction before the first ride. They can clarify any questions relating to the operating instructions with the operator or specialist dealer

• wears personal protective equipment.

2.6.2 Operator

• assumes all the obligations of the operator in case the bicycle changes hands.

The operator has the duty of care and responsibility for scheduling these measures and checking that they are implemented.

The operator:

• makes these operating instructions available to the rider for the duration of use of the bicycle. If necessary, they translate the operating instructions into a language which the rider understands.

• familiarises the rider with the functions of the bicycle before the first ride. Only riders who have received instruction may be allowed to ride.

• instructs the rider on proper use and the wearing of personal protective equipment.

• only employs specialist staff for maintenance and repair of the bicycle

• ensures that there is no unauthorised access, such as preventing replacement of gear sprockets with parts which are not original parts.

The printed EC Declaration of Conformity in the appendix is valid providing that the bicycle remains unchanged from its original condition. As soon as the operator makes any relevant modifications or

034-03212_1.0_03.12.2018

! ! !

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 23 Monday, December 3, 2018 9:37 AM

additions, they legally become the manufacturer. He must independently guarantee compliance with the EC directives again in order to:

• circulate the bicycle again,

• attach the CE marking again and

• avoid compromising occupational safety.

Safety

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 24 Monday, December 3, 2018 9:37 AM

Description

3 Description

3.1 Overview

Figure 2: Bicycle viewed from the right; Lacube EVO Lite 5 used as example

1 Front wheel 2 Fork 3 Front mudguard 4 Headlight 5 Handlebars 6 Stem 7Frame 8 Seat post 9 Saddle 10 Pannier rack 11 Reflector and rear light 12 Rear mudguard 13 Rear wheel 14 Kickstand 15 Chain 16 Chain guard 17 Rechargeable battery, frame number and type

plate

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 25 Monday, December 3, 2018 9:37 AM

3.2 Handlebars

Figure 3: Detailed view of bicycle from rider position, example

1 Rear brake lever 2Bell 3 Headlight 4 Front brake lever 5 Gear shift 6 Operating element 7Display 8Fork lock 9 Gear shift

Description

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 26 Monday, December 3, 2018 9:37 AM

Description

3.3 Wheel and fork

Figure 4: Components of the wheel – example showing front wheel

1 Tyre 2 Rim 3 Suspension fork head with setting wheel 4Fork 5Spoke 6 Quick release 7Hub 8 Valve 9 Fork end of the suspension fork

3.3.1 Valve

Each wheel has a valve. It is used to fill the tyre with air. There is a valve cap on each valve. The screw-on valve cap keeps out dust and dirt.

The bicycle either has a classical Dunlop valve, a Presta valve or a Schrader valve.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 27 Monday, December 3, 2018 9:37 AM

Dunlop valve

The rider can easily exchange the valve and quickly release the air. The air pressure cannot be measured with this valve.

Presta valve

The Presta valve requires a smaller hole in the rim, which is why it is especially suitable for the narrow rims of racing bicycles. The air pressure can be measured with this valve.

Description

034-03212_1.0_03.12.2018

Schrader valve

The rider can fill the Schrader valve very easily at a petrol station. The air pressure can be measured with this valve.

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 28 Monday, December 3, 2018 9:37 AM

Description

3.4 Brake system

The bicycle's brake system comprises either a hydraulic:

• rim brake on the front and rear wheels,

• disc brake on the front and rear wheels or

• a rim brake on the front and rear wheels and an additional back-pedal brake.

3.4.1 Rim brake

Alternative

Figure 5: Rim brake components with details; Magura HS22 used as an

example

1 Rear wheel rim brake 2 Brake booster 3 Brake lining 4 Handlebars with brake levers 5 Front wheel rim brake

The rim brake stops the wheel moving when the rider pulls the brake lever, causing two brake linings, positioned opposite one another, to be pressed onto the rims.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 29 Monday, December 3, 2018 9:37 AM

The hydraulic rim brake features a locking lever

Figure 6: Rim brake locking lever, closed (1) and open (2)

The rim brake locking lever is not marked with any lettering. Only a specialist dealer may set the rim brake locking lever.

Description

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 30 Monday, December 3, 2018 9:37 AM

Description

3.4.2 Disc brake

Alternative

Figure 7: Bicycle brake system with a disc brake, example

1Brake disc 2 Brake calliper with brake linings 3 Handlebars with brake levers 4 Front wheel brake disc 5 Rear wheel brake disc

On a bicycle with a disc brake, the brake disc is screwed permanently to the hub of the wheel.

The brake lever is pulled to increase brake pressure. The brake fluid is used to transfer pressure through the brake lines to the cylinders in the brake calliper. The braking force is boosted by a speed reduction and applied to the brake linings. These apply the brake disc mechanically. If the brake lever is pulled, the brake linings are pressed against the brake disc, and the movement of the wheel is decelerated until it comes to a stop.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 31 Monday, December 3, 2018 9:37 AM

3.4.3 Back-pedal brake

Alternative

Figure 8: Brake system with a back-pedal brake, example

1 Rear wheel rim brake 2 Handlebars with brake levers 3 Front wheel rim brake 4 Pedal 5 Back-pedal brake

Description

The back-pedal brake stops the movement of the rear wheel when the rider pedals in the opposite direction to the direction of travel.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 32 Monday, December 3, 2018 9:37 AM

Description

3.4.4 Suspension

Both forks and suspension forks are fitted in this model series. A suspension fork is based either on a steel spring or air suspension. Unlike a rigid fork, a suspension fork has two functions which improve floor contact and comfort: suspension and damping.

Figure 9: Bicycle without suspension (1) and with suspension (2) when

riding over an obstacle

The suspension prevents an impact, such as one caused by a stone lying in the bike's path, from being channelled directly into the rider's body via the fork. The impact is absorbed by the suspension system instead. This causes the suspension fork to compress. The compression can be disabled so that a suspension fork reacts like a rigid fork. The switch to disable the fork is called a remote lockout.

After compressing, the suspension fork returns to its original position. If there is a damper, it decelerates movement, preventing the suspension system from springing back in an uncontrolled manner and stopping the fork from vibrating up and down.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 33 Monday, December 3, 2018 9:37 AM

Dampers which dampen compressive deflection movements, i.e. a compression load, are called compression dampers or compression dashpots.

Dampers which dampen rebound deflection movements, i.e. a rebound load, are called rebound dampers or dashpots.

3.4.5 Suspension fork structure

Description

Figure 10: Example showing Suntour fork: The stem and handlebars are

034-03212_1.0_03.12.2018

fastened to the fork shaft (1). The wheel is fastened to the quick release axle (6). Other elements: The compression setting (2), crown (3), Q-Loc (5), dust seal (6), fork end for quick release (7), stanchion (8) and spring (9)

A B C

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 34 Monday, December 3, 2018 9:37 AM

Description

3.4.5.1 Air suspension fork structure

The fork of the bicycle features both air suspension and a compression damper, in addition to a rebound damper in some cases.

Figure 11: Air suspension fork structure, Suntour

Diagram with the operating elements: Air valve (1), valve cap (2) fork lock (3), quick release (4) and rebound damper adjuster (5) and the assembly groups: Air suspension fork (A), compression damper assembly group (B) and rebound damper assembly group (C)

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 35 Monday, December 3, 2018 9:37 AM

3.5 Electric drive system

3.6 Drive system

The bicycle is driven by muscle power via the chain drive. The force which is applied by pedalling in the direction of travel, drives the front chain wheel. The chain transmits the force onto the rear chain wheel and then onto the rear wheel.

You can ride the bicycle like a normal bike at any time, either by switching off the electric drive system or changing the level of assistance to Off. The same applies when the battery is empty.

Description

Figure 12: Diagram of drive system

1 Direction of travel 2Chain 3 Rear chain wheel 4 Front chain wheel 5 Pedal

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 36 Monday, December 3, 2018 9:37 AM

Description

As well as a drive system operated by muscle power, the bicycle also has an integrated, electric drive system. The electric drive system is made up of 8 components:

Figure 13: Diagram of electric drive system

1 Headlight 2 Display 3 Operating element 4 Rechargeable battery 5 Rear light 6Motor

• A charger which is designed for the battery.

As soon as the required muscle power from the rider pedalling passes a certain level, the motor is activated gently and assists the pedalling motion of the rider. The motor force is determined by the set level of assistance. The assistance depends on the force applied to the pedals by the rider. Drive system assistance is therefore only activated when the rider pedals. This happens regardless of the selected level of assistance. The motor switches off automatically as soon as the rider no longer pedals, the temperature is outside the permitted range, there is an overload or the shut-off speed of 25 km/h has been reached.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 37 Monday, December 3, 2018 9:37 AM

If the speed falls below 25 km/h, the assistance is automatically activated again.

A push assist system can be activated. The push assist continues to drive the bicycle as long as the rider pushes the plus button on the handlebars. The speed can be a maximum of 6 km/h in this case.

3.6.1 Rechargeable battery

The lithium ion battery has an internal electronic protection circuit. It is matched to the charger and the bicycle. The battery temperature is monitored at all times. The battery is protected against deep discharge, overcharging, overheating and short circuit. In the event of a hazard, a protective circuit switches the battery off automatically. The battery also switches to sleep mode for self-protection when not used for a longer period. The battery's service life can be extended if it is well maintained and, above all, stored at the correct temperatures. The battery charge status will decrease with age, even if the battery is maintained properly. If the operating time is severely shortened after charging, this is a sign that battery has reached the end of its useful life.

Description

Transportation temperature 5 °C–25 °C

Ideal transportation temperature 10 °C–15 °C

Storage temperature 5 °C–25 °C

Ideal storage temperature 10 °C–15 °C

Charging ambient temperature 10 °C–30 °C

Table 8: Rechargeable battery technical data

034-03212_1.0_03.12.2018

CHARGE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 38 Monday, December 3, 2018 9:37 AM

Description

The bicycle has two types of battery: either an Evo 650 battery or a SuperCore battery

Figure 14: Evo 650 battery details

with battery lock (1), port for charger plug (2), On-Off button (3), operating and charge status indicator (4), top of down tube (5) and swung-out battery (6)

3.6.1.1 Charge status indicator

The five green LEDs on the charge status indicator show the battery charge status when the battery is switched on. Each LED represents 20% of the charge status. The charge status of the switched-on battery is also shown on the display.

If the battery charge status falls below 5%, all the LEDs on the operating and charge status indicator will go out. However, the charge status is still shown on the display.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 39 Monday, December 3, 2018 9:37 AM

3.6.1.2 Range

The range is influenced by many factors, such as:

• Level of assistance: The higher the selected level of assistance, the lower the range.

• gear switching habits,

•tyre type,

• tyre pressure,

• the age, condition and charge status of the battery,

• route profile (slopes) and route quality (road surface),

• weather conditions (e.g. opposing winds, ambient temperature, etc.),

• e-bike weight and

• load.

3.6.2 Driving light

When the driving light is activated, the headlight and the rear light are switched on.

Description

3.6.3 USB port

The display has a micro USB port on the underside. With a suitable USB cable, you can charge devices such as your mobile. The charging current is

0.5 amps. Please observe the permissible charging

currents of your devices.

Charge voltage 5 V

Charging current max. 500 mA

Table 9: USB port technical data

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 40 Monday, December 3, 2018 9:37 AM

Description

3.6.4 Display

The display shows all ride data. The bicycle's battery supplies the display with energy when the display is inserted in the mount, a sufficiently charged battery is inserted into the bicycle, and the drive system is switched on.

Internal lithium ion battery 3.7 V, 240 mAh

Storage temperature 5 °C–25 °C

Charging ambient temperature 10 °C–30 °C

Table 10: Display technical data

The display has a USB port.

Figure 15: Display details

Use

Screen display

USB port

Table 11: Display overview

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 41 Monday, December 3, 2018 9:37 AM

3.6.4.1 Indicators

The display has ten on-screen indicators:

Figure 16: On-screen indicators overview

Use

1 Function display

2 Level of assistance

3 Unit of measure for speed

4 Display of rider's power output

5 Warning symbol

6 Driving light symbol

7 Push assist symbol

8 Charge status indicator

9 Motor power output screen

10 Current speed

Table 12: On-screen indicators overview

Description

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 42 Monday, December 3, 2018 9:37 AM

Description

Level of assistance

The higher the selected level for assistance, the more the drive system assists the rider when pedalling. The following levels of assistance are available.

Display Level of assistance

off

Table 13: Display of levels of assistance

Current speed

In the system settings, you can select whether the speed is displayed in kilometres or miles.

Function display

The function display shows three different items of information:

• Journey information,

• System settings and data, and

• System messages.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 43 Monday, December 3, 2018 9:37 AM

Journey information

Depending on the type of bicycle, the function display may show up to eight items of journey information. The displayed journey information can be switched.

Screen display Function

CLOCK

TRIP DISTANCE

TRIP CALORIES

TRIP TIME

AVG. SPEED

MAX. SPEED

TOTAL DISTANCE

TOTAL TIME

Table 14: Journey information

Current time, displayed in hh:mm

Distance travelled since the last reset, displayed in kilometres or miles

Calories burned since the last reset, displayed in calories

Time elapsed since the last reset, displayed in hh:mm

Average speed since the last reset, displayed in kilometres per hour or miles per hour

Maximum speed travelled since the last reset, displayed in kilometres per hour or miles per hour

Total distance travelled, displayed in kilometres or miles

Travelled time, displayed in hh:mm

Description

System settings and data

In order to see the system settings, the rider has to call up the system settings. The rider can change the values of the system settings.

Screen display Function

RES E T TRI P Set trip time, calories burned, distance

RES E T ALL Set all values incl. total distance and total

DA T E DD/MM/YY

TIM E F OR M A T 24/12

TIM E hh/mm

LAN G U A GE German/English

METRIC/IMPERIAL km/mi

Table 15: Changeable system settings

034-03212_1.0_03.12.2018

and average speed to 0

trip time to 0

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 44 Monday, December 3, 2018 9:37 AM

Description

Charge status indicator

The charge status indicator consists of 5 segments. Every segment shows 20% of the battery charge status.

If the charge status is <20%, the charge status indicator starts to flash. If the charge status is <5%, the charge status indicator disappears. The motor assistance will be switched off in order to ensure that lighting can be used for another two hours.

When charging When riding

0 - 19% 80 - 100%

20 - 39% 60 - 79%

40 - 59% 40 - 59%

60 - 79% 20 - 39%

80 - 99% 5 - 19%

100%

Table 16: Battery charge status indicator

System message

The drive system monitors itself continuously and if an error is detected, it is indicated by a system message. The system may switch off automatically depending on the type of error. There is a table of system messages in the Appendix.

< 5 - 0%

emergency

operation,

motor off

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 45 Monday, December 3, 2018 9:37 AM

3.6.5 Operating element

The operating element has six buttons.

Figure 17: Operating element overview

Description

Symbol Designation

Minus button

Plus button

1–

2 Info button

4 On-Off button

5 Driving light button

6 Push assist button

Table 17: Operating element overview

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 46 Monday, December 3, 2018 9:37 AM

Technical data

4 Technical data

Bicycle

Transportation temperature 5 °C–25 °C

Ideal transportation temperature 10 °C–15 °C

Storage temperature 5 °C–25 °C

Ideal storage temperature 10 °C–15 °C

Operation temperature 5 °C–35 °C

Working environment temperature 15 °C–25 °C

Charging temperature 10 °C–30 °C

Power output/system 250 W (0.25 kW)

Shut-off speed 25 km/h

Table 18: Bicycle technical data

Motor

Dimensions (mm) 213 x 150 x 128

Weight 3400 g

Nominal voltage 36 V DC

Protection class IP56

Max. torque 90 Nm

Continuous power rating 250 W

Assistance up to 25 km/h

Working temperature -10 - +50 °C

Table 19: Motor technical data

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 47 Monday, December 3, 2018 9:37 AM

Technical data

Evo 650 rechargeable battery

Transportation temperature 5 °C–25 °C

Ideal transportation temperature 10 °C–15 °C

Storage temperature 5 °C–25 °C

Ideal storage temperature 10 °C–15 °C

Charging ambient temperature 10 °C–30 °C

Table 20: Rechargeable battery technical data

SuperCore rechargeable battery

Voltage 37 V / 42.0 V

Energy 750 W / 20 Ah

Transportation temperature 5 °C–25 °C

Ideal transportation temperature 10 °C–15 °C

Storage temperature 5 °C–25 °C

Ideal storage temperature 10 °C–15 °C

Charging ambient temperature 10 °C–30 °C

Table 21: Rechargeable battery technical data

Display and control panel

Dimensions (mm)

Weight (g) Display unit: 67

Nominal voltage 36 V DC

Table 22: Operating element technical data

034-03212_1.0_03.12.2018

Display: 44 x 62.5 x 8 Control panel: 18 x 46 x 19.75 Display area: 38 x 50

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 48 Monday, December 3, 2018 9:37 AM

Technical data

Protection class IP65

Working temperature -10 - +60 °C

Storage temperature range -20 - +85 °C

Table 22: Operating element technical data

USB port

Charge voltage 5 V

Charging current max. 500 mA

Table 23: USB port technical data

Emissions

A-weighted emission sound pressure level < 70 dB(A)

Total vibration level for the hands and arms <2.5m/s²

Highest effective value of weighted acceleration for the entire body

Table 24: Emissions from the bicycle*

*The safety requirements as per Electromagnetic Compatibility Directive 2014/30/EU have been met. The bicycle and the charger can be used in residential areas without restriction.

Tightening torque

Axle nut tightening torque 35 Nm - 40 Nm

Handlebars clamping screw maximum tightening torque*

Table 25: Tightening torque values

*if there is no other data on the component

<0.5m/s²

5Nm - 7Nm

034-03212_1.0_03.12.2018

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 49 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5 Transportation, storage and

assembly

5.1 Transportation

Crash caused by unintentional activation

There is a risk of injury if the drive system is activated unintentionally.

 Remove the battery before the bicycle is

transported.

Risk of fire and explosion due to high temperatures

Excessively high temperatures will damage the battery. Batteries may self-ignite and explode.

 Never expose batteries to sustained direct sunlight.

Oil leak if no transport securing device

034-03212_1.0_03.12.2018

The brake securing device prevents the brakes from being applied accidentally during transport. This could cause irreparable damage to the brake system or an oil leak, which will harm the environment.

 Never pull the brake lever when the wheel has been

dismounted.

 Always use the transport securing system when

transporting dismounted wheels.

If the bicycle is lying flat, oil and grease may leak from the bicycle.

If the shipping box with a bicycle is lying flat or on one end, it does not provide the frame and the wheels with adequate protection from damage.

 Only transport the bicycle in an upright position.

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 50 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

Bicycle rack systems which secure the bicycle standing on its head by the handlebars or frame, generate inadmissible forces on the components during transportation. This can cause the supporting parts to break.

 Never use bicycle rack systems which secure the

bicycle standing on its head by the handlebars or frame.

 Take into account the ready-to-use bicycle's weight

when transporting it.

 Remove the display and the batteries before

transporting the bicycle.

 Protect the electrical components and connections

on the bicycle from the elements with suitable protective covers.

 Remove accessories, for example drinking bottles,

before transportation of the bicycle.

 When transporting by car, you must use a suitable

bicycle rack system.

The specialist dealer will advise you on how to select a suitable rack system properly and how to use it safely.

 Transport the bicycle in a dry, clean place where it

is protected from direct sunlight.

When shipping the bicycle, we recommend that you have the bicycle partially dismantled in the proper manner and packaged by the specialist dealer.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 51 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.1.1 Transporting the battery

Batteries are subject to hazardous goods regulations. Undamaged batteries may be transported by private persons in road traffic. Commercial transport requires compliance with regulations concerning packaging, labelling and the transportation of hazardous goods. Open contacts must be covered and the battery securely packaged. The parcel service must be made aware of the presence of hazardous goods in the packaging.

5.1.2 Using the transport securing system

 Insert the transport securing devices between the

brake linings.

 The transport securing device is squeezed between

the two linings.

Figure 18: Fastening the transport securing device

034-03212_1.0_03.12.2018

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 52 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.2 Storing

Risk of fire and explosion due to high temperatures

Excessively high temperatures will damage batteries. Batteries may self-ignite and explode.

 Protect batteries against heat.

 Never expose batteries to sustained direct sunlight.

If the bicycle is lying flat, oil and grease may leak from the bicycle.

If the shipping box with a bicycle is lying flat or on one end, it does not provide the frame and the wheels with adequate protection from damage.

 Only store the bicycle in an upright position.

 If the bicycle features a hydraulic seat post, fix only the

lower seat post or the frame into a fitting stand to prevent damage to the upper seat post and the seat post lever.

 Never place a bicycle with a hydraulic seat post upside

down on the floor; otherwise you, will damage the seat post lever.

 Store the bicycle, battery and charger in a dry, clean

location.

Storage temperature 5 °C–25 °C

Ideal storage temperature 10 °C–15 °C

Table 26: Storage temperature for batteries, the bicycle and charger

034-03212_1.0_03.12.2018

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 53 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.2.1 Break in operation

The battery discharges when not in use. This can cause irreparable damage to the battery.

 The battery must be recharged every 8 weeks.

The battery may become damaged if it is connected permanently to the charger.

 Never connect the battery to the charger

permanently.

The display battery discharges when it is not in use. This can cause it to be irreparably damaged.

 Recharge the display battery for at least 1 hour

every 3 months.

If the bicycle is to be removed from service for longer than four weeks, e.g. in winter, a break in operation has to be prepared.

5.2.1.1 Preparing a break in operation

 Enable display storage mode.  Remove the battery from the bicycle.  Charge the battery to around 60% (three to four LEDs

of the charge status indicator light up).

 The bicycle has to be cleaned with a damp cloth and

preserved with wax spray. Never wax the friction surfaces of the brake.

 Before longer periods without use, it is

recommendable to have your specialist dealer carry out servicing and basic cleaning and apply preservative agent.

5.2.1.2 Taking out of operation

 Store the bicycle, battery and charger in a dry,

clean environment.

 Check the charge status of the battery after 8 weeks.

If only one LED on the charge status indicator lights up, recharge the battery to around 60%.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 54 Monday, December 3, 2018 9:37 AM

Description

5.3 Brake system

The bicycle's brake system comprises a hydraulic rim brake on both the front and rear wheel.

Figure 19: Bicycle brake system with a disc brake, example

1Brake disc 2 Brake calliper with brake linings 3 Handlebars with brake levers 4 Front wheel brake disc 5 Rear wheel brake disc

On a bicycle with a disc brake, the brake disc is screwed permanently to the hub of the wheel.

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 55 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4 Assembly

Crushing caused by unintentional activation

There is a risk of injury if the drive system is activated unintentionally.

 Remove the battery if it is not absolutely necessary

for assembly.

 Assemble the bicycle in a clean and dry environment.

 The working environment temperature should be

between 15 °C and 25 °C.

Working environment temperature 15 °C–25 °C

Table 27: Working environment temperature

 If a fitting stand is used, it must be approved for a

maximum weight of 30 kg.

 To reduce the weight, we recommend that you always

disconnect the battery from the bicycle when using the fitting stand.

5.4.1 Required tools

The following tools are required to assemble the bicycle:

•Knife

• Hexagon socket spanner 2 (2.5 mm, 3, mm 4 mm, 5 mm, 6 mm and 8 mm)

• Torque wrench with working range between 5 and 40 Nm

• Twelve-point square socket T-25

• Ring spanner (8 mm, 9 mm, 10 mm, 13 mm, 14 mm and 15 mm) and

• Cross, flat head and ordinary screwdriver.

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 56 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.2 Unpacking

Hand injuries caused by cardboard packaging

The shipping carton is closed with metal staples. There is a risk of puncture wounds and cuts when unpacking and crushing the packaging.

 Wear suitable hand protection.

 Remove the metal staples with pliers before the

shipping carton is opened.

The packaging material consists mainly of cardboard and plastic film.

 The packaging has to be disposed of in accordance

with the regulations of the authorities.

5.4.3 Scope of delivery

The bicycle was completely assembled in the factory for test purposes and then dismantled for transportation.

The bicycle is 95–98% pre-assembled. The scope of delivery includes:

• the pre-assembled bicycle

• the front wheel

• the pedals

• quick release (optional)

• the charger

• the operating instructions.

The battery is supplied separately from the bicycle.

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 57 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.4 Commissioning

Fire and explosion caused by incorrect charger

Batteries which are recharged with an unsuitable charger may become damaged internally. This may result in fire or an explosion.

 Only ever use the battery with the supplied charger.

 Mark the supplied charger and these operating

instructions clearly to prevent mix-ups – with the bicycle frame number or type number, for example.

Since initial commissioning of the bicycle requires special tools and specialist knowledge, only trained specialist staff may perform initial commissioning.

Experience has shown that a bicycle which has not yet been sold, is spontaneously handed to consumers as soon as it appears ready to ride.

034-03212_1.0_03.12.2018

 For this reason, every bicycle must be prepared, so

that it is fully ready for use immediately after being assembled.

 Staff should work through the initial commissioning

check list to prepare the bicycle, so that it is ready to ride.

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 58 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

Initial commissioning check list

Check battery.



The battery is partially charged when delivered. Fully charge the



battery to ensure full power.

Mount the wheels, quick release and pedals.



Re-adjust the quick release clamping force if necessary.



Thoroughly degrease the brake discs in disc brakes or the brake



sides and linings in rim brakes with brake cleaner or spirit.

Place handlebars, stem and saddle in the functional position



and check they are firmly in place.

Check all the components to make sure that they are firmly in place. Check all the settings and the tightening torque on the



axle nuts.

Check the entire cable harness to make sure that it is routed properly:

• You must prevent the cable harness from coming into



contact with moving parts.

• The cable routes must be smooth and free from sharp edges.

• Moving parts must not apply any pressure or tension to the cable harness.

Check the drive system, the light equipment and the brakes to



make sure that they are fully functional and effective.

Adjust the headlight.



Set the drive system has to the national language and the



appropriate system of measurement.

Check the software version of the drive system and update it as



necessary.

Take a test drive to check the brake system, gear shift and the



electric drive system.

034-03212_1.0_03.12.2018

WARNING

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 59 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.4.1 Checking the battery

Fire and explosion due to defective battery

The safety electronics on damaged or faulty batteries may fail. The residual voltage can cause a short circuit. Batteries may self-ignite and explode.

 Never charge a defective battery.

The battery must be checked before it is charged for the first time.

 Press the On-Off button (battery).

 If none of the LEDs on the operating and charge

status indicator light up, the battery may be damaged.

 The battery can be charged if at least one of the

LEDs on the operating and charge status indicator is fully lit up, but not if all of them are.

034-03212_1.0_03.12.2018

 Once the battery has been charged, insert it into

the bicycle.

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 60 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.5 Mounting the wheel in the Suntour fork

Alternative

5.4.5.1 Mounting the wheel with screw-on axle (15 mm)

Alternative

 Insert the axle completely on the drive side.

Figure 20: Fully inserting the axle

 Tighten the axle with a 5 mm hexagon socket

spanner to 8–10 Nm.

Figure 21: Tightening the axle

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 61 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

 Insert the securing screw on the non-drive side.

Figure 22: Pushing the quick release lever into the axle

 Tighten the securing screw with a 5 mm hexagon

socket spanner to 5–6 Nm.

 The lever is mounted.

Figure 23: Tightening the securing screw

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 62 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.5.2 Mounting the wheel with screw-on axle (20 mm)

Alternative

 Insert the axle completely on the drive side.

Figure 24: Tightening the inserted axle

 Tighten the securing clip with a 4 mm hexagon

socket spanner to 7 Nm.

Figure 25: Tightening the axle

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 63 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.5.3 Mounting the wheel with a quick release axle

Alternative

Crash caused by loose quick release axle

A faulty or incorrectly installed quick release axle may become caught in the brake disc and block the wheel. This will cause a crash.

 Never fit a defective quick release axle.

Crash caused by faulty or incorrectly installed quick release axle

The brake disc becomes very hot during operation. Parts of the quick release axle may become damaged as a result. The quick release axle becomes loose. This will result in a crash and injuries.

 The quick release axle and the brake disc must be

opposite one another.

Crash caused by incorrectly set quick release axle

034-03212_1.0_03.12.2018

Insufficient clamping force will cause a detrimental transmission of force. The suspension fork or the quick release axle may break. This will result in a crash and injuries.

 Never fasten a quick release axle with a tool, such

as a hammer or pliers.

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 64 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

 Insert the axle into the hub on the drive side.

Clamping version II.

Figure 26: Pushing the axle into the hub

 Tighten the axle with the red handle.

Figure 27: Tightening the axle

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 65 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

 Push the quick release lever into the axle.

Figure 28: Pushing the quick release lever into the axle

 Reverse the quick release lever.

 The lever is secured.

Figure 29: Securing the lever

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 66 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

 Check the position and clamping force of the quick

release lever. The quick release lever must be flush with the lower housing. You must be able to see a slight impression on the palm of your hand when you close the quick release lever.

Figure 30: Perfect position for the clamping lever

 Use a 4 mm hexagon socket spanner to adjust the

clamping lever clamping force if required. Afterwards, check the quick release lever position and clamping force.

Figure 31: Adjusting the quick release clamping force

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 67 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.6 Mounting the wheel with a quick release

Alternative

Crash caused by unfastened quick release

A faulty or incorrectly installed quick release may become caught in the brake disc and block the wheel. This will cause a crash.

 Never fit a defective quick release.

Crash caused by faulty or incorrectly installed quick release

The brake disc becomes very hot during operation. Parts of the quick release may become damaged as a result. The quick release comes loose. This will result in a crash and injuries.

 The front wheel quick release lever and the brake

disc must be situated on opposite sides.

Crash caused by incorrectly set clamping force

034-03212_1.0_03.12.2018

Excessively high clamping force will damage the quick release and cause it to lose its function.

Insufficient clamping force will cause a detrimental transmission of force. The suspension fork or the quick release may break. This will result in a crash and injuries.

 Never fasten a quick release using a tool (e.g.

hammer or pliers).

 Only use the clamping lever with the specified set

clamping force.

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 68 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

 Before mounting, ensure that the quick release

flange is extended. Open the lever completely.

Figure 32: Open and closed flange

 Push in the quick release until you hear a clicking

sound. Make sure that the flange is extended.

Figure 33: Pushing the quick release in

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 69 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

 Adjust the clamping with a half-open clamping lever

until the flange reaches the fork end.

Figure 34: Adjusting the clamping

 Fully close the quick release. Check the quick

release to ensure it is firmly in place and adjust on the flange if necessary.

 The lever is secured.

Figure 35: Closing the quick release

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 70 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

5.4.6.1 Checking the stem and handlebars

Checking connections

 Stand in front of the bicycle to check whether the

handlebars, stem and fork shaft are firmly attached to one another. Clamp the front wheel between your legs. Grasp the handlebar grips. Try to twist the handlebars towards the front wheel.

 The stem must not move or twist.

Firm hold

 Place your entire body weight on the handlebars

with the quick release lever closed to check that the stem is firmly in place.

 The handlebars shaft must not move downwards in

the fork shaft.

 If the handlebars shaft should move in the fork

shaft, increase the quick release lever tensioning. To do so, turn the knurled nut slightly in a clockwise direction with the quick release lever open.

 Close the lever and check the stem is firmly in

position.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 71 Monday, December 3, 2018 9:37 AM

Transportation, storage and assembly

Checking the headset backlash

 To check the handlebar headset backlash, close

the quick release lever on the stem. Place the fingers of one hand on the upper headset cup, pull the front wheel brake with the other hand and try to push the bicycle backwards and forwards.

 The headset cup halves must not move towards

one another while you are doing this. Note that there may be noticeable backlash due to worn-out bearing bushes or brake lining backlash in suspension forks and disc brakes.

 If there is headset backlash in the steering headset,

you must adjust it as soon as possible; otherwise, the headset will become damaged. You must make the adjustment as described in the stem manual.

5.4.7 Sale of the bicycle

034-03212_1.0_03.12.2018

 Fill out the data sheet on the first page of the

operating instructions.

 Adjust the bicycle to the rider.

 Set the stand and the shifter, and show the

purchaser the settings.

 Instruct the operator or rider how to use all the

functions of the bicycle.

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 72 Monday, December 3, 2018 9:37 AM

Before the first ride

6 Before the first ride

Crash caused by incorrectly adjusted torques

If a screw is fastened too tightly, it may break. If a screw is not fastened enough, it may loosen. This will result in a crash and injuries.

 Always observe the indicated torques on the screw

or in the operating instructions.

Only a correctly adjusted bicycle will guarantee you the desired ride comfort and health-promoting activity. Therefore adjust the saddle, the handlebars and the suspension to your body and your preferred riding style before the first ride.

6.1 Adjusting the saddle

6.1.1 Adjusting the saddle tilt

The saddle tilt must be adjusted to the seat height, the saddle and handlebar position, and the saddle shape to ensure an optimum fit. The seating position can be optimised in this way if needed. First, readjust the saddle after finding the handlebar position you prefer.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 73 Monday, December 3, 2018 9:37 AM

Before the first ride

 Place the saddle tilt in the horizontal position to

adjust the bicycle to your needs for the first time.

Figure 36: Horizontal saddle tilt

6.1.2 Determining the seat height



To determine the seat height safely, either push the bicycle near to a wall, so that you can lean on the wall to support yourself or ask another person to hold the bicycle for you.

034-03212_1.0_03.12.2018

 Climb onto the bicycle.

 Place your heel on the pedal and extend your leg,

so that the pedal is at the lowest crank rotation point.

 The rider sits straight on the saddle if the seat is at

an optimum height. If this is not the case, you can adjust the length of the seat post to your needs.

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 74 Monday, December 3, 2018 9:37 AM

Before the first ride

Figure 37: Optimal saddle height

6.1.3 Adjusting the seat height with quick release

 Open the quick release on the seat post to change

the seat height. To do so, pull the clamping lever away from the seat post.

Figure 38: Seat post quick release (3) with clamping lever (5) and setting

bolt (4) in the open position (1) and in the direction of the closed position (2)

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 75 Monday, December 3, 2018 9:37 AM

Before the first ride

 Set the seat post at the required height.

Crash caused by an excessively high seat post setting

A seat post with is set too high will cause the seat post or the frame to break. This will result in a crash and injuries.

 Do not pull the seat post out of the frame beyond

the minimum insertion depth marking.

Figure 39: Detailed view of the seat post – examples of the minimum insertion

depth marking

 To close it, push the seat post clamping lever as far

as it will go into the seat post.

 Check the clamping force of the quick releases.

034-03212_1.0_03.12.2018

ert wer

e Position zur Best

ber in einem späteren

chmals montieren.

ie den mitgelieferten Winkel mit der in

rrichtung und stecken Sie die Hülle in die

Remotehebel

Oder

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 76 Monday, December 3, 2018 9:37 AM

Before the first ride

6.1.4 Setting the height-adjustable seat post

 When using your seat post for the first time, you

must give it a firm push downwards to set it in motion. This is due to the natural tendency of the seal to repel oil from the seal surface. You only need to do this before the first use or after a longer period of non-use. Once you have displaced the post through its deflection, the oil spreads on the seal and the post begins to function normally.

Figure 40: The seat post activation lever can be mounted either on the left (1)

or the right (2) side of the handlebars

6.1.4.1 Lowering the saddle

6.1.4.2 Raising the saddle

 To lower the saddle, press your hand down on the

saddle or sit on the saddle.

 Press the seat post activation lever and hold it

down.

 Release the lever once you have reached the

required height.

 Pull the seat post activation level.

 Remove any pressure on the saddle and release

the lever once you have reached the required height.

034-03212_1.0_03.12.2018

90°

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 77 Monday, December 3, 2018 9:37 AM

Before the first ride

6.1.5 Adjusting the seat position

The saddle can be shifted on the saddle frame. The right horizontal position ensures an optimal leverage position for legs. This prevents knee pain and painful incorrect pelvis positions. If you have displaced the saddle more than 10 mm, you then need to adjust the saddle height again since both settings affect one another.

 To adjust the seat position safely, either push the

bicycle near to a wall, so that you can lean on the wall to support yourself or ask another person to hold the bicycle for you.

 Climb onto the bicycle.

 Place the pedals into the vertical position (3 o'clock

position) with your feet.

 The rider is sitting in the optimal sitting position if

the knee cap perpendicular line runs through the pedal axle. If the perpendicular line crosses behind the pedal, bring the saddle forward. If the perpendicular line crosses in front of the pedal, bring the saddle back. Move the saddle within its permitted displacement range only (marked on the saddle stay).

Figure 41: Knee cap perpendicular line

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 78 Monday, December 3, 2018 9:37 AM

Before the first ride

6.2 Adjusting the handlebars

 The handlebars must only be adjusted while the

bicycle is stationary.

 Unfasten and adjust the designated screw

connections, and clamp them with the maximum tightening torque for the clamping screws of the handlebars.

Maximum tightening torque for the clamping screws of the handlebars*

*if there is no other data on the component

Table 28: Handlebars clamping screw maximum tightening torque

Adjusting the stem

Crash caused by loose stem

Incorrectly fastened screws may come loose due to impact. The stem may no longer be firmly fixed in its position as a result. This will result in a crash and injuries.

5Nm - 7Nm

 Check the handlebars and the quick release system

are firmly in position after the first two hours of riding.

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 79 Monday, December 3, 2018 9:37 AM

Before the first ride

6.2.1 Adjusting the height of the handlebars

Crash caused by incorrectly set clamping force

Excessively high clamping force will damage the quick release and cause it to lose its function. Insufficient clamping force will cause a detrimental transmission of force. This can cause components to break. This will result in a crash and injuries.

 Never fasten a quick release using a tool (e.g.

hammer or pliers).

 Only use the clamping lever with the specified set

clamping force.

 Open the clamping lever.

 Pull the locking lever on the stem up, and

simultaneously pivot the handlebars into the desired position.

 You feel the locking lever click into place.

 Pull out the handlebars to the required height.

 Lock the quick release.

Figure 42: Open (2) and closed (1) clamping lever on the stem; by.schulz

speedlifter used as an example

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 80 Monday, December 3, 2018 9:37 AM

Before the first ride

6.2.2 Turning the handlebars to the side

Alternative

Crash caused by incorrectly set clamping force

Excessively high clamping force will damage the quick release and cause it to lose its function.

Insufficient clamping force will cause a detrimental transmission of force. This will result in a crash and injuries.

 Never fasten a quick release using a tool (e.g.

hammer or pliers).

 Only use the clamping lever with the specified set

clamping force.

 Open the clamping lever.

 Pull the locking lever on the stem up, and

simultaneously pivot the handlebars into the desired position.

 You feel the locking lever click into place.

 Pull out the handlebars to the required height.

 Lock the quick release.

Figure 43: Pulling locking lever upwards; by.schulz speedlifter used as an

example

034-03212_1.0_03.12.2018

WARNING

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 81 Monday, December 3, 2018 9:37 AM

Before the first ride

6.2.2.1 Checking the clamping force of the quick releases

 Open and close the quick releases on the stem or

the seat post.

 The clamping force is sufficient if the clamping

lever can be moved easily from the open final position into the middle and has to be pressed with the fingers or base of the thumb from the middle point onwards.

6.2.2.2 Adjusting the quick release clamping force

 If the clamping lever on the handlebars cannot be

moved into its final position, screw out the knurled nut.

 Tighten the knurled nut on the seat post if the

clamping lever's clamping force is not sufficient.

If you are unable to set the clamping force, the specialist dealer will need to check the quick release.

6.3 Adjusting the brake lever

6.3.1 Adjusting the pressure point on a Magura brake

lever

Brake failure due to incorrect setting

If the pressure point is set with brakes where the brake lining and brake disc have reached their wear limit, the brakes may fail and cause an accident with injury.

 Before you set the pressure point, ensure that the

brake lining and brake disc have not reached their wear limit.

The pressure point setting is adjusted using the twist knob.

 Turn the twist knob towards the plus (+) symbol.

034-03212_1.0_03.12.2018

WARNING

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 82 Monday, December 3, 2018 9:37 AM

Before the first ride

 The brake lever moves closer to the handlebar grip.

Re-adjust the grip distance as necessary.

 The lever pressure point activates sooner.

Figure 44: Using the twist knob (1) to adjust the pressure point

6.3.2 Adjusting the grip distance

Crash caused by incorrectly set grip distance

If brake cylinders are set incorrectly or installed wrongly, the braking power may be lost at any time. This may cause you to fall from the bicycle and injure yourself.

 Once the grip distance has been set, check the

position of the brake cylinder and adjust it as necessary.

 Never correct the brake cylinder position without

special tools. Have a specialist dealer correct it.

The brake lever grip distance can be adjusted to ensure that it can be reached more easily. Contact your specialist dealer if the brake handle is too far from the handlebars or is hard to use.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 83 Monday, December 3, 2018 9:37 AM

Before the first ride

Figure 45: Brake lever grip distance

6.3.2.1 Adjusting the grip distance on a Magura brake lever Alternative

Use a T25 TORX® wrench to turn the setting screw to adjust the grip distance.

 Turn the setting screw in the minus (–) direction.  The brake lever moves closer to the handlebar grip.

 Turn the setting screw in the plus (+) direction.  The brake lever moves away from the handlebar

grip.

Figure 46: Using the setting screw (2) to adjust the distance from the brake

lever to the handlebar grip (1)

034-03212_1.0_03.12.2018

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 84 Monday, December 3, 2018 9:37 AM

Before the first ride

6.4 Adjusting the suspension

Crash caused by incorrectly set suspension

If the suspension is adjusted incorrectly, the fork may become damaged, so that problems may occur when steering. This will result in a crash and injuries.

 Never ride the bicycle without air in the air

suspension fork.

 Never use the bicycle without adjusting the

suspension fork to the rider's weight.

 Settings on the chassis change riding performance

significantly. You need to get used to the bicycle and break it in to prevent accidents.

The adjustment shown here represents a basic setting. The rider should change the basic setting to suit the surface and his/her preferences.

 It is advisable to make a note of the basic setting.

This way, it can be used as the starting point for subsequent, optimised settings and to safeguard against unintentional changes.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 85 Monday, December 3, 2018 9:37 AM

Before the first ride

6.4.1 Adjusting the negative deflection

Negative deflection is compression caused by the rider's weight, including equipment (such as a backpack), sitting position and frame geometry.

Each rider has a different weight and sitting position. Negative deflection depends on the rider's position and weight and should be between 15% and 30% of the maximum fork deflection, depending on the bicycle usage and preferences.

6.4.1.1 Adjusting the steel suspension fork negative

deflection

Alternative

You can adjust the fork by tensioning the spring to the rider's weight and their preferred riding style. It is not the coil spring hardness which is adjusted; it is its pretensioning. This reduces the fork's negative deflection when the rider sits on the bicycle.

Figure 47: Negative deflection setting wheel on the suspension fork crown

 Only adjust the negative deflection when the bicycle is

stationary.

034-03212_1.0_03.12.2018

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 86 Monday, December 3, 2018 9:37 AM

Before the first ride

 The setting wheel may be located under a plastic

cover on the suspension fork crown. Remove the plastic cover by pulling it off upwards.

 Turn the negative deflection setting wheel in a

clockwise direction to increase the spring pretensioning. Turn the negative deflection setting wheel in an anti-clockwise direction to reduce it.

 The ideal setting in relation to the weight of the rider

has been achieved when the shock absorber deflects 3 mm under the stationary load of the rider.

 If applicable, re-attach the plastic cover after

setting the suspension fork.

6.4.1.2 Adjusting the air suspension fork negative deflection

Alternative

Riding without filling pressure will destroy the wheel suspension, the frame and the air suspension elements.

 Never ride without filling pressure in the air

suspension elements.

A normal air pump cannot build up the required pressure with sufficient sensitivity.

 Use a special damper pump to adjust the filling

pressure.

The air chamber valve can be used to adjust the fork suspension to the rider's weight and driving style.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 87 Monday, December 3, 2018 9:37 AM

Before the first ride

Adjusting the tyre pressure

 The tyre pressure determines the force required to

press the fork together. If the tyre pressure is reduced, the fork slackens more and rebounds less.

Figure 48: Screw caps in different designs

 Only adjust the tyre pressure when the bicycle is

stationary.

 The air valve is located under a screw cap on the

head of the left shock absorber. Unscrew and remove the screw cap.

 Adjust the air pressure as an initial value using a

high-pressure damper pump and based on the tyre pressure table on the fork and the rider's weight.

6.5 Retracting brake linings

New brake linings take time to break in and adjust to their final braking force.

 Accelerate bicycle to about 25 km/h.

 Brake bicycle until it comes to a halt.

 Repeat process 30–50 times.

 The brake linings and brake discs are now retracted

and provide optimal braking power.

034-03212_1.0_03.12.2018

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 88 Monday, December 3, 2018 9:37 AM

Operation

7 Operation

Crash caused by loose clothing

Laces, scarves and other loose items may become entangled in the spokes on the wheels and the chain drive. This may cause you to fall from the bicycle and injure yourself.

 Wear sturdy footwear and close-fitting clothing.

Risk of fire and burning due to hot motor

The motor housing becomes hot when riding. Touching it may cause burns to the skin or other objects.

 Never touch the motor housing directly after riding.

 Never place the bicycle on a flammable surface

(grass, wood, etc.) directly after use.

Crash caused by soiling

Heavy soiling can impair the functions of the bicycle, for example, the function of the brakes. This may cause you to fall from the bicycle and injure yourself.

 Remove coarse soiling before riding.

Crash caused by poor road conditions

Loose objects, such as branches and twigs, may become caught in the wheels and cause a crash with injuries.

 Be aware of the road conditions.

 Ride slowly and brake in good time.

When riding downhill, high speeds may be reached. The bicycle is only engineered for exceeding a speed of 25 km/h briefly. In particular the tyres can fail if exposed to a continuous load.

 Decelerate the bicycle with the brakes if higher

speeds than 25 km/h are reached.

034-03212_1.0_03.12.2018

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 89 Monday, December 3, 2018 9:37 AM

Heat or direct sunlight can cause the tyre pressure to increase above the permitted maximum pressure. This can destroy the tyres.

 Never park the bicycle in the sun.

 On hot days, regularly check the tyre pressure and

adjust it as necessary.

You can be ride the bicycle within a temperature range between 5 °C and 35 °C. The effectiveness of the drive system is restricted outside of this temperature range.

Operation temperature 5 °C–35 °C

Moisture penetrating at low temperatures may impair individual bicycle functions due to the open structural design.

 Always keep the bicycle dry and free from frost.

Operation

034-03212_1.0_03.12.2018

 If the bicycle is to be used at temperatures below

3 °C, the specialist dealer must carry out an inspection and prepare the bicycle for winter usage first.

Off-road riding subjects the joints in the arms to severe strain. Take a break from riding every 30 to 90 minutes, depending on the condition of the roads.

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 90 Monday, December 3, 2018 9:37 AM

Operation

7.1 Before each ride

Crash caused by difficult-to-spot damage

If the bicycle topples over or you have a fall or an accident, there may be difficult-to-spot damage to components such as the brake system, quick releases or frame. This may cause you to fall from the bicycle and injure yourself.

 Take the bicycle out of service and have a specialist

dealer carry out an inspection.

Crash caused by material fatigue

Intensive use can cause material fatigue. A component may suddenly fail in case of material fatigue. This may cause you to fall from the bicycle and injure yourself.

 Remove the bicycle from service immediately in

case of any signs of material fatigue. Have the specialist dealer check the state.

 Have the specialist dealer carry out a basic

inspection regularly. During the inspection, the specialist dealer inspects the bicycle for any signs of material fatigue on the frame, fork, suspension element mountings (if there are any) and components made of composite materials.

Carbon becomes brittle when exposed to heat radiation such as heating. This can cause the carbon part to break and result in a crash with injuries.

 Never expose carbon parts to strong heat sources.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 91 Monday, December 3, 2018 9:37 AM

7.2 Check list before each ride

 Check the bicycle before each ride.

 Do not use the bicycle if there are any anomalies.

Check that the bicycle is complete.



Check that the lighting, reflector and brake, for instance, are



sufficiently clean.

You must check that the mudguards, the pannier rack and the



chain guard are securely installed.

Check that the front and rear wheels run true. This is particularly important if the bicycle has been transported or secured with a



lock.

Check the valves and the tyre pressure. Adjust as necessary



before each ride.

If the bicycle has a hydraulic rim brake, check whether the



locking levers are fully closed in their final positions.

Operation

034-03212_1.0_03.12.2018

Check the front and rear wheel brakes to make sure that they are working properly. To do so, operate the brake levers while stationary in order to check whether resistance is generated in



the usual brake lever position. The brake must not lose any brake fluid.

Check that the driving light is working.



Check for unusual noises, vibrations, smells, staining, deformation, cracks, scores, abrasion and wear. This indicates



material fatigue.

Inspect suspension system for cracks, dents, bumps, parts or leaking oil. Look at concealed sections on the bicycle's lower



surfaces.

Use body weight to compress suspension system. Adjust to the



optimum "SAG" value if suspension is too soft.

If quick releases are used check them to make sure that they are fully closed in their end position. If quick release axle



systems are used, make sure that all attachment screws are tightened to the correct torque.

Be alert to any unusual operating sensations when braking,



pedalling or steering.

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 92 Monday, December 3, 2018 9:37 AM

Operation

7.3 Using the kickstand

Crash caused by a lowered kickstand

The kickstand does not fold up automatically. There is a risk of crashing if riding with the kickstand lowered.

 Raise the kickstand completely before the ride.

The heavy weight of the bicycle may cause the kickstand to sink into soft ground and the bicycle may topple and crash over.

 The bicycle must be parked on firm, level ground

only.

 It is particularly important to check that the bicycle

is stable if it is equipped with accessories or loaded with luggage.

Raising the kickstand

 Before the ride, raise the kickstand completely with

your foot.

Parking the bicycle

 Before parking, lower the kickstand completely with

your foot.

 Park the bicycle carefully and check that it is stable.

034-03212_1.0_03.12.2018

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 93 Monday, December 3, 2018 9:37 AM

7.4 Using the pannier rack

Crash caused by loaded pannier rack

The riding performance of the bicycle changes with a loaded pannier rack, in particular when steering and braking. This can lead to a loss of control. This may cause you to fall from the bicycle and injure yourself.

 You should practice how to use a loaded pannier

rack safely and reliably before using the bicycle in

public spaces.

Crash caused by unsecured luggage

Loose or unsecured objects on the pannier rack, e.g. belts, may become caught in the rear wheel. This may cause you to fall from the bicycle and injure yourself.

Objects which are fastened to the pannier rack may cover the bicycle's reflectors and the driving light. The bicycle may be overseen on public roads. This may cause you to fall from the bicycle and injure yourself.

Operation

034-03212_1.0_03.12.2018

 Secure any objects which are attached to the

pannier rack sufficiently.

 Objects fastened to the pannier rack must never

cover the reflectors, the headlight or the rear light.

Crushing the fingers in the spring flap

The spring flap on the pannier rack operates with a high clamping force. There is a risk of crushing the fingers.

 Never allow the spring flap to snap shut in an

uncontrolled manner.

 Be careful where you position your fingers when

closing the spring flap.

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 94 Monday, December 3, 2018 9:37 AM

Operation

The maximum load bearing capacity is indicated on the pannier rack.

 Never exceed the permitted total weight when

packing the bicycle.

 Never exceed the maximum load bearing capacity

of the pannier rack.

 Never modify the pannier rack.

 Distribute the luggage as evenly as possible on the

left and right-hand side of the bicycle.

 We recommend the use of panniers and luggage

baskets.

034-03212_1.0_03.12.2018

WARNING

CAUTION

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 95 Monday, December 3, 2018 9:37 AM

7.5 Rechargeable battery

Fire and explosion due to defective battery

The safety electronics on a damaged or faulty battery may fail. The residual voltage can cause a short circuit. The battery may self-ignite and explode.

 Remove batteries with external damage from

service immediately and never charge them.

 If the battery becomes deformed or begins to

smoke, keep at a safe distance, disconnect the power supply at the socket, and notify the fire service immediately.

 Never extinguish a damaged battery with water or

allow it to come into contact with water.

 If a battery is dropped or struck but shows no signs

of external damage, remove it from service and observe it for at least 24 hours.

 Faulty batteries are hazardous goods. Dispose of

faulty batteries properly and as quickly as possible.

 Store in a dry place until disposal. Never store in

the vicinity of flammable substances.

 Never open or repair the battery.

Chemical burns to the skin and eyes caused by faulty battery

Liquids and vapours may leak from a damaged or faulty battery. They can irritate the airways and cause burns.

Operation

034-03212_1.0_03.12.2018

 Avoid contact with leaked liquids.  Immediately consult a doctor in case of contact with

the eyes or any discomfort.

 In case of contact with the skin, rinse off

immediately with water.

 Ventilate the room well.

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 96 Monday, December 3, 2018 9:37 AM

Operation

Risk of fire and explosion due to high temperatures

Excessively high temperatures will damage the battery. The battery may self-ignite and explode.

 Never expose the battery to sustained direct

sunlight.

Fire and explosion caused by short circuit

Small metal objects may jumper the electrical connections of the battery. The battery may self-ignite and explode.

 Keep paper clips, screws, coins, keys and other

small parts away and do not insert them into the battery.

Fire and explosion caused by penetration by water

The battery is only protected from simple spray water. Penetration by water can cause a short circuit. The battery may self-ignite and explode.

 Never immerse the battery in water.  If there is reason to believe that water may have

entered into the battery, the battery must be removed from service.

If a key is left inserted when transporting the bicycle or when riding, it may break off or the lock may open accidentally.

 Remove the key from the battery lock immediately

after use.

 We recommend that you attach the key to a key

ring.

 Before the battery is removed or inserted, switch off

the battery and the drive system.

034-03212_1.0_03.12.2018

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 97 Monday, December 3, 2018 9:37 AM

7.5.1 Removing the battery

 Open the battery lock with the key.  The battery is released and falls into the retainer

guard.

 Hold the battery in your hand from below. Use the

other hand to push on the retainer guard from above.

 The battery is released and falls into the hand.

 Remove the battery from the frame.  Remove the key from the lock.

7.5.2 Inserting the battery

 Place the battery with the contacts first into the

lower mount.

 Flip the battery up so that it is held by the retainer

guard.

 Push the battery upwards so that it audibly clicks

into place.

 Check the battery to make sure it is firmly in place.  Lock the battery with the key. Otherwise the battery

may fall out of the mount when you open the lock.

 Remove the key from the lock.

Operation

034-03212_1.0_03.12.2018

CAUTION

NOTICE

EN_034-03212_1.0_BULLS Brose Center MY19_Inhalt.book Page 98 Monday, December 3, 2018 9:37 AM

Operation

7.5.3 Charging the battery

Fire caused by overheated charger

The charger heats up when charging the battery. In case of insufficient cooling, this can result in fire or burns to the hands.

 Never use the charger on a highly flammable

surface (e.g. paper, carpet etc.).

 Never cover the charger during the charging

process.

Electric shock caused by penetration by water

If water penetrates into the charger, there is a risk of electric shock.

 Never charge the battery outdoors.

Electric shock in case of damage

Damaged chargers, cables and plug connectors increase the risk of electric shock.

 Check the charger, cable and plug connector before

each use. Never use a damaged charger.

Risk of fire and explosion caused by damaged battery

The safety electronics on a damaged or faulty battery may fail. The residual voltage can cause a short circuit. The battery may self-ignite and explode.

 If the battery becomes deformed or begins to

smoke, keep at a safe distance, disconnect the power supply at the socket, and notify the fire service immediately.

 Never extinguish a damaged battery with water or

allow it to come into contact with water.

If an error occurs during the charging process, a system message is displayed. Remove the charger and battery from operation immediately and follow the instructions.
