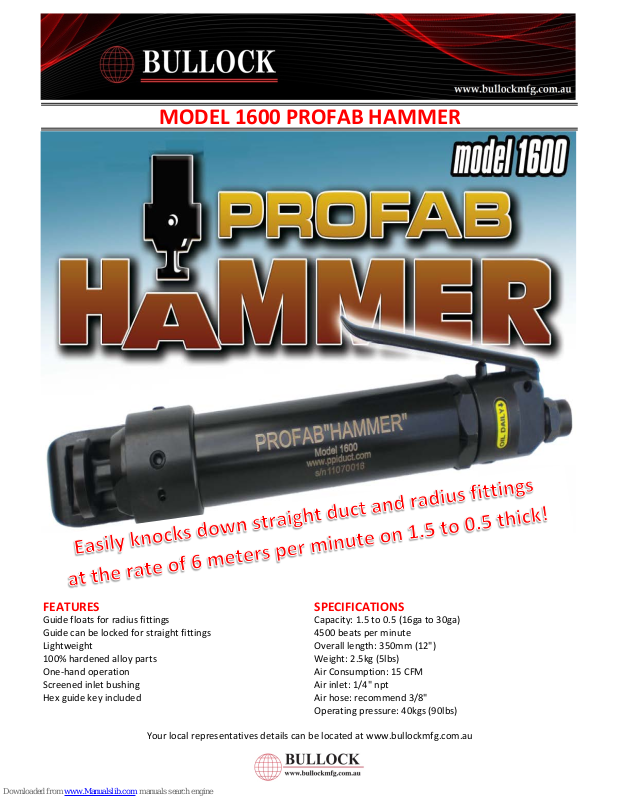

Page 1
FEATURES SPECIFICATIONS
Guide floats for radius fittings Capacity: 1.5 to 0.5 (16ga to 30ga)
Guide can be locked for straight fittings 4500 beats per minute
Lightweight Overall length: 350mm (12")
100% hardened alloy parts Weight: 2.5kg (5lbs)
One-hand operation Air Consumption: 15 CFM
Screened inlet bushing Air inlet: 1/4" npt
Hex guide key included Air hose: recommend 3/8"
Operating pressure: 40kgs (90lbs)
MODEL 1600 PROFAB HAMMER
Your local representatives details can be located at www.bullockmfg.com.au
Page 2

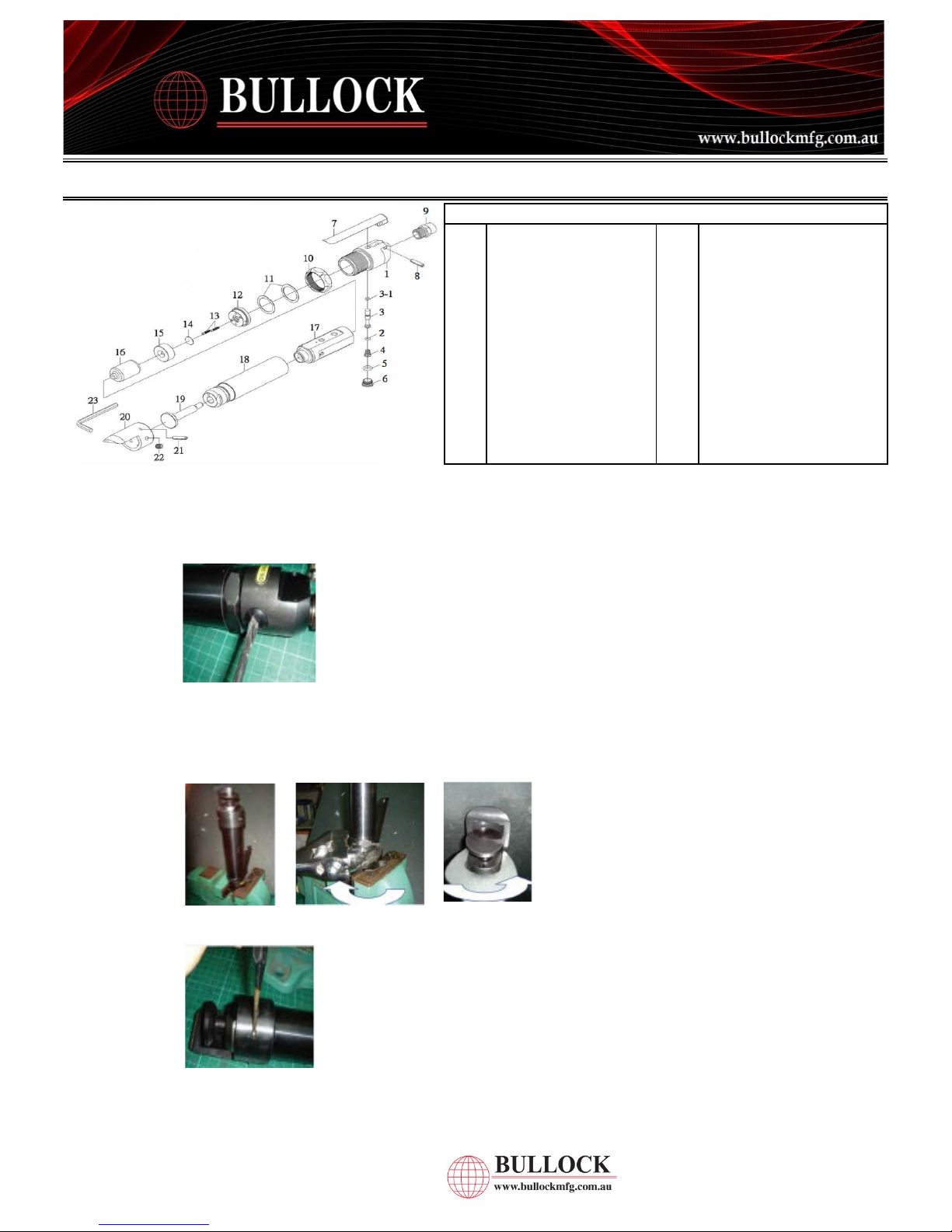

01 Back head 12 Rear valve block
02 O-Ring 13 Pin
03 Throttle valve 14 Valve
03-1 O-Ring 15 Front valve block
04 Spring 16 Piston
05 O-Ring 17 Barrel sleeve
06 Valve cap 18
Barrel
07 Lever 19 Driver
08
Spring pin 20 Guide
09 Hose adapter 21 Sping pin
10 Lock ring 22 HEX. Screw
11 Alignment shim 23 4mm HEX. Wrench
MAINTENANCE INSTRUCTIONS
REPLACING THE O-RINGS AND SPRING:
Use a flat-head screwdriver as shown to disassemble the valve cap (part #06). Replace o-rings
(part #02, #03-1 and #04) and spring (part #05)
REPLACING THE MAIN VALVE (part #14) AND PISTON (part #16):
1. Use a vise to hold the hammer as shown
2. With an open-ended wrench, loosen the lock ring (part #10) by turning clockwise
3. Use the open-ended wrench t turn the barrel (part #19) counter-clockwise unit it separates from the back head (part #01),
then replace the main valve (part #14) and piston (part #16)
REPLACING THE DRIVER:
Use a center punch as shown to disassemble the spring pin (part #21), then replace the driver (part #19)
Your local representatives details can be located at www.bullockmfg.com.au
MODEL 1600 PROFAB HAMMER
PARTS LIST
