HOT TUB
Model SPA-562
OPERATING INSTRUCTION
1
Page 2
1.
I
、

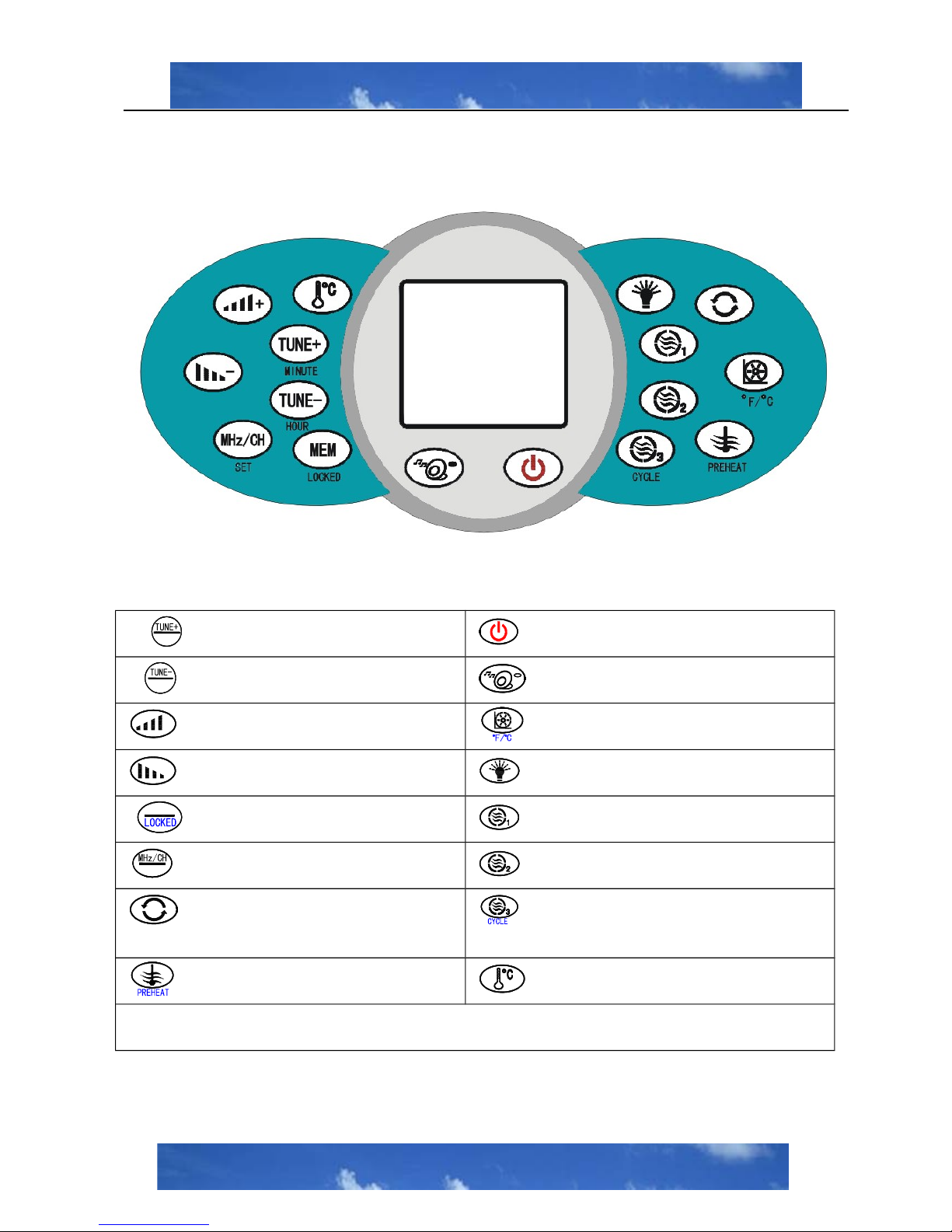

Illustration to buttons
Fig.1
：
Control Panel
“
MIN
”
Frequency up- searching / Minute
“ ”
On-off/Setting confirm
“
HOUR
”
Frequency down- searching/ Hour
“ ”
Radio or CD Switch/ On-off
“
+
”
Volume up/ Set switch
“ ”
Blower On- off / or Switch℉ ℃
“
-
”
Volume down/ Open
“ ”
Spa Light On-off
“
MEM
”
Radio channel Memory/ Lock
“ ”
Surfing pump 1 On-off
“
SET
”
Radio channel read / Close
“ ”
Surfing pump 2 On-off
“ ”
Lasting Circulation Cleaning On-off
“ ”
Surfing pump +circulaltion pump 3 On-off/Set
Circulation Cleaning Time
“ ”
Heating On-off
/ Set Pre-heating “ ”
Set Temperature
Note
：
.The functions listed with bule letters only works on the condition of on-off
Chart 1
II、Function Summary
2
Page 3
1、Max. with 6 KW heating system, pre-heating seting, water temperature displaying and setting
2、Max. with 2 pcs surfing pumps,1 pc circultion pump, and one pc air blower.
3、Spa light and ozone setting
4、CD audio-input / Display of radio frequency,it can be preserved 10 channels
5、Volume display and 87 volume adjusting
6、Circulation cleaning/ time set circulation cleaning
7、24 hours display and setting
8、Memory preserve once power off
9、Fahrenheit & Celsius can be mutually switched
10、Antifreezing functions
11、Keys with backlight
12、Lock settingl
13、Three-phase or single-phase available,can be choosed 110-120VAC or 220-240VAC
14、Choice with offering a AC for circumscribing DVD or TV
15、Choice of power controlled
III、Operation

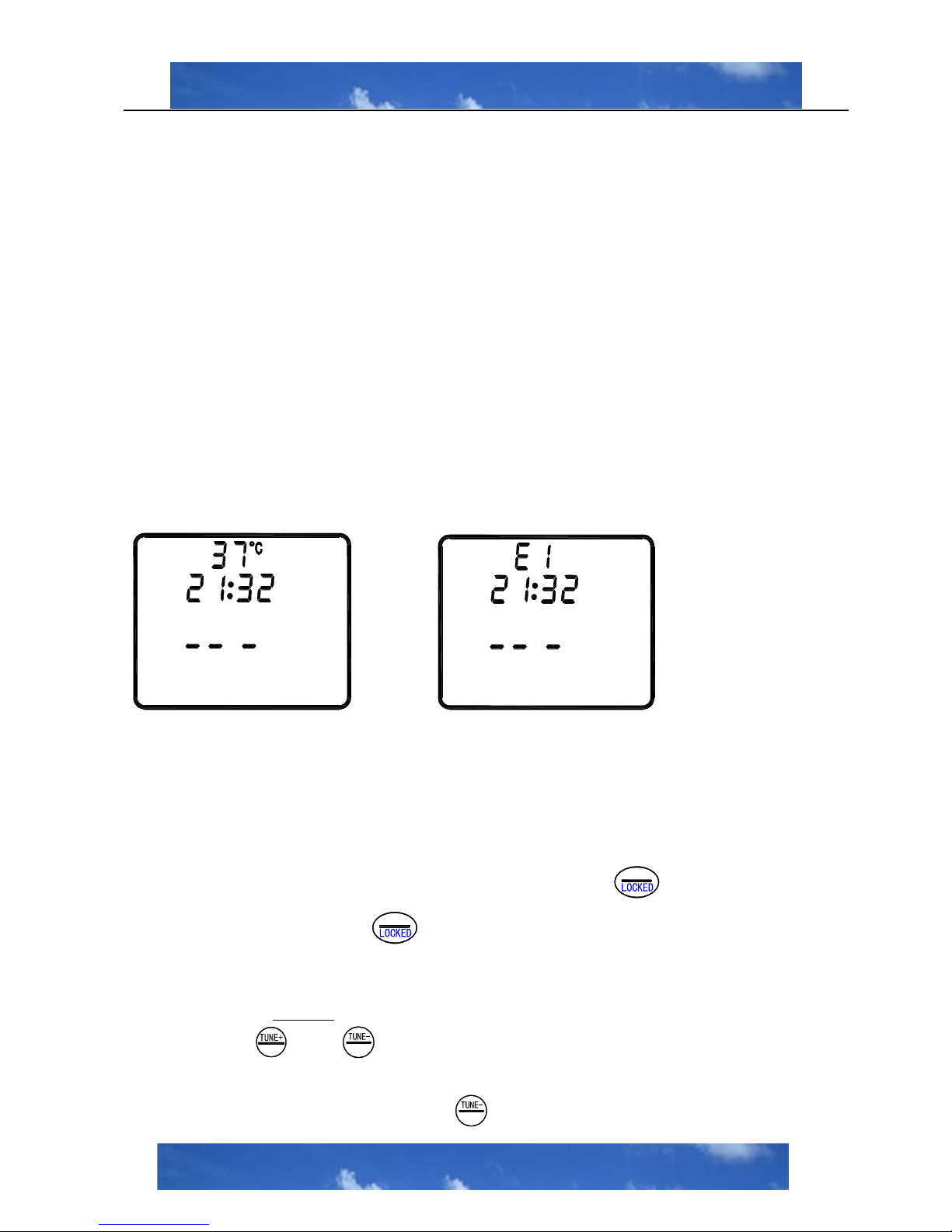

Fig.3:：Normal Temperature Display Fig.4：Senor on/short circuit Display
1 、 When you first turn on the spa, the backlight control panel is dim and LCD shows current time and
temperature. If spa happen with the short circuit the panel will display code “E1”. When the radio frequency is
displayed “----” it indicates that the spa is in “power off” mode, and pre-heating and circulation cleaning function
are in off status.
2、Lock memory Mode：
It is an optional function.
Key board will be locked by pressing
“
MEM
”
once when panel is in off
mode. Pressing continuous twice of “
MEM
” to unlock the panel, the word “LOCKED”will disappear.
3、Time Adjusting：
In the status of “Power off” and unworking of pre-heating and circulation cleaning.
Pressing
“
MIN
”or“
HOUR
”
to start time adjusting. When Minute and Hour flashing, you can
adjust your desired time.
It will be added one hour when pressing
“
HOUR
”
each time and the hours can be adjusted continually
3
Page 4
when pressing
“
HOUR
”
without stopping. The hour adjustment range is 0
0-23.
It will add one minute when pressing
“
MIN
”
each time and the minutes could be adjusted continually
when pressing
“
MIN
”
without stopping. The minute adjustment range is 00~59
The system will quit the time-setting status automatically after 6 seconds without pressing any buttons

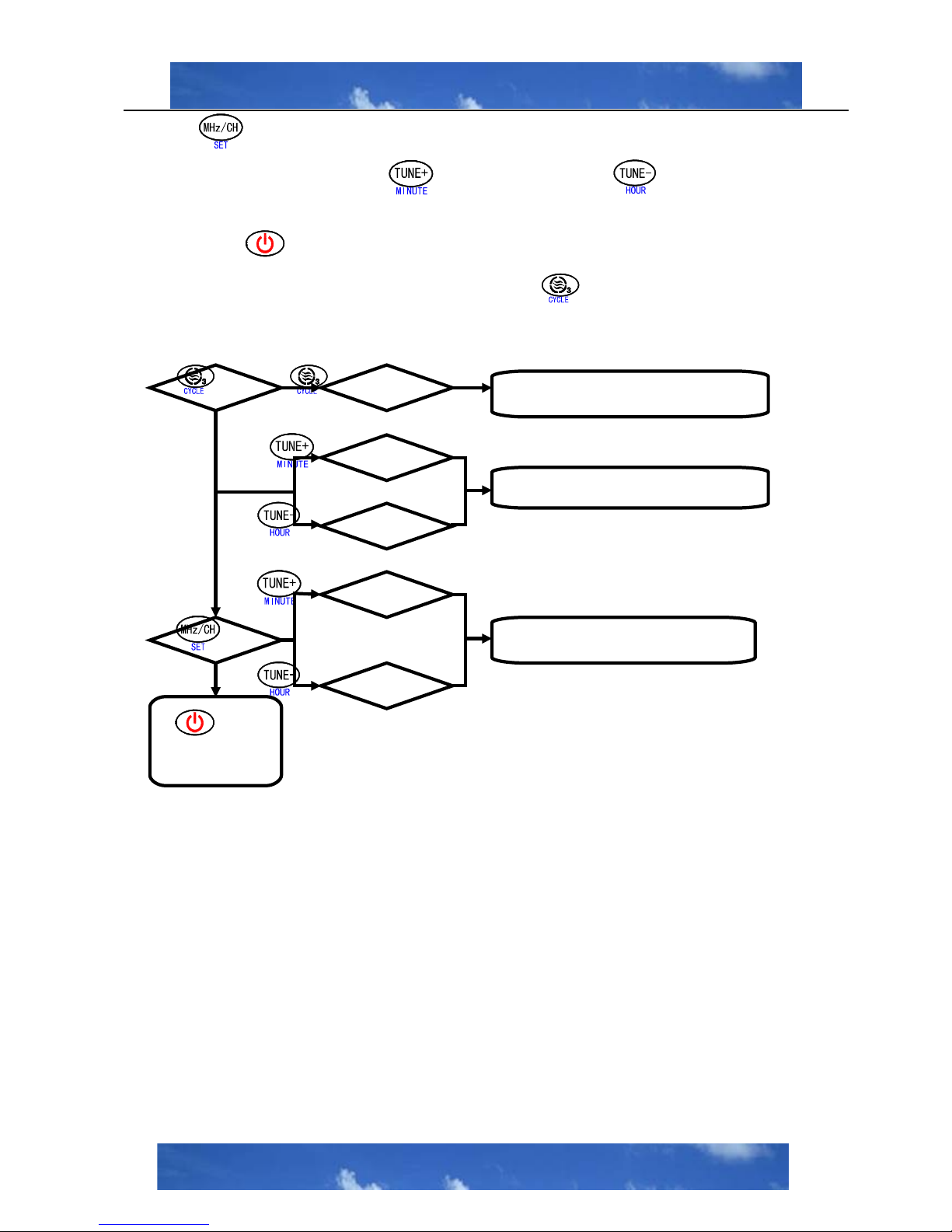

4、Pre- circulation-cleaning Setting
：

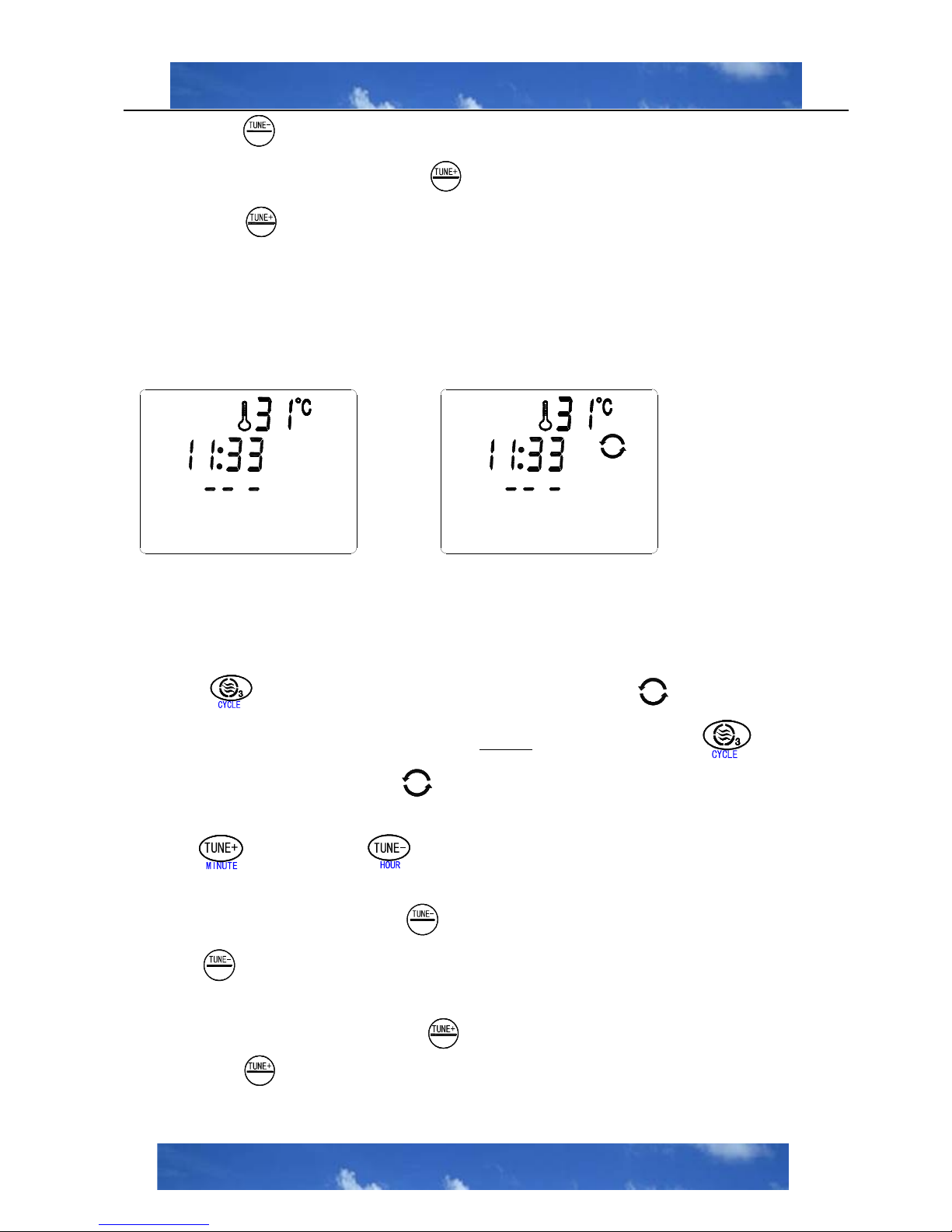

The display will show clearly whether circulation clearning is work or not. See following Fig 5-6
：
AM
AM
Fig.5：Circulation-cleaning off Fig.6：Circulation-cleaning on
Pre- circulation-cleaning Setting should be under the power off status. just turn on
the spa , LCD will display “---”
1
） 、
Press“ ”
to start Circulation-cleaning setting mode, LCD showes
“ ”
and it is flashing.You can
set the pre-circulation
time
simultaneously(refer to chart 2 and illustration 2).
Press “ ” again to turn
off the circulation cleaning,and the “ ” will disappear.
2)、Press“ ”（minutes）and“ ”（hours
）
to adjust the time.
It will add 1 hour when pressing
“
HOUR
”
each time and the hours could be added continually when
pressing
“
HOUR
”
without stopping. The adjustment range is
00-23.
It will add 1 minute when pressing “
MIN
” each time and the minutes could be added continually
when pressing “
MIN
” without stopping. The adjustment range is 00~59.
4
Page 5
3)、Press“ ”
to set lasting time of circulation.
It will be added 5 minutes by pressing
“ ”
and
1 hour by pressing“ ”each time。The maximum
working time is 19 hours and 55 minutes.
4)
、
Finally Press
“ ” to confirme all settings
.
Notice: The system will be exit automatically by pressing key of “ ”
1）
Pre-circulation setting be turn off
2）
starting time of circulation
3）
Lasting time of circulation
4）
Finished
Chart 2
***Notice***
1 All the setting of Circulation-cleaning must be set on Power OFF status
2 Circulation PUMP and OZONE are not working while setting the circulation
cleaning.
5
Page 6
5、Preheating Setting (if required)：

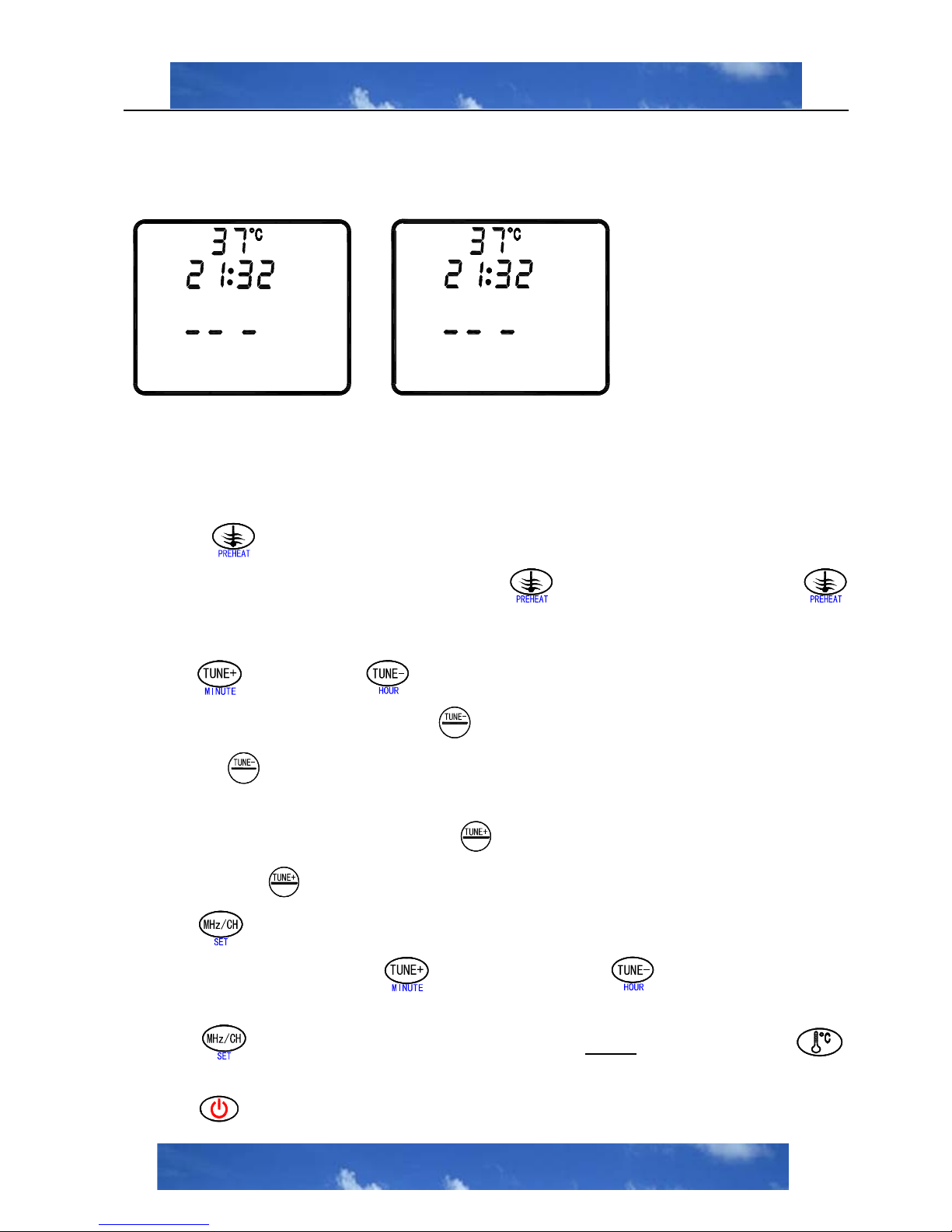

The display will show clearly whether preheating work or not. See following Fig 7-8
：
：
ON
OFF
Fig.7：Pre-heating On 图 8：Pre-heating Off
Pre- heating setting should be under the power off status. just turn on the spa ,
LCD will display “---”
1
） 、
Press“ ”
to start Pre-heating setting mode, LCD flashes of “ON” , You can set the pre-heating time
simultaneously (refer to chart and illustration 3).
Press“ ”to turn off the pre-heating ,and the “
” will disappear on panel.
2)
、Press“ ”
（
minutes）and“ ”（hours
）
to adjust the time.
It will be added 1 hour when pressing
“
HOUR
”
each time and hours could be added continually when
pressing the
“
HOUR
”
without stopping. The adjustment of hours is 00-23
It will be added 1 minute when pressing
“
MIN
”
each time and minutes could be added continually
when pressing the
“
MIN
”
without stopping. The adjustment range is 00~59
3)、Press“ ”
to set lasting time of circulation.
It will be added minutes by pressing
“ ”
and
1 hour by pressing“ ”each time。The maximum
working time is 19 hours and 55 minutes.
4)
、
Press
“ ”
again to set the water temperature(please refer to Chart 3 and illustrate 4). Press
“ ”
button to change the temperature. The range of temperature setting is:
15~40℃
。
5)、P
ress
“ ” to confirm all settings.
6
Page 7
Notice: The system will be exit automatically by pressing key of “
”
1） Pre-heating
setting is turn off
2） Starting time of pre-heating
3）
Lasting time of circulation
4） Preset temperature
5）
Finished

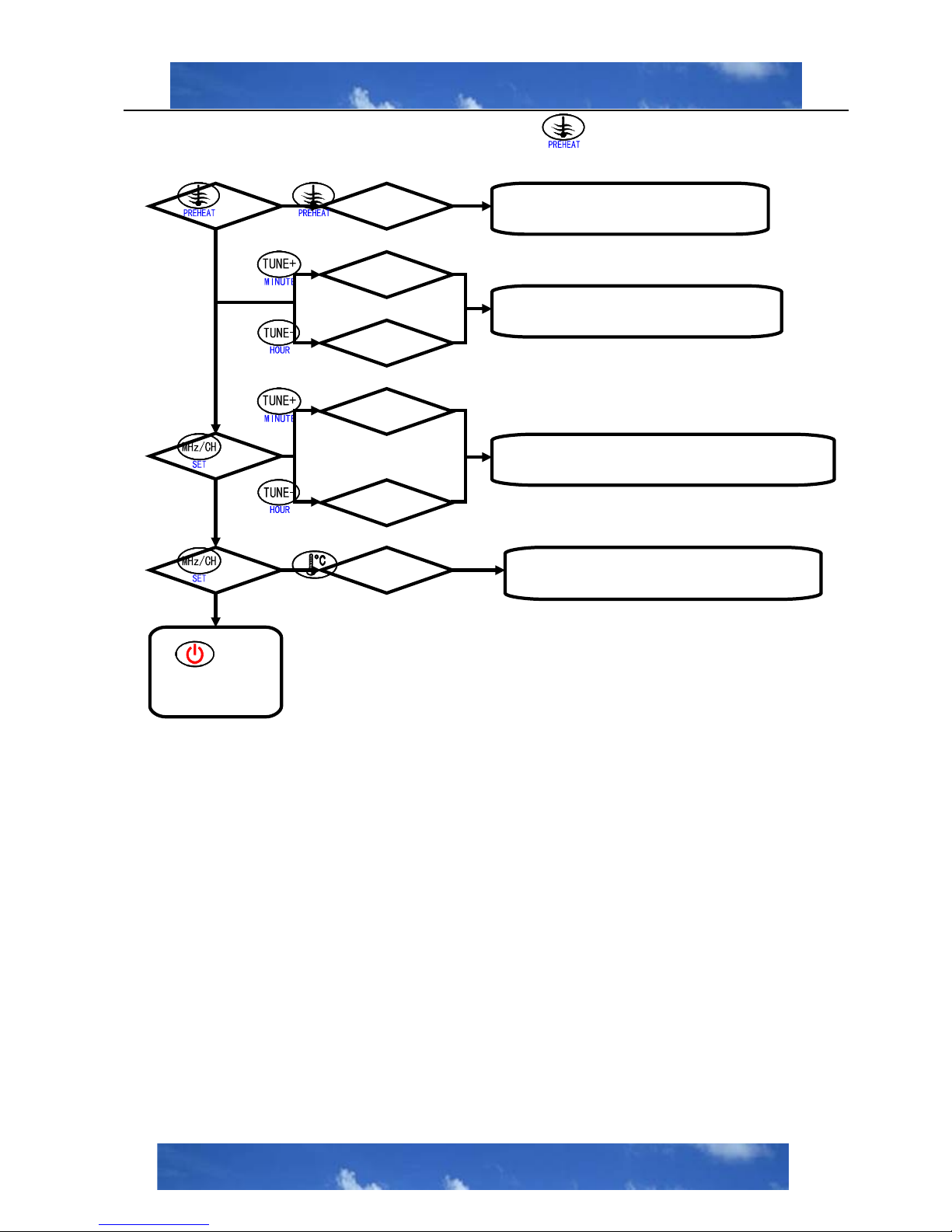

Chart 3
***Notice***
1、All setting of preheating must be in Power OFF mode, just turn on the spa，the
LCD will display “---”
2、Please note that it shows "on" or "off" on the LCD. "on" means preheating is
turned on mode. when the time reaches your desired time, heater will work. If panel
shows "off", means that heater not be set.
3、Circulation PUMP and HEATER not working while setting preheating.
6、About Pre-heating
When the time reaches your desired time, LCD shows “ON” and the tub is filled with water, heater works.
circulation pump works simultaneously. The count down time will be shown on the LCD screen, till the preset
time finished.
7
Page 8
The preheating will be turned off automatically once the preset time is finished.
Or Pressing the “ ” key can stop preheating.
***Notice***
i. When setting temperature is lower than or equal with current water
temperature，Even preheating is on status, the circulation PUMP and
HEATER are not working
。
ii. When the HEATER is a “I” type frame，The power of circulation PUMP must
reach 1HP。Otherwise the heater don’t work due to not enough water
pressure to drive pressure switch.
iii. If above two condiction still not make the heater work, Please short the line
of water pressure switch
。
7、Circulation-cleaning：
As the current time is as same as the preseting time, the preset is “on” too and the tub is filled with water,
the circulation cleaning will start, the circulation pump works at the same.. The LCD shows the countdown time.
All the surfing pumps and blower will work for 30 seconds at every 30 minutes. The Ozonier works at every 15
minutes.
The circulation cleaning will be turned off automatically once the countdown time is finished or By pressing
the “ ” key to turn off directly.
8、Operation to Power ON/ OFF
Pressing the key “ ” in “power-off” status to enter the “power-on” status. To pressing the in
the status of “power-on” to enter the “power-off” status. The LCD screen shows the on or off.See following
Fig.9-10
AM
OFF
AM
OFF

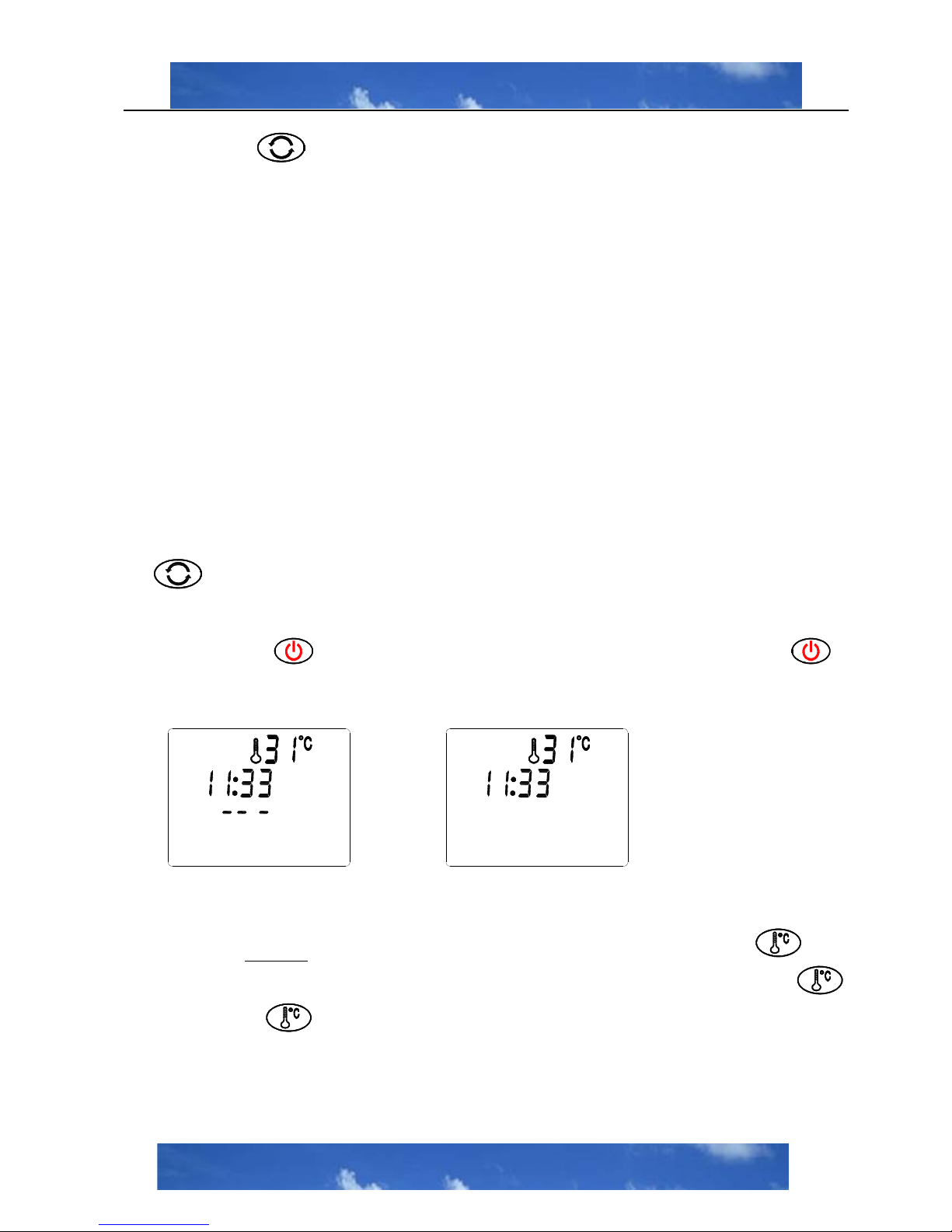

Fig.9：Power Turn OFF Status Fig.10：Power Turn ON Status
9、Temperature setting：
In the status of “Power-on” and “HEATER” is working.It will add 1 centigrade by press “ ” each
time ， the temperature will be added continually till reach 40 centigrade(106 Fahrenheit ) by press “ ”
without stop.Press “ ” again ， and the temperature is show 15 (59 Fahrenheit )℃ 。 The range of
adjustment is：15~40 (59~1℃ 06 Fahrenheit)。
10、Operation Radio & CD：
8
Page 9
AM
PUMP3
Fig.11
：

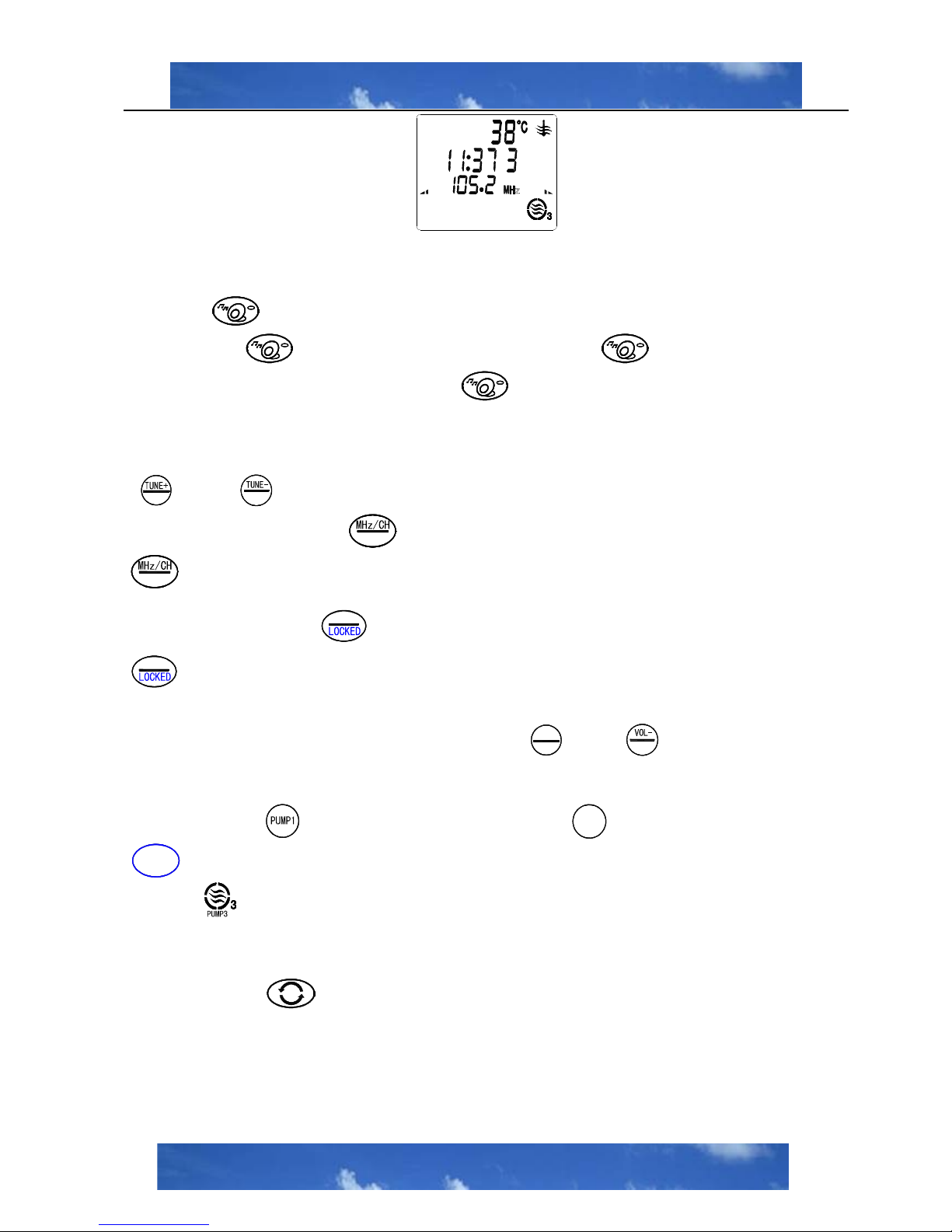

Radio frequency is 105.2 MHZ，Save the present frequency to channel 3 (Save channel)
or Exchange the frequency form channel 3 to the present (Searching channel)
I、“ ” key is the ON/OFF key of radio and CD。and it is only available in the status of power on.
The first pressing “ ” is turning on the radio，the second pressing “ ” will turn off the radio and turn
on the CD at the same time，and the third pressing“ ” ，will turn off the radio and CD simultaneously.
Ⅱ、LCD will show present frequency and volume of the radio after turning on the radio。
Ⅲ、In the working of radio， The volumle of the present radio frequency can be changed by pressing “
MIN
”and “
HOUR
”
Ⅳ 、 Pressing the key “
SET
” will take out the memorized radio frequency ， Pressing the key “
SET
” continually will take out the memorized radio frequency from channels will be saved at present
channel by pressing this key continually。If none of the channel， LCD will display “---”。
Ⅴ
、
Press the key
“
MEM
”
could memorize the present radio frequency， Pressing the key
“
MEM
”
continually will memorize the present radio frequency in different channel。 The channel of max is
10，Name of channel is 0-9
。
Ⅵ、The volume can be changed by pressing key “
SET
VOL+
”and“
OPEN
”
11、Operation of Pump：
The Button , operates pump 1 ； The Button
PUMP2
operates pump 2 ； The button
PUMP3
operates pump 3，Also the pump 3 is the circulation pump。When pump 3 is turned on the LCD
will show “ ”， whether the heating and circulation is on or off. The LCD will show when pump3 is off
and the heating, including pre-heating and circulation is about to start
12、Operation of lasting circulation cleaning：
Press the key
“ ”
at any time to turn on or off the lasting circulation cleaning, work mode is like the
preset circulation cleaning. The surfing pumps and blower work for 30 seconds at every 30 minutes. Ozonizer
works for 15 minutes at every 105 minutes,and repeat in this program .
Ozonater only work under the circulation cleaning works.
IMPORTANT: Please ensure that the ozone function is not in use whilst bathing in the spa
9
Page 10
During the lasting circulation cleaning,press”
”
key can stop the heating ,but start again the heating.
13、Operation of spa lights：
Press the
“ ”
key to turn ON/OFF of the the LED lights and the Fiber optic lights.
14、Setting the constant Temperature Settings：
1
）、
Pressing the
“ ”
button
will start the constant temperature heating.
2
）
With the setting above, the circulation pump will work automatically.
3
）、
If t he t emperat u re is set at 35 , when the water t em p erature reach es o r exceed s 36, the heater℃ ℃
will be turned off automatically and the circulation pump will stop after 5 seconds. When the water temperature
reaches or lower than 34 , t h e heat er will start up℃ again.
4）、In the case of an error the LCD shows ”E1” or “FF”. If this happens, the thermostatic heating sytem
will NOT be available, the heater doesn’t work.
15、Operating the Air Blower：
Press“ ” controls the blower
16、Fahrenheit & Celsius Temperature shift：
In the status of“Power off” pressing the key “ ” can change the mode of Fahrenheit & Celsius degree
17
、
When there is no water in the spa. All surfing pumps, and heating system can not
start up. However the corresponding signals will flash on the LCD.
18、Prevent freezing function:
This function is only available while the spa is on normal power supply.The heater & circulation pump will work
automatically once the water temperature is at b elow 5 , w hen the water t em p erat ure is reach at 10, heating℃ ℃
will stop.
IV
、
Electric parameters
1、Performance index：
Rated voltage： 220V/50Hz Maximum working current：60 A/220V－240V～
Voltage-resistance：1250V/1 minute without penetration。 Isolative resistance：》200MΩ
Water resistance grade：IPX5 Electric shock resistance：first grade
(2) Output loading index
Heater： AC220V/3KW Water pump： AC220V/3H
P×2
water pump
：
AC220V/1H
P
×1
Air pump：AC220V/700W×1
Spa light： AC12V/5W Ozone： AC12V/15W
Radio： 1) Frequency Range： FM： 87.0~108.0MHz
2) Maximum Output Power： 10W
3) Speaker：8Ωdamp proof speaker
10
Page 11
5.Warning Information
a.
Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
b.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
c.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
d.
Children should be supervised to ensure that they do not play with the appliance.
e.
Details concerning cleaning and other maintenance
f. Maintenance of water purity, especially PH values and chlorine concentrations.
g.
Cleaning and disinfection
h.
Use and installation of a cover.
i. Disposal of water
j. Precautions to avoid damage due to water freezing
k.
Precautions to avoid damage when the appliance is left empty for extended period.
2.2 Sub-clause 7
The installation instruction shall state the substance of the following:
-
Earthed appliances must be permanently connected to fixed wiring;
-
The appliance should be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30 mA.
-
The floor has to be capable of supporting the expected load.
-
An adequate drainage system has to be provided to deal with overflow water.
-
Details of how to follow the wiring rules, for example, specifying that parts are installed in the correct zone
and that equipotential bonding is carried out.
WAR
NING
1
、
DANGER：RISK OF ELECTRIC SHOCK，Connect only to a circuit protected by a
Ground Fault Circuit lnterrupter.
2、Grounding is required. The unit should be installed by a qualified service representative and
ground.
3、FOR YOUR SAFETY-This product should be installed by a professional service
technician,qualified in hydrotherapy bath installation.
4、lt’s prohibited to cover the instrument with something while opeating.
5、when using at the first time ,Be sure there is water in heater pipe before staring.
6、parts containing live parts, except parts upplied with safety extra-low voltage not Exceeding
12V,must be inaccessible to person in the bath
；
8、earthed appliances must be permanently connected to fixed wiring
；
9、the appliance should be supplied through a residual current device (RCD)having a rated
residual operating current not exceeding 30 mA.
1
0 、
If the mains cord of this appliance is damaged,It must only bereplaced by our service
representative,As special tools and/or parts are required
11
Page 12
Solutions of Fault
Phenomenon Reason How to Solve the problem
No power supply 1. The electric leakage switch was
breaked off
2. The Fuse be break off
1. Check and eliminate the malfunction,
restart the spa
2. Please change fuse
No display on control
panel
1. The plug which connected with the
panel loose or disconnected
2. The Panel happened with malfunction
1. to connect the plug of the control
panel and the main box
2. Change a new control panel
LED light not work 1. Power of the light be break off
2. Fuse be break off
3. light be burn
1. To check if cable of the light is well
connected with main box or not
2. Change a fuse
3.
Change a new lampwick
Ozone not work 1. Ozonater burn
2. Fuse be break off
3. Cable of the ozonater be cut off
1. Change a new ozonater
2. change a fuse
3. check if the cable of the main power
is connected with the main box or
not.
Displaied “E1””FF” in
control panel
1. temperature detector be cut off or
shortcirculate
2. plug of the temperature detector be
nundated by water
1. Connect the temperature detector
2.Change a new temperature detector
being incapable of
activate water pump,and
water pump icon
flashing
1.water not achieve the appointed level
2. water detector not connect well
1. To add more water to make it up to
the water detector
2. To re-connect the line of water
detector
Heater not work, and
heating icon on panel
flashing
1. setting water temperature lower then
the water temperature
1. set the temperature degrees higher
than the water in tub
temperature(between 15 and 43 °C
。
Leakage 1. silicon plaster not good
2. PVC plaster not good
3. Blow out of the water pipe
1. To remove the jets then re-install one
2. To plaster once again
Change water pipe
12

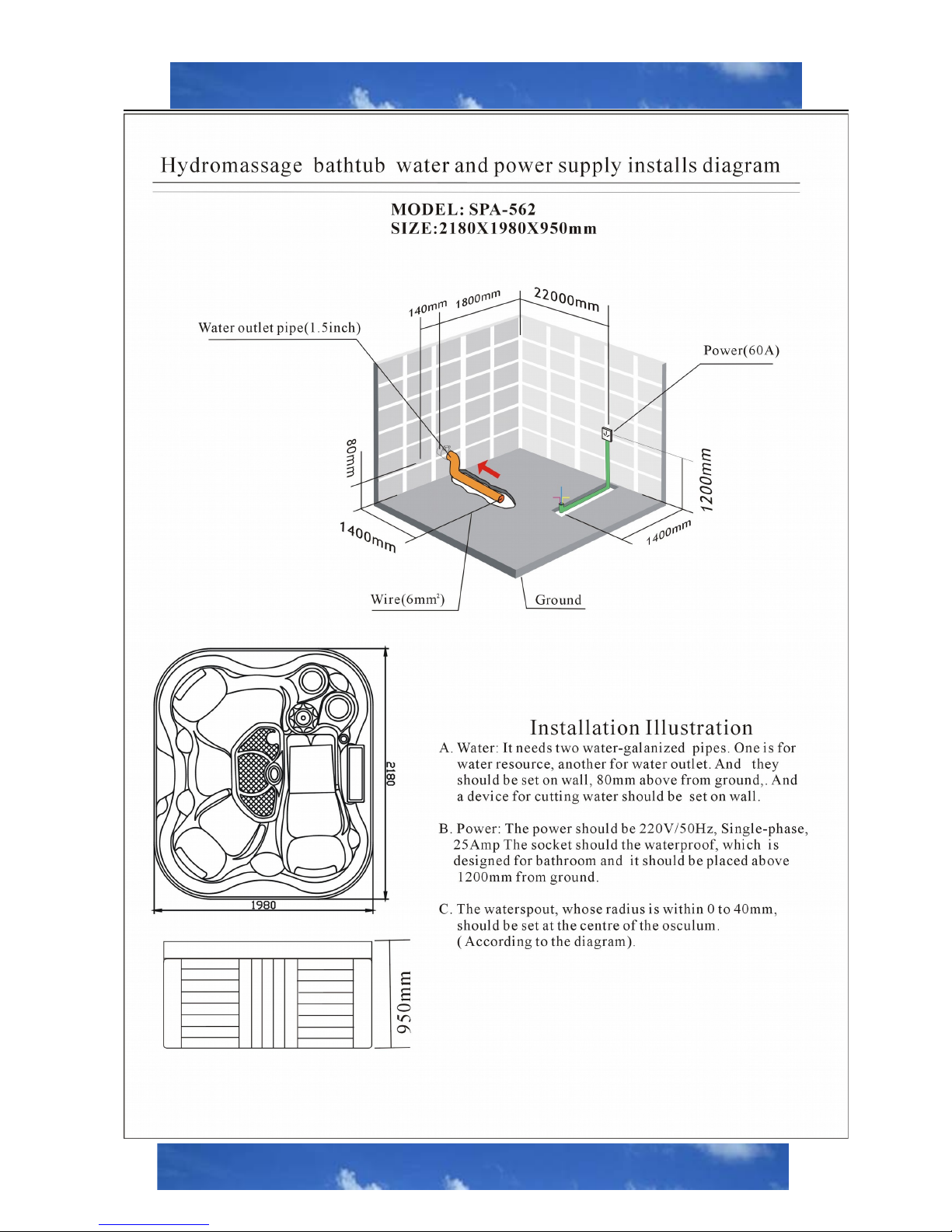

Page 13
13

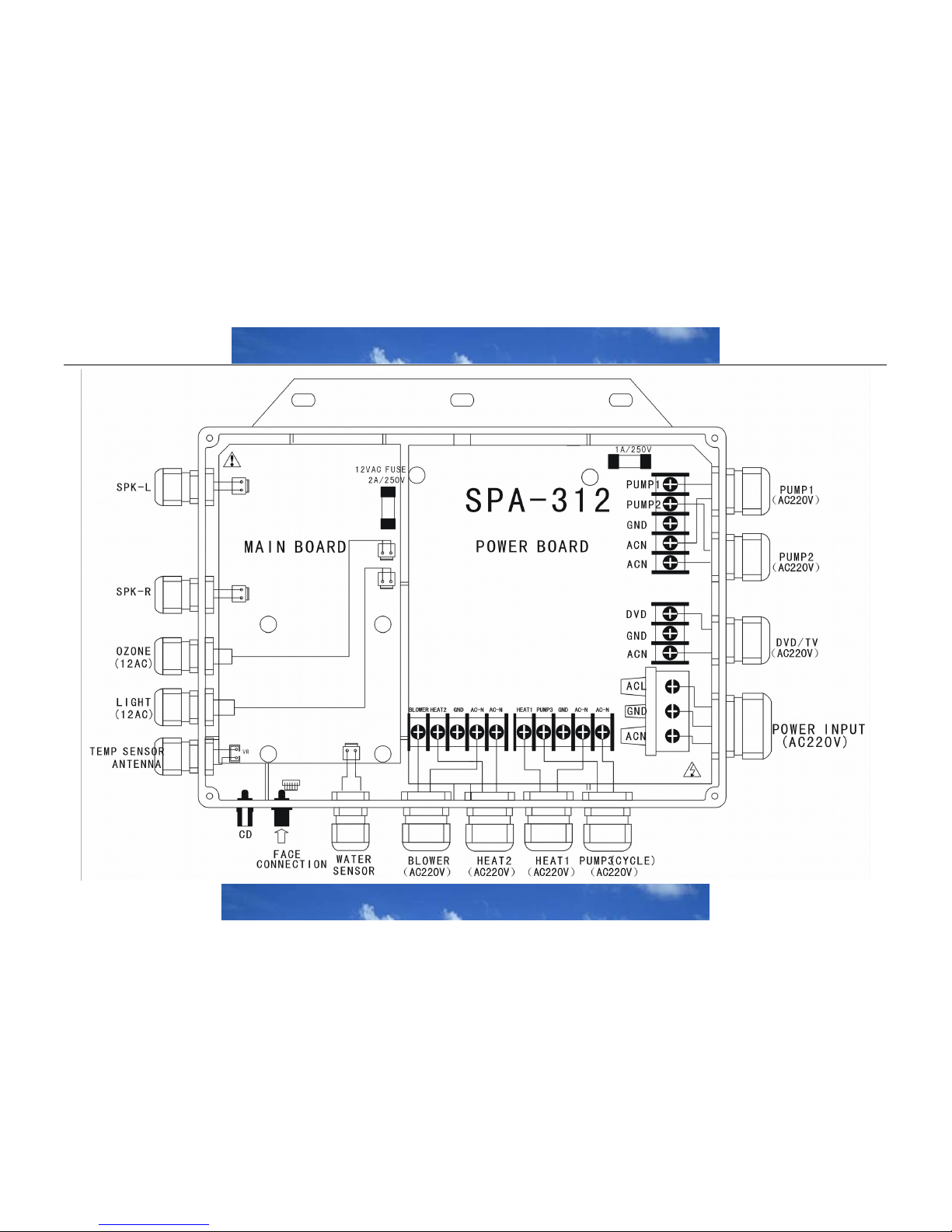

Page 14
14

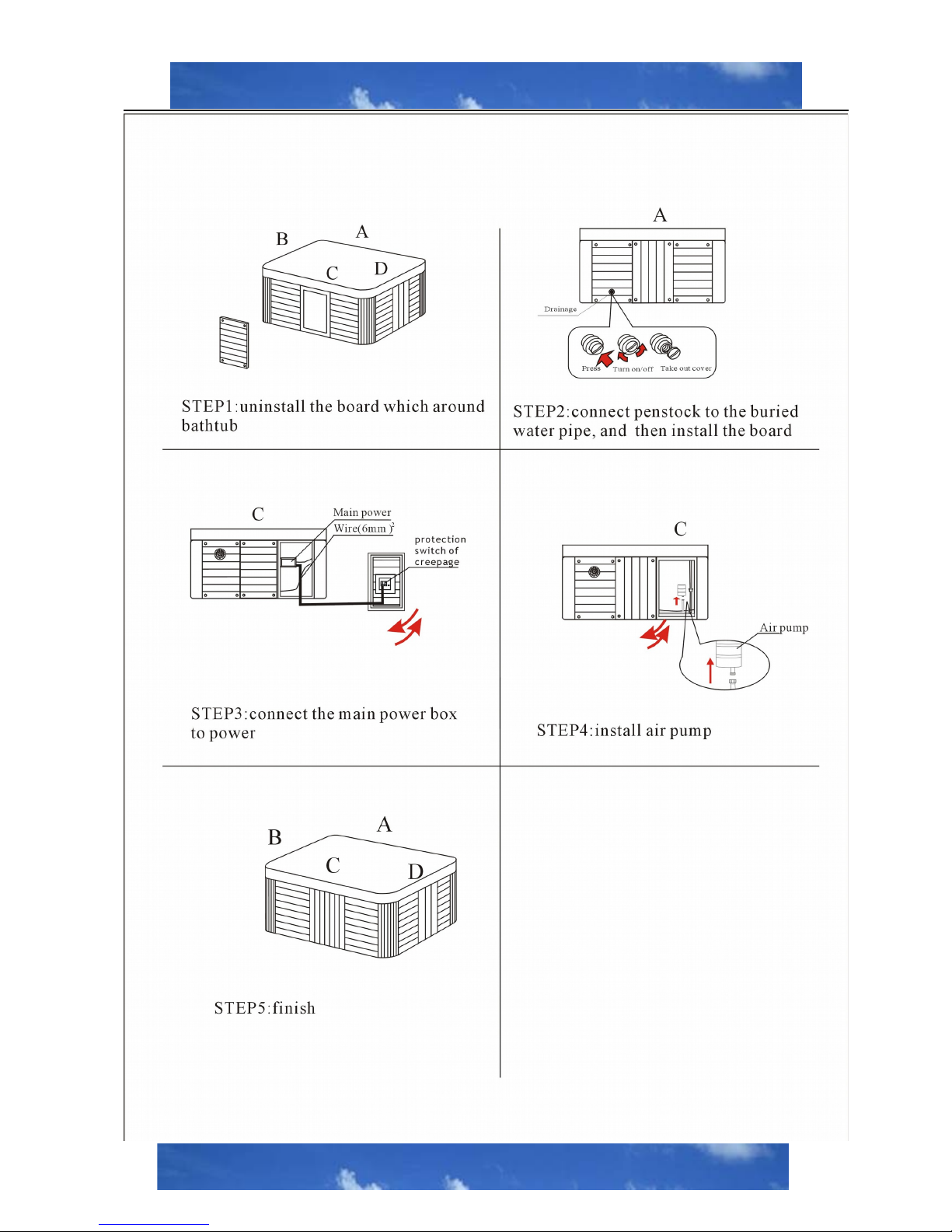

Page 15
15
Loading...
