BUCCANEER
BUCCANEER
Sealed to IP68 when mated
IP68 rating tested at 1.054kg/sq cm (15lb/sq in)
10m depth for 2 weeks
2 and 3 pole - 8A, 250V rating
4, 6 and 8 pole - 5A, 125V rating
10 and 12 pole - 1A, 50V rating
2.5mm contact engagement for electrical integrity
‘Scoop proof’ contacts
Contact inserts are part of body moulding
Cable range from 3 to 7mm
Overall length (flex + flex in-line) 80mm
Gold plated contacts
Diameter over coupling ring 19.1mm
Flex, Flex In-Line, Front Panel, Rear Panel and
PCB mounting body styles
Plug and Socket versions in all body styles
Flame Retardant moulding material -
Polyamide
UL94-V0
Contacts supplied separately (except PCB version)
Sealing caps available to maintain IP68 rating
Secure sealing system
Crimp and solder contacts
PCB mounting connector supplied with contacts
pre-loaded
Front and rear panel mounting panel connectors
UL, CSA and VDE approvals

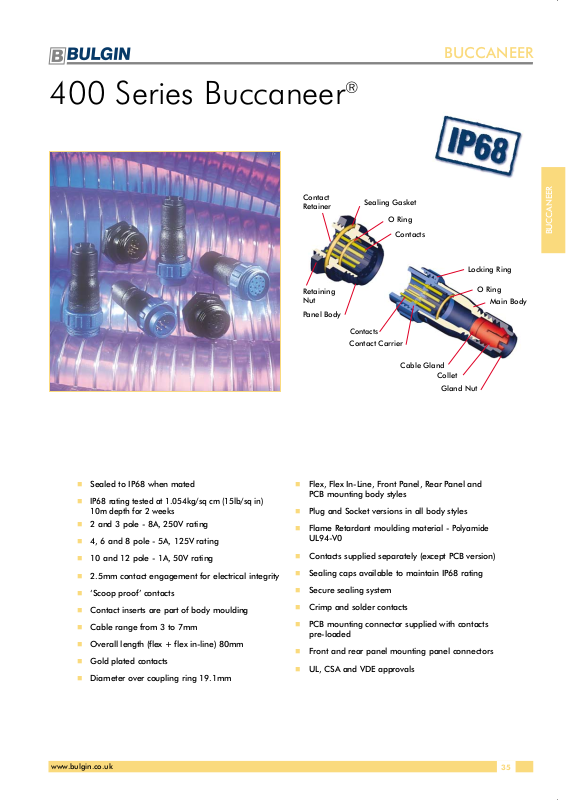

400 Series Buccaneer
®
Contact
Retainer
Contacts
Sealing Gasket
O Ring
O Ring
Contacts
Contact Carrier
Locking Ring
Main Body
Gland Nut
Cable Gland
Collet
Panel Body
Retaining
Nut
Page 2
www.bulgin.co.uk
36
BUCCANEER
BUCCANEER
Mates with Flex In-line or
Panel mounting versions
PX0411, PX0412 & PX0413
Screw locking ring
Contacts supplied separately
Mates with Flex Cable
connector PX0410
For in-line cable connection
Contacts supplied separately
Mates with Flex Cable
connector PX0410

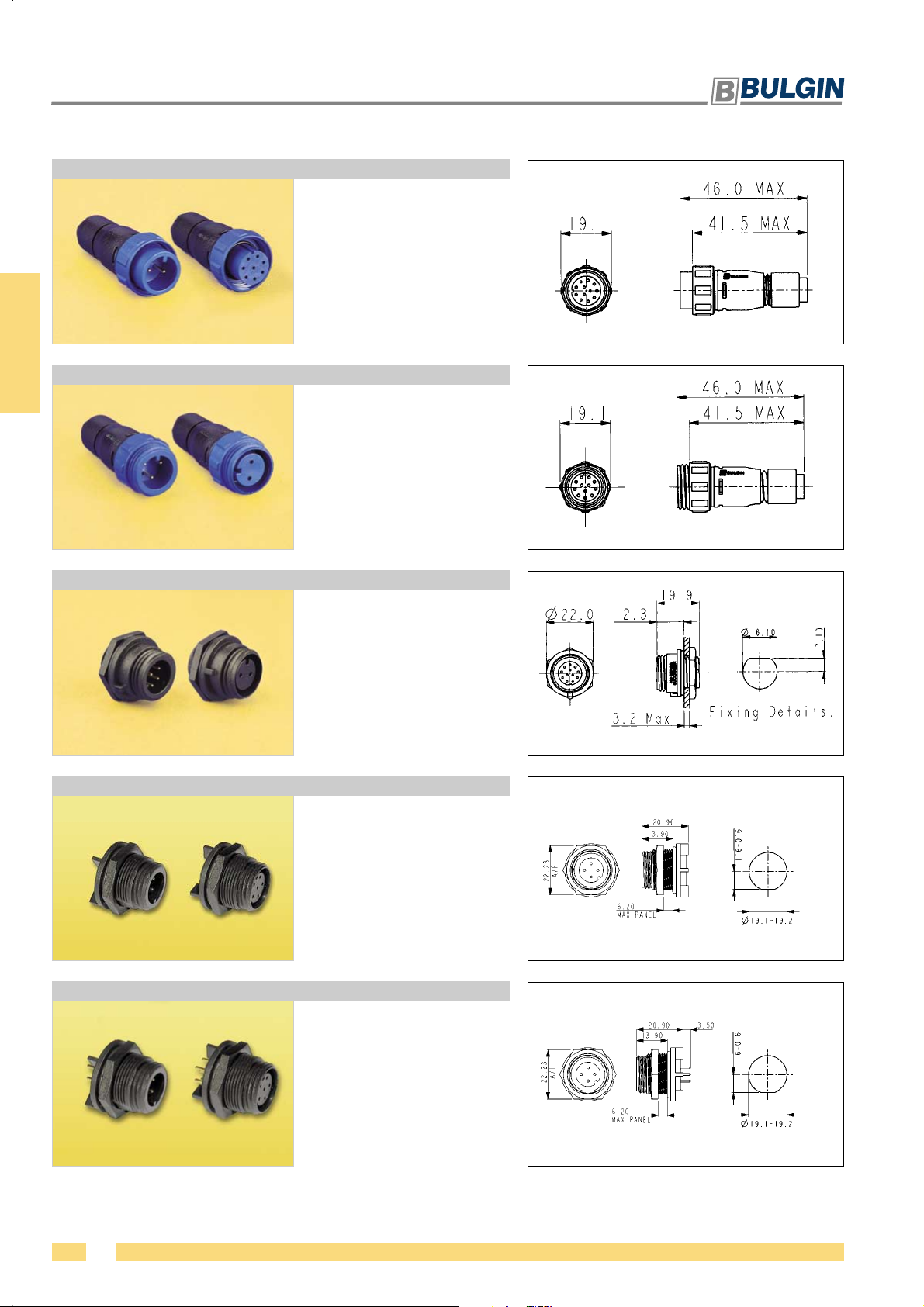

Front Panel mounting
Single hole fixing
Contacts supplied separately
PX0410/SPX0410/P
PX0411/SPX0411/P
PX0412/SPX0412/P
400 Series Buccaneer
®
FLEX CABLE CONNECTOR
IN-LINE FLEX CABLE CONNECTOR
FRONT PANEL MOUNTING CONNECTOR
Mates with Flex Cable
connector PX0410
Rear Panel mounting
Single hole fixing
Contacts supplied separately
4, 6, 8, 10 or 12 pole
PX0413/xxSPX0413/xxP
REAR PANEL MOUNTING CONNECTOR
Mates with Flex Cable
connector PX0410
PCB Rear Panel mounting
Straight PC spills
Supplied with pre-loaded
gold plated contacts
4, 6, 8, 10 or 12 pole
PX0413/xxS/PCPX0413/xxP/PC
PCB MOUNTING CONNECTOR
Page 3
www.bulgin.co.uk
37
BUCCANEER
BUCCANEER
CRIMP CONTACTS
ORDERING INFORMATION
Determine body style, i.e. PX0410 = flex body, PX0411 = flex in-line body.
Determine number of contacts & type, i.e. 02 = 2 way, P = pin contacts.
Determine cable range, i.e. 3035 = 3.0 to 3.5mm cable accommodation,
not required for PX0412 or PX0413 (panel connectors).
Choose appropriate contacts pack, i.e. SA3350 = pin contacts suitable
for 2 & 3 way connectors, supplied in pack quantities of 10. Not needed
for PX0413/PC as pre-loaded.
Is a sealing cap required?
Is an insertion tool required?
Is a crimp tool required?
Pole Current Rating Pin Socket Pack Qty Cable Acceptance (dia)
2, 3 8A SA3350 SA3349 10 20 - 24 AWG
4, 6, 8 5A SA3348 SA3347 10 22 - 26 AWG
10, 12 1A SA3180 SA3179 10 24 - 28 AWG
SOLDER CONTACTS
Pole Current Rating Pin Socket Pack Qty Cable Acceptance (dia)
2, 3 8A SA3350/1 SA3349/1 10 20 - 24 AWG
4, 6, 8 5A SA3348/1 SA3347/1 10 22 - 26 AWG
10, 12 1A SA3180/1 SA3179/1 10 24 - 28 AWG
CONTACT INSERTION TOOLS
Poles Contact Colour Part No
rating
Insertion/Extraction Tool 2,3 8A Blue 13027/2
Insertion/Extraction Tool 4,6,8 5A Red 13027/1
Insertion/Extraction Tool 10,12 1A Green 13027
CRIMP TOOLS
Pole Contact Colour Part No
rating
Positioner 2,3 8A Blue 14025/8AMP
Positioner 4,6,8 5A Red 14025/5AMP
Positioner 10,12 1A Green 14025/1AMP
8 Indent Crimp Tool for use with positioners 14025
400 Series Buccaneer
®
Maintains IP68 Rating of
Unmated Connectors
PX0480. Fits PX0412 style
(panel mounting)
PX0480/1. Fits PX0411 style
(flex in-line)
PX0481. Fits PX0410 style
(flex body)
PX0484. Fits PX0413 styles
(PCB and rear panel mount)
PX0480 PX0480/1
PX0481
Gland Packs
Part No Description
PX0482 Pack of 4 pairs cable glands and collets to
suit cables from 3.0 to 5.0mm diameter.
PX0483 Pack of 4 pairs cable glands and collets to
suit cables from 5.0 to 7.0mm diameter.

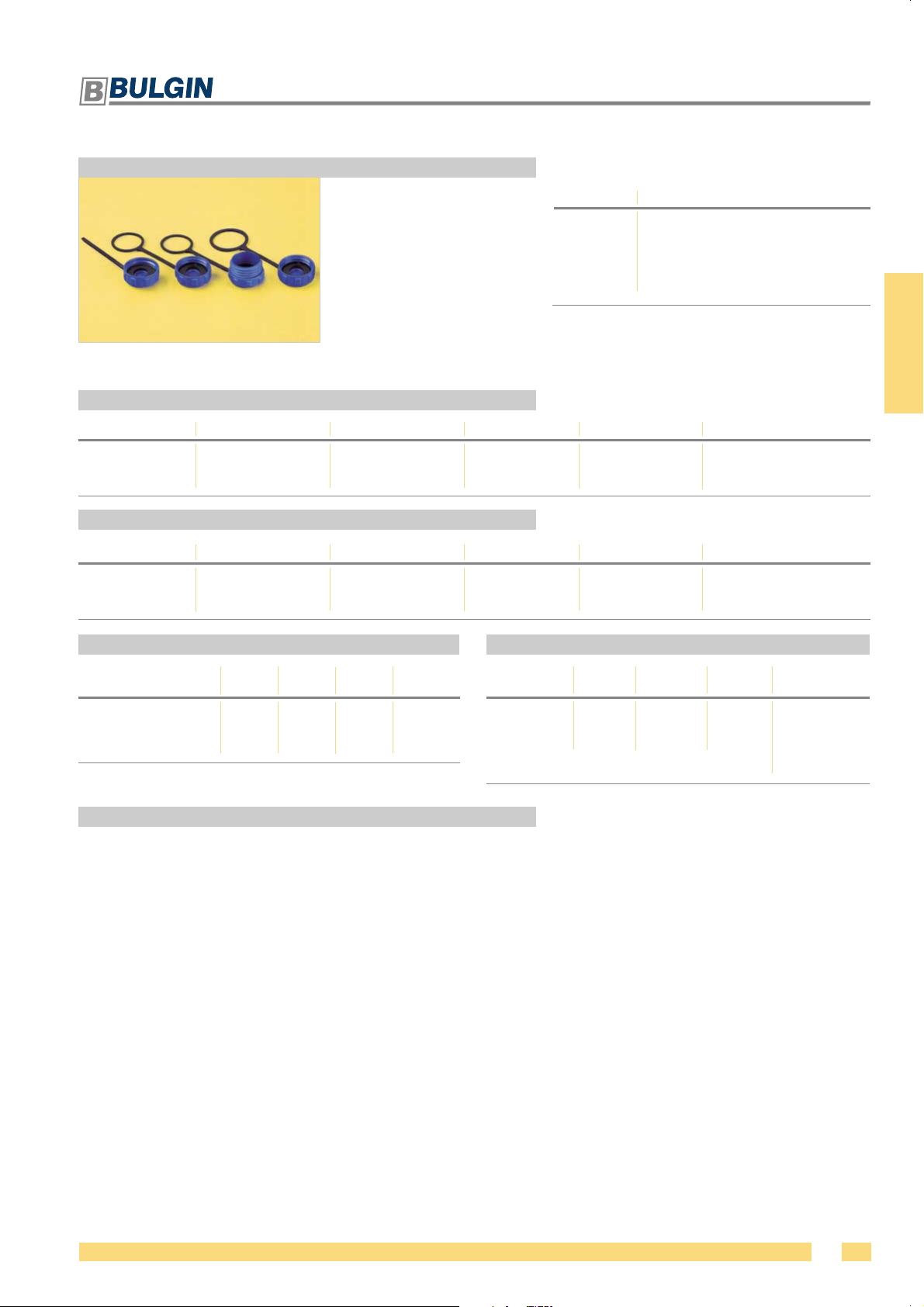

SEALING CAPS AND ACCESSORIES
PX0484
Page 4
www.bulgin.co.uk
38
BUCCANEER
BUCCANEER
Plugs
Contact numbers viewed from rear of panel
Electrical:
Poles: 2, 3 4, 6, 8 10, 12
Current Rating: 8A 5A 1A
Voltage Rating: 250Vac/dc 125Vac/dc 50Vac/dc
Contact Resistance: <5mΩ
Insulation Resistance: >10
6
MΩ (@ 500V d.c.)
AC Breakdown Voltage: 2.5kV
Operating
Temperature Range: –40° to +80°C
Approvals:
Mechanical:
Sealing: IP68, EN 60529
tested @ 1.054kg/sq cm
(15lb/sq in) 10m depth for 2 weeks
Cable Acceptance: 3.0 - 7.0mm
Contact Accommodation: 2, 3 pole, 20 - 24 AWG
4, 6, 8 pole, 22 - 26 AWG
10, 12 pole, 24 - 28 AWG
Termination: Crimp, solder and PCB
Insertion/Withdrawal Force:
No. poles: 2 3 4 6 8 10 12
Insertion Force (typ): 19N 25N 27N 27N 28N 55N 62N
Withdrawal Force (typ): 12N 17N 17N 21N 22N 25N 29N
Tightening Torques:
Panel mount (PX0412)
Front fixing nut: 1.0 - 1.1Nm
Panel mount (PX0413)
Rear fixing nut: 1.0 - 1.1Nm
Cable Retention force:
3mm dia 60N
4.7mm dia 80N
Dimensions:
Overall dimensions of connectors when mated together
Flex + Flex In-Line 80mm
Dia. over coupling ring 19.1mm
Material:
Body Mouldings: Polyamide
Flammability Rating: UL94V-0
UV Resistance: To EN 50021:1999
Contacts: Copper alloy, Gold plated
O Rings: Nitrile
Panel Sealing O Ring: Nitrile
Compliant
400 Series Buccaneer
®
SPECIFICATION

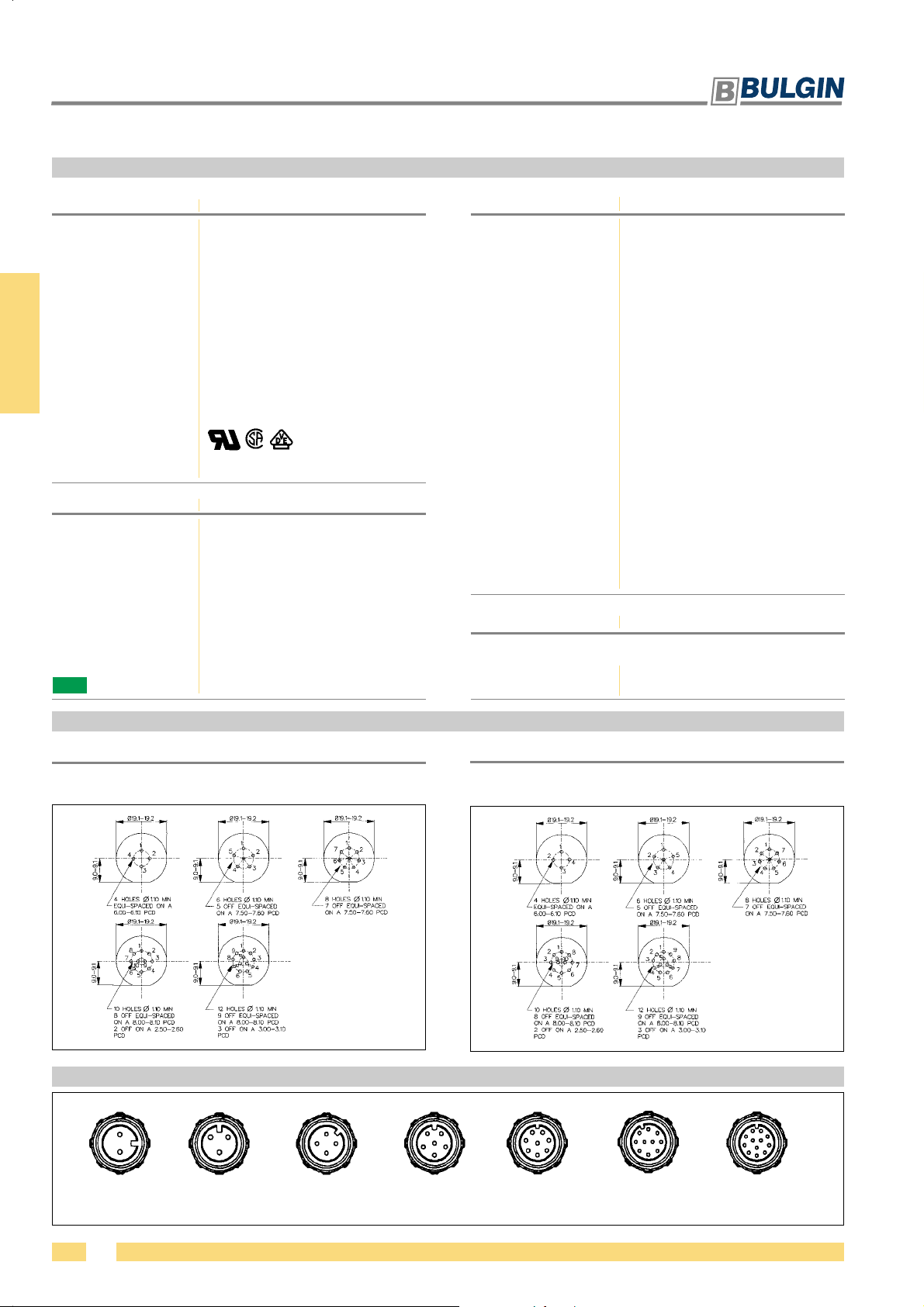

CONTACT LAYOUT
2 pole 3 pole 4 pole 6 pole 8 pole 10 pole 12 pole
(8 Amp) (8 Amp) (5 Amp) (5 Amp) (5 Amp) (1 Amp) (1 Amp)
PCB CONTACT LAYOUT
Sockets
Contact numbers viewed from rear of panel
Approvals pending for PX0413
RoHS
Page 5
www.bulgin.co.uk
39
BUCCANEER
BUCCANEER
PX04xx / xx x / xxxx
PART NO. SYSTEM
3035 = 3.0 - 3.5mm (Light Grey)
3540 = 3.5 - 4.0mm (Grey)
4045 = 4.0 - 4.5mm (Green)
4550 = 4.5 - 5.0mm (Red)
5055 = 5.0 - 5.5mm (Yellow)
5560 = 5.5 - 6.0mm (Blue)
6065 = 6.0 - 6.5mm (White)
6570 = 6.5 - 7.0mm (Black)
Examples:
PX0410/10S/4045 = Flex cable connector, 10 socket contacts with gland and collet for
cables between 4.0 and 4.5mm diameter (supplied less contacts).
PX0412/08P = Front panel mounting connector, 8 pin contacts (supplied less contacts.)
PX0413/06P = Rear panel mounting connector, for 6 pin contacts (supplied less contacts).
PX0413/04P/PC = Rear panel/PCB connector, 4 pin contacts, PCB mounting (supplied with contacts loaded).
Cable gland and collet supplied in colour coded pairs.
Body Styles
PX0410 = Flex body
PX0411 = Flex in-line body
PX0412 = Front panel mounting body
PX0413 = Rear panel/PCB mounting body
Number Contacts
02 = 2 pole, 03 = 3 pole, 04 = 4 pole, 06 = 6 pole
08 = 8 pole, 10 = 10 pole, 12 = 12 pole
(PX0413: 4, 6, 8, 10 & 12 pole only)
Contact Type
P = Pin, S = Socket
For PX0410 and PX0411 cable connectors - Cable Entry Size:
For PX0413 PCB/Rear Panel Mount:
PC = Pre-loaded PC pins
Blank = no pins supplied
For PX0412 Front Panel Mount:
Suffix not required - leave blank
