BUCCANEER FOR DATA

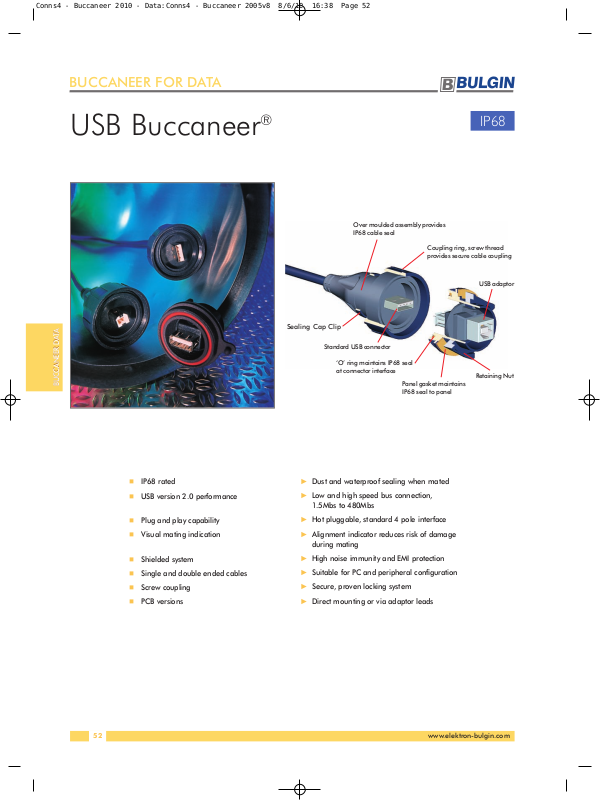

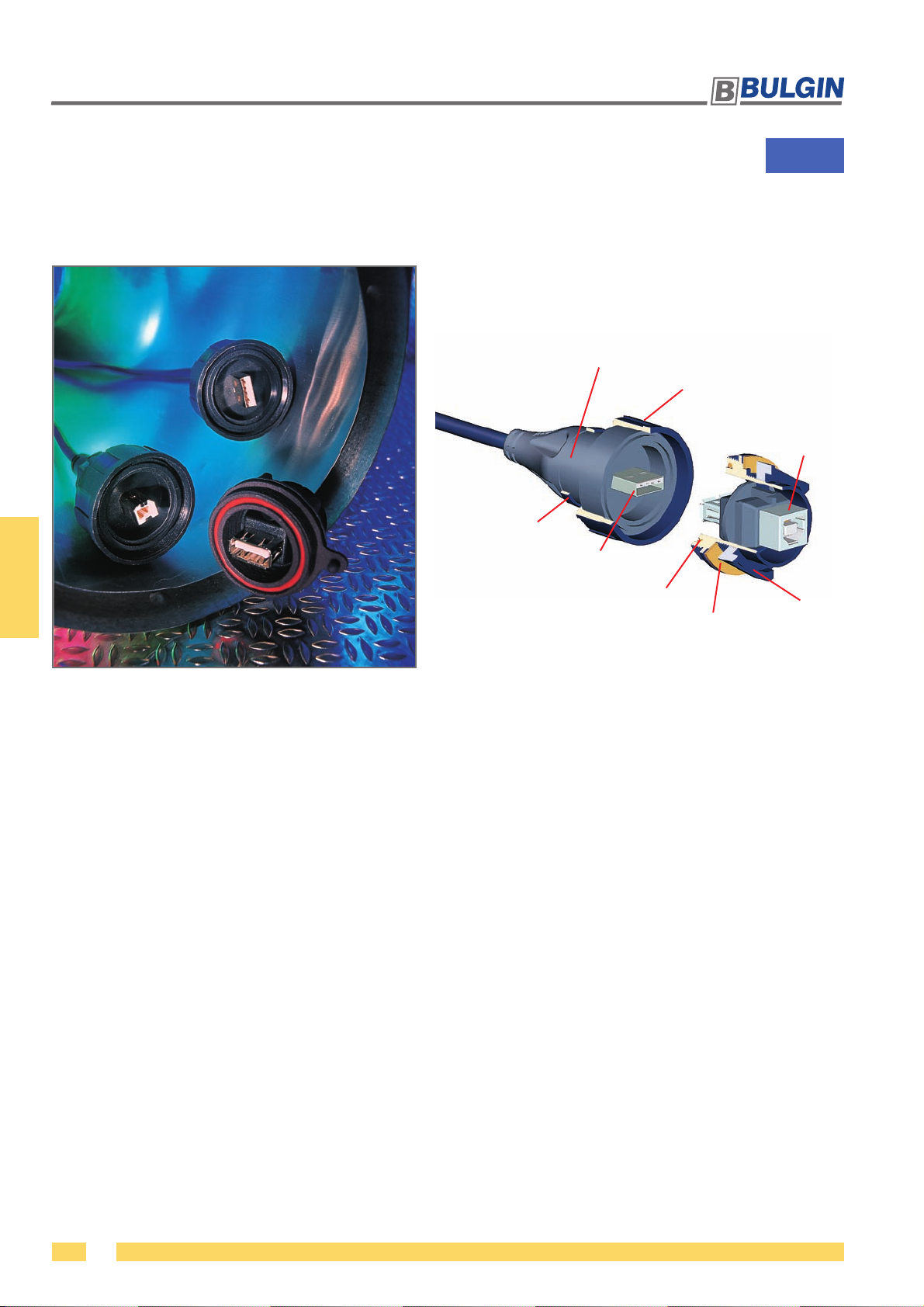

USB Buccaneer

BUCCANEER DATA

Sealing Cap Clip

Standard USB connector

Over moulded assembly provides IP68 cable seal

‘O’ ring maintains IP68 seal at connector interface

Panel gasket maintains IP68 seal to panel

IP68

Coupling ring, screw thread provides secure cable coupling

USB adaptor

Retaining Nut

ᔢ IP68 rated

ᔢ USB version 2.0 performance

ᔢ Plug and play capability

ᔢ Visual mating indication

ᔢ Shielded system

ᔢ Single and double ended cables

ᔢ Screw coupling

ᔢ PCB versions

៑

Dust and waterproof sealing when mated

៑

Low and high speed bus connection,

1.5Mbs to 480Mbs

៑

Hot pluggable, standard 4 pole interface

៑

Alignment indicator reduces risk of damage during mating

៑

High noise immunity and EMI protection

៑

Suitable for PC and peripheral configuration

៑

Secure, proven locking system

៑

Direct mounting or via adaptor leads

www.elektron-bulgin.com

Page 2

BUCCANEER FOR DATA

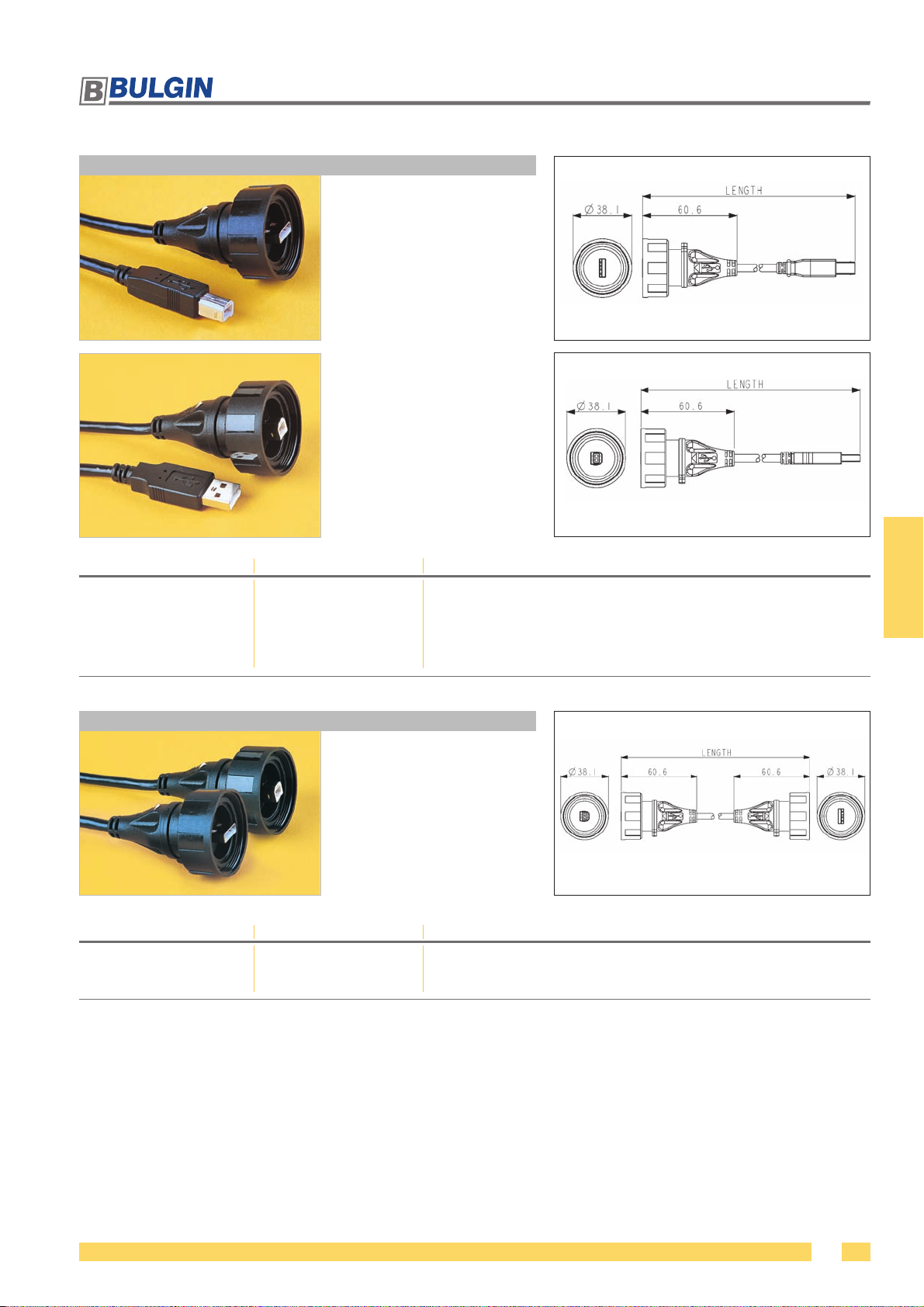

SEALED USB CABLES - SINGLE ENDED

Single ended sealed cable assembly

ᔢ IP68 ‘A’ type USB connector to

standard ‘B’ type USB connector, mates with all panel mount connectors

ᔢ IP68 ‘B’ type USB connector to

standard ‘A’ type USB connector, mates with all panel mount

PX0840/A

connectors

ᔢ Available in 2m, 3m and 5m

lengths

PX0840/B

Part No. Length Description

PX0840/A/xMxx

PX0840/B/xMxx

USB Buccaneer

PX0840/A/2M00 2m IP68 A type USB to standard B type USB PX0840/A/3M00 3m IP68 A type USB to standard B type USB PX0840/A/5M00 5m IP68 A type USB to standard B type USB PX0840/B/2M00 2m IP68 B type USB to standard A type USB PX0840/B/3M00 3m IP68 B type USB to standard A type USB PX0840/B/5M00 5m IP68 B type USB to standard A type USB

SEALED USB CABLES - DOUBLE ENDED

Double ended sealed cable assembly

ᔢ IP68 ‘A’ type USB connector to

IP68 ‘B’ type USB connector

ᔢ Mates with all panel mount

connectors

ᔢ Available in 2m, 3m and 5m

PX0841/AB

Part No. Length Description

PX0841/AB/2M00 2m IP68 A type USB to IP68 B type USB PX0841/AB/3M00 3m IP68 A type USB to IP68 B type USB PX0841/AB/5M00 5m IP68 A type USB to IP68 B type USB

lengths

PX0841/AB/xMxx

BUCCANEER DATA

www.elektron-bulgin.com

Page 3

BUCCANEER FOR DATA

USB Buccaneer

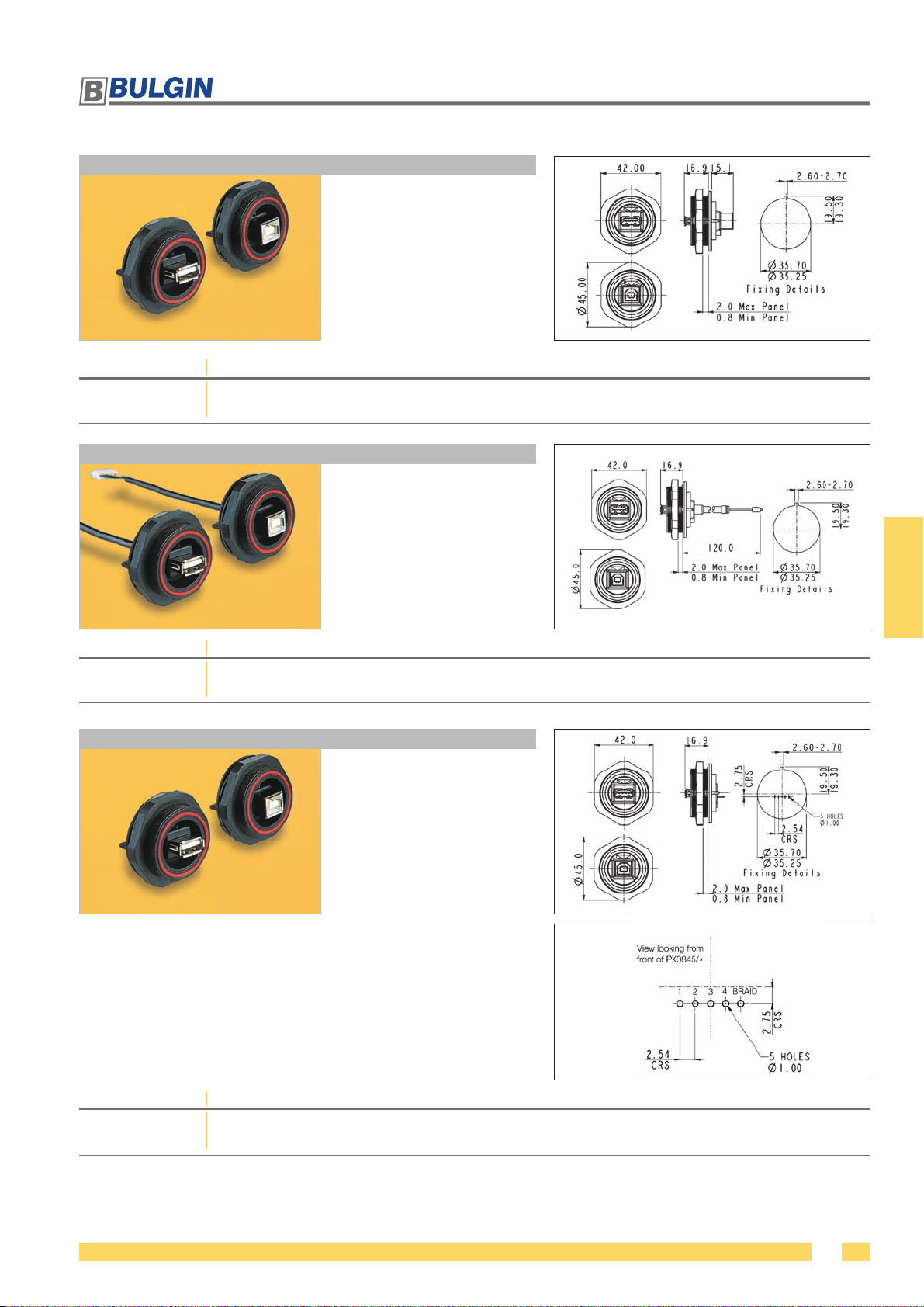

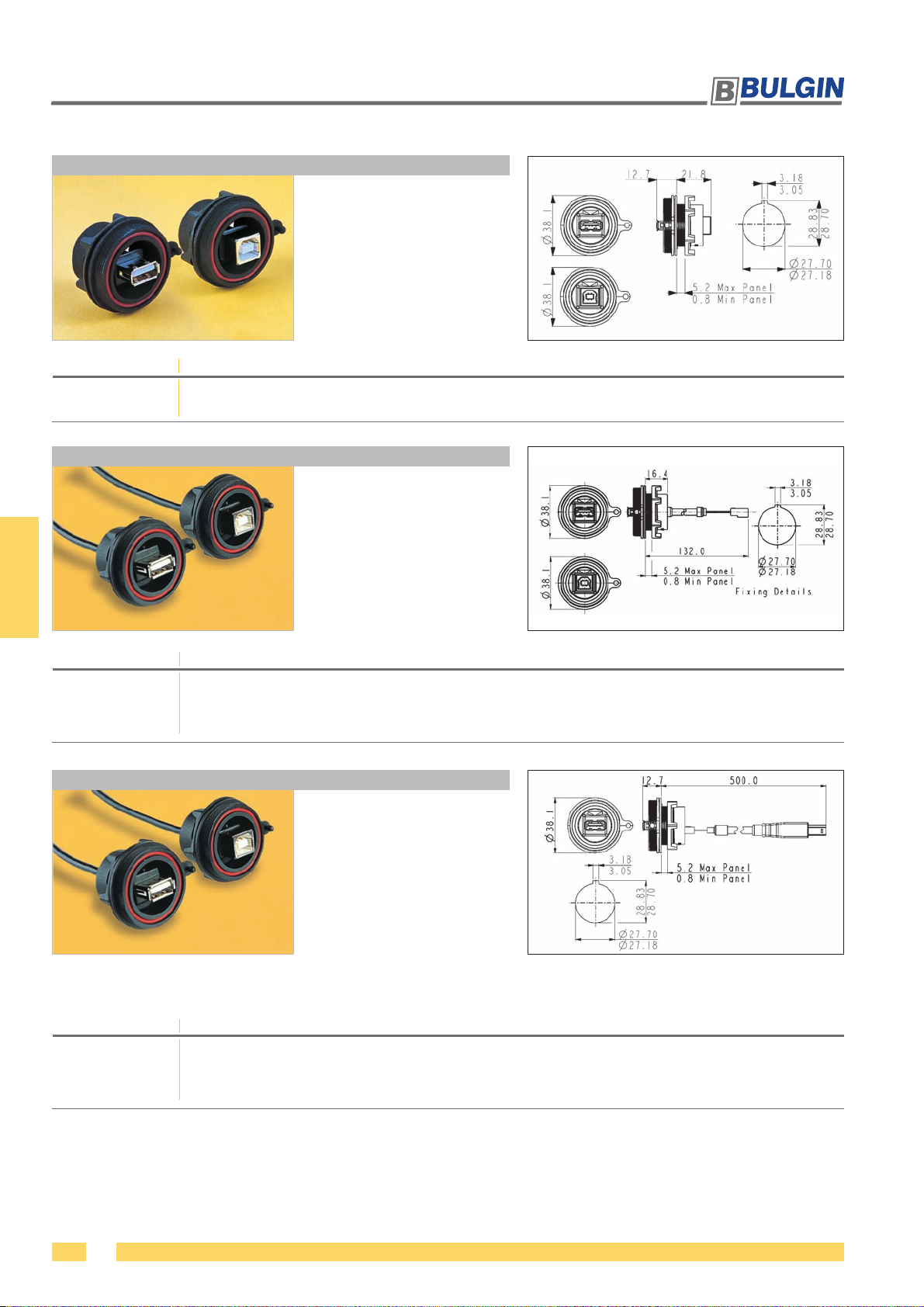

FRONT PANEL MOUNTING CONNECTOR

ᔢ PX0842/A - USB ‘A’ type IP68

connector

ᔢ PX0842/B - USB ‘B’ type IP68

connector

ᔢ Opposite connector to rear of

panel

ᔢ Mates with PX0840 and

PX0842/A PX0842/B

Part No. Description

PX0842/A IP68 A type USB, front panel mounted. Sealed A type at front of panel, standard B type at rear. PX0842/B IP68 B type USB, front panel mounted. Sealed B type at front of panel, standard A type at rear.

PX0841cable connectors

FRONT PANEL MOUNTING CONNECTOR

ᔢ PX0843/A - USB ‘A’ type IP68

connector

ᔢ PX0843/B - USB ‘B’ type IP68

connector

ᔢ Leaded with 5 way crimp

connector

ᔢ Mates with PX0840 and PX0841

PX0843/A PX0843/B

BUCCANEER DATA

cable connectors

Part No. Description

PX0843/A IP68 A type USB, front panel mounted. Sealed A type at front of panel, 5 way crimp connector at rear. PX0843/B IP68 B type USB, front panel mounted. Sealed B type at front of panel, 5 way crimp connector at rear. PX0460/A As PX0843/A with exposed braid for use with PX0465 screening can PX0460/B As PX0843/B with exposed braid for use with PX0465 screening can

FRONT PANEL MOUNTING CONNECTOR

ᔢ IP68 Sealed through panel ᔢ PX0844/A - USB 'A' type IP68

connector

ᔢ PX0844/B - USB 'B' type IP68

connector

ᔢ Standard USB interface plug

options to rear of panel

PX0844/A PX0844/B

ᔢ 500mm standard cable length,

other lengths available

ᔢ Mates with PX0840 and

PX0841

Part No. Description

PX0844/A/0M50/A IP68 A type USB, sealed through panel, Sealed 'A' type at front of panel, standard 'A' type at rear PX0844/A/0M50/B IP68 A type USB, sealed through panel, Sealed 'A' type at front of panel, standard 'B' type at rear PX0844/B/0M50/A IP68 B type USB, sealed through panel, Sealed 'B' type at front of panel, standard 'A' type at rear PX0844/B/0M50/B IP68 B type USB, sealed through panel, Sealed 'B' type at front of panel, standard 'B' type at rear

www.elektron-bulgin.com

Page 4

BUCCANEER FOR DATA

REAR PANEL MOUNTING CONNECTOR

ᔢ PX0848/A - USB ‘A’ type IP68

connector

ᔢ PX0848/B - USB ‘B’ type IP68

connector

ᔢ Opposite connector to rear of

panel

ᔢ Mates with PX0840 and PX0841

PX0848/A PX0848/B

Part No. Description

PX0848/A IP68 A type USB, rear panel mounted. Sealed A type at front of panel, standard B type at rear. PX0848/B IP68 B type USB, rear panel mounted. Sealed B type at front of panel, standard A type at rear.

cable connectors

REAR PANEL MOUNTING CONNECTOR

ᔢ PX0849/A - USB ‘A’ type IP68

connector

ᔢ PX0849/B - USB ‘B’ type IP68

connector

ᔢ Leaded with 5 way header ᔢ Mates with PX0840 and

PX0841cable connectors

PX0849/A PX0849/B

Part No. Description

USB Buccaneer

BUCCANEER DATA

PX0849/A IP68 A type USB, rear panel mounted. Sealed A type at front of panel, 5 way header at rear. PX0849/B IP68 B type USB, rear panel mounted. Sealed B type at front of panel, 5 way header at rear.

REAR PANEL MOUNTING CONNECTOR - PCB DIRECT MOUNT

ᔢ PX0845/A - USB ‘A’ type IP68

connector

ᔢ PX0845/B - USB ‘B’ type IP68

connector

ᔢ PCB contacts at rear ᔢ Direct PCB mount ᔢ Mates with PX0840 and

PX0845/A PX0845/B

Part No. Description

PX0841cable connectors

PX0845/A IP68 A type USB, rear panel mounted. Sealed A type at front of panel, direct mount PCB contacts at rear. PX0845/B IP68 B type USB, rear panel mounted. Sealed B type at front of panel, direct mount PCB contacts at rear.

www.elektron-bulgin.com

Page 5

BUCCANEER FOR DATA

USB Buccaneer

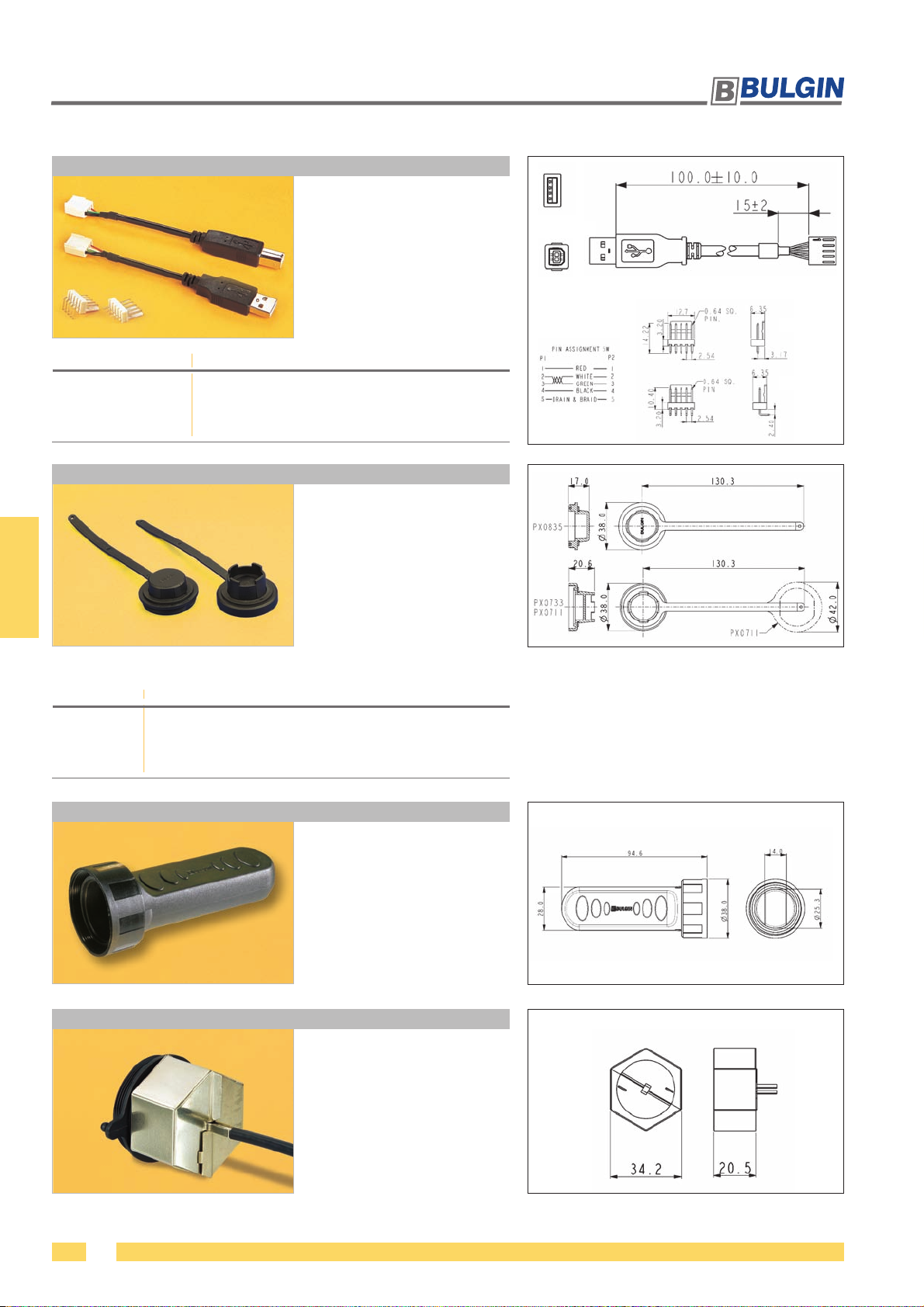

PCB ADAPTOR LEADS

ᔢ Standard A and B type USB

connectors to 5 way crimp adaptor leads

ᔢ 5 way headers, 2.54mm pitch,

horizontal or vertical mounting

Part No. Description

14193 USB ‘A’ type to 5 way crimp connector 14194 USB ‘B’ type to 5 way crimp connector 14191 5 way PCB header straight 14192 5 way PCB header right angle

ACCESSORIES

ᔢ Sealing caps to maintain IP68

rating when connectors are not in use

ᔢ PX0835 for cable connectors

PX0840 & PX0841

ᔢ PX0733 for front panel mount

connectors PX0842, PX0843 &

BUCCANEER DATA

PX0844

ᔢ PX0711 for rear panel mount

connectors PX0848, PX0849 & PX0845

PNo 14193

PNo 14194

PNo 14191

PNo 14192

Part No. Description

PX0835 Sealing Cap for cable connectors (PX0840, PX0841) PX0733 Sealing Cap for front panel mounting connector (PX0842, PX0843) PX0711 Sealing Cap for rear panel mounting connector (PX0848, PX0849,

PX0845)

USB FLASH DRIVE COVER

ᔢ For use with USB Flash Drives ᔢ Maintains IP68 rating when

mated with panel connector

ᔢ For use with ‘A’ type

connectors: PX0842, PX0843, PX0845, PX0848 & PX0849

ᔢ Internal accommodation 17.5

x 14.0 x 83mm approx.

PX0852

SCREENING CAN

ᔢ Maintains cable screening

directly to panel

ᔢ Screening can clips around

the panel fixing nut

ᔢ For use on PX0460/A and

PX0460/B

PX0465

www.elektron-bulgin.com

Page 6

RoHS

BUCCANEER FOR DATA

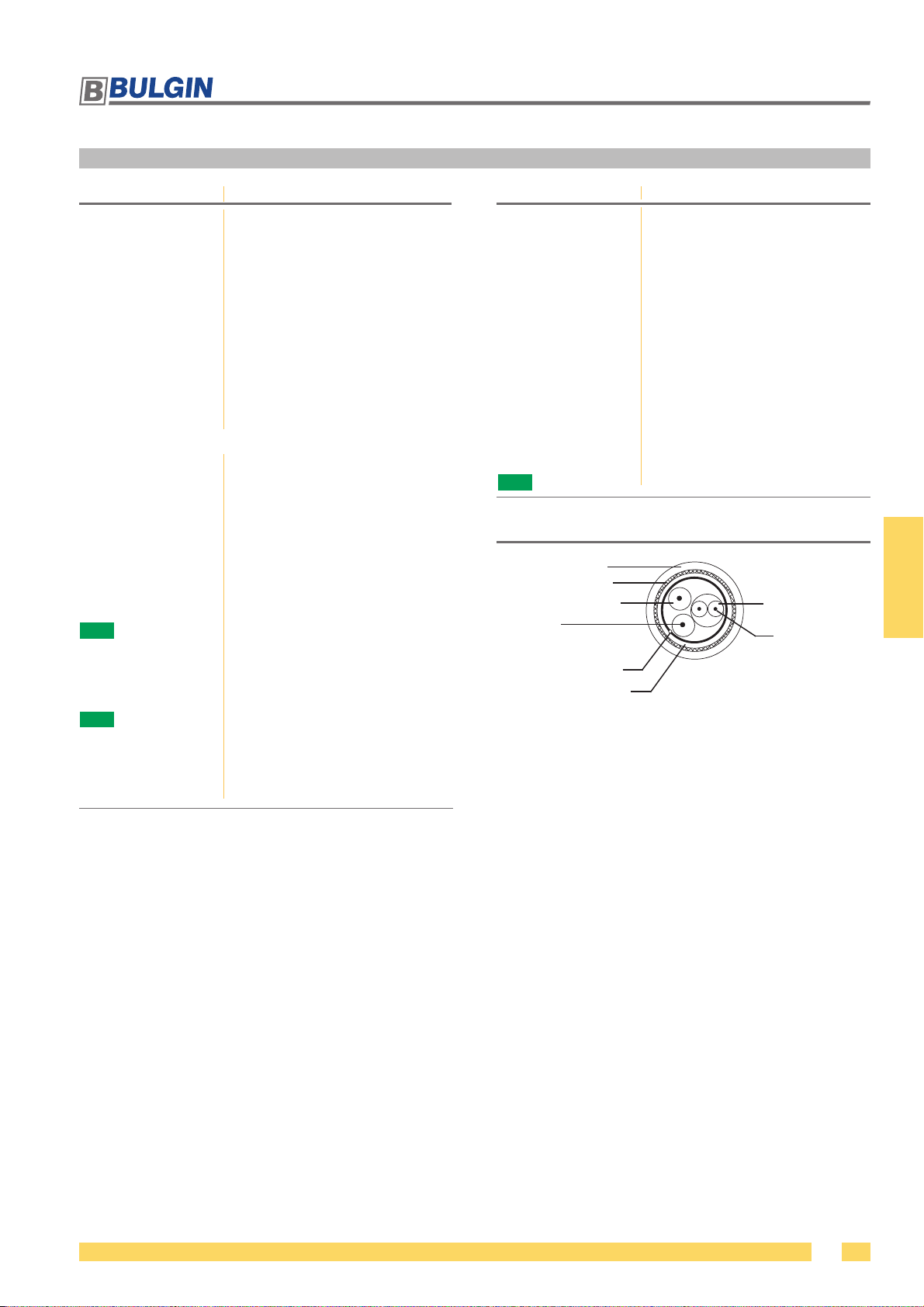

SPECIFICATION

Cables & connectors

Mechanical

Sealing IP68, EN60529 Operating temperature 0˚C to +70˚C

Electrical

No. of poles 4 Current rating 1A Voltage rating 30Vac (RMS) Contact resistance 30mΩ max. Performance USB version 2.0

Materials - Overmoulded

Overmould material PVC (black) Flammability rating UL94V-0

Materials - Re-wireable and Panel Connectors

Shell material Steel Shell plating Nickel Contact material Copper Alloy Contact plating 30 micro inch Gold Connector body & locking ring Polyester Panel connector Nylon 6 Flammability rating UL94V-0 ‘O’ rings Silicon Panel Gasket - round Silicon Panel Gasket - square Neoprene Mating cycles 1,000

Compliant

Materials - cable

Cable Jacket PVC (black) Screen Tinned copper braid Flammability UL94V-0

Compliant

Conductors Conductors

Length: Dia Signal Power

2m 4.8mm 2 x 28AWG 2 x 24AWG 3m 5.0mm 2 x 28AWG 2 x 22AWG 5m 5.2mm 2 x 25AWG 2 x 20AWG

PCB adaptor leads

Electrical

No. of conductors 4 Current rating 1A Voltage rating 30Vac (RMS) Contact resistance <10mΩ max. PCB pitch 2.54mm

Materials

Moulding Polycarbonate Flammability UL94V-0 Contact material Copper Alloy Contact plating 30 micro inch Gold Wire insulation PVC (black) Flammability UL94-V0 Conductors 4 x 28AWG Operating temperature 0˚C to +70˚C Mating cycles 1,000

Compliant

Cable construction - PX0840, PX0841

PVC Jacket

Braid

Insulation

Conductor

2M - 24AWG 3M - 22AWG 5M - 20AWG

SR-PVC

Drain Wire

Insulation - Polyolefin

USB Buccaneer

Insulation

HD-PE

Conductor

2M - 28AWG 3M - 28AWG 5M - 25AWG

BUCCANEER DATA
