Page 1

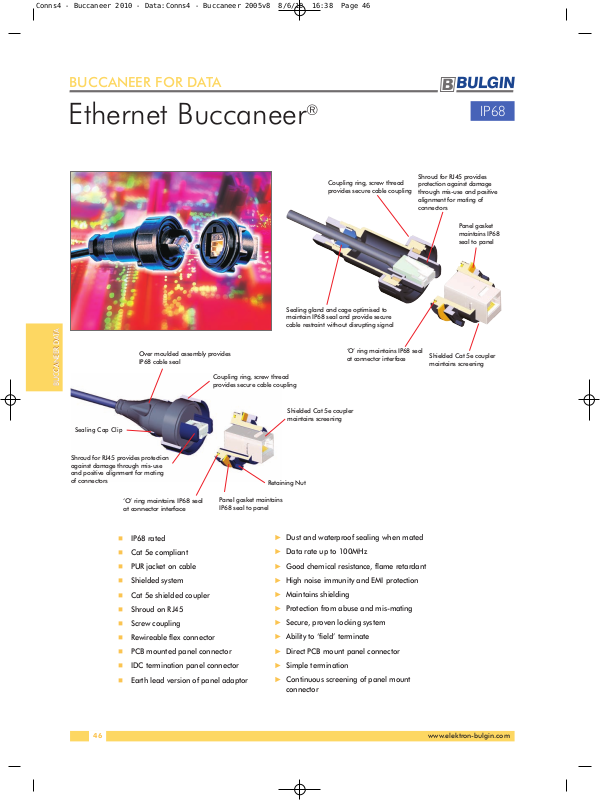

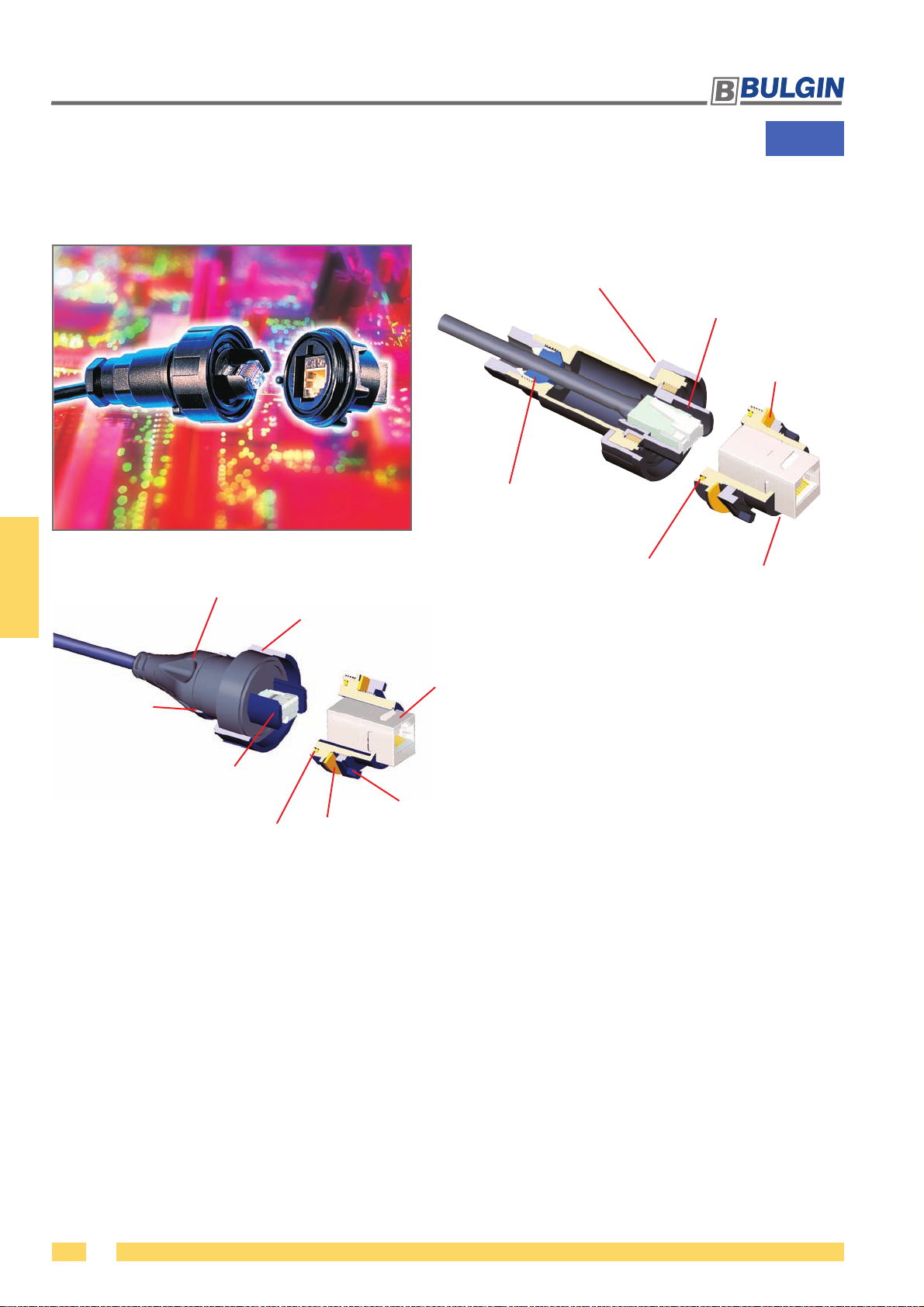

BUCCANEER FOR DATA

Ethernet Buccaneer

Over moulded assembly provides IP68 cable seal

BUCCANEER DATA

Coupling ring, screw thread provides secure cable coupling

Sealing gland and cage optimised to maintain IP68 seal and provide secure cable restraint without disrupting signal

‘O’ ring maintains IP68 seal at connector interface

IP68

Shroud for RJ45 provides protection against damage through mis-use and positive alignment for mating of connectors

Panel gasket maintains IP68 seal to panel

Shielded Cat 5e coupler maintains screening

Sealing Cap Clip

Shroud for RJ45 provides protection against damage through mis-use and positive alignment for mating of connectors

‘O’ ring maintains IP68 seal at connector interface

ᔢ IP68 rated

ᔢ Cat 5e compliant

ᔢ PUR jacket on cable

ᔢ Shielded system

ᔢ Cat 5e shielded coupler

ᔢ Shroud on RJ45

ᔢ Screw coupling

ᔢ Rewireable flex connector

ᔢ PCB mounted panel connector

ᔢ IDC termination panel connector

ᔢ Earth lead version of panel adaptor

Retaining Nut

Panel gasket maintains IP68 seal to panel

៑

Shielded Cat 5e coupler maintains screening

Dust and waterproof sealing when mated

Data rate up to 100MHz

Good chemical resistance, flame retardant

High noise immunity and EMI protection

Maintains shielding

Protection from abuse and mis-mating

Secure, proven locking system

Ability to ‘field’ terminate

Direct PCB mount panel connector

Simple termination

Continuous screening of panel mount connector

www.elektron-bulgin.com

Page 2

BUCCANEER FOR DATA

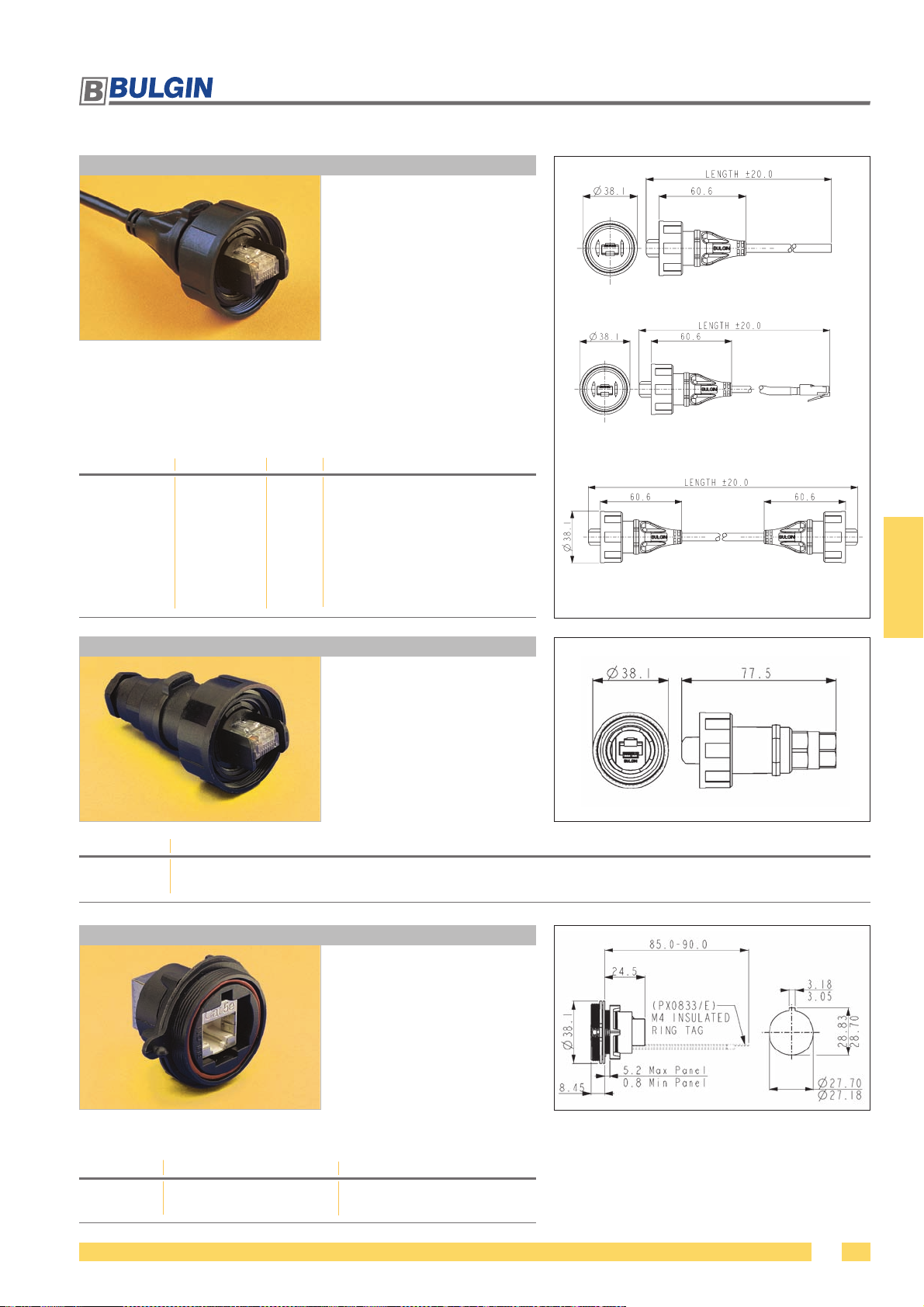

PATCH CORD FLEX CONNECTOR - PUR JACKET CABLE

ᔢ Mates with all panel mounting

connectors

ᔢ Patchcords with IP68

connector

ᔢ Supplied with shielded RJ45

plug

ᔢ Single or double end

PX0836

terminated

ᔢ Standard lengths: 2m, 3m & 5m ᔢ S-FTP cable construction ᔢ PUR jacket cable ᔢ Wiring configuration to 568-B ᔢ Exceeds EIA/TIA Cat 5e

Part no. Type Length Description

PX0836/2M00 Wire end 2m IP68 RJ Buccaneer to bare end PX0836/3M00 Wire end 3m IP68 RJ Buccaneer to bare end PX0836/5M00 Wire end 5m IP68 RJ Buccaneer to bare end PX0837/2M00 Single ended 2m IP68 RJ Buccaneer to Shielded RJ45 PX0837/3M00 Single ended 3m IP68 RJ Buccaneer to Shielded RJ45 PX0837/5M00 Single ended 5m IP68 RJ Buccaneer to Shielded RJ45 PX0838/2M00 Double ended 2m IP68 RJ Buccaneer to IP68 RJ Buccaneer PX0838/3M00 Double ended 3m IP68 RJ Buccaneer to IP68 RJ Buccaneer PX0838/5M00 Double ended 5m IP68 RJ Buccaneer to IP68 RJ Buccaneer

RE-WIREABLE FLEX CONNECTOR

ᔢ Mates with all panel mounting

connectors

ᔢ Supplied with shielded RJ45

plug

ᔢ Two versions:

for PUR jacket cable (Cat 5e) for other cable sizes from

PX0834

3.5 to 8mm dia.

Ethernet Buccaneer

PX0836 - wire ended

PX0837- single ended

PX0838 - double ended

BUCCANEER DATA

Part no. Description

PX0834/A Cable glands optimised for PUR jacket cable to maintain Cat 5e performance PX0834/B Suitable for use with cables from 3.5 to 8mm diameter

PANEL MOUNTING CONNECTOR

ᔢ Cat 5e shielded coupler ᔢ Mates with PX0836, PX0837,

PX0838 and PX0834 flex connectors

ᔢ Standard RJ45 patchcord can

be plugged into rear

ᔢ Version with earth wire

PX0833

available

ᔢ Single hole fixing ᔢ Complete with panel sealing

gasket

Part no. Description Fixing

PX0833 Cat 5e coupler Front panel mounted PX0833/E Cat 5e coupler + earth wire Front panel mounted

www.elektron-bulgin.com

Page 3

BUCCANEER FOR DATA

Ethernet Buccaneer

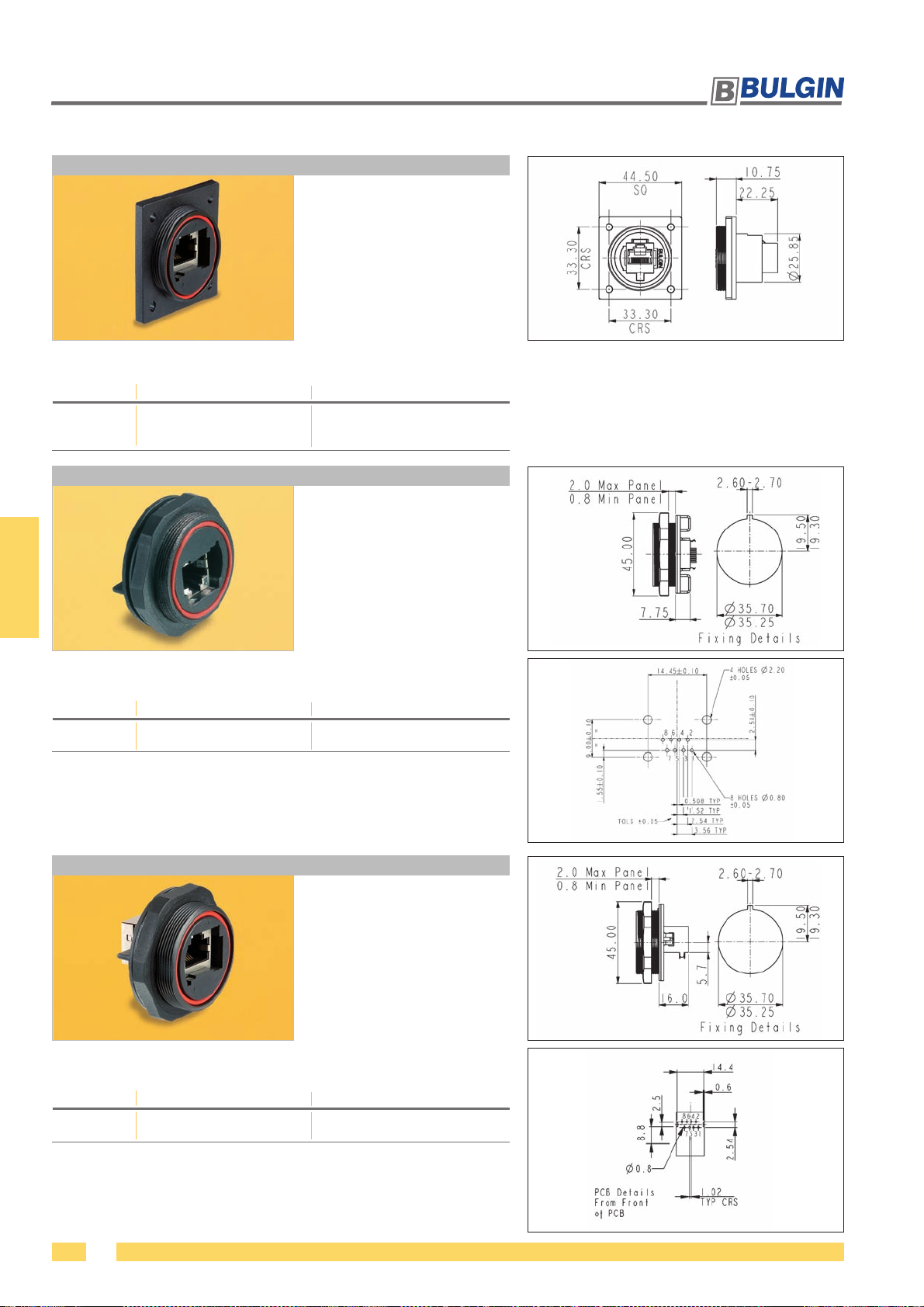

FLANGE MOUNTING CONNECTOR

ᔢ Cat 5e shielded coupler ᔢ Mates with PX0836, PX0837,

PX0838 and PX0834 flex connectors

ᔢ Standard RJ45 patchcord can

be plugged into rear

ᔢ Version with earth wire

available

PX0870

ᔢ Flange fixing ᔢ Complete with panel sealing

gasket & screw sealing washers

Part no. Description Fixing

PX0870 Cat 5e coupler Flange mounting PX0870/E Cat 5e coupler + earth wire Flange mounting

PCB MOUNTING CONNECTOR

ᔢ Cat 5e shielded RJ45 interface ᔢ Rear of panel mounted ᔢ Mates with PX0836, PX0837,

PX0838 and PX0834 flex connectors

ᔢ For direct vertical mounting to

PCB, straight pins

BUCCANEER DATA

PX0839/PC

ᔢ Complete with panel sealing

gasket

Part no. Description Fixing

PX0839/PC Cat 5e connector - PC Rear panel mounted

PCB MOUNTING CONNECTOR

ᔢ Cat 5e shielded RJ45 interface ᔢ Rear of panel mounted ᔢ Mates with PX0836, PX0837,

PX0838 and PX0834 flex connectors

ᔢ For direct horizontal mounting

to PCB, 90º pins

ᔢ Complete with panel sealing

PX0839/90

Part no. Description Fixing

PX0839/90 Cat 5e connector - PC Rear panel mounted

gasket

www.elektron-bulgin.com

Page 4

BUCCANEER FOR DATA

PANEL MOUNTING CONNECTOR

ᔢ Cat 5e shielded RJ45 interface ᔢ Rear of panel mounted ᔢ Mates with PX0836, PX0837,

PX0838 and PX0834 flex connectors

ᔢ Two IDC blocks for discrete

termination

ᔢ Complete with panel sealing

PX0839/IDC

Part no. Description Fixing

PX0839/IDC Cat 5e coupler Rear panel mounted

gasket

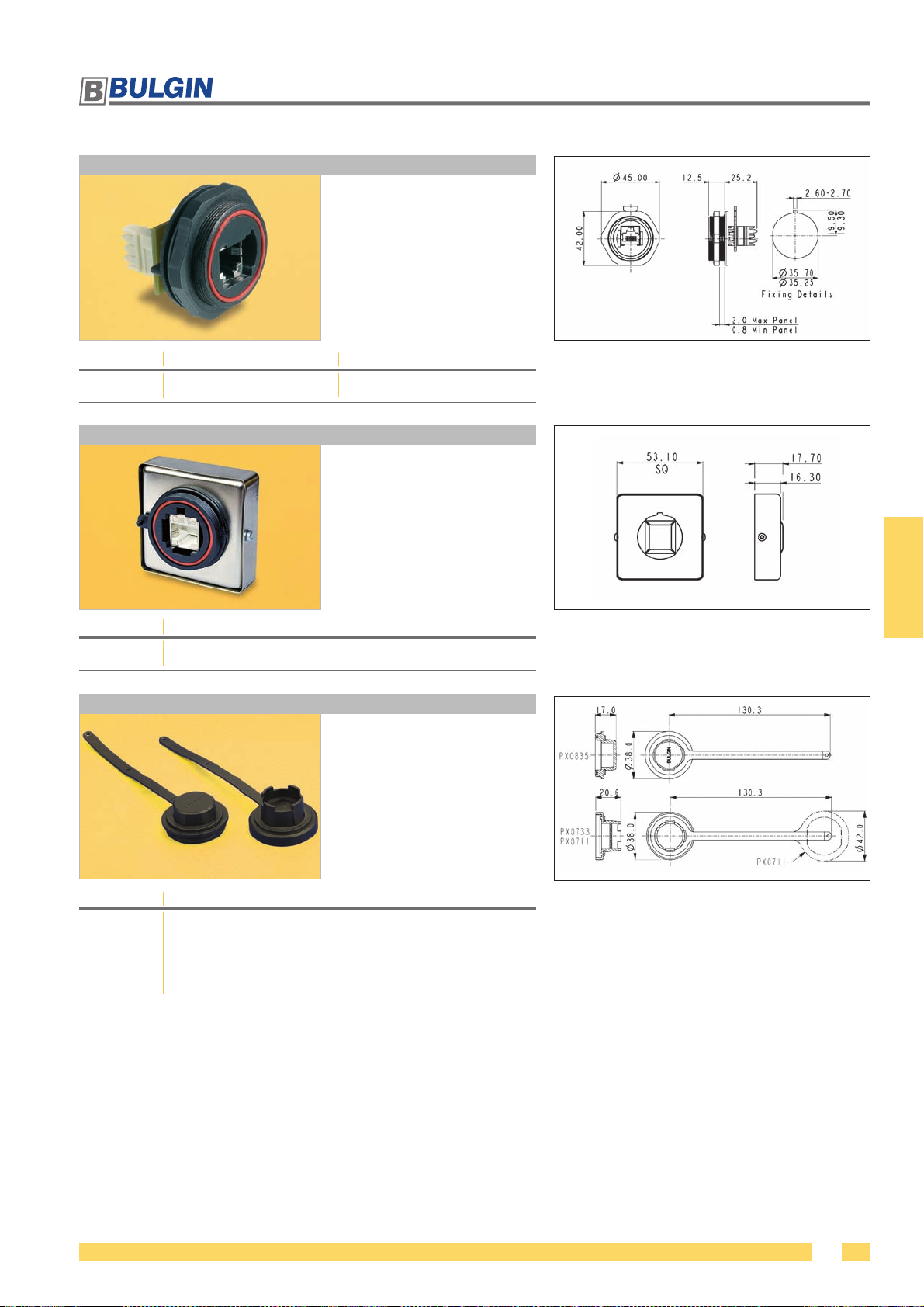

SHIELDING BACK SHELL ACCESSORY

ᔢ Maintains RJ45 coupler

screening directly to panel

ᔢ Shielding can is fixed to rear

of panel mount connector

ᔢ For use on PX0833

Ethernet Buccaneer

PX0888

Part no. Description

PX0888 Shielding backshell accessory

ACCESSORIES

ᔢ Sealing caps to maintain IP68

rating when connectors are not in use

ᔢ Replacement shielded RJ45s ᔢ Hand crimp tool for shielded

RJ45

ᔢ Patch cord cable available in

50m reels

Sealing Caps

Part no. Description

PX0835 Sealing Cap for flex connectors (PX0834, PX0836-838) PX0733 Sealing Cap for panel mounting connector (PX0833, PX0870) PX0711 Sealing Cap for rear panel mounting connector (PX0839) 14151 Hand crimp tooling + die set 14199 PUR Jacket Cable - 50m reel 14150 Replacement shielded RJ45

BUCCANEER DATA

www.elektron-bulgin.com

Page 5

BUCCANEER FOR DATA

RoHS

Ethernet Buccaneer

SPECIFICATION

Connectors

Mechanical

Sealing IP68, EN60529 Operating Temperature –20˚C to +70˚C

Materials - Overmoulded

Overmould material PVC (black) Flammability rating UL94V-0

Materials - Re-wireable and Panel Connectors

Connector body & locking ring Polyester Panel connector Nylon 6 Flammability rating UL94V-0 ‘O’ rings Silicon Panel Gasket - round Silicon Panel Gasket - flange Neoprene

Compliant

Stranded S-FTP Patch cord cable - PUR Jacket

Polyurethane (PUR) jacket cable with internal construction exceeding Cat 5e performance levels. The PUR jacket has excellent abrasion, chemical and ozone resistance, low smoke, low halogen flame retardant construction suitable for internal and external industrial environments.

BUCCANEER DATA

Cable

Conductors 24AWG (7/0.2mm) bare copper Insulation HD-PE Pair 2 of the above cores twisted Core 4 of the above cores Tape 1 lap mylar tape Screen 1 layer mylar and aluminium tape, 0.12mm tinned copper braid Sheath PUR Jacket Black Op Temperature –25°C to +85°C Min. bend radius 10 x o/d (installation) Min. bend radius 6 x o/d (installed) Diameter 6.1mm nominal

RJ45 Plug

Materials

Moulding Polycarbonate Flammability UL94V-0 Contact material Phosphor Bronze Contact plating 50 micron gold Operating Temperature –40°C to +70°C Mating cycles 1,000 cycles

Compliant

Electrical

No. Conductors 8 Conductor types 24-28AWG, solid or multi-

stranded Current rating 1.5A Voltage rating 30V ac, 42V dc Contact resistance 10mΩ max. Performance Cat 5e

RJ45 Coupler

Materials

Coupler Shell Copper Alloy Coupler Plating Nickel Moulding ABS Flammability UL94V-0 Contact material Phosphor Bronze Contact plating 50 micron gold Operating Temperature –40°C to +70°C Mating cycles 1,000 cycles

Compliant

Electrical

No. Conductors 8 Current rating 1.5A Voltage rating 30V ac, 42V dc Contact resistance 10mΩ max. Performance Cat 5e

Electrical @ 20˚C

Characteristic Impedance 100Ω ±15Ω @ 100MHz

Capacitance 330pF/km Conductor Loop

resistance 29Ω/100m maximum Skew 45 nsec/100m @ 100MHz TIA/EIA Rating Cat 5e

Cable construction - PX0836, PX0837, PX0838 and 14199

24 AWG 7/0.20mm conductor

Braiding 7/0.12mm

Jacket

6.10mm dia.

Polyurethane (PUR) Jacket

Mylar tape

Insulation - HD-PE

Aluminium/PEPT tape

Drain Wire

RJ45 PCB Connector

Materials

Coupler Shell Copper Alloy Coupler Plating Nickel Moulding ABS Flammability UL94V-0 Contact material Phosphor Bronze Contact plating 50 micron gold PC Pins Tin plated Operating Temperature –40°C to +70°C Mating cycles 1,000 cycles

Compliant

Electrical

No. Conductors 8 Current rating 1.5A Voltage rating 30V ac, 42V dc Contact resistance 10mΩ max. Performance Cat 5e

www.elektron-bulgin.com

Page 6

RoHS

BUCCANEER FOR DATA

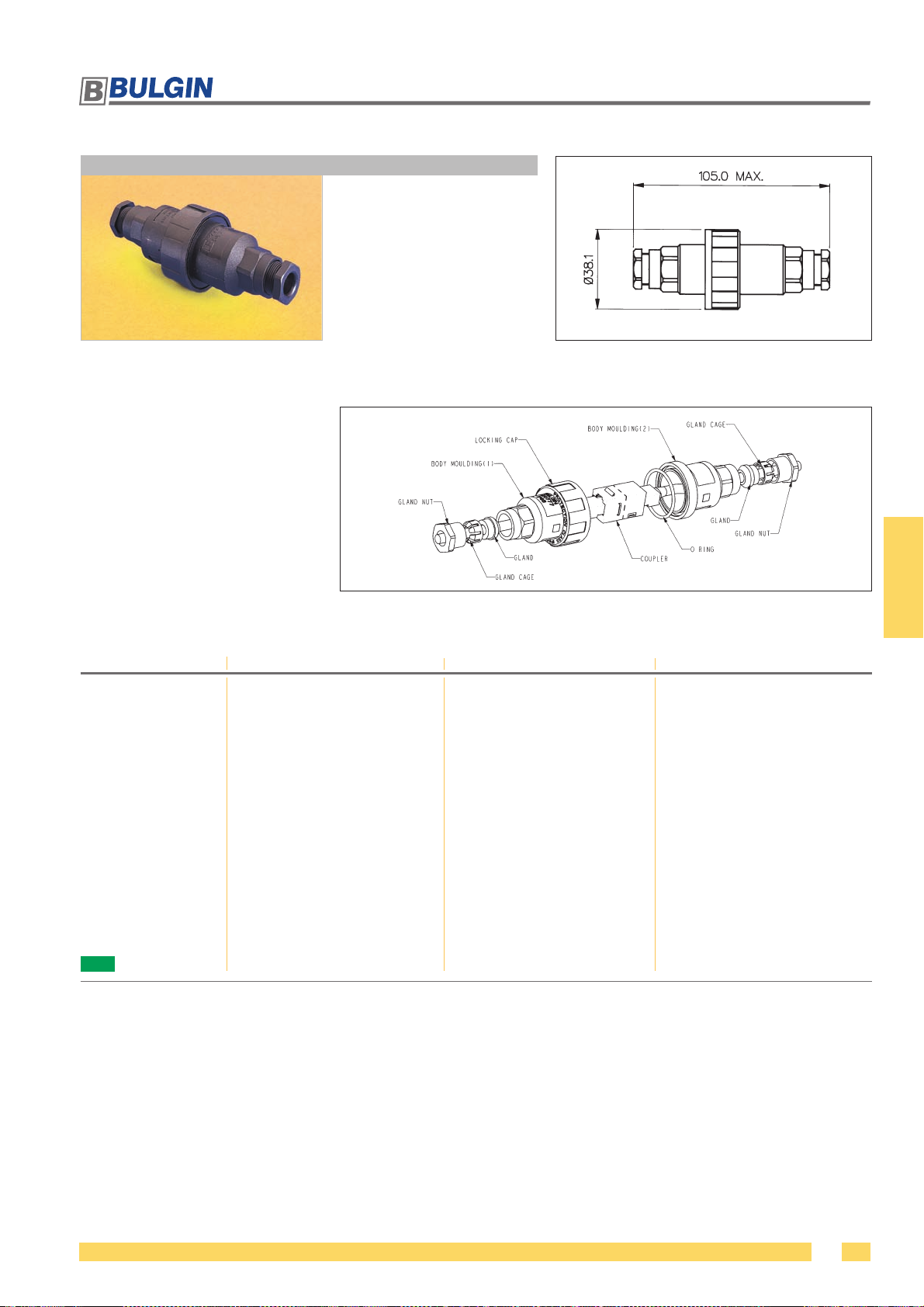

CABLE JOINER

PX0777

ᔢ IP68 Rating ᔢ For Sealed In-Line RJ45

Connections

ᔢ Supplied Complete with

Coupler

ᔢ Shielded (STP) & Unshielded

(UTP) versions

ᔢ Cat5e Shielded Coupler also

available

ᔢ Cable Range 3.5 - 8mm

(with glands supplied)

Ethernet Buccaneer

Specification PX0777/UTP PX0777/STP PX0777/CAT5ESTP

Rating: 1.5A, 30V a.c., 42V d.c. 1.5A, 30V a.c., 42V d.c. 1.5A, 30V a.c., 42V d.c.

No. of Conductors: 888

Coupler Type: Unshielded Shielded Shielded CAT5e performance

Cable Range: 3.5 - 8mm 3.5 - 8mm 3.5 - 8mm

With glands supplied: With glands supplied: With glands supplied:

3.5 - 5mm (Blue) 3.5 - 5mm (Blue) 3.5 - 5mm (Blue) 5 - 7mm (Green) 5 - 7mm (Green) 5 - 7mm (Green) 6 - 8mm (Red) 6 - 8mm (Red) 6 - 8mm (Red)

Material: Glass Filled Polyamide UL94V-0 Glass Filled Polyamide UL94V0 Glass Filled Polyamide UL94V-0

Sealing: IP68 to BSEN 60529 : 1977 IP68 to BSEN 60529 : 1977 IP68 to BSEN 60529 : 1977

Operating Temp. Range: –20ºC to +70ºC –20ºC to +70ºC –20ºC to +70ºC

Colour: Black Black Black

Compliant Compliant Compliant

BUCCANEER DATA
