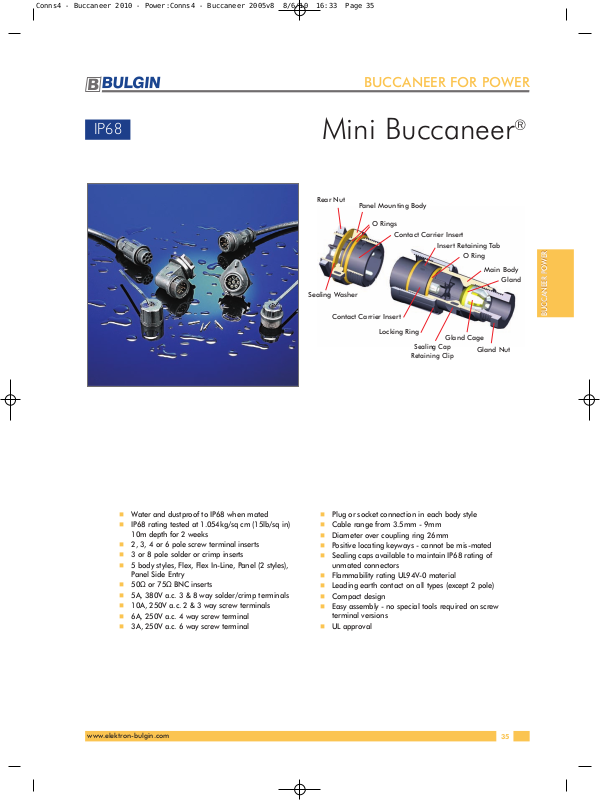

Page 1
BUCCANEER FOR POWER
IP68

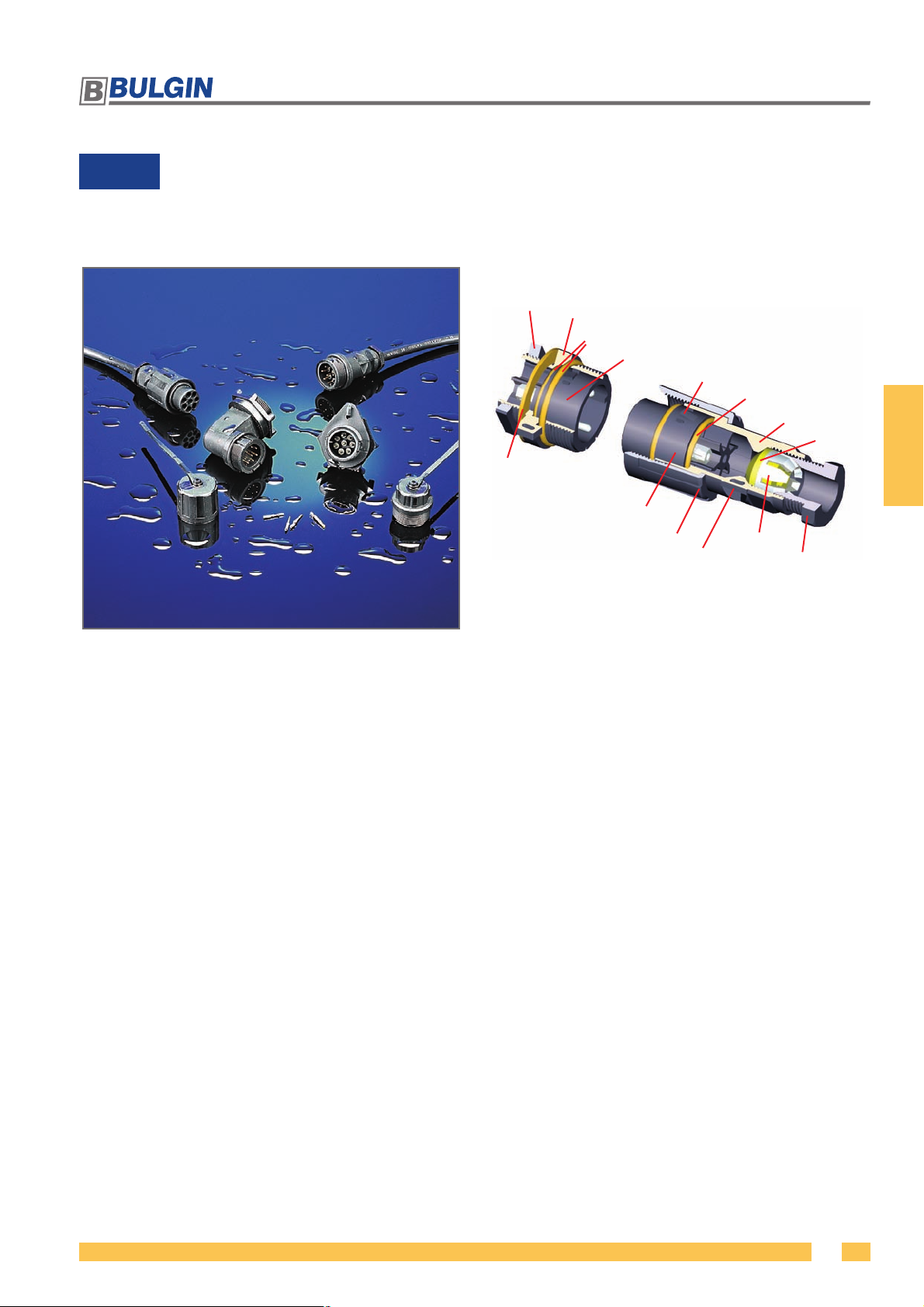

Mini Buccaneer
Rear Nut
Sealing Washer
Contact Carrier Insert
Panel Mounting Body
O Rings
Contact Carrier Insert
Locking Ring
Sealing Cap
Retaining Clip
Insert Retaining Tab
O Ring
Gland Cage
Gland Nut
Main Body
Gland
®
BUCCANEER POWER
BUCCANEER POWER
ᔢ Water and dustproof to IP68 when mated
ᔢ IP68 rating tested at 1.054kg/sq cm (15lb/sq in)
10m depth for 2 weeks
ᔢ 2, 3, 4 or 6 pole screw terminal inserts
ᔢ 3 or 8 pole solder or crimp inserts
ᔢ 5 body styles, Flex, Flex In-Line, Panel (2 styles),
Panel Side Entry
ᔢ 50Ω or 75Ω BNC inserts
ᔢ 5A, 380V a.c. 3 & 8 way solder/crimp terminals
ᔢ 10A, 250V a.c. 2 & 3 way screw terminals
ᔢ 6A, 250V a.c. 4 way screw terminal
ᔢ 3A, 250V a.c. 6 way screw terminal
www.elektron-bulgin.com
ᔢ Plug or socket connection in each body style
ᔢ Cable range from 3.5mm - 9mm
ᔢ Diameter over coupling ring 26mm
ᔢ Positive locating keyways - cannot be mis-mated
ᔢ Sealing caps available to maintain IP68 rating of
unmated connectors
ᔢ Flammability rating UL94V-0 material
ᔢ Leading earth contact on all types (except 2 pole)
ᔢ Compact design
ᔢ Easy assembly - no special tools required on screw
terminal versions
ᔢ UL approval
35

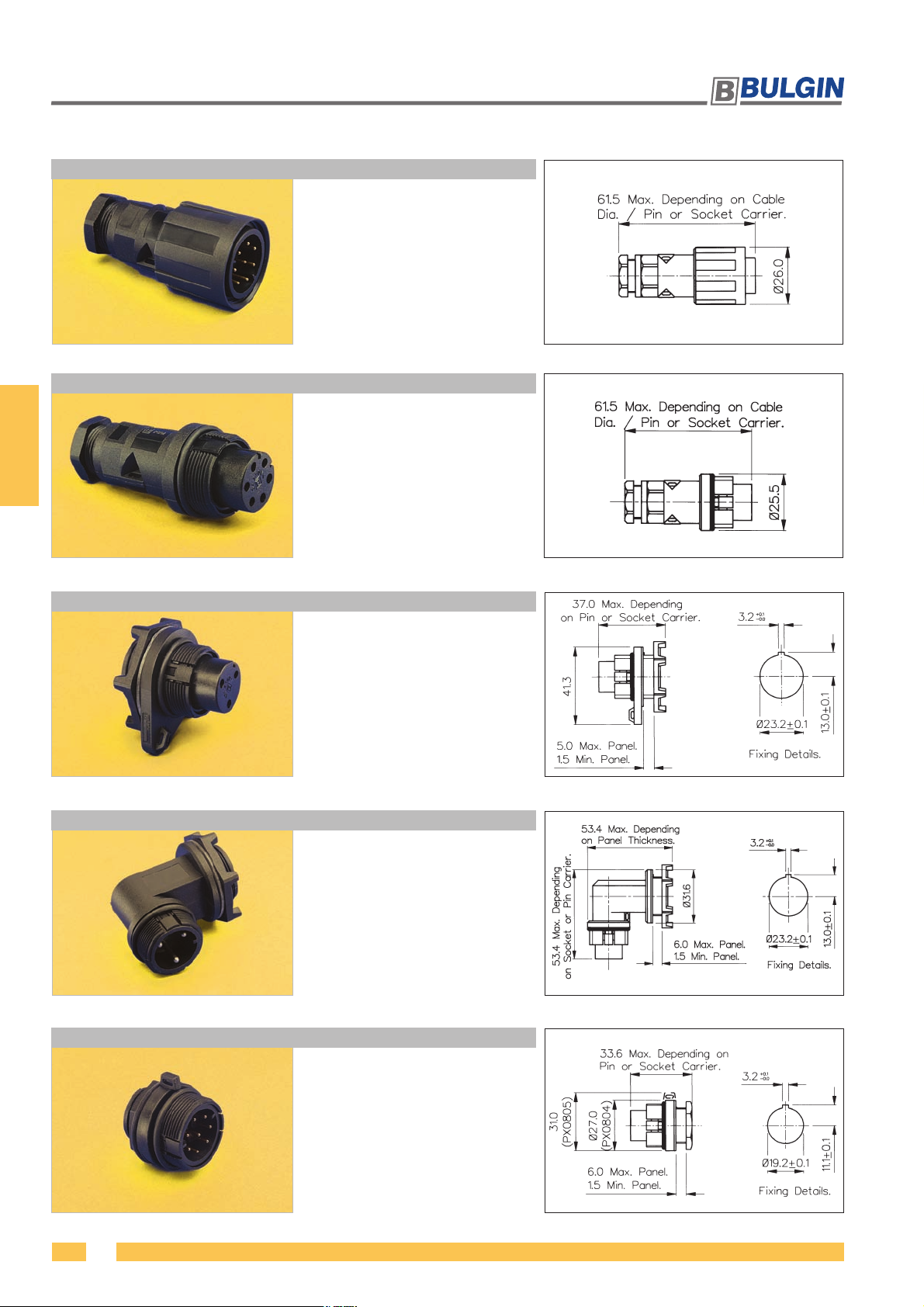

Page 2
BUCCANEER FOR POWER
Mini Buccaneer
FLEX CABLE CONNECTOR
PX0800 - shown with insert
IN-LINE FLEX CABLE CONNECTOR
BUCCANEER POWER
BUCCANEER POWER
PX0801 - shown with insert
®
ᔢ PX0800 Connector body
ᔢ Mates with Flex In-line or Panel
Mounting versions
ᔢ Screw locking ring
ᔢ Suitable for Pin or Socket inserts
ᔢ Cable Acceptance 3.5-9mm
(Standard 5-7mm)
ᔢ Contact inserts supplied separately
ᔢ PX0801 Connector body
ᔢ Mates with PX0800 - Flex Cable
connector
ᔢ Suitable for Pin or Socket inserts
ᔢ Cable Acceptance 3.5-9mm
(Standard 5-7mm)
ᔢ Contact inserts supplied separately
PANEL MOUNTING
PX0802 - shown with insert
PANEL MOUNTING
PX0803 - shown with insert
PANEL MOUNTING
PX0805 - shown with insert
ᔢ PX0802 Connector body
ᔢ Mates with PX0800 - Flex Cable
connector
ᔢ Single hole fixing
ᔢ Suitable for Pin or Socket inserts
ᔢ Contact inserts supplied separately
ᔢ PX0803 Connector body
ᔢ Mates with PX0800 - Flex Cable
connector
ᔢ Right angle cable entry
ᔢ Single hole fixing
ᔢ Suitable for Pin or Socket inserts
ᔢ Contact inserts supplied separately
ᔢ PX0804 and PX0805 Connector
bodies
ᔢ Mates with PX0800 - Flex Cable
connector
ᔢ PX0804 without sealing cap
retaining clip, PX0805
with sealing cap retaining clip
ᔢ Single hole fixing
ᔢ Suitable for Pin or Socket inserts
ᔢ Contact inserts supplied separately
3636
36
www.elektron-bulgin.com

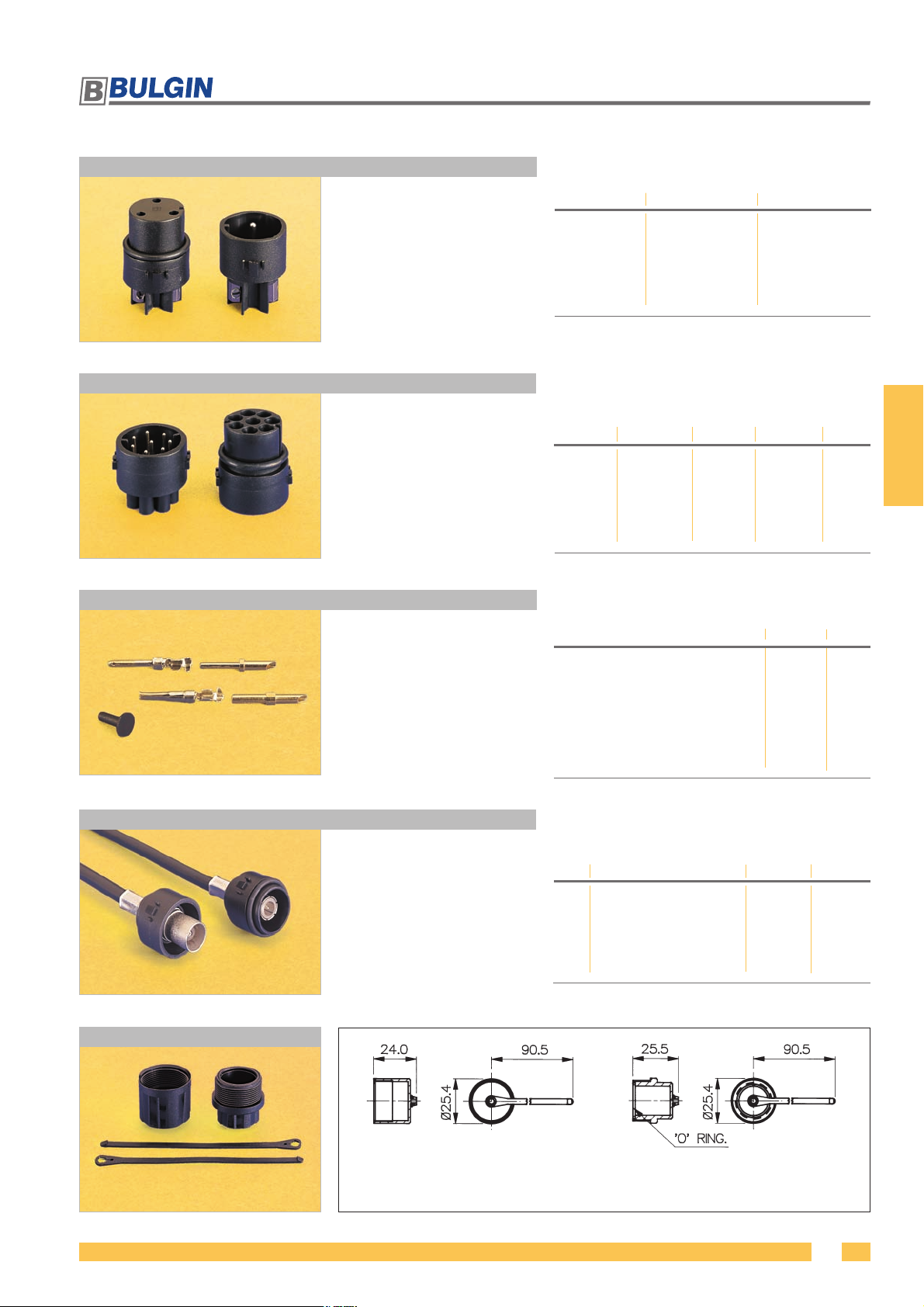

Page 3
BUCCANEER FOR POWER
SCREW TERMINAL INSERTS
CONTACT CARRIER INSERTS
Inserts shown with
contacts fitted
ᔢ 2, 3, 4 and 6 Poles
ᔢ Fits all Body Styles
ᔢ Leading Earth Pin on 3,
4 and 6 pole inserts
ᔢ Nickel Plated contacts
ᔢ For Solder or Crimp Contacts
ᔢ 3 or 8 Pin
ᔢ Fits all Body Styles
ᔢ Contacts Supplied Separately
Mini Buccaneer
Screw Terminal Inserts - fit all body styles
No. Poles Socket Pin
2 SA3319 SA3320
3 SA3229 SA3230
4 SA3242 SA3241
6 SA3244 SA3243
Solder & Crimp Contact Carrier Inserts - fit
all body styles.
No. Poles Solder Colour Crimp Colour
8 pin 12734/1 Black 12734 Grey
8 socket 12735/1 Black 12735 Grey
3 pin 12734/3/1 Black 12734/3 Grey
3 socket 12735/3/1 Black 12735/3 Grey
®
BUCCANEER POWER
BUCCANEER POWER
CONTACTS, POLARISING/BLANKING PINS
ᔢ Gold Plated contacts
ᔢ Solder or Crimp
ᔢ Polarising/Blanking pins
BNC INSERT KIT
ᔢ BNC inserts for 50Ω and
ᔢ Includes gland and washer
ᔢ Fits all Body Styles (except
Inserts Shown assembled
75Ω co-ax cables
to suit coax cable
PX0803)
Contacts - Solder & Crimp - for contact
carrier inserts
Contacts (Supplied in packs of 10) Solder Crimp
Pins SA3148/1 SA3148
Sockets SA3149/1 SA3149
Polarising/Blanking Pins SA3147
Contact Insertion Tool: SA3150
Must be used to load contacts into inserts.
Crimping Tool SA2800
BNC Inserts - fit all body styles except
PX0803
Imp. Cable Type Contacts Part No.
50Ω RG58/CU, URM43, URM76 Plug SA3159/1
50Ω RG58/CU, URM43, URM76 Socket SA3157/1
75Ω URM70 Plug SA3159
75Ω URM70 Socket SA3157
SEALING CAPS
To maintain IP rating
www.elektron-bulgin.com
PX0810
Fits PX0801, PX0802, PX0803, PX0804 &
PX0805. Ensure “O” Ring is in place on
main body.
PX0811
Fits PX0800. Ensure “O” Ring is in place
in cap.
37
Page 4
BUCCANEER FOR POWER
Mini Buccaneer®Contact Inserts and Accessories
SPECIFICATION
Electrical Solder/Crimp Terminals Screw Terminals BNC
No Poles: 3, 8 2, 3 46
Current Rating: 5A 10A 6A 3A
Voltage Rating: 380V ac 250V ac 250V ac 250V ac
Contact Resistance: <5mΩ
Insulation Resistance: >10
Voltage Proof: 2kV @ 50Hz
Operating Temp. Range: –20°C to +70°C
Approvals:
Materials Solder/Crimp Terminals Screw Terminals BNC
Body Mouldings: Polyamide UL94V-0 Polyamide UL94V-0
Inserts: Polyamide UL94V-0 Polyamide UL94V-0
BUCCANEER POWER
BUCCANEER POWER
Contacts: Copper Alloy, Gold Plated (0.1µm) on Nickel Brass, Nickel Plated Brass, Silver Plated.
O Rings: Nitrile
6
MΩ @ 500V d.c.
E214972
Compliant Compliant Compliant
Mechanical Solder/Crimp Terminals Screw Terminals BNC
Sealing: Protection Classification IP68, BS EN60529:1992. Tested @ 1.054kg/sq.cm. (15lb/sq.in.) 10m depth for 2 weeks.
Cable Acceptance 5-7mm dia - standard gland
3.5-9mm dia - alternative glands
Contact Accommodation: 0.2 - 0.5mm
Insertion Force (typical): 3 way: 5N (1.1lbf) 3 way: 45N (10lbf)
8 way: 14N (3.1lbf) 4 way: 50N (11lbf)
Withdrawal Force (typical): 3 way: 3N (0.66lbf) 3 way: 32N (7lbf)
8 way: 12N (2.6lbf) 4 way: 40N (9lbf)
Tightening Torques
Gland Nut, PX0800, 801: 1.13Nm (10lbf in)
Rear Nut, PX0802, 803, 804, 805: 0.7Nm min, 1.7Nm max (6.2lbf in min, 15lbf in max)
Sealing Cap, PX0810, 811: 0.23Nm min, 1.13Nm max (2lbf in min, 10lbf in max)
HOW TO ORDER
ᔢ Choose body type, check cable diameter and sealing gland size.
ᔢ Determine contact carrier inserts. Choose number of poles, and type of
contacts (solder, crimp, screw terminal or BNC).
ᔢ Choose pins or sockets. Solder and crimp contacts are supplied
separately in packs of ten.
ᔢ Choose polarising/blanking pins. If required for solder/crimp contact
inserts. Supplied in packs of ten.
ᔢ Is an insertion tool required (for solder or crimp contacts)?
ᔢ Is a crimp tool required?
ᔢ Is a sealing cap required?
2
(20 - 24 AWG) 1mm
CABLE GLANDS
Cable gland for 5-7mm fitted as standard.
BNC Insert Kit includes gland & washer to fit coax cable.
Cable Gland Gland Additional
Diameter Part No. Colour Suffix
5-7mm 12023/1 White Fitted as standard
3.5-5mm SA3426 Grey Suffix /04
6-8mm 12023 Black Suffix /06
7-9mm 12023/2 Yellow Suffix /07
Gland Pack PX0812 Pack of 3 glands to suit cables
To order body with alternative cable gland add suffix to part no. e.g.
PX0800/06 = PX0800 body with cable gland to suit 6-8mm dia. cable.
†
Includes additional black gland cage for 3.5-5mm dia. cable range.
2
max (18 AWG) 50Ω: RG58/CU,
URM43, URM76
75Ω: URM70
6 way: 140N (31lbf)
6 way: 150N (34lbf)
3.5-5mm, 6-8mm, 7-9mm dia
†
†
3838
38
www.elektron-bulgin.com
