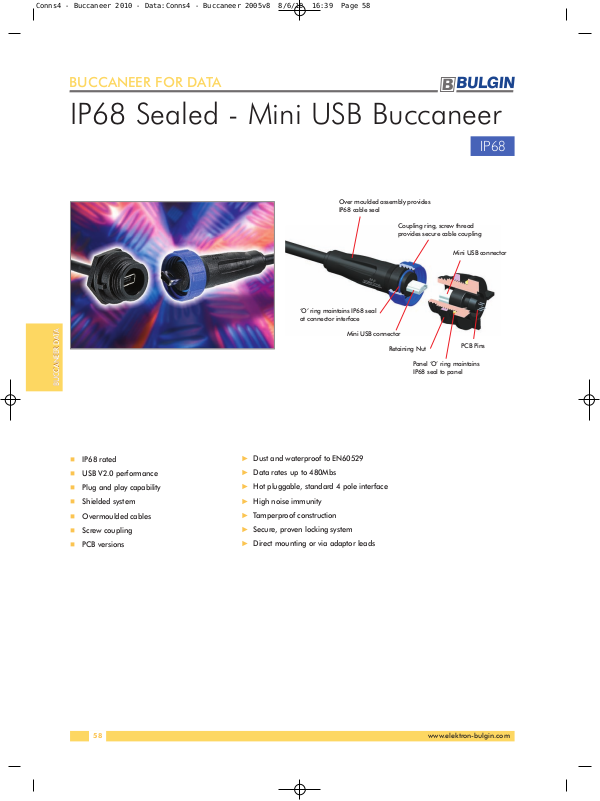

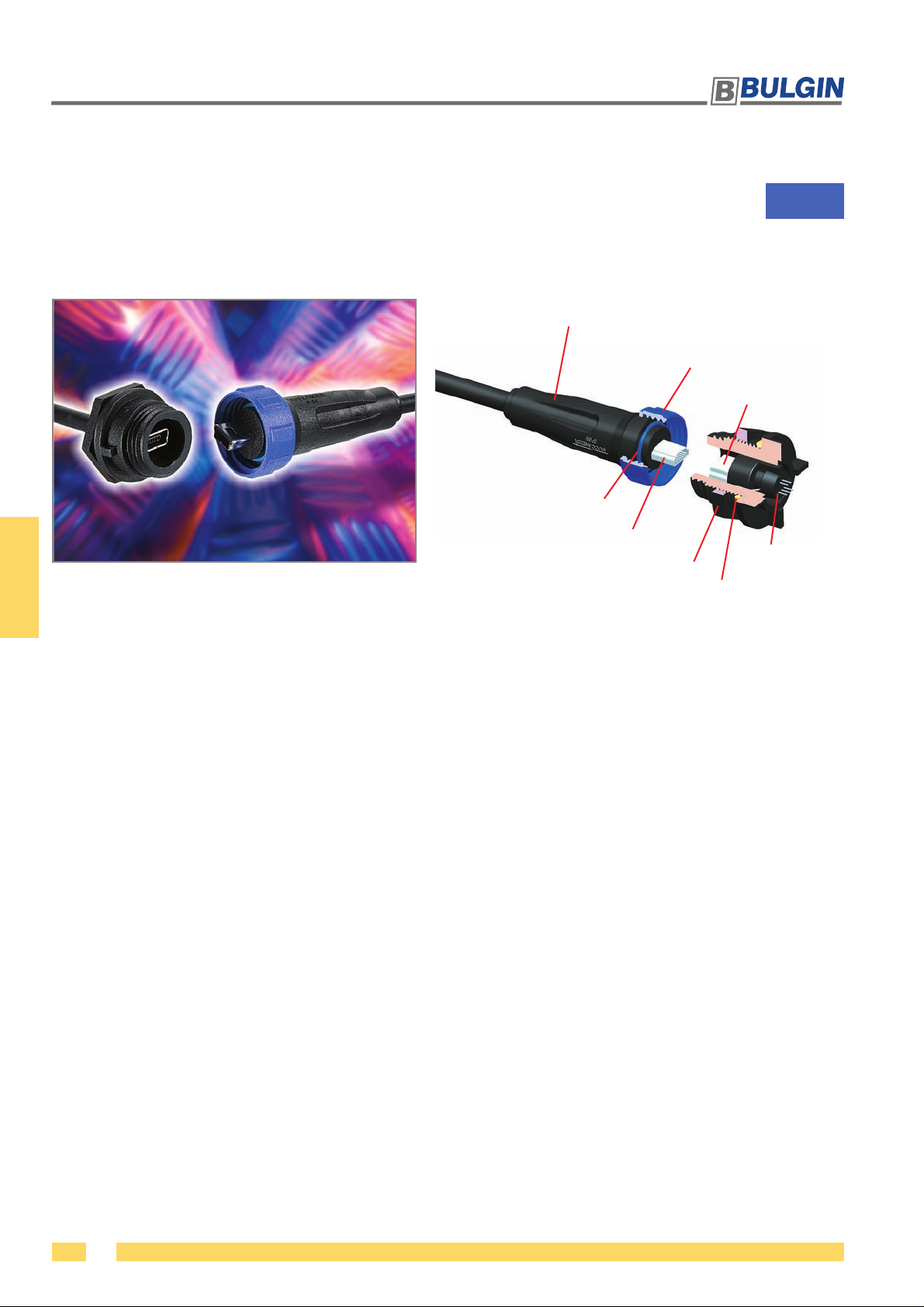

Page 1
BUCCANEER FOR DATA
IP68 Sealed - Mini USB Buccaneer
IP68
Over moulded assembly provides
IP68 cable seal
Coupling ring, screw thread
provides secure cable coupling
Mini USB connector
‘O’ ring maintains IP68 seal
at connector interface
Mini USB connector
Retaining Nut
PCB Pins
BUCCANEER DATA
BUCCANEER DATA
ᔢ IP68 rated
ᔢ USB V2.0 performance
ᔢ Plug and play capability
ᔢ Shielded system
ᔢ Overmoulded cables
ᔢ Screw coupling
ᔢ PCB versions
៑
Dust and waterproof to EN60529
៑
Data rates up to 480Mbs
៑
Hot pluggable, standard 4 pole interface
៑
High noise immunity
៑
Tamperproof construction
៑
Secure, proven locking system
៑
Direct mounting or via adaptor leads
Panel ‘O’ ring maintains
IP68 seal to panel
58
www.elektron-bulgin.com

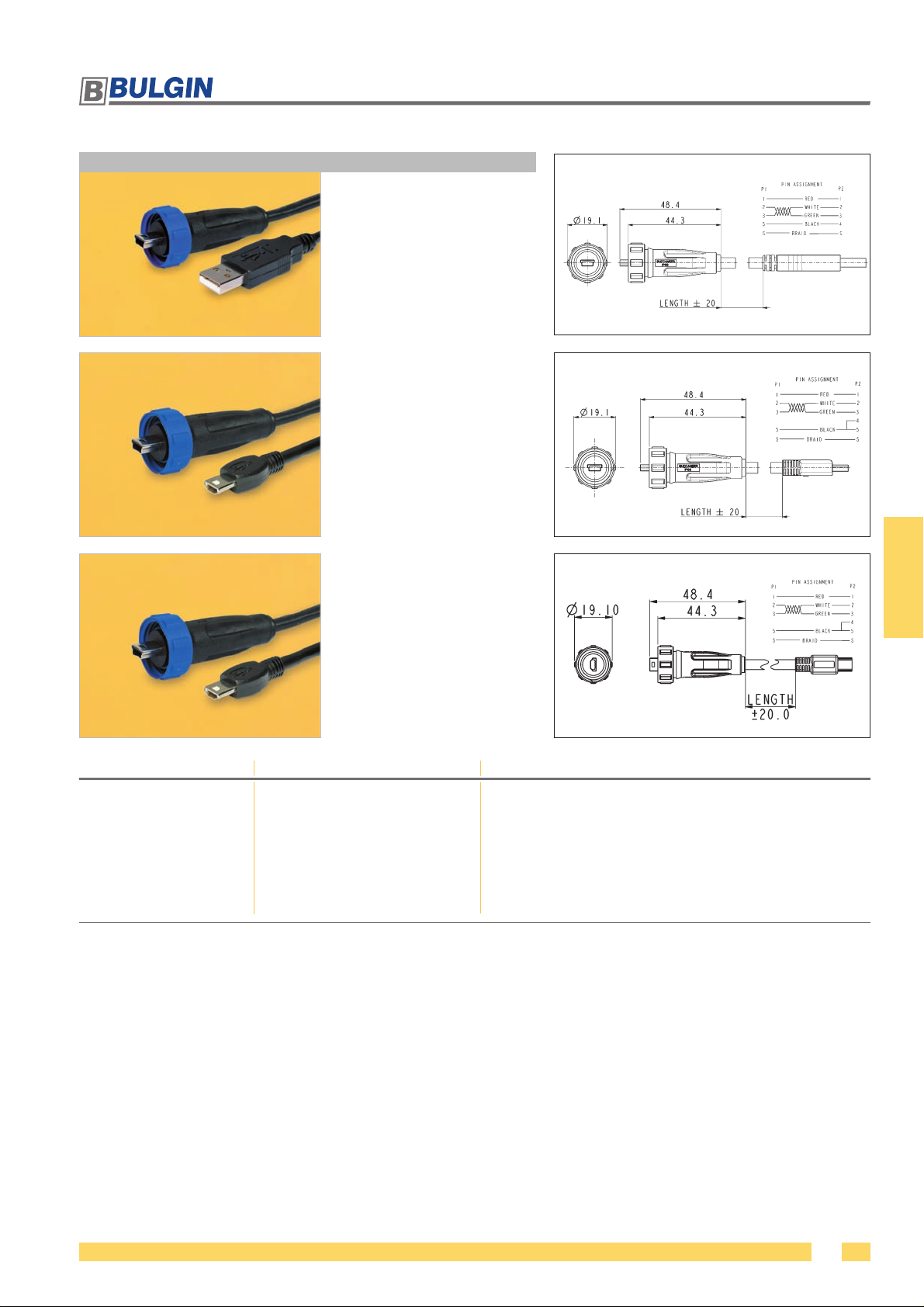

Page 2
SEALED MINI USB CABLES - SINGLE ENDED
ᔢ Standard ‘A’ type to sealed Mini
‘B’ type
ᔢ Fully overmoulded construction
ᔢ Available in 2, 3 & 4.5m lengths
ᔢ Mates with PX0443, PX0446,
PX0447, PX0456, PX0457 &
PX0458
PX0441
ᔢ Mini ‘A’ type to sealed mini ‘B’
type
ᔢ Fully overmoulded construction
ᔢ Available in 2, 3 & 4.5m lengths
ᔢ Mates with PX0443, PX0446,
PX0447, PX0456, PX0457 &
PX0458
PX0442
BUCCANEER FOR DATA
Mini USB Buccaneer
ᔢ Mini ‘B’ type to Sealed Mini ‘A’
type
ᔢ Fully overmoulded construction
ᔢ Available in 2, 3 & 4.5m lengths
ᔢ Mates with PX0456, PX0457 &
PX0458
PX0444
Part No. Description Length
PX0441/2M00 IP68 mini ‘B’ to Std ‘A’ type USB 2.0m
PX0441/3M00 IP68 mini ‘B’ to Std ‘A’ type USB 3.0m
PX0441/4M50 IP68 mini ‘B’ to Std ‘A’ type USB 4.5m
PX0442/2M00 IP68 mini ‘B’ to Mini ‘A’ type USB 2.0m
PX0442/3M00 IP68 mini ‘B’ to Mini ‘A’ type USB 3.0m
PX0442/4M50 IP68 mini ‘B’ to Mini ‘A’ type USB 4.5m
PX0444/2M00 IP68 mini ‘A’ to Mini ‘B’ type USB 2.0m
PX0444/3M00 IP68 mini ‘A’ to Mini ‘B’ type USB 3.0m
PX0444/4M50 IP68 mini ‘A’ to Mini ‘B’ type USB 4.5m
BUCCANEER DATA
BUCCANEER DATA
www.elektron-bulgin.com
59

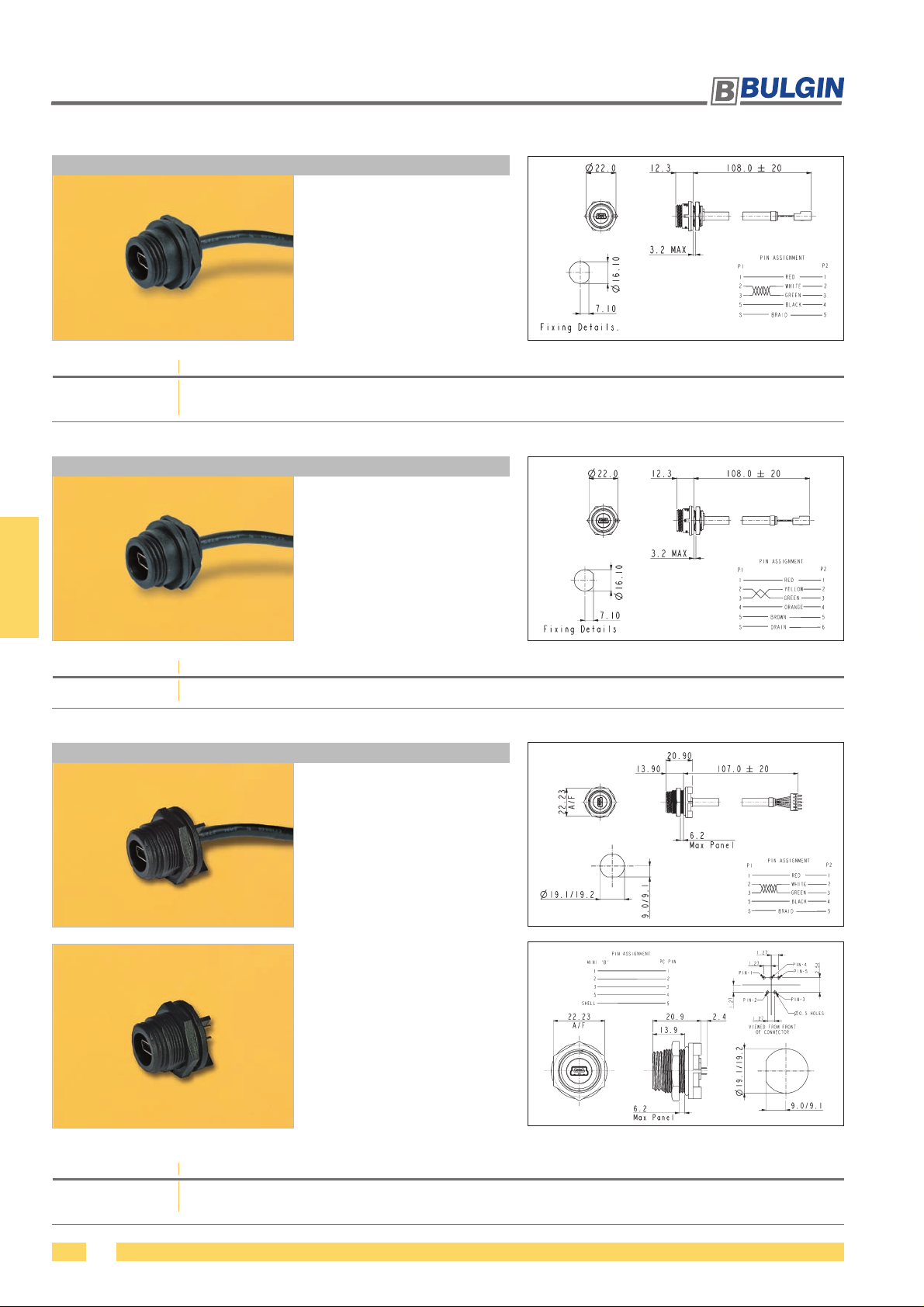

Page 3
BUCCANEER FOR DATA
Mini USB Buccaneer
FRONT PANEL MOUNTING CONNECTOR
ᔢ Mini ‘B’ type
ᔢ Leaded with 5 way crimp, for
use with PC header
ᔢ Mates with PX0441 & PX0442
type cables
PX0443
Part No. Description
PX0443 IP68 B type Mini USB, front panel mounted. 5 way crimp connector at rear.
PX0459 As PX0443 with exposed braid for use with PX0464 screening can
FRONT PANEL MOUNTING CONNECTOR
ᔢ Mini ‘AB’ type
ᔢ Leaded with 6 way crimp, for
use with PC header
ᔢ Mates with PX0441, PX0442 &
PX0444 type cables
BUCCANEER DATA
BUCCANEER DATA
Part No. Description
PX0456 IP68 AB type Mini USB, front panel mounted. 6 way crimp connector at rear.
REAR PANEL MOUNTING CONNECTOR
PX0456
ᔢ Mini ‘B’ type
ᔢ Leaded with 5 way header
ᔢ Mates with PX0441 & PX0442
type cables
PX0446
ᔢ Mini ‘B’ type
ᔢ With pins for direct PC
mounting
ᔢ Mates with PX0441 & PX0442
type cables
PX0447
Part No. Description
PX0446 IP68 B type Mini USB, rear panel mounted. 5 way header connector at rear.
PX0447 IP68 B type Mini USB, rear panel mounted. PC terminals at rear.
60
www.elektron-bulgin.com

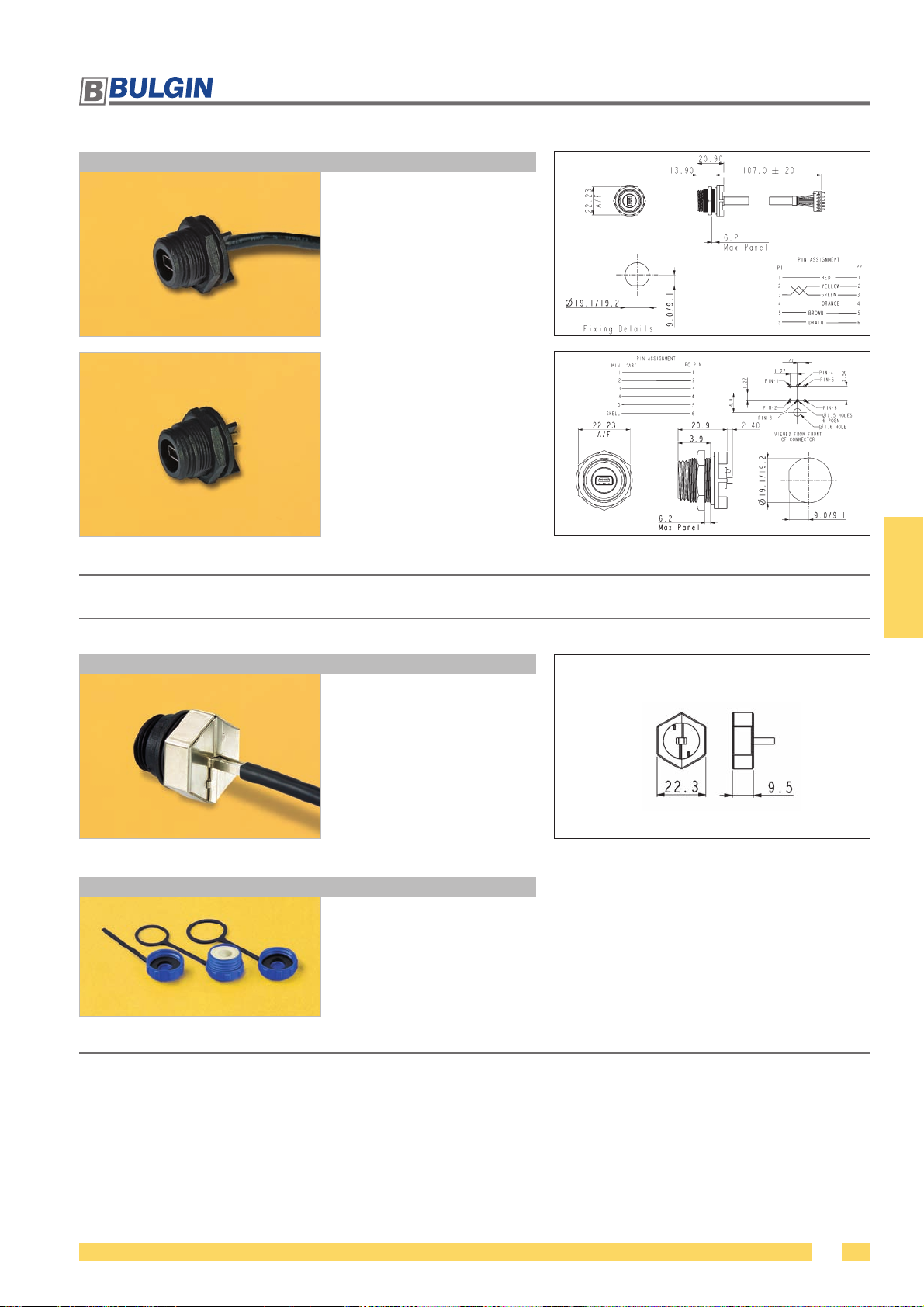

Page 4
REAR PANEL MOUNTING CONNECTOR
PX0457
PX0458
BUCCANEER FOR DATA
Mini USB Buccaneer
ᔢ Mini ‘AB’ type
ᔢ Leaded with 6 way header
ᔢ Mates with PX0441, PX0442 &
PX0444 type cables
ᔢ Mini ‘AB’ type
ᔢ With pins for direct PC
mounting
ᔢ Mates with PX0441, PX0442 &
PX0444 type cables
Part No. Description
PX0457 IP68 AB type Mini USB, rear panel mounted. 6 way header connector at rear.
PX0458 IP68 AB type Mini USB, rear panel mounted. PC terminals at rear.
SCREENING CAN
ᔢ Maintains cable screening
directly to panel
ᔢ Shielding can clips around the
panel fixing nut
ᔢ For use on PX0459
PX0464
ACCESSORIES
ᔢ Sealing caps to maintain IP
rating when connectors are
not in use
ᔢ PCB headers for use with
PX0443 & PX0456
BUCCANEER DATA
BUCCANEER DATA
Part No. Description
PX0485 Sealing cap for use with PX0441, PX0442 & PX0444
PX0480 Sealing cap for use with PX0443 & PX0456
PX0484 Sealing cap for use with PX0446, PX0447, PX0457 & PX0458
14191 5 way straight header
14192 5 way right angle header
14563 6 way straight header
14564 6 way right angle header
www.elektron-bulgin.com
61

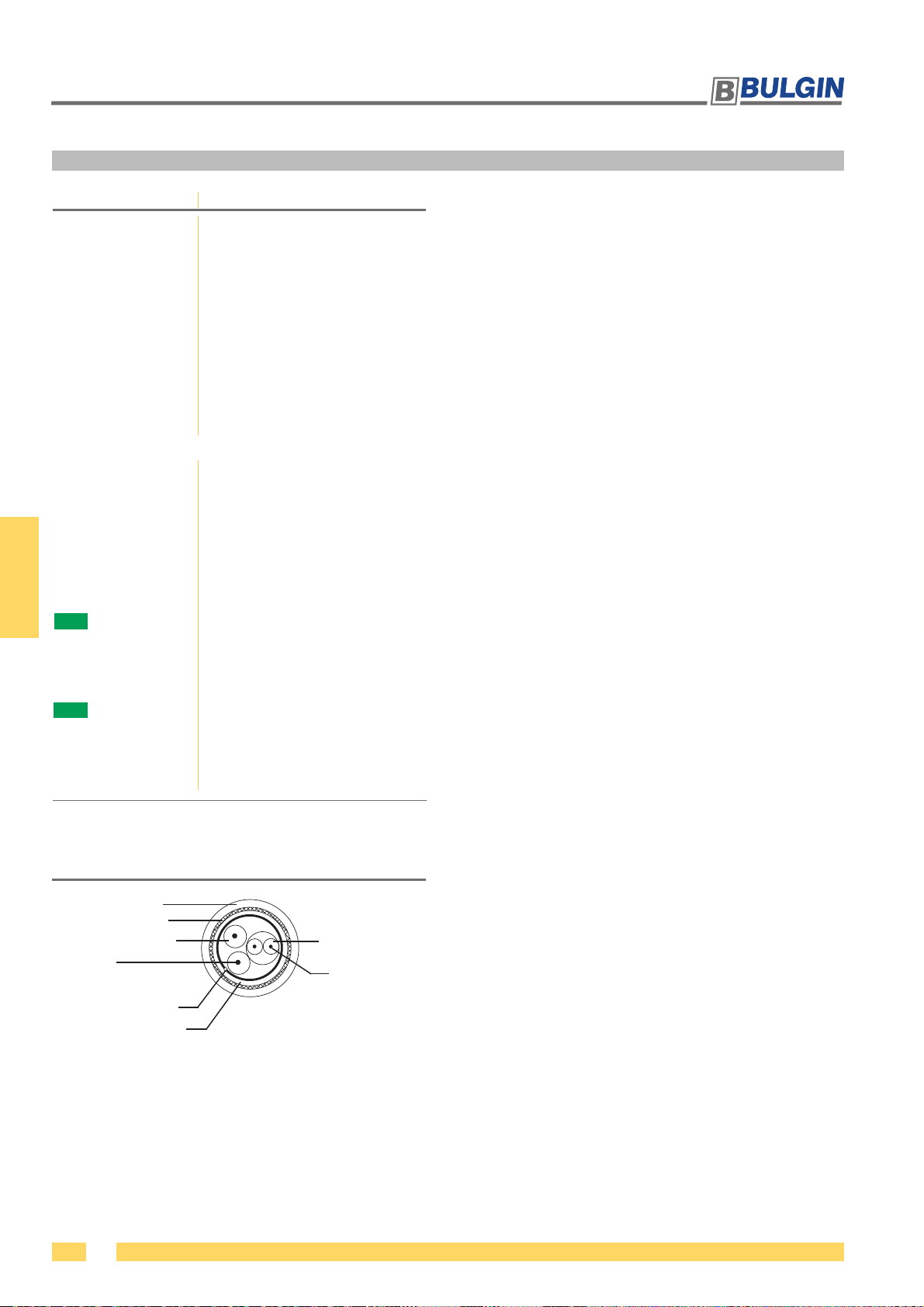

Page 5
BUCCANEER FOR DATA
Mini USB Buccaneer
SPECIFICATION
Cables & connectors
Mechanical
Sealing IP68, EN60529
Operating temperature 0˚C to +70˚C
Electrical
No. of poles 4 and 5
Current rating 1A
Voltage rating 30Vac, 42Vdc
Contact resistance 50mΩ max.
Performance USB version 2.0
Materials - Overmoulded
Overmould material PVC (black)
Flammability rating UL94V-0
Materials - Re-wireable and Panel Connectors
Shell material Steel
Shell plating Nickel
Contact material Copper Alloy
Contact plating 50 micro inch Gold
Connector body & locking ring Polyester
Panel connector Nylon 6
Flammability rating UL94V-0
‘O’ rings Nitrile
Panel Gasket Silicon
Mating cycles 5,000
RoHS
BUCCANEER DATA
BUCCANEER DATA
Materials - cable
Cable Jacket PVC (black)
Screen Tinned copper braid
Flammability UL94V-0
RoHS
Length: Dia Signal Power
2m 4.8mm 2 x 28AWG 2 x 24AWG
3m 5.0mm 2 x 28AWG 2 x 22AWG
5m 5.2mm 2 x 25AWG 2 x 20AWG
Compliant
Compliant
Conductors Conductors
Cable construction - PX0441, PX0442, PX0444
PVC Jacket
Braid
Insulation
Conductor
2M - 24AWG
3M - 22AWG
5M - 20AWG
Insulation - Polyolefin
SR-PVC
Drain Wire
62
Insulation
HD-PE
Conductor
2M - 28AWG
3M - 28AWG
5M - 25AWG
www.elektron-bulgin.com
