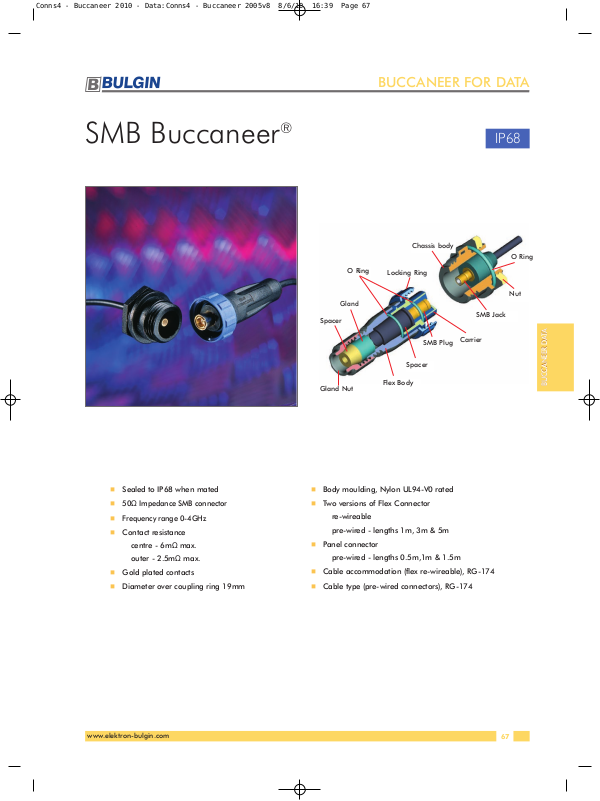

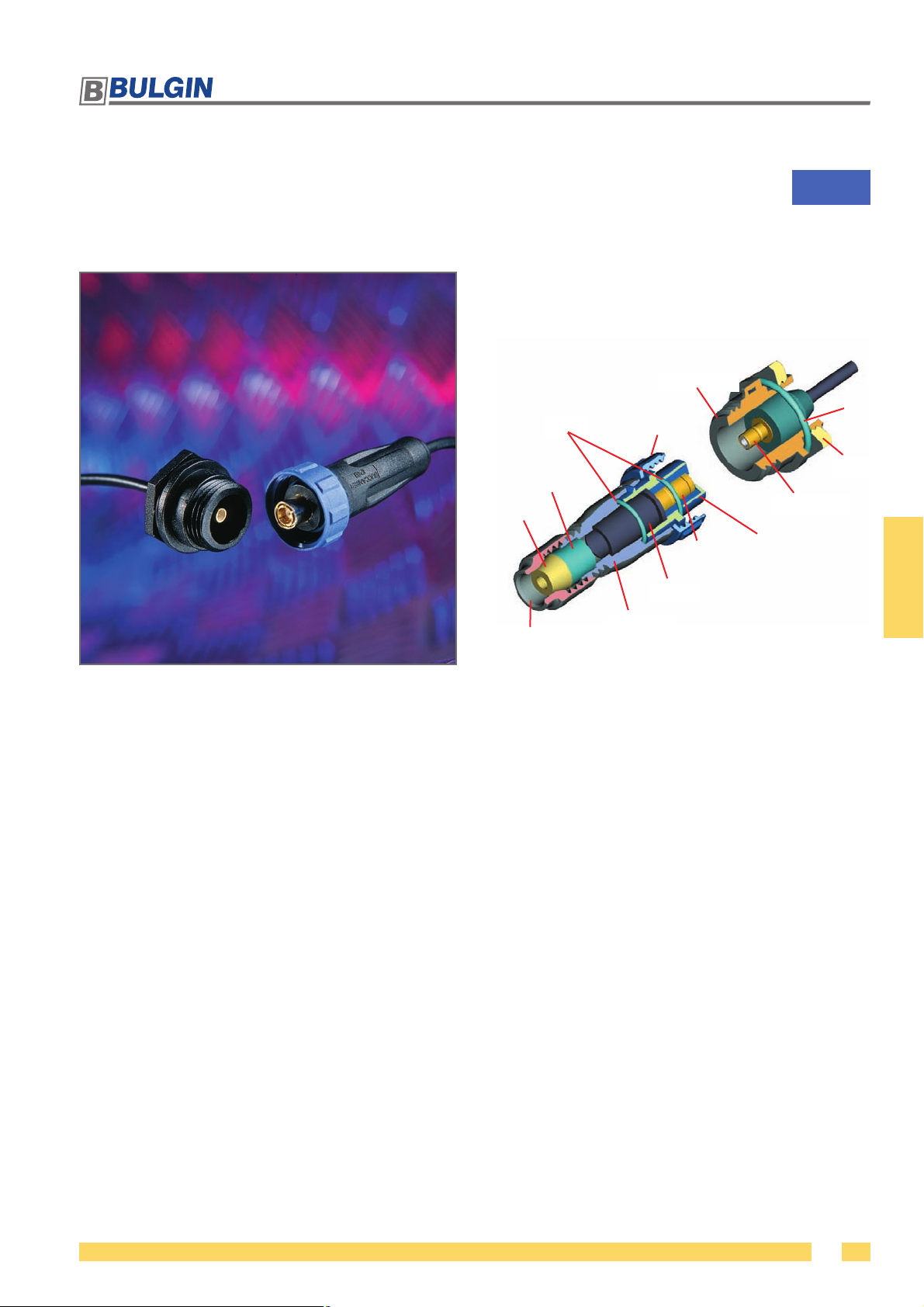

Page 1
SMB Buccaneer
®
Spacer
O Ring
Gland
BUCCANEER FOR DATA
IP68
Chassis body
O Ring
Locking Ring
Nut
SMB Jack
ᔢ
Sealed to IP68 when mated
ᔢ 50Ω Impedance SMB connector
ᔢ Frequency range 0-4GHz
ᔢ
Contact resistance
centre - 6m
outer - 2.5m
ᔢ
Gold plated contacts
ᔢ
Diameter over coupling ring 19mm
Ω
max.
Ω
max.
SMB Plug
Spacer
Gland Nut
ᔢ
Body moulding, Nylon UL94-V0 rated
ᔢ
Two versions of Flex Connector
re-wireable
pre-wired - lengths 1m, 3m & 5m
ᔢ
Panel connector
pre-wired - lengths 0.5m,1m & 1.5m
ᔢ
Cable accommodation (flex re-wireable), RG-174
ᔢ
Cable type (pre-wired connectors), RG-174
Flex Body
Carrier
BUCCANEER DATA
BUCCANEER DATA
www.elektron-bulgin.com
67

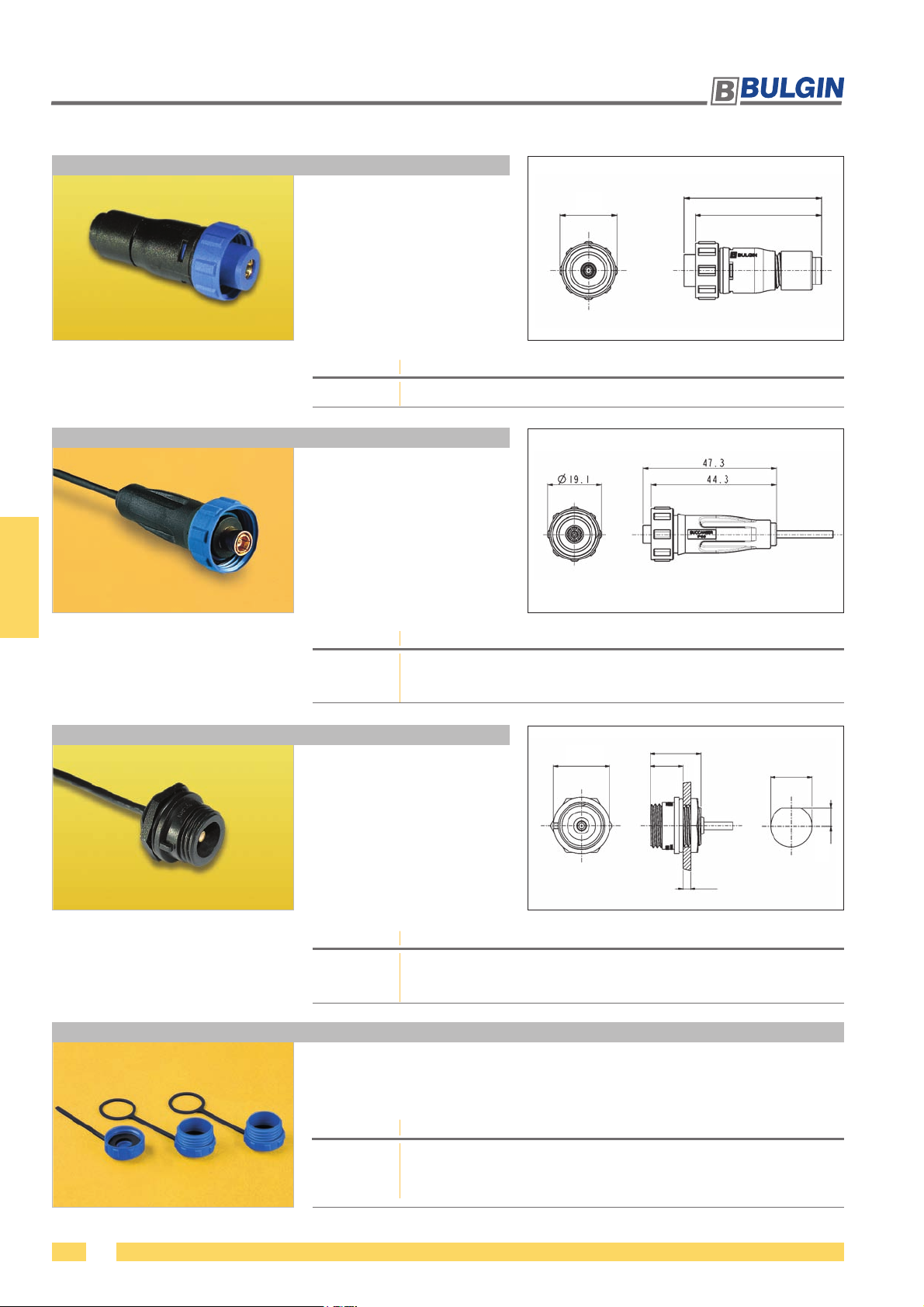

Page 2
BUCCANEER FOR DATA
SMB Buccaneer
®
RE-WIREABLE FLEX CONNECTOR
PX0415/1
PRE-WIRED FLEX CONNECTOR
PX0416/xMxx
ᔢ Mates with Panel connector
(PX0414)
19.1
ᔢ Re-wireable connector
ᔢ For RG-174 cable
ᔢ Supplied with SMB plug
Part no. Description
PX0415/1 Re-wireable connector with SMB Plug - for RG-174 cable
ᔢ Mates with Panel connector
(PX0414)
ᔢ Pre-wired
ᔢ Overmoulded construction
ᔢ Supplied with SMB plug
terminated with RG-174 cable
ᔢ 1m, 3m & 5m cable lengths
46.0 max
42.3 max
BUCCANEER DATA
BUCCANEER DATA
PANEL MOUNTING CONNECTOR
PX0414/xMxx
SEALING CAPS AND ACCESSORIES
Part no. Description
PX0416/1M00 Overmoulded connector with SMB plug - cable length 1m
PX0416/3M00 Overmoulded connector with SMB plug - cable length 3m
PX0416/5M00 Overmoulded connector with SMB plug - cable length 5m
19.9
12.3
ᔢ Mates with Flex connectors
Ø22.0
(PX0415, PX0416)
ᔢ Single hole fixing
ᔢ Supplied with SMB jack
terminated with RG-174 cable
ᔢ U.FL cable version also
available
Part no. Description
PX0414/0M50 Panel connector with SMB jack - cable length 0.5m
PX0414/1M00 Panel connector with SMB jack - cable length 1m
PX0414/1M50 Panel connector with SMB jack - cable length 1.5m
ᔢ Sealing caps maintain IP rating
when connectors are not in use
Ø16.10
7.10
3.2 max
PX0480 PX0481 PX0485
68
Part no. Description
PX0480 Sealing cap for PX0414 chassis connector
PX0481 Sealing cap for PX0415 re-wireable flex connectors
PX0485 Sealing cap for PX0416 overmoulded flex connector
14319 Hand crimp tool for SMB
www.elektron-bulgin.com
Page 3
BUCCANEER FOR DATA
RoHS
SPECIFICATION
Electrical:
Impedance: 50Ω
Frequency Range: 0-4GHz
Contact Resistance:
Centre: 6mΩ (max.)
Outer: 2.5mΩ (max.)
Insulator Resistance: 1000MΩ (max.)
Mechanical:
Sealing: IP68, EN 60529
Cable Acceptance: RG-174
Insertion/Withdrawal Force:
Insertion Force: 36N
Withdrawal Force: 36N
Cable Retention Force: 18N
Mating Cycles: 500
Material:
PX0415/1 and PX0414
Body Mouldings: Polyamide
Flammability Rating: UL94V-0
UV Resistance: To EN 50021:1999
PX0416
Body Mouldings: PVC (black)
Flammability Rating: UL94V-0
O Rings: Nitrile
Panel Sealing O Ring: Nitrile
SMB Connector
Body: Brass to QQ-B-626, Gold Plated
Centre Contact:
Plug: Brass to QQ-B-626, Gold Plated
Jack: Beryllium Copper to QQ-B-530, Gold Plated
Insulator: Teflon
Crimp Ferrules: Annealed Copper
Compliant
SMB Buccaneer
®
Operating Temperature: –20ºC to +80ºC
BUCCANEER DATA
BUCCANEER DATA
www.elektron-bulgin.com
69
