Buhler FK358 User Manual

Swath Roller

TABLE OF CONTENTS

DESCRIPTION PAGE

Warranty ..................................................................... 1

Introduction................................................................ 2

SAFETY....................................................................... 3

Safety................................................................ 3

General Safety .................................................. 3

Start Up Safety.................................................. 3

Operation Safety ............................................... 3

Transport Safety................................................ 3

Service & Maintenance Safety .......................... 4

Storage Safety .................................................. 4

Safety Signs...................................................... 4

Safety Sign Installation...................................... 4

ASSEMBLY................................................................. 6

Assembly Instructions ....................................... 6

OPERATION ............................................................... 6

Theory of Operation .......................................... 6

MAINTENANCE .......................................................... 7

Bolt Torque ....................................................... 7

PARTS LISTS

8’ Swath Roller Drawing.................................... 8

8’ Swath Roller Parts List .................................. 9

10’ Swath Roller Drawing & Parts List............... 11

SHIPPING KIT AND BUNDLE NUMBERS ................. 13

Swath Roller

WARRANTY POLICY

Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for
commercial application) from original date of purchase, by original purchaser, to be free from
defects in material and workmanship under correct, normal agricultural use and proper
applications.

Buhler Manufacturing’s obligations under this warranty shall be limited to the repair or
exchange, at Buhler Manufacturing’s option, of any Buhler Manufacturing product or part which
proves to be defective as provided. Buhler Manufacturing reserves the right to either inspect
the product at the buyer’s location or have it returned to the factory for inspection.

The above warranty does not extend to goods damaged or subject to accident, abuse or misuse
after shipment from Buhler Manufacturing’s factory, nor to goods altered or repaired by anyone
other than an authorized Buhler Manufacturing representative.

Buhler Manufacturing makes no Express Warranties other than those, which are specifically
described. Any description of goods, including any references and specifications in catalogues,
circulars and other written material published, is for the sole purpose of identifying goods and
shall conform to such descriptions. Any sample or model is for illustrative purposes only and
does not create an Express Warranty that the goods conform to sample or model shown.

The purchaser is solely responsible for determining suitability of goods sold. This warranty is
expressly in lieu of all other warranties expressed or implied. Buhler Manufacturing will in no
event be liable for any incidental or consequential damages whatsoever. Nor for any sum in
excess of the price received for the goods for which liability is claimed.

WARRANTY CLAIMS:

Warranty requests must be prepared on Buhler Manufacturing Warranty Claim Forms with all
requested information properly completed. Warranty Claims must be submitted within a thirty
(30) day period from date of failure repair.

WARRANTY LABOR:

Any labor subject to warranty must be authorized by Buhler Manufacturing. The labor rate for
replacing defective parts, where applicable, will be credited at 100% of the dealer’s posted shop
rate. Defective parts will receive an extra 10% discount to assist with freight or other incidental
costs.

GOVERNMENT LEGISLATION:

Warranty terms and conditions are subject to Provincial or State legislation.

IMPORTANT FACTS:

Buckets and Bucket Tines Carry No Warranty
Bent Spears Carry No Warranty
Snowblower Fan Shafts Carry No Warranty
Mower Blades Carry No Warranty
Portable Auger Parts Have Two (2) Year Warranty
Loader Parts Have Two (2) Year Warranty

IMPORTANT NOTE: This warranty does not apply to rentals

1

Swath Roller

INTRODUCTION

Buhler Farm King brings you this all-steel swath roller in eight and ten food models.
Compress your canola and flax swath to prevent crop loss by wind scattering. Ground
clearance is easily adjusted with a crank at both ends. Hook

Hook up to your swather with the swivel hitch…and take your mind off the wind.

Keep this manual handy for frequent reference. All new operators or owners must
review the manual before using the equipment and at least annually thereafter. Contact
your Buhler Dealer if you need assistance, information, or additional copies of the
manual. Visit our website at www.buhler.com for a complete list of dealers in your area.

The directions left, right, front and rear, as mentioned throughout this manual, are as
seen facing in the direction of travel of the implement.

SAFETY

Remember, YOU are the key to safety. Good safety practices not only protect you, but
also the people around you. Make these practices a working part of your safety
program. Be certain that everyone operating this equipment is familiar with the
recommended operating and maintenance procedures and follows all the safety
precautions. Most accidents can be prevented. Do not risk injury or death by ignoring
good safety practices.

The alert symbol is used throughout this manual. It indicates attention is required and
identifies hazards. Follow the recommended precautions.

The safety alert symbol means…

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

CAUTION

The caution symbol indicates a potentially hazardous situation that, if not

avoided, may result in minor or moderate injury. It may also be used to
alert against unsafe practices.

WARNING

The Warning Symbol indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury, and includes hazards
that are exposed when guards are removed. It may also be used to alert
against unsafe practices.

DANGER

The Danger Symbol indicates an imminently hazardous situation that, if

not avoided will result in death or serious injury. This signal word is to be
limited to the most extreme situations, typically for machine components
that, for functional purposes, cannot be guarded.

2

Swath Roller

GENERAL SAFETY INSTRUCTIONS

Have a first-aid kit available for use and know how to use it.
Have a fire extinguisher available, stored in a highly visible location, and know how to
use it.
Wear appropriate protective gear. This list may include but is not limited to:

- hard hat

- protective shoes with slip resistant soles

- protective glasses or goggles

- heavy gloves

- wet weather gear

- hearing protection

- respirator or filter mask

Read and understand the Operator’s Manual and all safety signs before operating,
servicing, adjusting, repairing, or unplugging the equipment.
Do not attempt any unauthorized modifications to your Buhler product as this could
affect function or safety, and could affect the life of the equipment.
Inspect and clean the working area before operating.
Keep hands, feet, clothing, and hair away from moving parts.
Ensure bystanders are clear of the area before operating.

START UP SAFETY

Do not let inexperienced operators or children run this equipment.
Operate only with ROPS and seatbelt equipped tractors.

OPERATION SAFETY

Do not permit riders.
Do not wear loose fitting clothing during operation.

TRANSPORT SAFETY

Review Transport Safety instructions in tractor manual before moving.
Check with local authorities regarding transport on public roads. Obey all applicable
laws and regulations.
Do not tow equipment that does not have brakes at speeds over 32 km/h (20 mile/h).
Do not two equipment that does not have brakes that, when fully loaded, has a mass
(weight) over 1.5t (3300 lb.) and more than 1.5 times the mass (weight) of the towing
unit.
Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that
are required by the local highway and transport authorities are in place, are clean, and
can be seen clearly by all overtaking and oncoming traffic.
The equipment should never be towed without the safety chain securely attached to the
unit and the towing vehicle.
Always travel at a safe speed.
Inflate transport tires to recommended pressure.

3

Swath Roller

SERVICE AND MAINTENANCE SAFETY

Stop engine, set brake, remove ignition key, and wait for all moving parts to stop before
servicing, adjusting, repairing, or unplugging.
Support the equipment with blocks or safety stands before working beneath it.
Follow good shop practices including:

- keep service area clean and dry

- be sure electrical outlets and tools are properly grounded

- use adequate light for the job
Use only tools, jacks, and hoists of sufficient capacity for the job.
Use heavy leather gloves to handle sharp objects.
Failure to follow proper procedures when mounting a tire on a wheel or rim can produce
an explosion, which may result in serious injury or death.

STORAGE SAFETY

Store the unit in an area away from human activity.
Do not permit children to play on or around the stored machine.
Support the frame on stands and blocks to provide a secure base.

SAFETY SIGNS

The following illustration shows the approximate location and detail of safety signs.
Keep all safety signs clean and legible and replace any that are damaged or missing.
When original parts are replaced, any safety signs affixed to those parts should be
replaced as well. Replacement safety signs are available from your local dealer.

INSTALLATION

To install safety signs, ensure the installation area is clean and dry. Decide on the
exact position before you remove the backing paper. Remove the smallest portion of
the split backing paper and align over the specified area. Carefully press in place.
Slowly peel back the remaining paper and smooth the remaining portion in place. Small
air pockets can be pierced with a pin and smoothed out.

4

Swath Roller

SWATH ROLLER

5

Swath Roller

ASSEMBLY

1. Center the drum shaft (#2) in the drum (#1) and tighten in place using
the set screws supplied in the hubs at the ends of the drum.

2. Slide the right and left side frames (#7) and (#8) onto the drum shaft
with the side frames turned as shown in drawing.

3. Assemble the cross brace (#3) between the two side frames. Do not
tighten the clamp bolts until after the bearings on the side frames
have the collars locked in place. NOTE: When mounting bearings on a shaft,
always tighten the bearing collar in the direction of shaft rotation using a
center punch or a similar tool.

4. Clamp the hitch (#4) to the center of the cross brace.
ALERT: The 10’ Swath Roller has two additional braces (#31)
clamped to both sides of the hitch.

OPERATION

THEORY OF OPERATION

6

Swath Roller

MAINTENANCE

7

Swath Roller

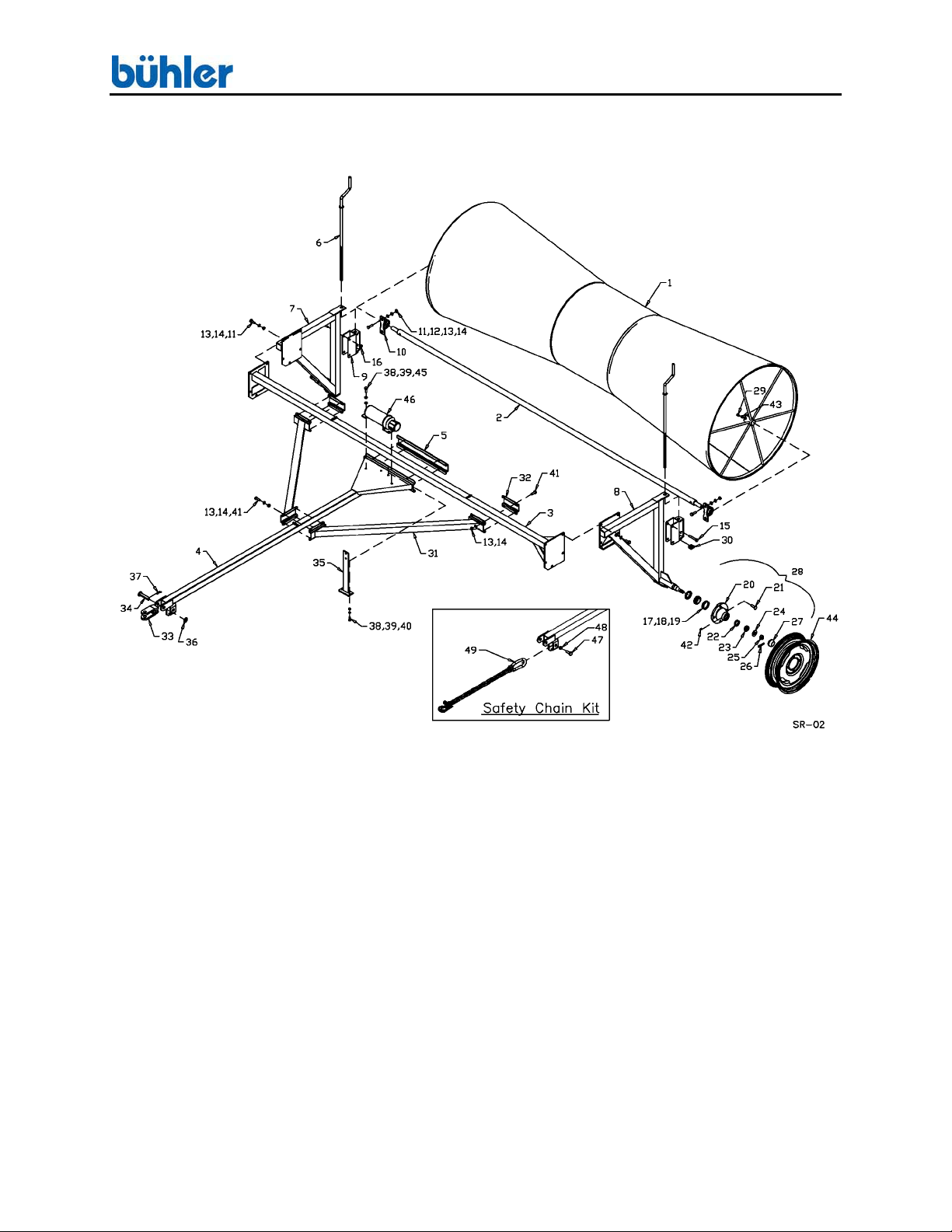

8’ SWATH ROLLER

8

Swath Roller

WHEN ORDERING PARTS

Always give your dealer the Model, Color and Serial Number of your machine to assist
him in ordering and obtaining the correct parts. Use the exploded view and tabular
listing of the area of interest to exactly identify the required part.

8' SWATH ROLLER

ITEM PART # DESCRIPTION

1 F6500 Drum Weldment
2 967501 Drum Shaft Weldment
3 967585 Cross-Brace
4 909958 Hitch Weldment
5 967504 Hitch Clamp (20")
6 967505 Crank Weldment
7 967587 Right Side Frame
8 967588 Left Side Frame

9 967508 Slider Bracket Weldment
10 961792 Housing with Bearing Pillow
11 81599 7/16" x 1 1/2" Hex Bolt (pl)
12 981616 7/16" Flat Washer (pl)
13 81615 7/16" Lock Washer (pl)
14 81614 7/16" Hex Nut (pl)
15 812338 7/16" x 3" Hex Bolt (pl)
16 86273 7/16" Lock Nut (pl)
17 961891 Oil Seal (SE11)
18 967712 Inner Bearing Cone (LM67048)
19 967711 Inner Bearing Cup (LM67010)
20 105173 4-Bolt Hub with Cups
21 968404 1/2" Wheel Bolt
22 968405 Outer Bearing Cup (LM11910)
23 968406 Outer Bearing Cone (LM11949)
24 9812416 Washer (3/4" S.A.E.) (pl)
25 81834 3/4" Slotted Hex Nut (br)
26 9812486 1/8" x 1 1/2" Cotter Pin
27 968409 Dust Cap (DC12)
28 9105173 H411 Hub Assembly
29 81213 3/8" x 1" Square Head Set Screw (pl)
30 967246 5/8" Square Nut (pl)
31 901005 Hitch Clevis
32 901078 Clevis Pin 3/4" x 3 1/2"
33 900368 SMV Mounting Bracket

9

Swath Roller

34 84050 3/4" S.A.E. Flat Washer (pl)
35 9812433 3/16" x 1 1/2" Cotter Pin (pl)
36 812026 5/16" x 1" Hex Bolt (pl)
37 81568 5/16" Hex Nut (pl)
38 81569 5/16" Lock Washer (pl)
39 81598 7/16" x 1 1/4" Hex Bolt (pl)
40 967900 1/4" Grease Fitting
41 81592 3/8" Hex Nut (pl)
42 F7110 15" x 4.5" x 4-Bolt Wheel
43 81549 5/16" x 3/4" Hex Bolt (pl)
44 909277 Manual Holder
45 84467 3/4" Hex Bolt (pl)
46 812365 3/4" Lock Nut (pl)
47 F0420 1/4" Safety Chain

10

Swath Roller

10’ SWATH ROLLER

10' SWATH ROLLER

ITEM PART # DESCRIPTION

1 F6551 Drum Weldment
2 967577 Drum Shaft Weldment
3 967589 Cross-Brace
4 909959 Hitch Weldment
5 967504 Hitch Clamp
6 967505 Crank
7 901146 Right Side Frame
8 901147 Left Side Frame
9 967508 Slider Bracket

10 961792 1" Pillow Bearing

11

Swath Roller

11 81599 7/16" x 1 1/2" Hex Bolt (pl)
12 981616 7/16" BS Flat Washer (pl)
13 81615 7/16" Lock Washer (pl)
14 81614 7/16" Hex Nut (pl)
15 812338 7/16" x 3" Hex Bolt (pl)
16 86273 7/16" Lock Nut (pl)
17 961891 Oil Seal (SE11)
18 967712 Inner Bearing Cone (LM67048)
19 967711 Inner Bearing Cup (LM67010)
20 105173 4-Bolt Hub with Cups
21 968404 1/2" Wheel Bolt
22 968405 Outer Bearing Cup (LM11910)
23 968406 Outer Bearing Cone (LM11949)
24 9812416 Washer (3/4" S.A.E.)
25 81834 3/4" Slotted Hex Nut (br)
26 9812486 1/8" x 1 1/2" Cotter Pin
27 968409 Dust Cap (DC12)
28 9105173 H411 Hub Assembly
29 81213 3/8" x 1" Square Head Set Screw (pl)
30 967246 5/8" Square Nut (pl)
31 967580 Hitch Brace
32 967581 6" Clamp
33 901005 Hitch Clevis
34 901078 Clevis Pin 3/4" x 3 1/2"
35 900368 SMV Mounting Bracket
36 84050 3/4" S.A.E. Flat Washer (pl)
37 9812433 3/16" x 1 1/2" Cotter Pin (pl)
38 812026 5/16" x 1" Hex Bolt (pl)
39 81568 5/16" Hex Nut (pl)
40 81569 5/16" Lock Washer (pl)
41 81598 7/16" x 1 1/4" Hex Bolt (pl)
42 967900 1/4" Grease Fitting
43 81592 3/8" Hex Nut (pl)
44 F7110 15" x 4.5" x 4-Bolt Wheel
45 81549 5/16" x 3/4" Hex Bolt (pl)
46 909277 Manual Holder
47 84467 3/4" Hex Bolt (pl)
48 812365 3/4" Lock Nut (pl)
49 F0420 1/4" Safety Chain

12

Swath Roller

SHIPPING KIT AND BUNDLE NUMBERS

The following is a list of Kit Numbers for this product and the Bundle Numbers,
Descriptions, and Quantities for each Kit.

QUANTITY BUNDLE NO. DESCRIPTION

C800SR 8’ SWATH ROLLER:

1 F6500 Drum Weldment
1 F0897 Frame Bundle
1 F0924 Hitch, Shaft, Brace Bundle
2 F7110 Wheel 15”
1 F0926 Carton of Parts

C1000SR 10’ SWATH ROLLER:

1 F6551 Drum Weldment
1 F0925 Hitch, Shaft, Brace Bundle
1 F0899 Frame Bundle
2 F7110 Wheel 15”
1 F0927 Carton of Parts

13

NOTES

NOTES

Farm King Division
301 Mountain Street S.
Morden, MB R6M 1X7
Ph.: [phone]
Fax: [phone]

Allied/Inland Division
1260 Clarence Avenue
Winnipeg, MB R3T 1T2
Ph.: [phone]
Fax: [phone]

B.I.I. Division
1330 43

rd

Street N.W.
Fargo, ND 58102
Ph: [phone]
Fax: [phone]

B.C., Abbotsford
[phone]

AR, West Memphis
[phone]

GA, Stone Mountain
[phone]

ID, Meridian
[phone]

IN, Clarksville
[phone]

KS, Wichita
[phone]

MN, Lakeville
[phone]

MT, Billings
[phone]

ND, Bismarck
[phone]

ND, Fargo
[phone]

NE, Blair
[phone]

OH, Youngstown
[phone]

OR, Beaverton
[phone]

SD, Huron
[phone]

TX, Houston
[phone]

UT, Salt Lake City
[phone]

WI, Portage
[phone]

AB, Edmonton
[phone]

SK, Regina
[phone]

ON, Woodstock
[phone]

QC, Dorion
[phone]

Buhler Manufacturing

301 Mountain Street S.
Morden MB.
R6M 1X7
Ph.: [phone]
Fax: [phone]

www.buhler.com

Burando Hill
Katanning
W. Australia
011-618-98-214422

Chihuahua, Mexico

011-52-158-90306

John Kerr Equipment Ltd.
Wilcoxholm Farm
Linlithgow, W. Lothian
Scotland
011-441-506-842280

Skovde, Sweden
011-46-500-452651

Naestved, Denmark
011-45-557-29511

Printed in Canada
