Buhler FK351 User Manual

Box Scraper

TABLE OF CONTENTS

DESCRIPTION PAGE

WARRANTY................................................................1

INTRODUCTION .........................................................2

SAFETY.......................................................................3

Safety.....................................................................3

General Safety .......................................................4

Start-up Safety .......................................................4

Operation Safety ....................................................4

Transport Safety.....................................................4

Service and Maintenance Safety............................5

Storage Safety........................................................5

Safety Signs...........................................................5

Safety Sign Installation...........................................5

ASSEMBLY.................................................................6

Assembly Instructions.............................................6

OPERATION ...............................................................6

Theory of Operation of Box Scraper.......................6

MAINTENANCE .......................................................... 7

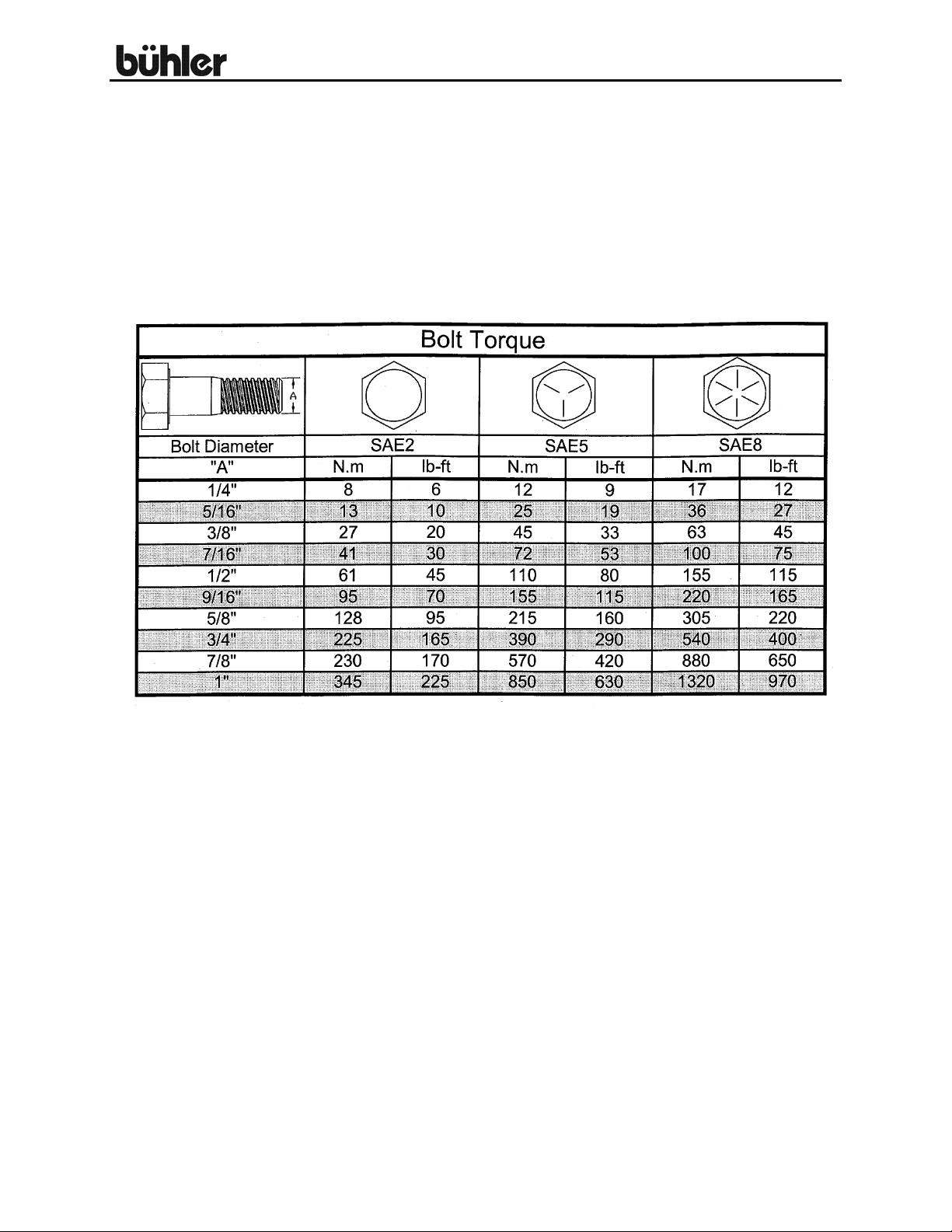

Bolt Torque.............................................................7

PARTS DRAWINGS....................................................8

Box Scraper Drawing..............................................8

Box Scraper Parts List............................................9

SHIPPING KIT AND BUNDLE NUMBERS .................10

Box Scraper

WARRANTY POLICY

Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for
commercial application) from original date of purchase, by original purchaser, to be free from
defects in material and workmanship under correct, normal agricultural use and proper
applications.

Buhler Manufacturing’s obligations under this warranty shall be limited to the repair or
exchange, at Buhler Manufacturing’s option, of any Buhler Manufacturing product or part which
proves to be defective as provided. Buhler Manufacturing reserves the right to either inspect
the product at the buyer’s location or have it returned to the factory for inspection.

The above warranty does not extend to goods damaged or subject to accident, abuse or misuse
after shipment from Buhler Manufacturing’s factory, nor to goods altered or repaired by anyone
other than an authorized Buhler Manufacturing representative.

Buhler Manufacturing makes no Express Warranties other than those, which are specifically
described. Any description of goods, including any references and specifications in catalogues,
circulars and other written material published, is for the sole purpose of identifying goods and
shall conform to such descriptions. Any sample or model is for illustrative purposes only and
does not create an Express Warranty that the goods conform to sample or model shown.

The purchaser is solely responsible for determining suitability of goods sold. This warranty is
expressly in lieu of all other warranties expressed or implied. Buhler Manufacturing will in no
event be liable for any incidental or consequential damages whatsoever. Nor for any sum in
excess of the price received for the goods for which liability is claimed.

WARRANTY CLAIMS:

Warranty requests must be prepared on Buhler Manufacturing Warranty Claim Forms with all
requested information properly completed. Warranty Claims must be submitted within a thirty
(30) day period from date of failure repair.

WARRANTY LABOR:

Any labor subject to warranty must be authorized by Buhler Manufacturing. The labor rate for
replacing defective parts, where applicable, will be credited at 100% of the dealer’s posted shop
rate. Defective parts will receive an extra 10% discount to assist with freight or other incidental
costs.

GOVERNMENT LEGISLATION:

Warranty terms and conditions are subject to Provincial or State legislation.

IMPORTANT FACTS:

Buckets and Bucket Tines Carry No Warranty
Bent Spears Carry No Warranty
Snowblower Fan Shafts Carry No Warranty
Mower Blades Carry No Warranty
Portable Auger Parts Have Two (2) Year Warranty
Loader Parts Have Two (2) Year Warranty

IMPORTANT NOTE: This warranty does not apply to rentals

1

Box Scraper

INTRODUCTION

The Buhler Farm King Box Scraper features two ½” x 6” replaceable, back-to-back
blades to make this a bi-directional scraper. The scarifier shanks are heat treated and
are easily adjusted for depth. The Box Scraper is available in 5’, 6’ & 7’ models. This
product is Quick Hitch compatible.

Keep this manual handy for frequent reference. All new operators or owners must
review the manual before using the equipment at least annually thereafter. Contact your
Buhler Dealer if you need assistance, information, or additional copies of the manual.
Visit our website at www.buhler.com for a complete list of dealers in your area.

The directions left, right, front and rear, as mentioned throughout this manual, are as
seen facing in the direction of travel of the implement.

2

Box Scraper

SAFETY

Remember, YOU are the key to safety. Good safety practices not only protect you, but
also the people around you. Make these practices a working part of your safety
program. Be certain that everyone operating this equipment is familiar with the
recommended operating and maintenance procedures and follows all the safety
precautions. Most accidents can be prevented. Do not risk injury or death by ignoring
good safety practices.

The alert symbol is used throughout this manual. It indicates attention is required and
identifies hazards. Follow the recommended precautions.

The safety alert symbol means…
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

CAUTION

The caution symbol indicates a potentially hazardous situation that, if not
avoided, may result in minor or moderate injury. It may also be used to
alert against unsafe practices.

WARNING

The Warning Symbol indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury, and includes hazards
that are exposed when guards are removed. It may also be used to alert
against unsafe practices.

DANGER

The Danger Symbol indicates an imminently hazardous situation that, if

not avoided will result in death or serious injury. This signal word is to be
limited to the most extreme situations, typically for machine components
that, for functional purposes, cannot be guarded.

3

Box Scraper

GENERAL SAFETY INSTRUCTIONS

Have a first-aid kit available for use and know how to use it.
Have a fire extinguisher available, stored in a highly visible location, and know how to
use it.
Wear appropriate protective gear. This list may include but is not limited to:

- hard hat

- protective shoes with slip resistant soles

- protective glasses or goggles

- heavy gloves

- wet weather gear

- hearing protection

- respirator or filter mask

Read and understand the Operator’s Manual and all safety signs before operating,
servicing, adjusting, repairing, or unplugging the equipment.
Do not attempt any unauthorized modifications to your Buhler product as this could
affect function or safety, and could affect the life of the equipment.
Inspect and clean the working area before operating.
Keep hands, feet, clothing, and hair away from moving parts.
Ensure bystanders are clear of the area before operating.

START-UP SAFETY

Do not let inexperienced operators or children run this equipment.
Operate only with ROPS and seatbelt equipped tractors.

OPERATION SAFETY

Do not permit riders.
Do not wear loose fitting clothing during operation.

TRANSPORT SAFETY

Review Transport Safety instructions in tractor manual before moving.
Check with local authorities regarding transport on public roads. Obey all applicable
laws and regulations.
Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that
are required by the local highway and transport authorities are in place, are clean, and
can been seen clearly by all overtaking and oncoming traffic.

4

Box Scraper

SERVICE AND MAINTENANCE SAFETY

Stop engine, set brake, remove ignition key, and wait for all moving parts to stop before
servicing, adjusting, repairing, or unplugging.
Support the equipment with blocks or safety stands before working beneath it.
Follow good shop practices including:

- keep service area clean and dry

- be sure electrical outlets and tools are properly grounded

- use adequate light for the job

Use only tools, jacks, and hoists of sufficient capacity for the job.
Use heavy leather gloves to handle sharp objects.

STORAGE SAFETY

Store the unit in an area away from human activity.
Do not permit children to play on or around the stored machine.
Support the frame on stands and blocks to provide a secure base.

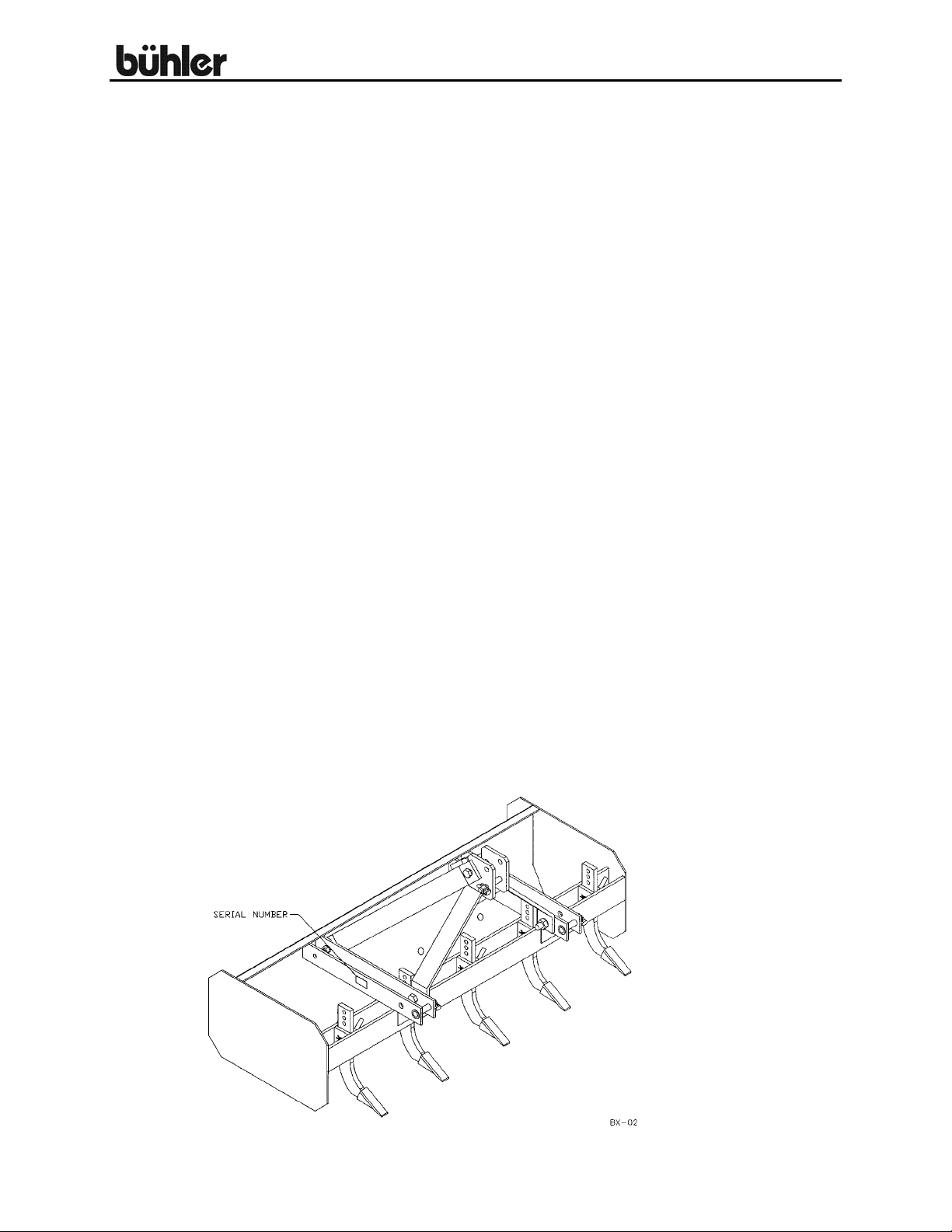

SAFETY SIGNS

The following illustration shows the approximate location and detail of safety signs.
Keep all safety signs clean and legible and replace any that are damaged or missing.
When original parts are replaced, any safety signs affixed to those parts should be
replaced as well. Replacement safety signs are available from your local dealer.

INSTALLATION OF SAFETY SIGNS

To install safety signs, ensure the installation area is clean and dry. Decide on the
exact position before you remove the backing paper. Remove the smallest portion of
the split backing paper and align over the specified area. Carefully press in place.
Slowly peel back the remaining paper and smooth the remaining portion in place. Small
air pockets can be pierced with a pin and smoothed out.

5

Box Scraper

ASSEMBLY

1. Bolt the hitch (#2) and hitch braces (#3) to the frame (#1) using hardware
supplied.

2. Use the position or draft mode on the three-point control to make a cut at
constant depth. Use float when you want the scraper to follow the contour of
the ground. The weight of the scraper itself will keep the blade at the desired
depth.

3. Use the scarifier shanks to break up hard or packed surfaces. If it is
necessary to add weight to the blade, use a maximum of 200 lbs.

4. The two blades allow the operator to scrape or level in either direction. The
shanks should be used to break up compacted material ahead of the blade.

OPERATION

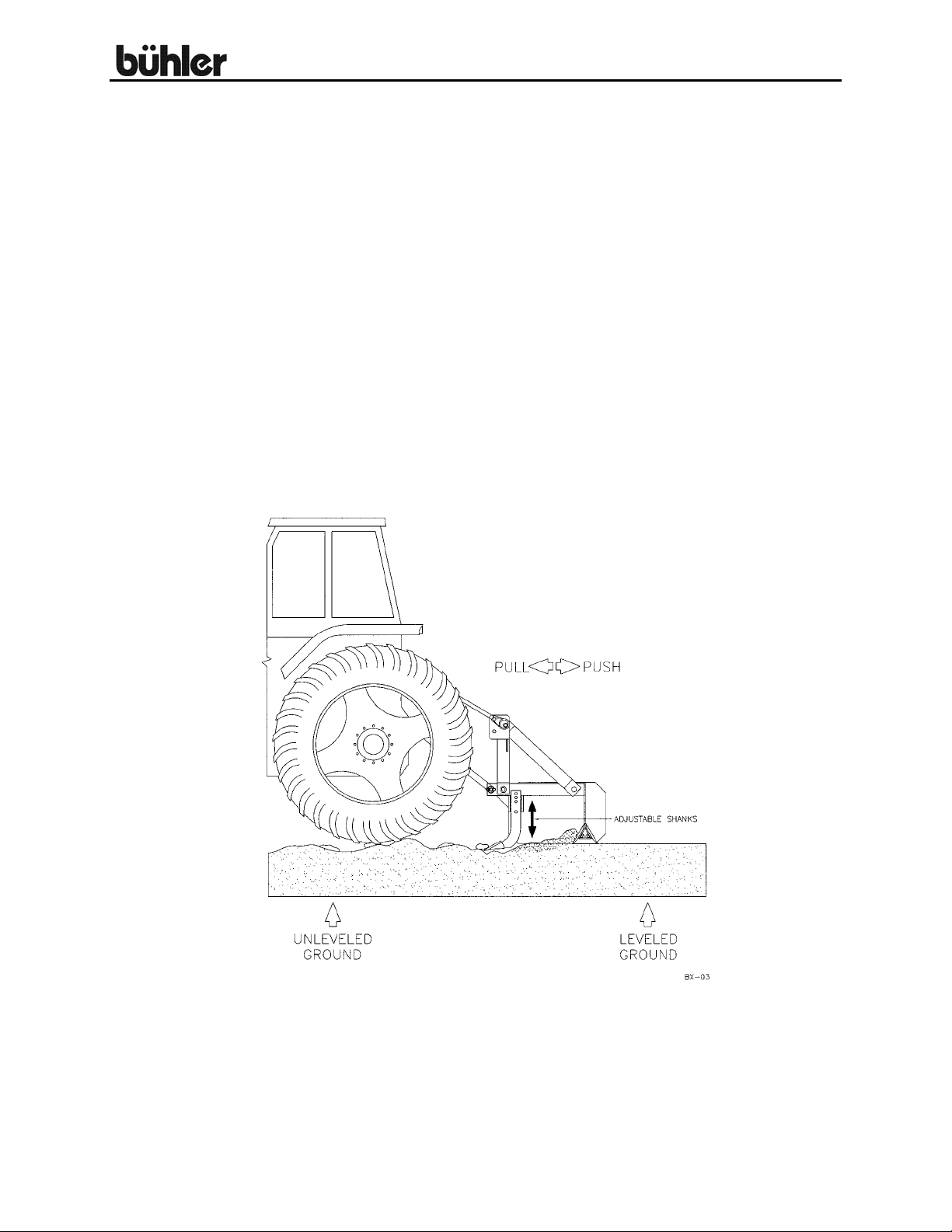

THEORY OF OPERATION

1. Raise the Box Scraper off the ground.

2. Securely block up the frame.

3. Remove shank pins.

4. Install, adjust height or remove as desired. Always keep shanks at the same
depth for best results.

5. Install shank pins.

6

Box Scraper

MAINTENANCE

1. Raise the Box Scraper off the ground.

2. Securely block up the frame.

3. Remove blade mounting bolts.

4. If the top side of the blade has not been used, reverse and reattach. If it has
been used, replace blade.

5. Install mounting bolts and re-tighten.

7

Box Scraper

8

Box Scraper

WHEN ORDERING PARTS

Always give your dealer the Model, Color and Serial Number of your machine to assist

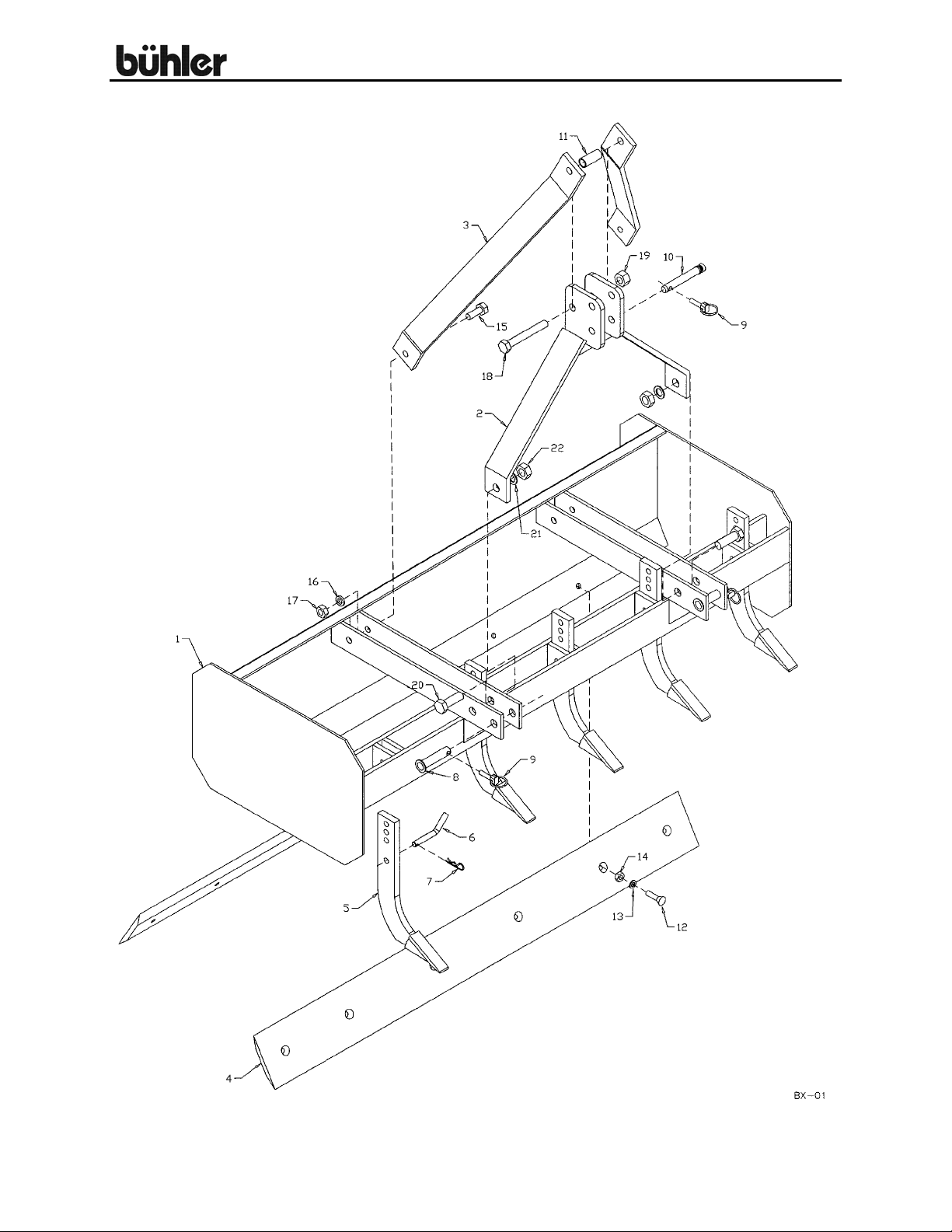

him in ordering and obtaining the correct parts. Use the exploded view and tabular
listing of the area of interest to exactly identify the required part.

BOX SCRAPER PARTS LIST

ITEM PART # DESCRIPTION

1 909628 48" Box Frame

2 F0351 Hitch Weldment
3 906748 Hitch Brace 1/2'' x 3'' x 27 3/4''
4 909622 48" Cutting Edge

5 967576 Scarifier Shank
6 967556 Shank Pin 9/16'' x 5''

7 961012 #16 Hair Pin Clip
8 967361 7/8'' x 4'' Clevis Pin

9 965911 7/16'' Linch Pin
10 965807 Category 1 Top Link Pin
11 906770 Spacer 1''OD x 12GA x 2 1/4'' Long (pl)
12 967524 1/2'' x 1 1/2'' Plow Bolt (pl)
13 81637 1/2'' Lock Washer (pl)
14 81636 1/2'' Hex Nut (pl)
15 84270 5/8'' x 1 3/4'' Hex Bolt (pl)
16 81677 5/8'' Lock Washer (pl)
17 81676 5/8'' Hex Nut (pl)
18 812114 3/4'' x 5 1/2'' Hex Bolt (pl)
19 812365 3/4'' Lock Nut (pl)
20 966527 7/8'' x 2 1/2'' Hex Bolt (pl)
21 81723 7/8'' Lock Washer (pl)
22 81722 7/8'' Hex Nut (pl)

967551 60'' Box Frame
967552 72'' Box Frame
967553 84'' Box Frame

967520 60'' Cutting Edge
967521 72'' Cutting Edge
967522 84'' Cutting Edge

967470 Knock-on Point Only

9

Box Scraper

SHIPPING KIT AND BUNDLE NUMBERS

The following is a list of Kit Numbers for this product and the Bundle Numbers,
Descriptions, and Quantities for each Kit.

QUANTITY BUNDLE NO. DESCRIPTION

Y48BS 48” BOX SCRAPER

1 F0351 Hitch
1 F0801 Frame

Y60BS 60” BOX SCRAPER

1 F0351 Hitch
1 F0368 Frame 60”

Y72BS 72” BOX SCRAPER

1 F0351 Hitch
1 F0369 Frame 72”

Y84BS 84” BOX SCRAPER

1 F0351 Hitch
1 F0370 Frame 84”

OPTIONAL BUNDLE NUMBERS

The following is a list of options available for the Kits listed above.
967576 Scarifier Shank

10

NOTES

Farm King Division
301 Mountain Street S.
Morden, MB R6M 1X7
Ph.: [phone]
Fax: [phone]

Allied/Inland Division
1260 Clarence Avenue
Winnipeg, MB R3T 1T2
Ph.: [phone]
Fax: [phone]

B.I.I. Division
1330 43

rd

Street N.W.
Fargo, ND 58102
Ph: [phone]
Fax: [phone]

B.C., Abbotsford
[phone]

AB, Edmonton
[phone]

SK, Regina
[phone]

ON, Woodstock
[phone]

QC, Dorion
[phone]

AR, West Memphis
[phone]

GA, Stone Mountain
[phone]

ID, Meridian
[phone]

IN, Clarksville
[phone]

KS, Wichita
[phone]

MN, Lakeville
[phone]

MT, Billings
[phone]

ND, Bismarck
[phone]

Burando Hill
Katanning
W. Australia
011-618-98-214422

011-52-158-90306

Chihuahua, Mexico

ND, Fargo
[phone]

NE, Blair
[phone]

OH, Youngstown
[phone]

OR, Beaverton
[phone]

SD, Huron
[phone]

TX, Houston
[phone]

UT, Salt Lake City
[phone]

WI, Portage
[phone]

John Kerr Equipment Ltd.
Wilcoxholm Farm
Linlithgow, W. Lothian
Scotland
011-441-506-842280

Skovde, Sweden
011-46-500-452651

Naestved, Denmark
011-45-557-29511

Buhler Manufacturing

301 Mountain Street S.
Morden MB.
R6M 1X7
Ph.: [phone]
Fax: [phone]

www.buhler.com

Printed in Canada
