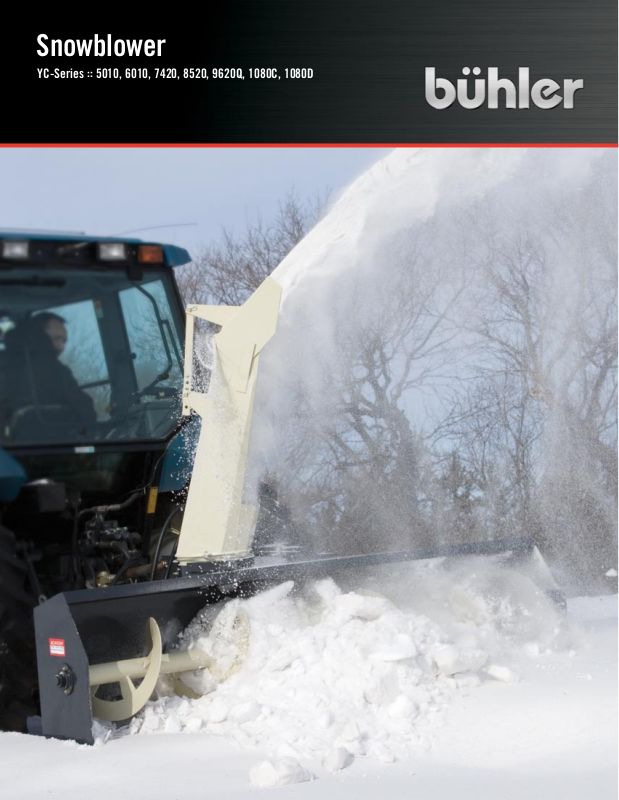

Snowblower
YC-Series :: 5010, 6010, 7420, 8520, 9620Q, 1080C, 1080D
Snowblower
YOUR RELIABLE WINTER WORKHORSE
MODEL YC5010 YC6010 YC7420 YC8520 YC9620Q YC1080C YC1080D
Cutting width 50" 60" 74" 85" 96" 108" 108"
Cutting height 25" 25" 30" 33" 36" 41" 41"
Replaceable cutting edge N/A N/A N/A N/A N/A Yes Yes
Fan
- 3-blade
- 4-blade
Fan diameter 20" 22" 24" 25" 34" 36" 36"
Replaceable fan housing N/A N/A N/A N/A N/A 7 gauge 7 gauge
Drive fan 540 rpm
Auger diameter 13" 15" 15" 15" 15" (dual) 15" (dual) 15" (dual)
Auger drive #50 chain #50 chain #50 chain #60 chain #60 chain #80 chain #80 chain
Spout rotator
- manual (hand crank)
- hydraulic
Spout deector
- manual (6 position)
- hydraulic
Skid shoes Adjustable and
Hitch category Cat. I standard Cat. I standard Cat. I std
Hitch adjustment 4 position 4 position 2 position 2 position Fixed 2 position 2 position
HP requirement 15 - 30 20 - 40 40 - 70 60 - 90 90 - 125 120 - 180 120 - 180
Weight 422 lbs 470 lbs 756 lbs 966 lbs 1243 lbs 2398 lbs 2314 lbs
Standard
Optional
open gear
Standard
Optional
Standard
Optional
replaceable
Standard
Optional
540 rpm
open gear
Standard
Optional
Standard
Optional
Adjustable and
replaceable
Standard
Optional
540 rpm
open gear
Optional
Standard
Standard
Optional
Adjustable and
replaceable
Cat. II bushings
Cat. I & II heavy
frame optional
Standard
Optional
540 rpm
oil bath gearbox
Optional
Standard
Standard
Optional
Adjustable and
replaceable
Cat. II std
Cat. II Q.H. std
Cat. III Q.H. narrow
Standard
Optional
540 rpm
oil bath gearbox
Optional
Standard
Standard
Optional
Adjustable and
replaceable
Cat. II std
Cat. II Q.H. std
Cat. III Q.H. narrow
N/A
Standard
1000 rpm
oil bath gearbox
N/A
Standard
N/A
Standard
Adjustable and
replaceable
Cat. II std
Cat. III Q.H. std
Cat. III Q.H. narrow
N/A
Standard
540 rpm
direct drive
N/A
Standard
N/A
Standard
Adjustable and
replaceable
Cat. II std
Cat. III Q.H. std
Cat. III Q.H. narrow
Buhler snowblowers are built to work hard for many winters to
come. Designed to be durable and rugged, Buhler Allied snowblowers oer excellent value in a snowblower that will stand the
test of time.
With weights ranging from 422 lbs to nearly 2400 lbs, Buhler
Allied snowblowers are among the heaviest in their class, built
with heavy-gauge steel to enhance durability. e gearbox in
the YC8520, YC9620Q and YC1080C is housed in a sealed oil
bath that is resistant to heat, moisture and debris. e YC1080C
is designed for tractors with a 1000 RPM PTO, while the
YC1080D has a direct drive gearbox developed for large tractors equipped with a 540 RPM PTO. Smaller models feature a
durable open gearbox system. e PTO and sprocket to the main
auger are protected from damage by shear bolts. e YC1080C
and YC1080D have a replaceable cutting edge and fan housing.
Most models feature an adjustable hitch to accommodate the
length and height of the 3-point hitch on the tractor, which
reduces stress and increases the lifespan of the PTO sha. All
models are quick hitch compatible. ree blade or four blade
fans are available. e spout rotation is controlled by a hand
crank or hydraulic cylinder kit, depending on the model. e
spout deector is controlled by a 6-position manual adjustment
or with a hydraulic cylinder kit. e manual adjustment does not
require tools. Hydraulic spout rotators and deectors are standard on the YC1080C and YC1080D, which are available with
7' or 10' extended spouts for truck loading.
[1] Adjustable and replaceable skid shoes are standard equipment.
[2] The open gear setup on the YC5010, YC6010 and YC7420 models is
easy to maintain and service. (Shown with shield removed)
[1]
[3] Chain drive is easily accessible for routine maintenance.
[4] 50" and 60" models are equipped with hand crank spout rotators.
Hydraulic cylinder kits are optional.
[3]
[2]
[4]
Established in 1933 as an agricultural equipment manufacturer, Standard Gas Engine Works was purchased by John Buhler in 1969. Through steady
expansion, new products and acquisitions, the company has experienced steady growth and has evolved into one brand name: Buhler. Over the years,
many brands have joined the Buhler family: Farm King, Allied, Inland and Versatile. Buhler maintains several well-stocked parts warehouses and is
committed to continuous product improvement and incorporating new value-added features. That tradition of excellence will continue well into the future.
301 Mountain Street South
Morden :: Manitoba Canada R6M 1X7
Ph.: 204.822.4467 :: Fax: 204.822.6348
Toll Free: 888.524.1004
E-mail: info@buhler.com
www.buhler.com
TSX:BUI
Equipment shown is subject to change without notice.
©2007 Buhler Manufacturing. Printed in Canada.
Ref: 072007-5000-PG
