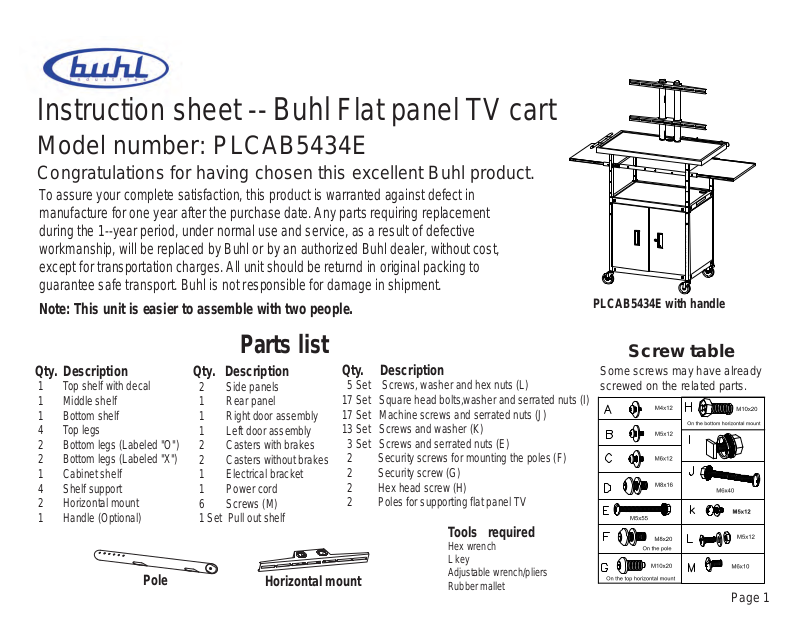

Page 1
Instruction sheet --
Buhl
Flat panel TV cart
Model number: PLCAB5434E
Congratulations for having chosen this excellent Buhl product.
To assure your complete satisfaction, this product is warranted against defect in
manufacture for one year after the purchase date. Any parts requiring replacement
during the 1--year period, under normal use and service, as a result of defective
workmanship, will be replaced by Buhl or by an authorized Buhl dealer, without cost,
except for transportation charges. All unit should be returnd in original packing to
guarantee safe transport.
Buhl
is not responsible for damage in shipment.
Note: This unit is easier to assemble with two people.
Parts list
Qty. Description
1 Top shelf with decal
1 Middle shelf
1 Bottom shelf
4 Top legs
2 Bottom legs (Labeled "O")
2 Bottom legs (Labeled "X")
1 Cabinet shelf
4 Shelf support
2 Horizontal mount
1 Handle (Optional)
Pole
Qty. Description
2 Side panels
1 Rear panel
1 Right door assembly
1 Left door assembly
2 Casters with brakes
2 Casters without brakes
1 Electrical bracket
1 Power cord
6 Screws (M)
1 Set Pull out shelf
Horizontal mount
Qty. Description
5 Set Screws, washer and hex nuts (L)
17 Set Square head bolts,washer and serrated nuts (I)
17 Set Machine screws and serrated nuts (J)
13 Set Screws and washer (K)
3 Set Screws and serrated nuts (E)
2 Security screws for mounting the poles (F)
2 Security screw (G)
2 Hex head screw (H)
2 Poles for supporting flat panel TV
PLCAB5434E with handle

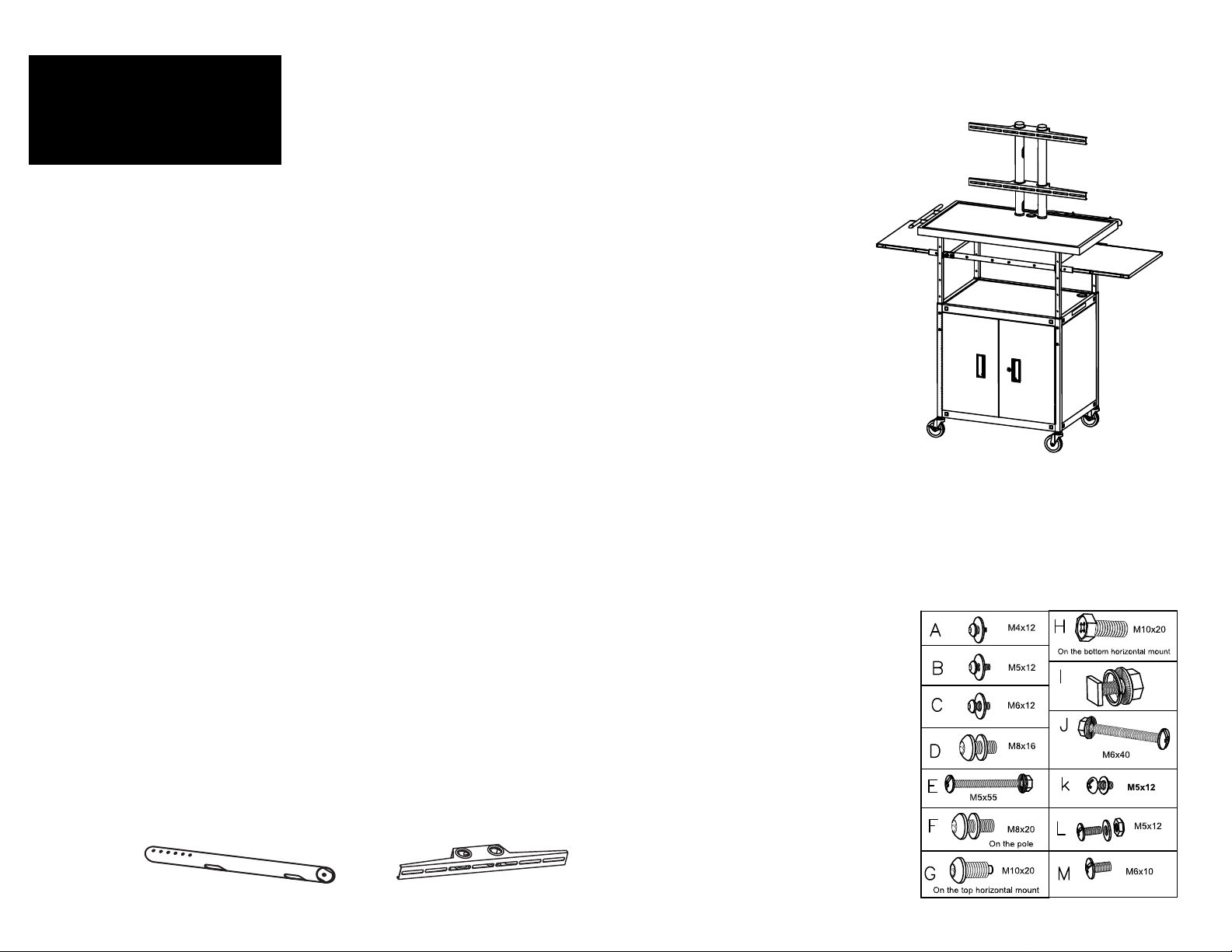

Screw table
Some screws may have already
screwed on the related parts.
Tools required
Hex wrench
L key
Adjustable wrench/pliers
Rubber mallet
Page 1
Page 2

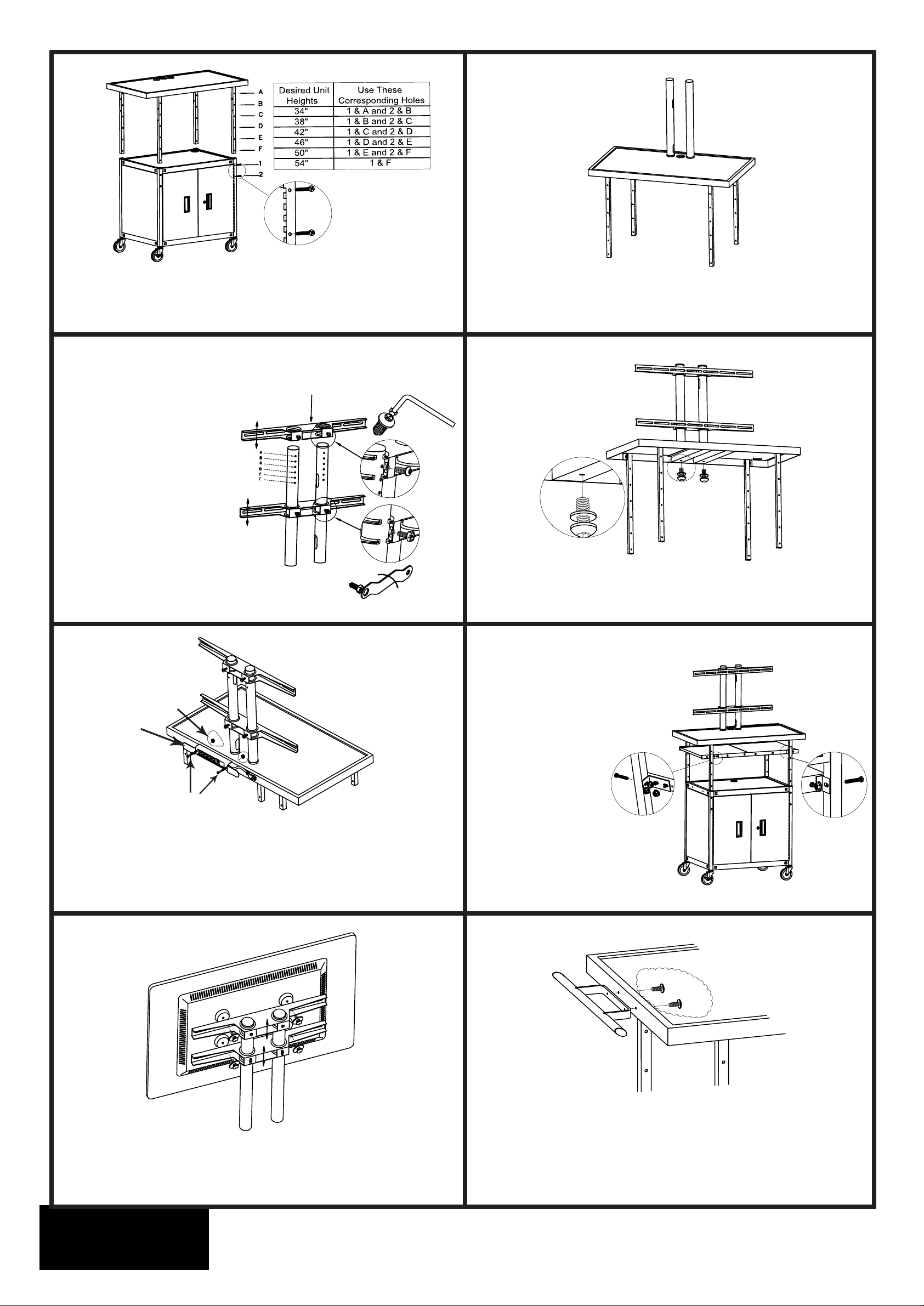

11.
Put the top section assembly over the bottom section at desired
height. Tighten the top section onto the bottom with two screws
(see screw table J) on each leg as shown.
12.
Insert the two supporting poles onto the holes on top shelf. Wire
holes can face inside or outside.
13.
Insert the two horizontal
Top horizontal mount
mounts onto the supporting
poles. Note: The mount with
adjustable screw(see screw
table H) should go on the
bottom. Screw(see screw
table G) the top mount to
desired height from A to F.
Bottom horizontal mount
Adjust the bottom horizontal
mount height according to
the TV screw position as
shown.
Nuts
Electrical
bracket wings
Bolts
15.
Electrical bracket assembly instruction
A. Push power cord into cord winder bracket.
B. Attach electrical bracket to back side of top shelf with two nuts
and bolts (see screw table E). Tighten nuts and bolts securely.
Wrap power cord around wings of the bracket.
14.
Tighten the two supporting poles onto the top shelf with two
security screws as shown (see screw table F).
16
.
Pull out shelf assembly
Adjust the length of the
pull out shelf as shown
on Fig. A by loosing the
screws and tightening
again so that the width
of the pull out shelf
matches the width of
the cart. Tighten the pull
Fig. A
Fig. B
out shelf to the cart with
the screws (see screw
table J) as shown on
Fig. A and Fig. B.
17.
Use the appropriate security screws needed (M4, M5, M6 or M8,
see screw table A,B,C or D) to fasten the flat panel TV onto the
horizontal mounts as shown.
A Division of Vcom MM Corp.
South Hackensack, NJ 07606, USA
Tel.:(800)631-0868
18.
The handle assembly instruction (Optional)
A. Unscrew the scews from the handle.
B. Attach the handle to the top shelf (either side) and tighten
handle to the shelf with screws from the inside under the shelf
as shown.
If any parts or hardware are missing or damaged, Do Not
Return the unit to your dealer. Call the Buhl helpline at
(800)742-5672 for immediate parts replacement.
Page 3
Page 3

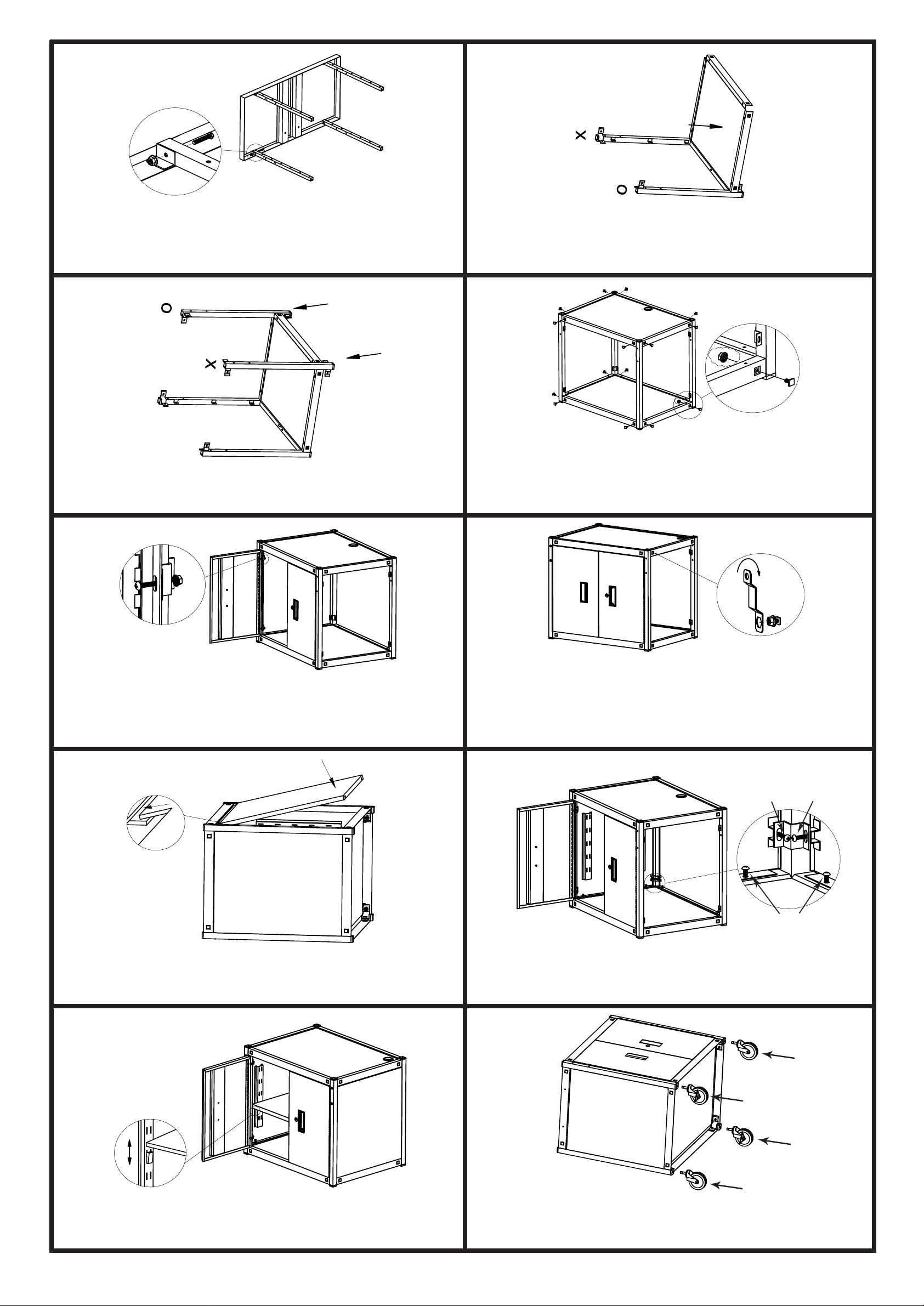

1.
Insert top legs (legs with no wing bracket) onto top shelf (biggest
shelf with decal). Make sure the holes are facing from front to
back (shelf with decal is the front). Tighten top legs with screws
and serrated nuts (see screw table J) as shown.
3.
Slide the two remaining bottom legs onto the bottom shelf.
2.
Lay two bottom legs marked "O" and "X" on floor with bracket
facing inward. Make sure holes on the legs are facing up and
down. Slide the width side of the bottom shelf (shelf without wire
hole) onto the brackets.
4.
Slide the middle shelf onto the brackets and HANG TIGHTEN the
shelves with screws (see screw table I) as shown. Make sure
washer and nuts are together on the inside of the wing brackets.
Do Not Tighten Completely At This Time.
5.
Install the two doors onto the frame with two machine screws
( see screw table L ) on each side as shown. Do Not Tighten
Completely At This Time. Adjust the doors to make sure they
close and lock OK.
7.
Slide the cabinet panels onto the sides and back as shown.
6.
In order to have the unit properly aligned, close and lock the doors. Stand
unit upright on a level surface. Gently rock unit left and right to realign
and level the unit. Tighten the four screws for the doors first.
TIGHTEN ALL NUTS AND BOLTS WITH WRENCHES AT THIS TIME AS
SHOWN. Unit should now be properly aligned and level. If unit is not level
at this time, repeat the above steps before proceeding to step 7.
Then
Screw K
Screw M
8.
Fasten the cabinet panels (see screw table K & M) onto the cart as
shown.
9.
Insert shelf support to desired height. Put the cabinet shelf on top
of the shelf support as shown.
( Instructions continued on next page )
10.
Insert casters with brakes into opposite corner holes on the
bottom of the unit as shown. Insert the other casters into the
remaining holes.
