Buffalo Tools PS07570 Assembly & Operating Instructions

PS07570

201205

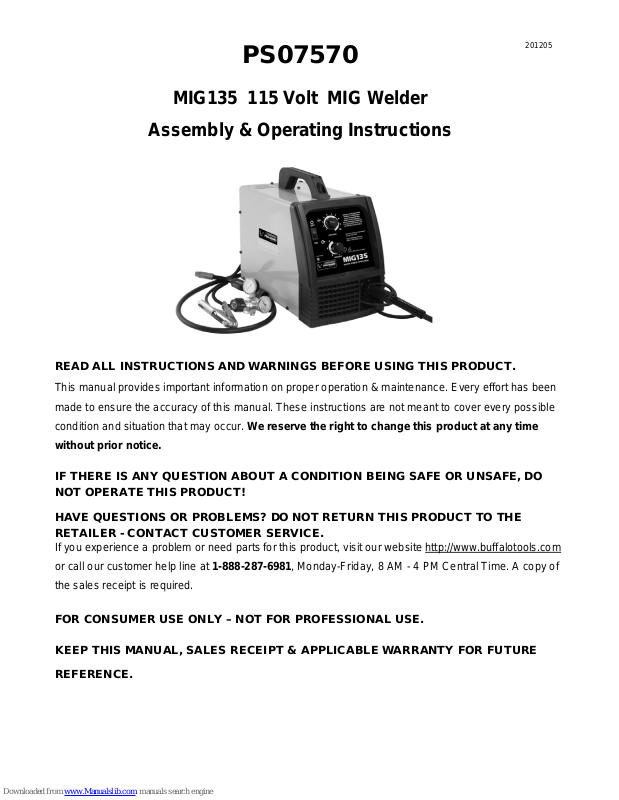

MIG135 115 Volt MIG Welder

Assembly & Operating Instructions

READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.

This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time
without prior notice.

IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO
NOT OPERATE THIS PRODUCT!

HAVE QUESTIONS OR PROBLEMS? DO NOT RETURN THIS PRODUCT TO THE
RETAILER - CONTACT CUSTOMER SERVICE.

If you experience a problem or need parts for this product, visit our website http://www.buffalotools.com
or call our customer help line at 1-888-287-6981, Monday-Friday, 8 AM - 4 PM Central Time. A copy of
the sales receipt is required.

FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.

KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.

GENERAL PRODUCT SPECIFICATIONS

Wire
Power On/Off

Heat Voltage

Cable/Ground
Clamp

SPECIFICATIONS

4 Voltage Settings For Fine Adjustment
Input 115V, 60HZ, 20A
Max output 18V Dc
OCV: 29V Dc
Rated Welding Current: 88A at 20% Duty Cycle
Welding Current Adjustment Range 20-88A (PEAK 135A)
Welds Mild Steel Between 24 gauge To 3/16”
In A Single Pass
Self-Resetting Thermal Overload & Motor Protection
Worki ng Air Pr essure Range is 40-90psi

FEATURES:

Includes 10 ft MIG Gun (TWECO)
8 Ft Power Cord

9.8 Ft Ground Cable With Clamp
Dual Gauge Regulator With Gas Hose
3 Pieces .030 Contact Tips

0.5 kgs Flux Core Wire

0.5 kgs MIG Wire
5 kgs Spool Adapter

Speed/
Amperage

This product contains chemicals known to the State of California to cause cancer
and birth effects or other reproductive harm.
KEEP THIS MANUAL, SALES RECEIPT & APPLICA BLE WARRANTY FOR FUTURE
REFERENCE.
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.

When unpacking, check to make sure all parts listed are included. If any parts are missing or broken,
please call Customer Service at 1-888-287-6981.

FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE

SAVE THESE INSTRUCTIONS FOR FUTURE REFE RENCE.

This manual contains important information regarding safety, operation, maintenance and storage of this
product. Before use, read carefully and understand all warnings, cautions, instructions and labels.
Failure to do so could result in serious personal injury, property damage or even death.

IMPORTANT SAFET Y RU L ES

PS07570 MIG135 115 V MIG W el der As sem bly & Operating Instructions Ma nu al

2

COMMON SENSE AND CAUTION ARE FACTORS WHICH CANNOT BE BUILT INTO ANY PRODUCT.

cause you to lose control.

hands of untrained users.

Z49.1 safety standard) while cutting to protect your eyes from harmful UV and IR ray’s.

THESE FACTORS MUST BE SUPPLIED BY THE OPERATOR.

Keep your work area clean and well lit. Cluttered work benches and dark work areas may cause
accidents or injury.

Keep bystanders, children and visitors away while operating the compressor. Distractions can

Do not force tool. Use the correct tool for your application. The correct tool will do the job better and

safer at the rate for which it is designed.

Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the

Use common sense while operating this welder.

Do not use this tool if you are:

• Feeling tired or are under the influence of alcohol or drugs.

• Wearing loose clothing or jewelry. Keep long hair pulled back and away from moving parts.

• Overreaching or have improper footing. Handling the tool in this way could cause serious injury.

• Wear the proper safety equipment, such as safety goggles, dust masks, non-skid shoes, etc.

• Check to be sure all adjusting keys or wrenches have been removed before use.

Safety glasses and ear protection must b e worn during operation. Wear eye protection (see ANSI

Read the manual carefully. Learn the tool's applications and limitations, as well as specific potential
hazards peculiar to it.

Ground all tools. If the tool is equipped with three-pin plug, it should be plugged into a three-pin
electrical socket. Never remove the ground pin.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is
an increased risk of electric shock if your body is grounded.

Do not expose tool to moisture. Don't use this tool in damp or wet locations: Keep out of rain.
Do not abuse cord. Never use the cord to carry tools or pull the plug from an outlet. Keep cord away

from heat, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.

Don't overreach. Keep proper footing and balance at all times when operating this tool.
Disconnect the tool from power source before making any adjustments, storing, servicing, or

changing accessories. This will reduce the risk of starting the tool accidentally.
Do not force tool. Use the correct tool for your application. The correct tool will do the job better and

safer at the rate for which it was designed.

PS07570 MIG135 115 V MIG W el der As sem bly & Operating Instructions Ma nu al

3
