Page 1
! ! !
!

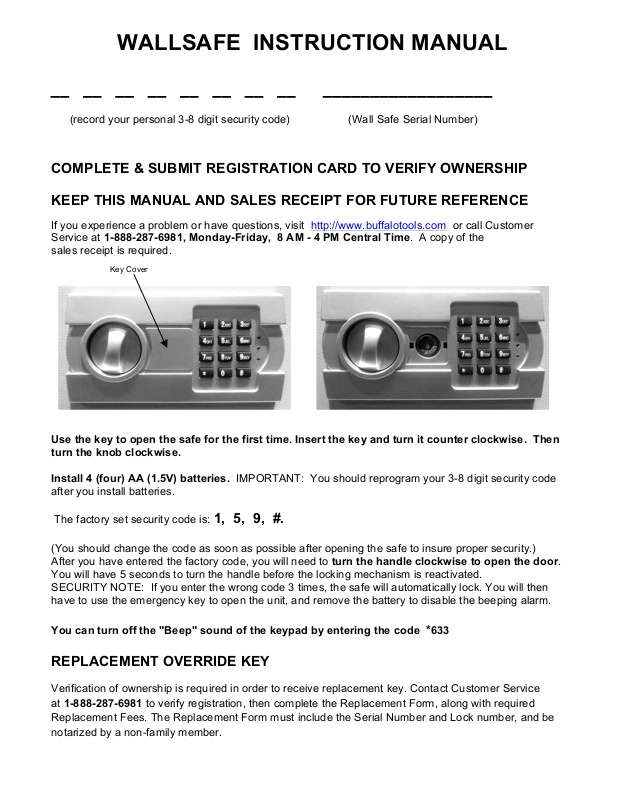

WALLSAFE INSTRUCTION MANUAL
__ __ __ __ __ __ __ __ __________________
(record your personal 3-8 digit security code) (Wall Safe Serial Number)
COMPLETE & SUBMIT REGISTRATION CARD TO VERIFY OWNERSHIP
KEEP THIS MANUAL AND SALES RECEIPT FOR FUTURE REFERENCE
If you experience a problem or have questions, visit http://www.buffalotools.com or call Customer
Service at 1-888-287-6981, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the
sales receipt is required.
Use the key to open the safe for the first time. Insert the key and turn it counter clockwise. Then
turn the knob clockwise.
Install 4 (four) AA (1.5V) batteries. IMPORTANT: You should reprogram your 3-8 digit security code
after you install batteries.
The factory set security code is: 1, 5, 9, #.
(You should change the code as soon as possible after opening the safe to insure proper security.)
After you have entered the factory code, you will need to turn the handle clockwise to open the door.
You will have 5 seconds to turn the handle before the locking mechanism is reactivated.
SECURITY NOTE: If you enter the wrong code 3 times, the safe will automatically lock. You will then
have to use the emergency key to open the unit, and remove the battery to disable the beeping alarm.
You can turn off the "Beep" sound of the keypad by entering the code *633
REPLACEMENT OVERRIDE KEY
Verification of ownership is required in order to receive replacement key. Contact Customer Service
at 1-888-287-6981 to verify registration, then complete the Replacement Form, along with required
Replacement Fees. The Replacement Form must include the Serial Number and Lock number, and be
notarized by a non-family member.
Key Cover
Page 2
! ! !
!
ENTERING YOUR SECURITY CODE
To change the security code and use your own personal code, follow the steps listed below.
1. After opening the electronic safe door (using the preset factory code of 1, 5, 9, #), locate the small
red button on the inside of the door near the hinge.
2. Press the red button and then release it. You will hear a beep. The yellow light on the faceplate
will be activated and will stay on for a period of time that should allow you to enter your code.
Enter your new 3-8 digit code, followed by the # key.
DO NOT SHUT THE DOOR UNTIL YOU HAVE CONFIRMED THAT THE NEW SECURITY
CODE HAS BEEN ENTERED CORRECTLY.
If the code fails, follow steps 1 and 2 again. If the code works successfully, record your combination
number on the front of this form or somewhere in your records, then lock the safe. When you open the
safe in the future, enter the security code you have set followed by the “#” symbol. If the incorrect
security code is entered 3 times, you will have an automatic lockout for 20 seconds before you can try
your code again. If the incorrect security code is entered 3 additional times, there will be a 5-minute
lockout before the code can be retried.
BATTERY INSTALLATION
This lock requires 4 AA batteries. Under normal use, batteries will last about 1 year. If you press any
button on the keypad and a red light comes on, this indicates the battery is low and it should be replaced.
To replace the battery, remove the cover by pressing the tab and turning the cover. Replace the old
battery and screw the cover back in place.
OVERRIDE KEY
An “Override Key” has been included in the event that you have forgotten or lost your security code.
Please record the number of your key in a safe location in the event the key needs to be replaced in the
future. To open the safe using the override key, follow the steps below:
1. Remove the cover by turning the cover as shown in the illustration. The lock can hang by the
connecting cable while unlocking the safe.
2. Insert the key in the key hole and turn clockwise 1/4 turn (until stopped) to unlock the safe.
3. Keep the door open until you have entered a new security code. Before entering your new
security code, remove the key and screw the cover back in place.
4. Enter your new security code.
WALL MOUNT INSTRUCTIONS
Follow this guide when installing the safe in a wood-framed wall
(with 16" centers), covered with wall board and using the included 4
wood screws. Other wall types may require professional installation.
Locate a space which has sufficient depth to encase the safe.
Position the safe where you want it, and draw marks through the
four mounting holes. Predrill the holes, then mount the safe with
wood screws. Add shims if it does not fit snuggly. Thread the
screws into place and tighten. Cut a hole in the wall the same size
as the back of the safe. Use filler blocks and a bottom support if
required. Mount the safe to the studs from the inside of the
safe side wall.
Not Fire Resistant or Fire Proof
