Buffalo Technology TS-RXL, TSXE80TLR5 User Manual

Download
Network Attached Storage
TeraStation User Manual
www.buffalotech.com
35011187 ver.02
Contents
Chapter 1 Diagrams and Layout ....................................................................5
TeraNavigator Setup .....................................................................................................................................5
Chapter 2 Using your TeraStation ................................................................. 13
Chapter 3 Changing RAID Modes .................................................................. 18
Chapter 4 Adding an External Hard Drive .................................................... 27
Chapter 5 Removing External Hard Drives ................................................... 30
TeraStation User Manual 1
TeraStation User Manual 2
Chapter 6 Backup ........................................................................................... 32
Chapter 7 Conguring Access Restrictions ...................................................42
Chapter 8 Managing your TeraStation .......................................................... 59
Name, Date and Time ...................................................................................................................................59
Chapter 9 Extensions ..................................................................................... 77
TeraStation User Manual 3
Accessing from a NFS Client ......................................................................................................................100
Encrypting Data Transmission ...................................................................................................................103
Wake on LAN ...................................................................................................................................................105
Chapter 10 NAS Navigator2 ........................................................................... 106
Mac OS X 10.3.9 or later ..............................................................................................................................110
Chapter 11 Software ...................................................................................... 111
NAS Navigator2 ..............................................................................................................................................111
File Security Tool .............................................................................................................................................111
NS-SHFT .............................................................................................................................................................112
EXT3 Reader .....................................................................................................................................................113
Chapter 12 List of Settings in the Web Admin interface ..............................114
Common items (left side of the screen) .................................................................................................114
Shared Folders ................................................................................................................................................114
Users/Groups ...................................................................................................................................................117
Network .............................................................................................................................................................119
System ................................................................................................................................................................123
Extensions ........................................................................................................................................................137
Appendix ........................................................................................... 139
Assign as Network Drive (Windows) .......................................................................................................139
Mount as a Network Drive (Mac OS X 10.3.9 or later) .......................................................................140
Specications ..................................................................................................................................................141
Factory Defaults..............................................................................................................................................142
Software ............................................................................................................................................................143
Info Folder ........................................................................................................................................................145
LCD Display .....................................................................................................................................................146
Troubleshooting .............................................................................................................................................150
Data Backup .....................................................................................................................................................151
GPL Information .............................................................................................................................................151
Update the TeraStation’s Firmware ..........................................................................................................152
Glossary .............................................................................................................................................................153
Compliance Information .............................................................................................................................155
TeraStation User Manual 4
Chapter 1
1
2
3
1
2
3
1
2
3
Diagrams and Layout

TeraNavigator Setup

To congure your TeraStation, insert the TeraNavigator CD into a Windows computer on the network and follow the
directions, or use the following procedure.
Connect cables
1
TS-XL, TS-XEL
Network
(Hub or Router)
Ethernet Cable
Power Connector
LAN Port 1
Fasten the plug with the clamp.*
* TS-XL TeraStations Only
Power Outlet
AC Cable
TS-WXL/R1, TS-WXL/1D
Fasten the plug with the clamp.
Network
(Hub or Router)
Ethernet Cable
Power Connector
LAN Port 1
AC Cable
Power Outlet
TS-RXL
Fasten the plug with the clamp.
Network
(Hub or Router)
Ethernet Cable
Note:
Use LAN Port 1 for initial setup. After setup, you may connect a second cable to LAN Port 2. If used, congure the IP
LAN Port 1
Power Connector
Power Outlet
AC Cable
address of LAN Port 2 at [Network] - [Setting] - [IP Address Settings] in the Web Admin interface or NAS Navigator2.
TeraStation User Manual 5
TeraStation User Manual 6
Hold down the power button on the TeraStation for three seconds to turn it on.
2
Wait until the green power LED changes from ashing to lit. In the TS-RXL TeraStations, the LED is
3
not illuminated. Continue to Step 4.
Insert the TeraNavigator software CD into your computer. The TeraNavigator wizard will launch.
4
Click [Begin Installation].
Note:
If the wizard doesn’t open automatically, navigate to the TeraNavigator CD
and double-click the icon (TSNavi.exe).
Step through the wizard to connect cables and install software.
Notes:
• For Windows Vista, click [Run TSNavi.exe] when the auto-play screen is displayed. When “A program needs
your permission to continue” is displayed, click [Continue].
• For Mac OS, open the CD and double click on the [TeraNavigator] icon.
• Disable your anti-virus software and rewall before continuing. You may not be able to install the software if
anti-virus software or a software rewall are enabled. After you’ve nished setup, re-enable your rewall and antivirus software.
When the message [Completed] is displayed, click [Launch NAS Navigator2]. NAS Navigator2 will launch.
5
Note: Alternately, you can click [Next] to display more information about the Power Mode Switch, which can
turn the TeraStation ON and OFF automatically.
6

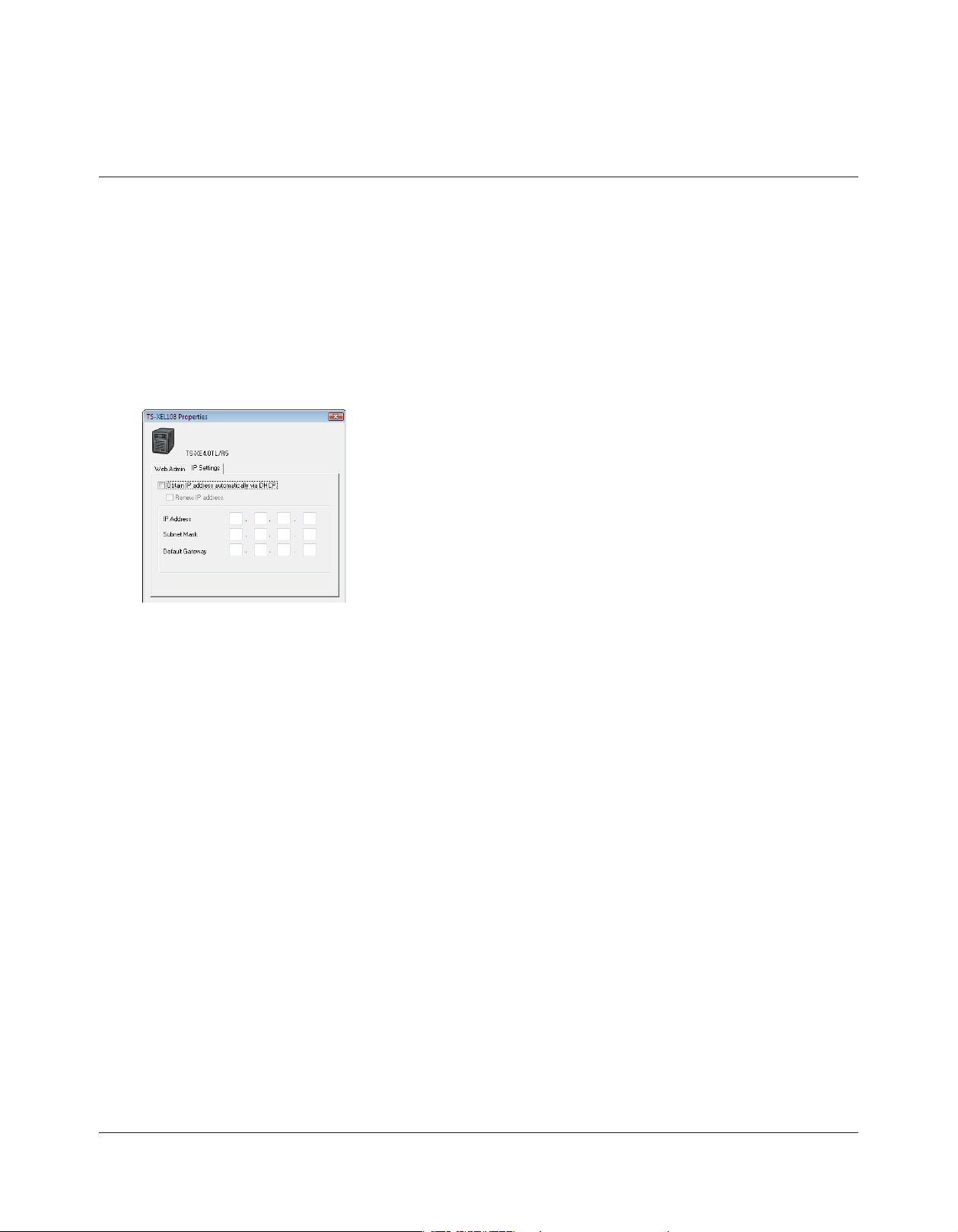

Right-click on your TeraStation’s icon, and choose [Properties] - [IP Settings].
Note:
For Mac OS, hold the Control key, click on the TeraStation icon, then click [Congure] - [IP Address].
TeraStation User Manual 7
7
Continue to set the TeraStation's Clock.
Right-Click on the TeraStation icon in NAS Navigator2 and choose [Open Web setting].
8
Notes:
• For Mac OS, hold the Control key, click the TeraStation icon, and click [Open Web setting].
• The Web Admin interface requires Firefox 1.5 or later, Internet Explore 6.0 Service Pack 2 or later, or Safari 3 or
later.
1 Enter the desired [IP Address], [Subnet Mask], and [Default Gateway].
Note:
If you don’t know how to congure these settings, click [Obtain IP address automatically via DHCP] to check the box. For Mac OS, click [Use DHCP].
2 Click [OK].
Note:
If you are prompted to enter the administrator’s password, enter the
TeraStation’s password (it is set to “password” by factory default).
Enter the administrator name and password, and click [Login].
9
Notes:
• The following settings are set by factory default.
Username: admin Password: password
•The default language for the Web Admin interface is English. To change the display language,
click [System] - [Settings] - [Language] - [Modify Settings], select [Display Language], and click [Save].

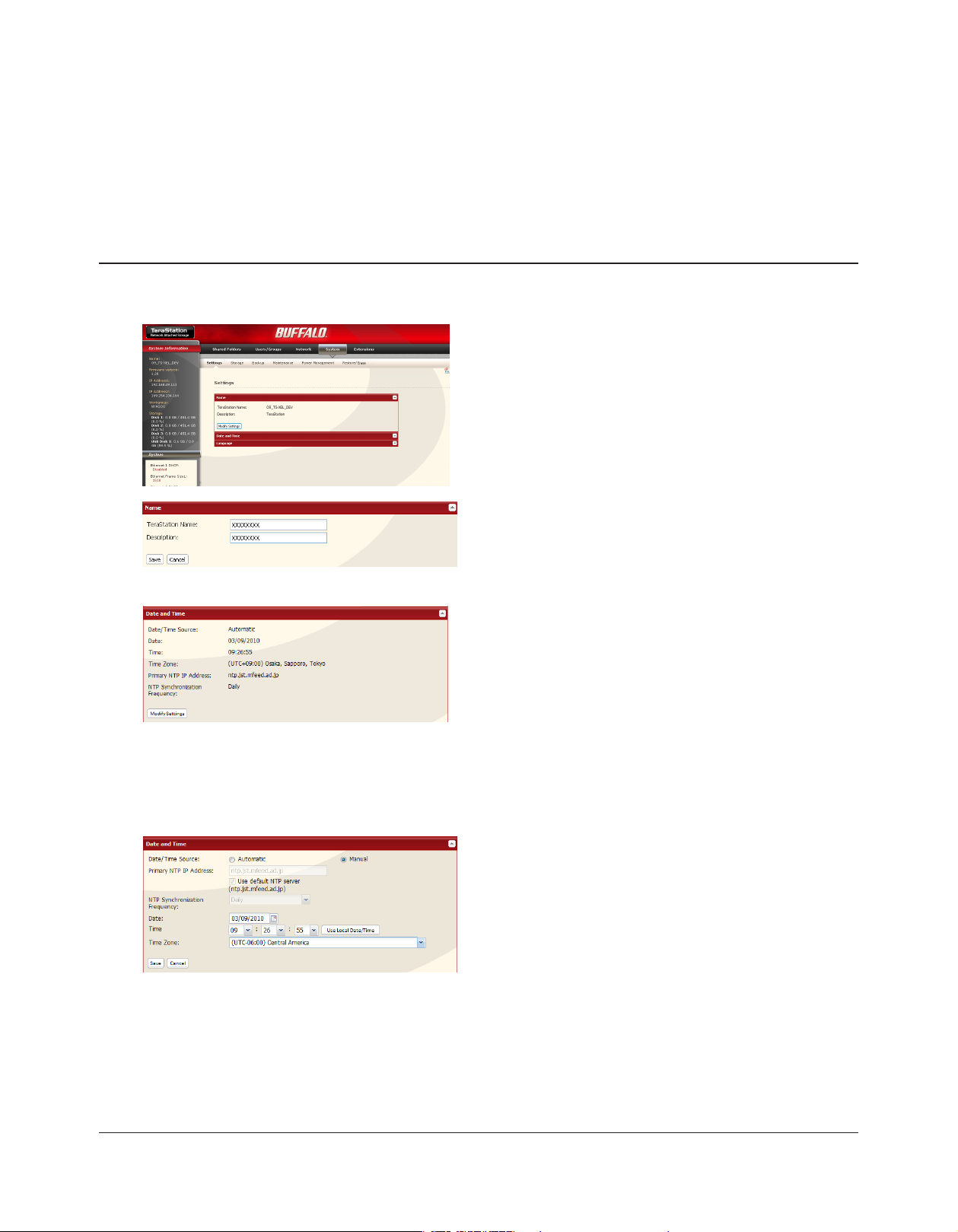

Click [System] - [Settings] - [Date and Time].
10
Click [Modify Settings].
11
TeraStation User Manual 8
12
1 To manually configure the date and time, click [Manual] for [Date/Time
Source] and adjust [Date], [Time], and [Time Zone].
Note: Click [Use Local Date/Time] to use your computer's time (or Time
Zone) for the TeraStation's time.
2 Click [Save].
Notes:
• By default, the TeraStation will attempt to use an NTP server to set the time.
• NTP may not be usable in some network environments.
• Please read the terms of use for Internet Multifeed Co. at www.jst.mfeed.ad.jp. Internet Multifeed Co. is the
group that manages the NTP Server at www.jst.mfeed.ad.jp. Internet Multifeed Co. is not responsible for any loss or damages caused by this service.
• BUFFALO is not responsible for any loss or damage caused by using of this service, stopping the service, or
missing service.
• If your TeraStation fails to automatically obtain the time from NTP Server, verify the settings for the DNS server address of the TeraStation. You must set a primary DNS server address to specify an NTP server by host name. Otherwise you will have to specify the DNS server by IP address. You can change the DNS server settings at
[Network] - [Settings] - [IP Address Settings] in the Web Admin interface.
13
The following settings changes are recommended.
Change your administration password
We recommend that you change the default password to a secure password.

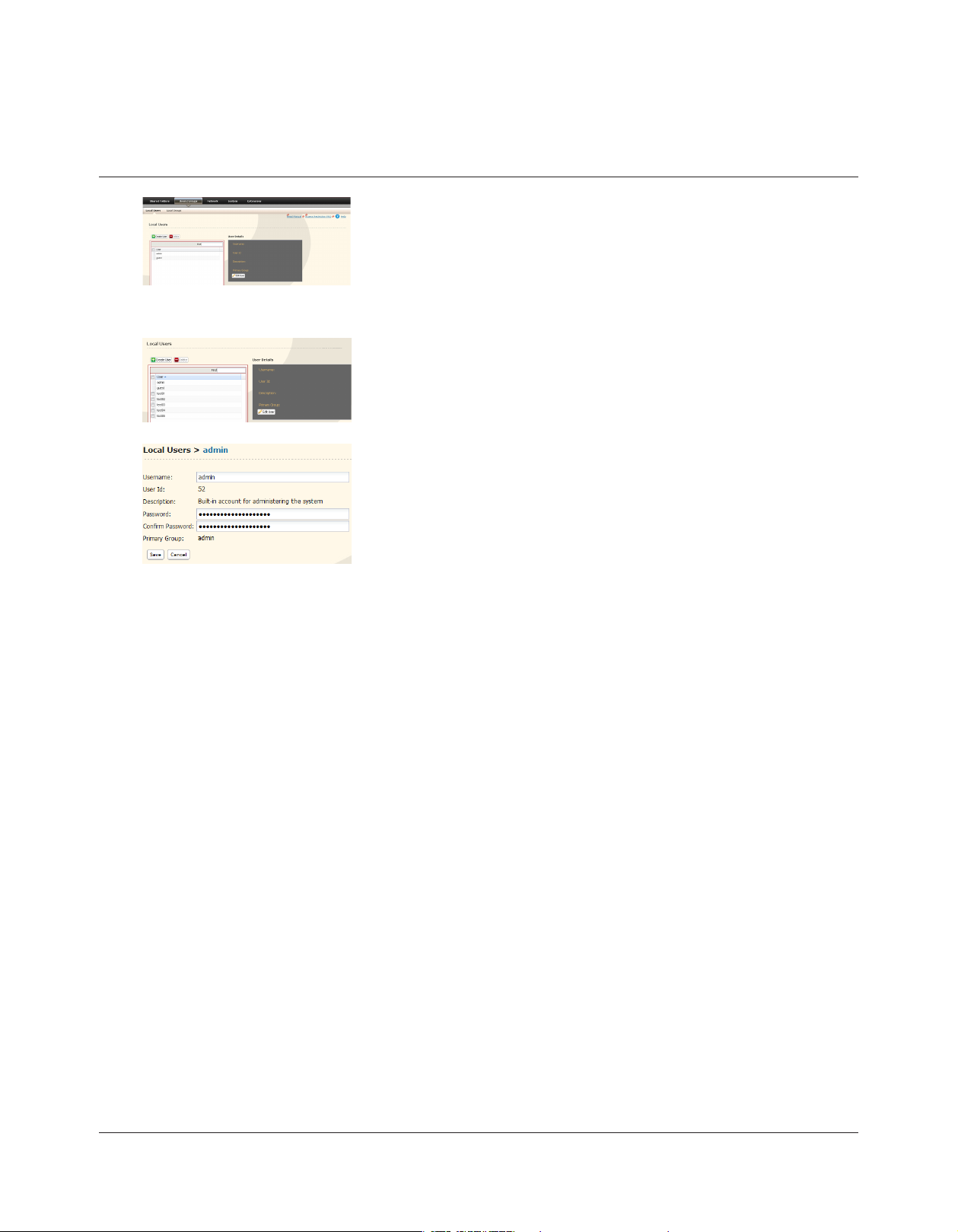

1 Click [Users/Groups] - [Local Users] in the Web Admin interface.
2 Select [admin] from the user list and click [Edit User].
-1
3
Enter a new password (twice).
-2
Click [Save].
Your administrator password is now changed.
Congure RAID Scanning
RAID Scanning checks your RAID 1, 5 or 10 arrays for problems and automatically xes any errors it can. To congure:
1 Click [System] - [Storage] - [RAID Scanning] - [Modify Settings]. 2 Click [Enable] for [RAID Scanning]. 3 Select the schedule to perform RAID Scanning. Note: With [Immediate] checked, RAID Scanning will run immediately. 4 Click [Save].
You have completed the settings for RAID Scanning.
TeraStation User Manual 9
14
The TeraStation’s shared folders are displayed.
15
Note:
For Mac OS, TeraStation is mounted as a drive icon on the desktop, or displayed in the sidebar of the [Finder].
Setup is now complete. You can now use the TeraStation's shared folders to save les just like other hard drives.
Note:
Keep the TeraStation updated with the latest rmware. You can download the latest rmware from
www.bualotech.com. The currently installed rmware version is displayed on the main screen of NAS Navigator2.
Double-click on your TeraStation’s icon.
TeraStation User Manual 10

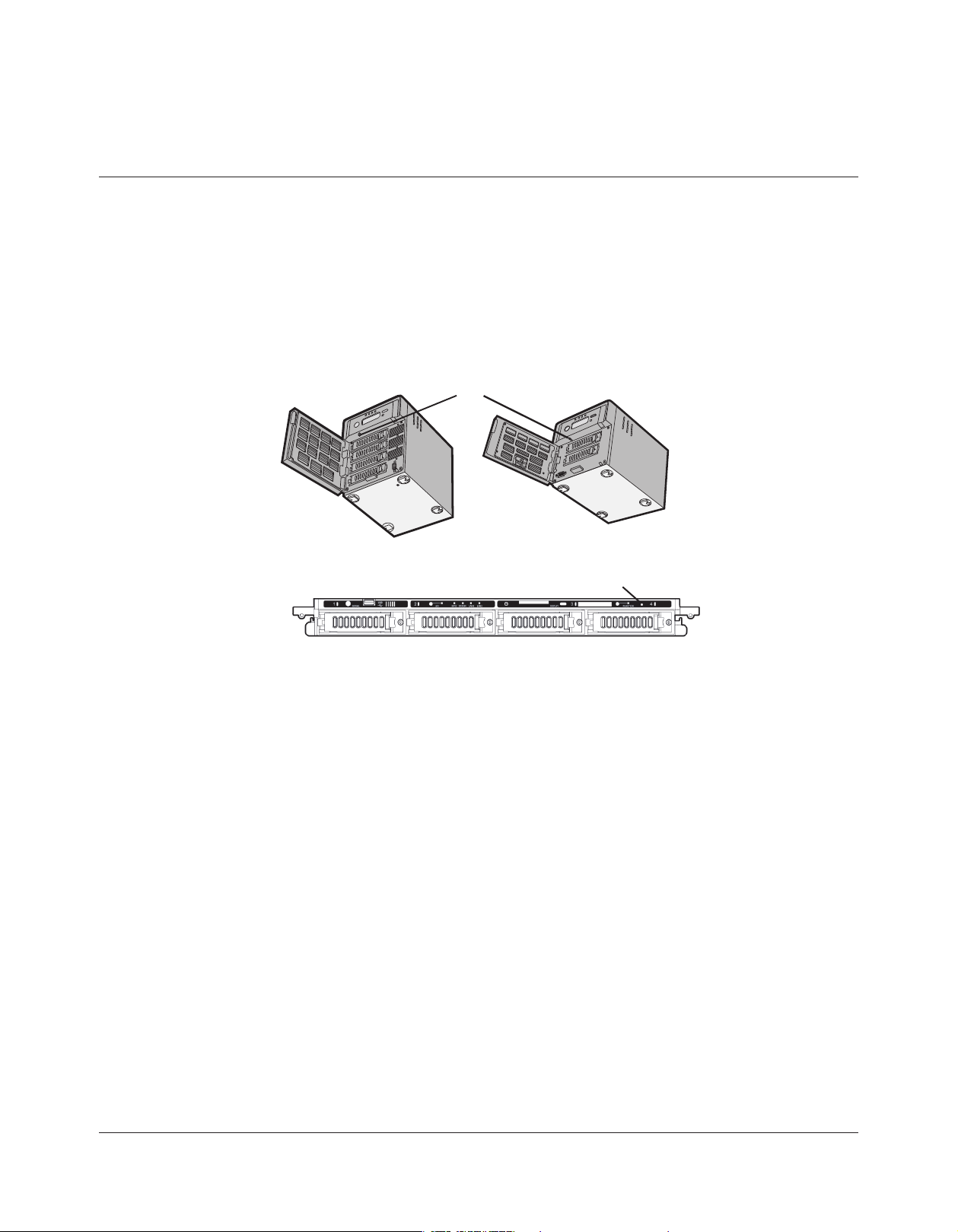

Diagrams and Layout

±¸
±¹
²°
±³ ±´ ±µ
±¶ ±·
±· ±´ ±µ ±¶
TS-XL, TS-XEL
Front View
TS-WXL
Front View
TS-RXL
with cover attached
1 2
9
1 234 5
9
3 4 5
6
7
8
10
11
Rear View
TS-XL TS-XEL
12
6
7
8
10
Rear View
18
11
19
20
12
151617
14
13
9
11
12
14 11
21
3
2
4 5
1 6 7
11
8
10
11
with cover removed
Rear View
19 21 13 14 15 16 17 18 19
20
TeraStation User Manual 11

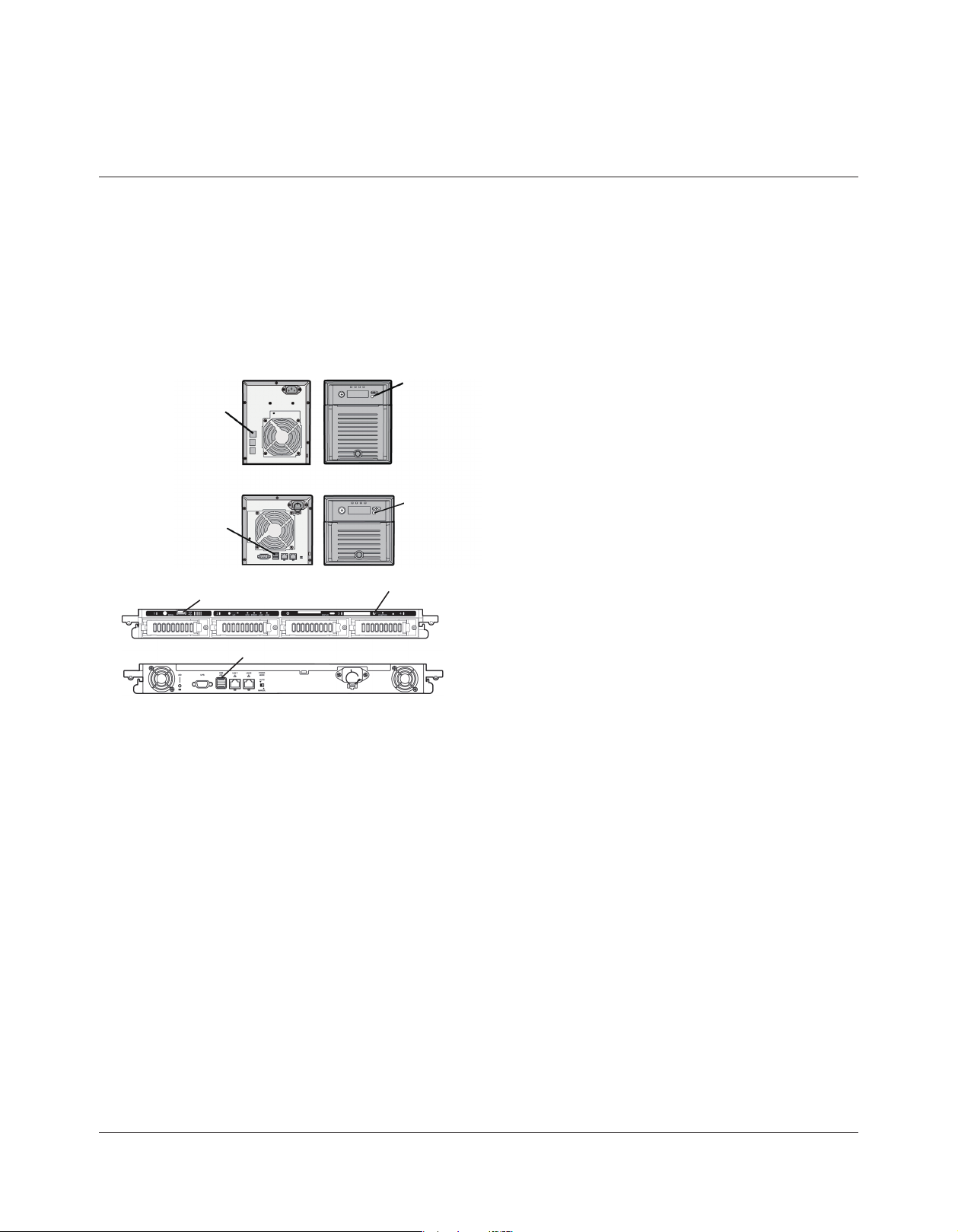

1 Power Button
Power ON/OFF: Press and hold the Power Button for 3 seconds until it beeps. Note: To power on, connect the AC cable and wait for 10
seconds. Then press the Power Button.
2 Info LED
If there is a message about the current status, the amber info
LED is illuminated. Check the LCD display for current status.
3 Error LED
The red error LED is illuminated when an error occurs. Check the LCD display for more information.
4 LAN1 LED
When the LAN Port 1 is connected to a network, it is illuminated in green (the light next to the LAN Port 1 will be illuminated as well).
5 LAN2 LED
When the LAN Port 2 is connected to a network, it is illuminated in green (the light next to the LAN Port 2 will be illuminated as well).
6 LCD Display
Displays the status of the TeraStation.
7 Display Button
Switches between the dierent display modes.
8 Function Button
Use this button to perform the following operations:
• DirectCopy
• Removal of USB devices
• Rebuild RAID after replacing hard drives
9 Drive Lock
Open the front panel with the key to replace hard drives or press the Reset Button.
12 Factory Use Only
TS-XEL TeraStations do not have this port.
13 UPS Port
Connect a UPS (Uninterruptible Power Supply). TS-XEL TeraStations do not have this port.
14 USB Connector (USB 2.0/1.1 Series A)
Compatible Bualo USB hard drives, USB ash drives, and digital cameras can be connected. USB hubs are not supported.
15 LAN Port 1
Connect to a router, hub, or switch on your Ethernet network.
16 LAN Port 2
Use this second Ethernet port for redundancy or backup. For backup, a second TeraStation may be connected directly.
17 Power Mode Switch
Switches between AUTO and MANUAL power modes (page
12).
18 Power Connector
Use the included AC cable to connect to an UPS, surge protector, or outlet.
19 Fan
Do not block the fan when installing the unit.
20 Anti-Theft Security Slot
You can also secure it using an o-the-shelf wire lock.
21 UID Button
The blue LED next to the UID button will be illuminated or turned o every time you push this button on the front or back.
10 Reset Button
With the TeraStation powered on, hold down this button until it beeps (about 5 seconds) to reset the TeraStation’s IP address and password to the factory defaults. The password will not be reset if this functionality has been disabled from within the Web Admin interface. Note: To access the TS-RXL series’ reset button, insert the tip
of an unfolded paper clip.
11 Status LEDs 1 - 4
LEDs 1 through 4 will be illuminated in green when the corresponding hard drives are accessed. If an error occurs on a hard drive, the corresponding LED will be illuminated or ash in red or amber.

Auto Power Mode

The TeraStation can be congured to automatically turn on and o with your computer. To use this feature, install NAS Navigator2 on your computer(s) and then set the Power Mode Switch on the back of your TeraStation to AUTO.
TS-XL TS-XEL
TS-WXL
TS-RXL
Notes:
• After you turn o your computer, it may take several minutes for the TeraStation to shut down.
• When the Power Mode Switch is changed from Auto to Manual or vice-versa, it takes about ve minutes for
the change to take eect.
• Power on the TeraStation before moving the switch to the Auto position.
• Auto Power Mode doesn’t work if port trunking is enabled or if NasNavi detection is disabled.
• Install NAS Navigator2 on all computers that will be accessing the TeraStation before switching to Auto Power
Mode.
• Some networks may not support the Auto Power Mode. If you have problems with it, just use Manual Power
Mode.
Manual (default):
In this position, the power button on the front of the TeraStation turns it on and o. It is not aected by the power state of connected computers.
Auto:
In this position, if all connected computers are turned o, the TeraStation will turn o too. If a connected computer is powered on, the TeraStation will power on too.
TeraStation User Manual 12

Chapter 2 Using your TeraStation

Opening a Shared Folder

1
2
3
Launch NAS Navigator2.
Notes:
• For Windows, double-click the [Bualo NAS Navigator2] icon on your desktop.
• For a Mac, double-click on the [NAS Navigator2] icon in the Dock.
Double-click on the TeraStation icon.
Note:
This example shows a TS-XL series TeraStation.
Your icon may be dierent.
The TeraStation’s Shared folders are displayed.
Note:
With a Mac, the TeraStation is mounted as a drive icon on the desktop, and displayed in the
sidebar of the [Finder].
You can now use the TeraStation's shared folders to save les just like other hard drives.
TeraStation User Manual 13
TeraStation User Manual 14

Opening a Shared Folder from a Second PC

Once you’ve connected the rst computer to the TeraStation, you don’t have to run the setup program again to connect additional computers. Just install NAS Navigator2 on each additional computer and use it to open the TeraStation’s shared folder as necessary.
1
2
Insert the TeraNavigator CD into your computer. TeraNavigator will launch.
Notes:
• For Windows 7/Vista, click [Run TSNavi.exe] when the auto-play screen is displayed.
• If [A program needs your permission to continue] is displayed, click [Continue].
• For Mac OS, double-click on the [TeraNavigator] icon in the utility CD.
Click [Install NAS Navigator].
Note:
If this screen doesn’t open, open the CD and double-click on the icon (TSNavi.exe).
3
4
Step through the wizard to install NAS Navigator2.
After NAS Navigator2 is installed, click the in the right top right corner of the window to close the installer. Then, use NAS Navigator2 to open the TeraStation’s shared folder.
TeraStation User Manual 15
5
Launch NAS Navigator2.
Note:
• For Windows computers, double-click the [Bualo NAS Navigator2] icon on the Desktop.
• For a Mac, double-click the [NAS Navigator2] icon in the Dock.
6
7
You can now use the TeraStation’s shared folders to save les just like other hard drives.
Double-click on the TeraStation icon.
Note:
This example shows a TS-XL series TeraStation.
Your icon may be dierent.
The TeraStation’s Shared folders are displayed.
Note:
With a Mac, the TeraStation is mounted as a drive icon on the desktop, and displayed in the
sidebar of the [Finder].

Adding Additional TeraStations

Run the TeraNavigator installation program from the CD for each TeraStation that you add to the
network. You cannot set up multiple TeraStations at the same time.
TeraStation User Manual 16

Opening the Web Admin interface

To congure your TeraStation, use the Web Admin interface from a browser on a computer connected to the same network.
Launch NAS Navigator2. For Windows, click on the [BUFFALO NAS Navigator2] icon on your desktop. For Mac OS 1 X, double-click on the [NAS Navigator2] icon in the Dock.
2
3
Note:
• To login as a guest, type “guest” for the Username, leave the password blank, and click [OK]. Guests can check the
TeraStation’s name, IP address, workgroup, and disk status. Regular users can change their login passwords as well
as check the TeraStation name, IP Address, workgroup, and disk status. Administrator user, “admin” by default, can
congure all options.
Right-click on the TeraStation icon (on Mac OS X, click the icon while holding down the control key) and select [Open Web setting] from the menu.
Notes:
• If multiple TeraStations and TeraStations are connected to the network, multiple icons will be displayed. Click on the correct TeraStation.
• Record the TeraStation’s IP address from the bottom right of the NAS Navigator2 window.
Enter your username and password, and click [Login]. 1 Initially, use the default username and password: Username: admin Password: password
After you log in, change the password for security.2
This is the Web Admin interface. This page displays the
4
Notes:
• The Web Admin interface supports Firefox 1.5 or later, Internet Explorer 6.0 with SP2 or later, and Safari 3 or later. It
may not display properly in other browsers.
• The Web Admin interface may not display correctly in Internet Explorer due to your browser security settings. If
this happens, navigate to [Tools] - [Internet Options] - [Security] on Internet Explorer, and set the Security Settings to [Local intranet].
TeraStation’s current status, including name, IP address, workgroup, and hard disk settings.
TeraStation User Manual 17
The Web Admin interface is organized by tabs across the top. The following tabs are available.
[Shared Folders]• Add or delete Shared Folders; congure Access Restrictions, DirectCopy, DFS and TeraSearch.
[Users/Groups]• Add, delete, and congure Users and Groups.
[Network]• Congure Network, Workgroup, and NFS settings.
[System]• Congure Name, Date and Time, RAID setup, RAID Scanning, Check Disk/Format Disk, Backup, Replication, Email Notication, Sleep Timer, UPS Settings, Restore/Erase.
[Extensions]• Congure Web Access, Print Server, and Time Machine.
Notes:
•To open the Web Admin interface from a dierent computer, refer to Quick Setup Guide and install NAS Navigator2. After the installation, follow Chapter 2, or, you may type the IP address of TeraStation on a web browser.
• You may also open the Web Admin interface by typing the IP address that you wrote down in step 2 into the address
eld of your browser. Press the <Enter> key and bookmark this page in your browser so that you can return to it easily.
•With Mac OS X 10.4 or later, you can open the Web Admin interface from within Safari with Bonjour.
Launch Safari. 1
Select [View] - [Show Bookmarks Bar] from Safari’s menu.2
3
Select [Bonjour] from the left-side menu, then click on your
TeraStation in the bookmark list.
4
5
Enter your username and password.1
Click [Login].2
Note: To log in as a guest, type “guest” as the username and
leave the password blank.
The Web Admin interface opens.
The TeraStation’s name, IP address and disk information are displayed on the left.

Chapter 3 Changing RAID Modes

RAID Arrays

TS-XL, TS-XEL and TS-RXL series TeraStations default to RAID 5 mode (4 hard drives), TS-WXL/R1 series default to RAID 1 mode, and TS-WXL/1D series default to Normal mode. The characteristics of each type of RAID are described below. If you change the RAID mode, all of the data on the hard drive is deleted. Always back up any important data before changing the RAID mode.
Note:
• In this document, “recovery” means putting the TeraStation back to the state it was in before the malfunction
happened. It does not mean reading data from failed hard drives.
• RAID 5 mode (4 hard drives) (Default for TS-XL, TS-XEL and TS-RXL)
Note:
TS-WXL/R1 and TS-WXL/1D TeraStations don’t support this mode, as they don’t have 4 hard drives.
Uses 4 hard drives as one array. It generates parity during writes, so access speeds are slower than other RAID modes. Usable space is the sum of 3 hard drives’ space. If one hard drive in the array is damaged, you can recover data by
replacing the hard drive. You cannot recover data if 2 or more drives are damaged.
• RAID 5 mode (3 hard drives)
Note: TS-WXL/R1 and TS-WXL/1D TeraStations don’t support this mode, as they don’t have 3 hard drives.
Uses 3 hard drives as one array. It generates parity during writes, so access speeds are slower than other RAID
modes. Usable space is the sum of 2 hard drives’ space. You can designate a 4th drive as a hot spare, which will boot
automatically if one of the drives in the array fails. If one hard drive in the array is damaged, you can recover data by
replacing the hard drive. You cannot recover data if 2 or more drives are damaged.
• RAID 10 mode
Note: TS-WXL/R1 and TS-WXL/1D TeraStations don’t support this mode, as they don’t have 4 hard drives
RAID 10 combines 4 hard drives into a single array. Usable space is the sum of the capacity of 2 hard drives. Data is
written quickly and access speed is faster than other RAID modes except for RAID 0. Since the same data is written to 2
hard drives at the same time, if drive in a pair (1-2 or 3-4) is damaged, data can be recovered by replacing the damaged hard drive. If both 1-2 or 3-4 hard drives are damaged, you cannot recover data.
TeraStation User Manual 18
• RAID 1 mode (Default for TS-WXL/R1)
Uses 2 hard drives as one array. You can use up to 2 arrays on TS-XL, TS-XEL and TS-RXL Series. The space you can use
is 1 hard drive’s space for each array. The same data is written to 2 drives at once. If a drive is damaged, data can be
recovered by replacing the damaged hard disk. If both drives in an array are damaged, data cannot be restored. You
can create an array and designate another drive as a hot spare (which will boot automatically when one of the hard
drive fails) in TS-XL and TS-RXL TeraStations. You can use 2 drives to create a RAID 1 array, use anther drive as a hot
spare, and use another as a regular drive, all at once.
• RAID 0 mode
This mode uses multiple hard drives as a single array. The disk space you can use is the total space of all hard drives used. This is the fastest of the TeraStation’s RAID modes. If any hard disks are damaged, you cannot recover data.
• Normal Mode (Default for TS-WXL/1D)
This mode uses the hard drives inside the TeraStation as individual hard disks. It is sometimes referred to as JBOD. The disk space you can use is the total space of all hard drives in the TeraStation. If a hard disk is damaged, you cannot recover data from that drive.
Note:
During a recovery, the TeraStation’s front LED display shows “RAID ARRAY* Resyncing” and le transfer speeds are
slower than usual until the RAID array is rebuilt.
TeraStation User Manual 19
TeraStation User Manual 20

Using Normal mode

1
2
Click [Delete RAID Array].3 When the [RAID Array operation] window opens, click [Apply].4 The [Conrm Operation] screen will appear. 5
Enter the number shown in the [Conrmation Number] eld within 60 seconds, and click [Apply]. Follow the instructions displayed on the screen.6
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Select the array you want to congure.
You have now set up Normal mode. Refer to page 43 to create a shared folder.
[Conrm Operation] screen
When you perform any of the following tasks, a [Conrm Operation] screen is displayed . To continue, enter the displayed number within 60 seconds and click [Apply].
Changing structures of RAID array (Create/Delete)• Delete Folder• TeraStation’s Restore Factory Defaults• Format TeraStation• Empty recycle bin of each folder•
Format Array or Disk• Remove Disk• Rebuild RAID array• Congure hot spare• Congure normal mode•
[Conrm Operation]
Screen
TeraStation User Manual 21

Using RAID 5 mode (4 hard drives)

Change system to normal mode (previous page).1
2
3
4
5
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Click the array you want to congure.
Select hard disks (all 4 of them) to use in RAID5.
Select [RAID5].1
Click [Create Raid Array].2
Note: After the RAID array is changed, the TeraStation will perfom a RAID check that will take about 5 hours per TB. File
transfers will be slower during this period. While the “RAID ARRAY x Resyncing” message is displayed on the LCD
screen, do not turn o the TeraStation. If you turn it o, the RAID check will start over.
The [Conrm Operation] screen will appear. 6 Enter the number shown in the [Conrmation Number] eld within 60 seconds, and click [Apply].
Follow the instructions displayed on the screen.7
You have now set up a RAID 5 array. Turn to page 43 to create a shared folder.
TeraStation User Manual 22

Using RAID 5 mode (3 hard drives)

Change system to normal mode (page 20).1
2
3
4
5
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Click the array you want to congure.
Select hard disks (3 of them) to use in RAID5.
Select [RAID5].1
Click [Create Raid Array].2
Note:
After the RAID array is changed, the TeraStation will perfom a RAID check that will take about 5 hours per TB. File
transfers will be slower during this period. While the “RAID ARRAY x Resyncing” message is displayed on the LCD
screen, do not turn o the TeraStation. If you turn it o, the RAID check will start over.
The [Conrm Operation] screen will appear. Enter the number shown in the [Conrmation Number] eld within 6 60 seconds, and click [Apply].
Follow the instructions displayed on the screen.7
You have now set up a RAID 5 array. Refer to page 26 to congure a hot spare with the remaining drive. Turn to page
43 to create a shared folder.
TeraStation User Manual 23

Using RAID 10 mode

Change system to normal mode (page 20).1
2
3
4
5
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Click the array you want to congure.
Select hard drives (all 4 of them) to use in RAID10.
Select [RAID 10].1
Click [Create Raid Array].2
Note: After the RAID array is changed, the TeraStation will perfom a RAID check that will take about 5 hours per TB. File
transfers will be slower during this period. While the “RAID ARRAY x Resyncing” message is displayed on the LCD
screen, do not turn o the TeraStation. If you turn it o, the RAID check will start over. The [Conrm Operation] screen will appear. 6
Enter the number shown in the [Conrmation Number] eld within 60 seconds, and click [Apply].
Follow the instructions displayed on the screen.7
You have now set up a RAID 10 array. Turn to page 43 to create a shared folder.
TeraStation User Manual 24

Using RAID 1 mode

Change system to normal mode (page 20).1
2
3
4
5
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Click the array you want to set.
Click hard disks (Disk 1 and Disk 2, or Disk 3 and Disk 4) in RAID1.
Select [RAID 1].1
Click [Create Raid Array].2
Note:
After the RAID array is changed, the TeraStation will perfom a RAID check that will take about 5 hours per TB. File
transfers will be slower during this period. While the “RAID ARRAY x Resyncing” message is displayed on the LCD
screen, do not turn o the TeraStation. If you turn it o, the RAID check will start over.
The [Conrm Operation] screen will appear. Enter the number shown in the [Conrmation Number] eld within 6 60 seconds, and click [Apply].
Follow the instructions displayed on the screen.7
You have set up a RAID 1 array. Repeat the steps to create a second RAID 1 array with the other two drives, or refer to
page 26 to congure a hot spare with one of the remaining drives. Turn to page 43 to create a shared folder.
TeraStation User Manual 25

Using RAID 0 mode

Change system to normal mode (page 20).1
2
3
4
5
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Click the array you want to congure.
Select all available hard drives.
Select [RAID 0].1
Click [Create Raid Array].2
The [Conrm Operation] screen will appear. Enter the number shown in the [Conrmation Number] eld within 6 60 seconds, then click [Apply].
Follow the instructions displayed on the screen.7
You have set up a RAID 0 array. Turn to page 43 to create a shared folder.
Conguring a Hot Spare
If you have 3 drives in a RAID 5 array, or 2 drives in a RAID 1 array, then you can congure another drive as a hot spare. If one of the drives in the array fails, the TeraStation will switch over to the hot spare immediately.
1
2
3
Note: If a hot spare is congured, click [Set to normal disk] to change the hot spare to a normal disk.
Click [System] - [Storage] - [RAID Array] in the Web Admin interface.
Choose a RAID 5 or RAID1 array.
Click [Set to spare-disk].
The [Conrm Operation] screen will appear. Enter the number shown in the [Conrmation Number] eld within 4 60 seconds and click [Apply].
Follow the instructions displayed on the screen.5
You have now congured a hot spare.
Note: All data in the hot spare drive will be deleted when it is congured as a hot spare and again when it changes over from a
spare to a drive in the array.
TeraStation User Manual 26

Chapter 4 Adding an External Hard Drive

Connect an External Drive

Your TeraStation includes 2 USB connectors (3 if it’s a TS-RXL). You can connect a Bualo external hard drive to it for
backup or extra storage.
Connect the external drive as shown below. If the hard drive is already formatted, it will be detected automatically. If it is not formatted, format it from within the Web Admin interface (page 28).
One external hard drive may be connected to each USB port on the TeraStation. USB hubs are not supported.
Warning! Do not unplug the drive from the TeraStation without dismounting it rst. Turn to page 30 for directions on dismounting a connected drive.
TS-XL, TS-XEL
USB Connector
USB Cable (not included)
TS-WXL
USB Connector
USB Cable (not included)
Bualo External Hard Drive (not included)
Bualo External Hard Drive (not included)
TS-RXL
USB Connector
Rack (not included)
(Series A)
USB Connector (Series B)
USB Cable (not included)
TS-RXL Series
Bualo External Hard Drive (not included)
A third hard drive can be connected to the USB connector on the front panel of the TS-RXL TeraStation if the front panel is removed.
If the drive properly connected, usbdiskX is added to the TeraStation’s shares on the network, where X is the # of the drive.
Note: • Files that are automatically created by Mac OS X cannot be backed up to a FAT 32 drive because they contain characters that are not allowed in FAT 32.
TeraStation User Manual 27
TeraStation User Manual 28

Formatting the External Drive

A format deletes all data from a hard drive. Be careful! Back up any important data on a drive before formatting it. It • will take a several minutes to format a drive. Shared folders cannot be accessed during formatting. • Do not turn o or disconnect power to the TeraStation while formatting a hard drive.• If Power Mode Switch is set to • AUTO, then the TeraStation will turn o when the format is nished.
To erase all data on a disk, choose [System] - [Restore/Erase].•
1
2
3
In the Web Admin interface, navigate to [System] ­[Storage] - [Disks].
Select the drive to format. Make sure that you have 1 the right drive!
Click [Format Disk].2
Select [File System].1
Note:
Refer to page 125 for more on format type.
Click [Format].2
The [Conrm Operation] screen will be displayed. Type the displayed number into the [Conrmation Number] 4 eld within 60 seconds, then click [Apply].
Follow the instructions displayed on the screen.5
Notes:
• The time needed to format a hard drive varies based on the hard drive’s size and format type (a few seconds to several
minutes).
• The Info LED on the front of the TeraStation will ash during formatting. The TeraStation’s shared folders cannot be
accessed until the disk format is complete.
• If the hard drive is connected to the USB connector, partitions will be recreated.
TeraStation User Manual 29

Set Access Restrictions on the External Drive

You can set the access restrictions on the new drive. Use the procedure on page 42 to set the access restrictions.
Note: Even if a shared folder is not visible, you can still format the drive, run a disk check, and back up to the new drive.
Restrictions
The TeraStation supports many types of USB devices including USB storage devices, card readers, digital cameras, and • USB printers. Other devices are not supported, such as USB hubs, card readers that recognize multiple memory cards, and USB mice and keyboards.
You can connect up to 2 hard drives to a TeraStation via its USB connectors (3 for a TS-RXL). Only Bualo drives are •
supported.
* The TeraStation may not recognize a hard drive whose power mode is set to AUTO. Set the power mode to MANUAL
for drives connected to the TeraStation.
* Direct Copy doesn’t work with the HD-DU2 series DriveStation unless it has been reformatted.
* The TeraStation can supply bus power to a single external drive only. For multiple drives, or if you experience power
problems, connect an AC adapter to each hard drive.
Only the primary partition of the hard drive connected via USB connector will be recognized. Secondary and other • partitions will not be recognized.

Chapter 5 Removing External Hard Drives

If the TeraStation is on, always dismount external hard drives before disconnecting them. You may dismount drives
with the Function button, or from within the Web Admin interface. If the TeraStation is turned o, dismounting is not necessary.

Dismounting with the Function button

To dismount a USB drive, press and hold the function button for 7 seconds. The Function button will be illuminated in blue (The LED next to the Function button will be illuminated in blue on the TS-RXL). After the light in the function button goes out, you can safely remove your USB device.
TS-XL, TS-XEL
Rear View Front View
USB Connectors
Function Button
TS-WXL
USB Connectors
TS-RXL
Front View
Rear View
Note: Wait 3 minutes before reconnecting a dismounted USB drive. It may not be recognized if you attempt to connect it
immediately.
Rear View Front View
Function Button
Function Button
USB Connector
* View with the front cover open
USB Connectors
TeraStation User Manual 30

Dismounting from the Web Admin interface

Alternately, you can dismount an external drive from within the Web Admin interface.
1
In the Web Admin interface, click [System] – [Storage] – [Disks].
2
When the [Conrm Operation] screen opens, enter the displayed number within 60 seconds and click [Apply].
The function button will ash blue (on the TS-RXL, the LED next to the function button will ash). Remove the 3 USB device within 30 seconds.
Select the USB drive.1
Click [Remove Disk].2
Note:
After 30 seconds, the drive will be remounted. If this happens, perform another dismount before removing it.
The USB drive may now be safely disconnected.
TeraStation User Manual 31

Chapter 6 Backup

Backup Data from your Windows PC

To back up data from your PC to the TeraStation, use the backup program, included with your TeraStation. The backup software can be installed from your TeraNavigator CD.

Backup Data on the TeraStation

You can back up folders on the TeraStation to any of the following destinations:
Another TeraStation (instructions on pages 32, 33, and 34)• A dierent folder on the same TeraStation (instructions on pages 32 and 34)• A USB hard drive connected to the TeraStation (instructions on page 34)•
• Set up Destination for Backup
Before backing up to a TeraStation, you must congure a folder on the TeraStaion as a backup destination.
1
2
3
In the Web Admin interface, click [Shared Folders] - [Folder Setup].
Choose the folder you want to set as a backup destination.
Check [Disk Backup] from [Shared Folder Support].
Optional: To congure a password for backup jobs to this share, enter it in
the [Remote backup password] eld. If you do not want to set a password, do not enter anything.
Click [Save] at the bottom of the screen.4
TeraStation User Manual 32
Backing up to another TeraStation on the local network
If the target TeraStation is congured with a password for backup, you can nd it on the network by searching for the password.
In the target TeraStation’s Web Admin interface, navigate to1 [System] – [Backup].
Under [Search for Backup Destination by Password], click [Modify Settings].2
3
Enter a password and click [Save].
Now, you can easily nd this target TeraStation when conguring backup
jobs on a source TeraStation.
Backing up to a TeraStation on another network which is connected by a VPN
You can back up to a TeraStation on another network as long as the two networks are connected by a VPN. Follow the
procedure below to enter IP address of the target TeraStation.
In the source TeraStation’s Web Admin interface, c1 lick [System] – [Backup] - [View NAS Devices].
2
Under [O Subnet TeraStation], enter the IP address of the target TeraStation in the [New IP Address] eld, and click [Add].
If you meet the following conditions, then you don’t have to congure the settings described above:
Not setting a password for backup on the target TeraStation.• Source TeraStation and target TeraStation are on the same network.•
Instead, just turn to the next page and congure a backup job
TeraStation User Manual 33
TeraStation User Manual 34
Conguring a backup job
To create a backup job, navigate to [System] - [Backup] - [Back Jobs Setup] - [Create New Job] in the source 1
TeraStation's Web Admin interface.
Note: Up to 8 backup jobs can be congured.
2
The following types of backup job may be selected:
[Normal Backup]
All les in the source will be backed up to the destination.
[Overwrite Backup (Append Backup)]
The rst time the backup job runs is just like a normal backup. Each addditional time the backup job runs, if le
A was added to and le B removed from the backup source, then le A is added to but le B is not removed from the backup destination. Over time, the backup destination folder will become larger than the backup source folder.
[Overwrite Backup (Dierential Backup)]
The rst time the backup job runs is just like a normal backup. Each addditional time the backup job runs, if le
A was added to and le B removed from the backup source, then le A is added to and le B is removed from the backup destination. The backup destination folder is always the same as the backup source folder.
Select backup settings such as date and time to run.
Note:
Refer to page 131 for more on backup options.
The following types of folders may be used as either backup sources or backup destinations:
• Shared folders on your TeraStation, including attached USB drives, but not including the info folder
• Shared folders on a dierent TeraStation or LinkStation on the local network, but not USB drives attached to it
• Shared folders of a TeraStation or LinkStation on a dierent network that has been selected manually by IP address,
but not USB drives attached to it
Notes:
• Before using a folder for backup, navigate to [Shared Folders] in the Web Admin interface and check [Disk Backup]
for [Shared Folder Support].
• Subfolders of shared folders are not supported for backup.
• To make a TeraStation or LinkStation that is on a dierent network available for use as a backup target, navigate to [System] - [Backup] - [View NAS Devices] in the source TeraStation’s Web Admin interface and add it by IP address.
3
Click [Backup Folders] - [Add].
TeraStation User Manual 35
4
Select [Backup Sources] and [Backup Targets] folders. 1
Click [Add].2
5
6
Backup Notes:
You can register up to the second level of subfolders. However, folders with more than 80 bytes(UTF-8) in their names •
cannot be selected. Before they can be selected as backup target folders, folders on other TeraStations must be congured as backup •
destinations. To use a folder on an external hard drive as a backup target, you should format it with XFS, FAT or EXT3.•
If you are using PC Power Management, your system will automatically boot 15 minutes before the backup job •
begins.
If your PC enters sleep mode just before a scheduled backup, the backup job may not have time to reboot the system • before the backup job begins. If this happens, the backup job may fail.
S• ource and target TeraStations should be congured with similar Jumbo Frame settings. If you are experiencing problems backing up one TeraStation to another, try setting the frame size for both to the default (1518 bytes).
If you change formatting or RAID array settings, previously created backup jobs may no longer run correctly. Delete • the old backup jobs and create new backup jobs for the new share(s).
Backups on EXT3 formatted USB disks can be read from a Windows PC with the provided Bualo EXT3 reader • software.
Click [Apply].
The backup job is added to the list of backup jobs.
TeraStation User Manual 36
Restrictions regarding to Backup
When performing backup to USB hard disk (FAT32 format) with [Overwrite Backup (Dierential Backup)] option, • it may overwrite even though there are no dierence in data. This is because of the specication of FAT 32. If the second of the date when the le created is an odd number, Overwriting backup is performed every time regardless of the dierences in data.
If you are using Jumbo Frame and backup data on TeraStation/LinkStation to another TeraStation/LinkStation, set • the Ethernet frame size of those 2 TeraStation/LinkStation to the closest value. If Ethernet frame sizes of these are
signicantly dierent, the backup job may not be properly performed. In such a case, select the default frame size
(1518 bytes). When backing up data by using Web Admin interface, if a le name or folder name to backup contains multi-byte •
characters, a le/folder name of a log le may not be output correctly. If you change settings for formatting or RAID array after setting for backup, you must change the settings for backup. •
If there is no shared folder at the destination, an error message will be displayed.
TeraStation User Manual 37

Replication

Replication will mirror data on your TeraStation to a second TeraStation. An exact duplicate of a data share on the rst TeraStation is copied to the second TeraStation virtually simultaneously. To congure Replication, use an Ethernet cable to connect LAN Port 2 on the rst TeraStation to LAN Port 2 on the second TeraStation. The rst TeraStation should be connected to the local Network by LAN Port 1.
Notes:
• If the rst TeraStation goes down, you can switch to the second TeraStation by moving the main Ethernet cable from the rst TeraStation to the second TeraStation’s LAN Port 1.
• Replication copies data only, not users or settings. To back up users, groups, and passwords from a TeraStation, use the NS-SHFT utility.
• If a backup password is set for a share, then that share cannot be selected as a backup target for replication.
• Replication copies data from the source folder to a target folder. Please note that any data in the target folder that is
not in the backup source folder will be deleted. Only folders on TeraStations which support Replication (TS-XL, TS-XEL, TS-WXL, TS-RXL, TS-HTGL, TS-RHTGL. etc.) can
be selected as replication source folders or target folders.
Up to 64 shares can be selected for replication.
• Only data written by SMB and CIFS (Windows) and AFP, NFS, SFTP, FTP, and FTPS (Apple) can be mirrored by replication.
• Replication transfers les asynchronously. It may take time to transfer les depending on the network environment or status of the TeraStation.
• Replication will retry le transfers if they fail because of a network problem. If the retry fails, the TeraStation’s Error LED will light and an alarm will sound. To repair, x the network problem, then, in the Web Admin interface, navigate to [System] - [Backup] - [Replication] and click [Resynchronize].
• Do not set multiple Backup Targets for one Backup Source. Multiple transfer processes for Replications will run, and system performance will be adversely aected.
• Do not replicate a share that is the target of Time Machine backups by Mac OS X.
• System performance may be degraded if Mac OS X writes to the replication source folder with an AFP connection. If
this occurs, connect via SMB for better performance.
• When replicating to a USB drive, a folder which has the same name as the backup source will be created on the USB drive. If the same folder name already exists on the USB drive, any les in that folder will be deleted.
• External hard drives formatted with FAT 16 or FAT 32 should not be used with replication. For best results with the TeraStation, format your external USB hard drives with XFS or EXT3.
• NFS is set to the [Kernel mode], les or folders written by NFS protocol are not transmitted to the replication destination. To change NFS settings from the [Kernel mode] to the [User mode], select [Network] - [NFS] - [NFS Service] on the Web Admin interface.
TeraStation User Manual 38
Congure replication as described below.
1
Click [Add].2
3
Read the alert message carefully and click [OK].4
Replication is congured.
In the source TeraStation’s Web Admin interface, click [System] - [Backup] ­[Replication].
Select replication source folder for [Backup Source].1
Select replication target folder for [Backup Targets].2
Click [Save].3
Replication to a TeraStation on a dierent network
If your target TeraStation is on a dierent network or subnet, you may still congure replication as described above, but you must rst add the target TeraStation to your list of o-subnet TeraStations as described below.
1
2
Click [Close].3
You can now congure Replication as described in the previous section.
In the source TeraStation’s Web Admin interface, navigate to [System] -
[Backup]. Click on [View NAS Devices].
Under [O Subnet TeraStations], enter the target TeraStation’s IP address in the [New IP Address] eld. Click [Add].
Note: If the Target TeraStation is behind a router, enter the router’s WAN
side IP address. You will need to map ports 873, 22938, 22939 to the target
TeraStation in the router for this to work correctly.
TeraStation User Manual 39

Time Machine

Time Machine is a backup program included with Mac OS X 10.5 or later. To use it with the TeraStation, congure the TeraStation as described below.

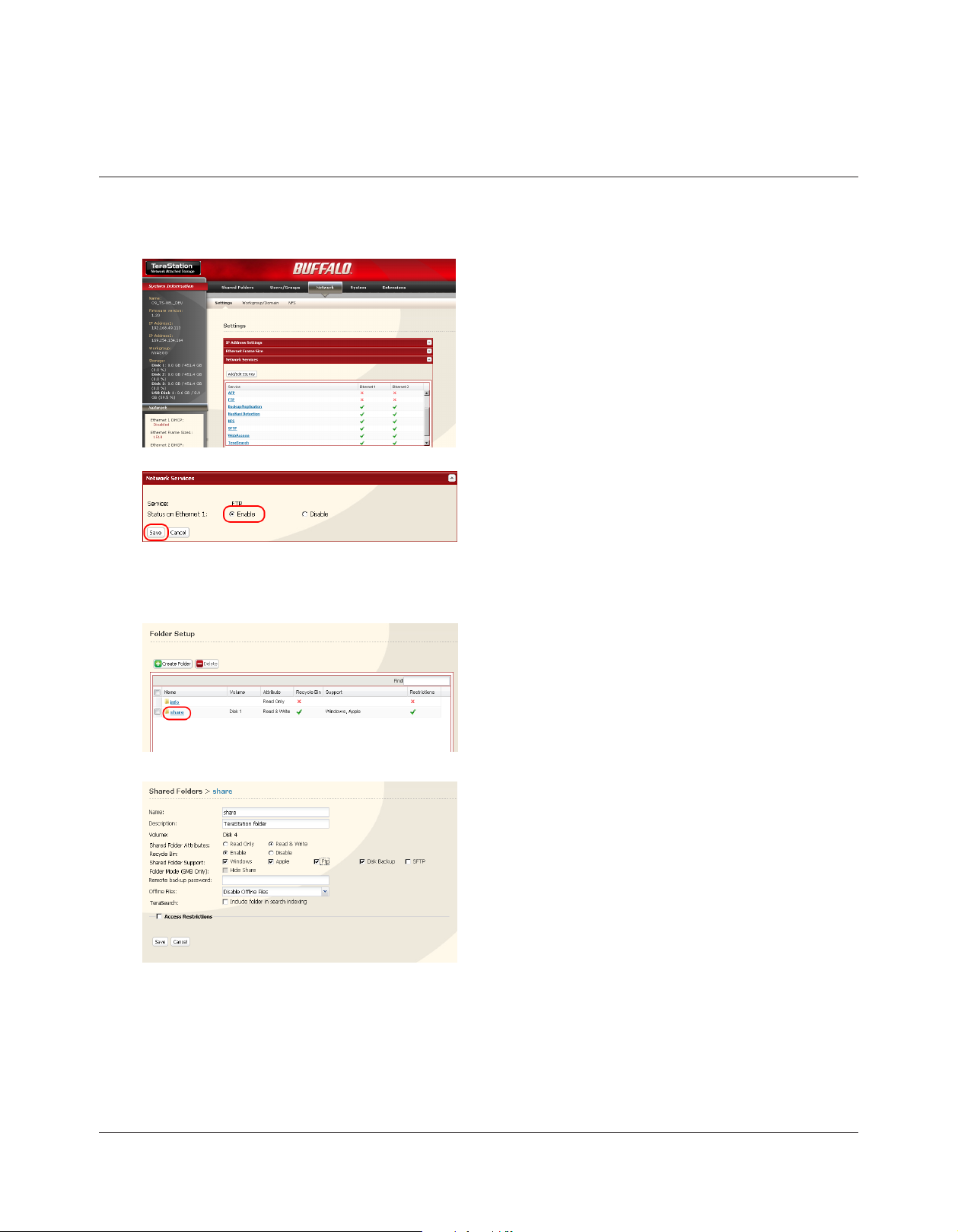

1
2
3
4
In the Web Admin interface, navigate to [Network] - [Settings] - [Network Services] and click [AFP].
Select [Enable] and click [Save].
Note:
Settings for both LAN Port 1 and 2 are the same (ports cannot be
congured separately).
Navigate to [Shared Folders] - [Folder Setup].1
Choose a shared folder to congure as a backup destination for Time 2 Machine.
Check [Apple] under [Shared Folder Support].1
Click [Save].2
5
Navigate to [Extensions] - [Time Machine].1
Click [Modify Settings].2
TeraStation User Manual 40
6
Select [Enable].1
Select the shared folder that you set in step 3.2
Click [Save].3
7
Notes: • A Macintosh computer’s host name can be found under [Computer Name] in [System Preferences] -
[Sharing].
• A Macintosh computer’s Ethernet MAC address is available from its network page.
Enter the Mac’s host name for [Target host name].1
Enter the Mac’s Ethernet MAC address for [Target MAC address].2
Click [Create].3
Examples: If Computers on your local network can access your computer at
“bbbbbbbbbb.local”, enter ’bbbbbbbbbb” for the host name. If it is “cccccccccc.eee-ee.local”, enter “cccccccccc” for the host name. If it is “dddddddddd.f-.jp”, enter “dddddddddd” for the host name.
From the Apple menu, select [About This Mac], then [More Info].1
System Proler will open. Click [Network] on the left side.2
The Ethernet MAC address will have a BSD Device Name of “en0”. 3 It will be labeled “IPv4 Addresses”. Copy the address and paste it
into [Target MAC address].
Note:
The folder <Macintosh Host Name>_<Macintosh MAC address>.sparsebundle will be created in the shared folder that was selected as the target share for Time Machine in step 3. Do not delete this folder or change its name, or Time Machine will not work properly.

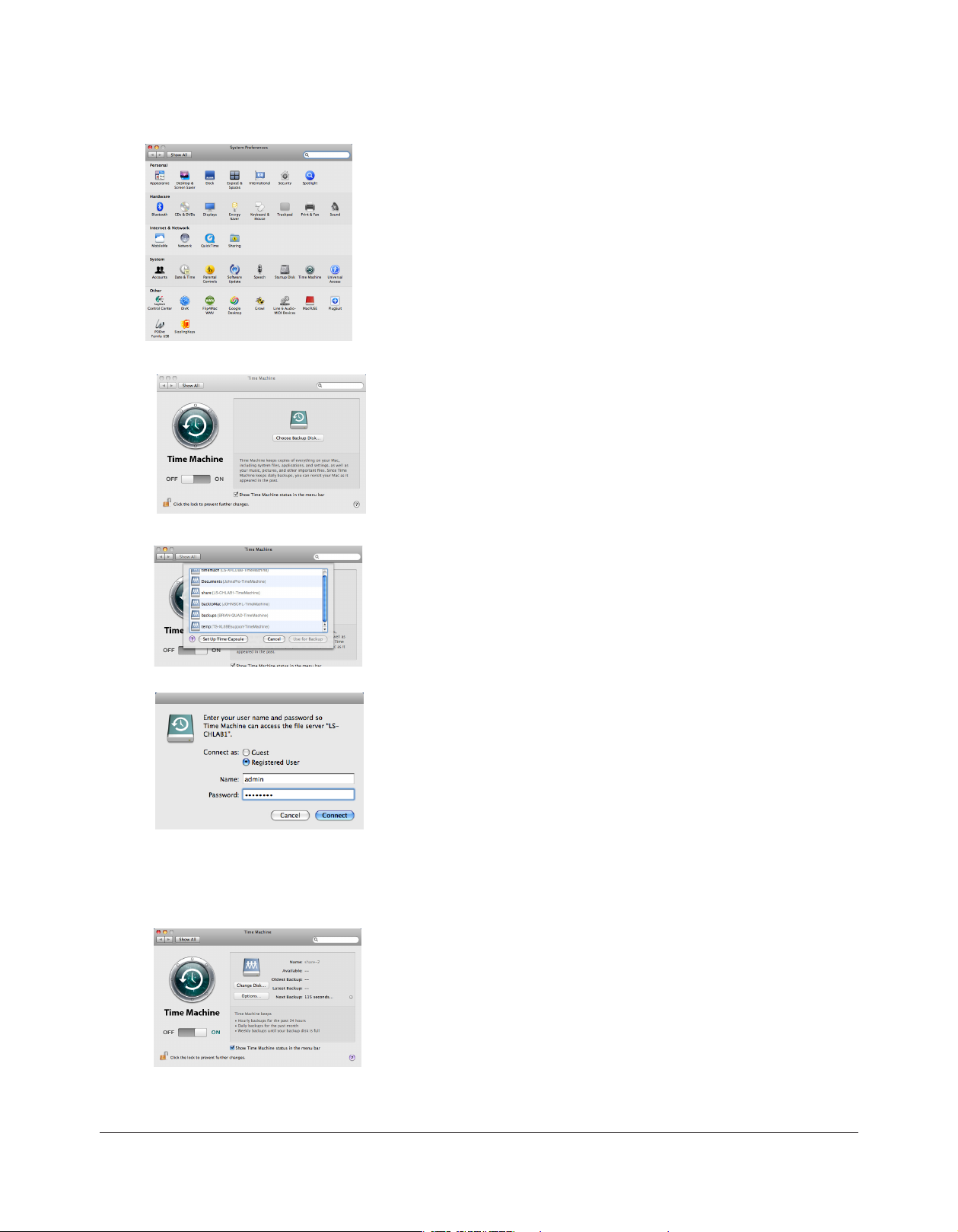

From the Apple menu, select [System Preferences].8
TeraStation User Manual 41
9 Click [Time Machine].
10 Click [Choose Backup Disk].
11 Select TeraStation, and click [Use for Backup].
12 Enter a user name and password with the rights to access the shared folder
of the TeraStation, and click [Connect].
Note:
If the backup target folder on the TeraStation does not have access restrictions congured, type “admin” for the username and “password” for the Password.
13 Make sure that Time Machine is “on”. A backup will start in 120 seconds.
Time Machine will run in the background, and you can use your Mac as
usual. For information on using Time Machine, do a search for “Time
Machine” in your Mac’s help.
Your TeraStation is now congured for use with Time Machine.
Chapter 7 Conguring Access Restrictions
TeraStation allows you to set permissions for users or groups to access specic shared folders. Four types of Access Restrictions are available:
• Access Restrictions for Users and/or Groups on the TeraStation
Follow the procedure on page 50 to congure.
• Access Restrictions on NT Domain
Follow the procedure on page 52 to congure.
• Access Restrictions on Active Directory
Follow the procedure on page 54 to congure.
Notes:
• This chapter describes the procedure to use Active Directory with Windows 2000 Server, Server 2003, and Server
2008.
• Depending on the security settings, the TeraStation may not be able to join, or may be able to join but may not
be authenticated by a domain. In such a case, it is recommended to restrict access by delegating authority.
• Restrict access by delegating authority
Follow the procedure on page 47 to congure.
Notes:
• Access restrictions on the TeraStation are congured for shared folders in the root folder. Subfolders inherit their permissions from their parent folder and may not be congured separately.
• Permissions on the TeraStation are congured from within the Web Admin interface. Changing TeraStation
permissions on the y from within Windows or OS X is not supported.
TeraStation User Manual 42

Adding a Shared Folder

1
2
Notes:
• Shared folder names can contain up to 27 bytes(UTF-8). Alphanumeric characters, multi-byte characters,
-(hyphen), and _(underscore) may be used. Do not use a symbol as the rst character.
•Shared folder descriptions can contain up to 75 bytes(UTF-8). Alphanumeric characters, multi-byte characters,
-(hyphen), _(underscore), and spaces may be used. Do not use a symbol as the rst character.
• You may create up to 400 shared folders on the TeraStation.
You have created a new shared folder.

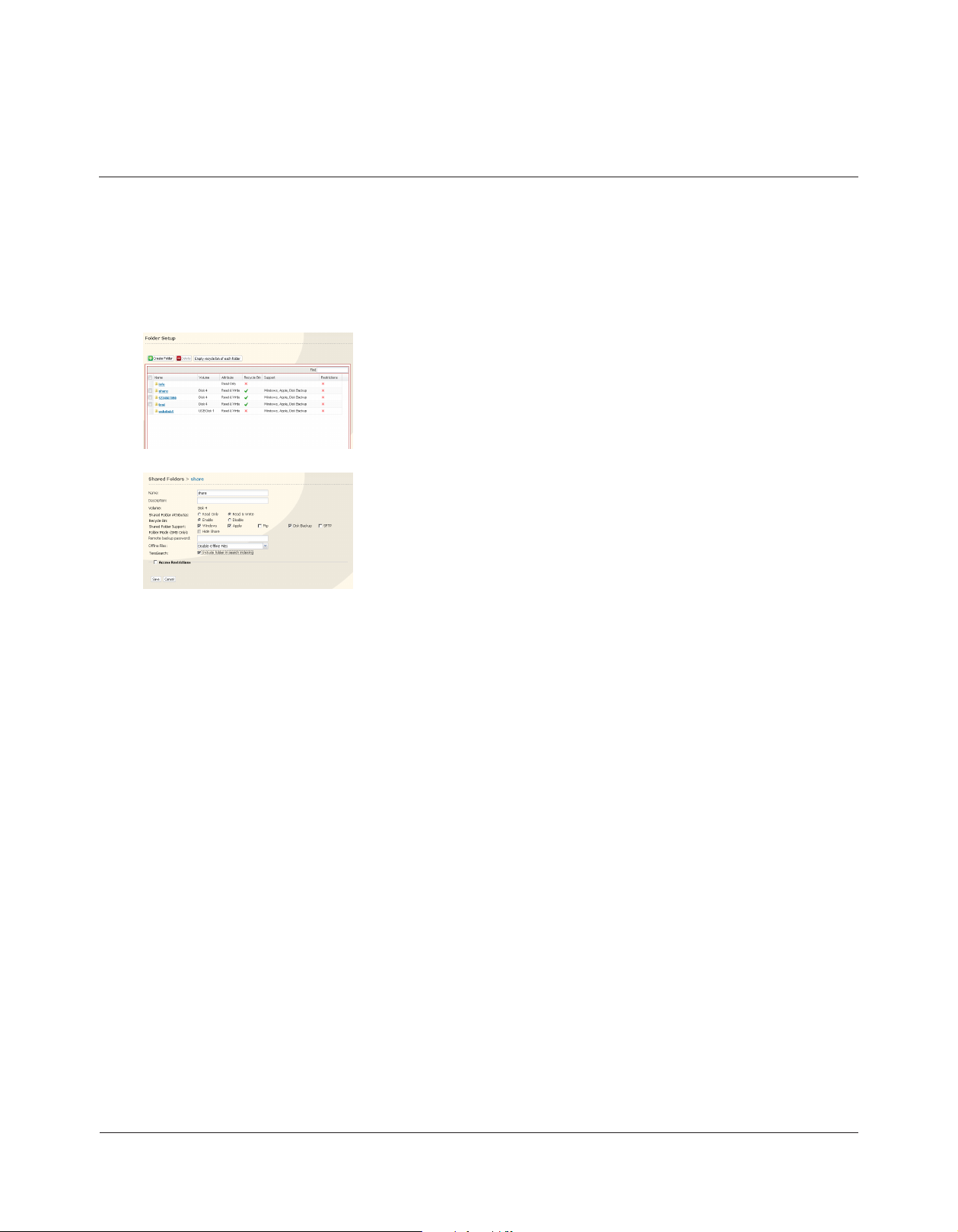

In the 1 Web Admin interface, click [Shared Folders] - [Folder Setup].
Click [Create Folder].2
Congure the desired settings for the new folder.1
Click [Save]. 2
TeraStation User Manual 43
TeraStation User Manual 44
[Recycle Bin]
Each shared folder on the TeraStation that is connected by SMB may have the recycle bin enabled or disabled from within the Web Admin interface. If enabled, deleted data from a shared folder will be temporarily moved to a [Trashbox] subfolder. To recover deleted data, open the [Trashbox] folder and move les.
Notes: To delete all les in the Recycle Bin, click [Shared Folders] - [Folder Setup] - [Empty recycle bin of each
folder] on the Web Admin interface.
[Read Only] Shares
A folder may be congured as read-only by selecting [Read Only] from [Shared Folder Attributes]. Notes: The default setting is [Read & Write].
A shared folder whose attribute is set to [Read Only] is read-only for all users, even if they are assigned write permissions on the share.
When a shared folder is congured to [Read Only], the message “(Read Only)” is added to the description of
that share folder.
[Hide Share]
In the Web Admin interface, click [Shared Folders] and select [Hide Share] on [Folder Mode (SMB Only) ]. Click [Save].
Only SMB shares may be hidden. If other protocols are checked for the share, such as [Apple], [Ftp], or [SFTP], you cannot select [Hide Share].
To open a hidden share, click [Start] - [Run] and enter \\TeraStation Name\Shared Folder name$\. Example: If your TeraStation is
named “TS-XL001” with the default share “share” hidden, enter \\TS-XL001\share$\.
TeraStation User Manual 45
Technical Restrictions
Windows does not support some characters that OS X and the TeraStation allow. So, if you create a lename on a Mac • with any of the following characters, it will not display correctly on a Windows computer. With Mac OS X 10.2 or later, you may have to connect to the TeraStation via AFP in order to display or copy any of the following characters: ? [ ] / ¥ = + < > ; : ” , | *
Do not use any of the following words as a Username or Group Name: root, bin, daemon, sys, adm, tty, disk, lp, sync, • shutdown, halt, operator, nobody, mail, news, uucp, ftp, kmem, utmp, shadow, users, nogroup, all, none, hdusers,
admin, guest, man, www, sshd, administrator, ftpuser, apache, mysql.
Do not use any of the following words as a shared folder name: info, spool, usbdisk1, usbdisk2, usbdisk3, usbdisk4, • lost+found, global, printers, homes, lp, auth, ram, disk1, disk2, disk3, disk4, array1, array2.
When using multi-byte characters (such as Japanese), make folder and le names with 80 bytes or less. Total •
pathlength is limited to 1024 bytes. You may not be able to copy a folder or le whose name is more than 80 bytes
characters long, or whose pathname is more than 1024 bytes total.
You cannot set hidden or read-only attributes to folders or les on a TeraStation from Windows. To set an attribute for •
a share on the TeraStation, use the Web Admin interface. In [Shared Folders] - [Folder Setup], click the shared folder you want to congure. Select [Read Only] or [Read & Write] from [Shared Folder Attributes], and [Hide Share] from [Folder Mode (SMB Only)].
If local characters aren’t displayed properly in a Shared Folder or Workgroup name, use alphabetical character. •
If you access a shared folder from a Macintosh computer, information les for Macintosh may be automatically • generated. Do not delete these les from a Windows computer. Otherwise, you may no longer access folders from Macintosh.
A volume name mounted by [Finder] from Mac OS X 10.3.9 may be corrupted when connected via SMB. File names • and data should be ne.
On Mac OS X 10.5 - 10.5.6, you cannot search by Spotlight while connected via AFP. In such a case, use SMB • connection or use Mac OS X 10.5.7 or later.
TeraStation belongs to the default zone specied by an AppleShare Server. You cannot specify a zone. •
Date and Time stamp information stored on a TeraStation’s hard disk or a USB hard disk connected to the TeraStation • may be updated by an attached OS, and its accuracy cannot be guaranteed.
If you display size of hard drives through the Web Admin interface, it will show a larger value than that shown by • Windows’ drive properties.
If you change a TeraStation’s settings or add a USB hard drive while transferring les, the le transfer may be aborted.•
Copying les to TeraStation is protected by the Journaling File System. However, if power is suddenly disconnected in • the middle of a le copy, the following events may occur:
Data congured (TeraStation, User or Group names) may be lost. -
The copied le may be incomplete and it may not be deleted. In such a case, restart TeraStation and delete the le, ­and try copying the le again.
Although you format TeraStation’s hard disk, [Percent Used] or [Amount Used] in the Web Admin interface will not • show 0 (zero). This is because some space is used for the system.
Set the TeraStation’s username and password the same as the user’s username and password for logging into the • Windows network. If they are dierent, you may not be able to access share folders with access restrictions.
Click [Shared Folders] - [Folder Setup] - [Empty recycle bin of each folder] in the Web Admin interface to delete all of • the contents of the [Recycle Bin] folder in the shared folder.
Do not set the same network address for LAN Port1 and LAN Port 2, or data transmission may be unstable. If this • happens, initialize the TeraStation with the Reset Button.
TeraStation User Manual 46
If you want to access a dierent network from the TeraStation, use LAN Port 1. LAN Port 2 cannot access beyond the • local subnet as it doesn’t have a default gateway.
Examples: You cannot use Mail Notication (cannot nd the mail server), or you cannot nd a TeraStation by IP address
to congure as a backup destination. To resolve, place the TeraStation on the same subnet as the device that you are trying to connect to via LAN Port 2.
TeraStation User Manual 47

Adding Users

1
2
Notes:
• Usernames can contain up to 20 bytes(UTF-8). Do not use multi-byte characters. Alphanumeric characters, -(hyphen),
_(underscore), .(dot), !, #, &, @, $, *, ^, % may be used. Do not use a symbol as the rst character.
• User descriptions can contain up to 75 bytes(UTF-8). Alphanumeric characters, multi-byte characters, -(hyphen),
_(underscore), and spaces may be used. Do not use a symbol and space as the rst character.
• You may register up to 300 local users with the TeraStation.
• Passwords can contain up to 20 bytes(UTF-8). Do not use multi-byte characters. Alphanumeric character and the
following characters may be use: - _ @ ! # $ % & ‘ ( ) * + , . / ; < > = ? [ ] ^ { } | ~ Do not use a symbol except -(hyphen) as the rst character.
• Set the TeraStation’s username and password the same as the user’s username and password for logging into the
Windows network. If they are dierent, the user may not be able to access shared folders with access restrictions.
• Repetitive deletions and additions of users may cause the Quota feature to not work properly. Even though the data
is copied by the backup function of the TeraStation, the Quota feature may not work properly if a user ID/group ID is duplicated. In such a case, use a user name/group name of an unused user ID or group ID.
• To assign Quotas for users, check [Enable] for User Quota and enter a limit in GB. (Instructions on page 86)
• If the user ID is left blank, a user ID will be automatically assigned. When using the Quota feature, use numbers
between 1000 and 1999 to set a group ID manually. Make sure that user ID are unique.
Click [Users/Groups] - [Local Users].1
Click [Create User].2
Enter [Username], [Description], and [Password].1
Click [Save].2
TeraStation User Manual 48
Importing Users
To import many users at once, enter the following information in the [Input CSV format data] eld on [Users/
Groups] - [Local Users] on the Web Admin interface, and click [Import].
Format of the user information: Username (required), Password (required), and Description (optional)
Example) username1, password1, description1 username2, password2, description2 username3, password3, description3 … … …
Notes: • It may take about 1 hour depending on the number of users you import. Please note that you cannot use
the Web Admin interface while the system is busy.
• Use commas as separators. Do not use spaces before or after the commas.
• If a line is incorrectly formatted, then the user in that line will not be registered.
• If a username is already registered on the TeraStation, that user will be overwritten.
• Commas should not be used in usernames, passwords, or user descriptions
TeraStation User Manual 49

Adding Groups

1
2
Notes:
• Group names can contain up to 20 bytes(UTF-8). Do not use multi-byte characters. Alphanumeric characters,
-(hyphen), _(underscore), and .(dot) may be used. Do not use a symbol as the rst character.
• Group descriptions can contain up to 75 bytes(UTF-8). Alphanumeric characters, multi-byte characters, -(hyphen),
_(underscore), and spaces may be used. Do not use space as the rst character.
• You may register up to 300 groups with the TeraStation.
• Repetitive deletions and additions of groups may cause the quota feature to not work properly. Even though the data
is copied by the backup function of the TeraStation, the Quota feature may not work properly if a user ID/group ID is duplicated. In such a case, use a user name/group name of an unused user ID or group ID.
• If the Group ID is left blank, a Group ID will be automatically assigned. When using the Quota feature, use numbers
between 1000 and 1999 to set a group ID manually. Make sure that a user ID does not duplicate to other users.
• To set a Quota for a group, check [Enable] for Group Quota, and enter the maximum disk space allotted in GB.
(Instructions on page 88)
Click [Users/Groups] - [Local Groups] in the 1 Web Admin interface.
Click [Create Group].2
Enter [Group Name] and [Description].1
Select users who join a group, click [Add].2
Click [Save].3
TeraStation User Manual 50

Access Restrictions

Setting Access Restrictions for Users/Groups
The TeraStation allows you to specify which groups and users can access specic shared folders.
Register Users and Groups to the TeraStation as described in the previous sections.1
2
3
4

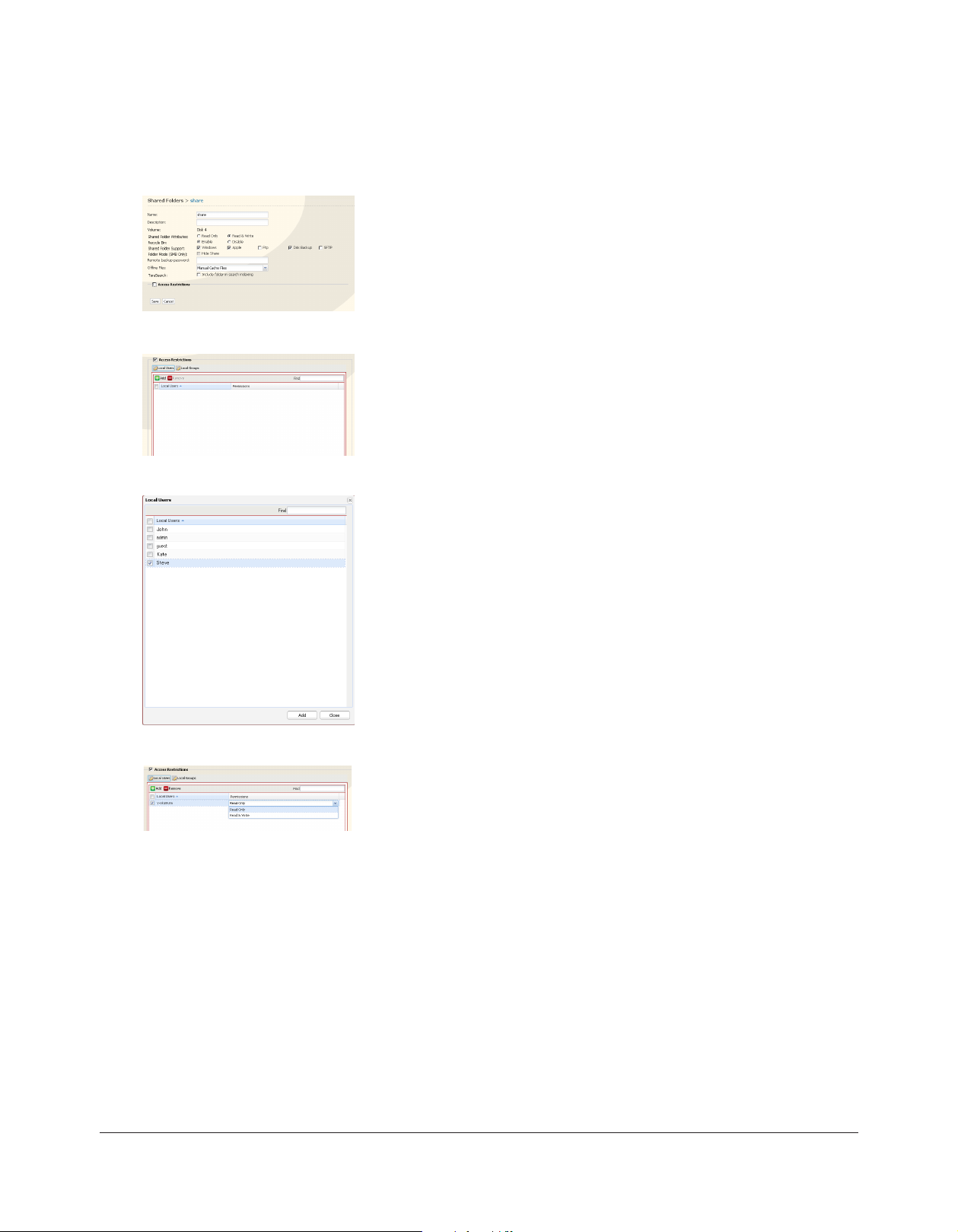

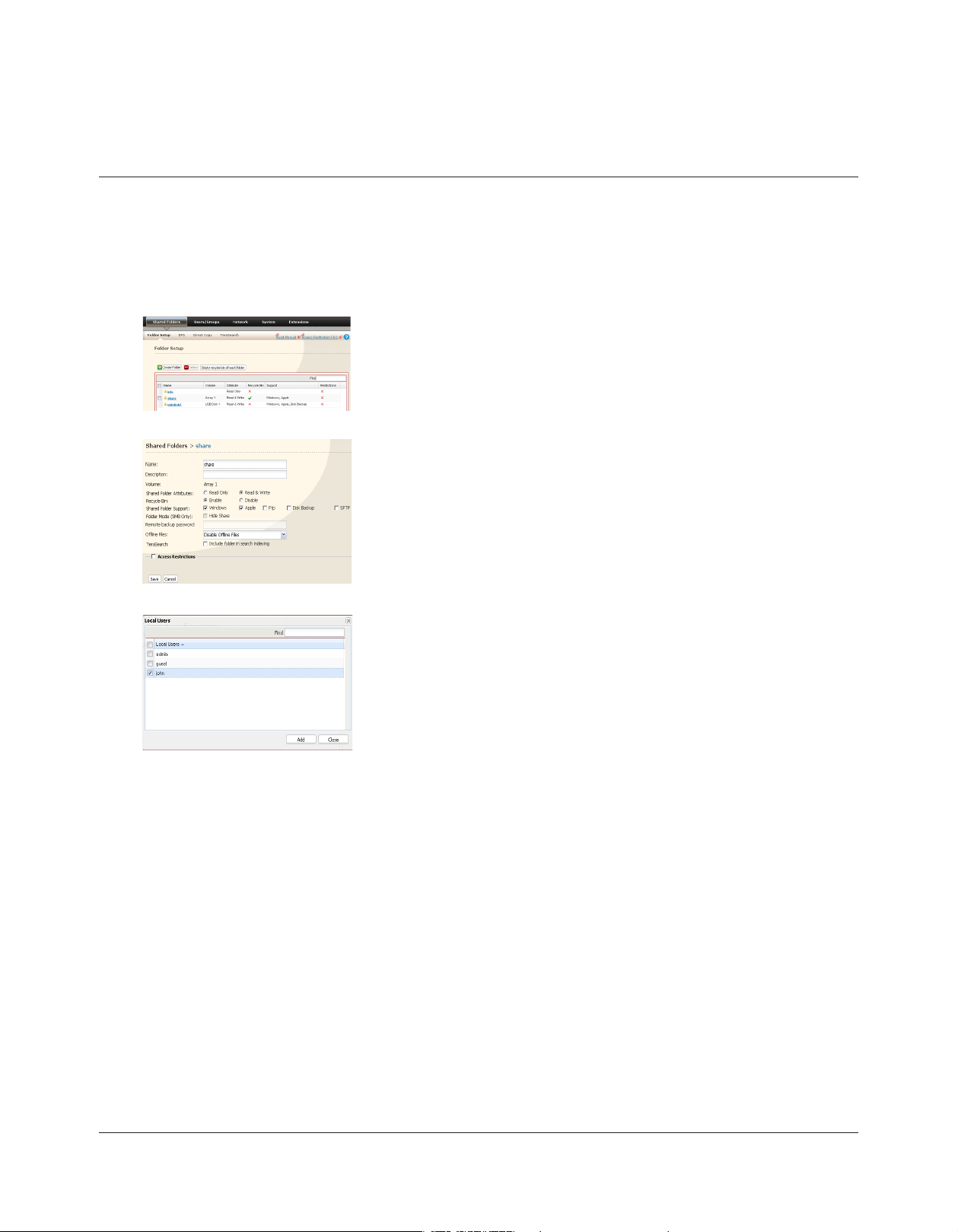

In the Web Admin interface, click [Shared Folders] - [Folder Setup].1
Click the shared folder you want to set Access Restrictions for.2
Click [Access Restrictions].
Click [Add].
Note: The procedure described here shows an example of how to set the access restrictions for local users. To set the access restrictions on Local Groups bases, click [Local Groups] - [Add].
TeraStation User Manual 51
5
Check users or groups that you want to allow to access to the share.1
Click [Add].2
6
Click [Save].7
You have completed conguring access restrictions.
Notes:
• If you log on from a Microsoft Network Domain, you can set the access restrictions with the user names/group names
which are registered on the domain.
• If a specic user is assigned both Read Only and Read & Write, they will have Read Only access. The most restrictive
access is always used.
Select the level of privilege for the user or group you added.
TeraStation User Manual 52

Access Restrictions on NT Domain

The TeraStation can download users, groups, and passwords from an NT Domain server. This procedure is recommended for system administrators only.
Create an account on the Domain Controller for the TeraStation.1
Note: If there is an option to “Accept accounts for computers with Windows 2000 or earlier”, then select it.
2
3
Follow the instructions in the previous section to add access restrictions to the domain.4
Notes:
• You can enter up to 23 bytes(UTF-8) for [NT Domain Name]. Alphanumeric characters, multi-byte characters,
-(hyphen), _(underscore), and .(dot) may be used. Do not use a symbol as the rst character.
• You can enter up to 63 bytes(UTF-8) for [NT Domain Controller Name]. Do not use multi-byte characters.
Alphanumeric characters, -(hyphen), and _(underscore) may be used. Do not use a symbol as the rst character.
Click [Network] - [Workgroup/Domain] - [Modify Settings] in the Web Admin interface.
Select [NT Domain].1
Enter [NT Domain Name].2
Enter [NT Domain Controller Name].3
Enter [Administrator Name].4
Enter [Administrator Password].5
Enter [WINS Server IP Address] (Optional)6
Click [Save].7
TeraStation User Manual 53
Notes:
If you change the TeraStation’s name, you will no longer be able to use domain users and groups or access • restrictions. Rejoin the domain.
If a domain user name contains more than 20 bytes, the TeraStation truncates it to 20 bytes. •
The TeraStation only downloads the rst 1000 users or the rst 1000 groups from a domain controller.•
If you operate TeraStation as a member server of NT Domain or Active Directory domain, you cannot connect as a • guest user via AFP.
When you change the user or group settings on the domain controller, these changes may not take eects • immediately on TeraStation. If you need to reect changes on the domain controller immediately, reboot TeraStation.
If your TeraStation is a member server in NT Domain or Active Directory domain and you change the [Authentication • Method] to [Workgroup] in [Network] - [Workgroup/Domain] - [Modify Settings] on the Web Admin interface, the computer account on the domain controller will not be deleted automatically.
If it has joined a domain network, you cannot connect to the TeraStation via FTP.•
TeraStation User Manual 54

Access Restrictions on Active Directory

The TeraStation can download users, groups, and passwords from an Active Directory domain server. This procedure is recommended for system administrators only.
1
2
Click [Network] - [Workgroup/Domain] - [Modify Settings] in the 1 Web Admin interface.
Select [Active Directory].1
Enter [Active Directory Domain Name (NetBIOS Name)].2
Enter [Active Directory Domain Name (DNS/Realm Name)].3
Enter [Active Directory Domain Controller Name].4
Enter [Administrator Name].5
Enter [Administrator Password].6
Enter [WINS Server IP Address] (Optional)7
Click [Save].8
Follow the instructions on page 50 to 51 to add Access Restrictions to Domain Users/Domain Groups.3
You have completed the settings for this feature.
TeraStation User Manual 55
Restrictions When Administrating in Active Directory Domain
When you have the TeraStation joined to an Active Directory domain, you must specify the DNS Server which can •
resolve names for Active Directory domain.
After building an Active Directory domain, the administrator’s password which is needed to join the Active Directory • domain must be changed at least once, or joining the Active Directory domain will fail.
Active Directory domain’s DNS name and NetBIOS name must be identical.•
If there are more than 5 minutes dierences between the TeraStation’s clock and the domain controller’s clock, •
joining the domain or authenticating domain user or group may fail.
TeraStation User Manual 56

Access Restrictions through Delegate Authority to External SMB Server

To permit access to the TeraStation by administrating all user accounts and passwords together using a delegate server, follow procedures below. This is recommended for network administrators only.
Notes:
For Windows 7/Vista, Windows Server 2003/Server 2008 Users
When setting Access Restrictions via Delegate Authority to External SMB Server, you need to change the security
setting on Windows 7/Vista and Windows Server 2003/Server 2008.
Select [Start] - [Bualo] - [File Security Tool] - [File Security Tool] and select [Change the le security level] to change the security level (when changing back again, select [Change back the le security level]).
[File Security Tool] can be installed only on Windows 7/Vista, Windows Server 2003/Server 2008 from the CD included
with this product.
During the initial setup, the message, [Changing the security level. Are you sure?] is displayed. Click [Yes] and follow
the instructions on the screen to restart your PC .
Clicking [Yes] on the message for converting to Local Users which is displayed when applying changing External SMB Server Settings will convert all Local Users registered on the TeraStation to External SMB Server Users. You must set the
Local user password again after resetting the External SMB Server.
TeraStation User Manual 57
1
In the Web Admin interface, click [Network] - [Workgroup/Domain] ­[Modify Settings].
2
3
Notes:
• Match the Workgroup name of this product and the Windows domain controller’s domain name if you would like to specify the Windows domain controller as an external authentication server.
• You can enter up to 23 bytes(UTF-8) for [Workgroup Name]. Alphanumeric characters, multi-byte characters,
-(hyphen), _(underscore), and .(dot) may be used. Do not use a symbol as the rst character.
Select [Workgroup].1
Note: Even if you will use this unit in a domain environment, select
[Workgroup].
Select [Delegate Authority to External SMB Server].2
Click [Automatic User Registration]. Check [Enable Authentication 1 Shared Folder]. If using Windows Domain Controller, check [Use Windows Domain Controller as Authentication Server].
Enter [Authentication Server Name or IP Address].2 Note: If you will be connecting using AFP and FTP, entering an IP address for the
authentication server is recommended.
Enter an Authentication Share Folder Name in [Enable Authentication 3
Shared Folder] eld.
Click [Save].4
An Authentication Shared Folder is created on the TeraStation. 4 When a user who is registered to the specied External Server opens the Authentication Shared Folder, he/she will be automatically registered as a TeraStation user (you can directly register users).
Notes:
• A user who is automatically registered will belong to the “hdusers” group. They can be set to belong to any
group from the Group settings.
• Access Restrictions to shared folders can be set for the User Name obtained
• User Name registered will be displayed when clicking [Users/Groups] - [External Users]. To delete a user that
automatically registered, select the user and click [Delete External Users].
• When connecting using AFP and FTP, always use an IP address. Authentication may fail if a Server Name is used.
• Enter the IP address when specifying a server in a dierent subnet.
• AFP and FTP connections do not allow obtaining user information by delegating authority to External SMB
Server.
Follow the instructions on pages 50 and 51 to add access restrictions to External Users/Groups.5
You have completed the settings for the Authentication Server.
Restrictions When Administrating Delegate Authority Option
If you cannot access the TeraStation while logged into Windows using the account information registered to the • authentication server, you cannot access shared folders on the TeraStation or set access restrictions. If you use the Delegate Authority option, you cannot connect as a guest user via AFP.• If you use the Delegate Authority option, you cannot connect as a Anonymous user via FTP.•
TeraStation User Manual 58

Chapter 8 Managing your TeraStation

Name, Date and Time

Congure the TeraStation’s host name, date, or time as follows:
1
2
3
In the Web Admin interface, navigate to [Modify Settings] in [System] - [Settings] - [Name].
Enter [TeraStation Name] and [Description].1
Click [Save].2
In the Web Admin interface, navigate to [Modify Settings] in [System] - [Settings] - [Date and Time].
4
TeraStation User Manual 59
Select [Date] and [Time].1
Click [Save].2
TeraStation User Manual 60
Click [Use Local Date/Time] to use your computer’s time settings for the TeraStation.
By default, the TeraStation adjusts its clock automatically by using an NTP server.
NTP
NTP may not be usable in some networks.
The default NTP Server (ntp.jst.mfeed.ad.jp) belongs to Internet Multi Feed Inc. For more information, please visit www.jst.mfeed.ad.jp.
Use NTP at your own risk. Bualo Technology is not responsible for any loss or damage caused by using of this service, stopping the service, or missing service.
You’ve completed hostname and time settings for the TeraStation.
Note:
The TeraStation’s internal clock may run at a slightly dierent speed from other clocks on you network, and over a long
period of time your network devices may show dierent times. If clocks on your network vary by more than 5 minutes
it may cause unexpected behavior. For best results, keep all clocks on the network set to the same time by adjusting
them regularly, or use an NTP server to correct them all automatically.
TeraStation User Manual 61

RAID Scanning

RAID Scanning allows regular scans of your RAID arrays to be congured to run automatically. Errors will be xed as they are found if possible.
For best results, schedule regular RAID scans if you use RAID arrays in your TeraStation.
1
2
In the Web Admin interface, click [System] - [Storage] - [RAID Scanning]. 1
Click [Modify Settings]. 2
Click [Enable]. 1
Select your desired schedule for [RAID Scanning Schedule]. 2
Notes:
•Select [Shutdown] to have the TeraStation shut down automatically when an error is detected.
• If [Begin Immediate RAID Scan] is selected, then a RAID scan will begin
immediately.
• To stop a RAID scan, click [Abort RAID Scanning].
Select the speed of the RAID Scan for [RAID Array check speed]. 3
Click [Save]. 4
You have congured RAID Scanning.
TeraStation User Manual 62

Disk Check

A disk check tests the data on a drive in the TeraStation or connected via USB. Errors are xed automatically. A disk check may run for more than ten hours. Shared folders cannot be accessed during the disk check. Do not turn o power to the TeraStation during the disk check.
If the Power Mode Switch is set to AUTO, then the TeraStation will turn o when the disk check is nished.
Run a disk check as follows:
1
2
3
In the Web Admin interface, navigate to [System] ­[Storage] - [Disks].
Select the hard drive to test.1
Click [Check Disk].2
Click [Check].
The Status LED on the front of the TeraStation will ash during the disk check. The TeraStation’s shared folders cannot be accessed until the disk check is complete.
Note: If a power outage disconnects the TeraStation in the middle of a disk check, then you may not be able to access shares on the TeraStation from Mac OS. This is because the database created by Mac OS is damaged. To resolve, navigate to [System] - [Storage] - [Check Disk] and check [Delete any hidden, non-essential Mac OS dedicated les]. Rerun the disk check when done.

Encrypt Hard Drives on the TeraStation

If encryption is selected during a reformat of a drive or array, it will be encrypted with 128 bit AES. The drive or array will then be only readable from that specic TeraStation. To unencrypt the hard drive, uncheck [Encrypt] and format it again.
Notes:
• Performance will be slower if an array or drive is encrypted.
• USB drives cannot be encrypted.
• Data recovery services will probably not be able to recover data from an encrypted drive or array.
TeraStation User Manual 63

Formatting Disks

Notes:
• Formatting deletes all data from a hard drive. Be careful! Back up any important data on a drive before formatting it. It
will take a several minutes to format a hard drive.
• Shared folders cannot be accessed during formatting.
• Do not turn o the power switch or disconnect power while formatting a hard drive.
• If the Power Mode Switch is set to AUTO, then the TeraStation will turn o when the format is nished.
• To erase all data on a disk, choose [System] - [Restore/Erase] instead of formatting.
1
2
3
In the Web Admin interface, navigate to [System] ­[Storage] - [Disks].
Select the drive to format.1
Click [Format Disk].2
Select [File System]1 .
Notes:
• If you check [Encryption], the drive will be encrypted with 128 bit AES. It will be normally accessible in the TeraStation, but if removed, it will not be accessible from other devices. If encryption is enabled, data recovery services will not be able to recover data from a damaged disk. To unencrypt the drive, uncheck [Encryption] and format it again.
• Refer to page 125 for more on format type.
Click [Format].2
The [Conrm Operation] screen will be displayed. Type the displayed number into the [Conrmation Number] 4
eld within 60 seconds, then click [Apply].
Follow the instructions displayed on the screen.5
Notes:
• The time needed to format a hard drive varies based on the hard drive’s size and format types (a few seconds to
several minutes).
• The Info LED on the front of the TeraStation will ash during formatting. The TeraStation’s shared folders cannot be
accessed until the disk format is complete.
• If the hard drive is an external USB drive, its partitions will be recreated.
TeraStation User Manual 64
E-mail Notication
Your TeraStation can send you daily e-mail reports. It can also send you an e-mail when settings are changed or an error
occurs.
The following contents will be sent via E-mail.
Sends the status of hard drives at specied time• Changes to RAID conguration• Fan error alert• Hard drive replacement alert•
Noties when backup jobs are completed•
RAID error alert• Hard drive read error alert• Notication of Quota changes or limits •
1
3

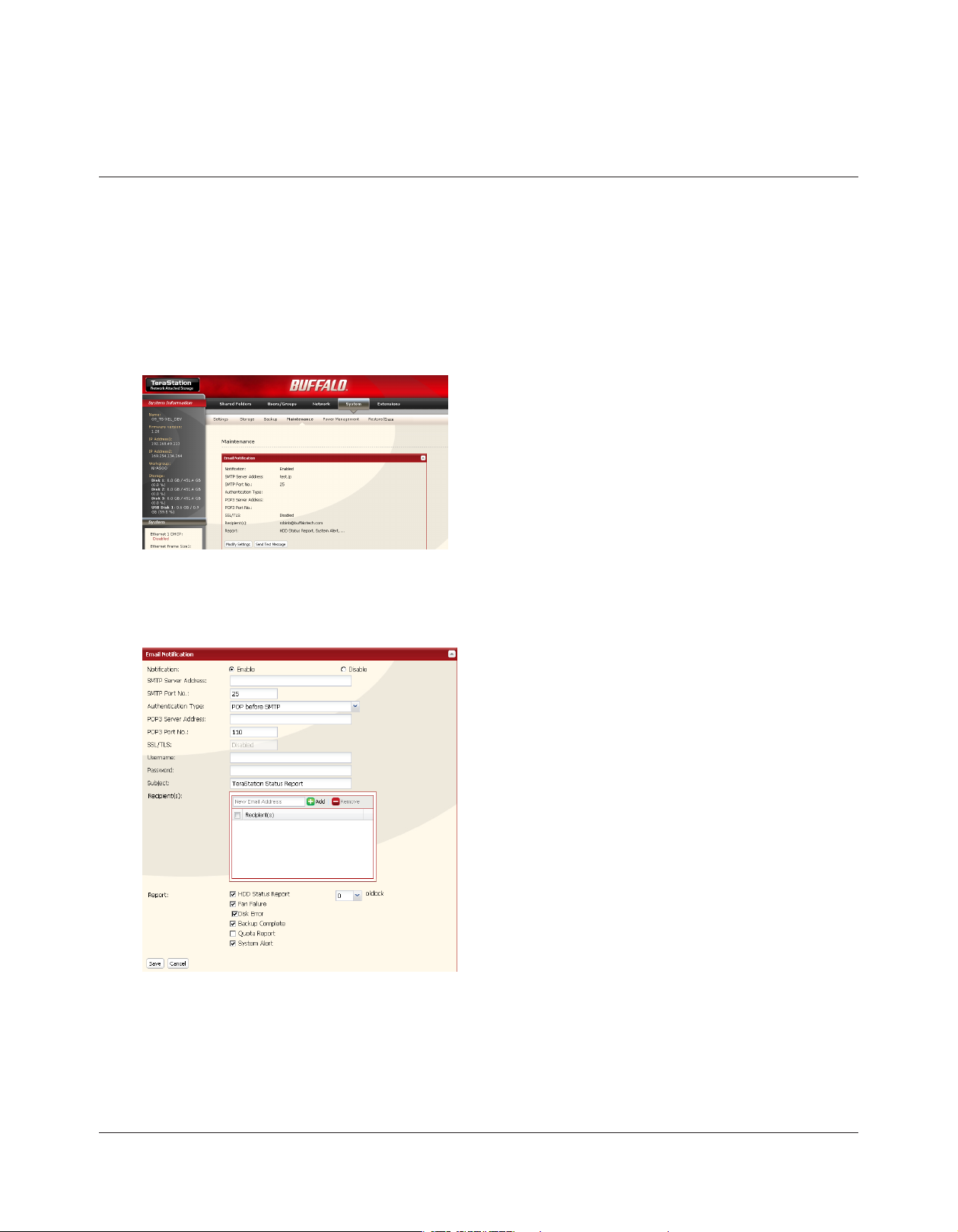

In the Web Admin interface, navigate to [System] ­[Maintenance].
Click [Modify Settings] in [Email Notication].2
Click [Enable] under [Notication].1
Type [SMTP Server Address] and [SMTP Port No.]. 2
Note:
If using [POP before SMTP], enter [POP3 Server Address] and [POP3 Port No.].
Select [Authentication Type] from [Disabled], [POP 3 before SMTP], [LOGIN(SMTP-AUTH)], or [CRAM­MD5(SMTP-AUTH / CRAM-MD5)].
Enter [Username].4
Enter [Password].5
To use a secured connection, select [SSL] or [TLS].6
Enter [Subject] for notication e-mail. 7
Enter an e-mail address in [New Email Address] eld, 8 then click [Add] . E-mails can be sent to up to 5 addresses.
TeraStation User Manual 65
Select conditions for e-mails to be sent.9
[HDD Status Report] Sends the condition of the hard drives at the specied time.• [Fan Failure] Sends when the fan error is recognized.• [Disk Error] Sends when an hard drive error is recognized• [Backup Complete] Sends when the backup is complete.• [Quota Report] Sends when the Quota Space Limitation is exceeded at the time which is specied •
on HDD Status Report.
[System Alert] Sends when system is rebooted or shut down, or RAID conguration is changed.•
If you have selected [HDD Status Report] for sending condition, select time to send.10
Click [Save].11
4
Notes: The following examples show notication emails for each selection:
• The content of the mail which include the periodical report when [HDD Status Report] is selected
TeraStation Status Report: Periodical Report: Information [TeraStation Information] TeraStation Name: TS-xxxxx Time Stamp: 2009/03/23 00:00:01 IP Address: 172.16.37.62 Conguration Scree: http://172.16.37.62/ Continuous operating time: 13:51:57
• The content of mail which is sent periodically when [Disk Error] is selected
TeraStation Status Report: DISK Error Notication: Failure: Fail to mount a disk DISK Error Notication The error occurred on HDD. The erroneous disk drive: Disk 1 Disk could not be mounted.
• The content of mail which is sent periodically when [Fan Failure] is selected
TeraStation Status Report: FAN Error Notication: Failure: FAN stopped. FAN Error Notication The FAN has stopped. The internal temperature is now over the threshold. Shut down the system. System temperature: 52 [°C]
Click [Send Test Message] to send a test message.
TeraStation User Manual 66

UPS Settings

An UPS (Uninterruptible Power Supply) can protect the TeraStation from power outages and brownouts. To use the TeraStation with a UPS, proceed as follows:
Plug the power cable of the UPS to a wall socket.1
Connect the AC cable of the TeraStation to the UPS.2
Connect the UPS to the TeraStation with a USB or serial connection.3
Note:
• TS-XEL series TeraStations do not have UPS Port.
Turn on the UPS, then the TeraStation.4
In the Web Admin interface, click [System] - [Power Management] - [UPS Settings].5
Click [Modify Settings].6
7
Check [Enable].1
Congure the desired settings.2
Click [Save].3
Notes:
• If the UPS has shut down the TeraStation because of a power outage, make sure that power has been restored before
restarting the TeraStation. If the TeraStation is restarted after a shutdown, but power is not available, then the UPS will not shut down the TeraStation a second time even if its battery is running low.
• If the TeraStation is set to use UPS recovery, then the UPS will restart the TeraStation when normal power is restored.
TeraStation User Manual 67

Beep Alerts

You can set the TeraStation to beep when certain errors occur.
In the Web Admin interface, select [System] - [Maintenance] - [Alert Sound Settings] - [Modify Settings].1
2
You’ve now congured alerts.
Select the conditions to beep the alert from [Overheating], [Disk Error], 1 [Fan Error], or [UPS power Error].
Click [Save].2

LCD Display Settings

You may congure the LEDs and LCD screen on the front of the TeraStation here.
In the 1 Web Admin interface, select [System] - [Maintenance] - [Front Panel Settings]. Click [Modify Settings].
2
Congure the desired settings for [LCD Setup] and [LED Setup]. 1
Click [Save].2
You have completed the settings for the display panel.
TeraStation User Manual 68

Changing the Admin Username and Password

1
2
3
You’ve now changed the admin password.
In the Web Admin interface, select [Users/Groups] - [Local Users].
Click [admin] from the user list.1
Click [Edit User].2
Enter [Username] and [Password].1
Click [Save].2
Notes:
• Usernames can contain up to 20 bytes(UTF-8). Do not use multi-byte characters. Alphanumeric characters,
-(hyphen), _(underscore), .(dot), !, #, &, @, $, *, ^, % may be used. Do not use a symbol as the rst character.
• Passwords can contain up to 20 bytes(UTF-8). Do not use multi-byte characters. Alphanumeric character and the following characters may be use: - _ @ ! # $ % & ‘ ( ) * + , . / ; < > = ? [ ] ^ { } | ~ Do not use a symbol except -(hyphen) as the rst character.
• You cannot assign access restrictions to the “admin” account, or use it for WebAccess.
TeraStation User Manual 69

Erase Data on the TeraStation Completely

Data on the hard drive is not completely erased by just performing “Delete” or “Format”. If you want to completely
delete data from a TeraStation that you are going to donate, give away, or send in for repairs, do the following.
In the 1 Web Admin interface, select [System] - [Restore/Erase] - [Erase].
2
The [Conrm Operation] screen will appear. Enter the 3 number from the [Conrmation Number] eld within 60
seconds, then click [Apply].
Follow the instructions displayed on the screen. 4
Notes: This will erase all data on the TeraStation and replace it with zeros. When the process is complete, the
TeraStation will be congured as follows:
Hard drives in Normal mode Shared folders (share 1 - 4 on TS-XL, TS-XEL, and TS-RXL; share 1 and 2 on TS-WXL) on each drive. All settings to factory defaults Logs: All deleted Data: All deleted
If you remove a drive and then erase all data on the TeraStation, the LCD display will show the error “HDx Error
E22 HDx Can’t Mount” where x is the hard drive you removed. You can still use the TeraStation.
Click [Erase].
TeraStation User Manual 70

Initialization

Restore Factory Defaults
To reset the TeraStation to its factory default settings, power on the unit and hold down the reset button for ve seconds.
Location of the reset button varies according to model. You will need to open or remove the drive door to access it. A
key for the drive door is included in your TeraStation package.
TS-XL, TS-XEL
TS-RXL
To press the reset button on the TS-RXL TeraStation, insert the tip of an unfolded paper clip.
To reset the TeraStation to its factory default settings, power on the unit and hold down the reset button for ve seconds.
TS-WXL
Reset Button
Reset Button
* View with the front cover open
Notes:
• Normally, holding down the reset button initializes settings for IP Address, Ethernet Frame Size, admin password, SSL
Key, Port Trunking (default is o), and Network Services except AFP/FTP (page 119). The ability to reset the admin
password may be turned o in the Web Admin interface. You can also initialize settings from within the Web Admin
interface (next page).
• To disable resetting the admin password from the initialization button, navigate to [System] - [Restore/Erase] -
[Restore Factory Defaults] - [Modify Settings] and select [Keep current admin password]. Click [Save].
• If you disable resetting the admin password from the reset button, you can no longer congure the TeraStation if you
forget the password. Write down your password and keep it in a safe place.
TeraStation User Manual 71
Initialization from within the Web Amin interface
In the Web Admin interface, you can initialize the following settings, including things that are not initialized from the reset button.
TeraStation Name, Description, NTP Settings, Workgroup Settings, Network Services, Shared Folders Settings, USB Disk Settings, RAID Scanning, Timer ON/OFF, Upon restore, Restrictions on Shared Folders, User Settings, User/Group, Notication Settings, Synchronization with UPS, Backup Settings, Admin password, Network Settings (IP Address, Subnet Mask and etc.), Time Machine, Web Access, DFS, DirectCopy, NFS, TeraSearch, Alert Sound Settings, Front Panel Settings, Language, Syslog, PrintServer, Network Services
In the 1 Web Admin interface, navigate to [System] - [Restore/Erase]- [Restore Factory Defaults].
2
The [Conrm Operation] screen will open. Enter the number from the 3 [Conrmation Number] eld within 60 seconds, then click [Apply].
Follow the instructions displayed on the screen.4
Notes:
• To disable resetting the admin password from the reset button, navigate to [System] - [Restore/Erase] - [Restore
Factory Defaults]- [Modify Settings] and select [Keep current admin password]. Click [Save].
• If you disable resetting the admin password from the reset button, you can no longer congure the TeraStation if you
forget the password. Write down your password and keep it in a safe place.
Click [Restore TeraStation].
TeraStation User Manual 72

Changing the IP Address

Normally, the TeraStation’s IP address is set automatically from a DHCP server on your network. If you prefer, you can set it manually. To change the TeraStation’s IP address settings, your computer should be connected to the same router (subnet) as the TeraStation and should be running NAS Navigator2 (included on your TeraNavigator CD).
For a PC, double-click the [NAS Navigator2] icon on your Desktop. For a Mac, click 1 the [NAS Navigator2] icon in
the Doc. NAS Navigator2 will launch.
For a PC, right-click your TeraStation and choose [Properties]. Select [IP Settings]. For a Mac, hold the control key 2
and click your TeraStation's icon, then choose [Congure] - [IP Address].
3
You’ve congured a static IP address for the TeraStation. To return to using DHCP, reopen the Network Properties
screen and recheck [Obtain IP address automatically via DHCP].
Uncheck [Obtain IP address automatically via DHCP.]. Enter the desired [IP Address] and [Subnet Mask]. Click [OK], or [Apply] if you’re using a Mac.
TeraStation User Manual 73
TeraStation
TeraStation
TeraStation
TeraStation

Network

Jumbo Frame
If your other network devices support it, you may be able to increase network performance with Jumbo Frame.
1
In the Web Admin interface, navigate to [Network] - 1 [Settings]
Click [Modify Settings] in [Ethernet Frame Size].2
2
3
Jumbo Frame (4102/7422/9694)
Jumbo Frame (4102/7422/9694)
Connection
Jumbo Frame Supported
Jumbo Frame Supported
Jumbo Frame Supported
Jumbo Frame Not Supported
Select [Ethernet Frame Size].1
Click [Save].2
Transmission
Transmit Jumbo Frame (4102/7422/9694)
Transmit normally(1518)
Transmit normally(1518)
Jumbo Frame (4102/7422/9694)
Jumbo Frame (4102/7422/9694)
Jumbo Frame Not Supported
Jumbo Frame Not Supported
Jumbo Frame Not Supported
Jumbo Frame Supported
No transmission
TeraStation User Manual 74
Notes:
• To benet from using Jumbo Frame in the TeraStation, your router/switch/hub should support Jumbo Frame.
• To use Jumbo Frame (4102/7422/9694 bytes), your computer’s NICs and all switches, hubs, and routers on the
transmission route need to support Jumbo Frame. If any device on the route doesn’t support Jumbo Frame, use standard transmission (1518 bytes) instead.
• If you are using Jumbo Frame and back up data from a LinkStation/TeraStation to another LinkStation/TeraStation, set
the Ethernet frame sizes of the LinkStations/TeraStations to the same settings (or the closest available). If the Ethernet
frame sizes are signicantly dierent, the backup job may fail. If you have problems with backup jobs, select the
default frame size (1518 bytes).
TeraStation User Manual 75

Port Trunking

You may use two separate LAN connections for redundancy, speed, and reliability.
Note:
To use Port Trunking, your hub or switch must support it.
The following Port Trunking modes are available:
[O]: Port trunking is not used. [Round-robin policy] (*1):
Sets a round-robin policy for fault tolerance and load balancing.
[Active-backup policy]:
Sets an active-backup policy for fault tolerance.
[XOR policy] (*1) :
Sets an XOR (exclusive-or) policy for fault tolerance and load balancing.
[Broadcast policy]:
Sets a broadcast policy for fault tolerance.
[Dynamic link aggregation] (*2):
Sets an IEEE 802.3ad dynamic link aggregation policy.
[Adaptive transmit load balancing (TLB)]:
Sets a Transmit Load Balancing (TLB) policy for fault tolerance and load balancing
*1 Your switch must support this. Congure the two ports on the switch in advance. Refer to your switch’s manual for
instructions on conguring it.
*2 Your switch must support this. Enable LACP (Link Aggregation Control Protocol) in the switch in advance. Refer to
your switch’s manual for instructions on conguring it.
Important:
After conguring [Port Trunking] in the Web Admin interface, reboot the TeraStation by holding down the power button until it shuts down, then restarting it.
To congure port trunking,
Connect LAN Port 1 on the TeraStation to a port on the switch.1 Do not connect LAN Port 2 yet.
In the Web Admin interface, navigate to [Network] - [Settings] - [Port Trunking]. 2
Under [Port Trunking], click on [Modify Setiings].3
Connect LAN Port 2 on the TeraStation to the switch.4
Hold down the TeraStation's power button for 3 seconds to turn it o. P ress it again to restart the TeraStation. 5
Port Trunking is now congured.
TeraStation User Manual 76

Chapter 9 Extensions

Using WebAccess

What is WebAccess ?
WebAccess lets you access les on your TeraStation through the Internet. Access restrictions can be set for folders that are shared, and automatic router settings by UPnP and redirect functionality from the bualonas.com server (similar to Dynamic DNS) make conguration easy.
Remote location 1
Both uploading and downloading are supported.
Create and save documents from a remote location.
Internet
TeraStation
Oce
Note:
Care should be taken with conguration of WebAccess. Certain settings can make the les in the shared folder available
to anyone on the Internet without any access restrictions.
Central Server
Remote location 2
Download photos and video from remote locations.
For more information on WebAccess, visit http://bualonas.com/manual/en/
TeraStation User Manual 77
TeraStation User Manual 78

Direct Copy

DirectCopy automatically copies movie, music, and images directly to the TeraStation from a USB device.
You can connect many types of USB devices to the TeraStation, including USB hard drives, USB ash drives, single-card
card readers, digital cameras, and USB printers. USB hubs, mice, keyboards, and card readers that support 2 or more cards are not supported.
Connect to a USB device (USB ash/digital camera/hard disk/card reader) to the TeraStation.1
TS-XL, TS-XEL
USB Connector
TS-WXL
USB Connector
TS-RXL
Front View
Rear View
While the function button is blue, press it to automatically copy data from the USB device to the DirectCopy 2 folder on the TeraStation. The function button will ash blue during the copy. Push the function button again to abort the copy.
Front View
Front View
USB Connector
USB Connector
Rear View
Function Button
Rear View
Function Button
Function Button
After the USB device is recognized, the function button is lit in blue for 60 seconds. After the function button is lit in blue, you can access the USB device.
If an unsupported USB memory device is connected to the TeraStation, then the function button will not light up in blue, and the device will not be mounted.
TeraStation User Manual 79
Files are copied to the folder:
<DirectCopy folder>/pictures/yyyymmdd yyyy: year copied mm: month copied dd: date copied

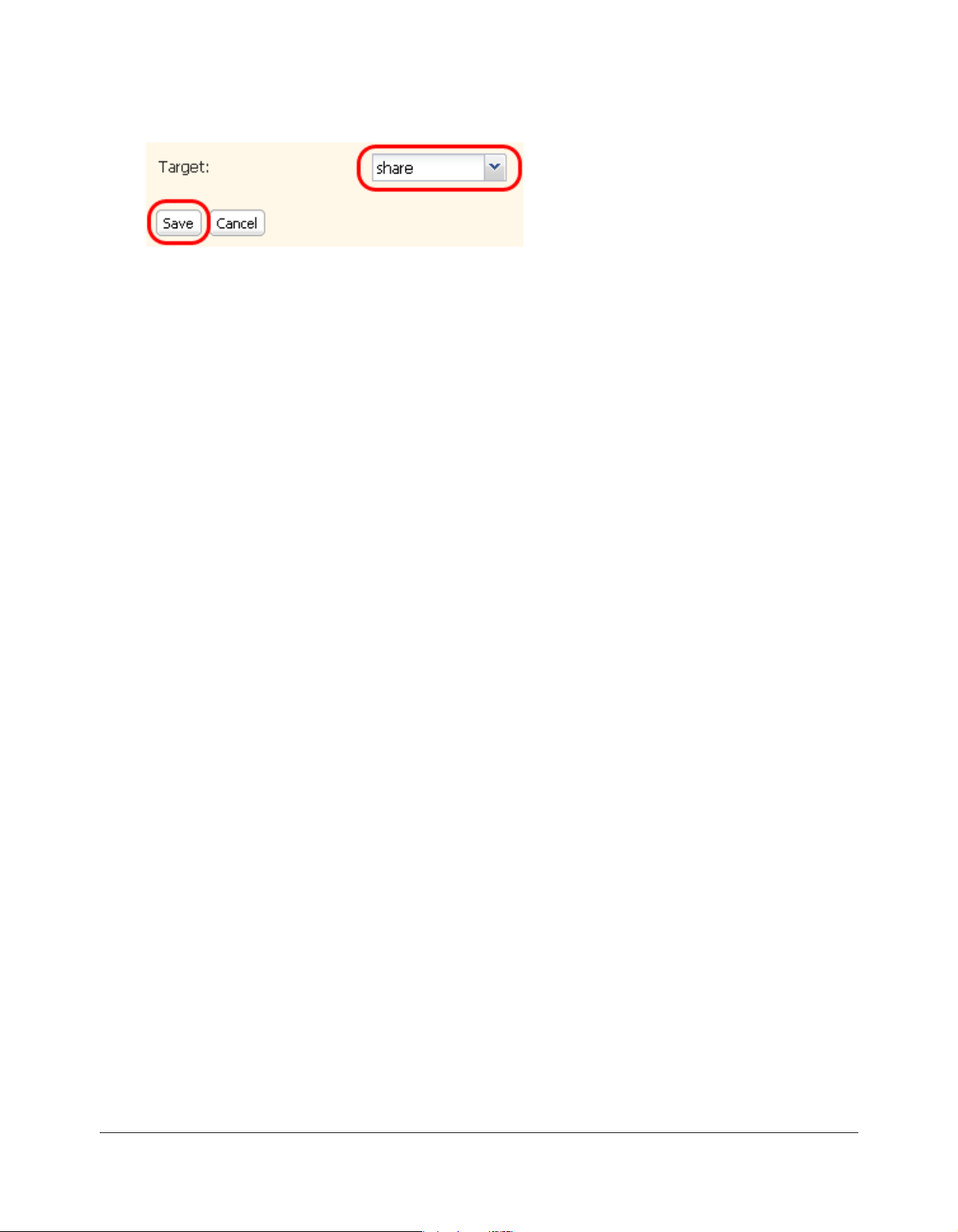

You may change the destination shared folder for DirectCopy in [Shared Folders] - [Direct Copy] - [Modify Settings] in the Web Admin interface. Subsequent DirectCopy folders are created at:
<DirectCopy folder>/pictures/yyyymmdd/n yyyy: year copied mm: month copied dd: date copied n: 1st time n=0, 2nd time n=1, 3rd time=2 and so on.
For USB Mass Storage class USB devices, les with following extensions will be copied.
avi, divx, asf, mpg, mpe, m1v, vob, mts, m2ts, m2t, mpeg, mpeg2, vdr, spts, tp, ts, 3gp, mov, m4v, wmv, dvr-ms,
xvid, mp4, jpg, jpeg, gif, png, tif, ti, yuv, bmp, mp3, mpa, wma, aac, apl, ac3, lpcm, pcm, wav, m3u, m4a, m4b, aif,
ai, ac, ogg, mp2, mp1
For digital cameras and other devices that don’t follow the USB Mass Storage Class standard, all les on the device will be copied.
When the access LED of the USB device goes o, the copy is nished. Dismount the USB device before 3 unplugging it.
To dismount the USB device if the TeraStation is on, hold in the function button for 6 seconds. The blue LED will
go out, and the USB device is dismounted. You may now unplug it safely.
If you turn o the TeraStation, the USB device is already dismounted, and you can remove it safely.
TeraStation User Manual 80

PrintServer

<
TS-XL, TS-XEL
>
<
TS-WXL
>
<
TS-RXL
>
TeraStation is equipped with a USB connector on the back. You can connect a USB printer to the TeraStation as shown
below.
USB
USB Connector
USB Printer(*)
Connector
USB Printer(*)
USB Cable(*)
USB Cable(*)
USB Connector
Notes:
• Only one printer can be connected to the TeraStation.
• The TeraStation does not support 2-way communication. For example, it cannot tell you the amount of ink left.
• Multi-function printers are not supported.
• Printers which only support 2-way communication or WPS (Windows Printing System) are not supported.
• Mac OS X cannot print to a printer connected to the TeraStation.
Setting up a printer on Windows 7/Vista
1
USB Cable(*)
USB Printer(*)
* Not included
In the Web Admin interface, navigate to [Extensions] ­[PrintServer] and click [Modify Settings].
2
Refer to your printer’s manual installation instructions. You may need to install the printer driver from a software 3 disk.
Select [Enable] and click [Save].
TeraStation User Manual 81

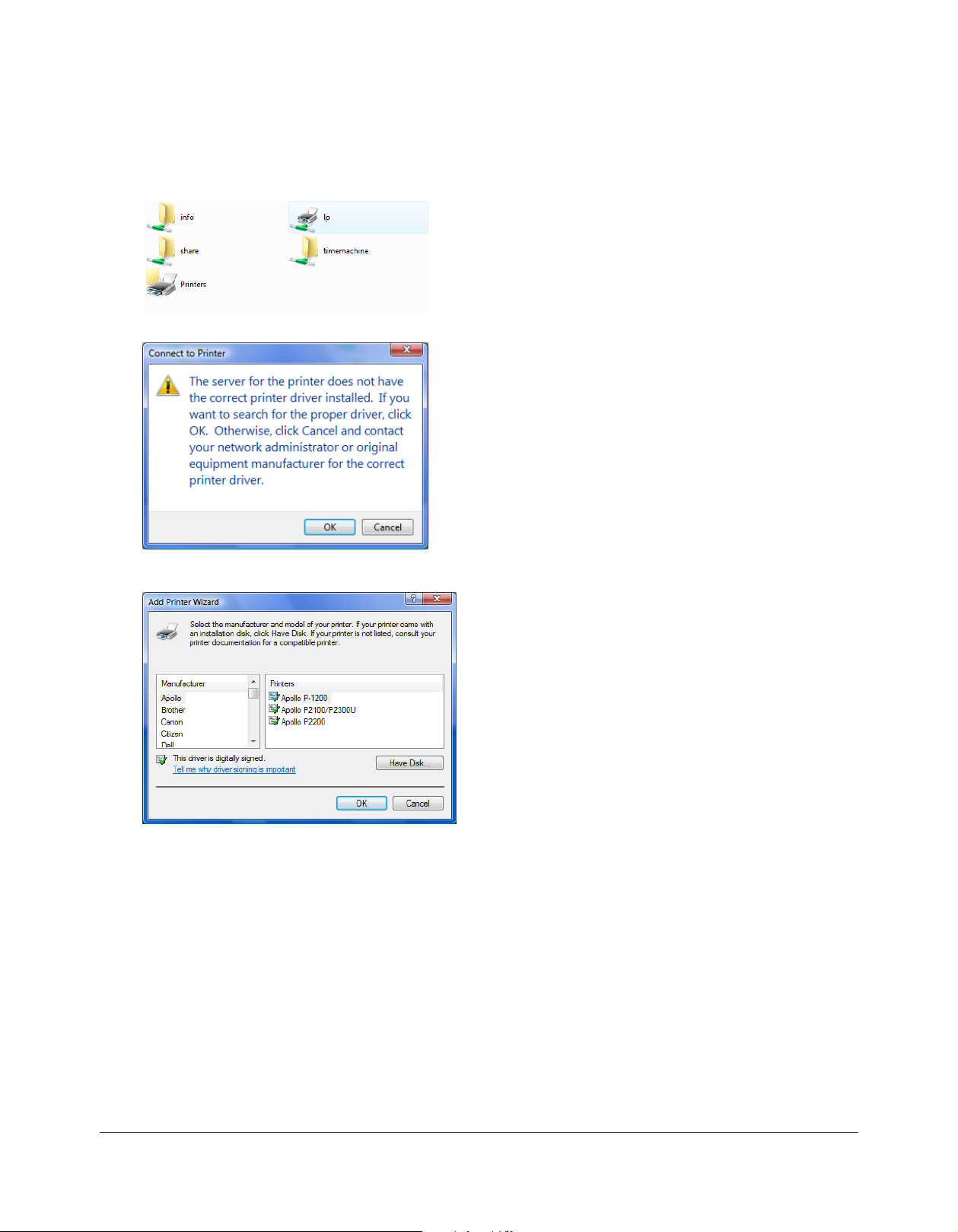

Click [Start] - [Network].4 Double-click on the TeraStation’s server name.5
6
7
8
Double-click on the TeraStation’s printer icon (“LP”).
Click [OK].
Select your printer. Choose the manufacturer on 1 the left and the model on the right. If your printer is not listed, click [Have Disk] and follow the printer manufacturer’s directions for installation.
Click [OK].2
You have added a printer.
TeraStation User Manual 82
Setting up a printer on Windows XP
1
2
Refer to your printer’s manual installation instructions. You may need to install the printer driver from a software 3
disk. Click [Start] - [Control Panel].4 Click [Network and Internet Connections] icon.5
Double-click on [My Network Places] - [View workgroup computers] - (Name of the TeraStation Server name) in 6
this order.
7
In the Web Admin interface, navigate to [Extensions] ­[PrintServer] and click [Modify Settings].
Choose [Enable] and click [Save].1
Double-click on the TeraStation’s printer icon (“lp”).
If “The printer driver to your computer will be automatically installed. (...) Would you like to continue?” is 8 displayed, click [Yes].
9
You have added a printer.
Select your printer. Choose the manufacturer on 1 the left and the model on the right. If your printer is not listed, click [Have Disk] and follow the printer manufacturer’s directions for installation.
Click [OK].2
TeraStation User Manual 83
Setting up a printer on Windows 2000
1
2
Refer to your printer’s manual to install the printer driver.3 Double-click [My Network Places (*)] -[Entire Network] - (the TeraStation Server Name).4
* On Windows NT 4.0 this is [Network].
5
Double-click on the TeraStation’s printer icon (“lp”).
In the Web Admin interface, navigate to [Extensions] ­[PrintServer] and click [Modify Settings]..
Click [Enable].1
Click [Save].2
6
7
8
Click [OK].
Click [Yes].
Select your printer. Choose the manufacturer on 1 the left and the model on the right. If your printer is not listed, click [Have Disk] and follow the printer manufacturer’s directions for installation.
Click [OK].2
You have added a printer.
TeraStation User Manual 84

Sleep Timer

Sleep Timer will automatically turn your TeraStation on and o at specic times to save energy. In Sleep mode, the TeraStation’s hard drives, display panel, and LED lights are turned o. To use Sleep Timer, set your TeraStation’s Power Mode Switch to MANUAL. Sleep Timer is not usable when the Power Mode Switch is set to AUTO.
In the 1 Web Admin interface, navigate to [System] - [Power Management] - [Sleep Timer].
Click [Modify Settings].2
3

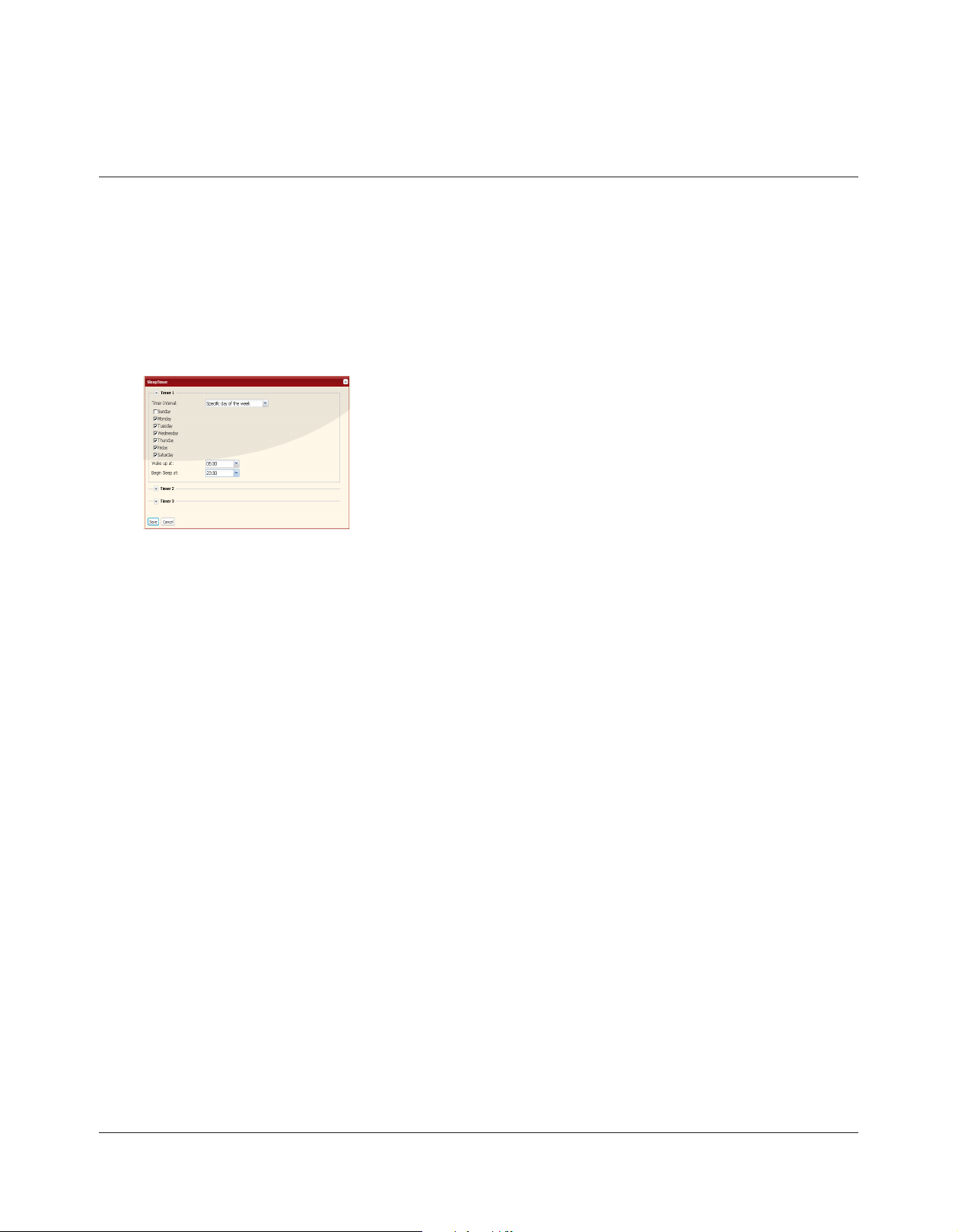

Specify [Timer Interval], [Wake up at], and [Begin Sleep at]. You can set up
to 3 timers. [Wake up at] times may be set from 0:00 to 23:45. [Begin Sleep at] times may be set from 0:00 to 27:45. If [Begin Sleep at] is set to 24:00 or
later, then [Wake up at] can be set from 4:00 to 23:45. 24:00 is equivalent to 0:00 of the next day, and 27:00 is equivalent to 3:00 of the next day.
[Wake up at] times should be earlier in the day than [Begin Sleep at] times. Do not set the same time for both [Wake up at] and [Begin Sleep at].
Click [Save] when done.
TeraStation User Manual 85
Notes:
•To exit sleep mode, hold in the power button on the TeraStation for about 3 seconds. The unit will power on.
•The TeraStation will not go into sleep mode while performing Check Disk, Disk Format, or Backup, or if a backup is
scheduled within 5 minutes of the current time.
•If multiple sleep timers conict, the longest interval time is used. Here are some examples of multiple timers: (e.g.1) It is at 10:00 Wednesday with the TeraStation powered on: Timer 1 [Everyday] 12:00 - 24:00 Timer 2 [Disable] Timer 3 [Disable]
-> Nothing happens at 12:00 and the unit enters sleep mode at 24:00 (e.g.2) It is at 10:00 Wednesday with the TeraStation powered on: Timer 1 [Everyday] 9:00 - 18:00 Timer 2 [Specic day of the week] - [Wednesday] 10:00 - 20:00 Timer 3 [Disable]
-> Except on Wednesdays, the unit powers on at 9:00 and moves to sleep mode at 18:00.
-> On Wednesdays, it enters sleep mode at 20:00. (e.g.3) It is at 10:00 Wednesday with the TeraStation powered on: Timer 1 [Everyday] 9:00 - 18:00 Timer 2 [Specic day of the week] - [Wednesday] 10:00 - 25:00 Timer 3 [Disable]
-> Except on Wednesdays, the unit powers on at 9:00 and moves to sleep mode at 18:00.
-> On Wednesdays, it enters sleep mode at 1:00 of the next day. (e.g.4) It is at 10:00 Wednesday with the TeraStation powered on: Timer 1 [Everyday] 9:00 - 18:00 Timer 2 [Specic day of the week] - [Wednesday] 07:30 - 22:00 Timer 3 [Disable]
->Except on Wednesdays, the unit powers on at 9:00 and enters sleep mode at 18:00.
-> On Wednesdays, the unit powers on at 7:30 and enters sleep mode at 22:00.
Sleep Timer
TeraStation User Manual 86

Disk Quotas

Notes:
• When using quotas, disable the recycle bin or empty the trash folder. The limited space includes the space used for
trash.
• Quotas apply per drive or per array. If a Quota is set to 1 GB, each array or drive can use maximum of 1 GB.
• Quotas can’t be set for external USB hard drives connected to the TeraStation, only internal drives.
Disk space quotas for users
To limit the space of shared folders that each user can use, follow the procedure below.
1
2
Notes:
• Username and password must be the same one that the user logs into Windows with. If these values are dierent,
shared folders with access restrictions cannot be accessed.
In the 1 Web Admin interface, navigate to [Users/Groups] - [Local Users].
Click [Create User].2
Enter [Username], [User Id], [Password], and [Description].1
Note:
User IDs may be between 1000 and 1999. Do not duplicate user IDs.
Check [Enable] for [User Quota].2
Enter the maximum space this user is allowed for the [Hard Limit (GB)]. 3 If a [Soft Limit (GB)] is entered, the user will receive a warning when the soft limit is reached. The soft limit should be smaller than the hard limit.
Click [Save]. 4
• Deleting or adding users repeatedly may cause quotas to not work properly.
TeraStation User Manual 87
Select [Shared Folders] - [Folder Setup] and click [Create Shared Folder].3
4
5
6
Congure the desired settings.1
Click [Access Restrictions].2
Click [Add].
Check the user you created in step 2.1
Click [Add].2
7
Click [Save]. 8
You’ve congured a disk quota.
Select level of access privileges for the user you added from [Read Only] or [Read & Write].
TeraStation User Manual 88
Disk space quotas for groups
To limit the space of shared folders that each group can use, follow the procedure below.
1
2
Notes:
• Usernames and passwords should be the same ones that the users log in to Windows with.
• If two dierent quotas apply, such a a user quota and a group quota, the smaller quota is applied.
In the 1 Web Admin interface, select [Users/Groups] - [Local Users].
Click [Create User].2
Enter [Username], [User Id], [Password] and [Description].1 Note: User IDs may be between 1000 and 1999. Do not duplicate user
IDs.
Click [Save]. 2
Repeat steps 1 and 2 for each user in the group.
3
Select [Users/Groups] - [Local Groups].1
Click [Create Group].2
TeraStation User Manual 89
4
Note:
Deleting and adding groups repeatedly may cause quotas to not work properly.
5
Enter [Group Name], [Group Id] and [Description].1
Note:
The group ID may be any number from 1000 and 1999. Do not duplicate
Group IDs.
Click [Enable] for [Group Quota].2
Enter the stotal space that the group can use in the Hard Limit (GB) eld.3
Select users from step 2 in [Local User], and click [Add] for each. 4
Click [Save]. 5
Click [Users/Groups] - [Local User].1
Select a user from step 2, and click [Edit User].2
6
9
Select the group created in step 4 for [Primary Group] and click [Save].
Click [Shared Folders] - [Folder Setup]. 7
Click [Create Folder].8
Congure the desired settings.1
Click [Access Restrictions].2
TeraStation User Manual 90
10
Click [Local Groups].1
Click [Add].2
11
12
Click [Save]. 13
You have congured a group quota.
Check the group you created step 2.1
Click [Add].2
Select level of access privileges for group you added from [Read Only] or [Read & Write].
TeraStation User Manual 91

TeraSearch

Enable TeraSearch to allow text searches for strings (such as from a text le or data) on the TeraStation.
In the Web Admin interface, select [Shared Folders] - [Folder Setup].1
2
3
Click [Shared Folders] - [TeraSearch] on the Web Admin interface.4
Click [Modify Settings].5
Select [Enable], and click [Save].6
Note: If you want to update the index regularly, click [Modify Settings] and specify a Time to update the index for [Update Index at].
Click the shared folder to create an index for.
Click [Include folder in search indexing] for [TeraSearch].1
Click [Save].2
Click [Update Index].7
TeraStation User Manual 92
Open and display the following URL in an Internet browser.8
http://(IP address of TeraStation) :3000/
Tip: You can get the IP address of your TeraStation from its front panel LCD display, or from NAS Navigator2.
Enter a username and password from an account on the TeraStation and click [Login]. For example, the guest 9
account, with blank password, will work.
Enter a keyword to search for. If you check 10 [Enhanced Search], you can also specify lename, owner, update
date/time, and size to search for.
Click [Search]. 11
Your search results are now displayed.
TeraStation User Manual 93
Oine Files
Your PC can access les from the TeraStation even when it’s not connected to the network if Oine Files are enabled.
Oine Files are updated and saved on the computer when it’s online. Oine Files work with Windows 2000, Windows
XP Professional, Vista, and Windows 7. Windows Me and XP Home Edition are not supported.
Congure your PC to use les oine as follows:
In the Web Admin interface, select [Shared Folders] - [Folder Setup].1
2
3
If you're running Windows 7, skip steps 4 & 5 and move to step 6.
Select a folder to be available oine. Double-click on the folder’s name.
From the [Oine Files] dropdown, select [Manual Cache Files], [Automatic Cache Files] or [Automatic Cache Programs and Files].
[Manual Cache Files] - Manually select the les to be available oine.
[Automatic Cache Files] - Opened les are cached locally and may
be used oine. Old les that cannot be synchronized will be deleted automatically and replaced by new ones.
[Automatic Cache Programs and Files] - Opened les are cached locally and may be used oine. Old les and network applications that cannot be synchronized will be deleted automatically and replaced with new ones.
To check if Oine Files are enabled, follow the instruction below.
Open the Windows folder, press [Alt] on the keyboard, and select [Tool] - [Open Sync Center] from the 1 popup menu.
Click [Manage oine les] on the left side of the [Sync Center] screen.2
If you see [Oine Files is enabled] on the [General] tab, Oine Files are enabled. 3 Click [Disable oine les] to disable Oine Files. If Oine Files are disabled, click [Enable oine les] to enable them.
TeraStation User Manual 94
Open Windows folder. Select [Folder Options] from the [Tool] menu.4
Note:
Select [Control Panel] - [Folder Options] in Windows 2000 Server.
5
Note:
If [Fast User Switching] in Windows XP is enabled, the screen above will not be displayed. In such a case, open [User Accounts] in the [Control Panel] and uncheck [Use Fast User Switching].
Click [Oine Files] tab.1
Click [Enable Oine Files].2
Click [OK].3
6
When the Oine File Wizard opens, follow the instructions on the screen to congure. For more information, 7
refer to the Windows Help File.
After conguration, your oine les and folders display as below (from Windows XP). 8
Right-click on the icon of the shared folder on the TeraStation you have 1 set the oine feature for.
Click [Make Available Oine].2
TeraStation User Manual 95
After the synchronization is complete, you can open oine les even after disconnecting from the network that 9 the TeraStation is on. Oine les can be accessed through the UNC to the original location. Note: If oine les are available, the icon is displayed in the systray.
* Editing Oine Files
Oine les can be edited or deleted just like regular les. Dierences between data in dierent locations will be
resolved by re-synchronization when the network connection is re-established.
* Synchronizing Oine Files Oine les are automatically synchronized when you log on or o the network.
* Version Conicts
Conicts occur when the oine and original les are both modied dierently before they are re-synchronized. If
conicts occur, the following wizard opens. Step through the wizard to resolve the conicts.
You’ve congured oine les.
TeraStation User Manual 96

DFS (Distributed File System)

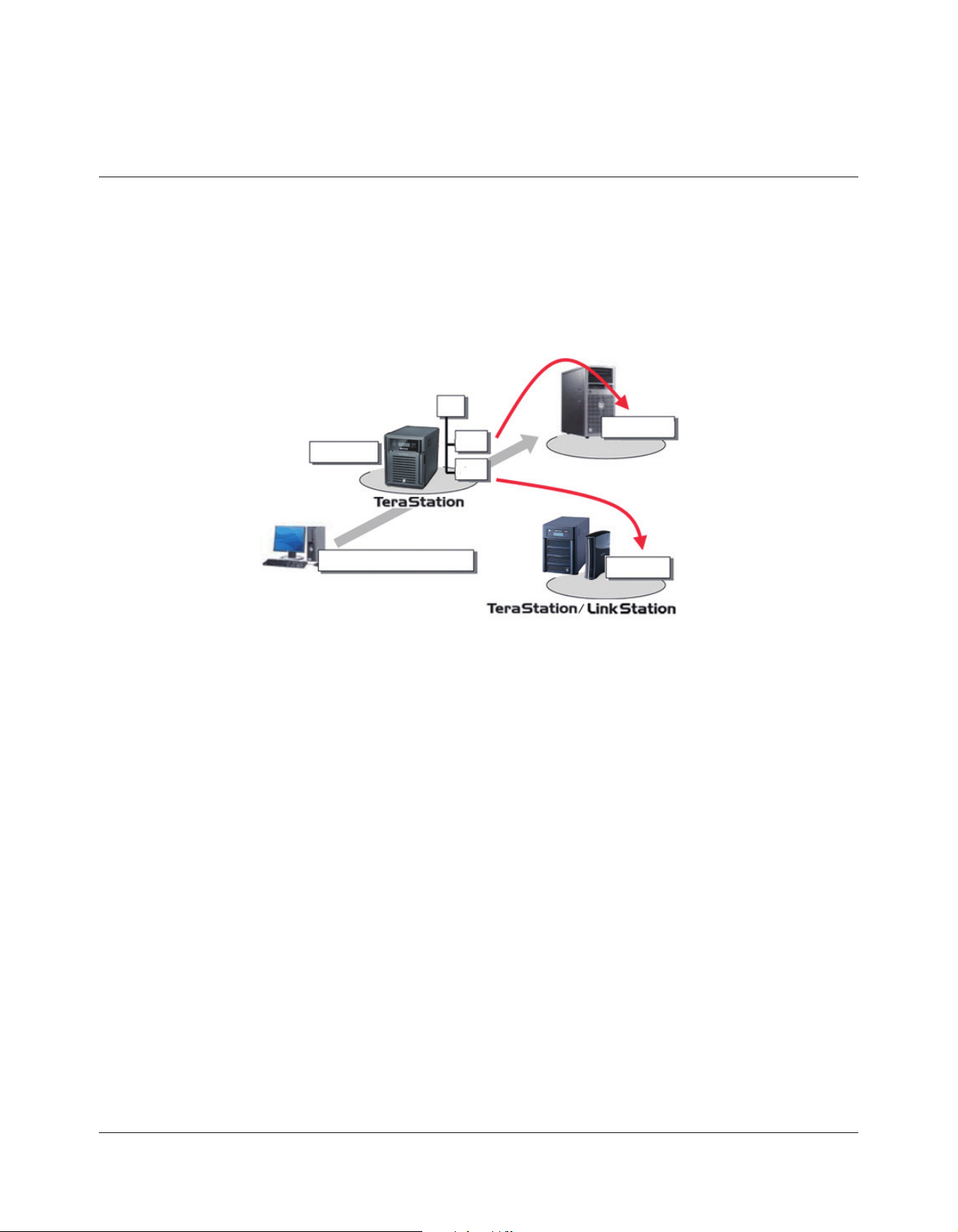

Distributed File System (or DFS) combines shares on the network server together into one tree.
In the following example, when the client computer addresses //tera/share/backup, it’s actually looking at les located at //pc_srv/backup. This is transparent to the user of the client computer. If the TeraStation is congured to address multiple DFS shares, then shares on other devices could be addressed as native shares on the TeraStation. For example, //tera/share/share might actually address data located at //link/share.
DFS Link
share
Host Name: tera
backup
share
//pc_srv/backup
PC Server
DFS Link
Access to “//tera/share/backup”
Client
//link/share
Notes:
• Bualo does not support using DFS with Mac OS X.
• Windows 2000 and Windows Server 2003 cannot properly address DFS link destinations that have access restrictions
on one or more folders.
• DFS only works with SMB connections. AFP and FTP connections are not supported.
• Access restrictions congured on DFS link destinations are applied to the shared folder link. Access restrictions on the
DFS root or DFS links are not visible.
TeraStation User Manual 97
Set up DFS as described below:
In the Web Admin interface, select [Shared Folders] - [DFS].1
Under [DFS Service], click [Modify Settings].2
3
Under [DFS Links], click [Add Link].4
Click [Enable].1
Choose whether to allow multiple DFS links, or just one.2
[No] allows just one DFS link to be addressed.
[Yes] allows up to 8 DFS link destinations to be
used.
Enter the [DFS root folder name].3
Click [Save].4
5
DFS has been congured.
Enter [Link Name], [Destination Hostname], and [Destination Folder].1 Notes: The following machines can be DFS link destinations:
• TeraStations
• Windows PC with SMB (Mac OS and Linux are not supported)
Click [Save].2
TeraStation User Manual 98

FTP Server

By default, the TeraStation’s shares are only accessible by users connected to the same network or router as the
TeraStation. The optional FTP server allows users to access the TeraStation from outside of the local network. You may
enable it as follows.
1
2
4
In the Web Admin interface, navigate to [Network] ­[Settings] - [Network Services] and click [FTP].
Select [Enable].1
Click [Save].2
Click [Shared Folders] - [Folder Setup].3
Click the folder to enable remote FTP access on.
5
The folder is now congured for FTP access. Do not forget to give read (or write) permissions for the FTP share to any users that will be accessing the share remotely. Folder permissions can only be changed from the Web Admin interface. Changing them remotely with FTP client software is not supported.
Select whether the shared folder is to be [Read Only] or 1 [Read & Write].
Check [Ftp].2
Click [Save].3
TeraStation User Manual 99
To access the TeraStation with an FTP client
Congure your FTP client software with the following settings:
Host Name IP address of the TeraStation.• Username Username registered on the TeraStation• Password Password registered to the TeraStation• Port 21•
Example ftp://192.168.11.150/
You cannot write by FTP if the shared folder is set to read-only on the TeraStation.•
Access restrictions are applied based on the settings in the TeraStation. The restrictions aren’t displayed for users • without permissions for the share. To access your FTP share from outside of your network, you may need to congure your router and rewall. Consult • your router documentation for more information. Shared folders appear as follows when connected by FTP:•
disk1 share ­usbdisk1 -
info ­The internal hard drive of the TeraStation is displayed as disk1, and a USB hard drive (optional) will be displayed as • usbdisk1. ”usbdisk1” is not displayed when the USB hard drive is not connected, or if access is restricted.•
Accessing the TeraStation with an Anonymous user:
To allow anonymous access to your FTP share, disable access restrictions on the FTP share. Congure your FTP client as follows:
Host Name IP address of the TeraStation• Username anonymous• Password any set of characters• Port 21•
Example ftp://192.168.11.150/
To make your FTP share available from outside your network, you will need to congure your router and rewall. • Consult your router’s documentation for information on how to allow FTP trac.
If the TeraStation joins a domain, anonymous users cannot access it. • Folders created or copied via an AFP connection may not be deleted from the AFP connection. This is because an • automatically generated “.AppleDouble” folder begins with a dot. To delete these les, use an SMB connection.
Do not exceed 250 bytes for a le/folder name including directory path when you are creating it by using an FTP • connection. Otherwise, you cannot view or delete it in Explorer or other applications.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
