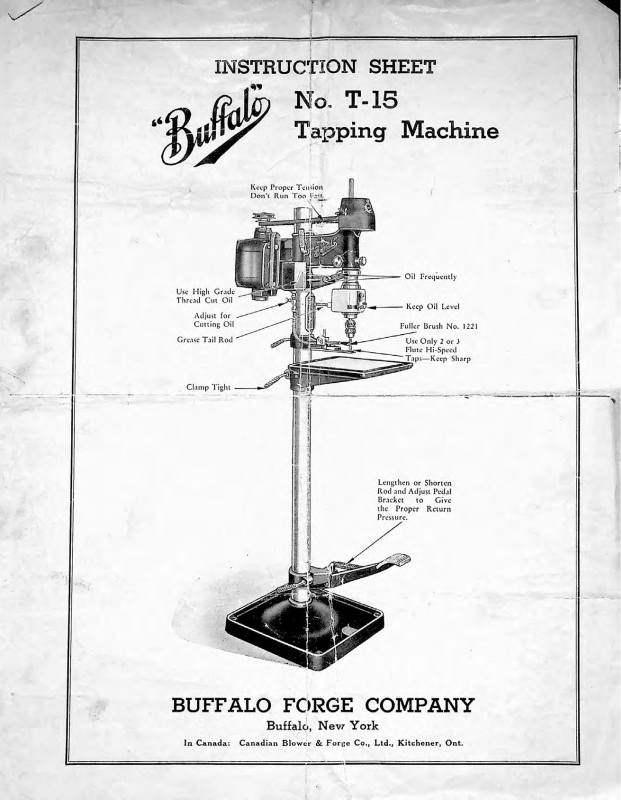

INSTRUCTION SHEET
"Buffalo
How to Insert a Tap
The chuck on your attachment is a double grip :ap chuck which grips
not only the flat on the tap, but also the round shank. r
on the chuck and insert the tap—all the way in—close top ring until it
grips on the flats. With the chuck key, tighten the chuck jaws—TIGHT.
How to Remove Chuck
Block the chuck out fivn the tapper frame in the farthest or reverse
position and insert a small rod through the open jp^ against the taper
nose of the attachment. Strike a sharp blow with a hami-ur and the chuck
will come loose. Don’t try to wedge the chuck off as it wiil pull the clutch
apart.
How
to
Remove Attachment
Loosen the depth stop collar and pull down on the attachment; it will
slide off the spindle sleeve. In replacing, be sure the driving members are
engaged.
How to Set-Up
1
— Insert tap in chuck and secure it tight and true.
2
— Place work on table and adjust table to proper height.
3
— Set depth stop nuts for proper depth.
Adjust length of connecting rod and foot pedal bracket to give the
proper return spring pressure. The larger tap? will require more
pressure for the return action. The spring action gives more pressure
at
the
5
— Set the stripper as close above the work as is practical and adjust the
6
— Adjust the sight feed oil valve to provide adequate lubrication.
7
— If the machine fails to function properly, check the following:
end of its stroke.
lubricating brush.
•*.
—
drilled hole (too small)
b—auirtair~
e
—not enough return pressure
” No. T-15 Tapping
»pen the top ring
c—loose belt
d—mechanism b riding
Machine
Oi
r-
2
2
!
mv
'-.
■>
W
I
w ■■■■ >
T
How to Operate
It requires very little pressure to drive the tap into the hole; do not force it. When the required
depth is reached, the depth stop nut will strike the frame and cause the attachment clutch to release.
Allowing the foot lever to return to top position, engages the return clutch and backs the tap out. Do
not let the lever return without some foot pressure as the attachment will strike the head frame and
damage the attachment.
The proper speed at which to run the spindle is dependent on the size tap, size of drilled hole,
sharpness of tap and kind of material. Don’t let tne attachment run hot.
Ten Don’ts
1
— Don’t force the tap
2
— Don’t use a 4-flute tap—it will break.
3
— Don’t use a dull tap
tachment.
4
— Don’t use a small drilled hole—it will break
the tap.
5
— Don’t use cheap taps—they are expensive in
the long run.
6
— Don’t forget the cutting oil
Responsibility Asssumed by Buffalo Forge Company
The design and construction of the Buffalo No. T-15 Tapping Machine is in accord with most
to-date methods of machine tapping and the company stands firmly behind only that portion of the
machine manufactured by ourselves.
The capacity ami speeds provided are those specified by the attachment manuacturer and, in fair
ness to all concerned, any complaint regarding the tapping attachment proper should be referred direct
to the Charles L. Jarvis Co. of Middletown, Conn, or his authorized agent in your community. You
will find their charges for repair or for complete overhauling of the attachment very nominal.
—investigate the condition.
—it will wear out the at
—it is essential.
7- --Don’t let the foot lever return with a bang
it will loosen the attachment.
8
— Don’t run the tapper hot
cause.
9^—Don’t fail to check the. oil level frequently-
use very light machine oil.
10-—Don’t forget that a tapping attachment is a
high grade sensitive mechanism and must be
, treated as such.
—investigate the
—
—
up-
Buffalo Forge Company
Form 8114 1-38 AP
Buffalo, New York
In Canada: Canadian Blower St Forge Co., Ltd., Kitchener, Ont.
