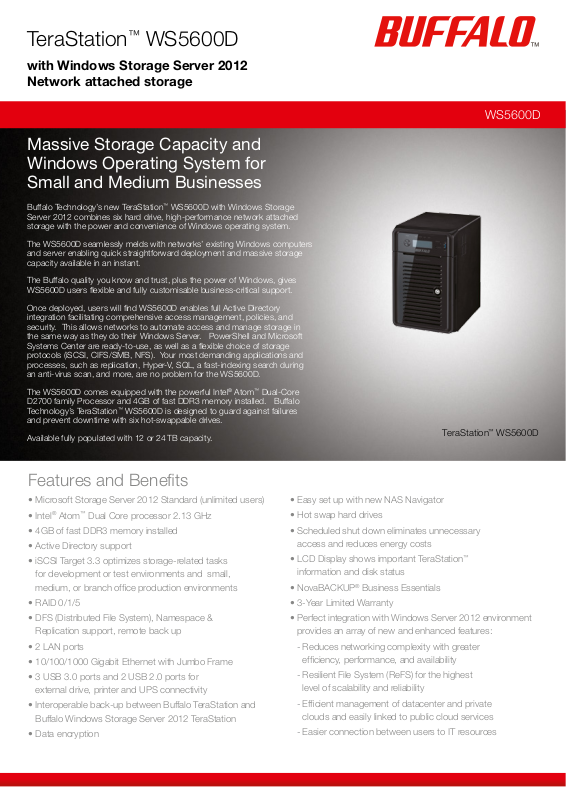

Buffalo WS5600D2406-EU Product Data Sheet

TeraStation™ WS5600D

with Windows Storage Server 2012 Network attached storage

Massive Storage Capacity and Windows Operating System for Small and Medium Businesses

Buffalo Technology’s new TeraStation™ WS5600D with Windows Storage Server 2012 combines six hard drive, high-performance network attached storage with the power and convenience of Windows operating system.

The WS5600D seamlessly melds with networks’ existing Windows computers and server enabling quick straightforward deployment and massive storage capacity available in an instant.

The Buffalo quality you know and trust, plus the power of Windows, gives WS5600D users ﬂexible and fully customisable business-critical support.

Once deployed, users will ﬁnd WS5600D enables full Active Directory integration facilitating comprehensive access management, policies, and security. This allows networks to automate access and manage storage in the same way as they do their Windows Server. PowerShell and Microsoft Systems Center are ready-to-use, as well as a ﬂexible choice of storage protocols (iSCSI, CIFS/SMB, NFS). Your most demanding applications and processes, such as replication, Hyper-V, SQL, a fast-indexing search during an anti-virus scan, and more, are no problem for the WS5600D.

The WS5600D comes equipped with the powerful Intel D2700 family Processor and 4GB of fast DDR3 memory installed. Buffalo Technology’s TeraStation and prevent downtime with six hot-swappable drives.

Available fully populated with 12 or 24 TB capacity.

™

WS5600D is designed to guard against failures

Atom™ Dual-Core

WS5600D

TeraStation™ WS5600D

Features and Beneﬁts

• Microsoft Storage Server 2012 Standard (unlimited users)

• Intel

Atom™ Dual Core processor 2.13 GHz

• 4GB of fast DDR3 memory installed

• Active Directory support

• iSCSI Target 3.3 optimizes storage-related tasks for development or test environments and small, medium, or branch ofﬁce production environments

• RAID 0/1/5

• DFS (Distributed File System), Namespace & Replication support, remote back up

• 2 LAN ports

• 10/100/1000 Gigabit Ethernet with Jumbo Frame

• 3 USB 3.0 ports and 2 USB 2.0 ports for external drive, printer and UPS connectivity

• Interoperable back-up between Buffalo TeraStation and Buffalo Windows Storage Server 2012 TeraStation

• Data encryption

• Easy set up with new NAS Navigator

• Hot swap hard drives

• Scheduled shut down eliminates unnecessary access and reduces energy costs

• LCD Display shows important TeraStation information and disk status

• NovaBACKUP

• 3-Year Limited Warranty

• Perfect integration with Windows Server 2012 environment provides an array of new and enhanced features:

- Reduces networking complexity with greater

efﬁciency, performance, and availability

- Resilient File System (ReFS) for the highest

level of scalability and reliability

- Efﬁcient management of datacenter and private

clouds and easily linked to public cloud services

- Easier connection between users to IT resources

Business Essentials

™

TeraStation™ WS5600D

with Windows Storage Server 2012 Network attached storage

Speciﬁcations

Hardware System

CPU Intel RAM 4GB DDR3 HDD controller interface SATA 3Gb/s

Internal Hard Drives

Capacities 2, 4TB Number of Drives 6 Total Capacities 12, 24TB

Interfaces

LAN

Connector Type RJ-45 Number of Ports 2 Data Transfer Rates 10/100/1000Mbps

USB

Standard Compliance USB 2.0/USB 3.0 Connector Type USB Type A Number of Ports 2 x USB 2.0 / 3 x USB 3.0 (1 front) Data Transfer Rates 480Mbps USB 2.0 / 5Gbps USB 3.0

Serial Port

Connector Type D-SUB 9pin Number of Ports 1

Other

Dimensions 170 x 300 x 230mm Weight 10kg Operating Environment 5-35°C Power Consumption Max. 120W Power Supply internal, 100-250V 50/60Hz universal

Software System

Internal OS Windows Storage Server 2012 Standard Raid RAID 0/1/5, Spanning, JBOD Hot Swap Change drives in RAID without down time DFS DFS name space support Quota Space limitation iSCSI Simultaneous NAS and iSCSI target functionality

Protocol Support

Networking TCP/IP File Sharing CIFS/SMB, NFS AD Integration LDAP Management RDP, Terminal Time Synchronisation NTP

Bundled Software

NovaBackup

Buffalo NAS Navigator

Business Essentials Professional Backup software for Windows clients and servers

AtomTM D2700 dual core

Windows 8 (32-bit/64-bit), Windows Windows Server® 2008, Windows Server® 2003, Windows® 2000 Server, Mac OS® X 10.4-10.8

7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows® XP, Windows® 2000,

WS5600D

Amazon Simple Storage Service (S3)

Product codes

WS5600D1206-EU WS5600D2406-EU
