Buffalo WCR-G54 Settings

WCR-G54 Router Access Point Settings

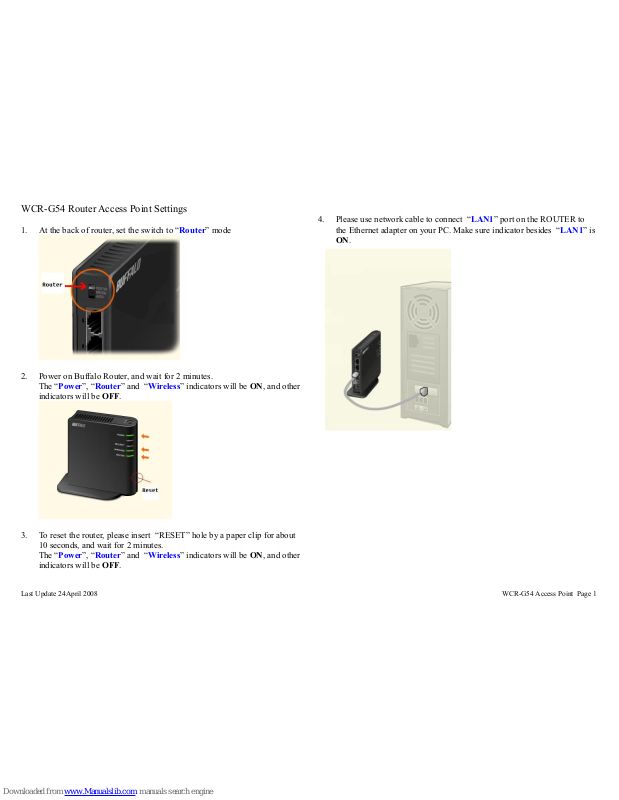

1. At the back of router, set the switch to “Router” mode

2. Power on Buffalo Router, and wait for 2 minutes.
The “Power”, “Router” and “Wireless” indicators will be ON, and other
indicators will be OFF.

3. To reset the router, please insert “RESET” hole by a paper clip for about
10 seconds, and wait for 2 minutes.
The “Power”, “Router” and “Wireless” indicators will be ON, and other
indicators will be OFF.

4. Please use network cable to connect “LAN1” port on the ROUTER to
the Ethernet adapter on your PC. Make sure indicator besides “LAN1” is
ON.

Last Update 24April 2008 WCR-G54 Access Point Page 1

WCR-G54 Router Access Point Settings

Buffalo Router Wireless Settings:

Launch Web Browser, enter http://192.168.11.1 in address bar and then press
Enter. Then type username as “root”, default no password.

1. Click “Wireless Config” -> Click “Basic(11g)”. Under SSID, the default
“SSID” (wireless network signal name) of router is set to “Use

Airstation's MAC Address (XXXXXXXXXXXX)”. If you want to use

another name as SSID, please choose “Use”, and input a new name on
the field behind.(Remark: Cannot exceed 32 characters, and leaving

blank in between is not recommended),

Under Wireless Channel, please fix a wireless channel for your router.
(Using “Auto Channel” is not recommended). Please try channel 1, 6,

11, or other channels until the wireless network is stable. Please click

“Apply” to save settings.

Please click “Apply” again, and wait for 2 minute to complete settings.

5. To secure your wireless network, please click “Security(11g)”.
Under “Wireless Encryption”,

- Choose “WEP”,

- Set “WEP Encryption Key” to ”Character Input: 13 characters

(WEP128)”.

- Behind “1”, input a 13 characters wireless encryption key to secure the
wireless network.

- Click “Apply” button to save settings.

Last Update 24April 2008 WCR-G54 Access Point Page 2
