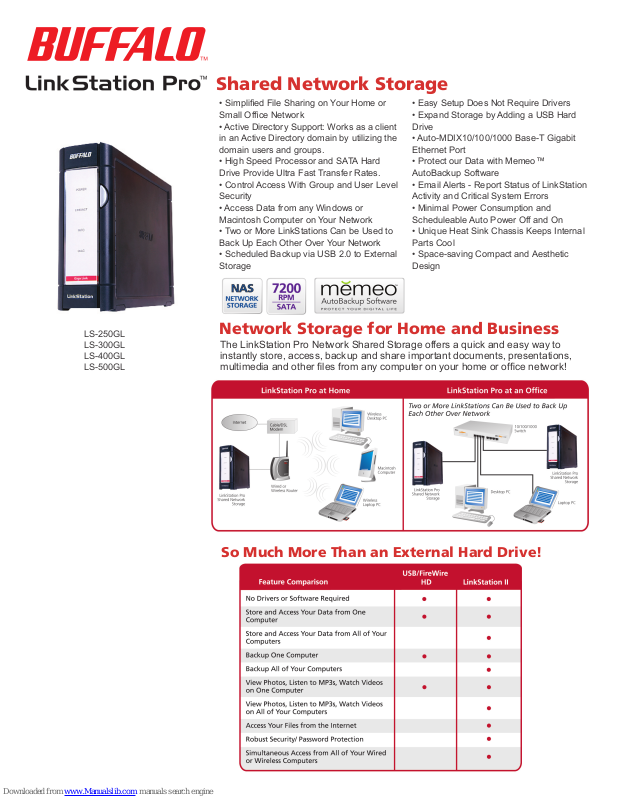

Buffalo LinkStation Pro LS-300GL, LinkStation Pro LS-500GL, LS-750GL, LinkStation Pro LS-400GL, LinkStation Pro LS-250GL Specifications
Page 1
Shared Network Storage
• Simplified File Sharing on Your Home or
Small Office Network
• Active Directory Support: Works as a client
in an Active Directory domain by utilizing the
domain users and groups.
• High Speed Processor and SATA Hard
Drive Provide Ultra Fast Transfer Rates.
• Control Access With Group and User Level
Security
• Access Data from any Windows or
Macintosh Computer on Your Network
• Two or More LinkStations Can be Used to
Back Up Each Other Over Your Network
• Scheduled Backup via USB 2.0 to External
Storage
• Easy Setup Does Not Require Drivers
• Expand Storage by Adding a USB Hard
Drive
• Auto-MDIX10/100/1000 Base-T Gigabit
Ethernet Port
• Protect our Data with Memeo™
AutoBackup Software
• Email Alerts - Report Status of LinkStation
Activity and Critical System Errors
• Minimal Power Consumption and
Scheduleable Auto Power Off and On
• Unique Heat Sink Chassis Keeps Internal
Parts Cool
• Space-saving Compact and Aesthetic
Design
LS-250GL
LS-300GL
LS-400GL
LS-500GL
Network Storage for Home and Business
The LinkStation Pro Network Shared Storage offers a quick and easy way to
instantly store, access, backup and share important documents, presentations,
multimedia and other files from any computer on your home or office network!
So Much More Than an External Hard Drive!
Page 2
Shared Network Storage
Technical Specifications: LS-250GL, LS-300GL, LS-400GL, LS-500GL
LAN Interface
Interface IEEE802.3ab, IEEE802.3u, IEEE802.3
Transmission Speed 10 / 100 / 1000 Mbps
Transmission Encoding Method 1000BASE-T: 8B1Q4, PAM5
100BASE-TX: 4B5B MLT-3
10BASE-T: Manchester Coding
Access Method CSMA/CD
Port/Connector RJ-45
Cable 1000BASE-T: Category 5 4 UTP,
100BASE-TX: Category 5 2, 4 UTP,
10BASE-T: Category 3, 4 5 2, 4 UTP
Number of Ports 1
Wired Transmission Distance 328 ft. (100 m)
USB Interface
Interface USB 2.0 Hi-Speed (HS) Full-Speed (FS)
Connector USB A
Number of Ports 2
Data Transmission Speed Max. 480 Mbps (USB 2.0 Mode),
Max. 12 Mbps (USB 1.1 Mode)
Others
Drive Capacity 250 GB, 300 GB, 400 GB, 500 GB*
Power Consumption Average 21W (with no USB devices connected)
Weight 3.45 lbs (1.6 kg)
Dimensions 2.4 x 6.3 x 8.5 in. (60 x 160 x 216 mm)
Operating Environment 5-35°C, 20-80% (non-condensing)
OS Compatibility Windows®XP, Windows®2000, Windows®Me,
Windows®NT 4.0, Windows®98SE, Linux (SMB)
Package Contents One LinkStation, LinkNavigator CD-ROM,
Quick Setup Guide, Ethernet Cable, Power Cord,
Warranty Statement
*1 GB = 1,000,000,000 bytes; total accessible capacity varies depending on operating environment.
5X Faster than standard NAS!
About Buffalo Technology
Buffalo Technology (USA), Inc., based in Austin, Texas, is a leading global provider
of award-winning networking, memory, storage and multimedia solutions for
the home and small business environments as well as for system builders and
integrators. With almost three decades of networking and computer peripheral
experience, Buffalo has proven its commitment to delivering innovative, best-ofbreed solutions that have put the company at the forefront of infrastructure technology.
© Buffalo Technology (USA), Inc. Buffalo Technology, Buffalo logo, Secure Lock Ware, DriveStation, LinkStation and TeraStation are either trademarks or registered trademarks of
Buffalo Technology (Buffalo Inc.). The names and lo
gos of other companies mentioned herein belong to their respective owners.
