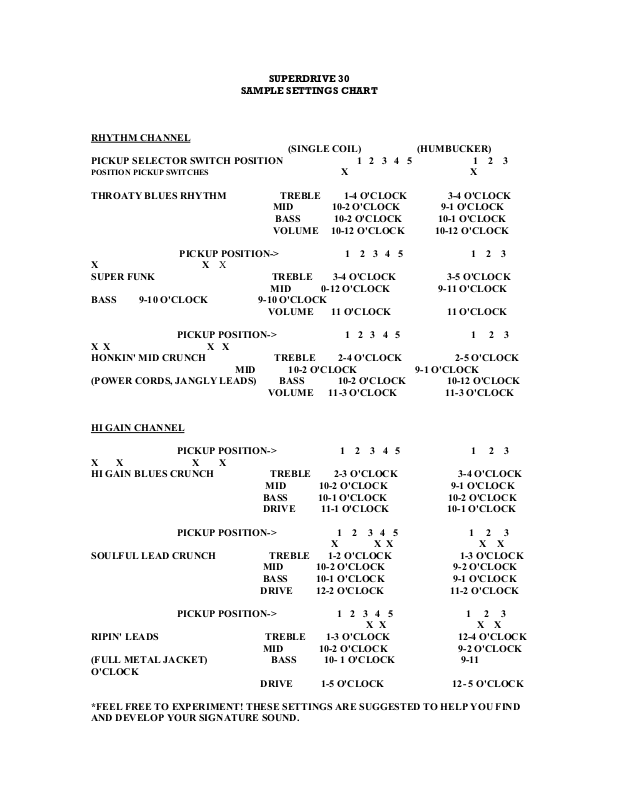

SUPERDRIVE 30
SAMPLE SETTINGS CHART
RHYTHM CHANNEL
(SINGLE COIL) (HUMBUCKER)
PICKUP SELECTOR SWITCH POSITION 1 2 3 4 5 1 2 3
POSITION PICKUP SWITCHES
X X
THROATY BLUES RHYTHM TREBLE 1-4 O'CLOCK 3-4 O'CLOCK
MID 10-2 O'CLOCK 9-1 O'CLOCK
BASS 10-2 O'CLOCK 10-1 O'CLOCK
VOLUME 10-12 O'CLOCK 10-12 O'CLOCK
PICKUP POSITION-> 1 2 3 4 5 1 2 3
X X X
SUPER FUNK TREBLE 3-4 O'CLOCK 3-5 O'CLOCK
MID 0-12 O'CLOCK 9-11 O'CLOCK
BASS 9-10 O'CLOCK 9-10 O'CLOCK
VOLUME 11 O'CLOCK 11 O'CLOCK
PICKUP POSITION-> 1 2 3 4 5 1 2 3
X X X X
HONKIN' MID CRUNCH TREBLE 2-4 O'CLOCK 2-5 O'CLOCK
MID 10-2 O'CLOCK 9-1 O'CLOCK
(POWER CORDS, JANGLY LEADS) BASS 10-2 O'CLOCK 10-12 O'CLOCK
VOLUME 11-3 O'CLOCK 11-3 O'CLOCK
HI GAIN CHANNEL
PICKUP POSITION-> 1 2 3 4 5 1 2 3
X X X X
HI GAIN BLUES CRUNCH TREBLE 2-3 O'CLOCK 3-4 O'CLOCK
MID 10-2 O'CLOCK 9-1 O'CLOCK
BASS 10-1 O'CLOCK 10-2 O'CLOCK
DRIVE 11-1 O'CLOCK 10-1 O'CLOCK
PICKUP POSITION-> 1 2 3 4 5 1 2 3
X X X X X
SOULFUL LEAD CRUNCH TREBLE 1-2 O'CLOCK 1-3 O'CLOCK
MID 10-2 O'CLOCK 9-2 O'CLOCK
BASS 10-1 O'CLOCK 9-1 O'CLOCK
DRIVE 12-2 O'CLOCK 11-2 O'CLOCK
PICKUP POSITION-> 1 2 3 4 5 1 2 3
X X X X
RIPIN' LEADS TREBLE 1-3 O'CLOCK 12-4 O'CLOCK
MID 10-2 O'CLOCK 9-2 O'CLOCK
(FULL METAL JACKET) BASS 10- 1 O'CLOCK 9-11
O'CLOCK
DRIVE 1-5 O'CLOCK 12- 5 O'CLOCK
*FEEL FREE TO EXPERIMENT! THESE SETTINGS ARE SUGGESTED TO HELP YOU FIND
AND DEVELOP YOUR SIGNATURE SOUND.
