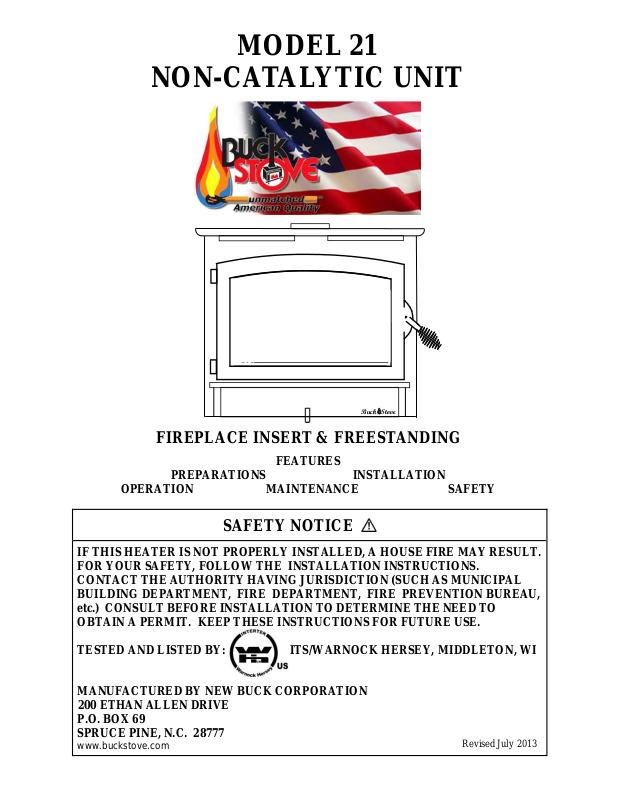

NON-CATALYTIC UNIT

Buck Stove

FIREPLACE INSERT & FREESTANDING

FEATURES

PREPARATIONS INSTALLATION

OPERATION MAINTENANCE SAFETY

SAFETY NOTICE

IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU, etc.) CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.

TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI

MANUFACTURED BY NEW BUCK CORPORATION

200 ETHAN ALLEN DRIVE

P.O. BOX 69 SPRUCE PINE, N.C. 28777

www.buckstove.com

Revised July 2013

Page 2

Page 3

TABLE OF CONTENTS

Important Instructions.......................................................................................................................................... 2

Stove Parts Identification..................................................................................................................................... 3

SECTION I: Introduction .................................................................................................................................... 4

SECTION II: Masonry Insert Installation ........................................................................................................... 5

Floor Protection ................................................................................................................................................... 6

Masonry Insert Installation options ..................................................................................................................... 7

Mounting Trim Panels ......................................................................................................................................... 9

SECTION III: Pre-Fab Insert Installation.......................................................................................................... 12

SECTION IV: Residential Freestanding Installation ....................................................................................... 13

Out Side Air Installation .................................................................................................................................... 13

Floor Protection ................................................................................................................................................. 15

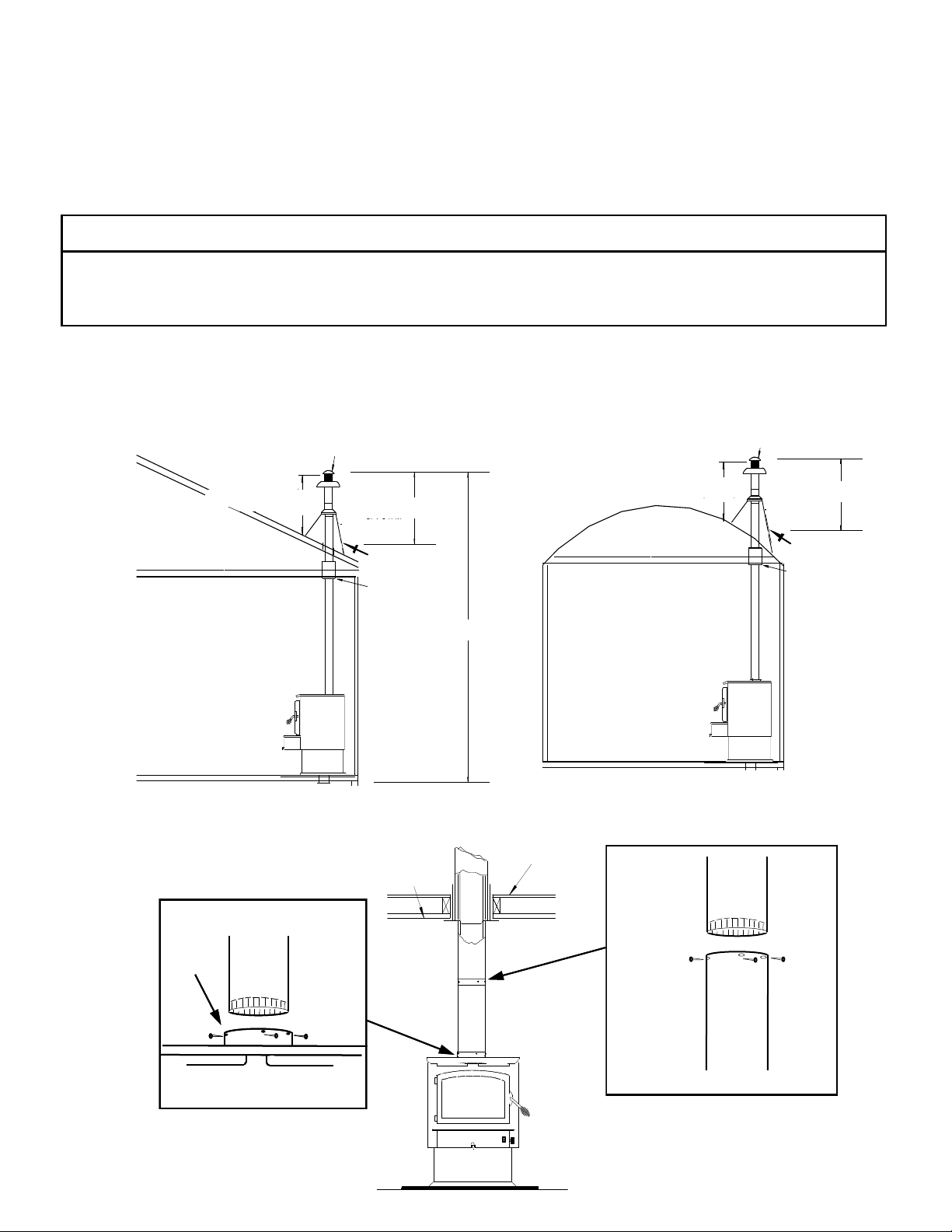

A. Vertical Exit Using Single Wall Pipe /Listed 2100° UL 103 HT chimney w/out

Close Clearance/Pipe Shield ....................................................................................................................... 16

B. Vertical Wall Exit Using Single Wall Pipe and Elbow /Listed 2100° UL 103 HT Chimney

and T-BOX assembily w/out Close Clearance/Pipe Shields ....................................................................... 18

Residential and Mobile Home Freestanding Installation (See Page 12) For Out Side Air Installation. C. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney w/out

Close Clearance/Pipe Shields ...................................................................................................................... 20

D. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT

Chimney and T-BOX assembly w/out Close Clearance/Pipe Shields ........................................................ 22

E. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney with

Close Clearance/Pipe Shields ...................................................................................................................... 24

F. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT

Chimney and T-BOX assembly with Close Clearance/Pipe Shields .......................................................... 26

SECTION V: Alcove Installation ...................................................................................................................... 30

Floor Protection ................................................................................................................................................. 31

Alcove Installation Clearances .......................................................................................................................... 32

Installation of Close Clearance Shields ............................................................................................................. 34

SECTION VI: Operation ................................................................................................................................... 36

Optional Motor Installation .............................................................................................................................. 37

SECTION VII Maintenance: Brick Layout ....................................................................................................... 40

Door Gasket Replacement ................................................................................................................................. 41

Check Chimney ................................................................................................................................................. 42

SECTION VIII: Wood Heater Safety ................................................................................................................ 44

Replacement parts .......................................................................................................................... 44-45

SECTION IX: Troubleshooting ......................................................................................................................... 46

LIMITED WARRANTY ................................................................................................................................... 48

Page 4

INSTALLATION AND OPERATION

READ THIS FIRST

IMPORTANT INSTRUCTIONS

WARNING

THIS UNIT GENERATES A LOT OF HEAT, SO TREAT UNIT WITH CARE. HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.

CONTACT MAY CAUSE SKIN BURNS.”DO NOT USE CHEMICALS OR FLUIDS TO

START FIRE. DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS. DO NOT CONNECT TO ANY DISTRIBUTION DUCT OR SYSTEM. READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING APPLIANCE. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCES.

 The New Buck Corp. non-catalytic systems have been tested by ITS, Warnock Hersey to

ANSI/UL Standards: UL 1482-2000: UL 1482 (2010).

 Install and operate your units according to instructions provided in this manual. Local

building codes may apply; therefore, contact your local building inspector or fire marshal for necessary installation requirements and permits which may go beyond these instructions. The authority having jurisdiction should be consulted before installation to determine the need to obtain a permit.

 If appliance is installed in mobile homes:

DO NOT INSTALL IN SLEEPING ROOMS.

 NOTE: When burning any unit or appliance that combusts fuel for heat, such as

coal, oil, wood or natural and (L.P.) liquid petroleum gas. We highly recommend the use of smoke and carbon monoxide detectors in your home.

 The Model 21 is approved for use in specified Pre-Fabricated fireplaces (ZCF’s). Use the

list on Page 11 or contact your dealer for additional units.

 Examine the masonry fireplace and chimney prior to installation of the fireplace accessory

to determine that the construction meets the minimum fireplace construction requirements illustrated in the instructions, that it is free from cracks, loose mortar, creosote deposits and other blockage or other signs of deterioration.

CAUTION

DO NOT USE MORE THAN ONE STOVE TO A CHIMNEY. DO NOT USE A FLUE INTENDED FOR A GAS APPLIANCE.

Page 2

Page 5

EPA COMPLIANCE STATUS

OPEN MAIN DOOR TO

BE PLACED ON A NON COMBUSTIBLE FLOOR

CONTAINER UNTIL ASH CINDERS HAVE

SHOULD BE RETAINED IN THE CLOSED

OTHERWISE LOCALLY DISPERSED, THEY

DISPOSED OF BY BURIAL IN SOIL OR

FINAL DISPOSAL. IF THE ASHES ARE

ALL COMBUSTIBLE MATERIALS, PENDING

OR ON THE GROUND, WELL AWAY FROM

CLOSED CONTAINER OF ASHES SHOULD

WITH A TIGHT FITTING LID. THE

BE PLACED IN A METAL CONTAINER

DISPOSAL OF ASHES: ASHES SHOULD

OF ASHES PROPERLY.

FROM PEDESTAL AND DISPOSE

OF REAR NOTCH. REMOVE PAN

LID AND LIFT ASH PAN OUT

WHEN FINISHED, CLOSE TOP

NOTE:

This manual describes installation and operation of the New Buck Corporation Model 21 wood heater.

This heater meet the U.S. Environmental Protection Agency’s Emission limits for wood heaters sold

after July 1, 1992. Under specific test conditions, this heater has been shown to deliver heat at rates ranging from approximately 41,500 BTU/hr for the Model 21.

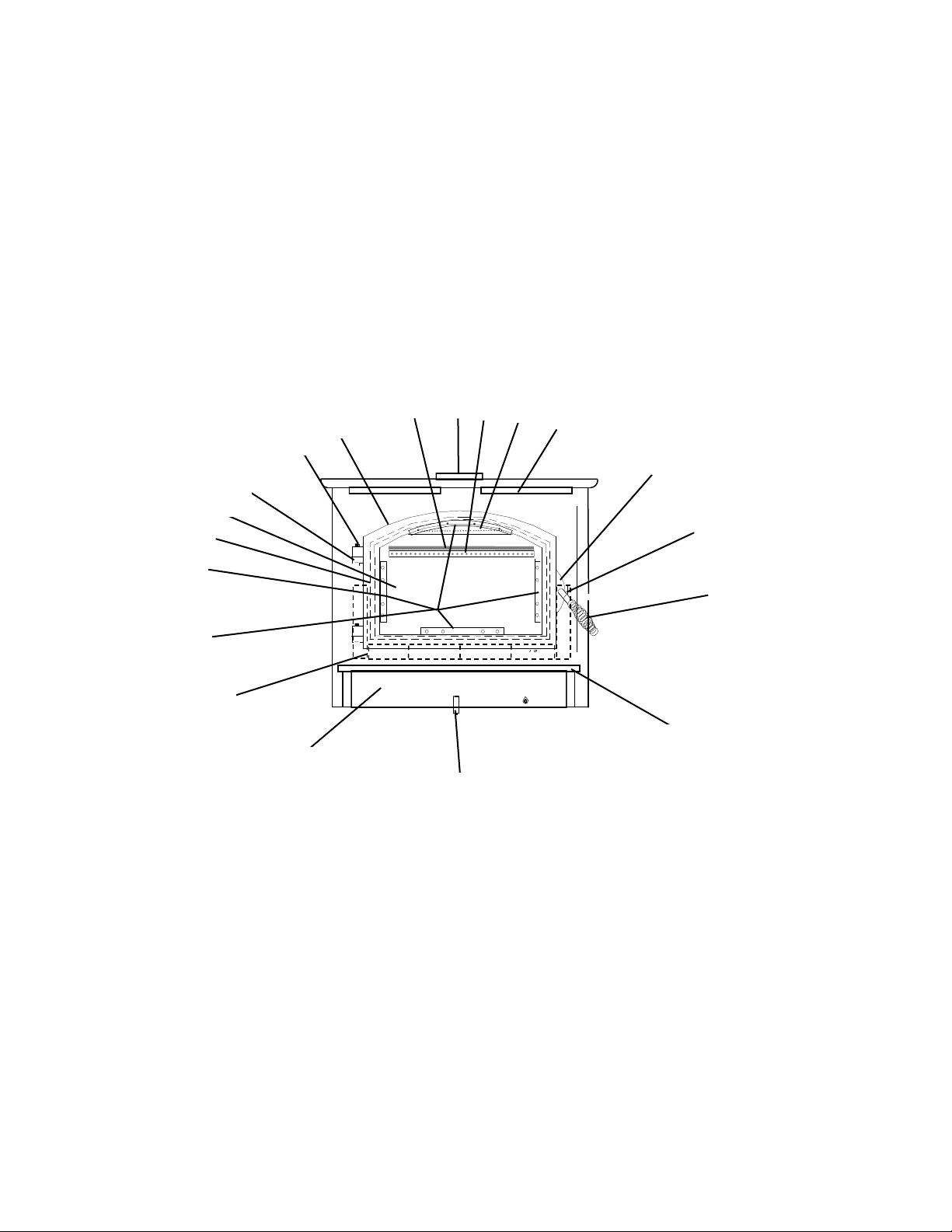

MODEL 21 WOOD STOVE IDENTIFICATION

1. 6" Flue Exit

2. Warm Air Outlets

3. Air Wash and Screen

4. Secondary Air Tubes

5. Top Baffle Board

6. Firebrick

7. Hearth Extension and Hearth Trim

8. Cover Door

9. Primary Air Control

10. Hinge Block

11. Hinge Pins

12. Cast Door

13. Door Glass

14. Glass Clips Small; Side, Top, Bottom

Buck Stove

15. Door Gasket

16. Door Glass Gasket

17. Door Handle

18. Spring Handle

19. -Door Latch

-Door Latch Screw

-Door Handle Bushing

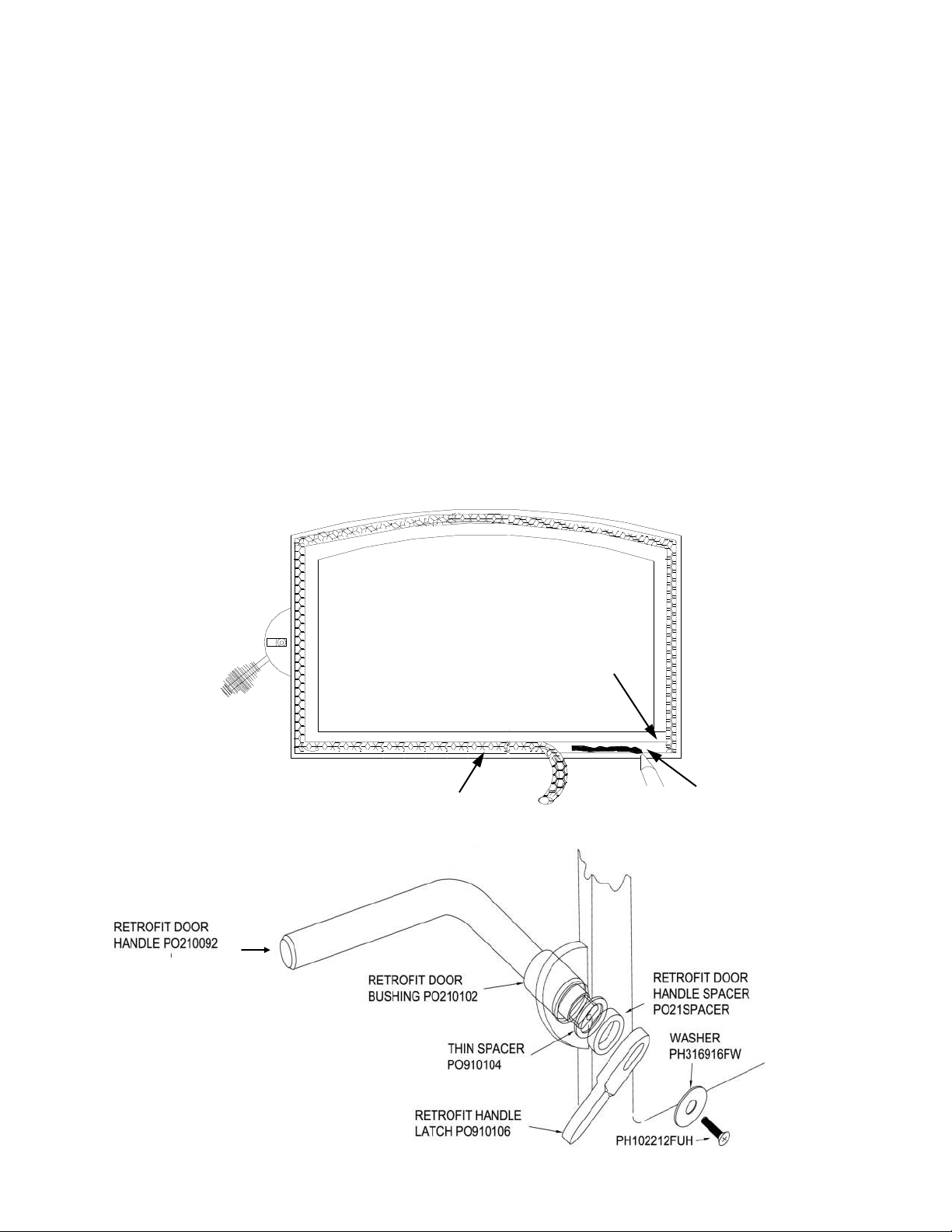

-Door Handle Spacer

-Door Latch Flat Washer

-Door Latch Screws (Phillips Head)

-Door Latch Screws (Allan Head)

Page 3

Page 6

YOUR CHIMNEY OR FLUE MUST BE CORRECTLY SIZED. A CHIMNEY OR FLUE THAT IS TOO SMALL OR LARGE IN DIAMETER, OR TOO SHORT, CAN CAUSE YOUR STOVE TO SPILL SMOKE WHEN DOOR IS OPENED.

CAUTION

SECTION I

INTRODUCTION

Your new MODEL 21 is a non-catalytic unit designed to meet the most stringent emissions standards without the use of a catalytic combustor. This effect is achieved through the use of secondary air which is mixed with primary air in the unit’s firebox.

For peak performance, we suggest the use of hard seasoned natural wood, loading wood length way from front to rear.

NOTE: Soft woods such as pine, create more creosote, clogging of chimney and produce a less efficient burn performance.

You should not burn trash or garbage, artificial or paper logs, gift wrapping, treated or painted wood or any type of coal.

DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE. DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS.”

The primary air, which is controlled by the user, burns the wood. Secondary air is admitted into firebox through secondary air tubes at top of the firebox. This secondary air burns impurities in the smoke released from initial wood burning. The temperature necessary for this combustion is maintained through the firebrick refractory. If any more technical information is necessary, contact your local dealer.

A factory-built prefabricated chimney may be used for your unit when installed in compliance with the manufacturer's specification and uniform building code.

These units may also be used with optional room air blower. To order optional motor assemblies you must specify the stove model number and give one of the following part number:

*Model 21 Motor Assembly—MA5126715

For operation and use of these electrical assemblies, see instructions provided with the motor assembly kits.

Page 4

Page 7

SECTION II

MASONRY INSERT INSTALLATION

The Model 21 may be installed using an all masonry fireplace built in accordance with the Uniform Building Code and National Fire Protection Association (NFPA). The first step in this type of installation is to determine the acceptability of fireplace and chimney for use with a woodstove. Both construction and condition of fireplace are important considerations when installing a woodstove. The chimney should extend at least 3' above roof and at least 2' above any point of the roof within 10'.

REMEMBER TO HAVE YOUR CHIMNEY INSPECTED FOR LEAKS AND BLOCKAGE BEFORE YOU INSTALL YOUR STOVE. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

CAUTION

MINIMUM CLEARANCES TO FLOOR AND COMBUSTIBLES MINIMUM CLEARANCE MASONRY INSERT

MODEL 21

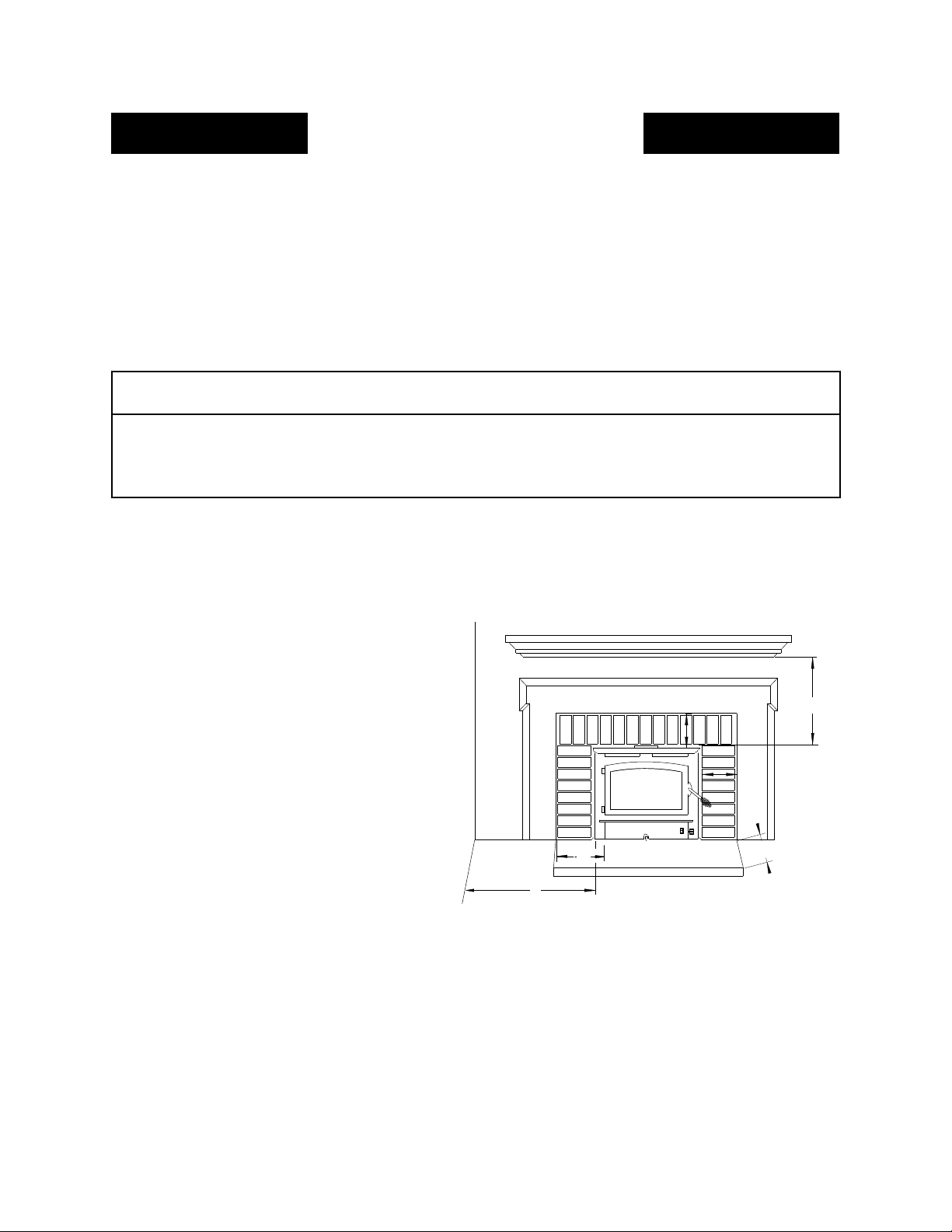

A. Side Wall Combustible B. Front Floor Protector C. Side Floor Protector D. Side Wood Trim E. Top Wood Trim F. Mantel or Brackets

25" 16" 8" 17" 17" 25"

Figure 1

1. The hearth must be of masonry construction and must extend a minimum of 16" in front of firebox opening and a minimum of 8" to either side of the firebox opening. (See Figure 1).

2. If there is not minimum hearth protection from the front of firebox opening and front of

masonry hearth, a floor protector must be used in front of hearth to protect combustible materials. The floor protector must be 3/8" minimum thickness non- combustible material or equivalent.(See Page 5).

Page 5

Page 8

Floor Protection:

When installing freestanding heater, a floor protector must be use. Floor protector must be 3/8”

minimum thickness non-combustible material or equivalent.

How to use alternate materials and how to calculate equivalent thickness

An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure:

1. Convert specification to R-value: R-value is given—no conversion is needed. K-factor is given with a required thickness (T) in inches: C-factor is given: R=1/C

2. Determine the R-value of the proposed alternate floor protector. Use the formula in step (1) to convert values not expressed as “R” For multiple layers, add R-values of each layer to determine the overall R-value.

3. If the overall R-value of the system is grater than the R-value of the specified floor protector, the alternate is acceptable.

Example:

The specified floor protector should be 3/4” thick material with a K-factor of 0.84. The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a

K-factor of 0.29. Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =

0.893

Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25

=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431

Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed

system R is greater than required , the system is acceptable.

Definitions:

Thermal conductance = C =

Thermal conductance = K =

Thermal conductance = R =

Btu

(hr)(ft²)(°F) (m²)(°K)

(Btu)(inch)

(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)

(ft²)(hr)(°F)

Btu W

(m²)(°K)

(Btu)

Page 6

Page 9

POSSIBLE TOOLS NEEDED FOR INSTALLATION

If you decide to install your own stove, there are several hand tools you may need to do the job. If you do not already have them, they are readily available at most hardware stores.

Caulking gun Large adjustable wrench (may not be needed) Drop cloths or newspapers Vacuum cleaner or whisk broom Flashlight 1 tube of RTV silicone (Code 103 or 106, or high temperature rubber cement rated between 450o F- 600o F) 7/32" drill bit and drill Socket/Ratchet Set

INSTALLATION PREPARATION

1. Relocate furniture and other materials away from front of fireplace to allow free access to fireplace.

2. Cover hearth and adjacent floor areas with a drop cloths to protect from soiling or marring surface.

3. Remove existing fireplace damper plate.

4. Thoroughly clean fireplace of ashes and soot.

5. Check chimney and smoke chamber for excessive buildup of creosote or soot. Also, check for obstructions, such as birds nests. If chimney is excessively dirty, clean it or have someone clean it professionally BEFORE installing or using room heater.

6. If fireplace has an ash dump or outside air provision, these must be sealed off with metal or tightly packed non-combustible insulation to prevent cold air from entering fireplace chamber.

MASONRY INSERT INSTALLATION OPTIONS

This unit (appliance) may be installed into an all masonry fireplace, built in accordance with the Uniform Building Code and the National Fire Protection Association (NFPA 211).

NOTE: Check with local building officials for any permits required for installation of this unit and notify your insurance company before proceeding with installation

In some cases, such as improperly drawing fireplaces , oversize flue liners are to meet codes in certain areas it is recommended that one of the flowing procedures be followed:

A. A Chimney Connector can be installed from the appliance flue exit through the damper

and an air-tight face seal. See option (A) (page 7).

B. A listed Direct Connect can be installed from the appliance flue exit through the damper

into the first section of the flue liner with air-tight seal. See option (B) (page 7).

C. A Positive Connect can be installed from the appliance flue exit continuing up through the

entire chimney and exiting at the top of the chimney. See option (C) (page 7).

Page 7

Page 10

SAFETY NOTICE: If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

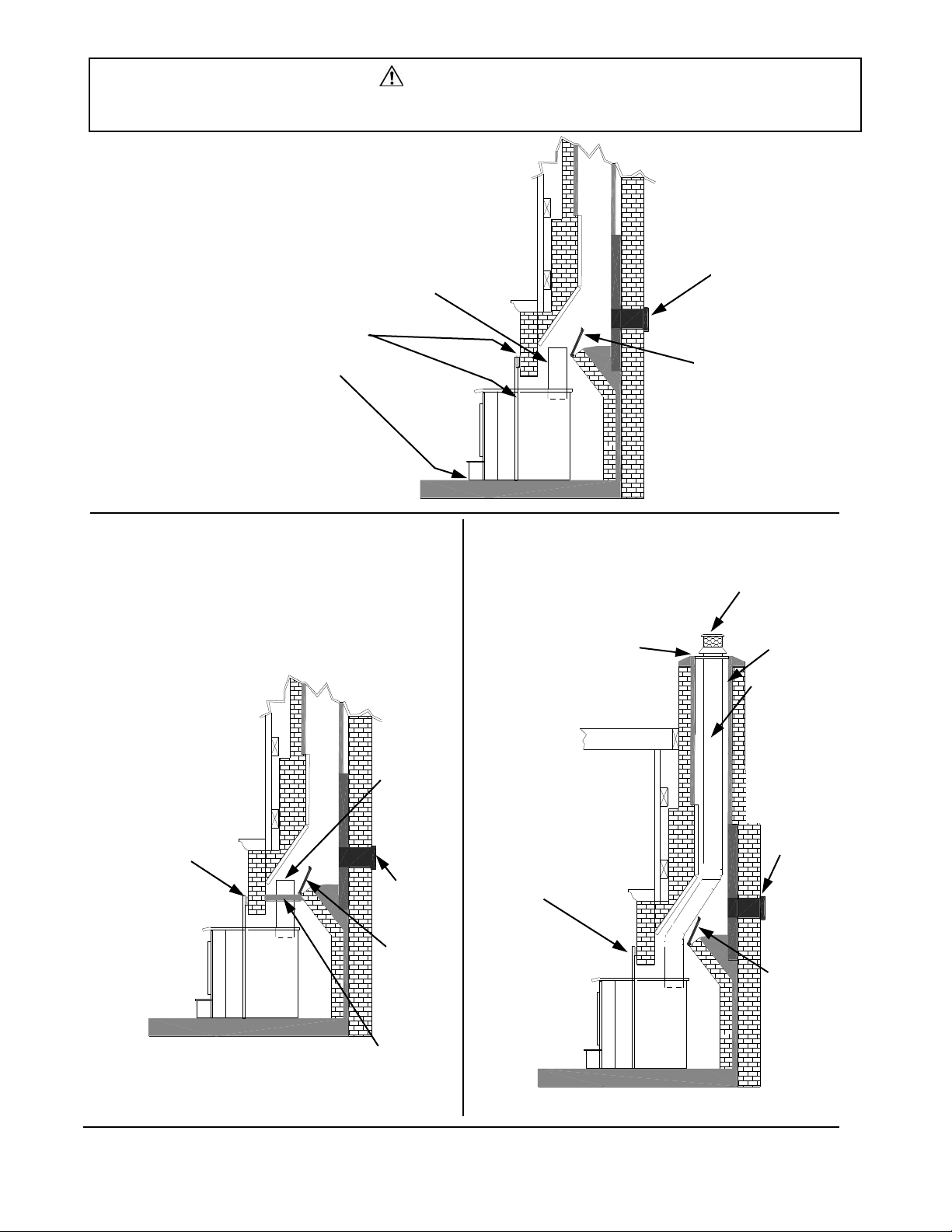

OPTION (A)

AIRTIGHT INSU-

STARTER PIPE

SEAL TRIM PANELS AND UNDER FRONT OF STOVE UNIT WITH INSULATION OR HIGH TEMPERATURE CAULK

NOTE: New Buck Corporation grants no warranty, implied or stated, for the installation or maintenance of your appliance, and assumes no responsibility of any consequential damage

LATED CLEANOUT

REMOVE DAMPER OR WIRE IT OPEN

OPTION (B)

NOTE: Follow installation instruction

with Direct Connection Kit. (Kit sold separately)

SEAL TRIM PANELS WITH INSULATION OR HIGH TEMPERATURE CAULK

STAINLESS STEEL CHIMNEY CONNECTOR MUST

EXTEND 1’

PAST THE BLOCK-OFF PLATE OR TO THE FLUE LINER

AIRTIGHT INSULATED CLEAN-

REMOVE DAMPER OR WIRE IT OPEN

OPTION (C)

NOTE: Follow installation

instruction with Positive Connection Kit. (Kit sold separately)

INSTALL A NON-COMBUSTIBLE COVER PLATE TO PREVENT WATER FROM ENTERING THE CHIMNEY

TRIM PANELS

CAP PREVENTS WATER FROM ENTERING)

FLUE LINER

THE LINER MUST BE STAINLESS STEEL CONNECTOR OR FLEXIBLE VENT. FOLLOW THE LINER MANU-

FACTURER’S IN-

STRUCTIONS FOR INSTALLATION AND SUPPORT.

AIRTIGHT INSULATED CLEAN-OUT

REMOVE DAMPER OR WIRE IT OPEN

BLOCK-OFF PLATE OR DAMPER ADAPTER

Page 8

Page 11

INSTALLATION PROCEDURE (Use a Listed Direct or Positive Connect)(See Page 6).

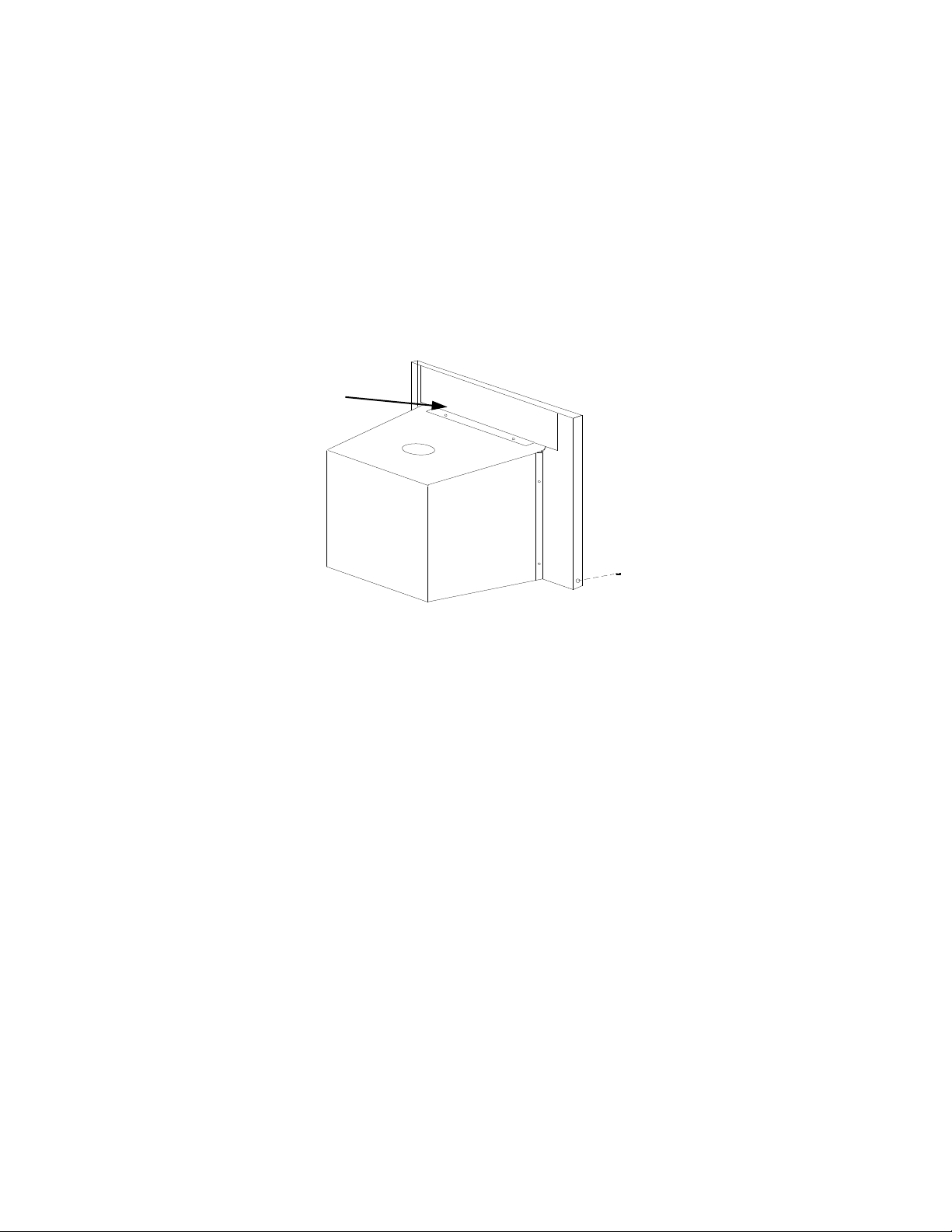

FIGURE 2 POSITIONING

POSITIONING THE HEATER NOTE: If the three suggested installations have been

chosen, certain steps must be followed when installing heater into a masonry fireplace.

When positioning heater, the following conditions MUST be met! (See Figure 2).

1. The front of damper opening must be positioned

BEHIND back edge of the lintel to ensure proper draft. (See Figure 2).

2. Center heater in fireplace opening.

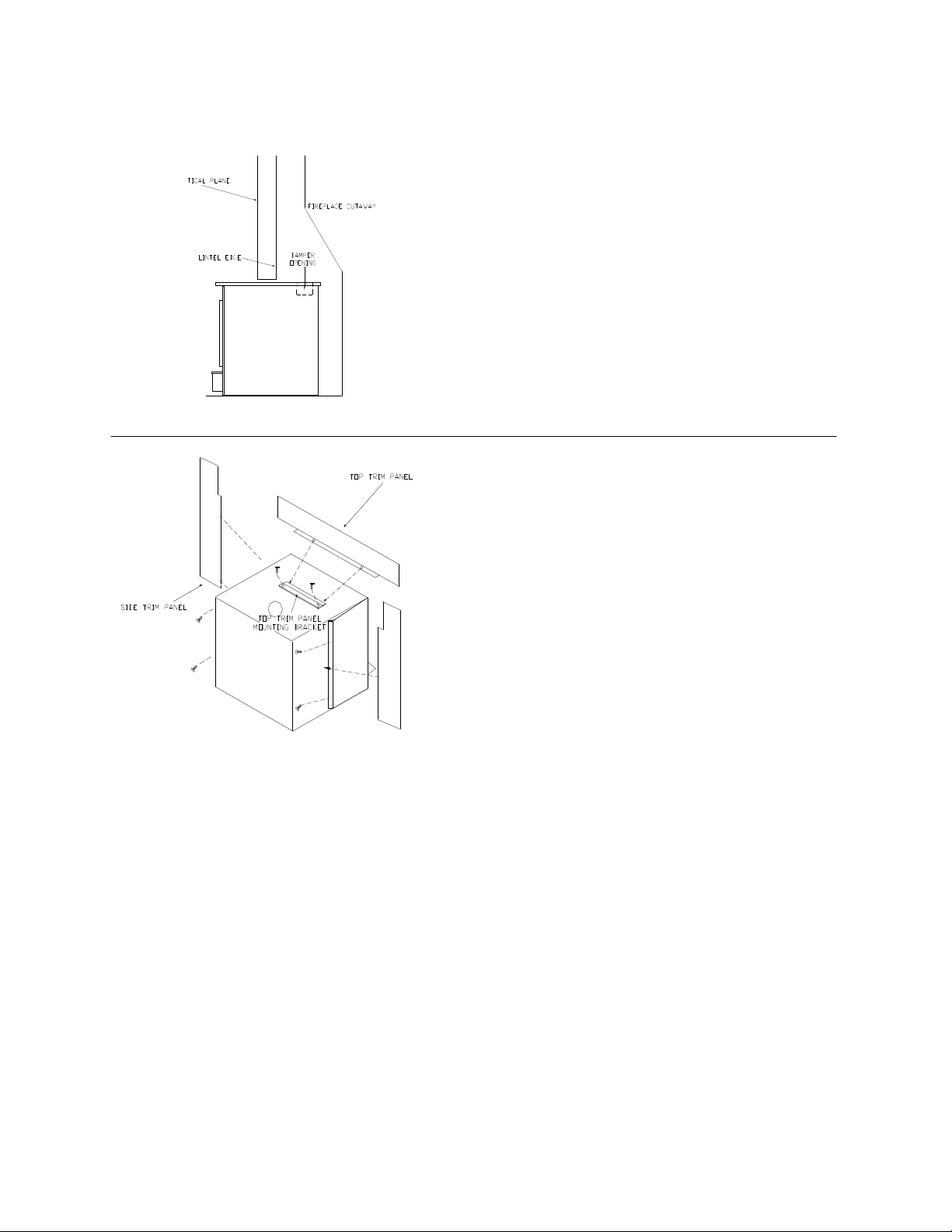

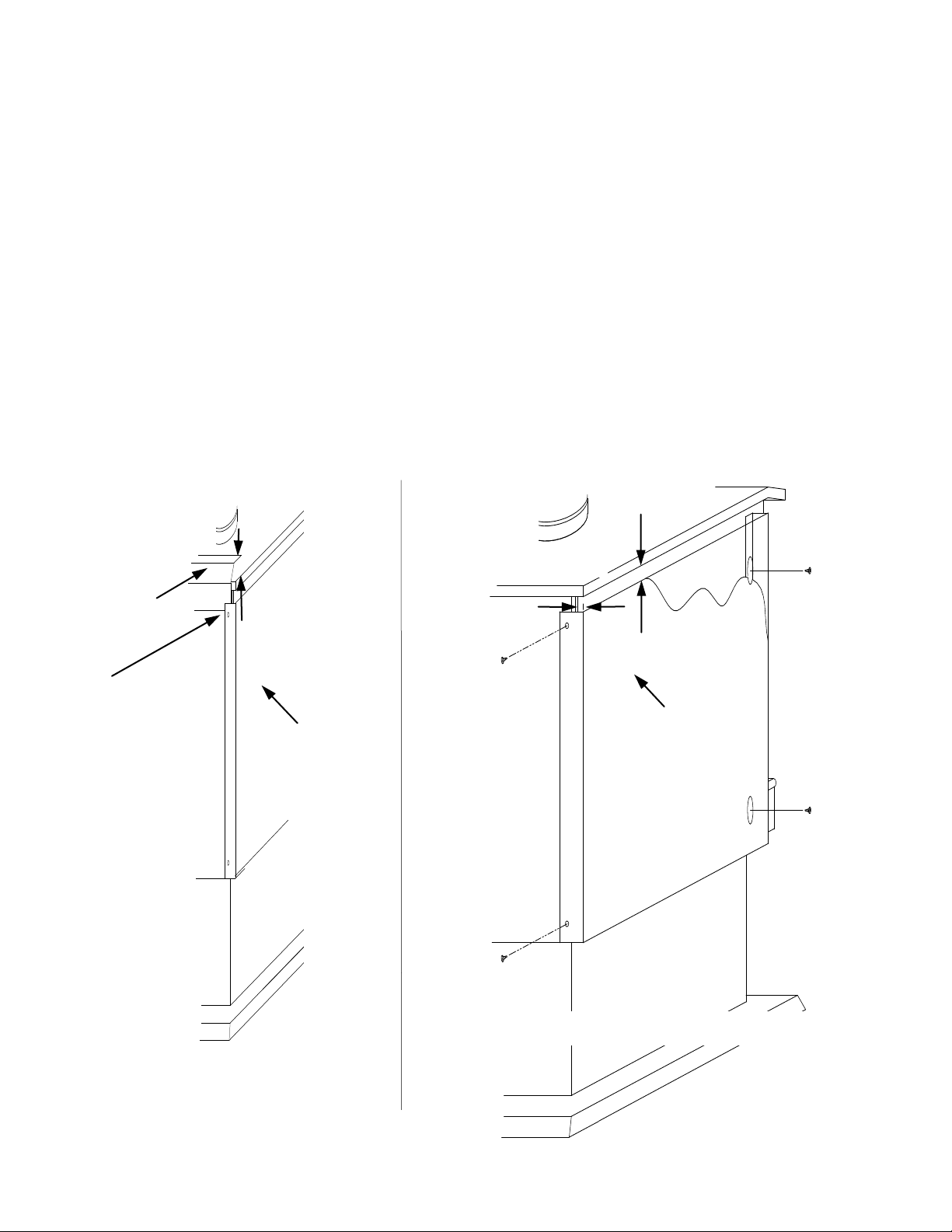

MOUNTING THE TRIM PANELS

After unit is positioned as shown in (Figure 2), mark mounting position of trim panels as follows:

1. Place side trim panels in place, flat against the face of the fireplace. Mark down front edge of trim panel with a pencil to make a vertical reference line. (See Figure 3).

2. Place top (long) trim panel in place on top of unit. The panel should be flat against the outside face of fireplace and standing vertically. Mark along lower edge of trim panel with a pencil to make a reference line for mounting.

FIGURE 3 MOUNTING TRIM PANELS

3. Slide unit out of the fireplace far enough to work behind trim panel reference lines.

4. Mount side trim panels. (See Figure 3). a. Position trim panel on reference line. b. Drill mounting holes in center of trim panels mounting brackets to allow for adjustment in and out if

necessary.

c. Mount trim panel using self-tapping screws provided.

5. Place top panel back on reference mark. Take top trim panel mounting bracket supplied with unit. Position bracket so it overlaps rear lip of top trim panel. Drill mounting holes in top of stove using holes in bracket as guide. Tighten down screws.

6. Now, follow installation procedures in the listed direct connect or positive connect kit you are using and install heater connect kit in the fireplace.

7. Slide unit back into fireplace. Check to be sure that trim panels are properly positioned and lie flat against front of fireplace. If one or more of the panels is out of position, slide unit out and reset by loosening mounting screws and repositioning in slot.

8. Reinstall top trim panel by sliding rear lip of top trim panel underneath front lip of mounting bracket already secured to top of unit. NOTE: Mount top trim panel so that it sits in front of top of side trim panels.

9. Obtain brass trim kit provided with unit and slip over top and sides of trim panels. (Top ends of brass may need to be trimmed to fit).

Page 9

Page 12

10. If direct connect or positive connect kit is not used, follow instructions in mounting trim panels, steps 1-4c on page 8.

11. Mount top trim panel by drilling mounting holes in center of trim panel mounting brackets, with top end side of top panel overlapping side panel.

12. Using insulation provided, peel and stick to back of panels overlapping fireplace dimensions by 1” on each side and top. (See Page 8, Figure 3).

13. Next using high heat silicone or furnace cement run heavy bead of caulking around where panels meet stove. (See Figure 4).

14. Slide the unit back into fireplace. Check to be sure that trim panels (and brass) are properly positioned and lie flat against front of fireplace. If panels are out of position, slide unit out and reset by loosening mounting screws and repositioning in the slot. Using the bar, lift stove in front. Place insulation across front and the surface of hearth or bottom of fireplace, to make complete seal.

15. To check seal of panels, use candle flame and go around entire area sealed by silicone and insulation. If flame leans toward inside of fireplace, add additional insulation. This ensures an airtight seal.

FINAL CHECK

SILICONE

SCREW

FIGURE 4

1. Recheck specified clearances.

2. Remove all foreign material from firebox area.

3. Open the primary air draft.

4. Plug power cord into a 115V AC outlet if optional motor is being used. Do not run cord under unit or in high traffic areas.

5. Place crumpled pieces of newspaper in the stove. Light it and close door. Ensure that the stove draws properly through primary draft.

6. Check for smoke leaks around door.

7. Open door and check for smoke escaping from front of stove. Smoking usually indicates a defective or poorly positioned chimney. Some chimneys with a marginal draft can be preheated by lighting newspaper and holding it near open damper with a poker or fire tong. Once the chimney heats up, a proper draft can usually be obtained.

If a thorough review of the Troubleshooting Guide in the manual does not reveal the problem, contact your dealer for assistance.

Page 10

Page 13

THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED HIGH TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR THREE FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS NORMAL AND IS NOT A CAUSE FOR ALARM. IN SOME CASES, THESE FUMES WILL ACTIVATE A SMOKE ALARM. OPENING A WINDOW NEAR THE UNIT WILL ALLOW THESE FUMES TO ESCAPE. DO NOT BUILD A LARGE, ROARING FIRE UNTIL THIS CURING IS COMPLETE OR THE HEATER FINISH MAY BE DAMAGED.

CAUTION

The connector and/or chimney should be inspected at least once a month during the heating season to determine if a creosote buildup has occurred.

CAUTION

NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF VOLATILE FUMES AND CAN AND WILL EXPLODE! DON'T TAKE A CHANCE WITH THE SAFETY OF YOUR HOME AND FAMILY.

Page 11

Page 14

SECTION III

PRE-FAB INSERT INSTALLATION

The Model 21 has been tested with the following:

Heatilator Security Tempco Preway Marco FMI Woodside Majestic

NOTE: The Model 21 may be installed in any of the pre-fabricated fireplaces listed above if

they are big enough to accept heater.

NOTE: A FULL CHIMNEY LINER IS REQUIRED IN A ZERO CLEARANCE OR PRE -

FABRICATED FIREPLACE.

NOTE: The ash lip, smoke baffle and smoke shelf may be removed if necessary to provide

room for these models. Any other alteration to unit will void ALL NEW BUCK CORPORATION, responsibility and liability. The warning label below must be attached to the pre- fabricated fireplace before unit is installed.

Except for the “notes” above, please follow the instructions for Masonry Insert Installation including Minimum Clearances for stove and floor protector in Section II.

NOTE: When installing trim panels DO NOT COVER ANY EXITING LOUVERS OR AIR

OPENING IN PRE-FABRICATED FIREPLACE .

WARNING: This fireplace must be

restored to its original condition for safe use, if the fireplace insert is removed.

Page 12

Page 15

SECTION IV

RESIDENTIAL FREESTANDING INSTALLATION

TOOLS FOR INSTALLATION

Drop cloth, 3/32" Metal drill bit, 5/16" magnetic socket chuck adapter, 5/16" wrench (box or socket) or adjustable wrench, Jigsaw with masonry, metal and wood blades

WARNING: DO NOT INSTALL IN A SLEEPING ROOM

PREPARING THE STOVE FOR INSTALLATION

1. Remove the protective plastic wrapping from unit, inspect unit for any obvious physical damage.

2. Plug power cord into a 115V AC outlet to test motor and fan when optional motor is being used. Do not run cord under unit or in high traffic areas.

3. Check primary air draft control to ensure that it slides freely.(See Figure 5).

4. Remove any items from within firebox. Spread a dropcloth on floor behind heater. Next, tilt heater so that back is on drop cloth.

5. ( Leg Kit ): If legs are to be used, obtain four legs, attach legs to holes in bottom of unit with bolts and washers supplied with the leg kit. (See Figure 5).

6. ( Pedestal Kit ): If pedestal kit is being used an outside air is required, see Out Side Air Installation below. Open freestanding kit and obtain stand. Place stand against bottom of heater (angle side to heater). Center stand front to back and also center stand left and right. Mark screw locations on bottom of stove through outer holes of stand mounting angles. Set stand aside and drill four 7/32" holes in heater bottom. Before attaching heater to stand, take a large flat screwdriver or pliers and remove the 2" x 2" knockout on bottom of unit. (See Figure 5A). Then mount stand to bottom of heater with screws provided. (See Figure 5A).

7. Obtain four (4) 3/16" self-tapping screws and secure stand to heater.

8. Reposition heater to the upright position.

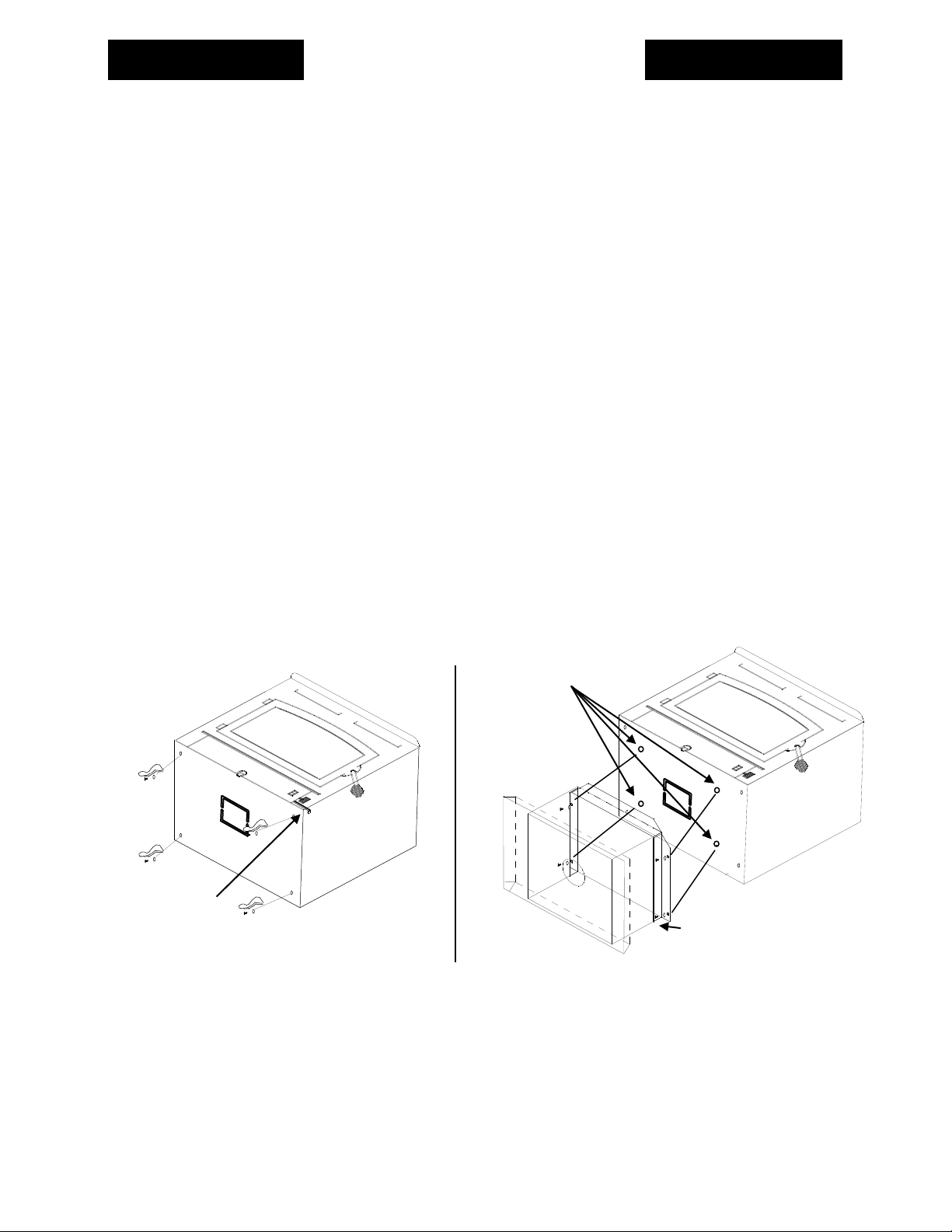

HOLES FOR MOUNTING PEDESTAL

2" x 2"

KNOCKOUT

PRIMARY AIR

DRAFT CONTROL

Figure 5

Figure 5A

PEDESTAL

Out Side Air Installation

CAUTION

THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR MUST BE MAINTAINED. (MOVE

OPENING AND/OR REPOSITION HEATER LOCATION IFNECESSARY).

1. Select an installation location that gives the best airflow from the front of heater to remainder of home.

2. Place protective floor pad in position. For minim floor protection (See Page 14).

Page 13

Page 16

3. Place unit on pad making sure minimumum clearance specifications are met.

4. Lightly mark with a pencil the location of pedestal on protective pad.

5. Next, remove the four (4) screws holding heater to stand. Position heater out of the way of installation area.

6. Check that pedestal stand is still aligned with marks on the protective pad, now mark outside air opening in bottom of pedestal stand on to the pad.

7. Mark center line of outside air opening. Set stand aside for now.

8. Cut a 4 1/4" diameter hole in pad and continue through floor.

CAUTION. The structural integrity of mobile home floor must be maintained.

(Move opening and/or reposition heater location if necessary).

9. Now, reposition pedestal stand on pad being sure to line stand up with reference marks on pad.

10. Using an electric drill and 3/8" masonry bit, drill four (4) holes in the protective pad using holes in the bottom of the pedestal stand as a guide. Be careful to drill only through pad and not into floor. Change the bit to a 1/4" metal bit and drill through floor.

11. Using four (4) 3/8" x 1-1/2" lag bolts provided, secure pedestal stand and pad to floor of mobile home.

IF A THICK FLOOR PROTECTOR IS USED, YOU MAY HAVE TO

USE LONGER LAG BOLTS.

CAUTION

12. Obtain outside air duct from the box in pedestal kit marked FA P21B.

13. Slip duct down through the 4-1/4" hole until the face of outside air duct with screen wire, contacts bottom of pedestal.

14. Secure outside air duct to inside bottom of pedestal using four (4) #10x1 screws provided. (See Figure 6).

15. Set heater back onto stand and resecure using screws.

16. NOTE: If home is underpinned, you must duct through underpin as shown. (See Figure 6A).

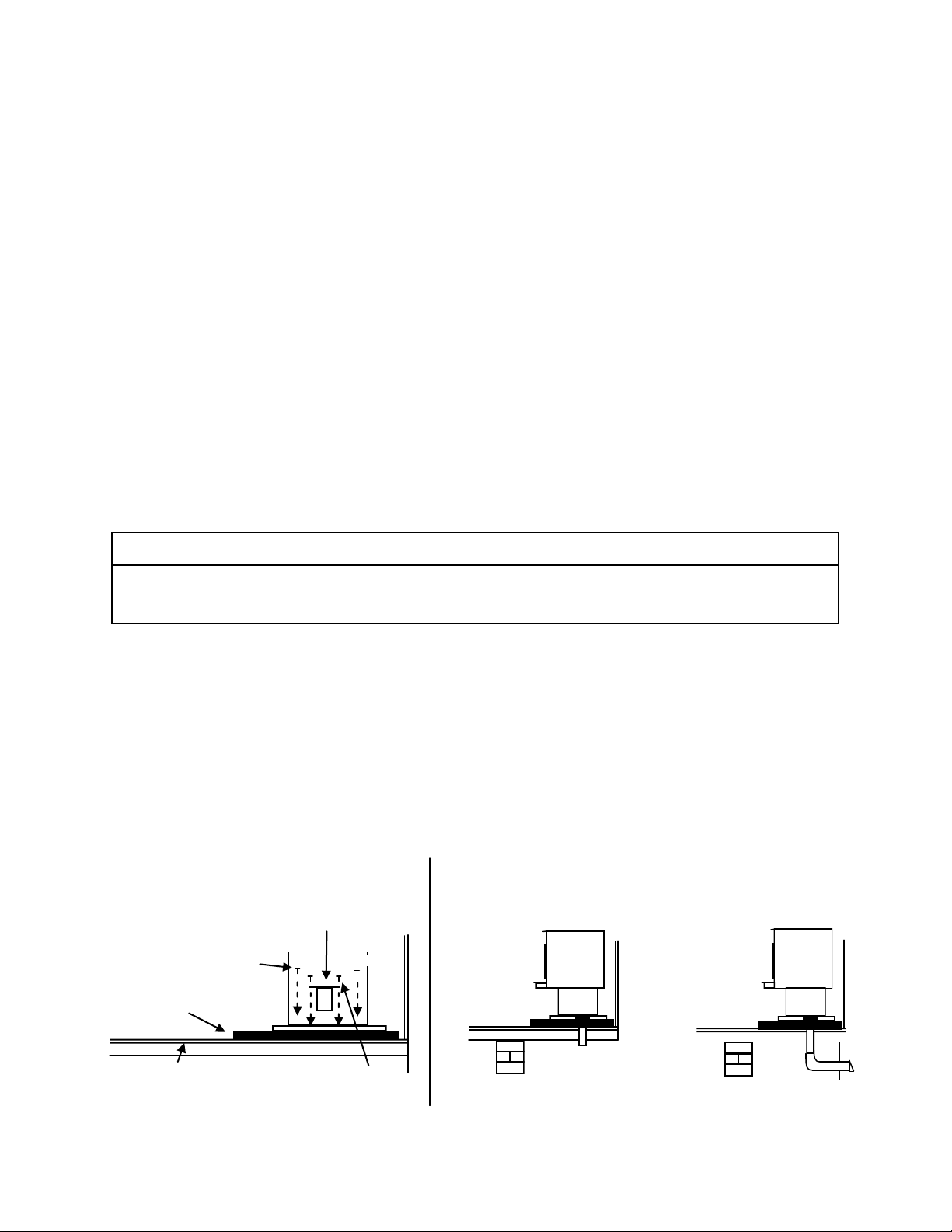

Figure 6

(4) 3/8" x 1-1/2"

FLOOR PROTECTOR PAD

UNDER SIDE OF MOBILE HOME FLOOR

OUTSIDE AIR DUCT

PEDESTAL

(4) #10x1

OUTSIDE AIR DUCT THROUGH FLOOR WHEN

MOBILE HOME IS NOT UNDERPINNED.

Figure 6A

OUTSIDE AIR DUCT THROUGH

UNDERPINNED.

Page 14

Page 17

Floor Protection:

Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.

How to use alternate materials and how to calculate equivalent thickness

An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure:

1. Convert specification to R-value: R-value is given—no conversion is needed. K-factor is given with a required thickness (T) in inches: C-factor is given: R=1/C

3. If the overall R-value of the system is grater than the R-value of the specified floor protector, the alternate is acceptable.

Example:

The specified floor protector should be 3/4” thick material with a K-factor of 0.84. The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a

K-factor of 0.29. Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =

0.893

Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25

=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431

Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed

system R is greater than required , the system is acceptable.

Definitions:

Thermal conductance = C =

Btu

(hr)(ft²)(°F) (m²)(°K)

Thermal conductance = K =

(Btu)(inch)

(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)

(Btu)

Thermal conductance = R =

(ft²)(hr)(°F)

Btu W

(m²)(°K)

Install in accordance with 24 CFR, Part 3280 (HUD).

Chimney

This model is designed for connection to any listed 2100º UL103 HT chimneys and parts. Follow chimney manufacturer's instructions carefully.

This room heater must be converted to (1) a chimney complying with the requirements for Type HT chimneys in the Standard for chimneys, Factory-Built, Residential, Type and Building Heating Appliance, UL 103 or (2) a code approved masonry chimney with a flue liner.

Page 15

Page 18

PREPARING THE ROOM HEATER LOCATION

1. Select an installation location that will give the best airflow from the front of the heater to the remainder of the home.

2. Place the protective floor pad in position.

3. Place unit on pad making sure minimum clearance specifications are met.

4. If connecting to an existing masonry flue, first ensure that flue conforms to the NFPA-211 Code and/or consult your local code for proper procedures.

NOTE: This model is designed for connection to: any Listed 2100° UL 103 HT. TYP chimney

also any Listed UL DVL Close Clearance Pipe or Single wall minimum 24 ga. Blued or Black Pipe. Follow pipe manufacturer’s instructions carefully.

CHIMNEY

This room heater must be converted to (1) a chimney complying with requirements for Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential, Type and Building Heating Appliance, UL 103, or (2) a code approved masonry chimney with flue liner.

CAUTION: Certain installation types require the use of certain chimney types.

Please follow these instructions exactly.

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Residential Installation

A. Vertical Exit using (6" Single Wall minimum 24 ga. blued or black pipe and any

Listed 2100° UL 103 HT. chimney). Without optional close clearance shield and pipe shield. NOTE: For minimum clearances (See Page 16, Figure 7).

1. Suspend a plumb bob from ceiling above unit so that weight is hanging in the center of

flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where string is suspended to locate center of chimney.

2. After locating center of hole, install ceiling support box, chimney or chimney connector,

flashing, and rain cap, per chimney manufacturer’s instructions and local building codes

for installation through combustible walls or ceilings.

3. Now connect stove and ceiling support box using 6" Single Wall minimum 24 ga. blued

or black pipe (DO NOT USE GALVANIZED PIPE). Connect each section so crimped end faces downward and secure each section to each other using at least three (3) sheet metal screws or rivets. Single wall pipe is to be connected with (3) sheet metal screws or rivets to connector collar on heater.

4. NOTE: If your local code requires outside air for residential installation, refer to pages

13-14 for outside air installation.

(See Page 16, Figure 8).

Page 16

Page 19

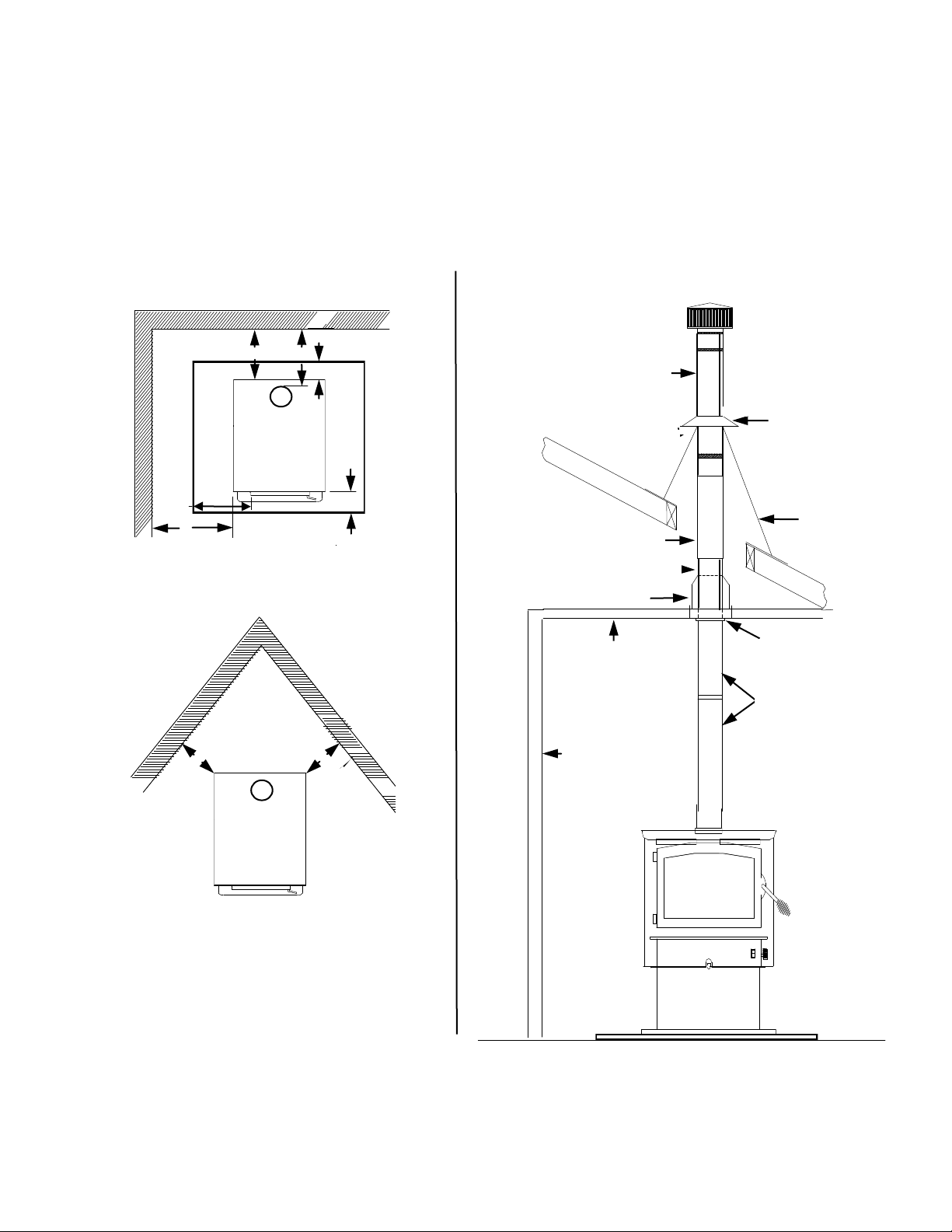

BACK WALL

A. Vertical exit using

pipe

and any listed 2100° UL 103 HT. TYPE Chimney)

(6" Single Wall minimum 24 ga. blued or black

Without optional close clearance shield and pipe shield

Model 21 minimum clearance to combustibles

SIDE WALL

A B C D E F G

MODEL 21 25” 13" 13" 15.5" 8" 6" 16"

NOTE: All clearances are to combustibles without close clearance shields and pipe shield, using 6" Single Wall minimum 24 ga. blued or black pipe and minimum floor protector. The clearances above may be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 19, 20 or Pages 23, 24).

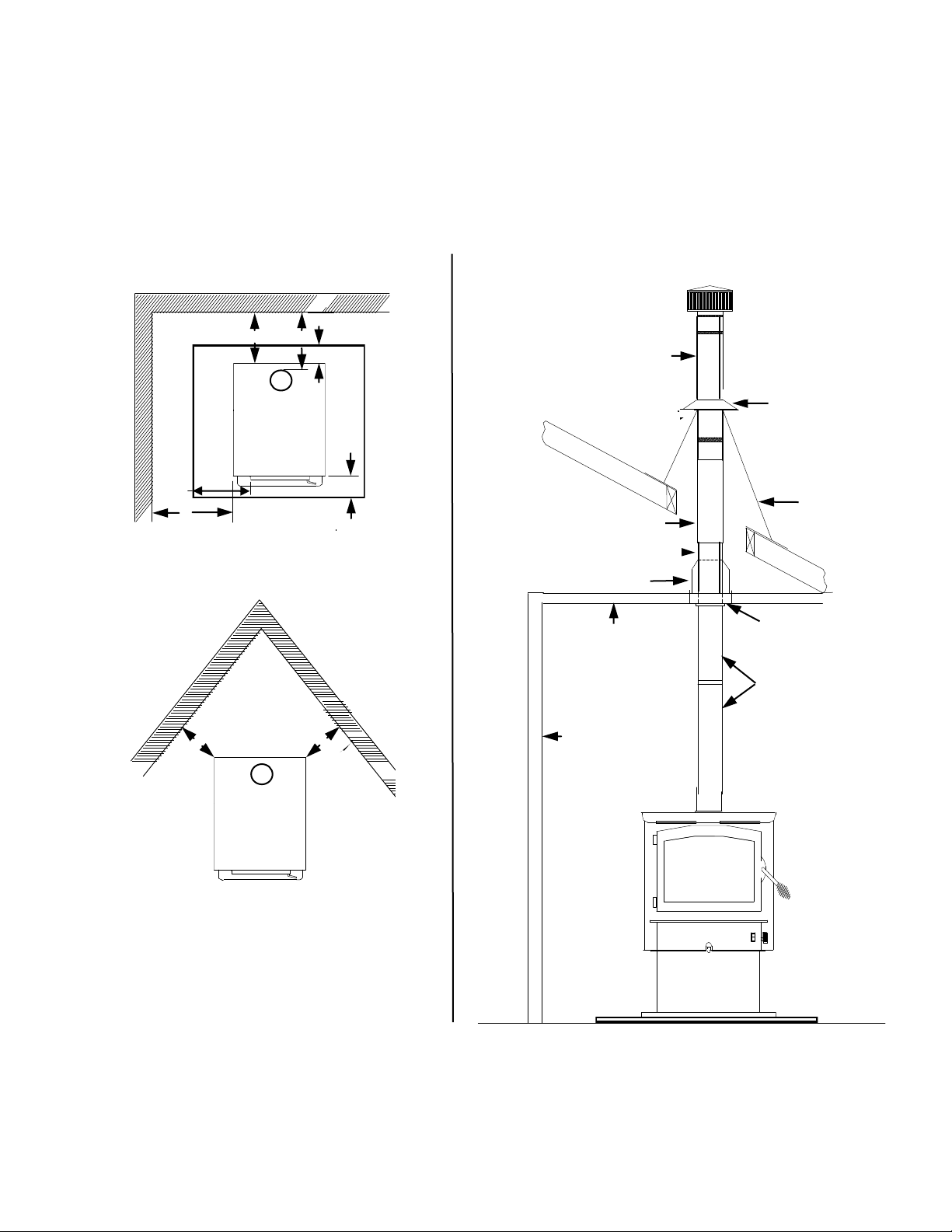

Figure 7

BACK WALL

PROTECTOR PAD

Figure 8

LISTED 2100° UL 103 HT TYP. CHIMNEY

DO NOT OBSTRUCT

CAULK

RADIATION SHIELD

LISTED 2100° UL 103 HT TYP.

INSTALLATION

CEILING

SIDE WALL

CEILING SUPPORT

SINGLE WALL CONNECTOR PIPE

NEW BUCK

BUCK STOVE

CONTEMPORARY CAP

STORM COLLAR

FLASHING

Page 17

Page 20

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Residential Installation

B. Vertical Wall Exit using (6" Single Wall minimum 24 ga. blued or black pipe with elbow

and any Listed 2100° UL HT chimney and Listed 2100° UL HT. T-Box assembly). Without optional close clearance shields and pipe shield. NOTE: For minimum clearances (See Page 18, Figure 9).

1. Mark the plumb line on wall directly behind center of heater. (See Page 18, Figure 10). NOTE: When using 6" Single Wall minimum 24ga. blued or black pipe, maintain 18" minimum clearances" between pipe and ceiling.

2. Place vertical portion of heater pipe and elbow in position and project a point onto plumb line level with center of elbow.

3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe, maintaining clearances to ceiling as noted in (Page 18,Figure 10). This will give you center of hole for the chimney penetration.

4. After locating center of penetration, install tee-box and chimney, per chimney manufacturer's specifications.

5. Connect chimney collar to tee-box using 6" Single Wall minimum 24 ga. blued or

black pipe. (DO NOT USE GALVANIZED PIPE). Connect each section so crimped end faces downward and secure each section to each other using three (3) sheet metal screws or rivets. Single wall pipe is to be connected with three (3) sheet metal screws rivets to connector collar on heater.

(See Page 18, Figure 10).

6. NOTE: If your local code requires outside air for residential installation, refer to pages 13-14 for outside air installation.

Page 18

Page 21

B. Vertical wall exit using

BACK WALL

(6" Single Wall minimum 24 ga. blued or

black pipe with elbow

TYPE Chimney and

Without optional close clearance shield and pipe shield.

Model 21 minimum clearance to combustibles.

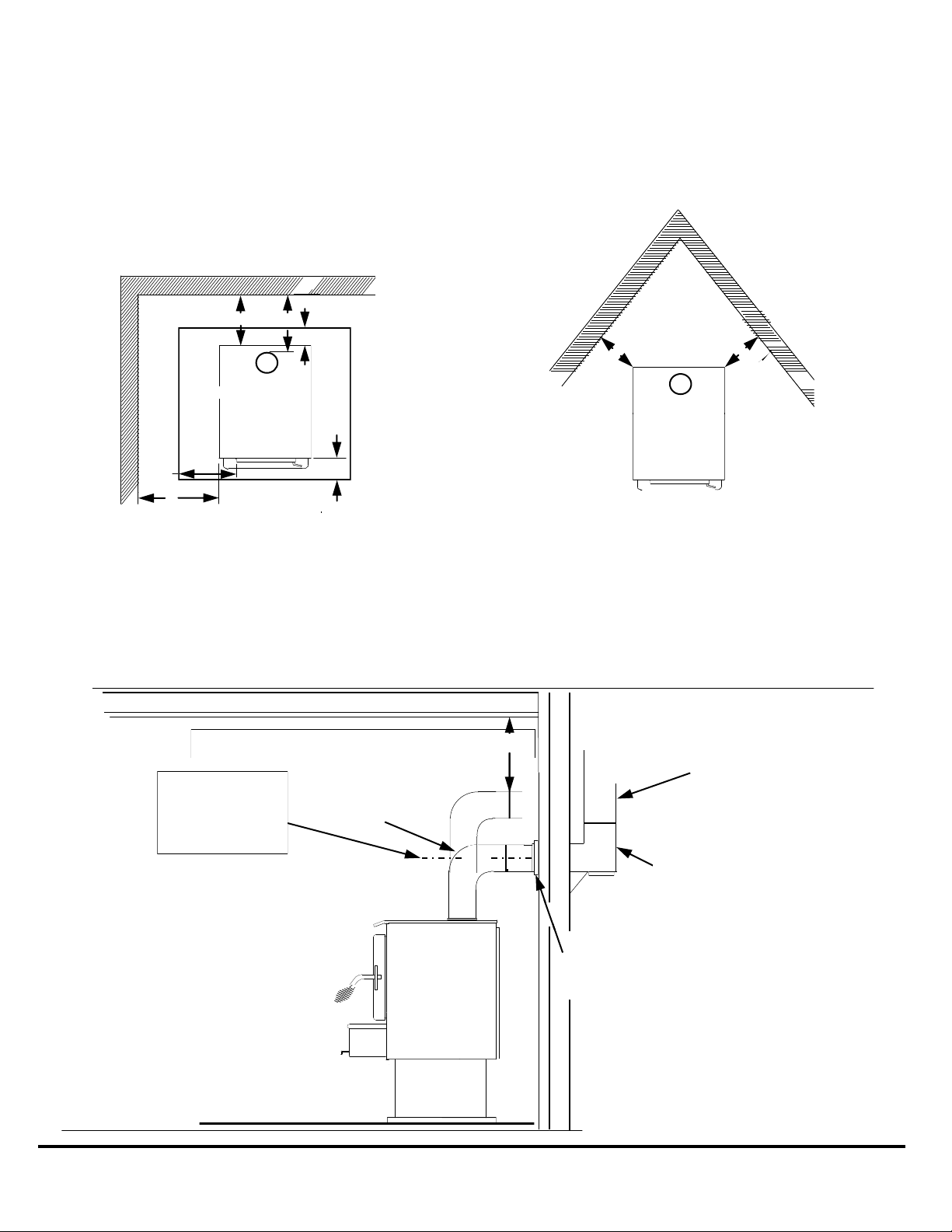

BACK WALL

SIDE WALL

PROTECTOR PAD

A B C D E F G MODEL 21 25” 13" 13" 15.5" 8" 6” 16"

and any listed 2100° UL 103 HT.

Listed 2100° UL HT. T-Box assembly

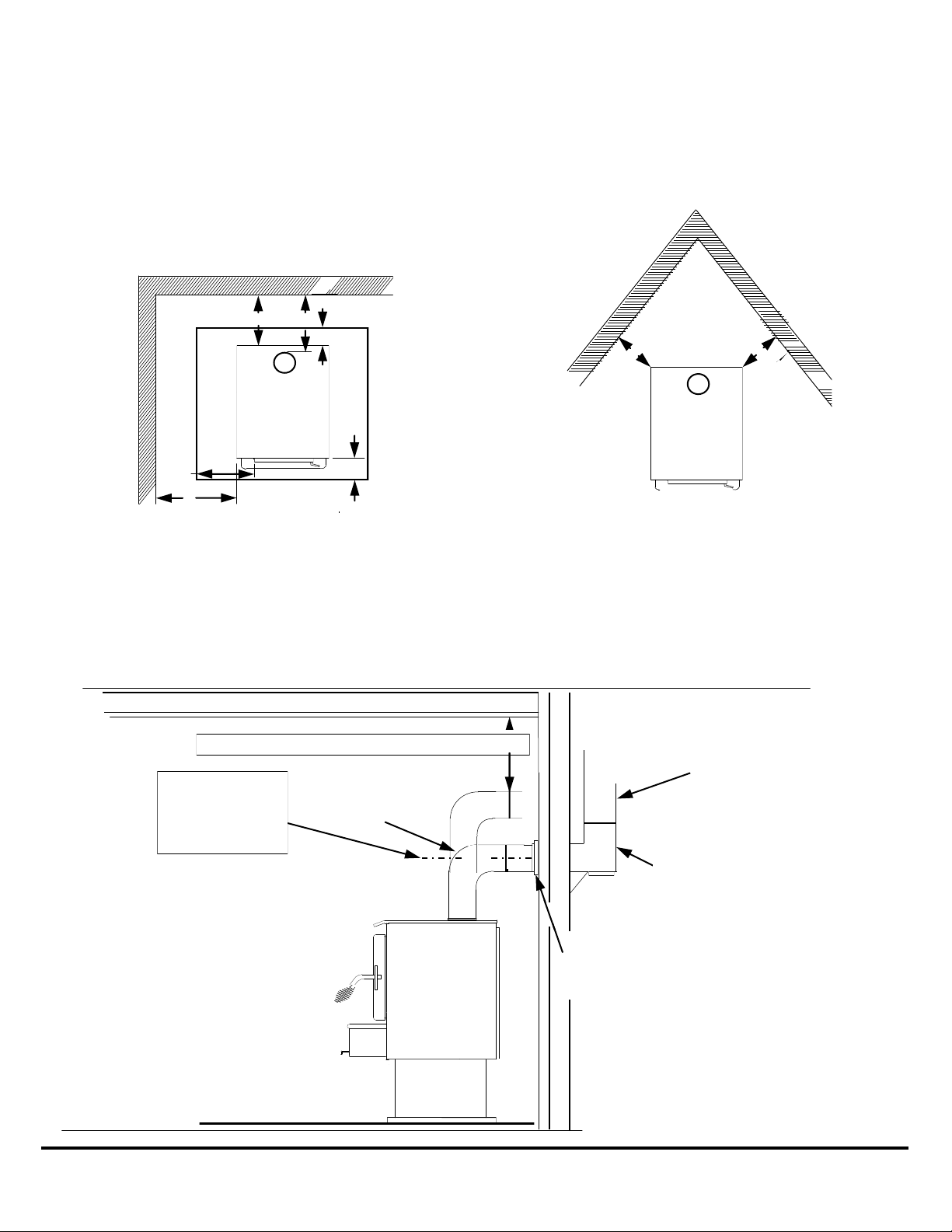

Figure 9

NOTE: All clearances are to combustibles without close clearance shields and pipe shield, 6" Single Wall minimum 24 ga. blued or black pipe with elbow and minimum floor protector. Clearances above may be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 21,22 or Pages 25, 26).

LISTED 2100° UL 103 HT TYP.

CHIMNEY REEFER TO

CEILING

NOTE:

CENTER LINE

OF ELBOW MARK PLUMB LINE ON WALL

Figure 10

Maintain 12"Minimum Clearance

SINGLE WALL

CONNECTOR

ELBOW PIPE

IN SIDE WALL

INSTALLATION INSTRUCTION

WALL PASS-THROUGH CONNECTOR

MANUFACTURES

LISTED 2100° UL 103 HT

TYP. CHIMNEY T-BOX

ASSEMBLY REEFER TO

MANUFACTURER’S

INSTALLATION

INSTRUCTION

Page 19

Page 22

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Residential and Mobile Home Installation

C. Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT

chimney). Without close clearance shield and pipe shield. NOTE: For minimum clearances (See Page 20, Figure 11).

1. Suspend a plumb bob from ceiling above unit so that weight is hanging in the center of flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where string is suspended to locate the center of chimney.

2. After locating center of hole, install ceiling support box, chimney or chimney connector,

flashing and rain cap, per chimney manufacturer’s instructions and local building codes

for installation through combustible walls or ceilings.

3. Now connect stove and ceiling support box using DVL close clearance pipe. Connect each section per manufacturer’s instructions. Secure each section to each other using minimum (3) sheet metal screws or rivets. DVL close clearance is to be connected with (3) sheet metal screws or rivets to connector collar on heater (See Page 20,Figure 12).

4. NOTE: If your local code requires outside air for residential installation, refer to pages

13-14 for outside air installation.

Page 20

Page 23

BACK WALL

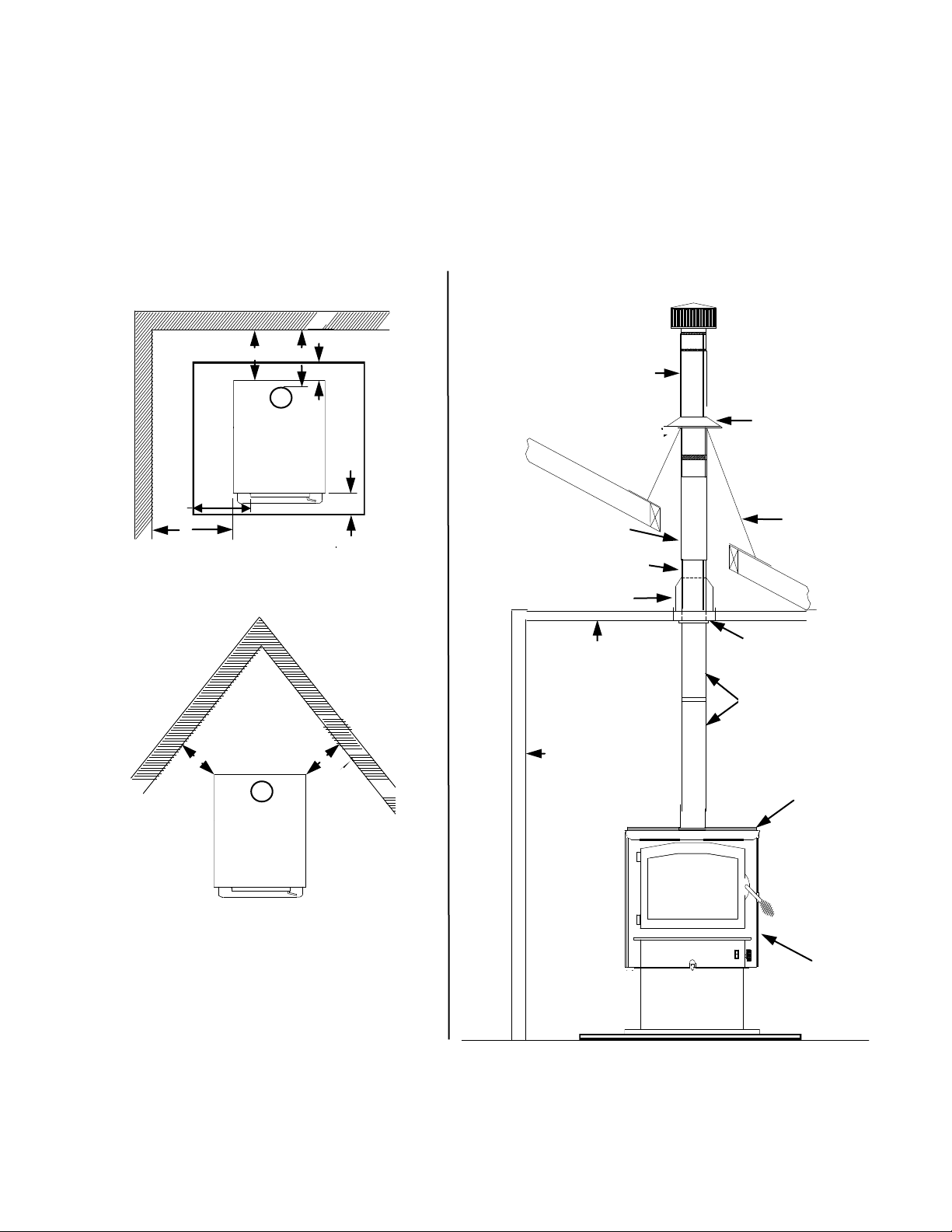

C. Vertical exit using (6" DVL Close Clearance pipe and

any listed 2100° UL 103 HT. TYPE Chimney).

Without optional close clearance shield and pipe shield.

Model 21 minimum clearance to combustibles.

Figure 11

BACK WALL

LISTED 2100° UL 103 HT TYP. CHIMNEY

DO NOT OBSTRUCT

SIDE WALL

PROTECTOR PAD

RADIATION SHIELD

LISTED 2100° UL 103 HT TYP.

INSTALLATION

CEILING

SIDE WALL

A B C D E F G

MODEL 21 23” 9" 9" 10.5" 8" 6" 16"

NOTE: All clearances are to combustibles without close clearance shields and pipe shield, using DVL Close Clearance pipe and minimum floor protector.protector. The clearances above may be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 23 and 24).

Figure 12

CONTEMPORARY CAP

CAULK

STORM COLLAR

FLASHING

CEILING SUPPORT

DVL CLOSE CLEAR-

ANCE PIPE OR

SHIELDED

NEW BUCK

BUCK STOVE

Page 21

Page 24

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Residential and Mobile Home Installation

D. Vertical Wall Exit using (6" DVL Close Clearance Pipe and Elbow and any Listed

2100° UL HT chimney and Listed 2100° UL HT T-Box assembly). Without optional close clearance shield and pipe shield. NOTE: For minimum clearances (See Page 22, Figure 13).

1. Mark the plumb line on wall directly behind center of heater. (See Page 22, Figure 14).

NOTE: When using DVL Close Clearance Pipe, maintain manufacturer’s minimum clearances between pipe and ceiling.

2. Place vertical portion of heater pipe and elbow in position and project a point onto plumb line level with center of elbow.

3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe, maintaining clearances to ceiling as noted in (Page 21,Figure 14). This will give you center of hole for chimney penetration.

4. After locating center of penetration, install the tee-box and chimney, as per chimney manufacturer's specifications.

5. Connect the DVL close clearance pipe to tee-box, per manufacturer’s instructions, DVL close clearance pipe is to be connected with (3) sheet metal screws or rivets to connector collar on heater (See Page 22,Figure 14).

6. NOTE: If your local code requires outside air for residential installation, refer to pages

13-14 for outside air installation.

Page 22

Page 25

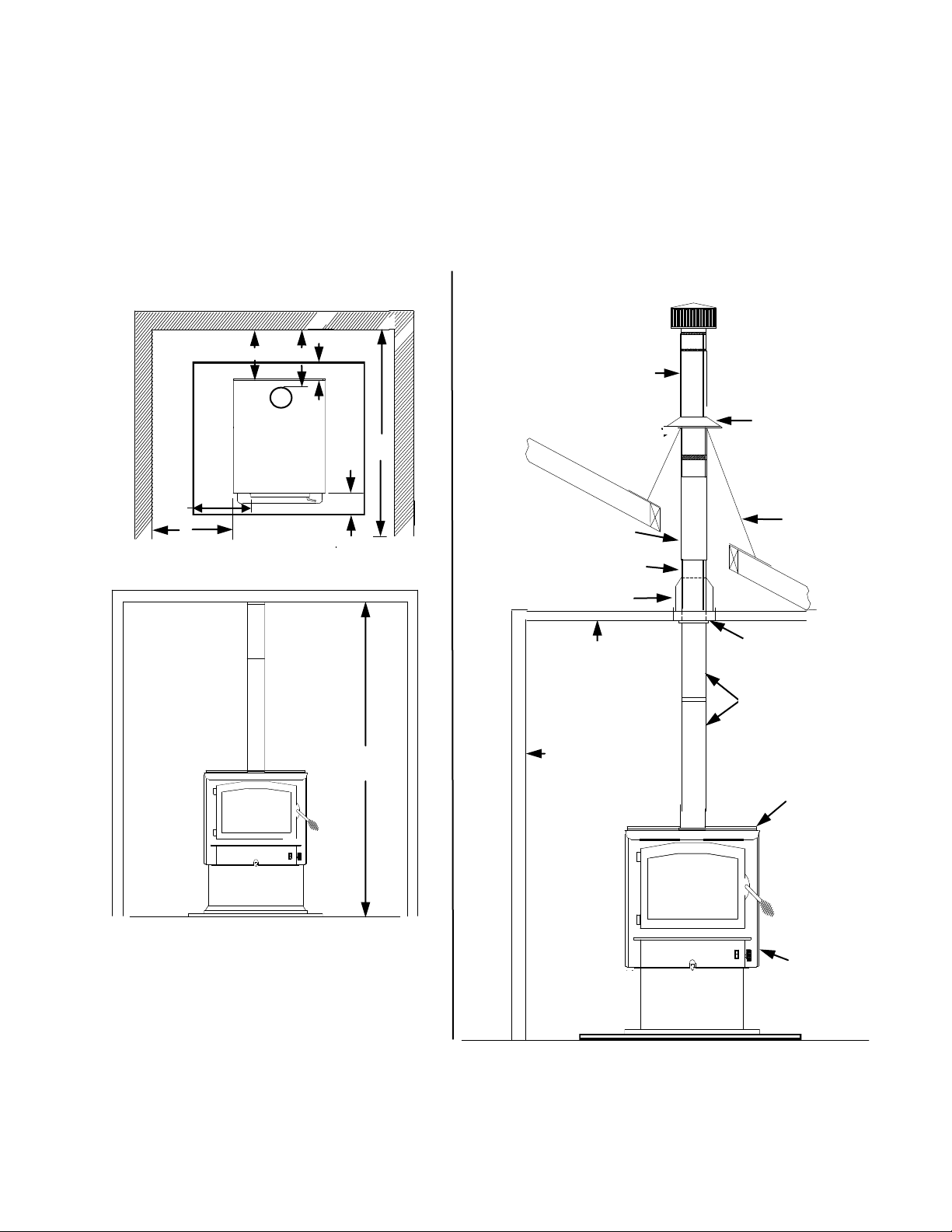

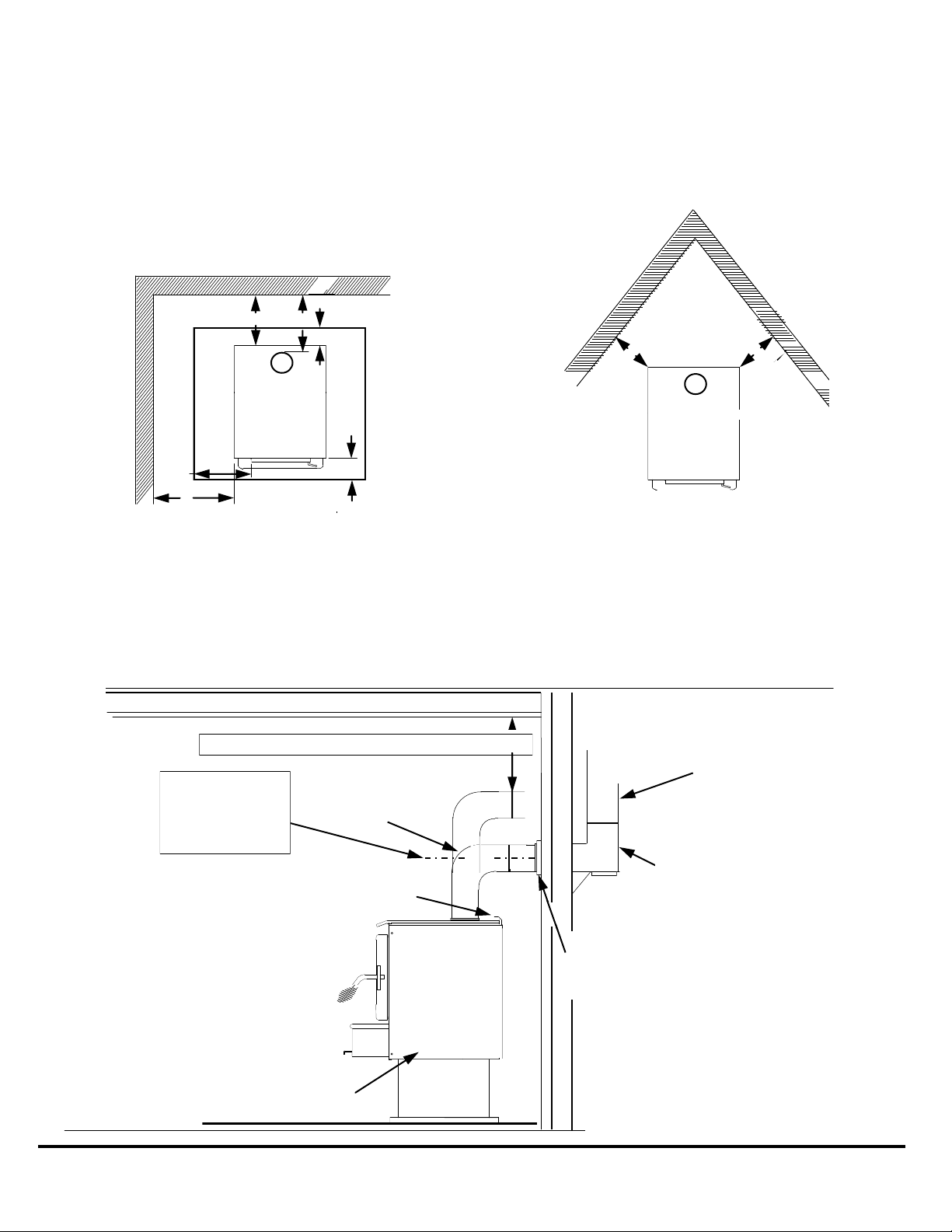

BACK WALL

Vertical wall exit using (6" DVL Close Clearance pipe with elbow)

and any listed 2100° UL 103 HT. TYPE Chimney

Listed 2100° UL HT T-Box assembly

and

Without optional close clearance shield and pipe shield.

Model 21 minimum clearance to combustibles.

BACK WALL

SIDE WALL

PROTECTOR PAD

A B C D E F G

MODEL 21 23” 9" 9" 10.5" 8" 6" 16"

Figure 13

NOTE: All clearances are to combustibles without close clearance shields and pipe shield, DVL Close Clearance pipe with elbow and minimum floor protector. The clearances above may be reduced. Follow NFPA-211 codes if available or follow instructions on (Pages 25 and 26).

LISTED 2100° UL 103 HT TYP.

CHIMNEY REEFER TO

CEILING

NOTE:

CENTER LINE

OF ELBOW MARK PLUMB LINE ON WALL

Figure 14

Maintain 18"Minimum Clearance

DVL CLOSE

CLEARANCE

PIPE

IN SIDE WALL

INSTALLATION INSTRUCTION

WALL PASS-THROUGH CONNECTOR

MANUFACTURER’S

LISTED 2100° UL 103 HT

TYP. CHIMNEY T-BOX

ASSEMBLY REEFER TO

MANUFACTURER’S

INSTALLATION

INSTRUCTION

Page 23

Page 26

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Residential and Mobile Home Installation

E. Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT

chimney). With optional close clearance shield and pipe shield. NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).

NOTE: For minimum clearances see page 24, figure 15.

If pedestal kit is being used and out side air is required (See Page 13).

2. After locating center of hole, install ceiling support box, chimney or chimney connector,

flashing and rain cap, per chimney manufacturer’s instructions and local building codes

for installation through combustible walls or ceilings.

4. NOTE: If your local code requires outside air for residential installation, refer to pages 15-16 for outside air installation.

Page 24

Page 27

BACK WALL

E. Vertical exit using (6" DVL Close Clearance pipe and

any listed 2100° UL 103 HT. TYPE Chimney).

With optional close clearance shield and pipe shield.

Model 21 minimum clearance to combustibles.

Figure 15

BACK WALL

SIDE WALL

PROTECTOR PAD

LISTED 2100° UL 103 HT TYP. CHIMNEY

DO NOT OBSTRUCT

RADIATION SHIELD

LISTED 2100° UL 103 HT TYP. CHIMNEY

INSTALLATION

Figure 16

CONTEMPORARY CAP

CAULK

STORM COLLAR

FLASHING

CEILING

SIDE WALL

optional pipe shield.

A B C D E F G

NEW BUCK

MODEL 21 19” 7" 7" 8.5" 8" 6" 16"

NOTE: All clearances are to combustibles with optional close clearance shields and pipe shield, using DVL Close Clearance pipe and minimum floor protector.

CEILING SUPPORT

DVL CLOSE

CLEARANCE PIPE

NOTE: See Page 33 for installation of optional close clearance shields and pipe shield

optional close

BUCK STOVE

clearance shield

Page 25

Page 28

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Residential and Mobile Home Installation

F. Vertical Wall Exit using (6" DVL Close Clearance Pipe and Elbow and any Listed

2100° UL HT chimney and Listed 2100° UL HT T-Box assembly). With optional close clearance shield and pipe shield NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).

NOTE: For minimum clearances (See Page 26, Figure 17).

If pedestal kit is being used and out side air is required (See Page 13).

1. Mark plumb line on wall directly behind center of heater. (See Page 26, Figure 18).

NOTE: When using DVL Close Clearance Pipe, maintain manufacturer’s minimum clearances between pipe and ceiling.

2. Place vertical portion of heater pipe and elbow in position and project a point onto plumb line level with center of elbow.

3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe, maintaining clearances to ceiling as noted in (Page 26, Figure 18). This will give you center of hole for chimney penetration.

4. After locating center of the penetration, install the tee-box and chimney, per chimney manufacturer's specifications.

5. Connect the DVL close clearance pipe to tee-box, per manufacturer’s instructions. DVL close clearance pipe is to be connected with (3) sheet metal screws or rivets to connector collar on heater.(See Page 26, Figure 18).

6. NOTE: If your local code requires outside air for residential installation, refer to pages

13-14 for outside air installation.

Page 26

Page 29

BACK WALL

Vertical wall exit using (6" DVL Close Clearance pipe with elbow

and any listed 2100° UL 103 HT. TYPE Chimney

Listed 2100° UL HT T-Box assembly

and

With optional close clearance shield and pipe shield.

Model 21 minimum clearance to combustibles.

BACK WALL

SIDE WALL

PROTECTOR PAD

A B C D E F G

MODEL 21 19” 7" 7" 8.5" 8" 6" 16"

Figure 17

NOTE: All clearances are to combustibles with close clearance shields and pipe shield, DVL Close Clearance pipe with elbow and minimum floor protector.

LISTED 2100° UL 103 HT TYP.

CHIMNEY REEFER TO

CEILING

Figure 18

NOTE:

CENTER LINE

OF ELBOW MARK PLUMB LINE ON WALL

NOTE: See Page 33 for installation of optional close clearance shields and pipe shield

Maintain 18"Minimum Clearance

DVL CLOSE

CLEARANCE

PIPE

optional pipe shield.

IN SIDE WALL

INSTALLATION INSTRUCTION

WALL PASS-THROUGH CONNECTOR

MANUFACTURER’S

LISTED 2100° UL 103 HT

TYP. CHIMNEY T-BOX

ASSEMBLY REEFER TO

MANUFACTURER’S

INSTALLATION

INSTRUCTION

optional close clearance shield

Page 27

Page 30

Ceiling Exit (Using Close Clearance listed chimney)

24 " min. (6 1 0 mm)

RA IN C A P

FLA S H IN G

RA DIA TION SH IELD

24" min. (610 mm)

RA IN C A P

FLA S H IN G

RA DIA TION SH IELD

36" TYP .

20 FT. MA X .

CEILING

ROOF

1. Suspend a plumb bob from ceiling above unit so that weight is hanging in center of flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where string is suspended to locate center of chimney hole.

2. After locating center of hole install ceiling support box, chimney flashing and rain cap. Only use 2100° UL 103 HT chimney and parts listed in this manual, per chimney manufacturer’s instruction.

REFER TO CHIMNEY MANUFACTURER’S INSTRUCTIONS FOR ASSEMBLY AND DISASSEMBLY OF CHIMNEY PARTS. BE SURE TO FOLLOW CHIMNEY INSTRUCTIONS FOR PROPER CLEARANCES TO COMBUSTIBLE AND PROPER AIR SPACING REQUIRED.

CAUTION

3. Add additional pipe until both of following are met: (a) Chimney pipe is 3 feet higher than roof at point where it penetrates roof. (b) Chimney pipe height is at least 2 feet higher than any part of roof within 10 feet of chimney.

(See Figure 19A).

RAIN CAP

36" TYP.

24" min.(610mm)

RAIN CAP

36" TYP.

Figure 19A

24" min.(610mm)

FLASHING

RADIATION

SHIELD

FLASHING RADIATION

SHIELD

20 ft. MAX

4. Using only double wall chimney connector listed in this manual (See Page 11), connect heater to chimney by following chimney manufacturer's installation instructions exactly. (See Figure 19B).

COLLAR

Figure 19B

3 SHEET METAL SCREWS

3 SHEET METAL SCREWS OR RIVETS

Page 28

Page 31

FINAL CHECK

1. Recheck specified clearances.

2. Remove all foreign material from firebox area.

3. Open primary air draft.

4. Plug power cord into a 115V AC outlet when using with optional motor. Do not run cord under unit or in high traffic areas.

5. Place crumpled pieces of newspaper in the stove. Light it and close the door. Ensure that stove draws properly through primary draft.

6. Check for smoke leaks around the door.

Open the door and check for smoke escaping from the front of stove. Smoking usually indicates a defective or poorly positioned chimney. Some chimneys with a marginal draft can be preheated by lighting newspaper and holding it near open damper with a poker or fire tong. Once the chimney heats up, a proper draft can usually be obtained.

If a thorough review of the Troubleshooting Guide in the manual does not reveal problem, contact your dealer for assistance.

CAUTION

The unit is painted with a specially formulated high temperature paint that cures during the first two or three firings. You may notice a slight smoking effect and an odor of burning paint when you build the first fires. This is normal and is not a cause for alarm. In some cases, these fumes will activate a smoke alarm. Opening a window near the unit will allow these fumes to escape. DO NOT build a large, roaring fire until this curing is complete or heater finish may be damaged.

Page 29

Page 32

SECTION V

ALCOVE INSTALLATION

AND CLEARANCES

Select an installation location that will give the best airflow from the front of the heater to

the remainder of the home

PREPARING THE STOVE FOR INSTALLATION

1. Inspect the unit for any obvious physical damage.

2. Plug the power cord into a 115V AC outlet to test the motor and fan when optional motor is being used. Do not run power cord under unit or in high traffic areas.

3. Check the primary air draft control to ensure that it slides freely.(See Figure 20).

4. Remove any items from within firebox. Spread a dropcloth on door behind heater. Next, tilt heater so that back is on the drop cloth.

5. If leg kit is to be used follow steps 1-6.

6. Then obtain four legs, attach legs to holes in bottom of unit with bolts and washers supplied with the leg kit. (See Figure 20).

7. Open freestanding kit and obtain stand. Place stand against bottom of heater (angle side to heater).Center stand front to rear and also center stand left and right. Mark screw locations on bottom of the stove through outer holes of stand mounting angles. Set stand aside and drill four 7/32" holes in heater bottom.Then mount stand to bottom of heater with screws provided. (See Figure 21).

8. Obtain four (4) 3/16" self-tapping screws and secure the stand to the heater.

9. Reposition the heater to the upright position.

HOLES FOR MOUNTING PEDESTAL

PRIMARY AIR

DRAFT CONTROL

Figure 20

Figure 21

PEDESTAL

Chimney

This model is designed for connection to any listed 2100º UL103 HT chimneys and parts. Follow chimneys manufacturer's instructions carefully.

This room heater must be converted to (1) a chimney complying with the requirements for Type HT chimneys in the Standard for chimneys, Factory-Built, Residential, Type and Building Heating Appliance, UL 103, or (2) a code approved masonry chimney with a flue liner.

Page 30

Page 33

Floor Protection:

Floor protection must be 3/8” minimum thickness non-combustible material or equivalent.

How to use alternate materials and how to calculate equivalent thickness

An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure:

1. Convert specification to R-value: R-value is given—no conversion is needed. K-factor is given with a required thickness (T) in inches: C-factor is given: R=1/C

3. If the overall R-value of the system is grater than the R-value of the specified floor protector, the alternate is acceptable.

Example:

The specified floor protector should be 3/4” thick material with a K-factor of 0.84. The proposed alternate is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a

K-factor of 0.29. Step (a): Use formula above to convert specification to R-value. R= 1/K x T = 1/0.84 x .75 =

0.893

Step (b): Calculate R of proposed system. 4” brick of C=1.25, therefore Rbrick = 1/C = 1/1.25

=0.80 1/8” mineral board of K = 0.29, therefore Rmin.bd. =1/029 x0.125 = 0.431

Step (c): Compare proposed system R of 1.231 to specified R of 0.893. Since proposed

system R is greater than required , the system is acceptable.

Definitions:

Thermal conductance = C =

Btu

(hr)(ft²)(°F) (m²)(°K)

Thermal conductance = K =

(Btu)(inch)

(hr)(ft²)(°F) (m)(°K) (hr)(ft)(°F)

(Btu)

Thermal conductance = R =

(ft²)(hr)(°F)

Btu W

(m²)(°K)

Install in accordance with 24 CFR, Part 3280 (HUD).

Page 31

Page 34

HOW TO LOCATE CHIMNEY EXIT AND INSTALL

Alcove Installation

Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney).

With optional close clearance shield and pipe shield. NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).

NOTE: For minimum clearances (See Page 32, Figure 22).

1. Suspend a plumb bob from ceiling above unit so that weight is hanging in the center of

flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where string is suspended to locate the center of the chimney.

2. After locating center of hole, install the ceiling support box, chimney or chimney

connector, flashing and rain cap, per chimney manufacturer’s instructions and local

building codes for installation through combustible walls or ceilings.

3. Now connect stove and ceiling support box using DVL close clearance pipe.

Connect each section per manufacturer’s instructions. Secure each section to each other using minimum (3) sheet metal screws or rivets. DVL close clearance is to be connected with (3) sheet metal screws or rivets to connector collar on heater.(See Page 27,Figure 19B).

4. NOTE: If your local code requires outside air for residential installation, refer to pages

13-14 for outside air installation.

Page 32

Page 35

ALCOVE INSTALLATION

BACK WALL

AND CLEARANCES

Vertical exit using (6" DVL Close Clearance pipe and

any listed 2100° UL 103 HT. TYPE Chimney).

With optional close clearance shield and pipe shield.

Model 21 minimum clearance to combustibles.

Figure 22

Figure 23

SIDE WALL

A B C D E F G H

MODEL 21 19” 7" 84" 8.5" 8" 6" 16" 48"

NOTE: All clearances are to combustibles with optional close clearance shields and pipe shield, using DVL Close Clearance pipe and minimum floor protector.

BACK WALL

PROTECTOR PAD

BUCK STOVE

LISTED 2100° UL 103 HT TYP. CHIMNEY

DO NOT OBSTRUCT

RADIATION SHIELD

LISTED 2100° UL 103 HT TYP. CHIMNEY

INSTALLATION

CEILING

SIDE WALL

NEW BUCK

CONTEMPORARY CAP

CAULK

STORM COLLAR

FLASHING

CEILING SUPPORT

DVL CLOSE

CLEARANCE PIPE

optional pipe shield.

NOTE: See Page 33 for installation of optional close clearance shields and pipe shield

optional close clearance shield

BUCK STOVE

Page 33

Page 36

Installation of (Optional) Close Clearance Shields and Pipe Shield

1. Taking close clearance side shields, hold up to side of stove leaving 1/4" gap between shield and top of stove.

2. Make reference mark in center of pre-punched hole in top & bottom of shield. Drill two (2) 3/32" holes in back of unit on each side. Insert self tapping screws in through shield into stove.(SEE PICTURE BELOW)

3. Drill two (2) 3/16" holes in the sides of the stove where the shield meets the front side. Insert two (2) 3/8" self-tapping screws. (SEE PICTURE BELOW)

4. Next loosen two (2) top screws holding side shield at rear top. Insert pipe shield where back

shield and top rear side shield meets. Leave a 1” gap from the top of stove to the pipe shield,

tighten screws.(SEE PICTURE BELOW)

Pipe Shield

Loosen these top shield screws

13/16” TYP.

1” TYP.

1/4” TYP.

Close Clearance Shields

Installation of (Optional) Pipe Shield

Installation of (Optional) Close Clearance Shields

Page 34

Page 37

FINAL CHECK

1. Recheck specified clearances.

2. Remove all foreign material from firebox area.

3. Open primary air draft.

4. Plug power cord into a 115V AC outlet when using with optional motor. Do not run cord under unit or in high traffic areas.

5. Place crumpled pieces of newspaper in the stove. Light it and close the door. Ensure that stove draws properly through the primary draft.

6. Check for smoke leaks around the door.

Open door and check for smoke escaping from front of stove. Smoking usually indicates a defective or poorly positioned chimney. Some chimneys with a marginal draft can be preheated by lighting newspaper and holding it near the open damper with a poker or fire tong. Once the chimney heats up, a proper draft can usually be obtained.

If a thorough review of the Troubleshooting Guide in the manual does not reveal the problem, contact your dealer for assistance.

CAUTION

Page 35

Page 38

SECTION VI

OPERATION

This section of the manual is to help you get the maximum efficiency and maximum smoke (particulate) reduction from your heater. If you should experience any difficulty or have any questions concerning your heater, contact your dealer for assistance. The manufacturer recommends that for maximum performance burn dried natural seasoned hard wood.

Build a fire for maximum efficiency. These models burn wood and extract heat so efficiently, a large fire is not necessary. A large fire not only wastes energy, it usually results in the home being too warm for comfort.

The following steps will serve as a guide for operating your stove.

BUILDING A FIRE

1. Open door.

2. Open primary air control under hearth, push in. To close pull all the way out.

3. Twist two pieces of non-colored newspaper into a roll and place them on the floor of firebox.

4. These models are not designed for the use of grates, andirons or other methods of supporting fuel.

NOTE: Do not use grate or elevate fire. Build wood fire directly on inner bottom of fire

box.

5. Lay several pieces of dry kindling on top of newspaper.

6. Place three or four small pieces of firewood, 2-3" in diameter, on top of kindling.

7. Light newspaper in the front. Close and latch door. Don't leave fire unattended at this point. The draft system of heater should start quickly. It may be necessary to preheat chimney to get the draft started. To do this, open door and add newspaper to top rear of wood. Light or let this paper ignite and allow to burn while holding door slightly cracked. Once draft has started, close and lock door. You are over heating the unit if the chimney and or connector glows red.

8. After embers and a coal bed have been established, load heater with dried natural seasoned hard wood.

NOTE: THE FUELING DOOR MUST REMAIN CLOSED DURING OPERATION. NOTE: If optional blower is being used on the Model 21. Your stove is equipped with a

automatic thermostat. When the stove gets hot enough, the thermostat will activate the room air blower. Set fan speed according to desired heat output.

NOTE: When refueling or removing ashes turn “OFF” room air blower. Be sure to turn room

air blower back on when finished.

NOTE: Do not run power cord underneath heater or in walk way or heavy traffic areas.

Page 36

Page 39

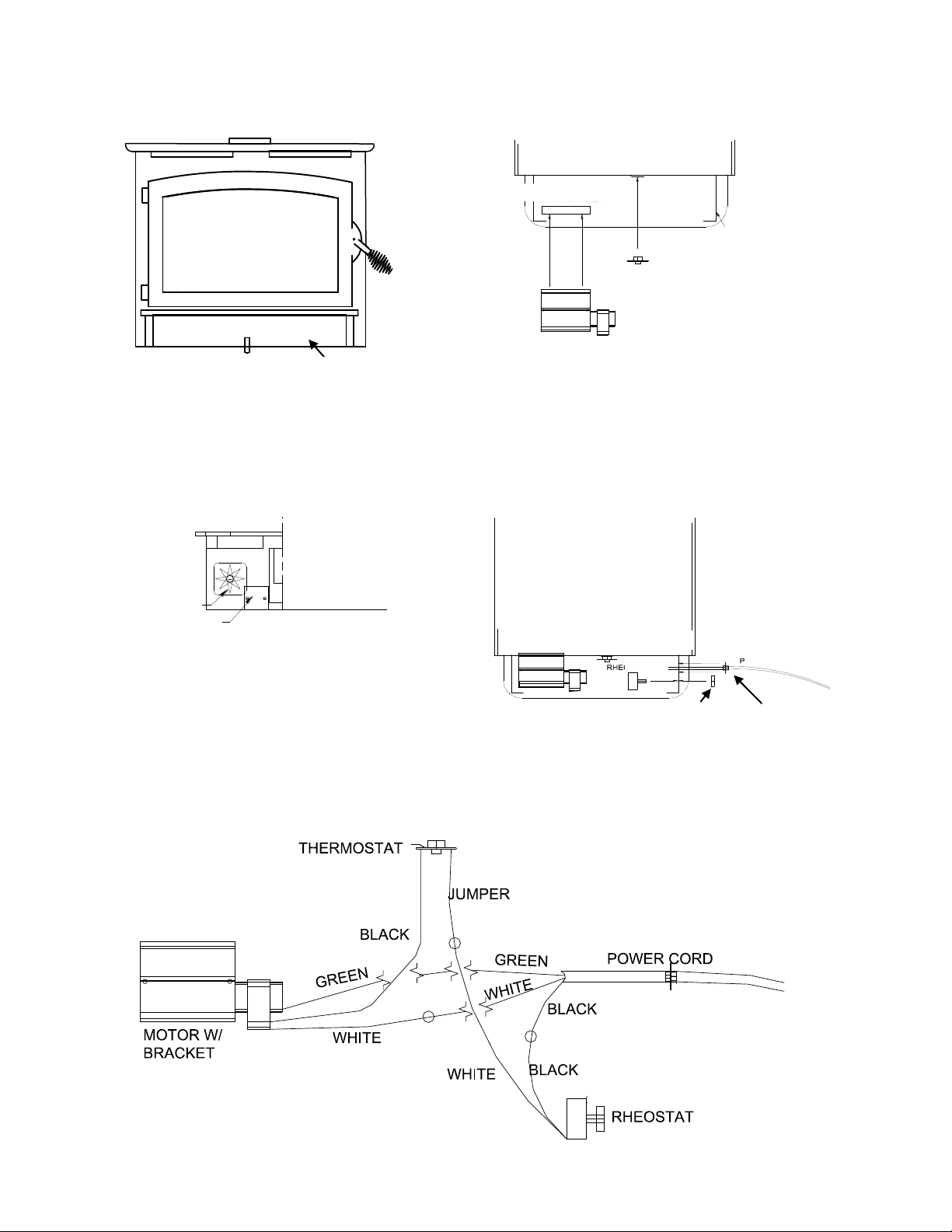

OPTIONAL MOTOR ASSEMBLY KIT INSTALLATION

INSTRUCTIONS

STEP 1: REMOVE ACCESS DOOR PANEL LOCATED AT BOTTOM OF UNIT.

YOUR MOTOR ASSEMBLY COMES WITH A BRACKET ALREADY ATTACHED TO THE MOTOR. ALIGN THE HOLES IN MOTOR BRACKET

WITH HOLES IN MOTOR MOUNT. SECURE BRACKET WITH TWO ½”

HEX HEAD SCREWS PROVIDED.

STEP 2: REMOVE THE PROTECTIVE BACKING OFF THE RHEOSTAT INDICAT-

ING LABEL AND PLACE THE HOLE IN CENTER OF LABEL TO LINE UP WITH HOLE IN THE RIGHT SIDE HEARTH SUPPORT AS YOU FACE

THE UNIT. PLACE LABEL SO “OFF” POSITION IS AT THE 8 O’CLOCK POSITION AND “LOW” IS AT 4 O’CLOCK POSITION. MOUNT RHEO-

STAT BY PLACING IT BEHIND HEARTH SUPPORT WITH WIRES ON BOTTOM SIDE. PLACE PLASTIC STUD SUPPORT WITH WIRES ON BOTTOM SIDE. PLACE PLASTIC STUD THROUGH HOLE IN BRACKET AND SECURE WITH RHEOSTAT MOUNTING NUT. PLACE INDICATOR KNOB ON PLASTIC STUD.

STEP 3: REMOVE STRAIN RELIEF COVER FROM HEARTH SUPPORT AND

DISCARD. MOUNT POWER CORD STRAIN RELIEF HOLDER IN

COVER MOUNTING HOLES. PLACE THERMOSTAT BEHIND “C” CLIP

LOCATED UNDER HEARTH TO THE RIGHT OF MOTOR. USE CABLE TIE TO SECURE LOOSE WIRES.

STEP 4: REINSTALL ACCESS DOOR PANEL.

STEP 5: PLUG POWER CORD INTO SUPPLY OUTLET. PLACE RHEOSTAT INDI-

CATING KNOB IN POSITION DESIRED. WHEN HEATER REACHES TEMPERATURE, FAN WILL OPERATE AT DESIRED SPEED.

IT WILL BE NECESSARY TO OCCASIONALLY CLEAN FAN BLADES FOR MAXIMUM PERFORMANCE. DUST AND DIRT BUILDUP ON FAN BLADES WILL SHORTEN MOTOR LIFE AND RESTRICT AIR FLOW WHICH COULD DAMAGE MOTOR.

Page 37

Page 40

STEP 1

MODEL 21

NON-CAT

MODEL 51

NON-CAT

MODEL 26

NON-CAT

Buck

St ove

Buck

St ove

Buck

St ove

MODEL 51

NON-CAT

MODEL 26

NON-CAT

Buck

St ove

Buck

St ove

MOTOR BRACKET

STEP 2

INDICATOR LABEL

STRAIN RELIEF COVER PLATE

ACCESS DOOR PANEL

RIGHT SIDE HEARTH SUPPORT

MOTOR WITH BRACKET

STEP 3

THERMOSTAT

RHEOSTAT

RIGHT SIDE HEARTH SUPPORT

POWER CORD

WIRE DIAGRAM

Page 38

RHEOSTAT KNOB

STRAIN RELIEF HOLDER

Page 41

OPTIONAL MOTOR KIT ASSEMBLY PARTS

1 - MOTOR (NON-CAT) 1 - MOTOR BRACKET 6 - #10 - 16 X 1/2” HEX HEAD 1 - #6 - 32 X 1/2” SLOT HEAD SCREW 5 - 1/8” X 1” BLACK FLAT GASKET WITH ADHESIVE 1 - JUMPER WIRE 4” MALE & FEMALE TERMINAL 1 - 110 THERMOSTAT 1 - RHEOSTAT 1 - RHEOSTAT NUT 1 - RHEOSTAT INDICATOR KNOB 1 - RHEOSTAT LABEL 1 - POWER CORD 1 - STRAIN RELIEF 1 - 6” WIRE TIE 1 - STRAIN RELIEF HOLDER (METAL) 1 - WIRE TIE FOR POWER CORD 1 - INSTRUCTIONS

Page 39

Page 42

SECTION VII

MAINTENANCE

BRICK LAYOUT

Page 40

Page 43

MAINTENANCE

DOOR GASKET REPLACEMENT (COLD HEATER)

To replace deteriorated gaskets, following steps must be taken to ensure proper installation of gaskets.

1. Obtain proper gaskets and silicone glue from your local dealer.

2. Using pliers, remove any worn and deteriorated gaskets.

3. Using a scraper, wire brush and sandpaper or steel wool, clean glue and gasket residue from door frame.

4. Measure and cut gaskets to length. Care should be taken not to stretch gaskets. What you want is a full and loose gasket weave after attachment to framing.

5. Obtain silicone glue and run a 3/16” bead inside door frame.

6. Obtain gasket (s) and place in gasket channel areas starting at lower right corner, see below. Use a technique which assures that gasket is applied in a loose like manner. DO NOT STRETCH GASKETS.

7. After gasket (s) are applied to glue, use your finger and go over all gasket gently pressing gasket to the channel. Use same pressure against gasket so that final result is an evenly applied gasket.

8. Leave door open and allow at least two (2) hours for glue to dry.

9. Once gaskets are checked, heater is ready for use.

10. This should be done annually. Allowing gaskets to deteriorate can cause over-firing and shorten burn time.

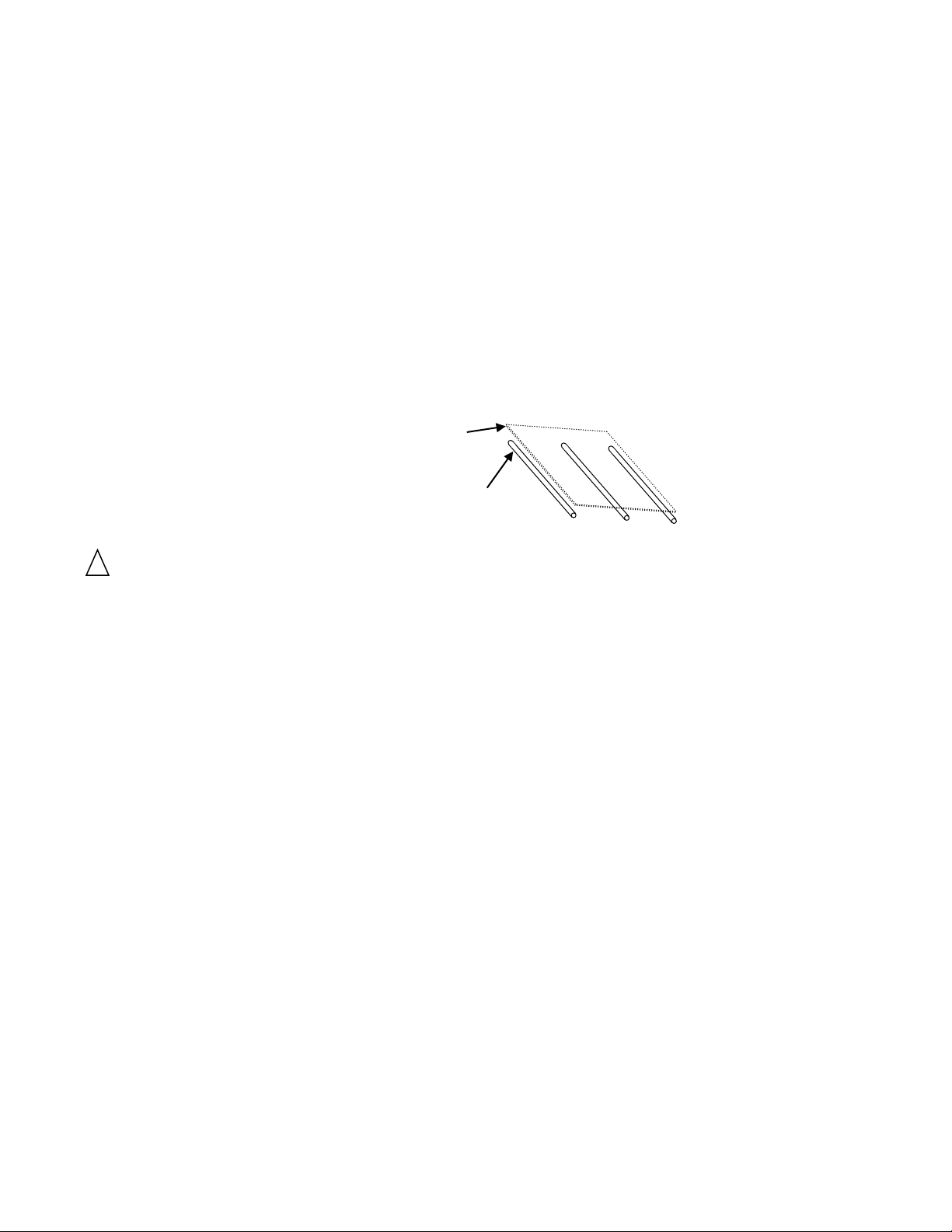

ROPE GASKET

START HERE

SILICONE

Page 41

Page 44

MAINTENANCE

CHECK CHIMNEY

A. Chimney should be inspected twice a year. B. The chimney should be cleaned as necessary to remove creosote, soot, leaves, birds’ nests, etc.

Before sweeping the chimney a few steps must be done.

1. Open feed door and remove the 1st Secondary Air Tube by removing cotter pin up in right side facing stove. Remove Air Tube and cotter pin, set aside.

2. Remove Baffle Board set aside.

3. Close feed door for cleaning chimney so debris don't fall out feed door while cleaning chimney.

4. Creosote and debris will fall into the bottom of the stove unit from the cleaning.

5. Clean out all the creosote and debris from inside stove unit, if any is left from clean sweeping chimney.

Replace Baffle

NOTE:

burning materials from escaping chimney and to keep birds and foreign materials from entering.

NOTE: Some areas may require an approved spark arrestor.

A. The heater should not be cleaned with any type of detergent as most all detergents have an oil base

and cannot be painted over.

B. The heater should be lightly sanded with fine sandpaper or steel wool, then repainted or touched up

with high temperature paint.

C. If the heater is located in a moist or damp location, check thoroughly for signs of condensation

during times when heater is not in use.

D. When heating season is over, heater should be cleaned out completely with a wire brush or cloth to

help eliminate ash and burned wood smell.

The glass door on your heater permits you to enjoy the beauty of the fire while retaining efficiency of your heater. Although brand of glass used in heater door has well established and recognized heat resistant and strength characteristics, it can be broken through improper care. To achieve maximum utility and safety of your glass door, we advise that you observe following use and safety tips:

1. Inspect glass regularly for cracks or breaks. If you detect a crack or break extinguish fire immediately and return door to your dealer for glass replacement before further use.

2. Do not slam heater door or otherwise impact glass. When closing door, make sure that no logs or other objects protrude or impact against glass.

3. Do not clean glass with materials which may scratch it (such as steel wool) or otherwise damage

The glass can be cleaned with a commercial oven cleaner, providing it does not contain abrasives. A build-up on glass that has been there for a considerable length of time can be burned off with a propane

glass. Scratches on the glass can develop into cracks or breaks.

Board

and 1st Secondary Air Tube reverse steps 1-3

INSULATION BOARD

1ST SECONDARY AIR TUBE

A chimney cap should be installed to prevent moisture from entering chimney, to prevent sparks and

CLEANING THE HEATER

CARE OF GLASS DOOR

Page 42

Page 45

SECTION VIII

WOOD HEATER SAFETY

Certain safety hazards are inherent in any wood heater installation. You should be aware of these so that a safe and proper installation can be made.

1. FAULTY CHIMNEY: An older masonry chimney should be thoroughly checked to be sure there are no holes or weak spots which could allow sparks or hot gases to escape.

2. HEAT CONDUCTION: Placing combustible materials too close to a heater or chimney can be a fire hazard.

By keeping these particular hazards in mind as you install and use your room heater you can ensure a safe, reliable installation.

The chimney and chimney connector should be inspected once every two months. Any build-up of soot should be removed to prevent risk of a chimney fire. To remove chimney or chimney connector, remove screws or fasteners then remove pipe and clean with steel brush. Replace chimney or chimney connector. Replace screws and/or fasteners.

NEVER USE GASOLINE, GASOLINE TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START OR "FRESHEN UP" A FIRE IN THE HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM STOVE WHEN IT IS IN USE. ALL FLUIDS OF THIS TYPE GIVE OFF VOLATILE FUMES AND CAN AND WILL EXPLODE! DON'T TAKE A CHANCE WITH SAFETY OF YOUR HOME AND FAMILY.

CAUTION: Never remove ashes from heater with blower running. DISPOSAL OF ASHES: Ashes should be placed in a metal container with a tight fitting lid.

The closed container of ashes should be placed on a noncombustible floor or on the ground, well away from all combustible materials pending final disposal. If ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in closed container until all cinders have thoroughly cooled.

CREOSOTE—FORMATION AND NEED FOR REMOVAL: When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on flue lining. When ignited this creosote makes an extremely hot fire.

CAUTION

Page 43

Page 46

REPLACEMENT PARTS

FOR MODEL 21

PAGE 1

NOTE: For replacement parts use only manufacturer’s specified parts.

Description Quantity Part No.

1. Door Gold 1 PC212400-G

2. Door Black 1 PC212400-B

3. Door Pewter 1 PC212400-P

4. Door Handle 1 PO210092

5. Retrofit Door Bushing 1 PO210102

6. Thin Spacer 1 PO910104

7. Retrofit Door Handle Spacer 1 PO21SPACER

8. Retrofit Handle Latch 1 PO910106

9. Door Latch Washer 1 PH316916FW

10. Door Latch Screw 1 PH102212FUH

11. Door Roping 3/4" 1 RPFR2LD.750G

12. Glass Gasket 1 RPTKW197X.875GA

13. Door Glass 1 PG2124GL

14. Firebrick 1 PR900050

15. Glass Clips Small 1 PO210767

16. Glass Clip Screws Hex/Washer Slot Machine Screw 10-32 X 1/2” 10 PH103211HWHMC

17. Cotter Pin 3 PH182CPSS

18. Spring Handle 1 PO100150

19. Inner Firebox Air Tubes 3 PO210026

20. Hearth Trim Black 1 PO810705-BLK

Page 44

Page 47

REPLACEMENT PARTS

FOR MODEL 21

PAGE 2

NOTE: For replacement parts use only manufacturer’s specified parts.

Description Quantity Part No.

21. Primary Air Plate 1 MF201034

22. Screws for Primary Air Plate to Air Control Rod Hex/Washer Slot Machine Screw 10-32 X 1/4” 2 PH103214HWHSM

23. Air Control Rod 1 MF201035

24. Front Air Control Bracket 1 MF740017

25. Screws for Front Air Control Bracket to Stove Hex/Washer Self Drilling Screw 1/4-14 X 1” 2 PH14141TEKP

26. Top Baffle Board 1/2” X 9 1/2” X 19” 1 POBPFB01

30. Rheostat-Opt. -Optional 1 PEBC204

31. Rheostat Knob -Optional 1 PEBC204A

32. Indicator Label -Optional 1 PEKB9724

33. Thermostat 110 disc -Optional 1 PE400132

34. Power Cord -Optional 1 PE400240

35. Strain Relief -Optional 1 PE400320

36. Blower Kit -Optional 1 MA5126715

37. Motor Only -Optional 1 PESBRO84 38 Close Clearance Shields-Optional 1 MA21SHIELD

Page 45

Page 48

SECTION IX

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Sluggish Heater Obstruction in chimney Check for and remove

obstruction

Improperly sealed trim kit or

direct connect kit

Manual damper in chimney is

closed

Wet or unseasoned wood

being burned

Poor chimney draft Improper chimney height or

(a) Check trim kit gasketing

seal to fireplace and gasket as necessary to seal unit. Gasket under front bottom of stove if needed.

(b) Check seal if using direct

connect and correct

Open manual damper and wire shut with stainless steel wire or remove damper

Burn dried natural seasoned hard wood

wrong size flue is being used. Cooler temperatures caused by external chimney

Page 46

Page 49

PROBLEM POSSIBLE CAUSE SOLUTION

High fuel consumption Improper regulation of draft

or inlet air

(a) Close inlet air control as

much as possible to maintain desired heat output

(b) Check gaskets, reinstall

fiberglass gasketing round doors and glass as necessary

Improper door fitting Check door gasket, check

adjustment of door latch

Backpuffing Gusts of Wind (a) Smoke shelf in chimney

is filled with creosote & ash

(b) Chimney may need wind

diverter. Raise chimney for better draft

Smoke rollout when heater door is opened

Wind gusts blowing down the chimney

(a) Smoke shelf in chimney

is filled with creosote & ash

(b) Chimney may need wind

diverter. Raise chimney for better draft

Opening heater door too fast Crack door for 15 seconds

before fully opening door

Page 47

Page 50

NEW BUCK CORPORATION (NBC)

"LIMITED WARRANTY" FOR THE BUCK STOVE

PLEASE READ THIS WARRANTY CAREFULLY

PRODUCTS COVERED

This warranty covers the new Buck Stove heating unit, so long as it is owned by the original purchaser, including optional and standard accessories purchased at the same time, subject to terms, limitations and conditions herein set out.

PRODUCTS NOT COVERED This warranty does not cover the following:

Glass, Refractory Material, Firebrick or Gaskets.

This Warranty will not cover any damage and/or failure caused by abuse or improper installation of the products covered.

WARRANTY TIME PERIODS

(A) Period I

For one year from the date of purchase, NBC will replace or repair, at its option, any part defective in materials or workmanship. The costs of parts only are included. The customer pays any labor or transportation charges required.

Thereafter,

(B) Period II

For period after first year from date of purchase and extending for five years as long as Buck Stove is owned by the original purchaser, NBC will repair or replace, at its option, any part defective in materials or workmanship, with the exception of, electrical motors, wiring, switches, components, optional and standard accessories; and all parts not permanently attached to heating unit. Parts not permanently attached to heating unit are defined as those items designed to be removed from stove, including those removable with common hand tools. The costs of parts only are included. The customer pays any labor or transportation charges required.

PROCEDURE

Should you feel that your BUCK STOVE is defective, you should contact any Buck Stove dealer for the name of your nearest authorized Buck Stove service representative, who will instruct you on the proper procedure, depending on which Warranty Time Period (Period I or Period II) applies.

Page 48

Page 51

If for any reason you are dissatisfied with suggested procedures, you may contact us in writing at:

New Buck Corporation Customer Service Department P. O. Box 69 Spruce Pine, NC 28777 Email: [email protected]

CONDITIONS AND EXCLUSIONS

(A) Replacement of parts may be in the form of new or fully reconditioned parts, at NBC's

option.

(B) There is no other express warranty. All implied warranties of merchantability and fitness for

use are limited to the duration of the Express Warranty.

connection with use of product including any cost or expense of providing substitute equipment or service during periods of malfunction or non-use. Some states do not allow the exclusion of incidental or consequential damages, so above exclusion may not apply to you.

(D) All warranty repairs under this warranty must be performed by an authorized Buck Stove

service representative. Repairs or attempted repairs by anyone other than an authorized service representative are not covered under this warranty. In addition, these unauthorized repairs may result in additional malfunctions, the correction of which is not covered by warranty.

OTHER RIGHTS

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

OWNER REGISTRATION CARD

The attached Owner Registration Card must be completed in its entirety and mailed within 30 days from the date of purchase or from the date of installation, if installed by a factory certified installer, to New Buck Corporation in order for warranty coverage to begin.

PLEASE NOTE: The Owner Registration Card must contain the Authorized Buck Stove

Dealer Code Number and the Certified Installer's number (if applicable) for warranty coverage to begin.

To be completed by selling distributor/ dealer/ customer: Name________________________________________________________________________

(Last) (First) Address ______________________________________________________________________

City ________________________________________ State ________ Zip ________________ CUSTOMER EMAIL::_________________________________________________________

MODEL 21 - Serial Number _____________________________________________________ Date of Installation: Day _______________ Month ________________ Year _____________

Installer’s Name _______________________________________________________________ Installer’s Certification Number __________________________________________________ Dealer’s Name ________________________________________________________________

City ________________________________________ State ________ Zip ________________
